Summit 36 inch wide ADA compliant 68 bottle built-in dual zone wine cellar with two seamless stainless steel trimmed glass doors, digital controls, and locks, 7.61101e+011, SWC3668ADA

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

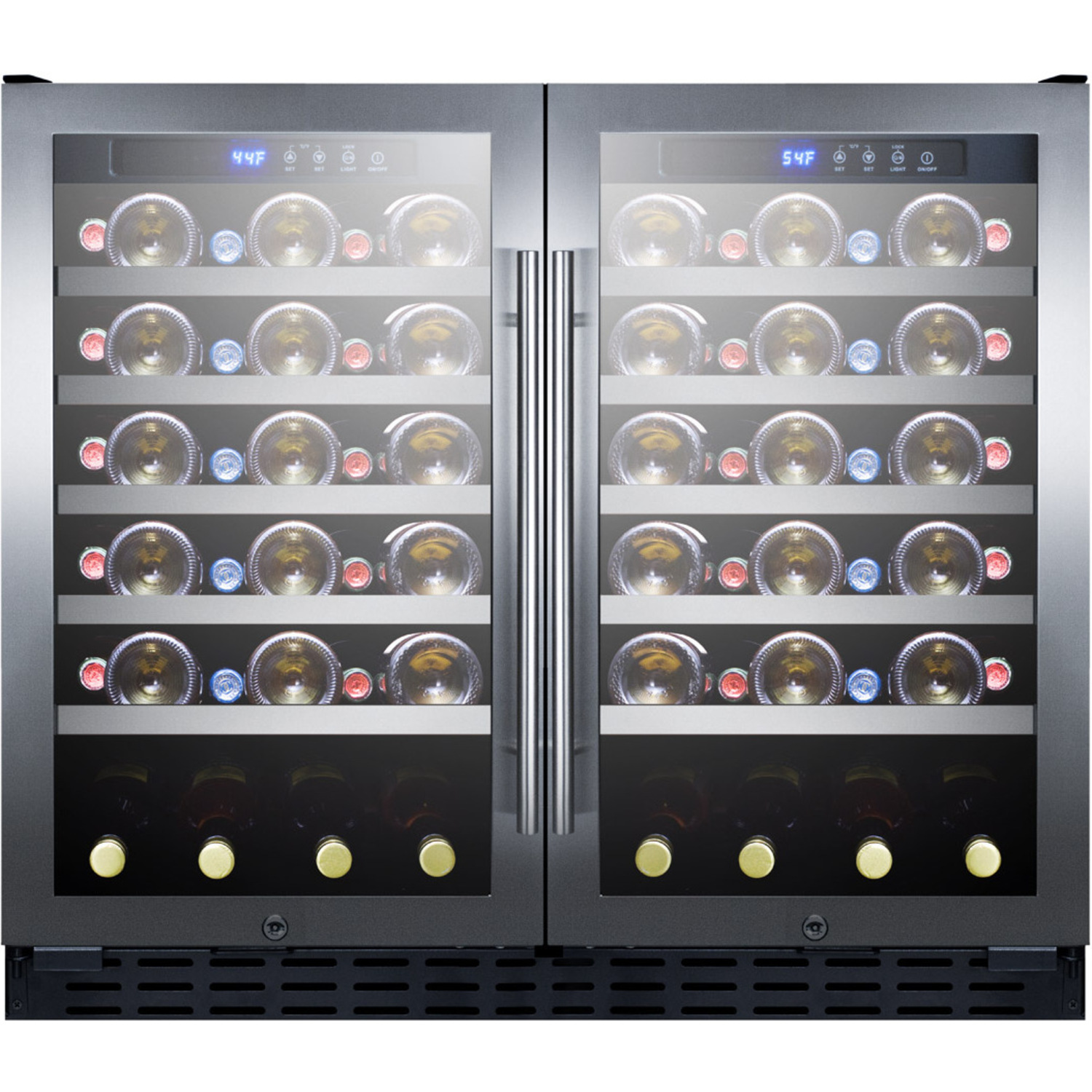

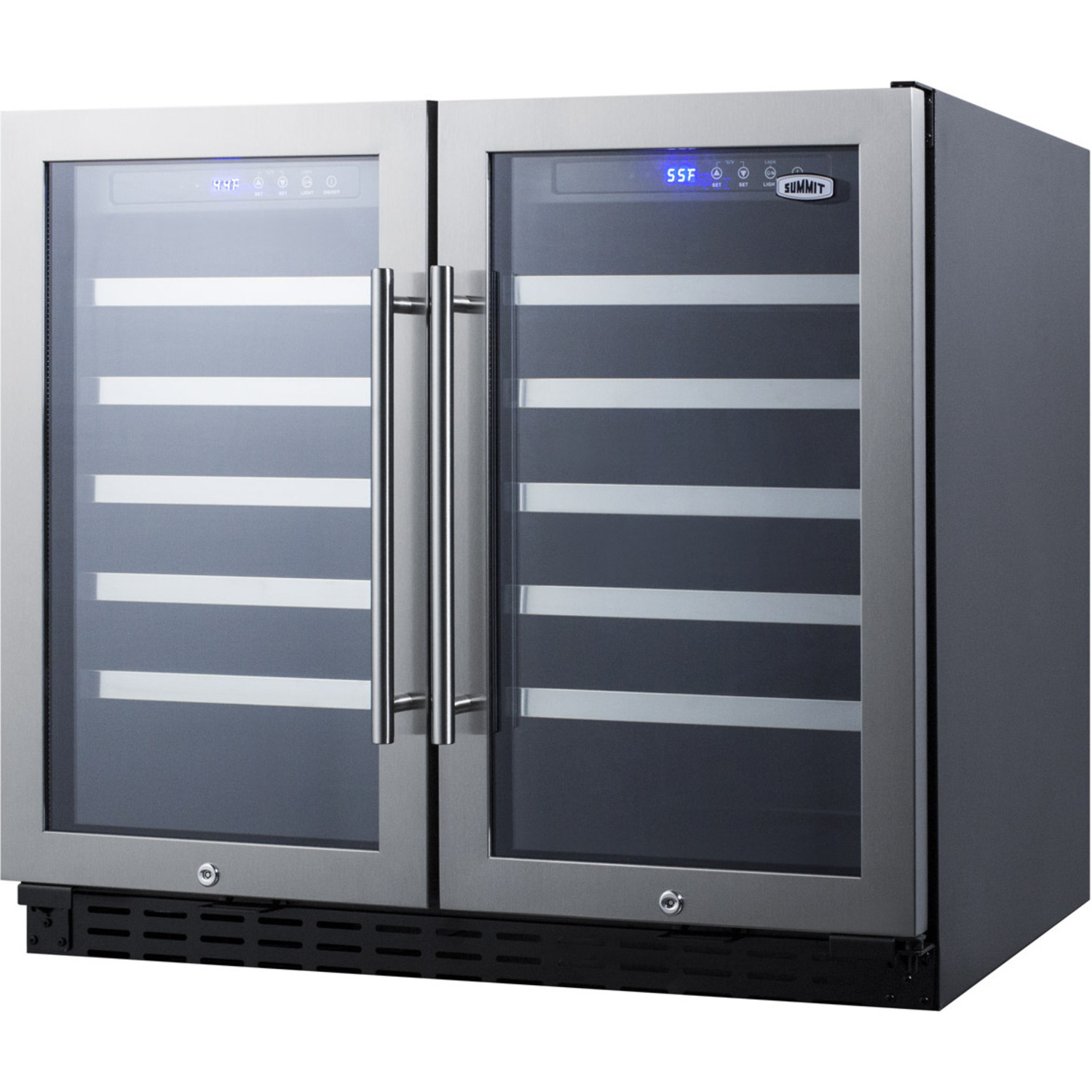

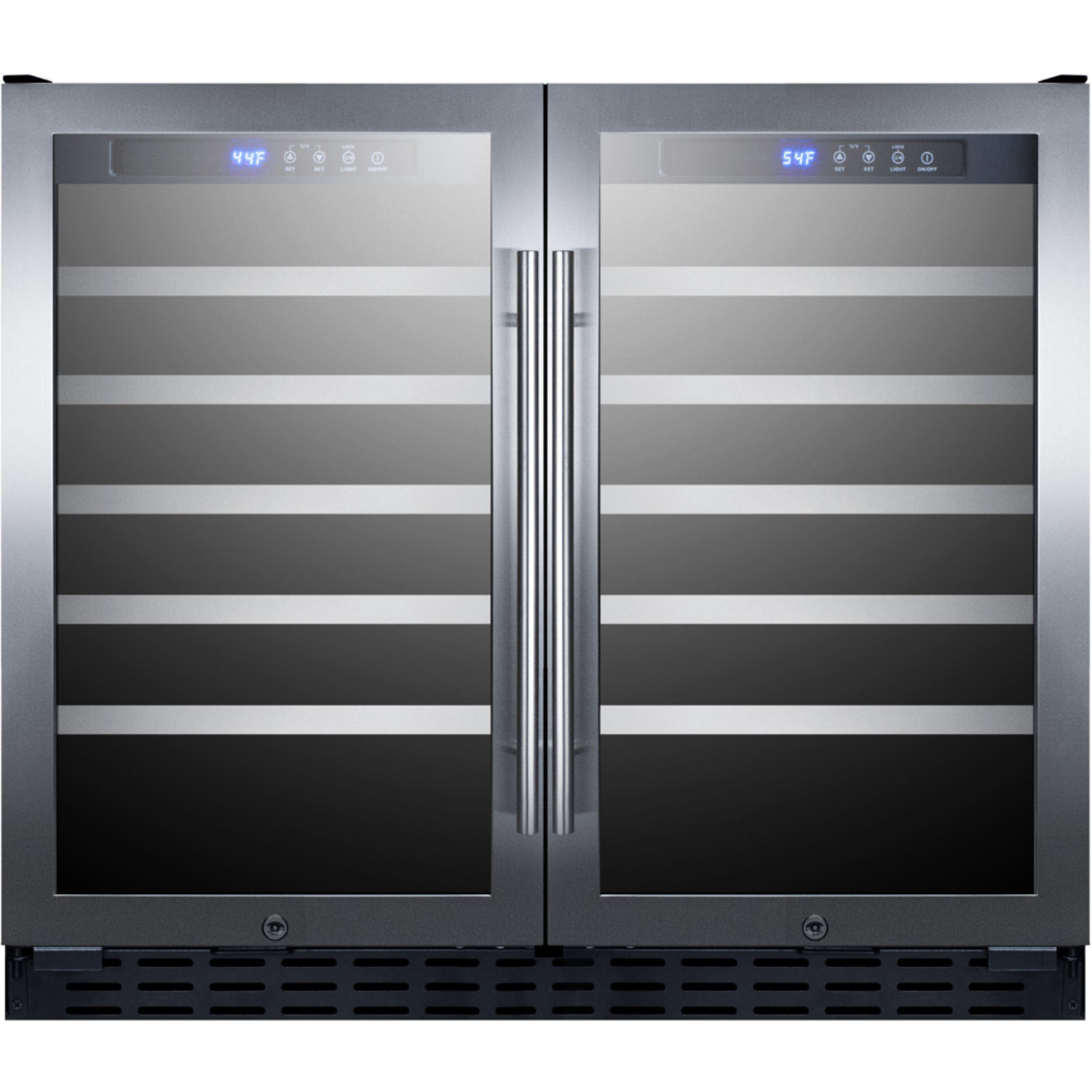

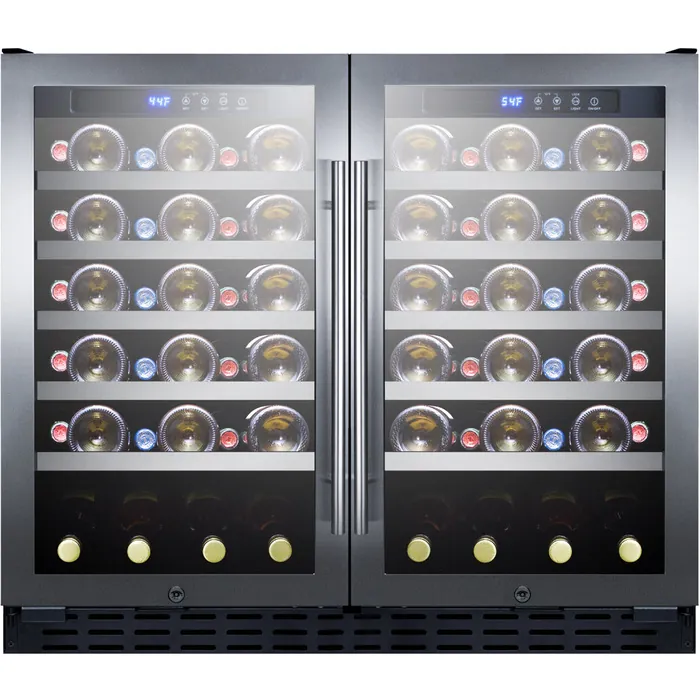

At just under 32" high and 36" wide, the SWC3668ADA wine cellar is designed for built-in installation under lower ADA compliant counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look.

Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style.

With a professional look and innovative design, SUMMIT SWC3668ADA is a unique addition to any home. Nominal Height: 32
Height of Cabinet: 31.5
Height to Hinge Cap: 0
Nominal Width: 36
Width: 35.38
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.25
Depth with door at 90°: 39.75
Capacity: 0
Bottles: 68Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.5" (80 cm)

Nominal Width 36.0" (91 cm)

Width 35.38" (90 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.25" (64 cm)

Depth with door at 90° 39.75" (101 cm)

Bottles 68 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 151.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101054940

Wine Cellar

Number of Zones 2

Door Swing French

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 10

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Interior Height 1 23.0" (58 cm)

Interior Width 1 14.0" (36 cm)

Interior Depth 1 18.0" (46 cm)

Compressor Step Height 5.0" (13 cm)

Compressor Step Width 14.0" (36 cm)

Compressor Step Depth 5.0" (13 cm)

Level Legs 4

Temperature Range 40 to 72ºF

Interior Height 2 23.0" (58 cm)

Interior Width 2 14.0" (36 cm)

Interior Depth 2 18.0" (46 cm)

Sound Level 36.0 dB

FEATURES

ADA compliant height Less than 32" high to fit under lower counters following ADA guidelines for accessibility

Built-in capable Make the best use of space by installing this unit under the counter and flush with other cabinetry

Dual zone design Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions

68 bottle capacity Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles

Recessed LED lighting Gentle and energy efficient LED lighting offers an elegant view of your collection

Digital thermostats Each zone is equipped with electronic temperature controls for easy and intuitive temperature management

Wooden shelves Stainless steel trimmed wooden shelves with a jet black finish for a modern look

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Glass doors French door swing for a more dramatic presentation

Seamless stainless steel trim Door trim is completely seamless for a more luxurious look

Factory installed locks Keyed locks on both zones offer separate security for interior contents

Automatic defrost Reduced user maintenance with automatic defrost

Fan-forced cooling Internal fans ensure both interiors have a consistent temperature from top to bottom

Sealed back Space-saving design that ensures easier cleanup

Fully finished cabinet Allows the unit to be used freestanding

Commercially approved ETL-S listed to ANSI-NSF Standard 7

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SWC3668ADA.pdf)

TECHNICAL DRAWING (.dwg) (SWC3668ADA_WINE_CELLAR__A-C_2000_.dwg)

REVIT MODEL (QF_Summit_SWC3668ADA_ADA_Compliant_Wine_Cellar.rfa)

USE & CARE (SWC3668ADA-User-Manual.pdf)
