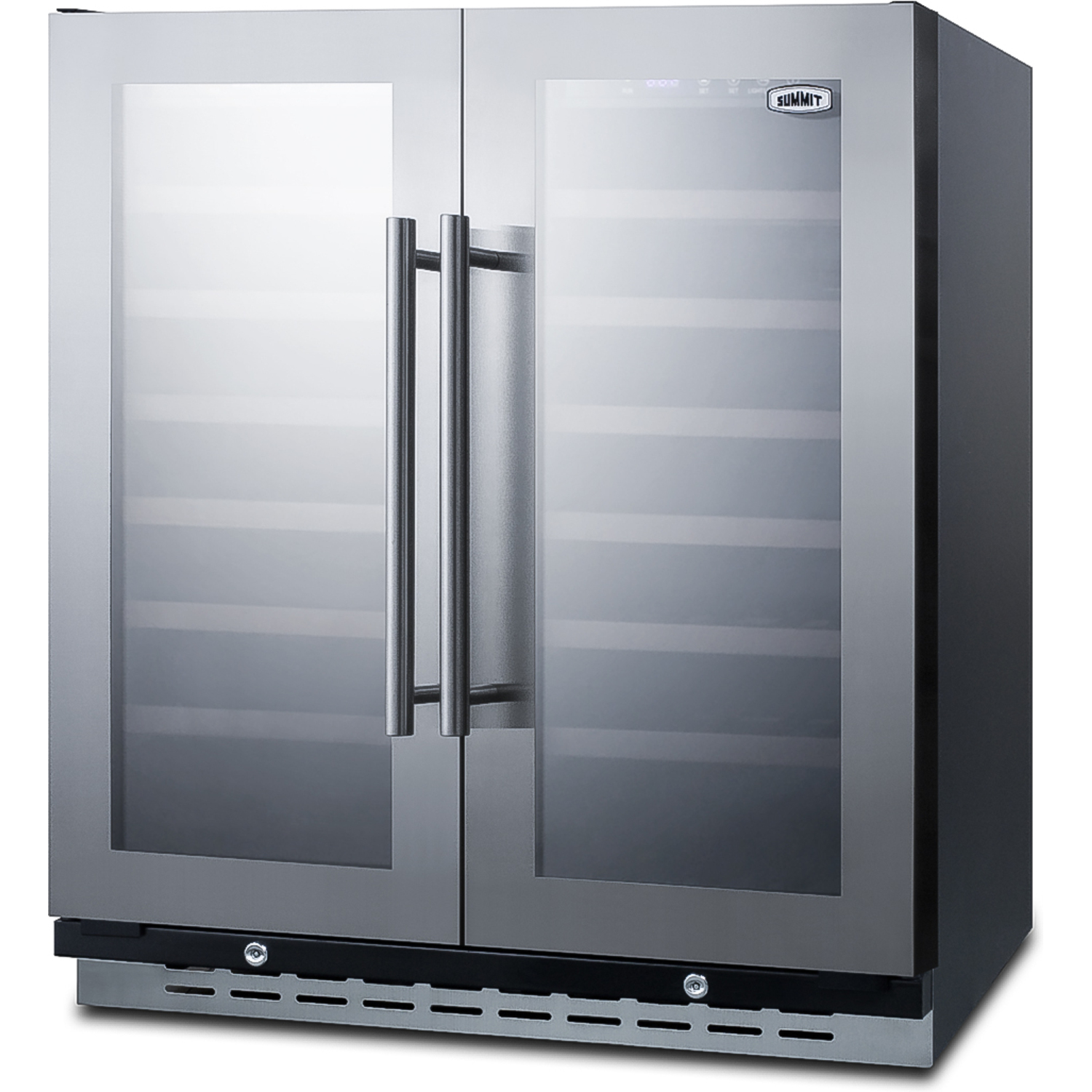

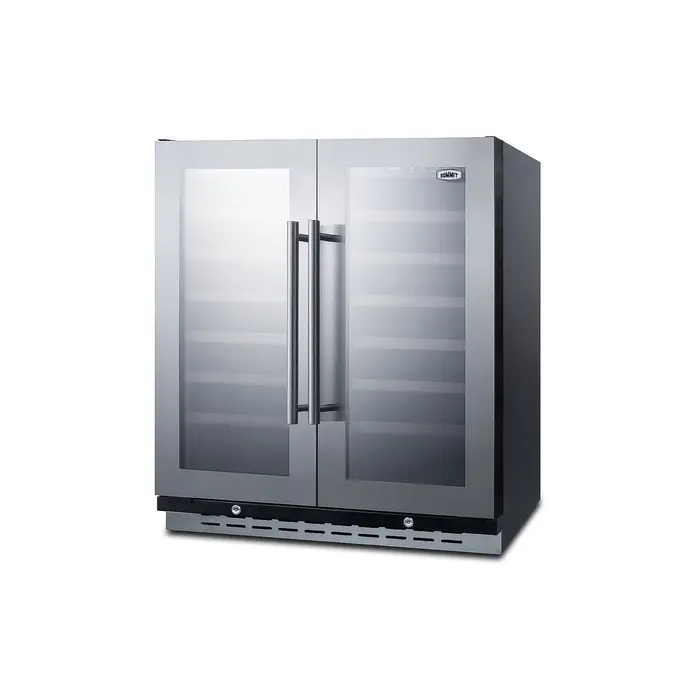

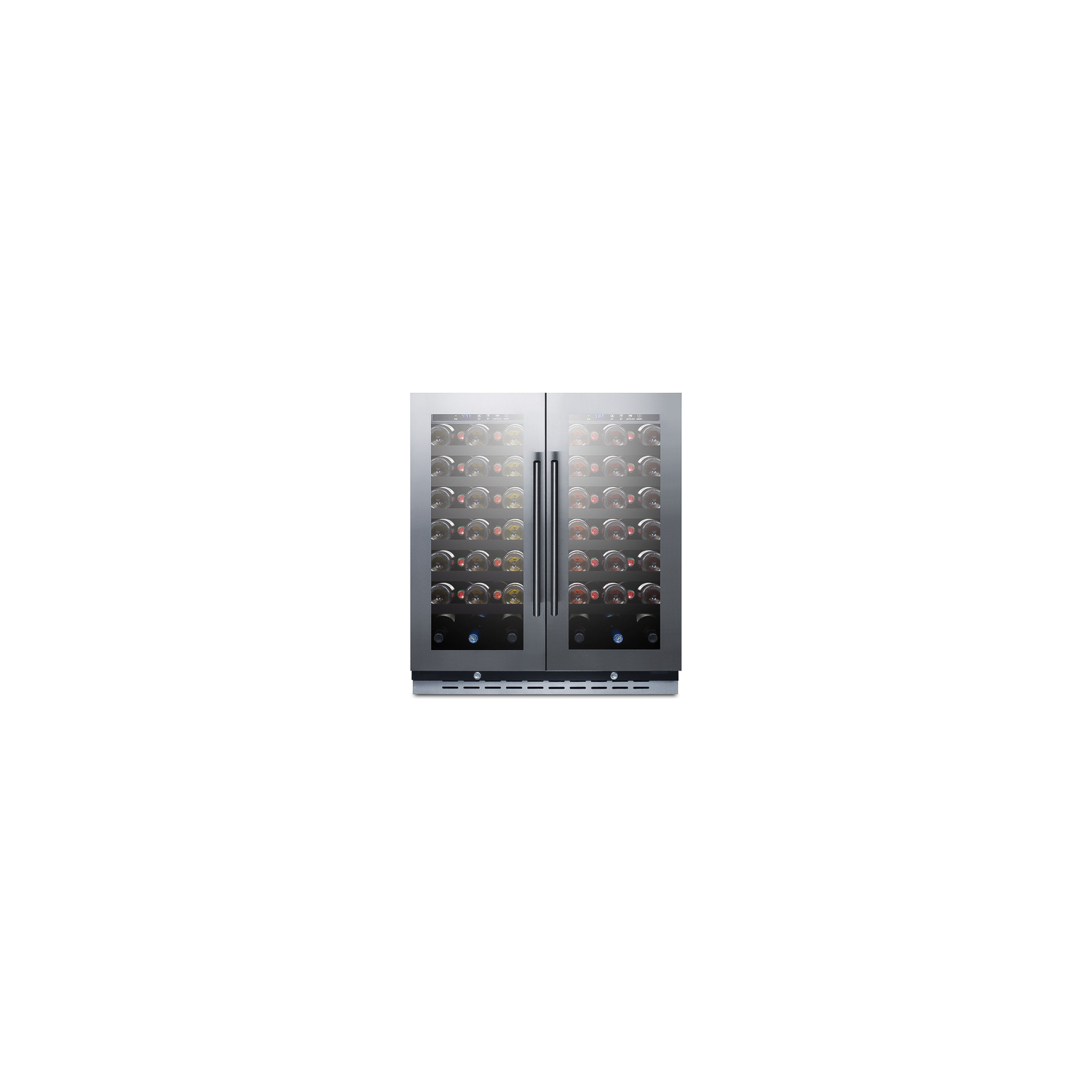

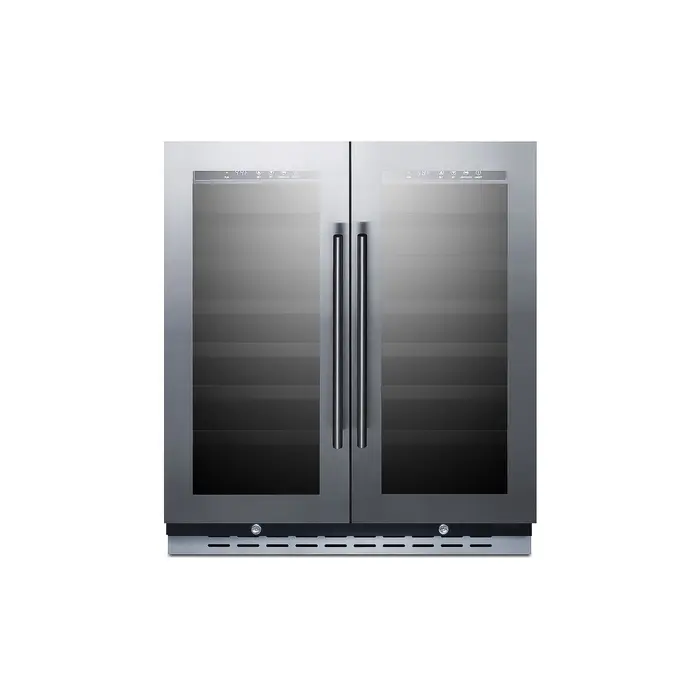

Summit 30 inch wide built-in undercounter dual zone wine cellar with seamless stainless steel trimmed glass French doors, locks, and a digital thermostat, 7.61101e+011, SWC3066B
$1,476.95
Retail Price: $2,200.00
Shipping: $150
$ 1,476.95
Description
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

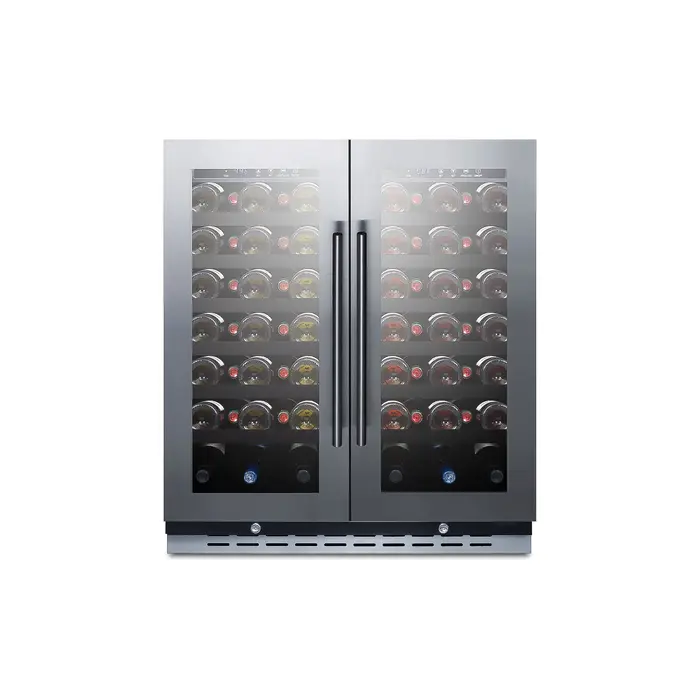

The SWC3066B is a 30" wide wine cellar designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles.

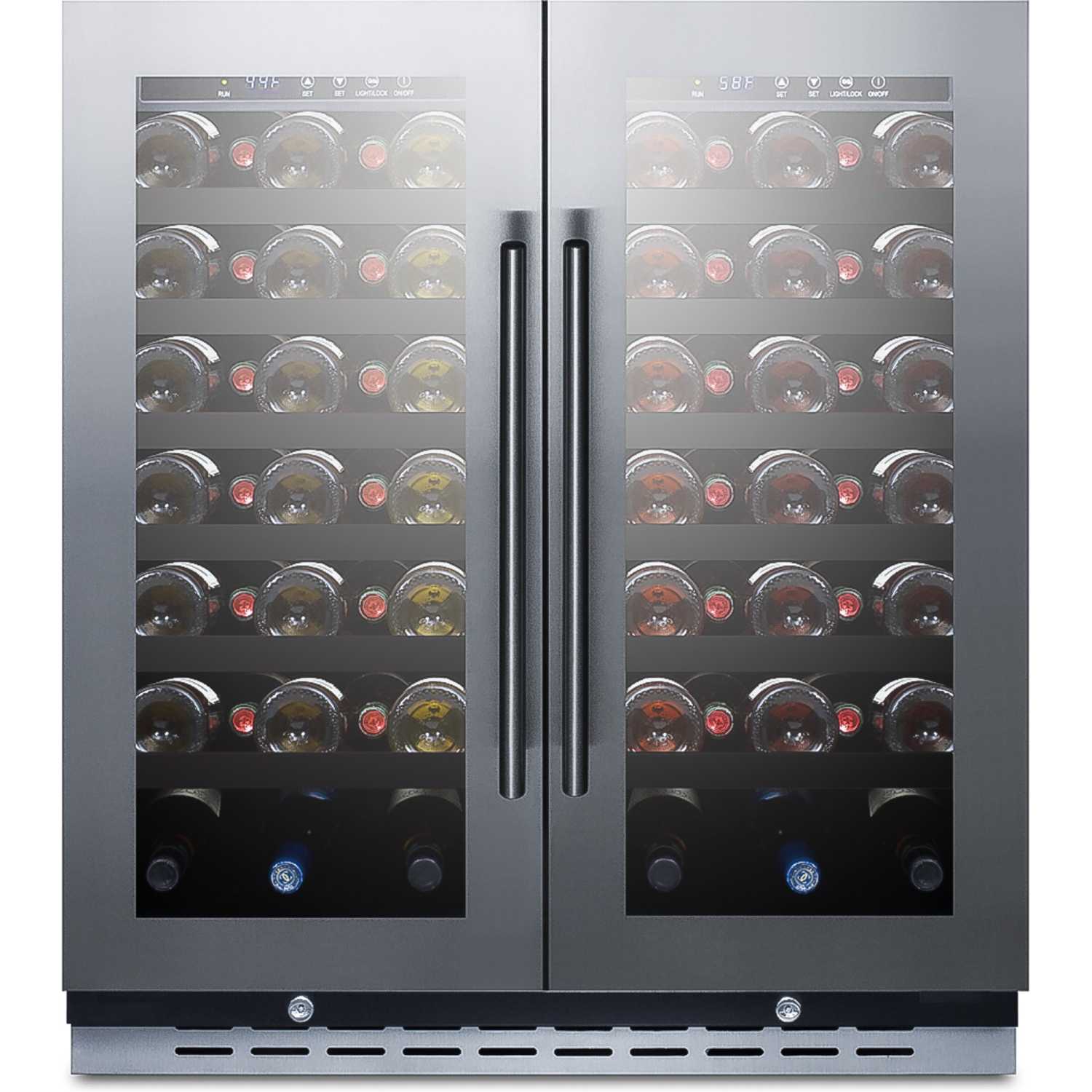

Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include six wooden shelves in a jet black finish and slotted floors, letting you store up to 66 standard 750ml Bordeaux bottles inside the unit. Alternatively, you can fit up to 46 wider "Burgundy" style bottles (often used for chardonnay and pinot noir) in addition to 10 Bordeaux bottles. The slotted floor can store six champagne bottles. Recessed LED lighting offers an attractive view to let you display your wine collection in style.
With a professional look and innovative design, SUMMIT SWC3066B is a unique addition to any home. For a similar unit designed for wine and beverage storage, see the SWBV3067B.
Nominal Height: 35
Height of Cabinet: 34.38
Height to Hinge Cap: 0
Nominal Width: 30
Width: 29.5
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.5
Depth with Handle: 24.25
Depth with door at 90°: 36
Capacity: 0
Bottles: 66Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.38" (87 cm)
Nominal Width 30.0" (76 cm)
Width 29.5" (75 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 36.0" (91 cm)
Bottles 66 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 132.0 lbs. (60 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101055787
Wine Cellar
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
FEATURES
Commercially approved ETL-S listed to ANSI-NSF Standard 7

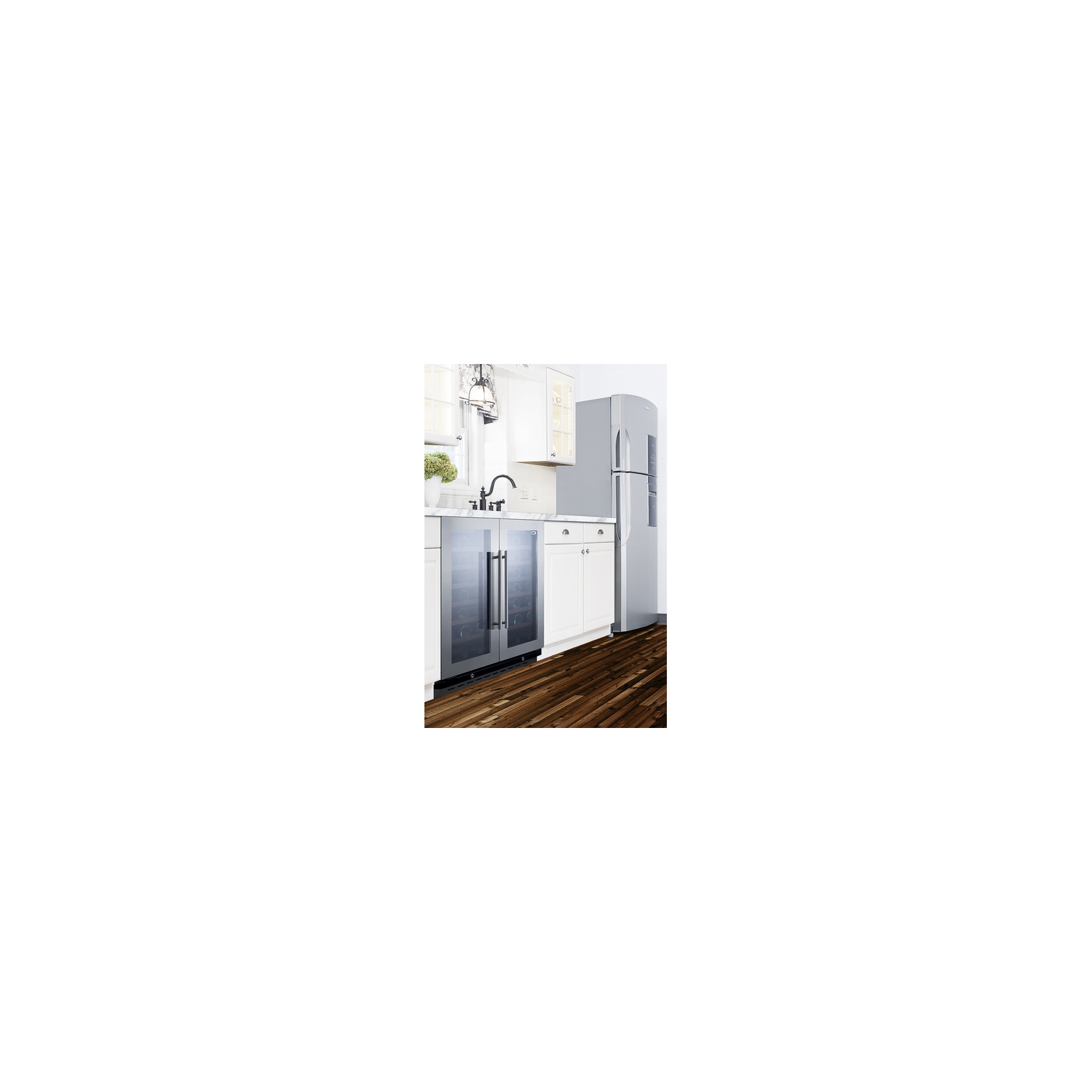

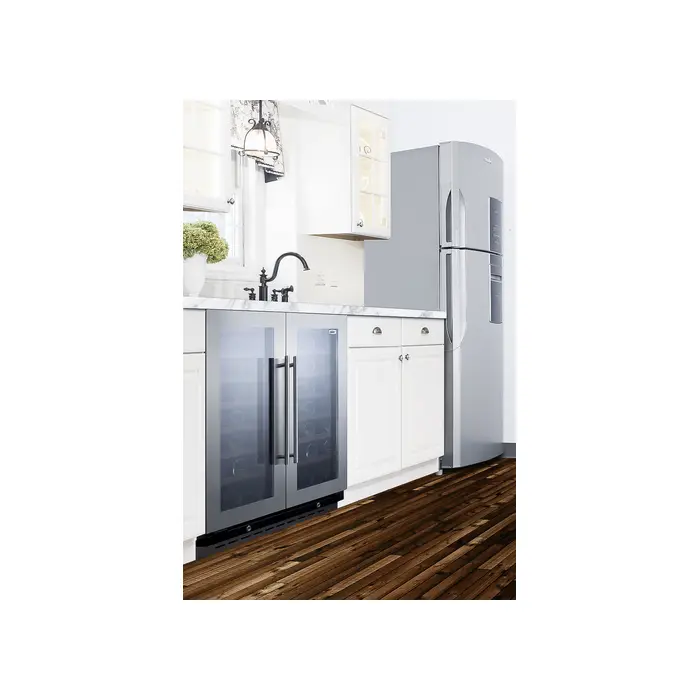

Built-in capable Make the best use of space by installing this unit under the counter and flush with other cabinetry
66 bottle capacity Interior can hold 66 standard 750ml Bordeaux style bottles, or 46 wider Burgundy bottles + 10 Bordeaux bottles
Dual zone design Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
Recessed LED lighting Gentle and energy efficient LED lighting offers an elegant view of your collection

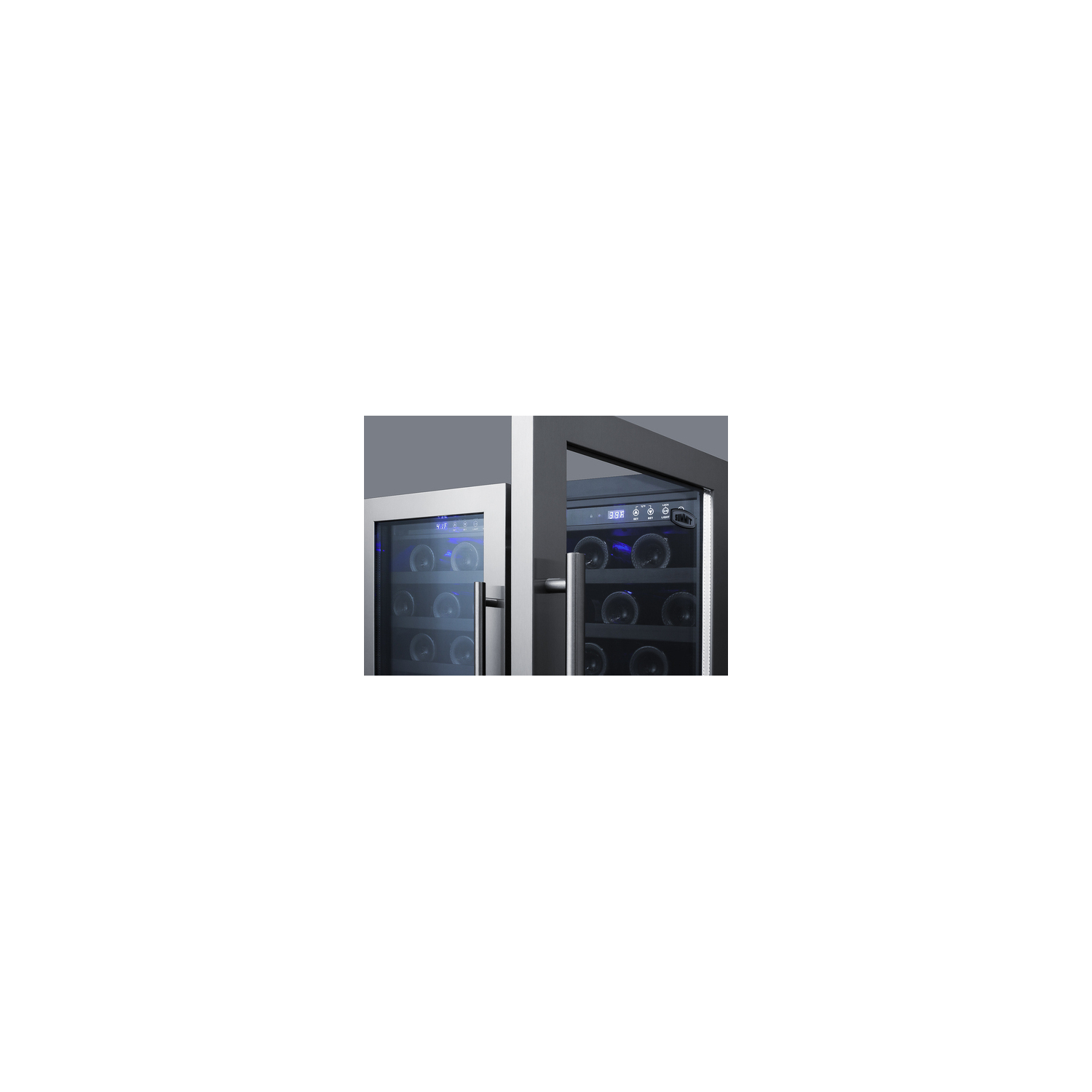

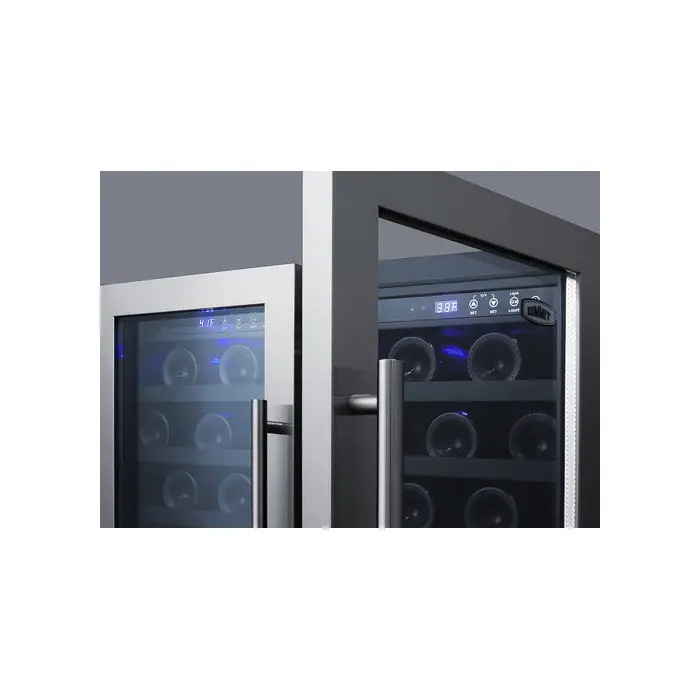

Digital thermostats Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Wooden shelves Classic wood shelves in a jet black finish are specially designed to hold bottles safely in place
Professional handles Sleek stainless steel handles add an elegant touch to any setting
Glass doors with seamless stainless steel trim French door swing offers a modern look, with stainless steel door trim for an added accent
Factory installed locks Keyed locks on both zones offer separate security for interior contents
Automatic defrost Reduced user maintenance with automatic defrost
Fan-forced cooling Internal fans ensure both interiors have a consistent temperature from top to bottom
Fully finished cabinet Allows the unit to be used freestanding
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (SWC3066B.pdf)
TECHNICAL DRAWING (.dwg) (SWC3066WINECELLARA-C2000.dwg)
REVIT MODEL (QF_Summit_SWC3066B_Wine_Cellar.rfa)
