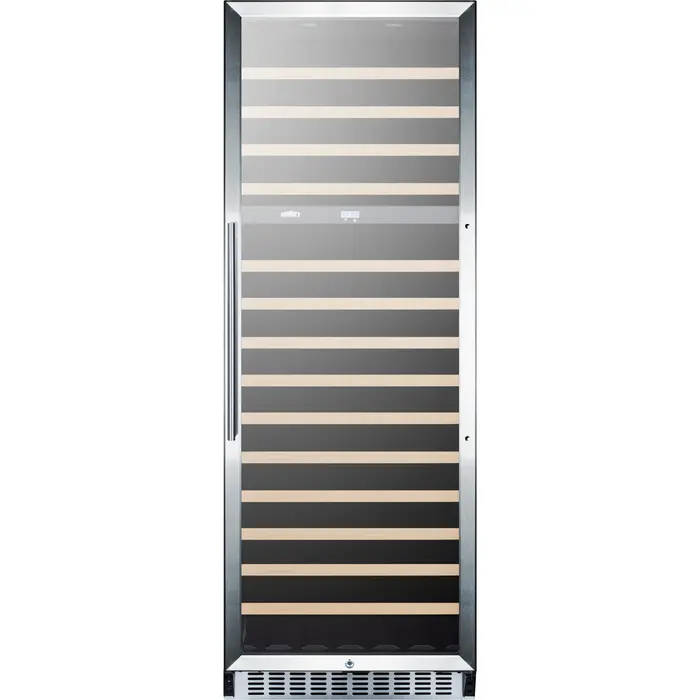

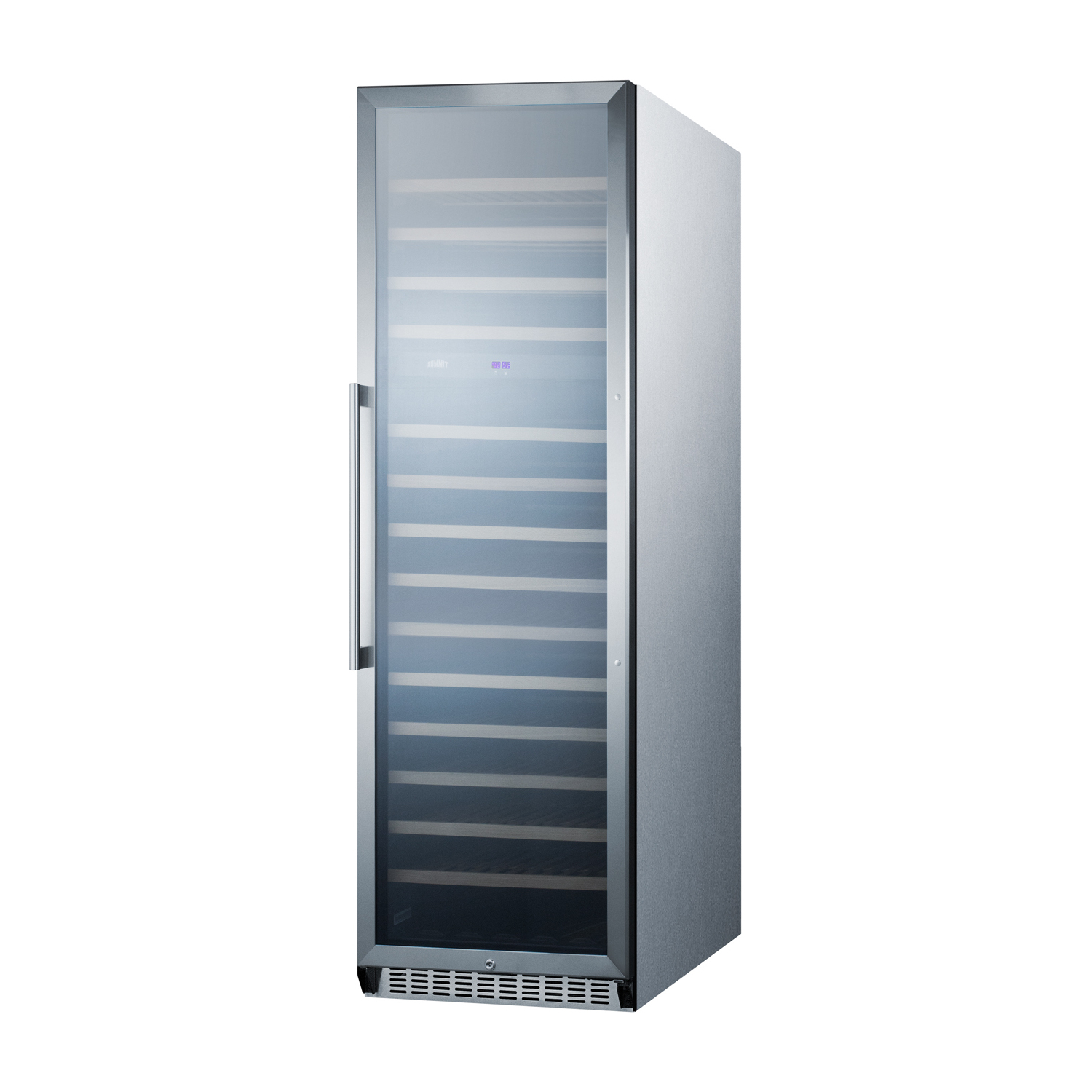

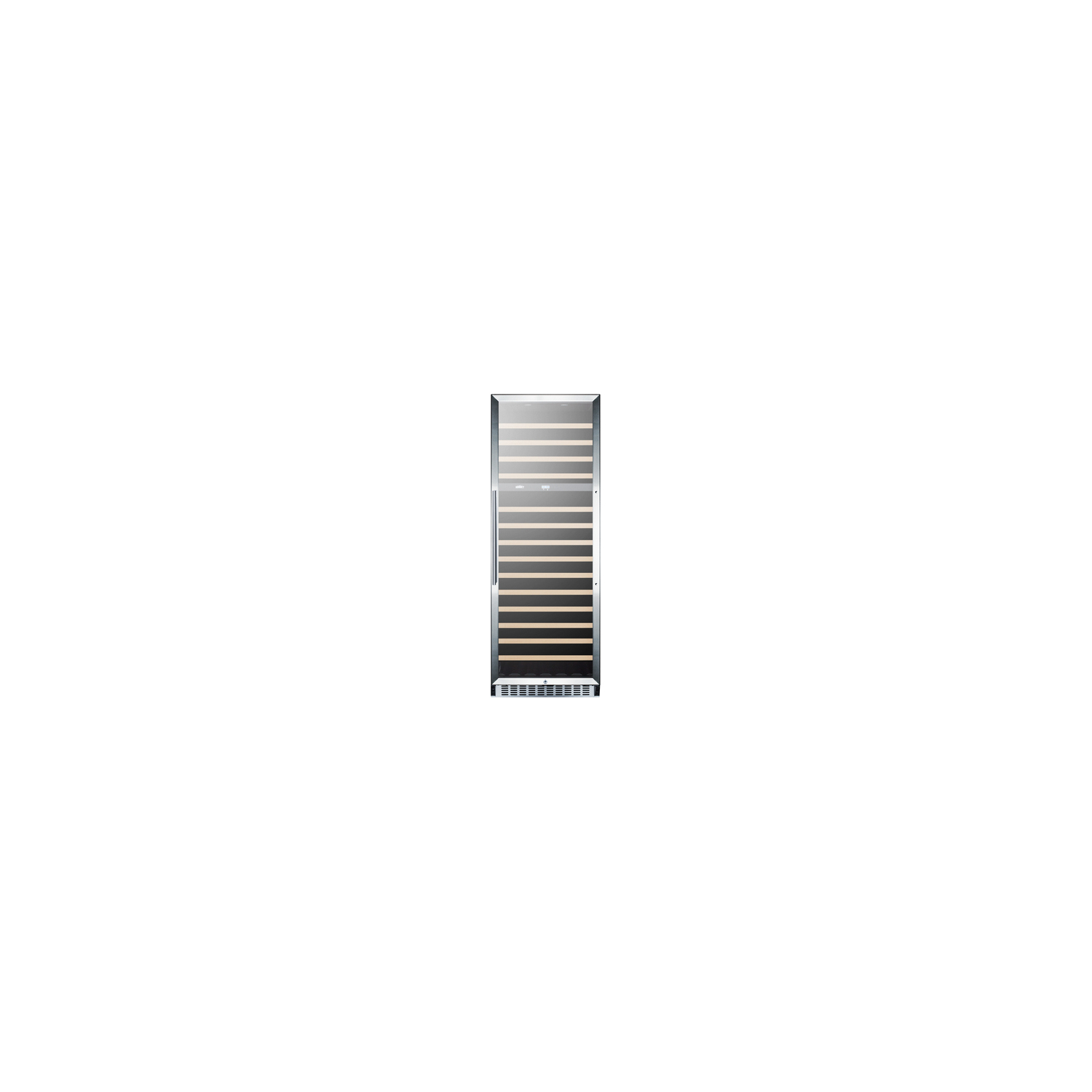

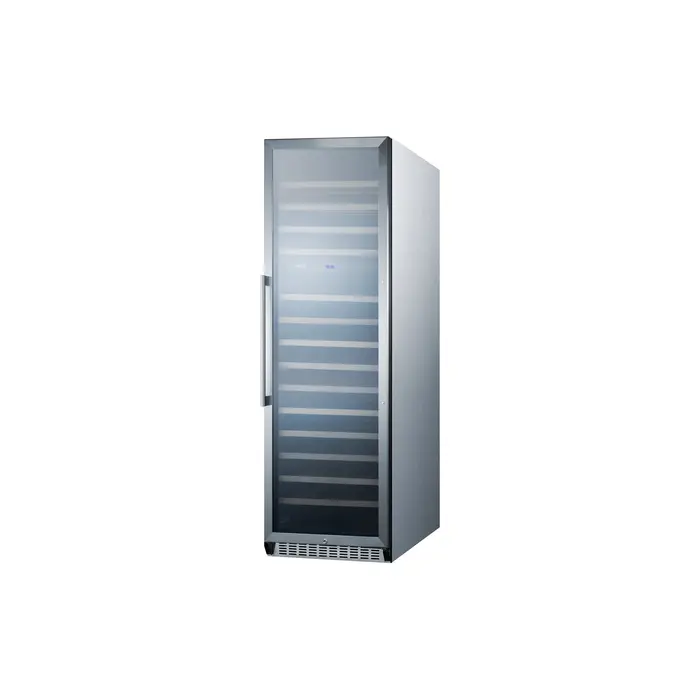

Summit 2-zone 160 bottle wine cellar with glass door, digital thermostat, and stainless steel wrapped cabinet, 7.61101e+011, SWC1966CSS
$3,082.25
Retail Price: $4,525.00
Free shipping
$ 3,082.25
Description
SUMMIT SWC1966CSS is a full-sized dual zone wine cellar designed for optimum wine storage with user-friendly convenience.

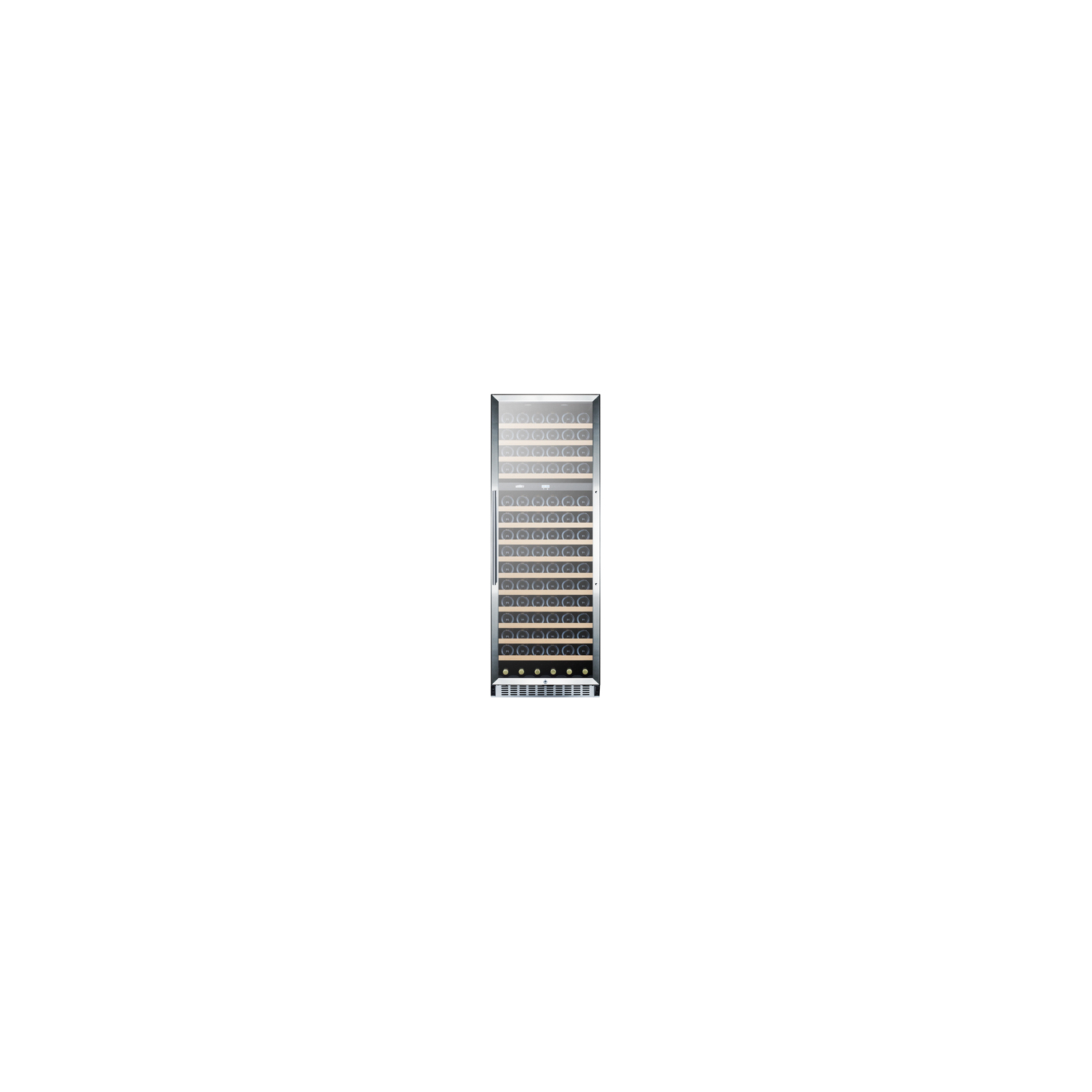

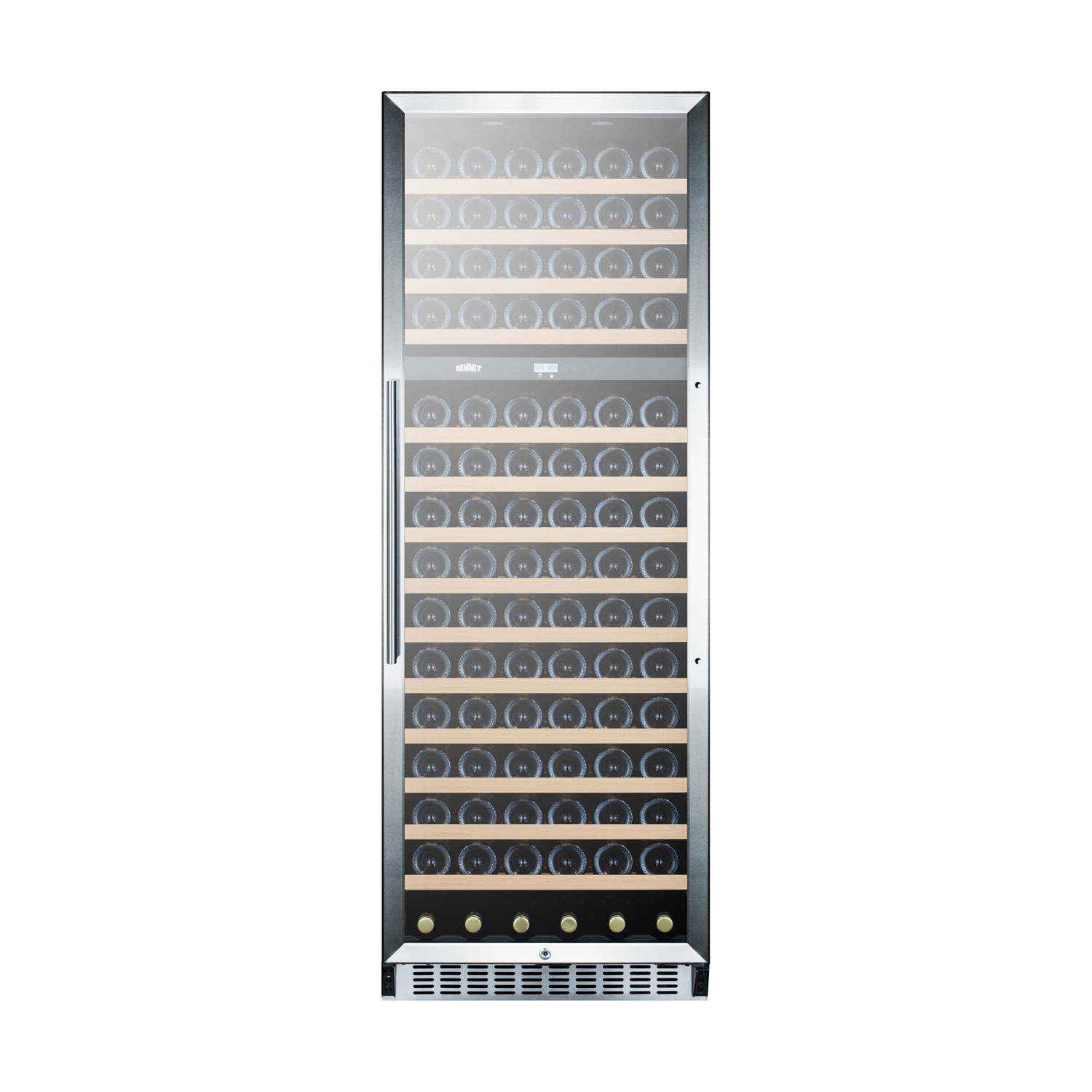

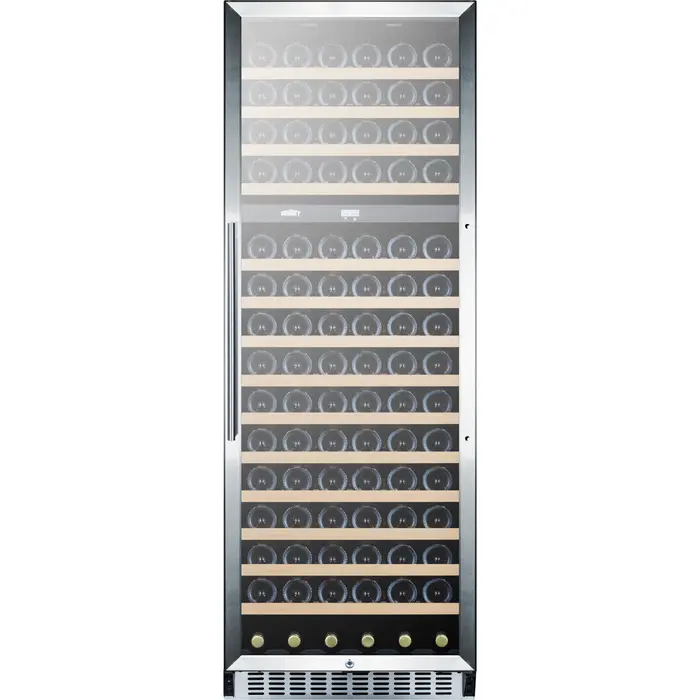

Sized at just under 24" wide and 27" deep, the SWC1966CSS can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit. The larger lower compartment is best suited for red wines stored between 55º and 72ºF, while the upper zone is designed for white wine and champagne stored between 41º and 55ºF. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.

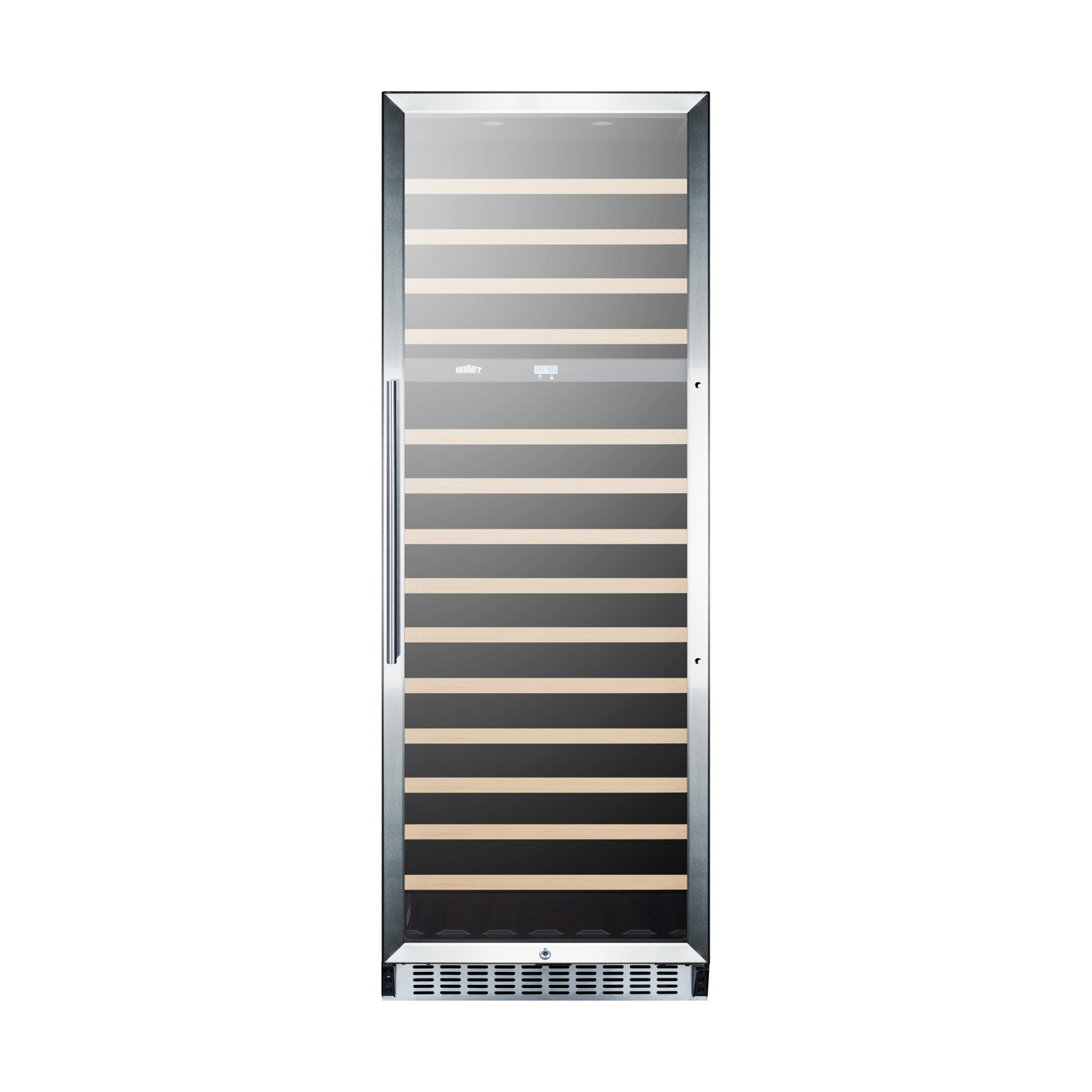

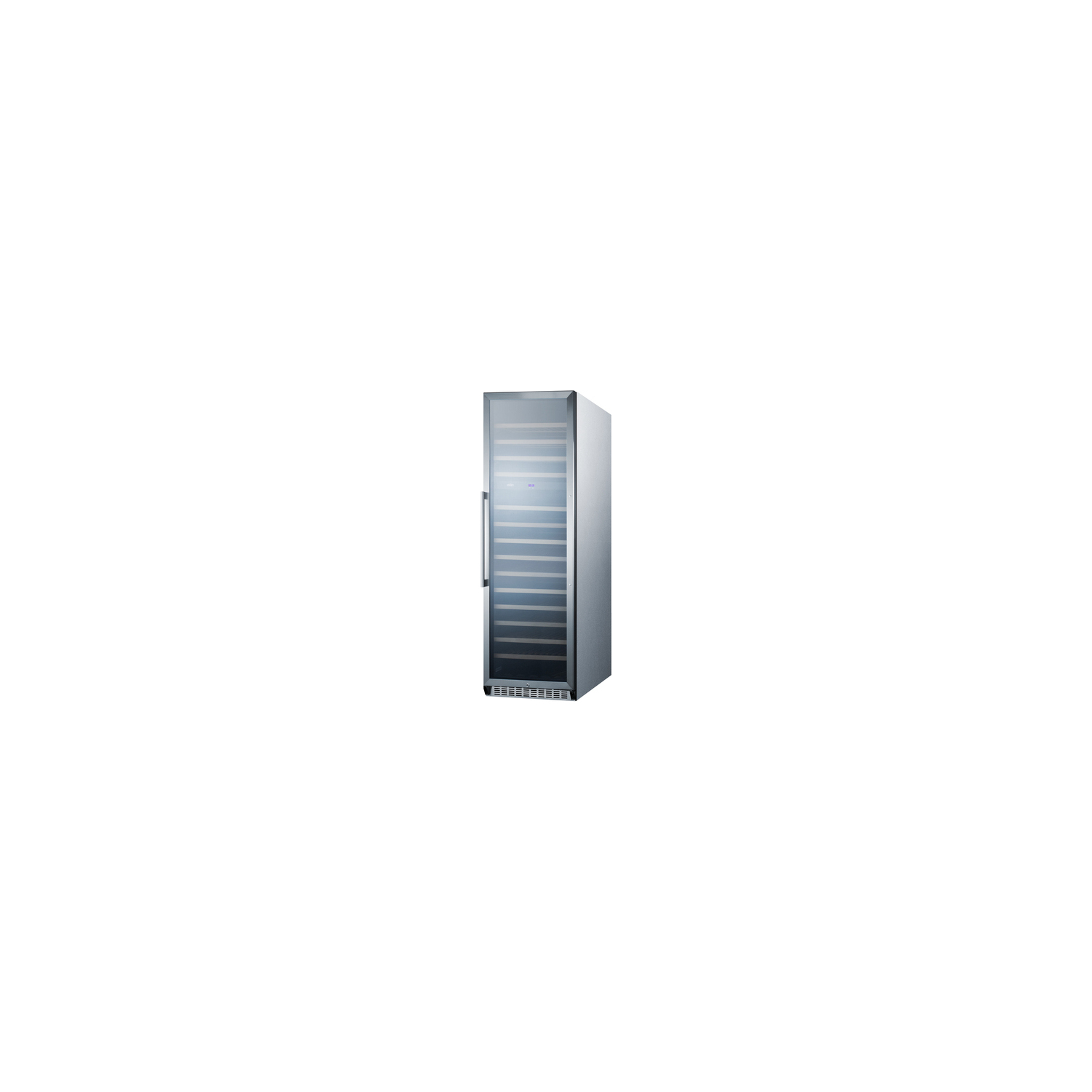

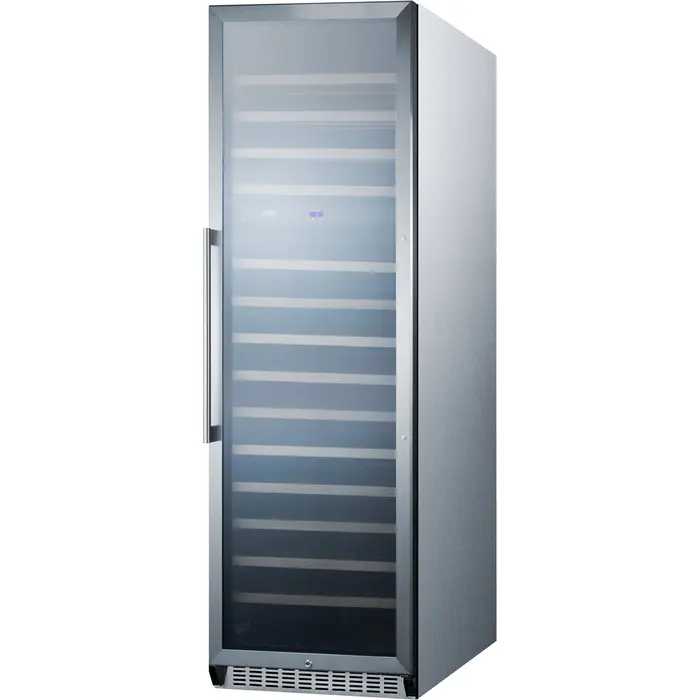

The SWC1966CSS features a stainless steel wrapped cabinet cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.
With its ideal size and handy features, the SWC1966CSS is an elegant yet affordable wine cellar for full storage needs.
Nominal Height: 70
Height of Cabinet: 69.75
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 27
Depth: 26.63
Depth with Handle: 27.75
Depth with door at 90°: 48.75
Capacity: 15.9
Bottles: 160Defrost Type: AutomaticDoor: GlassCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 70.0" (178 cm)
Height of Cabinet 69.75" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.63" (68 cm)
Depth with Handle 27.75" (70 cm)
Depth with door at 90° 48.75" (124 cm)
Capacity 15.9 cu.ft. (450 L)
Bottles 160 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 195.0 lbs. (88 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059242
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 14
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.91 oz.
High Side PSI 270.0
Low Side PSI 105.0
Temperature Range 41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Sound Level 33.7 dB
FEATURES

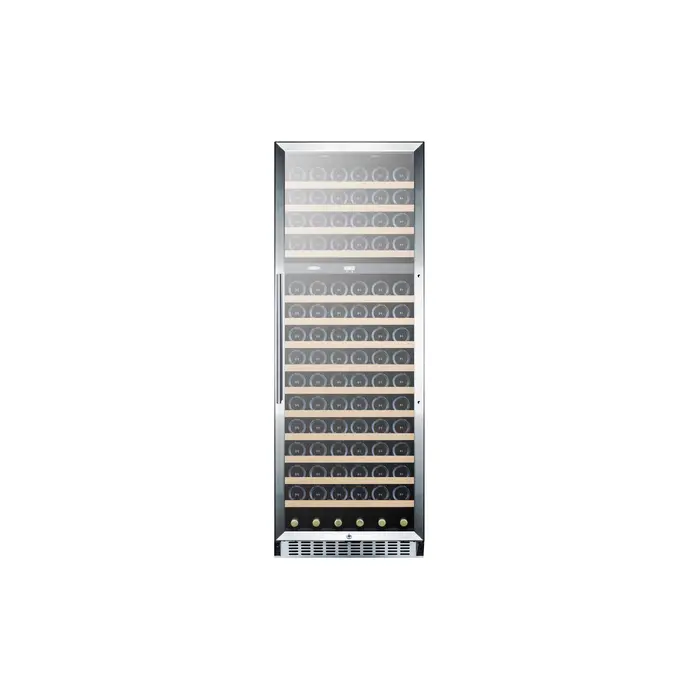

Large capacity Interior can hold up to 160 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 118. For champagne, the interior can hold 22 bottles (plus an additional 132 of the standard Bordeaux style)

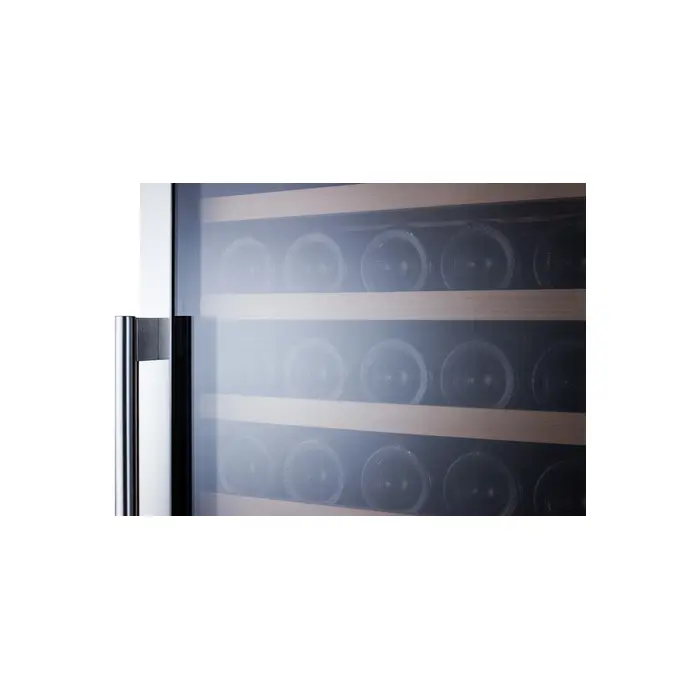

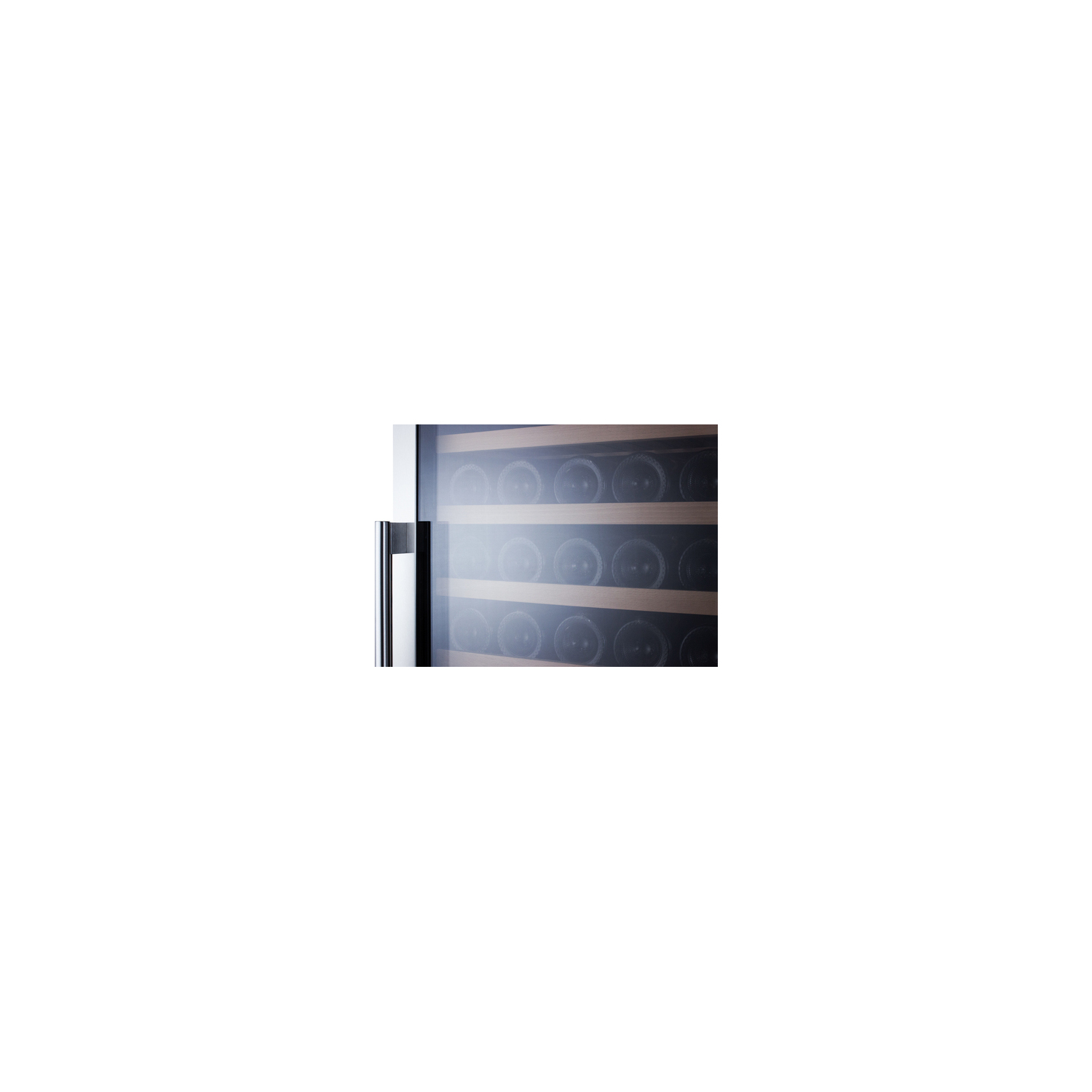

Double pane tempered glass door Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
Two temperature zones Lower zone is ideal for storing red wine (temperature range: 55ºF to 72ºF) while the upper zone accommodates white and sparkling wine stored between 41ºF and 55ºF
Stainless steel wrapped cabinet Exterior features 304 grade stainless steel for true luxury built to last
Digital thermostats Set and adjust two temperature zones separately with easy-to-use digital controls with an LED display in Celsius or Fahrenheit
LED lighting Recessed lighting offers an elegant, efficient view of your collection

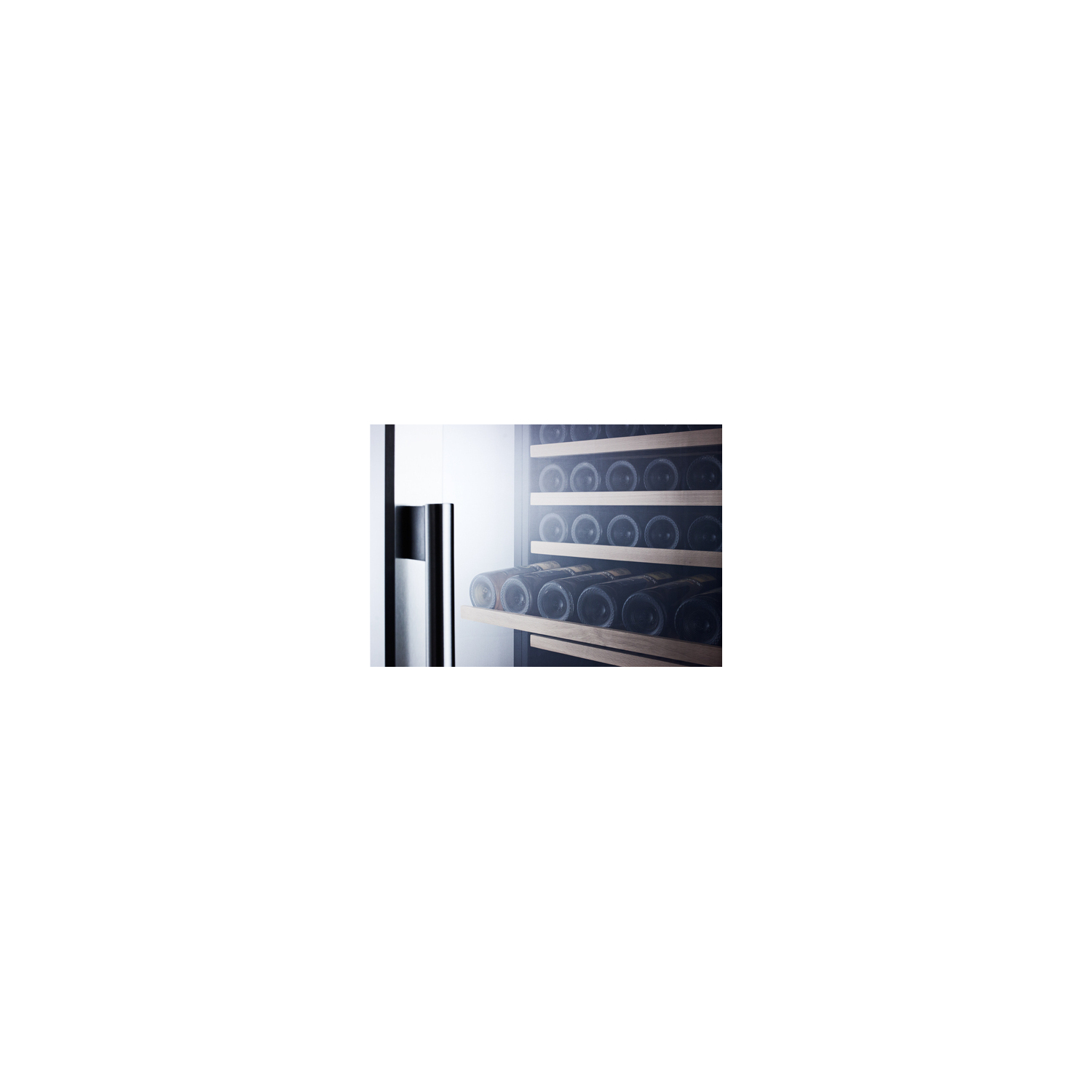

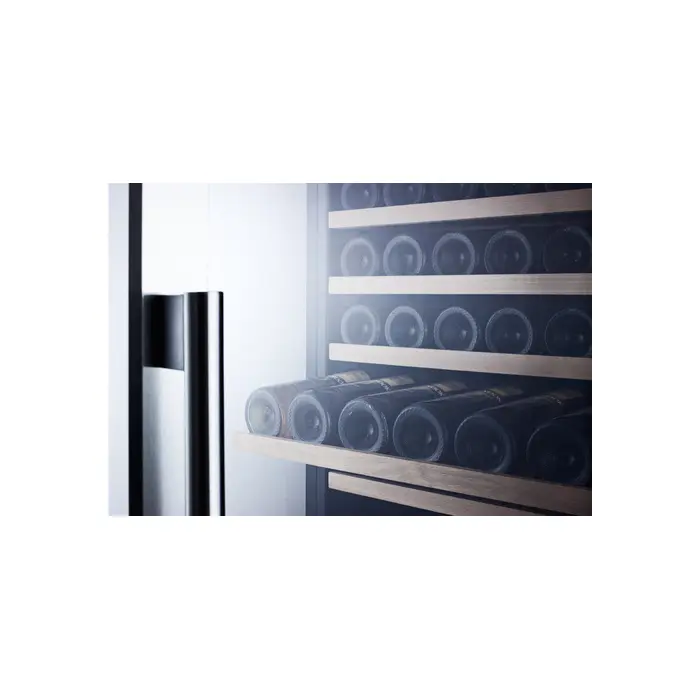

Slide-out wooden shelves 14 wooden shelves offer proper storage
Factory installed lock Keyed lock for trusted security
Reversible door User-reversible door swing allows for more flexibility in placing the unit
Professional handle Stainless steel handle completes the professional look
Automatic defrost Reduced user maintenance with auto defrost operation
Modified built-in use Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
High temperature alarm Audible alarm sounds if the storage temperature rises out of recommended range
Open door alarm Alarm sounds if the door is left open for more than 60 seconds
Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours
Stainless steel kickplate Sleek look with added protection
Fully finished cabinet Allows the unit to be used freestanding
100% CFC free Environmentally safe operation with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
USE & CARE (SWC1966CSS-User-Manual.pdf)
