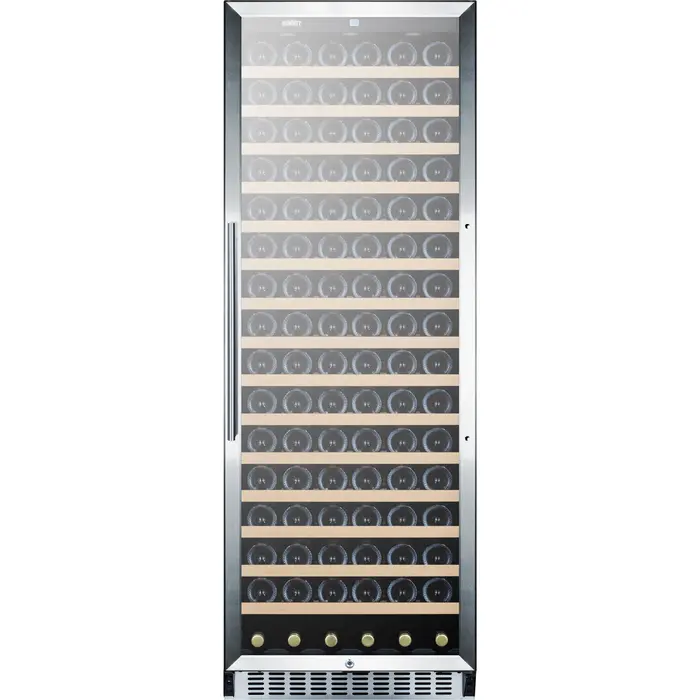

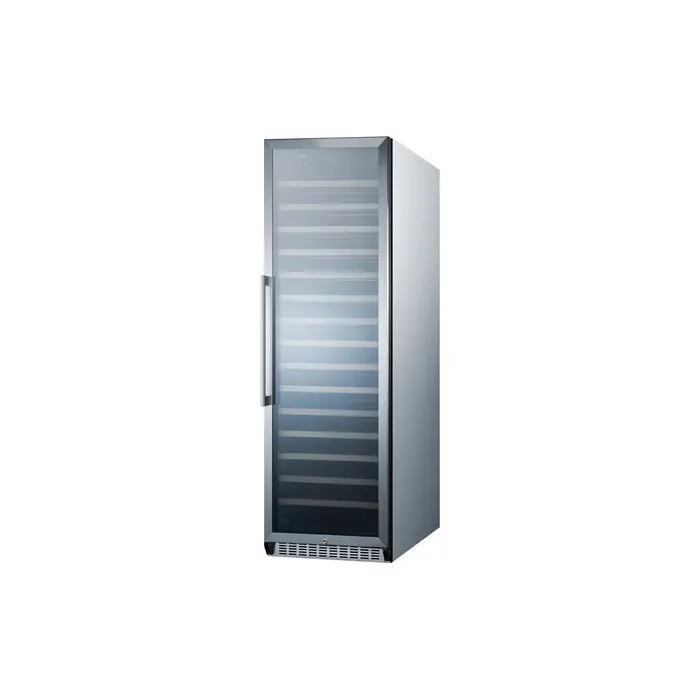

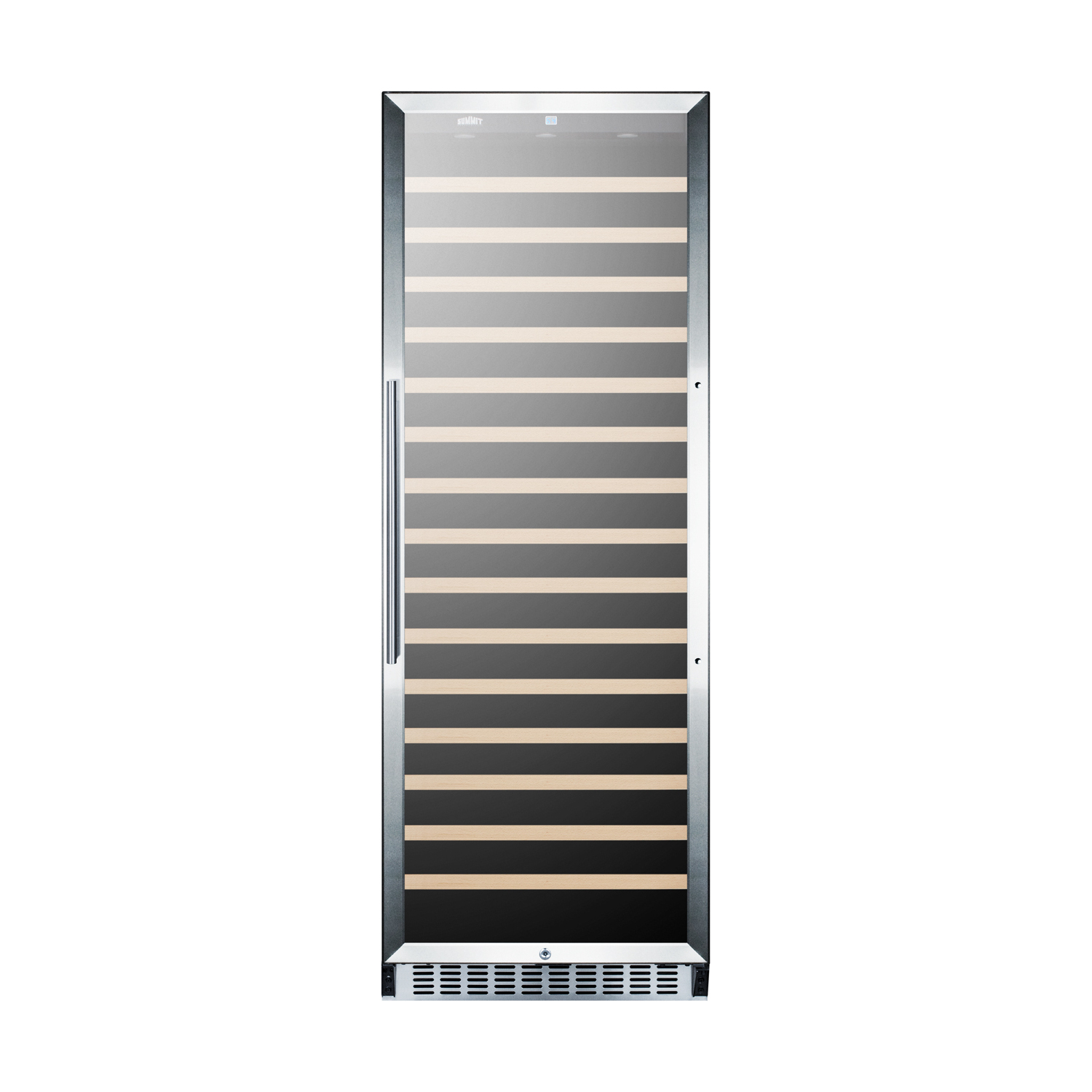

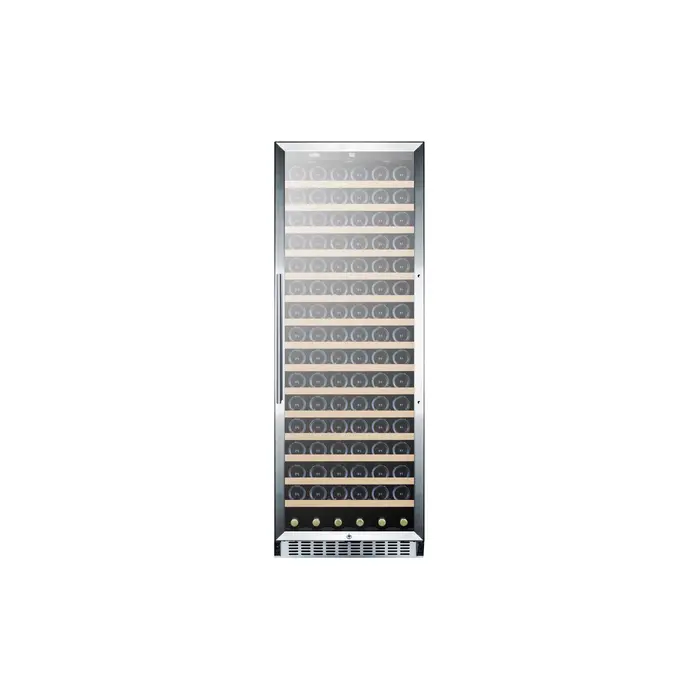

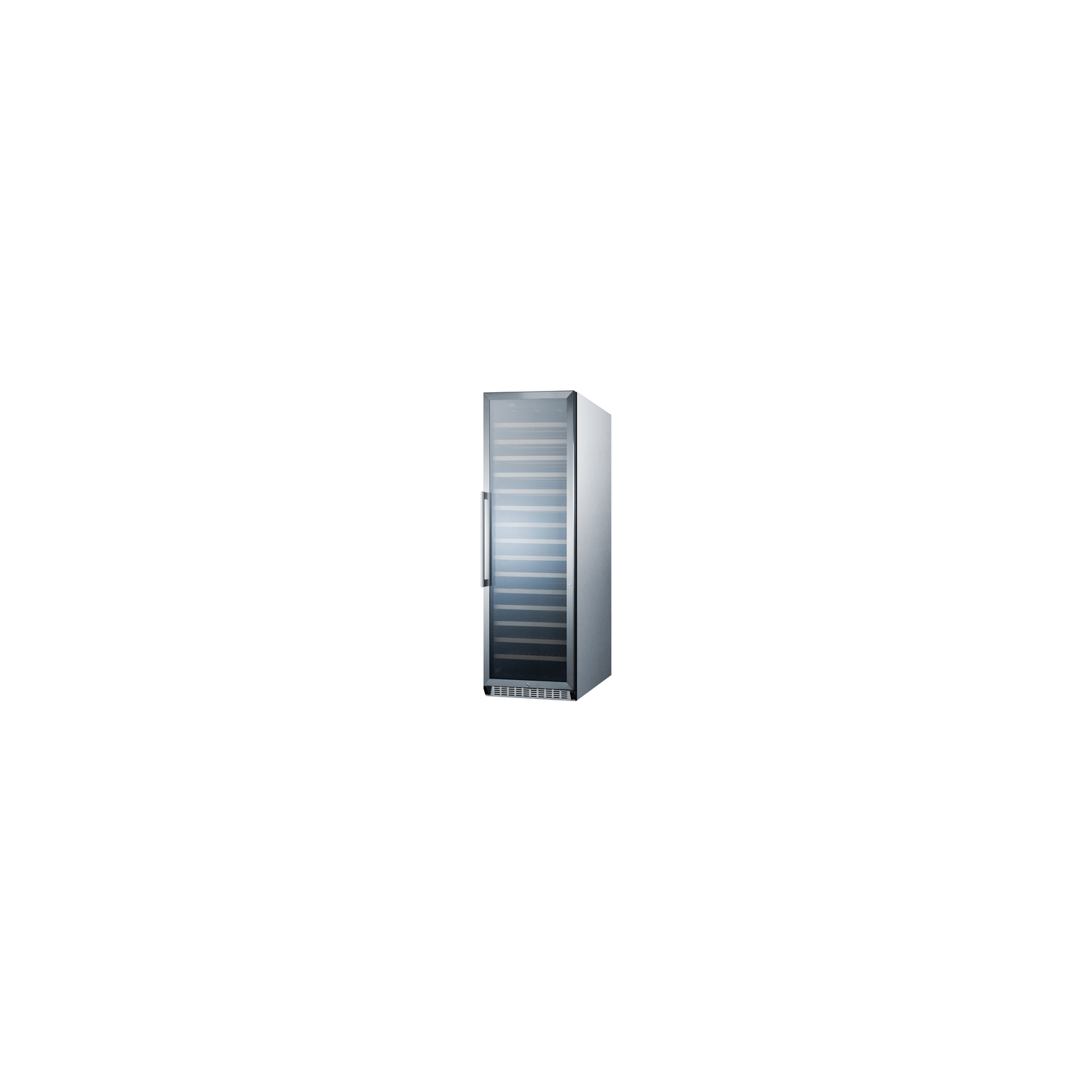

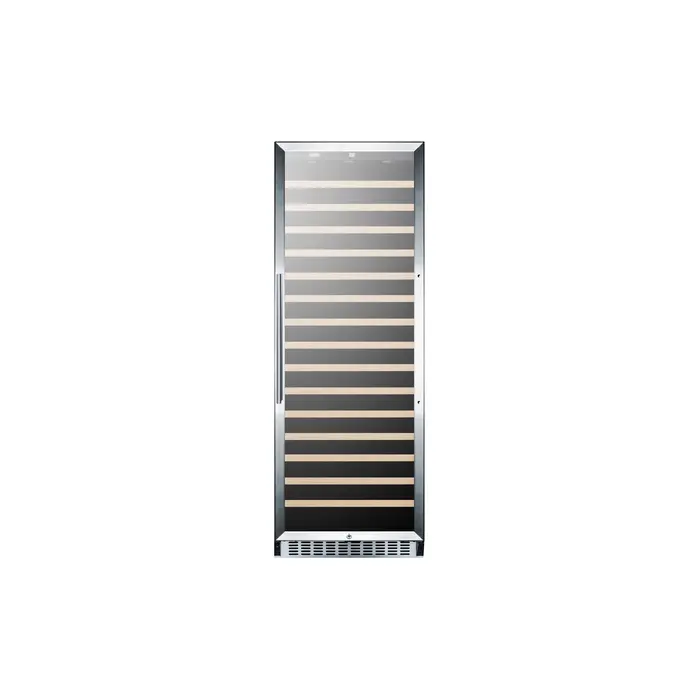

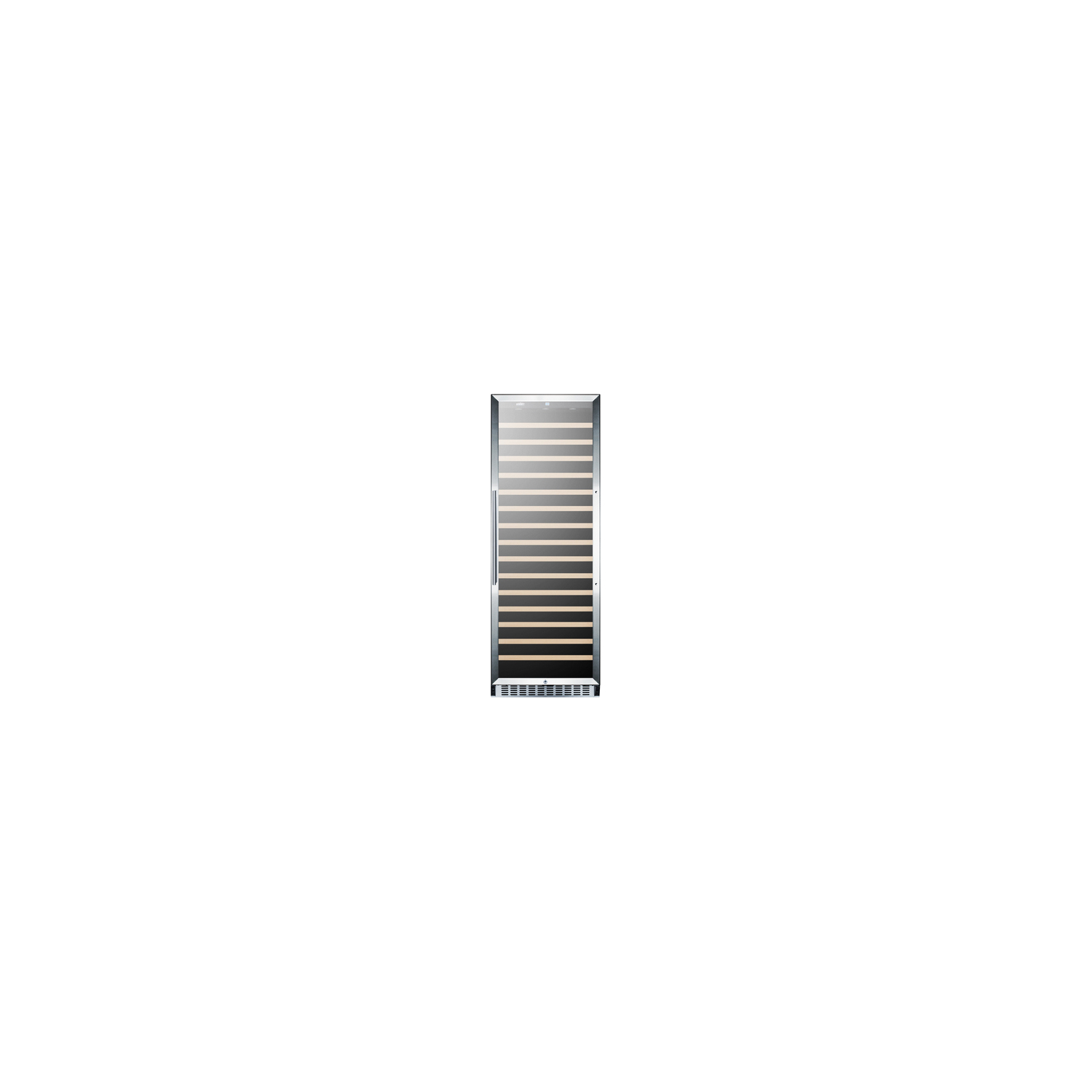

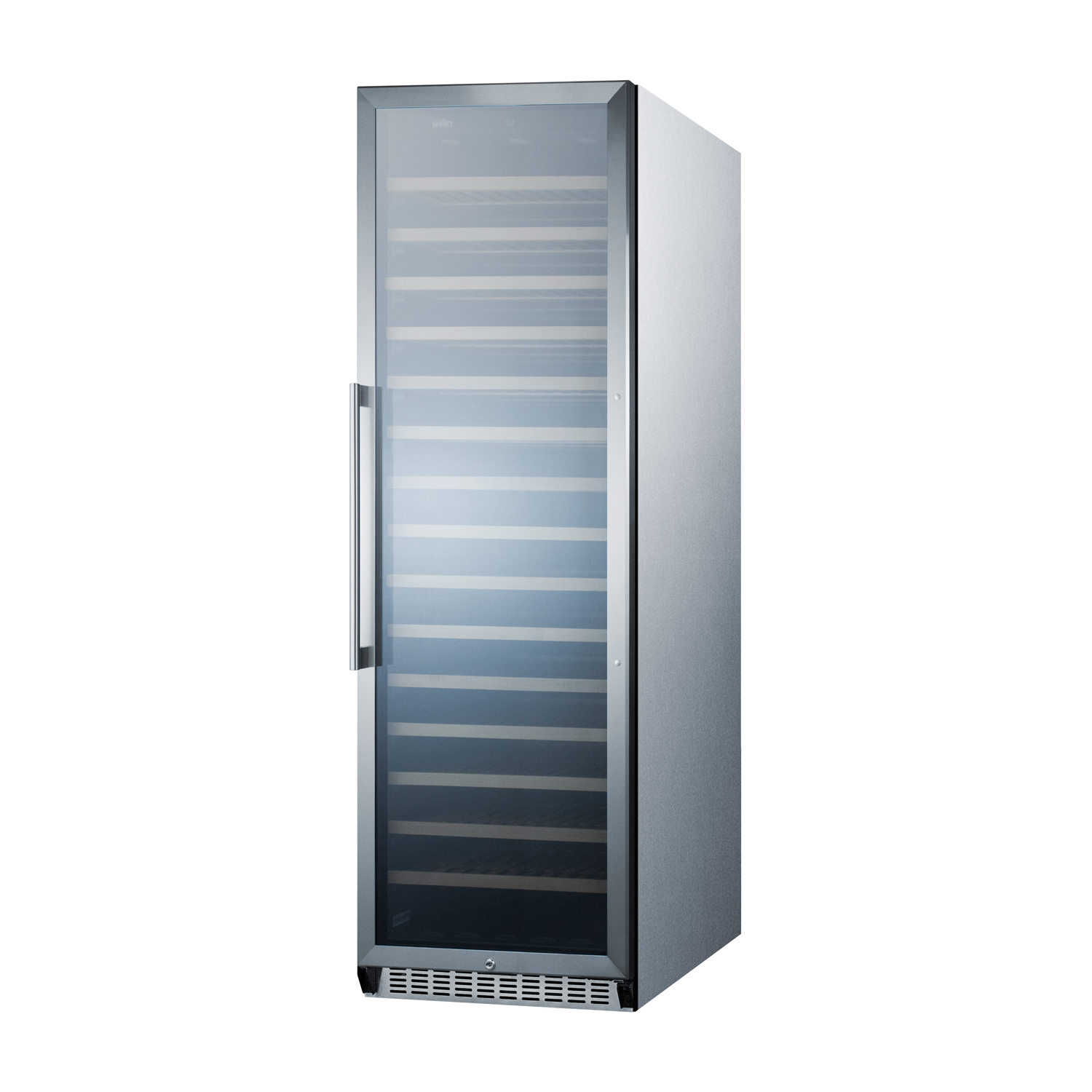

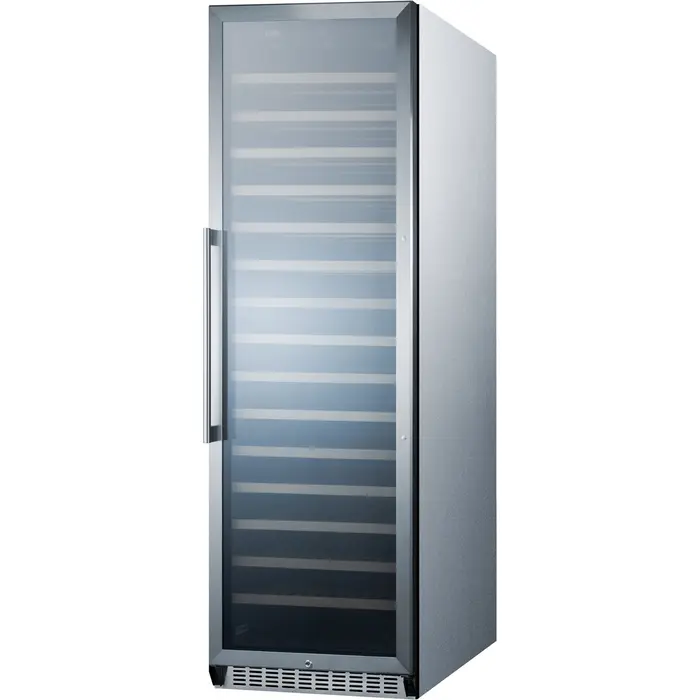

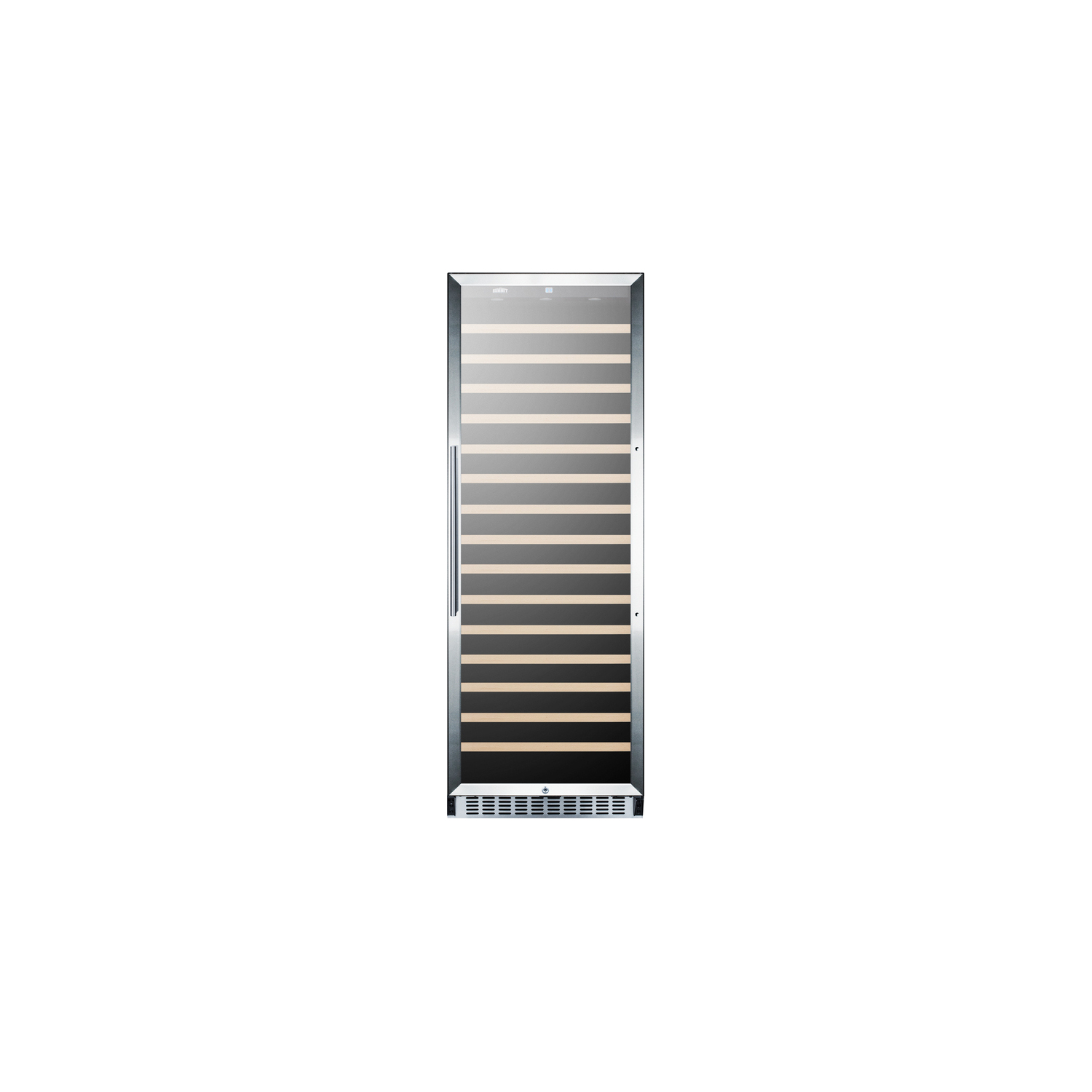

Summit 171 bottle single-zone wine cellar with glass door, digital thermostat, and stainless steel wrapped cabinet, 7.61101e+011, SWC1926CSS
$3,058.10
Retail Price: $4,490.00
Free shipping
$ 3,058.10
Description
SUMMIT SWC1926CSS is a full-sized wine cellar designed for optimum wine storage with user-friendly convenience.
Sized at just under 24" wide and 27" deep, the SWC1926CSS can store up to 171 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 128 wider Burgundy style bottles (typically used for Chardonnay or Pinot Noir) or a combination of 14 champagne bottles and 154 Bordeaux bottles. A digital thermostat makes it easy to adjust the temperature between 41ºF and 72ºF for red or white wine storage, with an LED temperature display that can be shown in Celsius or Fahrenheit. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.
The SWC1926CSS has stainless steel wrapped cabinet finish and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.
With its ideal size and handy features, the SWC1926CSS is an elegant yet affordable wine cellar for full storage needs. For this unit with a dual zone design, see the SWC1966CSS.
Nominal Height: 70
Height of Cabinet: 69.75
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 27
Depth: 26.63
Depth with Handle: 27.75
Depth with door at 90°: 48.75
Capacity: 0
Bottles: 171Defrost Type: AutomaticDoor: GlassCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 70.0" (178 cm)
Height of Cabinet 69.75" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.63" (68 cm)
Depth with Handle 27.75" (70 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 171 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 195.0 lbs. (88 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059235
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 15
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.91 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 60.5" (154 cm)
Interior Width 1 19.75" (50 cm)
Interior Depth 1 21.0" (53 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.75" (50 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 41ºF to 72ºF
Sabbath Mode Yes
Sound Level 34 dB
FEATURES
Large capacity Interior can hold up to 171 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 128. For champagne, the interior can hold 14 bottles (plus an additional 154 of the standard Bordeaux style)

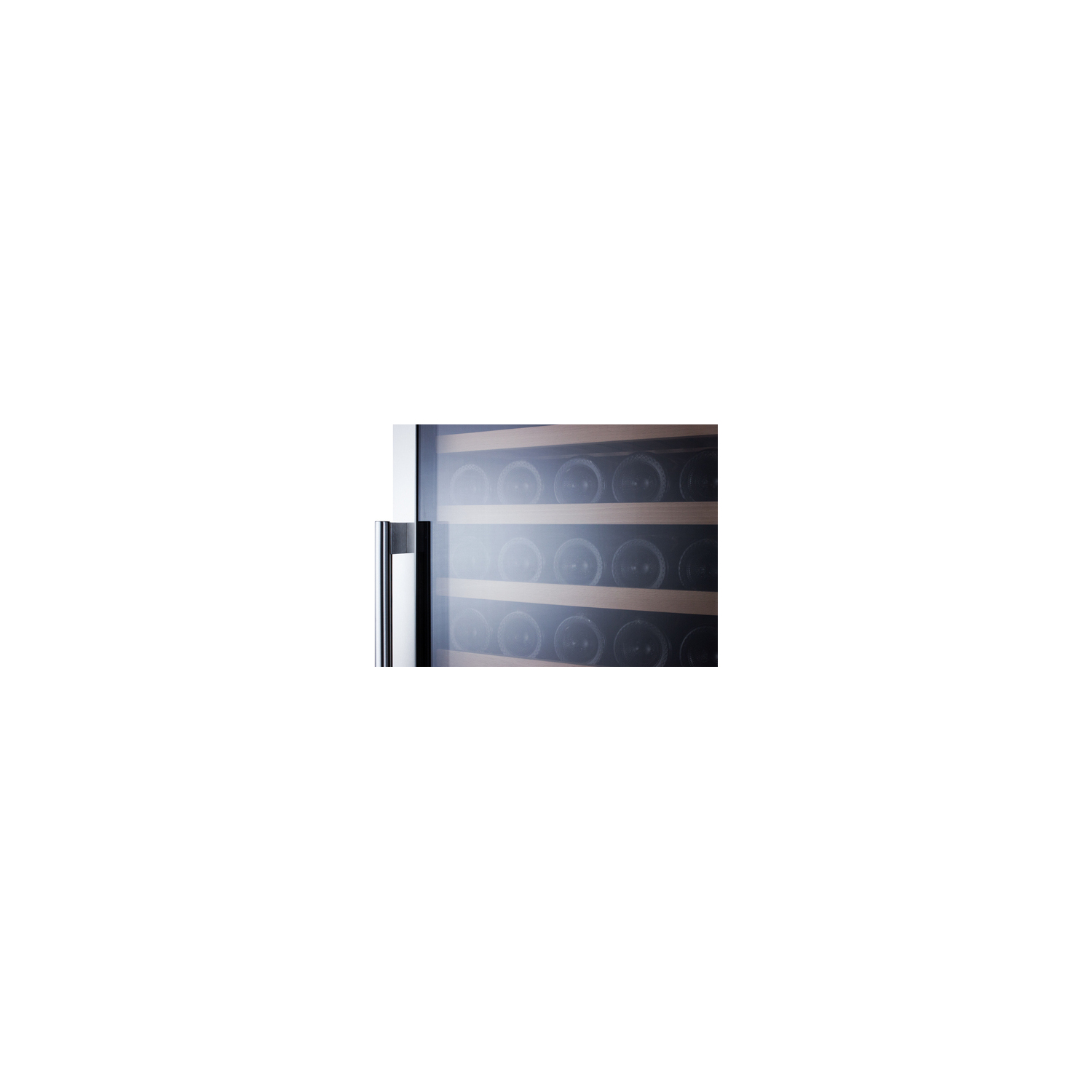

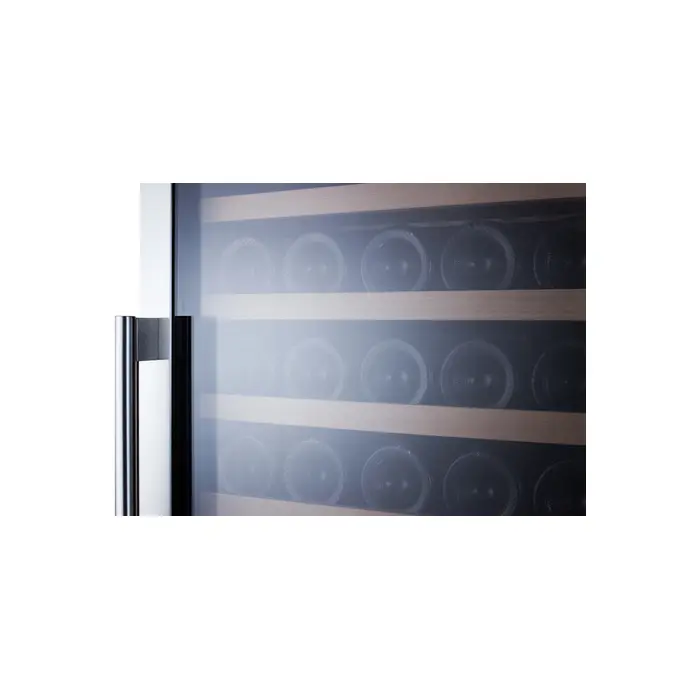

Double pane tempered glass door Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
Stainless steel wrapped cabinet Exterior features 304 grade stainless steel for true luxury built to last
Digital thermostat Intuitive electronic controls make it easy to manage the internal temperature of your collection
LED lighting Recessed lighting offers an elegant, efficient view of your collection

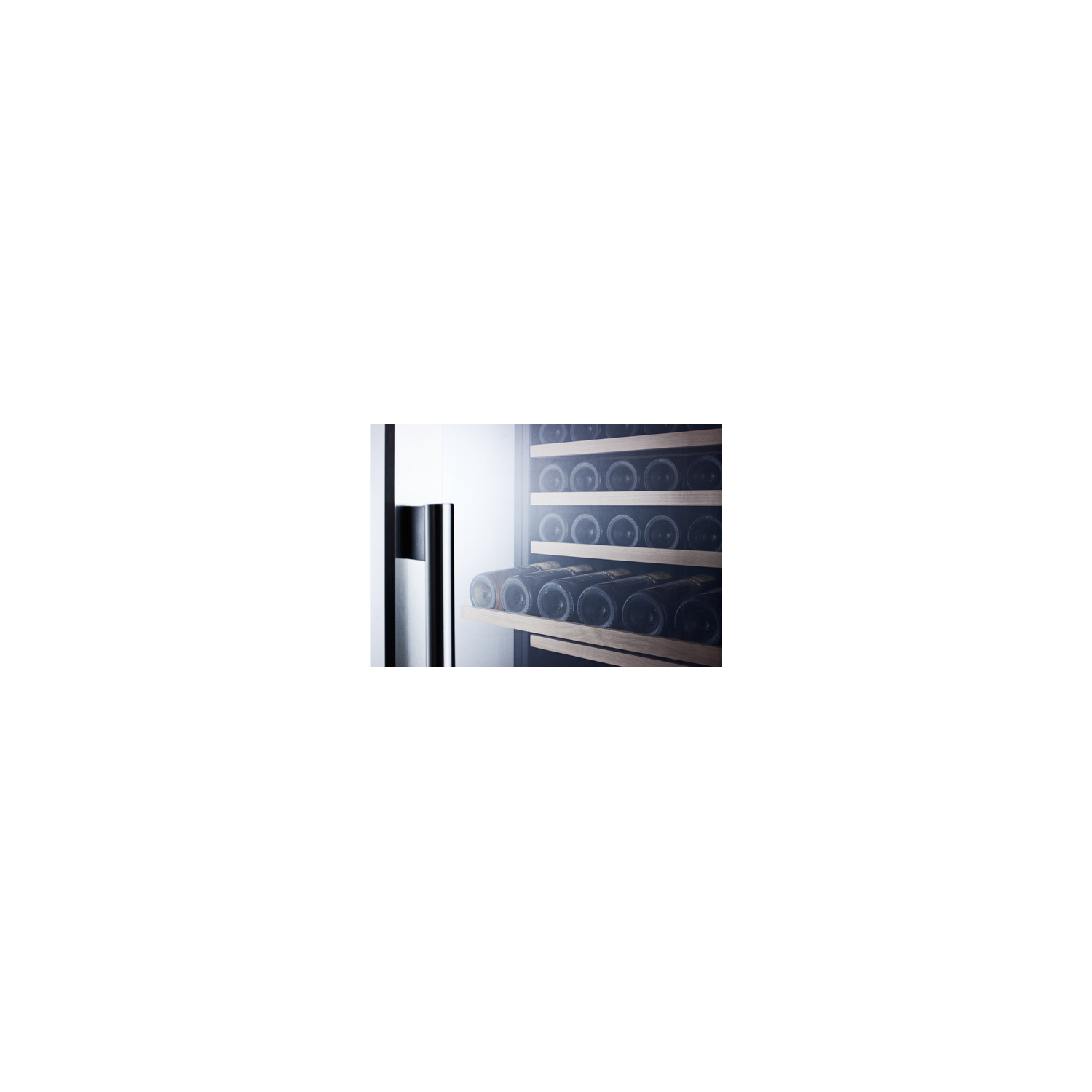

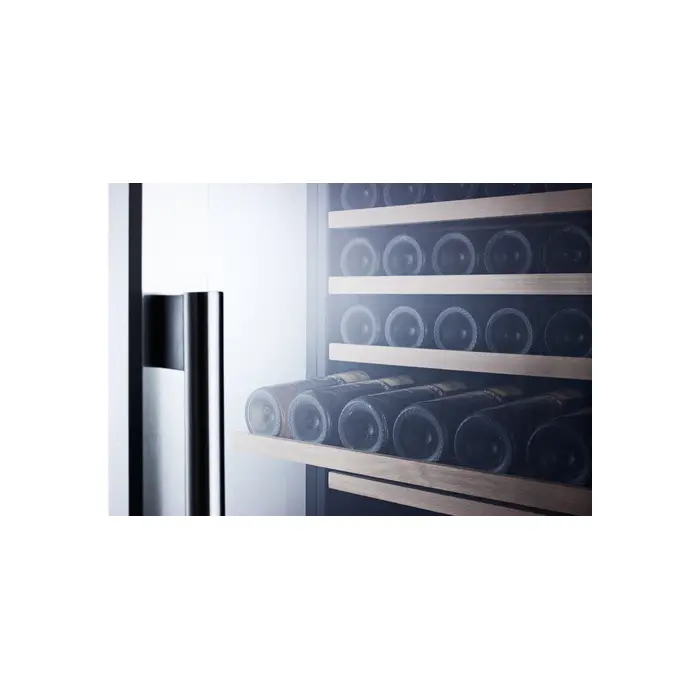

Slide-out wooden shelves 15 wooden wine shelves for classic storage
Factory installed lock Keyed lock for trusted security
Reversible door User-reversible door swing allows for more flexibility in placing the unit
Professional handle Stainless steel handle completes the professional look
Automatic defrost Reduced user maintenance with auto defrost operation
Modified built-in use Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
High temperature alarm Audible alarm sounds if the storage temperature rises out of recommended range
Open door alarm Alarm sounds if the door is left open for more than 60 seconds
Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
Sabbath Mode Optional setting lets you disable the lighting and alarms for up to 48 hours
Stainless steel kickplate Sleek look with added protection
Fully finished cabinet Allows the unit to be used freestanding
100% CFC free Environmentally safe operation with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (SWC1926CSS.pdf)
TECHNICAL DRAWING (.dwg) (SWC1926WINECELLARA-C2000_2.dwg)
USE & CARE (SWC1926CSS-User-Manual.pdf)
