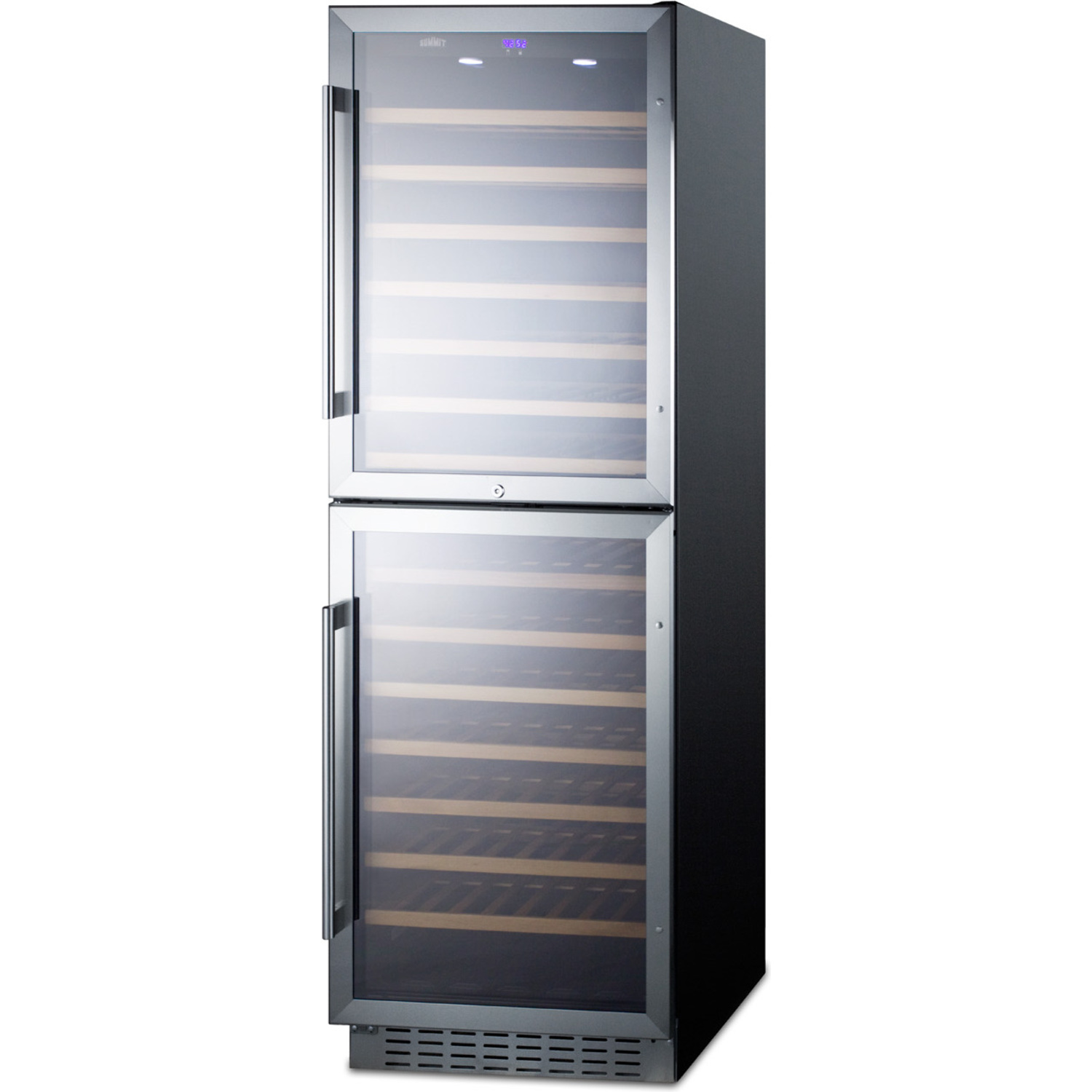

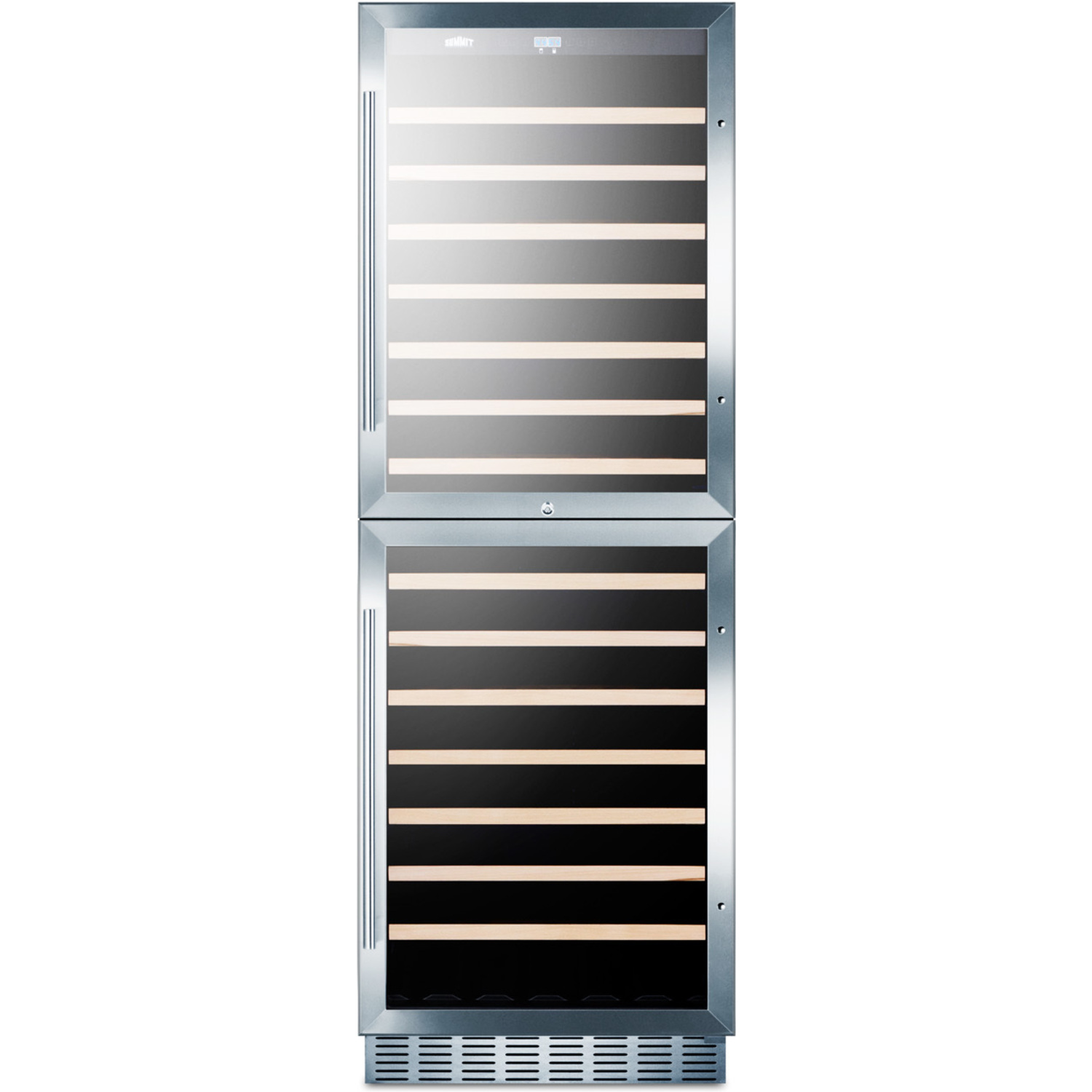

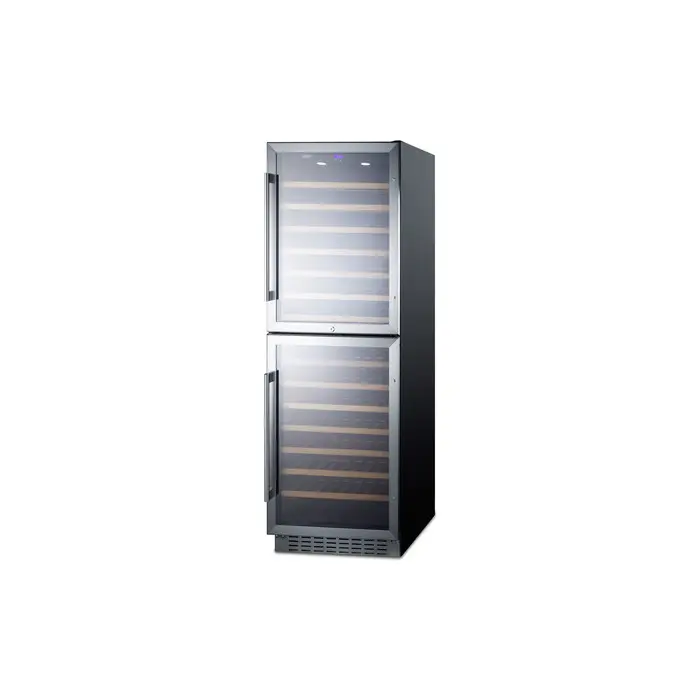

Summit Dual zone 118 bottle wine cellar with two glass doors and digital thermostats; for built-in or freestanding use, 7.61101e+011, SWC1875B

SUMMIT SWC1875B is a built-in capable two-zone wine cellar designed to store up to 118 bottles.

With an easy-fitting 24" footprint, the SWC1875B can be used built-in or freestanding and features two distinct temperature zones, each with its own reversible glass door. Store white and sparkling wine in the upper zone while preserving your reds below at a warmer temperature. Two digital thermostats let you set the proper conditions for your collection, with a digital readout in Fahrenheit or Celsius.

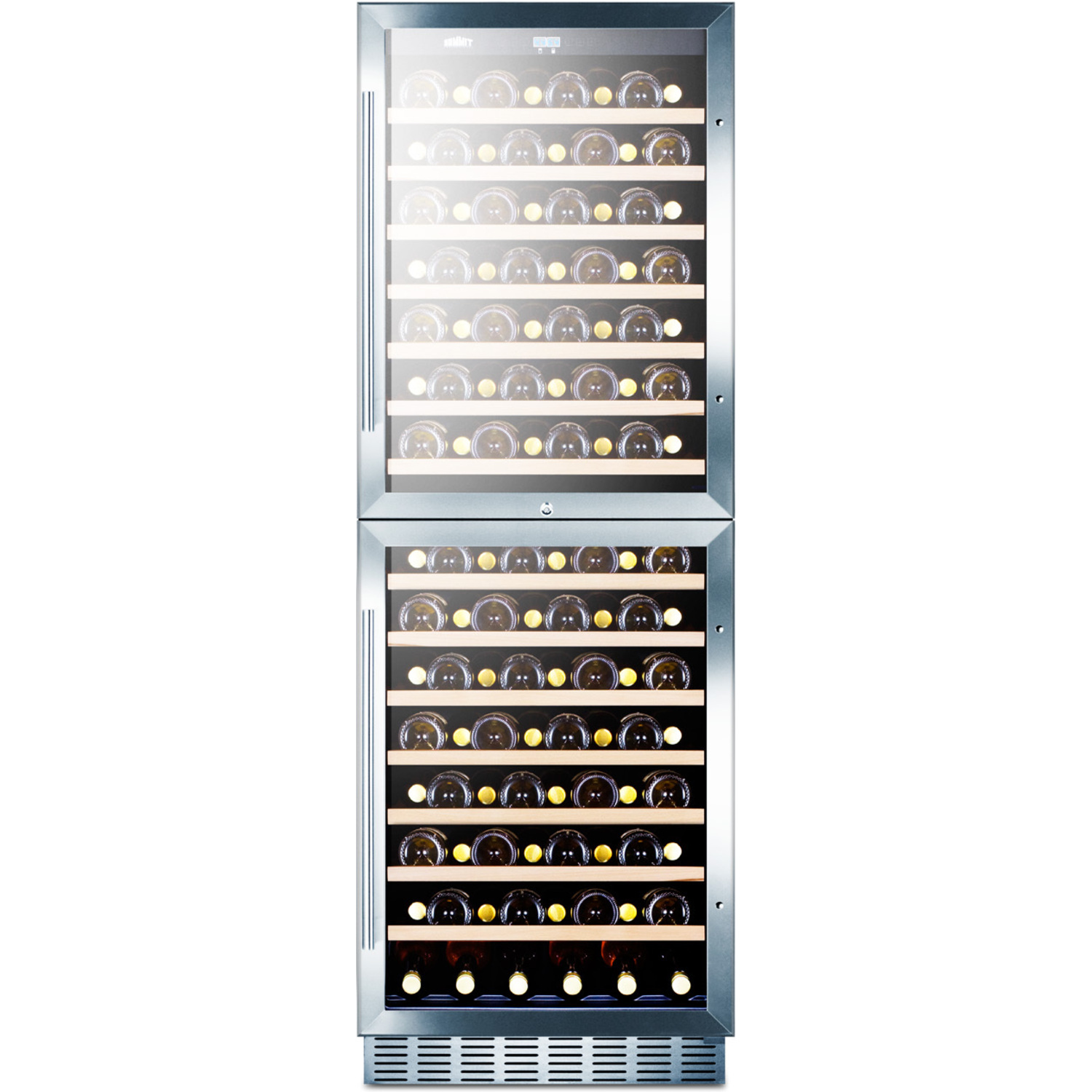

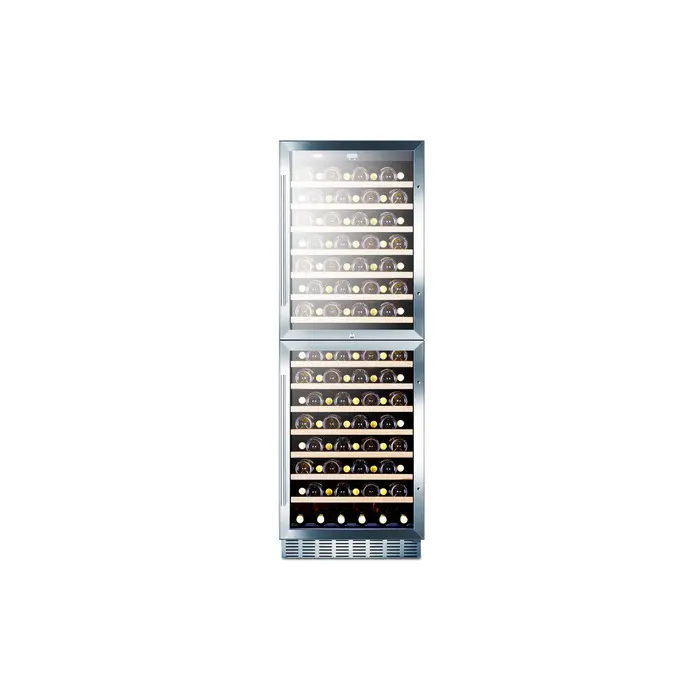

Inside, the SWC1875B includes 14 slide-out wooden shelves to properly hold bottles. Store up to 118 standard 750ml Bordeax style bottles, or 118 wider Burgundy style bottles (generally used for Chardonnay or Pinot Noir). If storing champagne, the top shelf can hold 8 bottles. Recessed LED lighting offers an attractive display and a factory installed lock ensures the security of your collection. This model has a jet black cabinet with stainless steel trimmed glass doors. Professional chrome handles and a stainless steel kickplate complete the elegant look.

Nominal Height: 70
Height of Cabinet: 69.63
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.75
Depth with Handle: 24.63
Depth with door at 90°: 44.75
Capacity: 0
Bottles: 118Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 70.0" (178 cm)

Height of Cabinet 69.63" (177 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 44.75" (114 cm)

Bottles 118 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 191.0 lbs. (87 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101030746

Wine Cellar

Number of Zones 2

Door Swing RHD

Reversible Yes

Shelf Type Wood

Shelf Qty 14

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.07 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 27.75" (70 cm)

Interior Width 1 20.0" (51 cm)

Interior Depth 1 17.5" (44 cm)

Temperature Range 41°F to 55°F (upper zone); 55°F to 72°F (lower zone)

Interior Height 2 31.0" (79 cm)

Interior Width 2 20.0" (51 cm)

Interior Depth 2 17.5" (44 cm)

Sabbath Mode Yes

Sound Level 32.9 dB

FEATURES

Built-in capable Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top

Large capacity Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles

Two temperature zones Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below

Commercial design Meets UL-471 commercial standards

Two reversible glass doors Elegant tint with user-reversible convenience and stainless steel trim

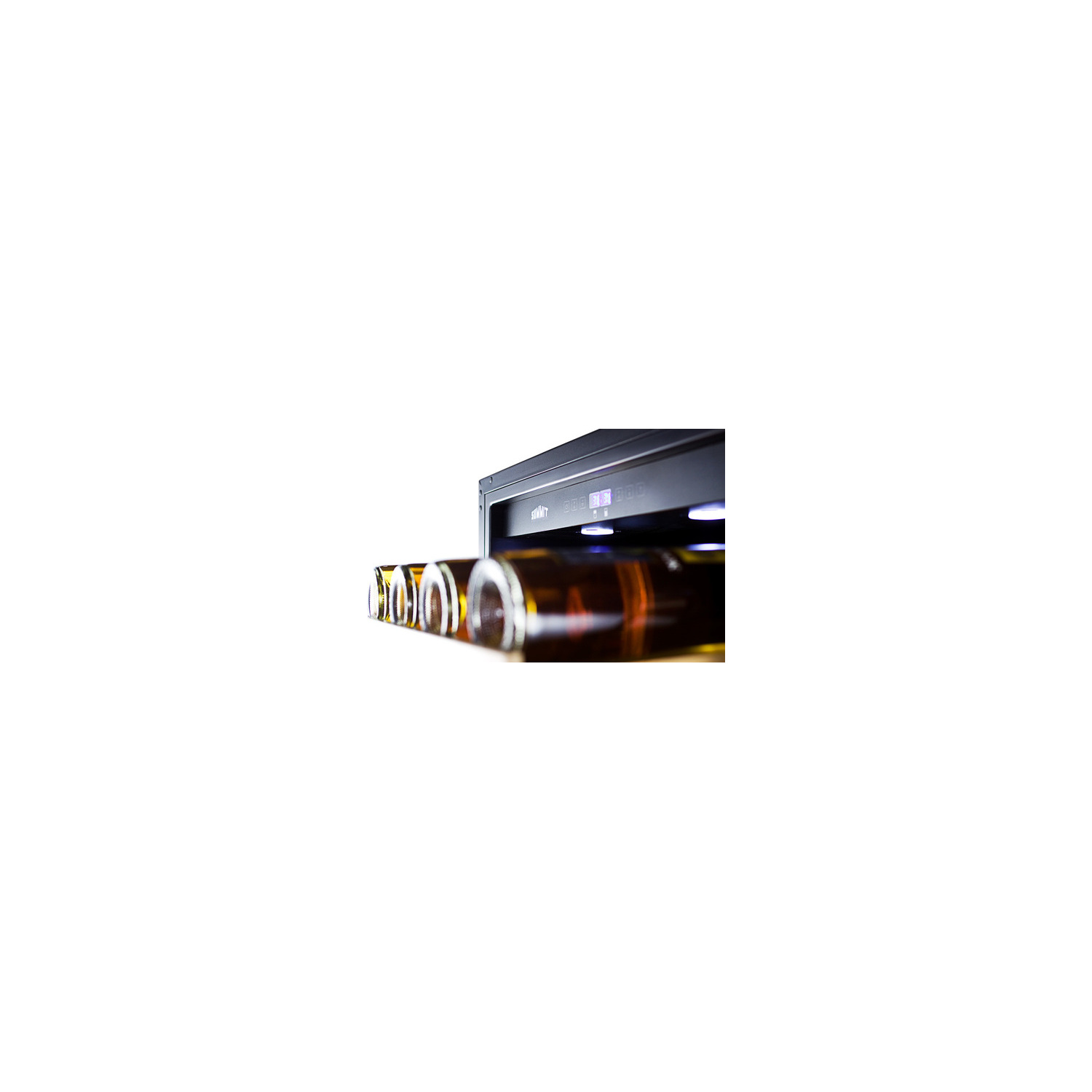

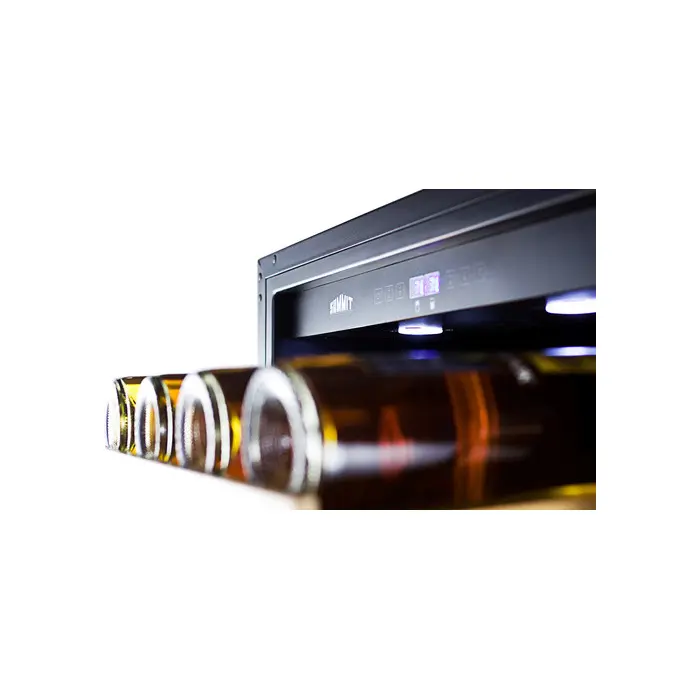

Digital thermostat Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

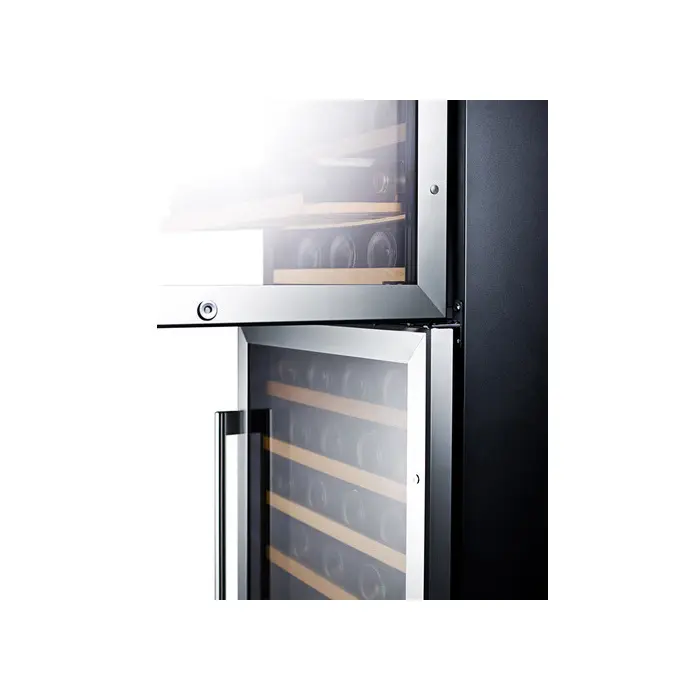

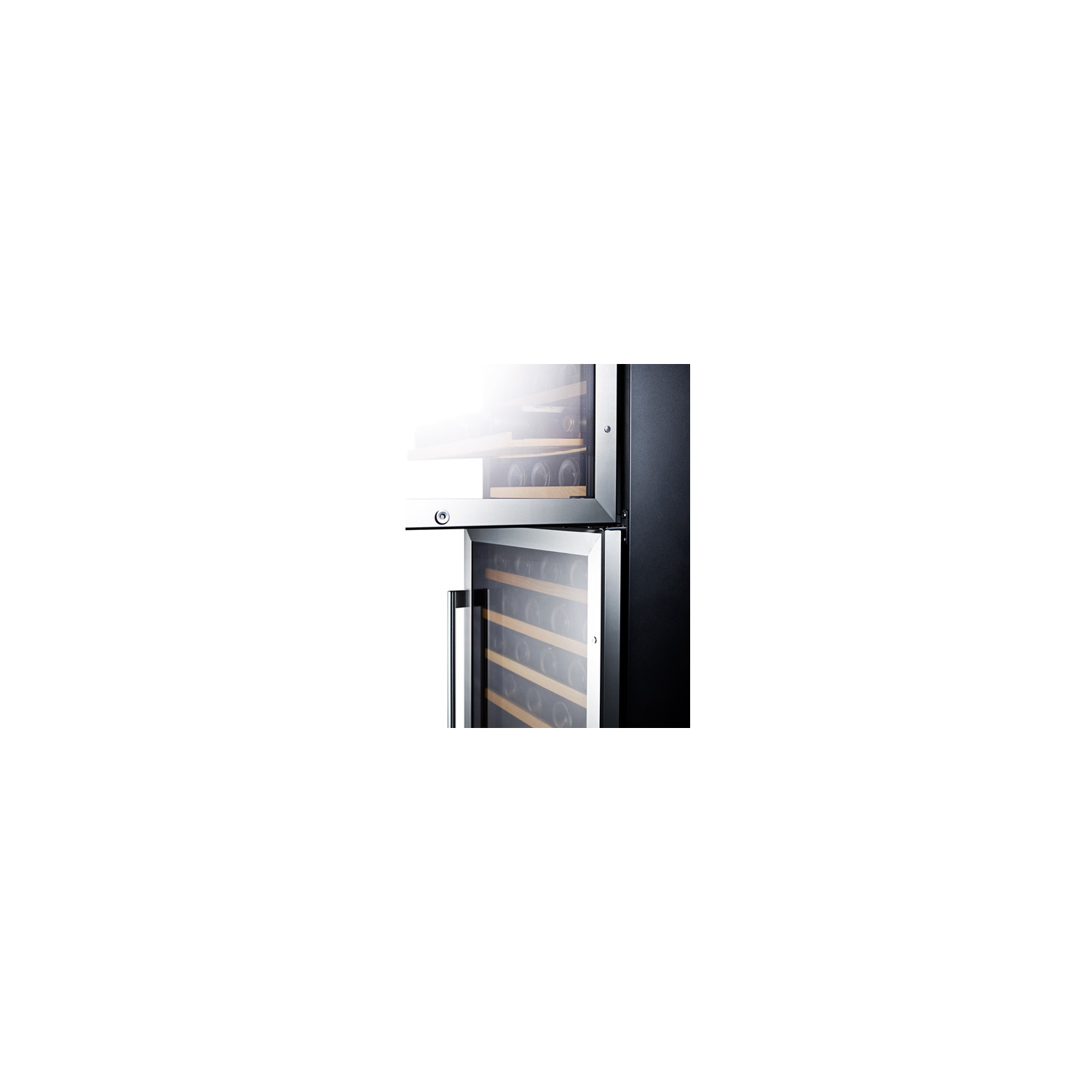

Factory installed lock Keyed lock secures both sections

Recessed LED lighting Attractive and energy efficient illumination for your collection

Slide-out wooden shelving 14 easy gliding shelves

Automatic defrost Reduced maintenance with auto defrost system

Professional handles Sturdy chrome handles add a professional look

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Stainless steel kickplate An added touch of elegance

Temperature range 40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SWC1875B.pdf)

TECHNICAL DRAWING (.dwg) (SWC1875BWINECELLARA-C2000.dwg)

REVIT MODEL (QF_Summit_SWC1875B_Bottle_Commercial_Wine_Cellar.rfa)

USE & CARE (SWC1875B-User-Manual.pdf)

SUPPORT (SWC1875B_Shelving_Guide.pdf)

MSDS INFORMATION (R600a_K.pdf)
