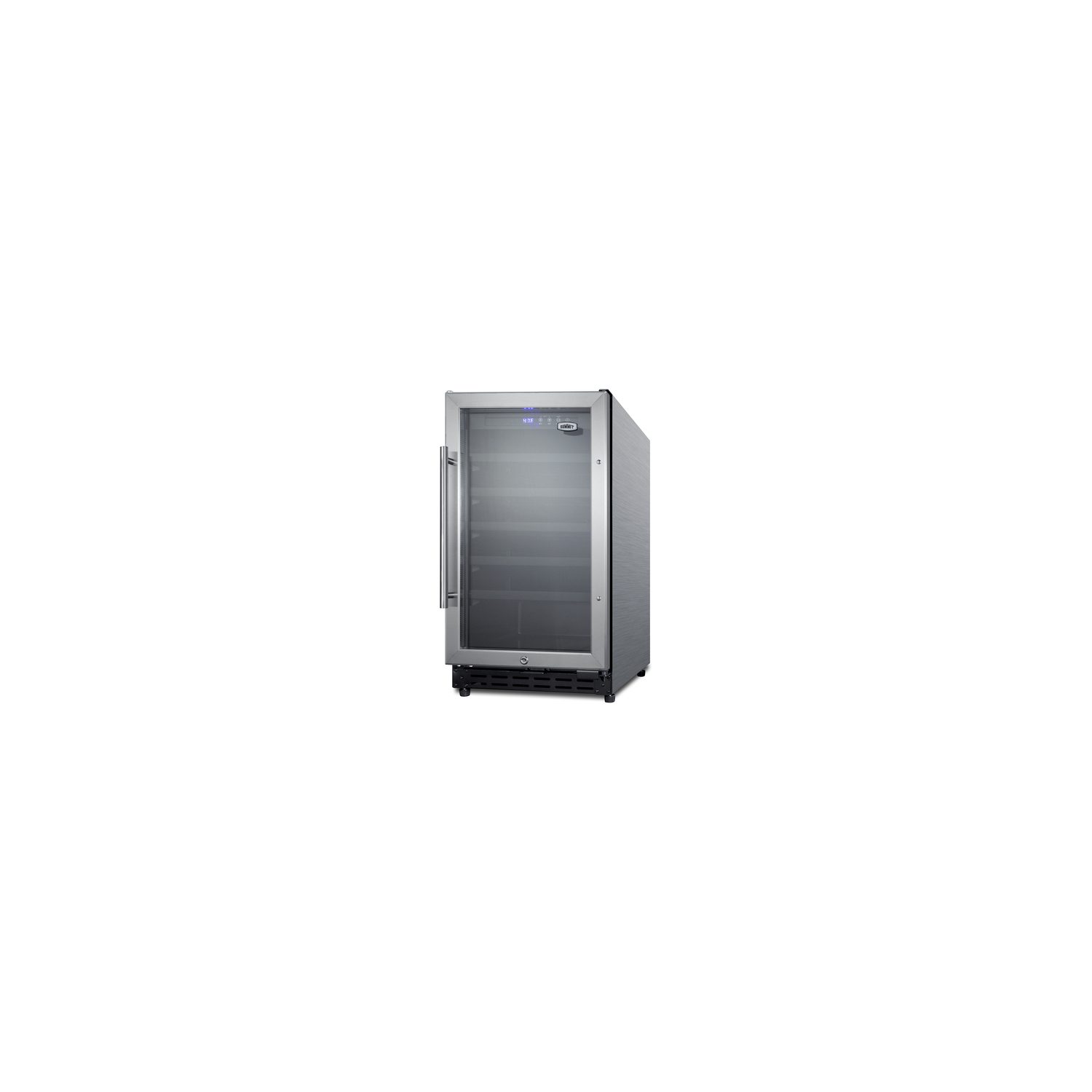

Summit 18 inch wide wine cellar for built-in or freestanding use with stainless steel cabinet, digital controls, and LED lighting, 7.61101e+011, SWC1840BCSS
$1,458.23
Retail Price: $2,145.00
Shipping: $150
$ 1,458.23
Description
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

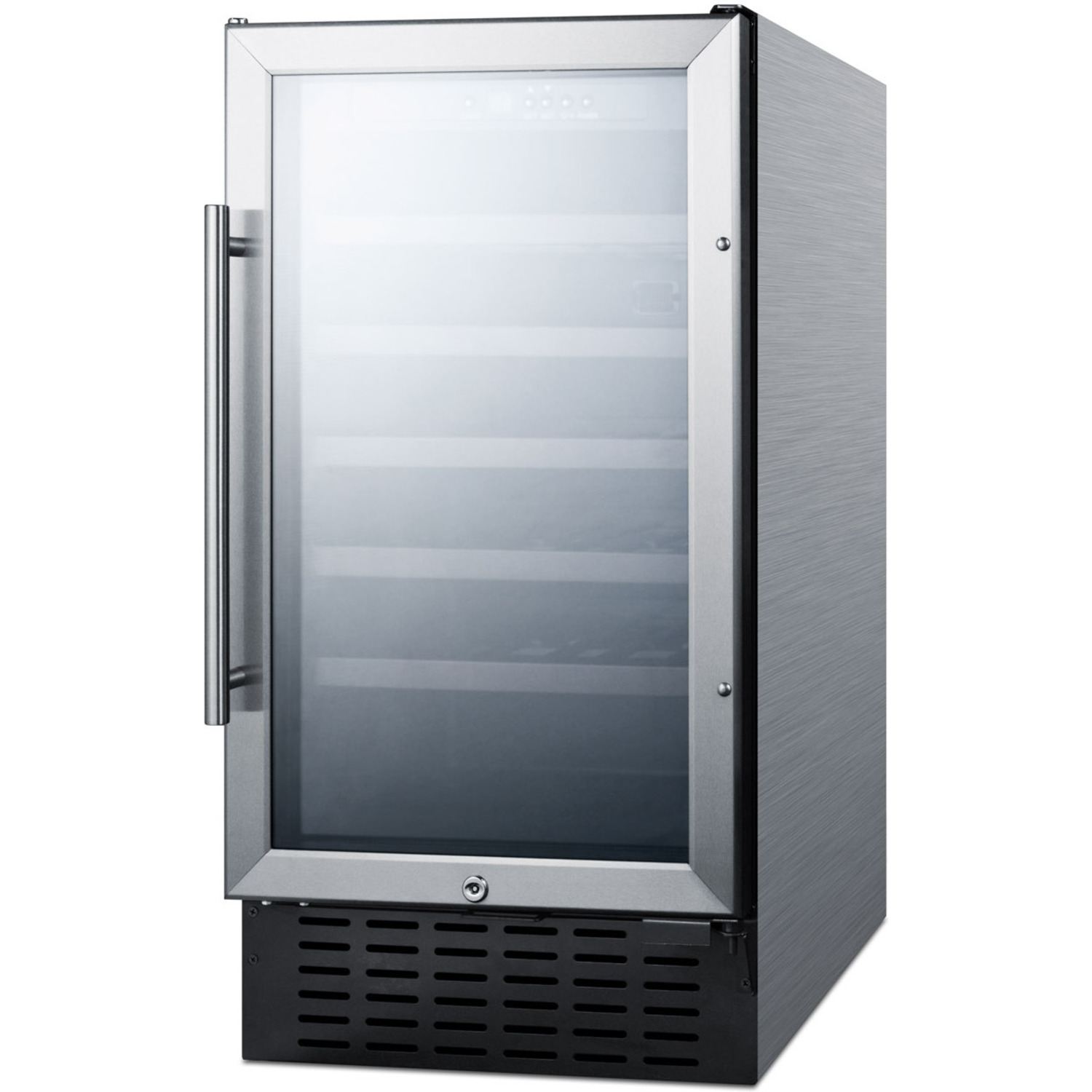

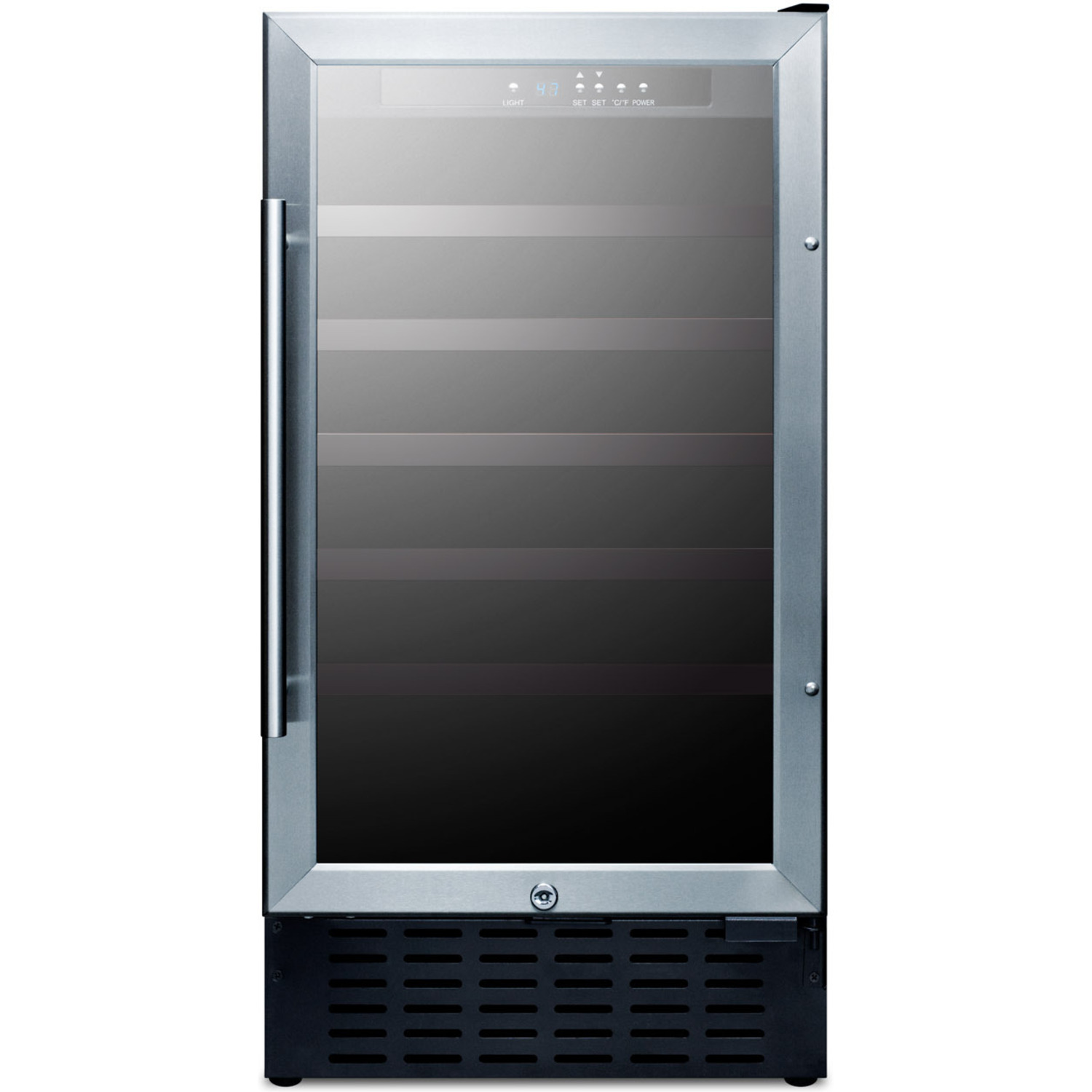

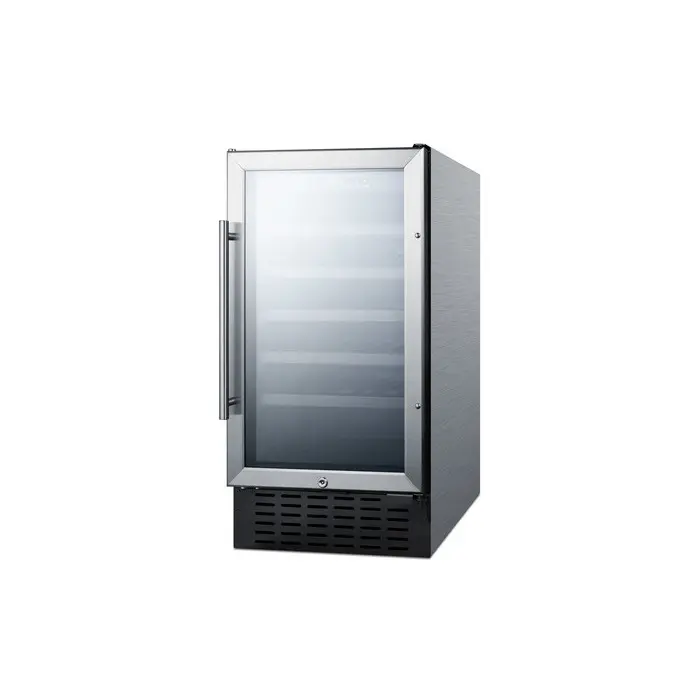

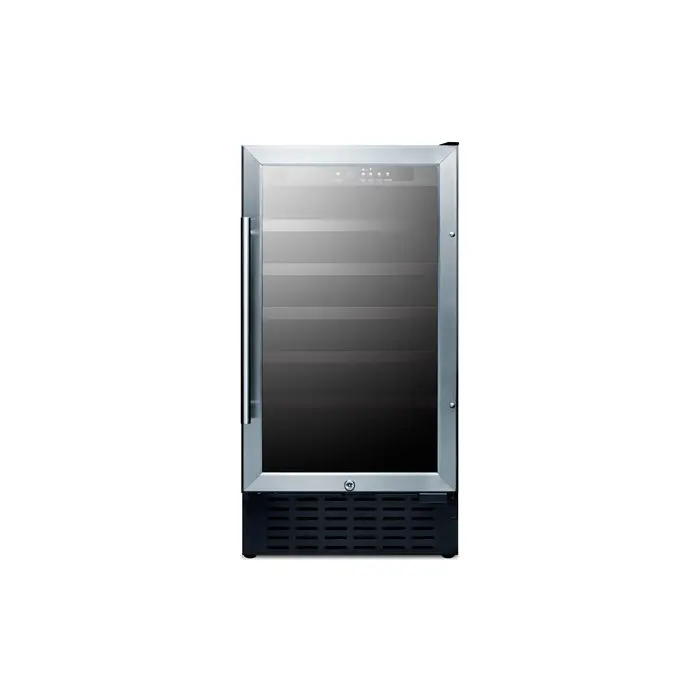

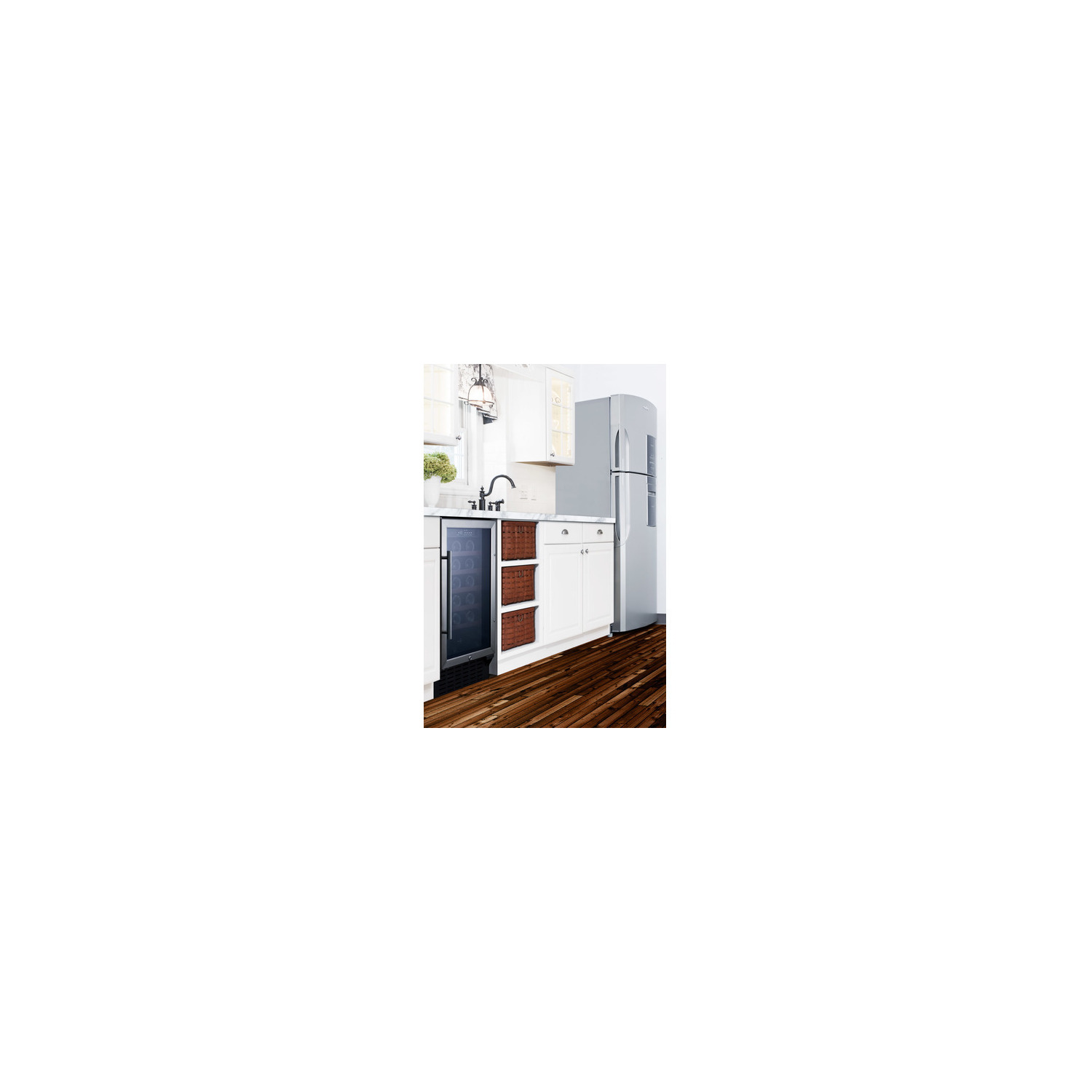

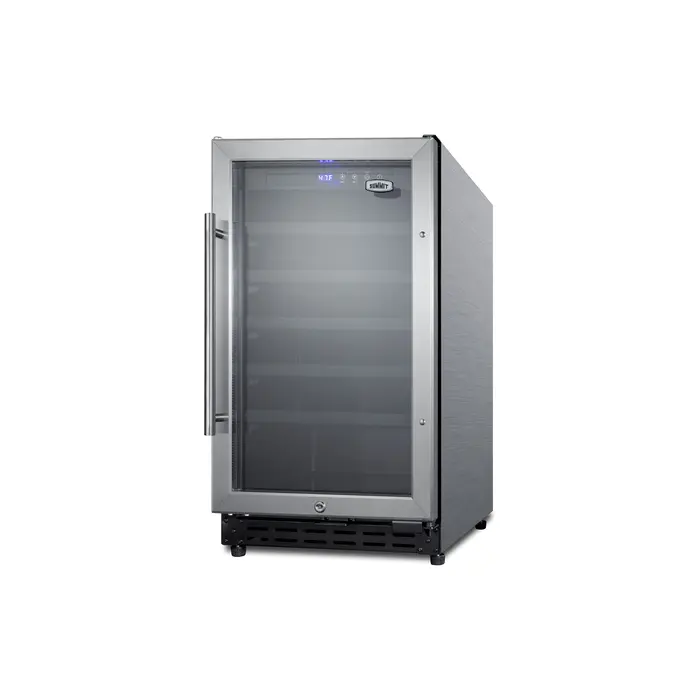

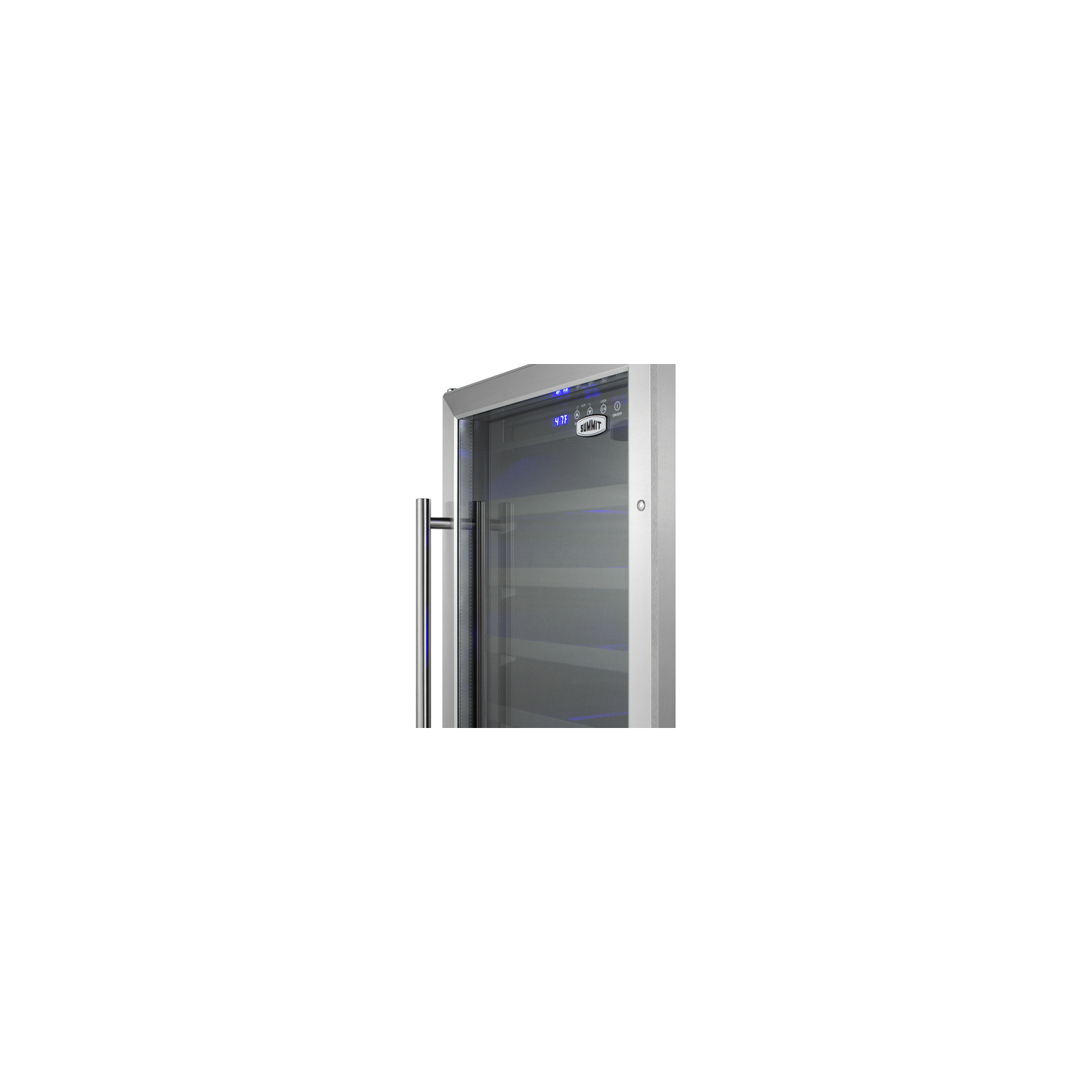

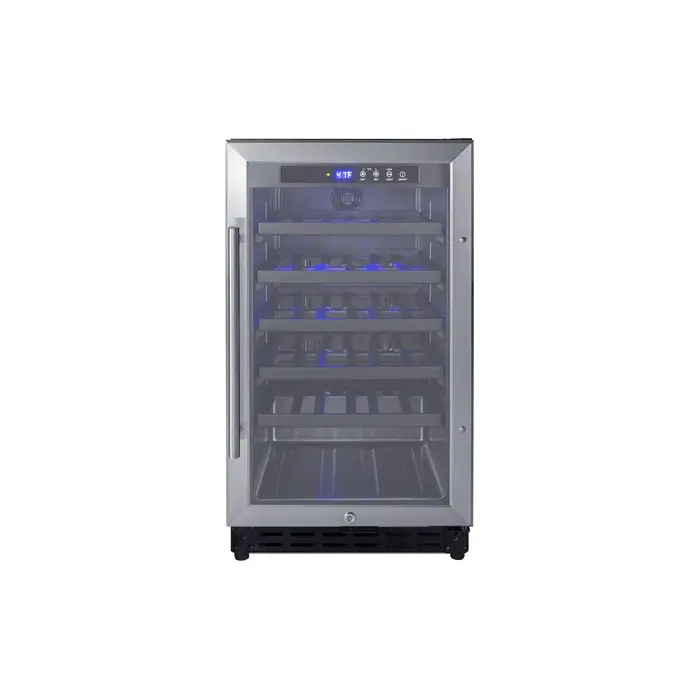

Sized just under 18" wide, the SWC1840BCSS can be used built-in or freestanding. The user-reversible glass door features attractive stainless steel trim and a pro style handle, with a factory installed lock for added security. This unit comes with a wrapped stainless steel cabinet.

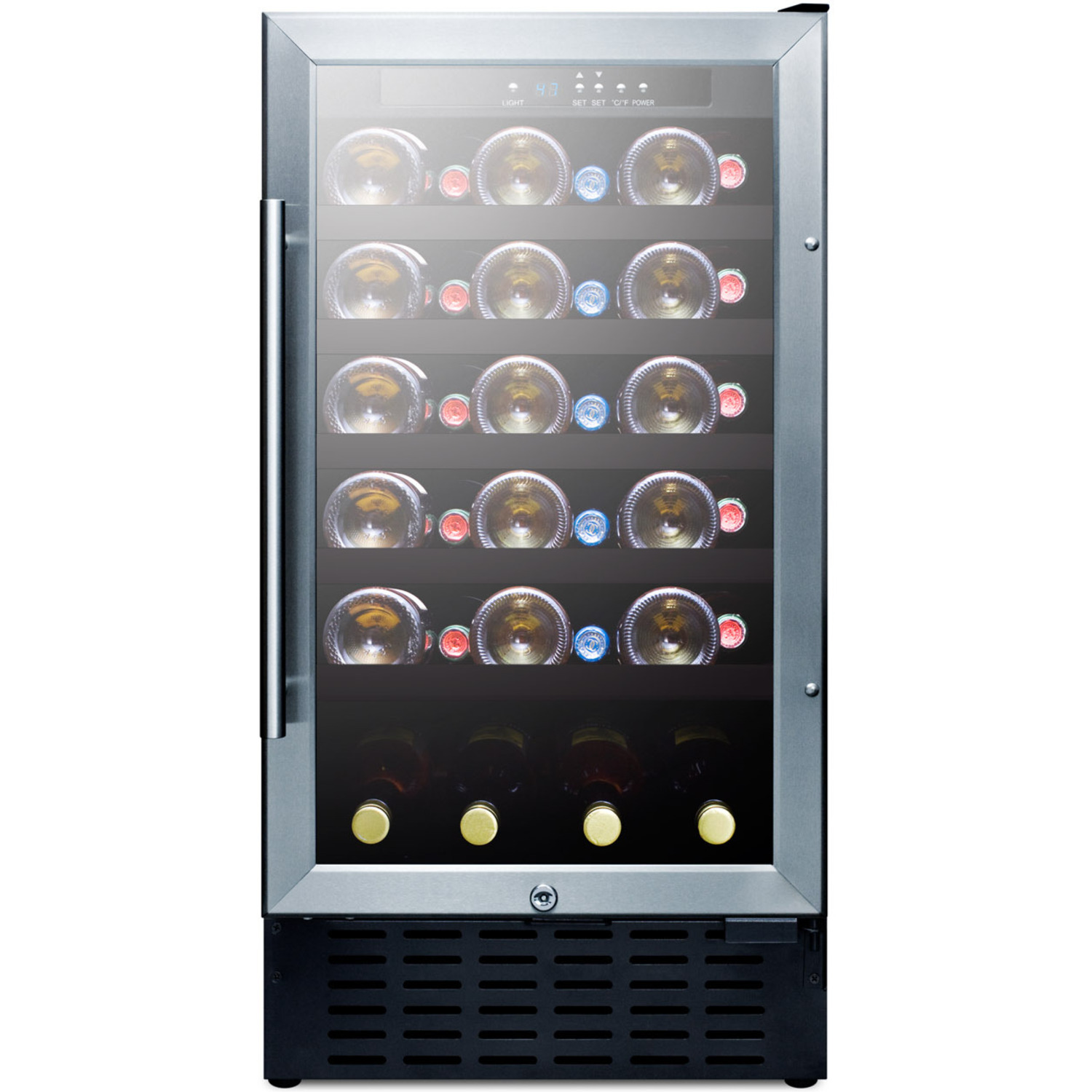

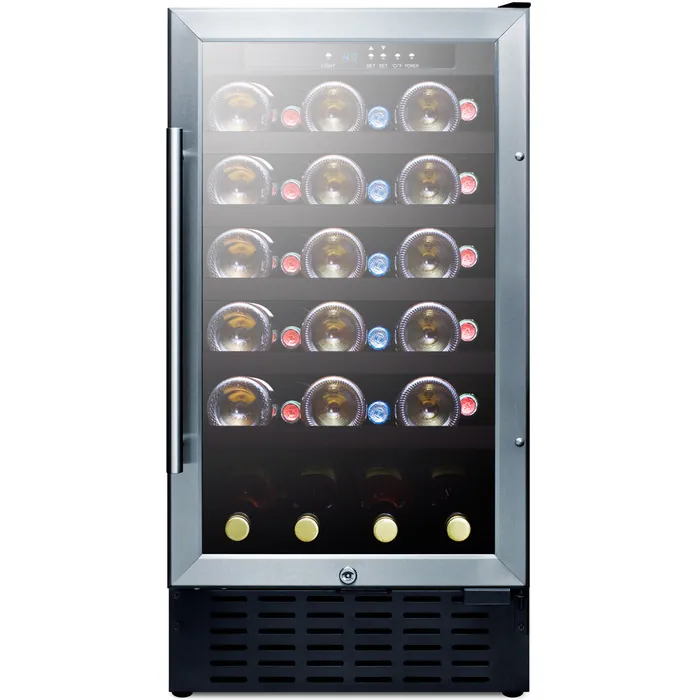

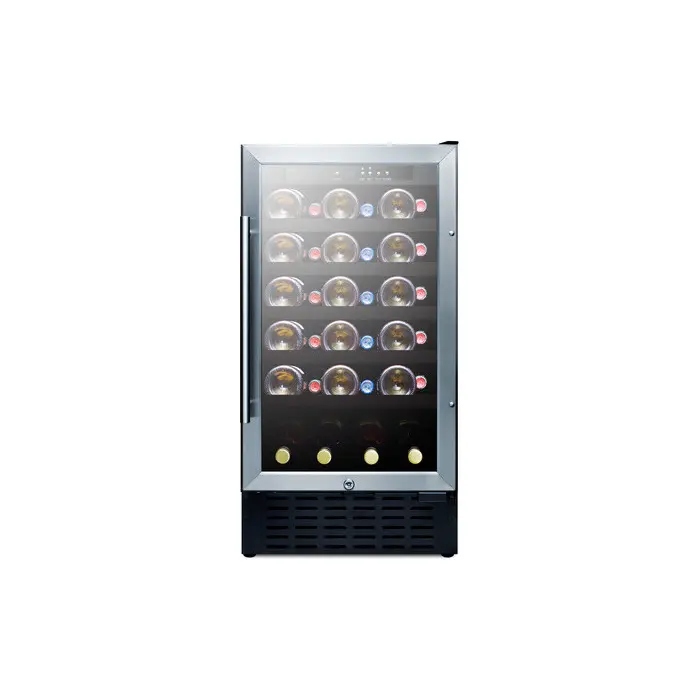

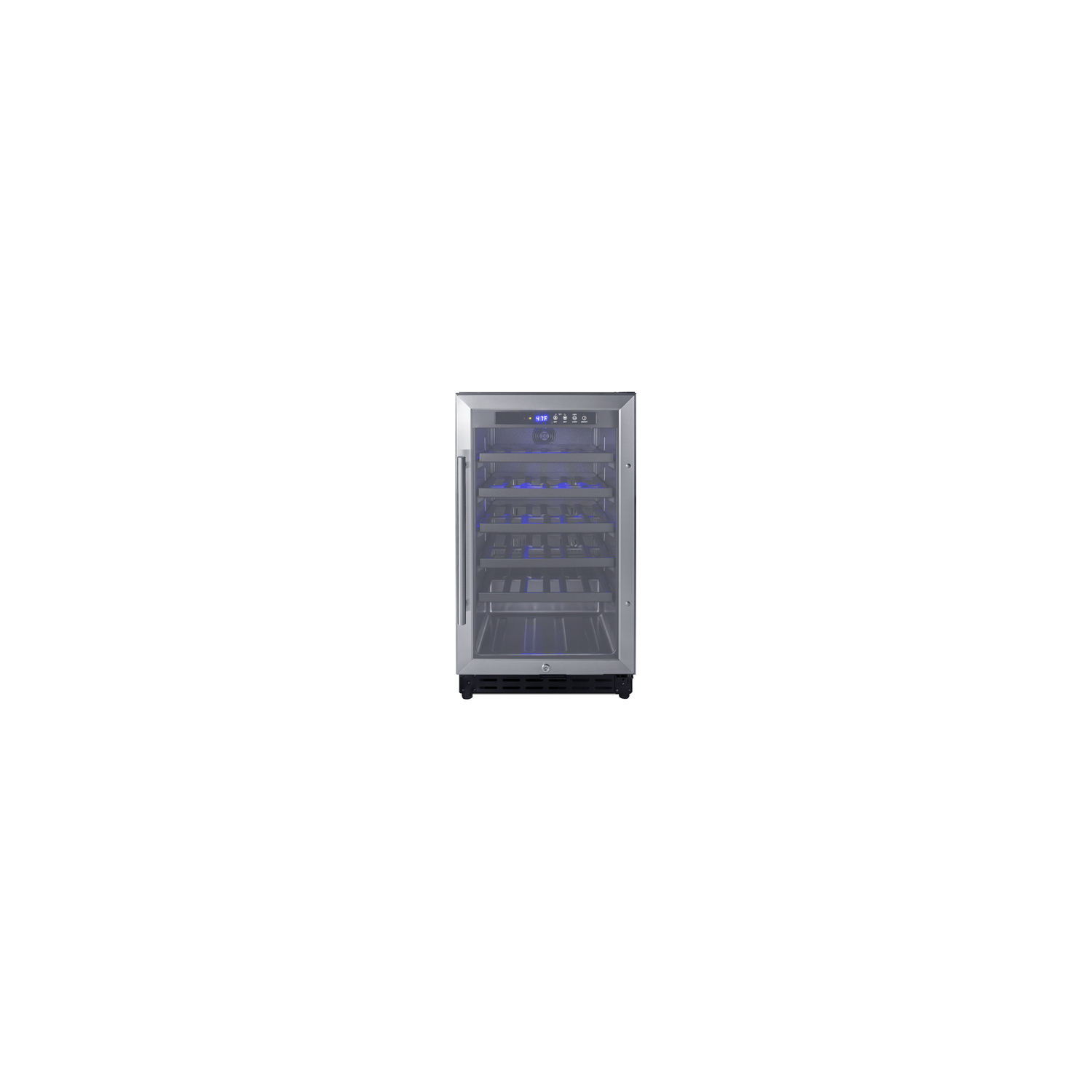

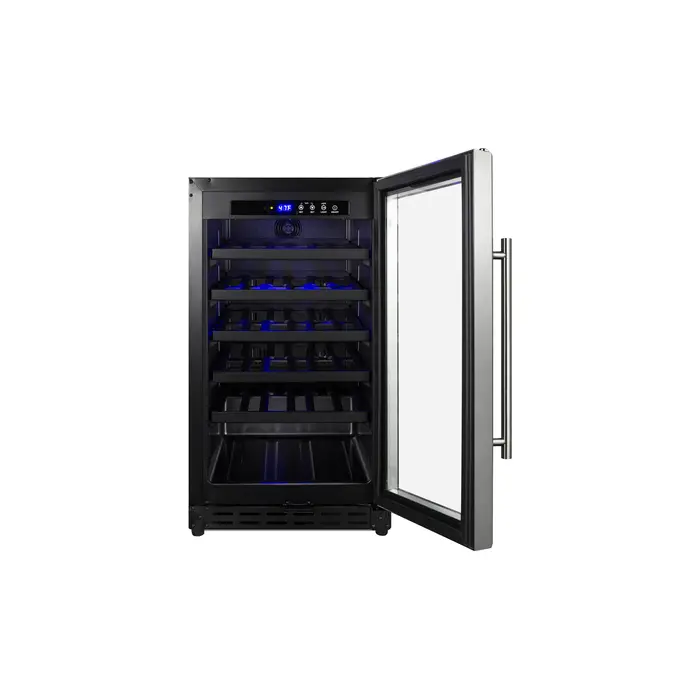

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

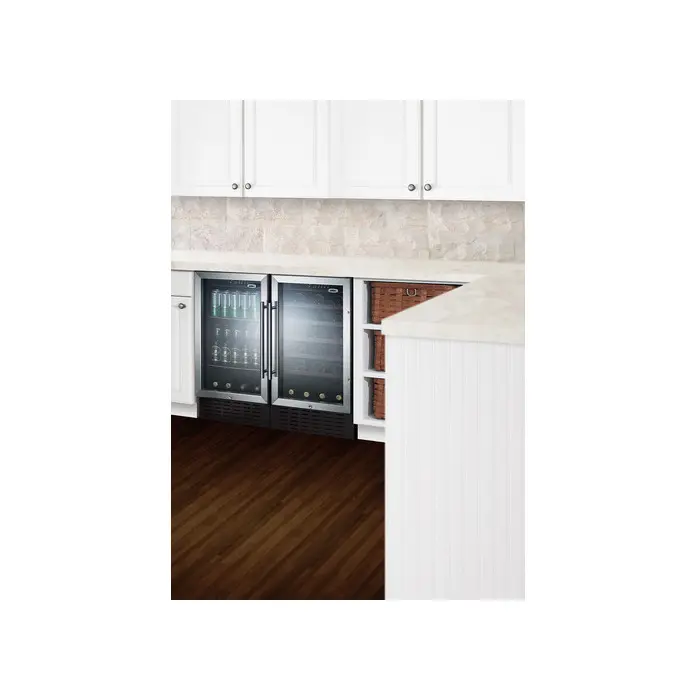

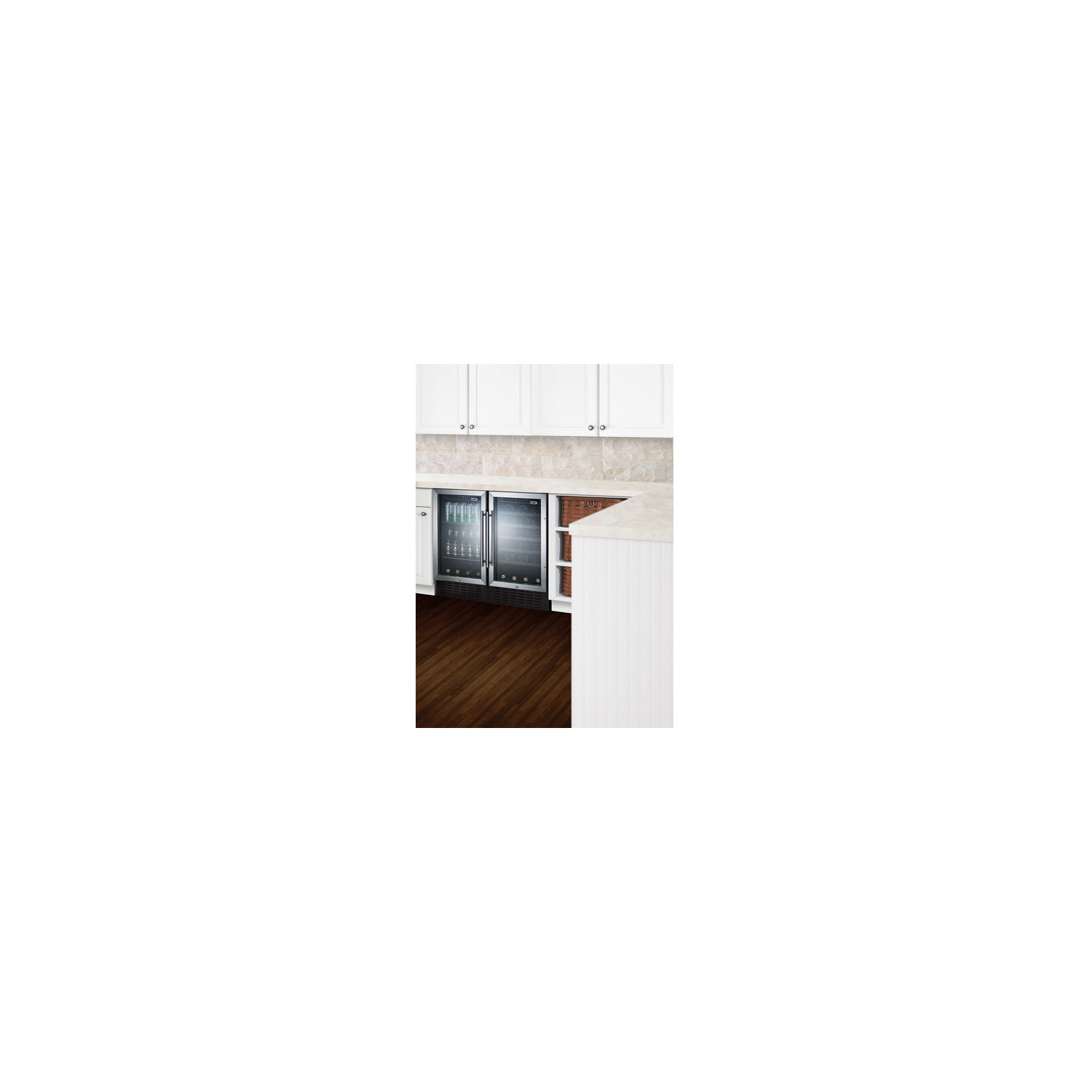

With its slim fit and convenient design, the SWC1840BCSS makes an attractive addition to any room. For a matching beverage center, see the SCR1841BCSS.
Nominal Height: 35
Height of Cabinet: 34.25
Height to Hinge Cap: 0
Nominal Width: 18
Width: 17.94
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 3.3
Bottles: 34Defrost Type: AutomaticDoor: GlassCabinet: Stainless SteelUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 18.0" (46 cm)
Width 17.94" (46 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056203
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF
Sound Level 33.8 dB
FEATURES
34 bottle capacity Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

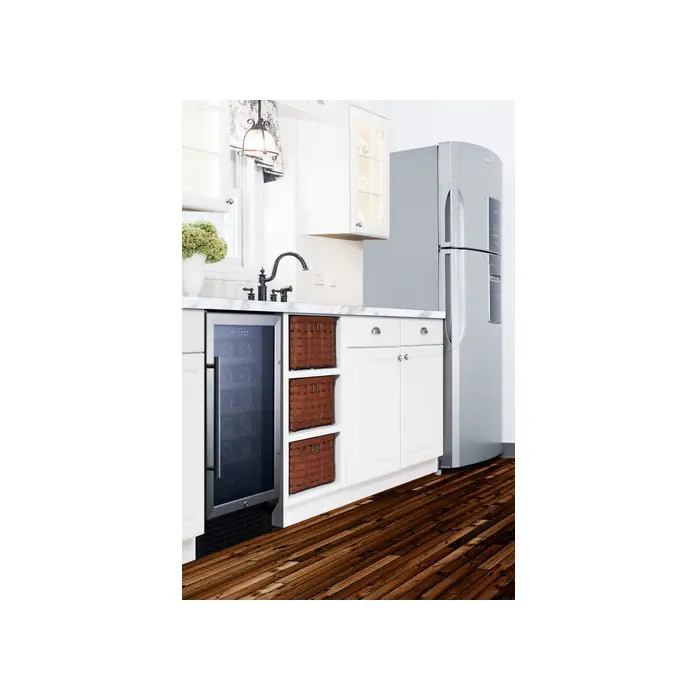

Built-in capable Make the best use of space by installing your appliance under the counter
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Stainless steel wrapped cabinet Stainless steel cabinet offers lasting durability and professional style
Factory installed lock Keyed lock for a secure interior
Automatic defrost Reduced maintenance with auto defrost system

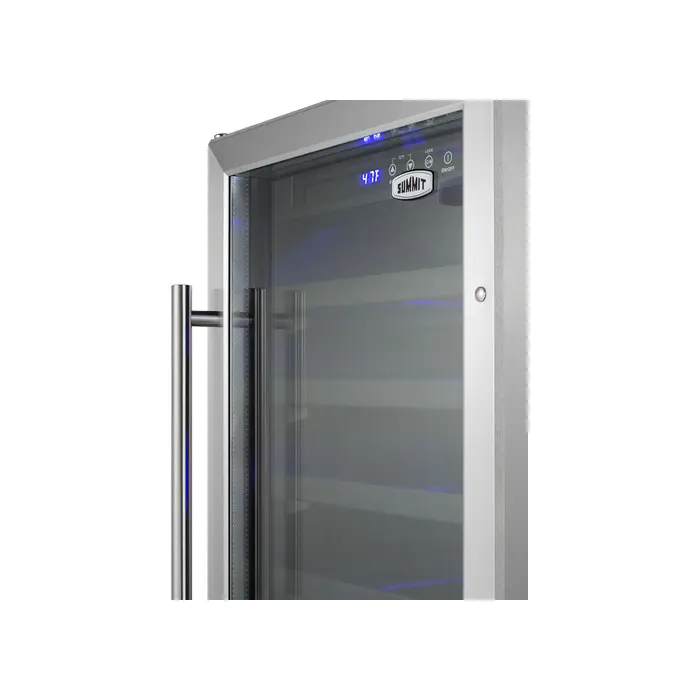

Digital thermostat Electronic controls for precise temperature management.
LED lighting Gentle illumination with an on/off switch
Wooden shelves 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Reversible door User-reversible door swing for added flexibility
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
REVIT MODEL (QF_Summit_SWC1840B_Wine_Cellar_3.rfa)
