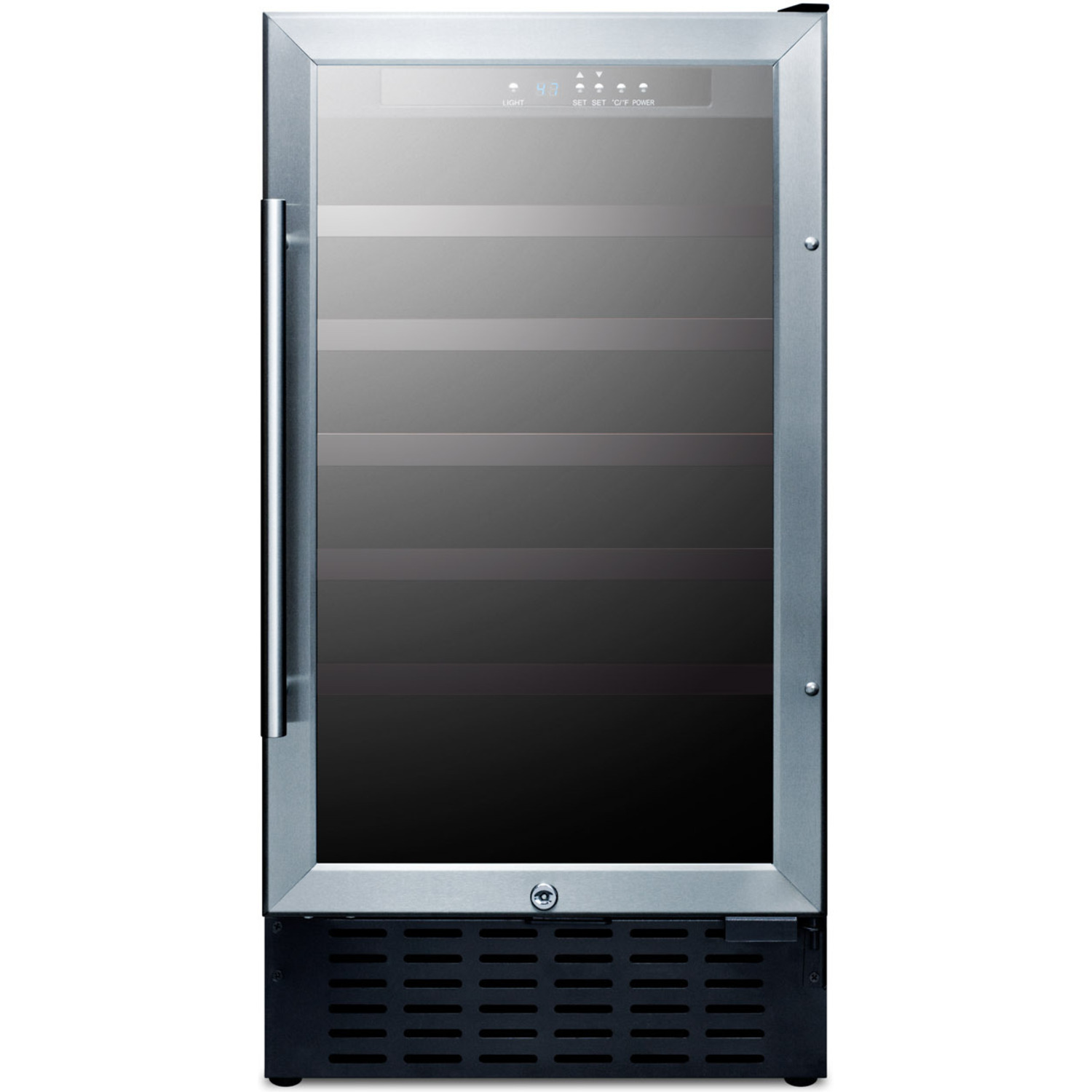

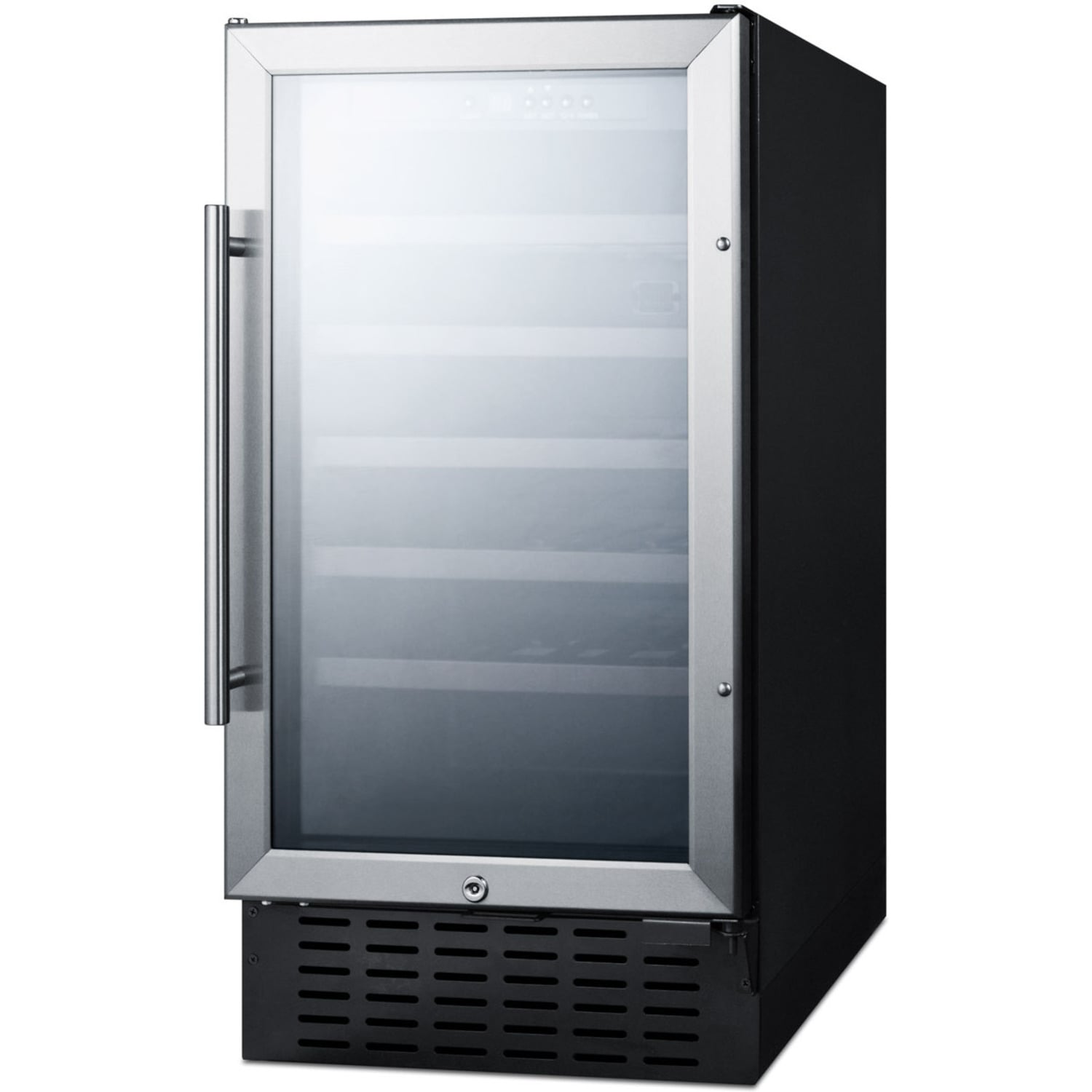

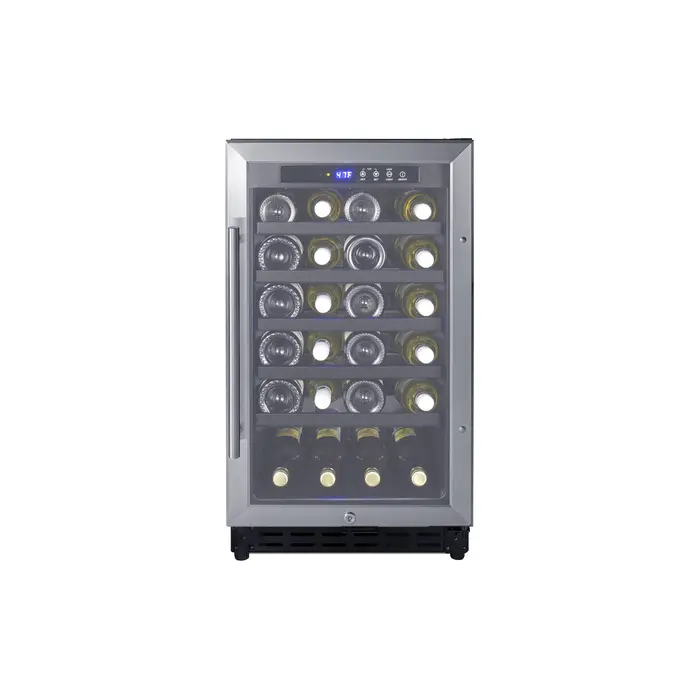

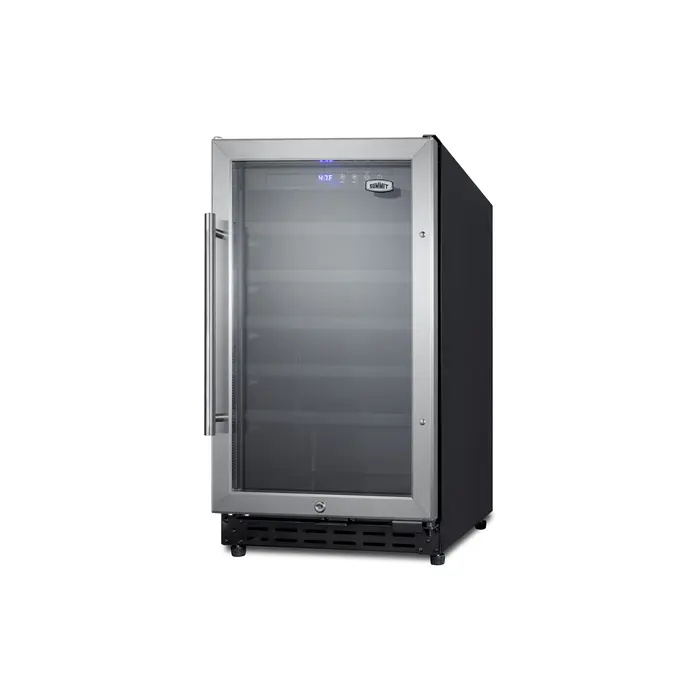

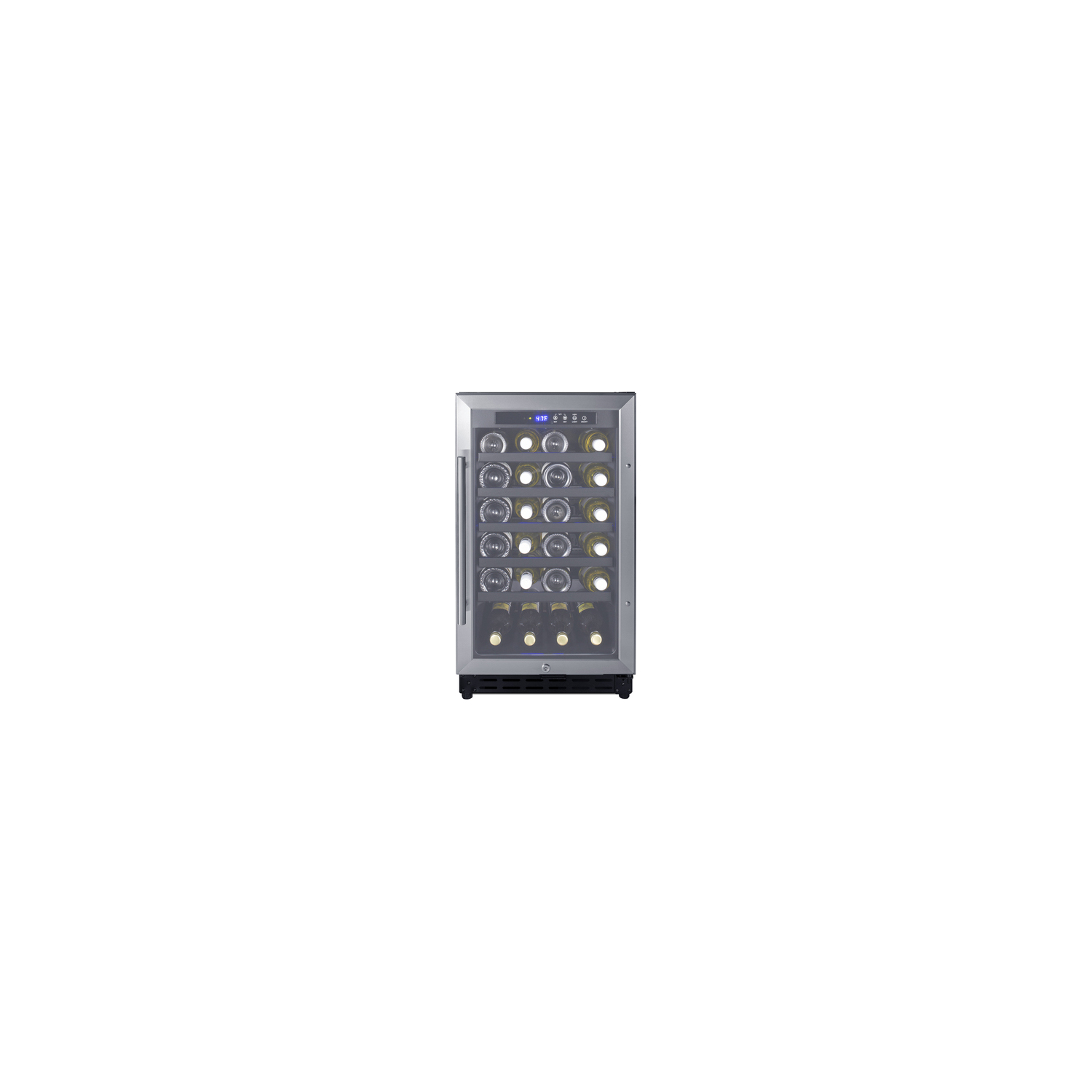

Summit 18 inch wide wine cellar for built-in or freestanding use, with digital controls, lock, and LED lighting, 7.61101e+011, SWC1840B
$974.64
Retail Price: $1,470.00
Shipping: $150
$ 974.64
Description
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

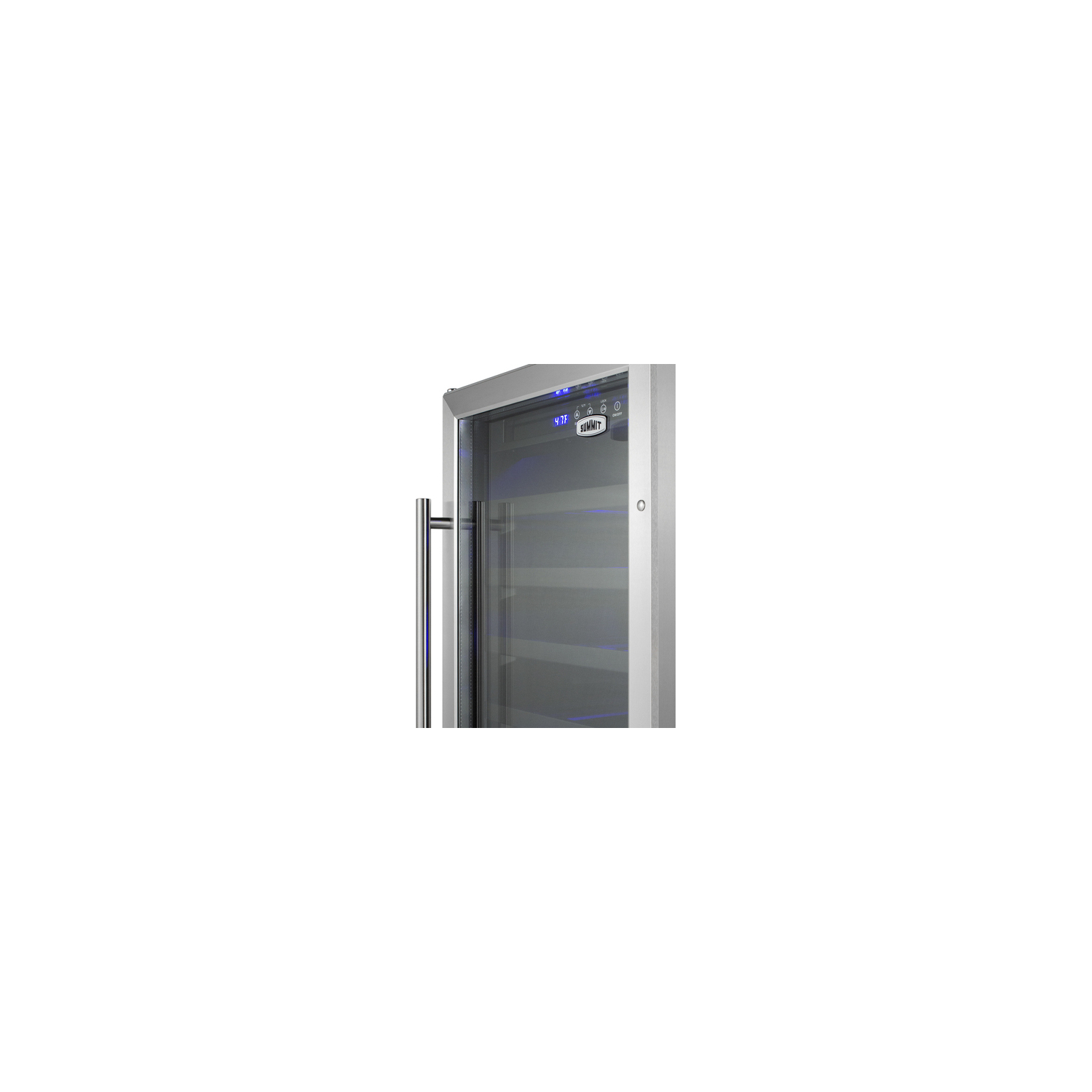

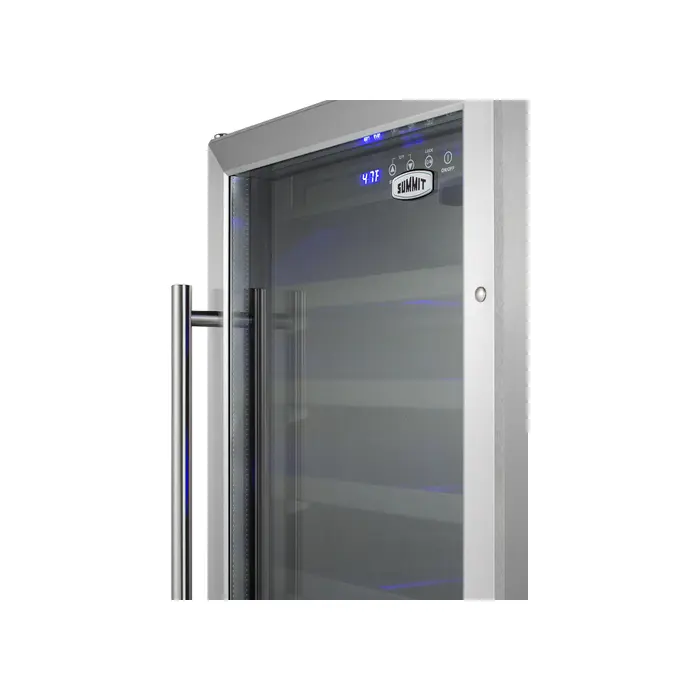

Sized just under 18" wide, the SWC1840B is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle, with a factory installed lock for added security.

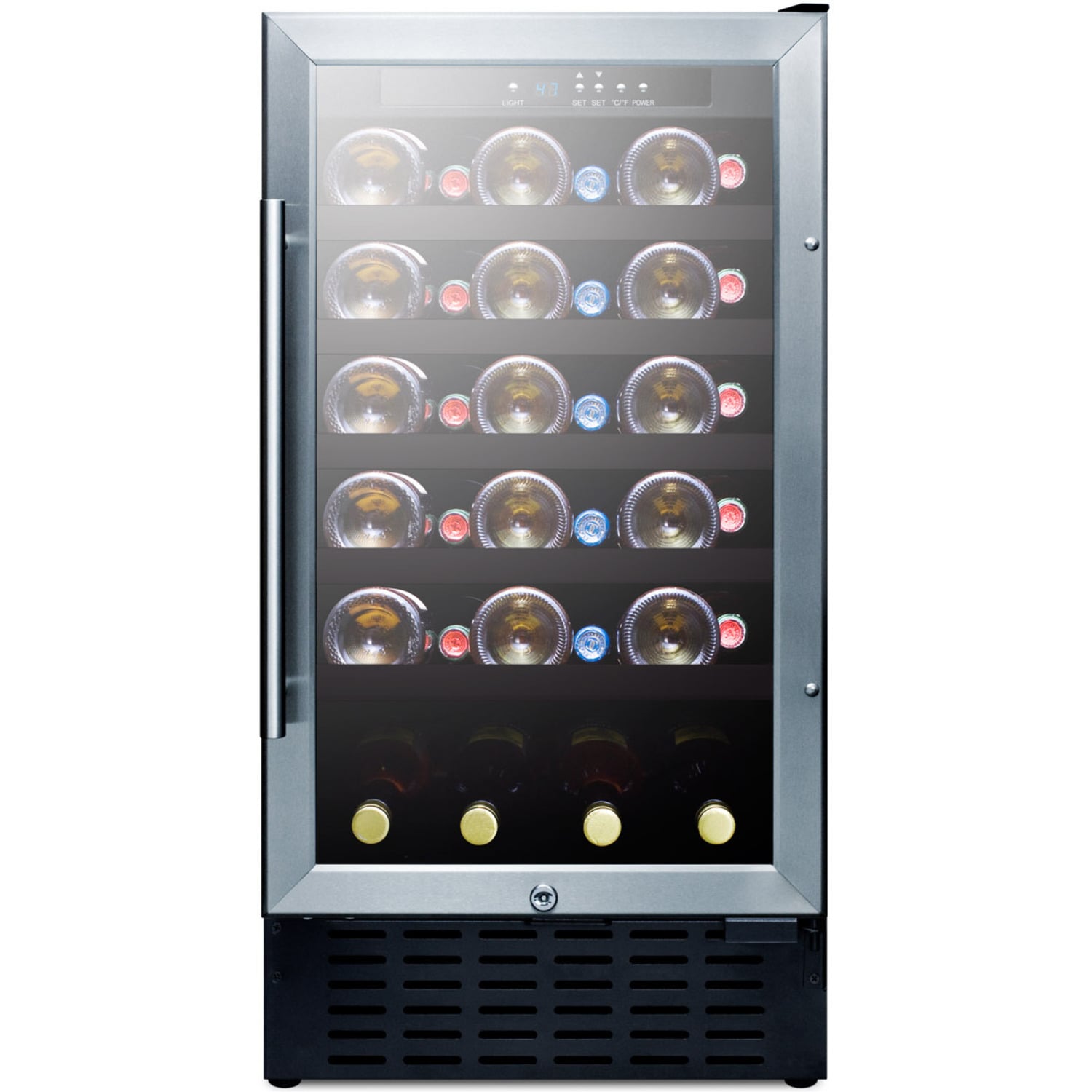

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.
With its slim fit and convenient design, the SWC1840B makes an attractive addition to any room.
Nominal Height: 35
Height of Cabinet: 34.25
Height to Hinge Cap: 0
Nominal Width: 18
Width: 17.75
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 0
Depth with door at 90°: 39.75
Capacity: 3.3
Bottles: 34Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101055725
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF
Sound Level 33.8 dB
FEATURES
34 bottle capacity Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Built-in capable Make the best use of space by installing your appliance under the counter
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock Keyed security on the door
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination with an on/off switch
Wooden shelves 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Automatic defrost Reduced maintenance with the convenience of auto defrost
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle Stainless steel look for added elegance
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (SWC1840B.pdf)
TECHNICAL DRAWING (.dwg) (SWC1840WINECELLARA-C2000.dwg)
REVIT MODEL (QF_Summit_SWC1840B_Wine_Cellar.rfa)
REVIT MODEL (QF_Summit_SWC1840B_Wine_Cellar_2.rfa)
