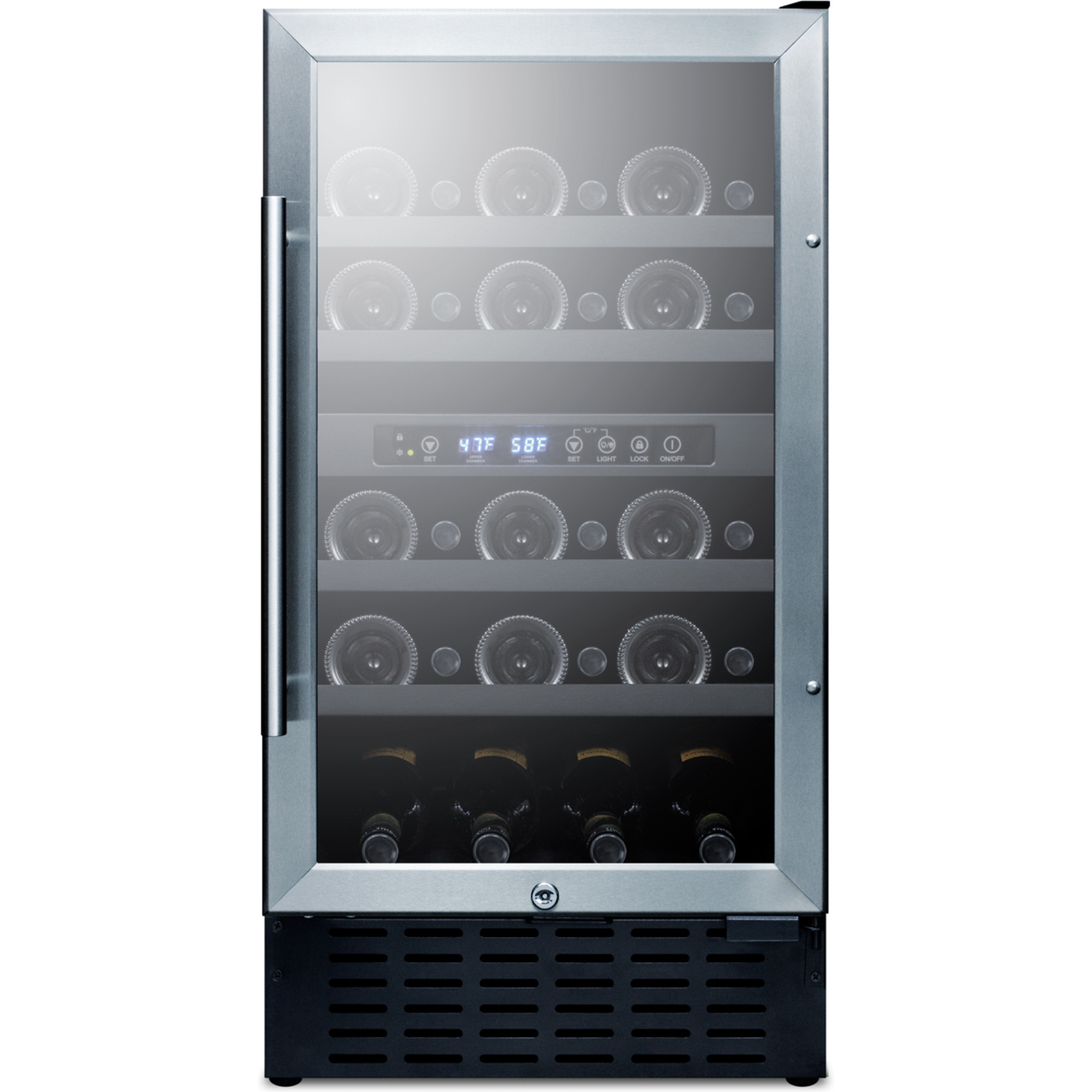

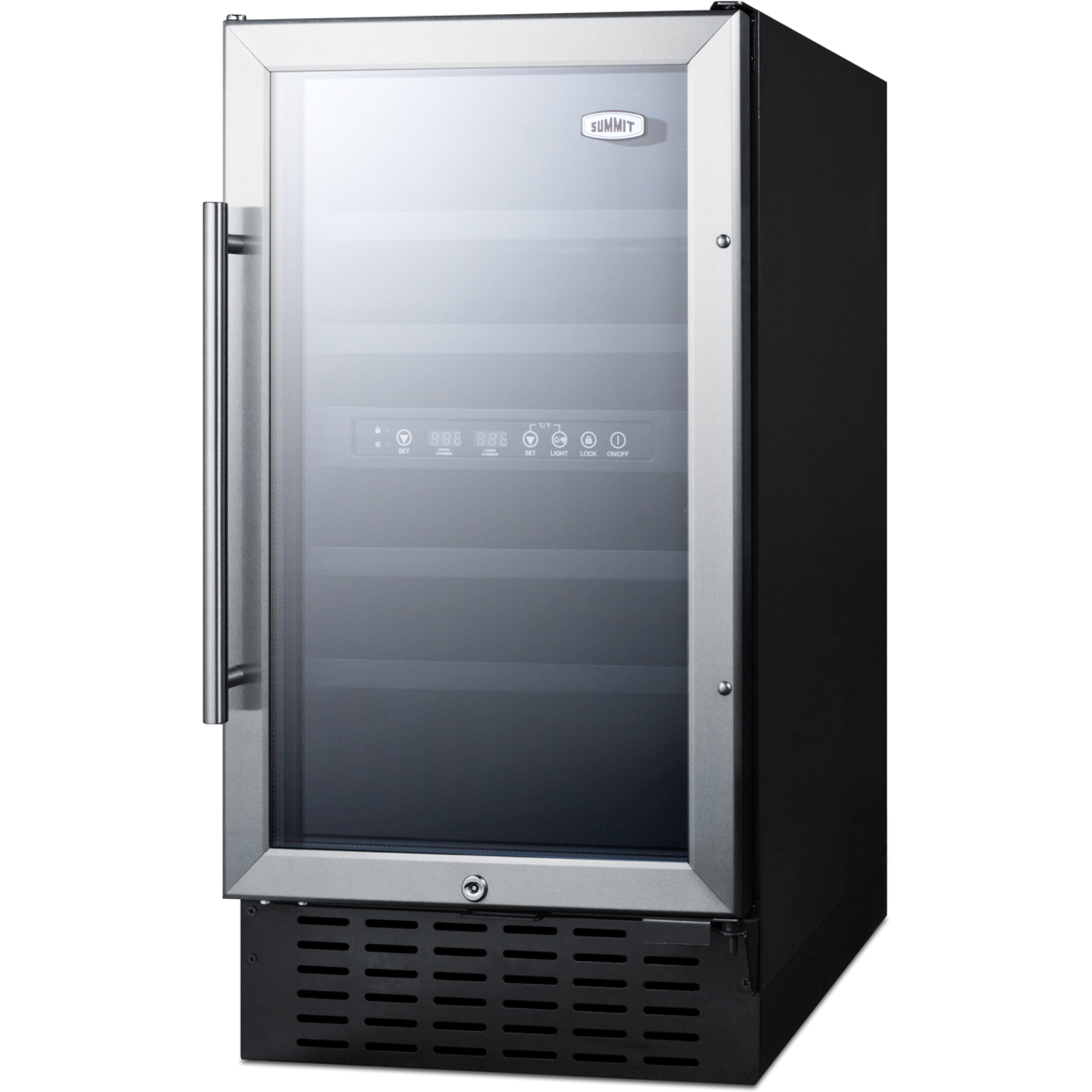

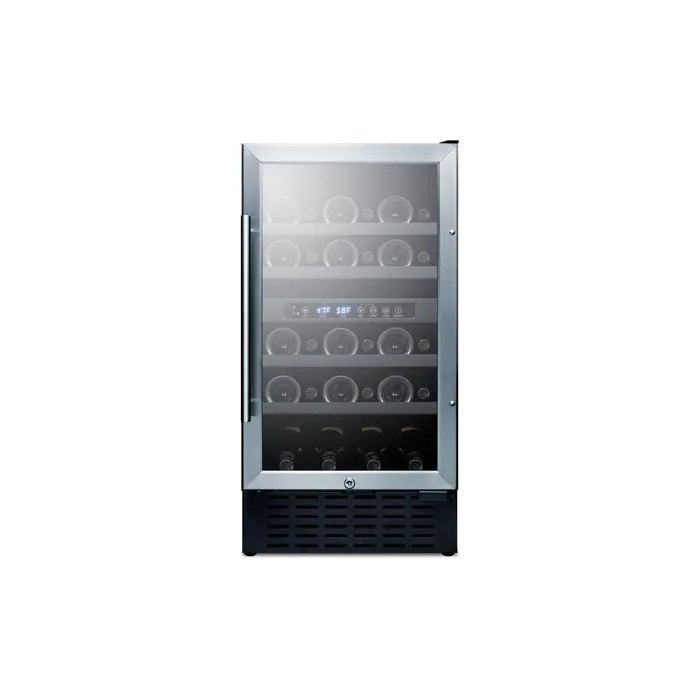

Summit 18 inch wide ADA compliant dual zone wine cellar for built-in or freestanding use, with digital controls, lock, and LED lighting, 7.61101e+011, SWC182ZADA
$1,156.37
Retail Price: $1,730.00
Shipping: $150
$ 1,156.37
Description
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.
Sized just under 18" wide and 32" high, the SWC182ZADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.
Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZADA makes an attractive addition to any room.
Nominal Height: 32
Height of Cabinet: 31.63
Height to Hinge Cap: 0
Nominal Width: 18
Width: 17.75
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.25
Depth with door at 90°: 39.75
Capacity: 3.3
Bottles: 28Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.63" (80 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101055091
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)
FEATURES
Dual zone storage Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
ADA compliant 32" height is designed to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
28 bottle capacity Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock Keyed lock for a secure interior, with 2 keys included
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination for each temperature zone for an elegant presentation
Automatic defrost Reduced maintenance with the convenience of auto defrost
Wooden shelves 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle Stainless steel handle completes the look
Flush back Space saving design
Integrated door hinge Hinge is flush with cabinet, adding no additional height to the unit
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
REVIT MODEL (QF_Summit_SWC182ZADA_Wine_Cellar.rfa)
USE & CARE (SWC182ZADA-User-Manual.pdf)
