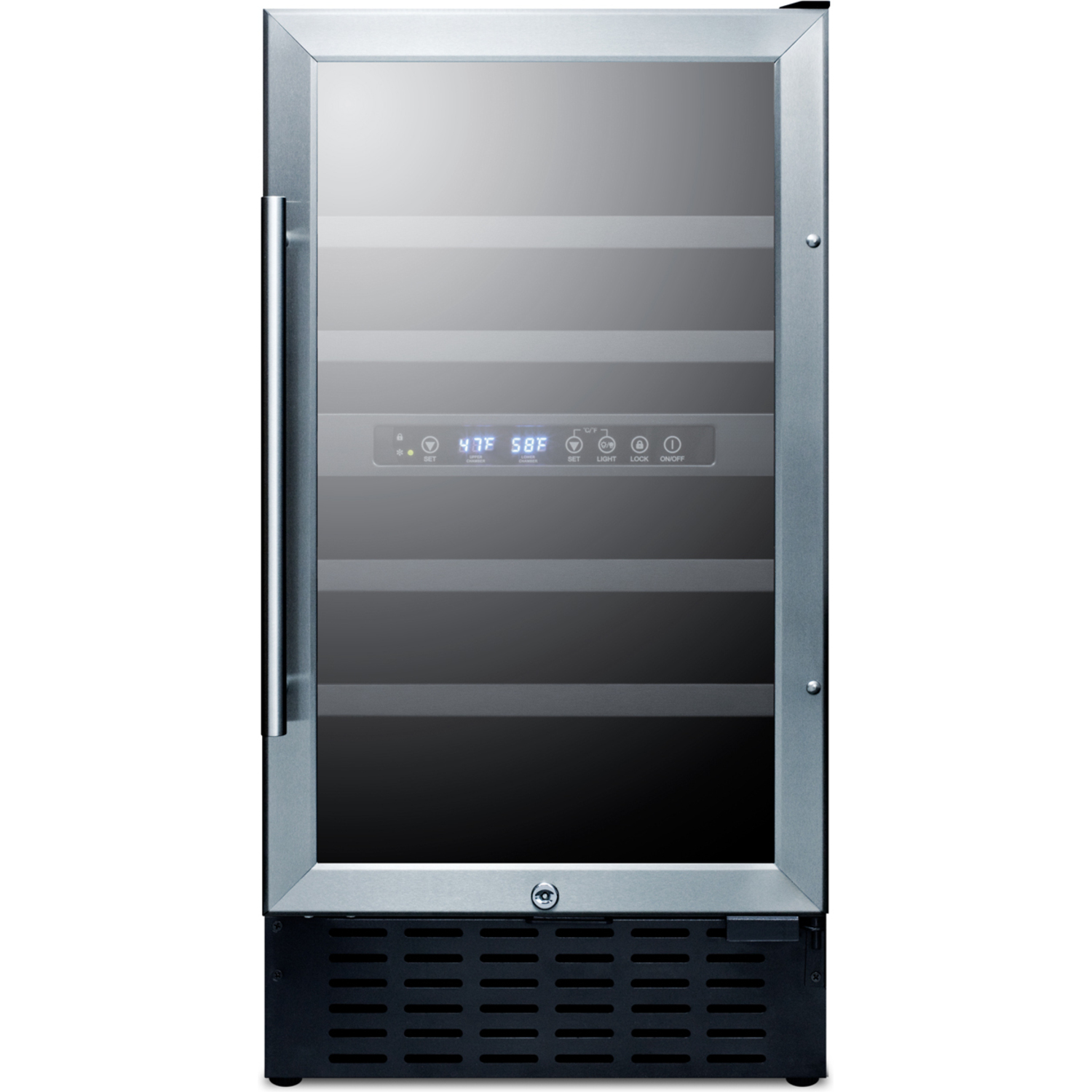

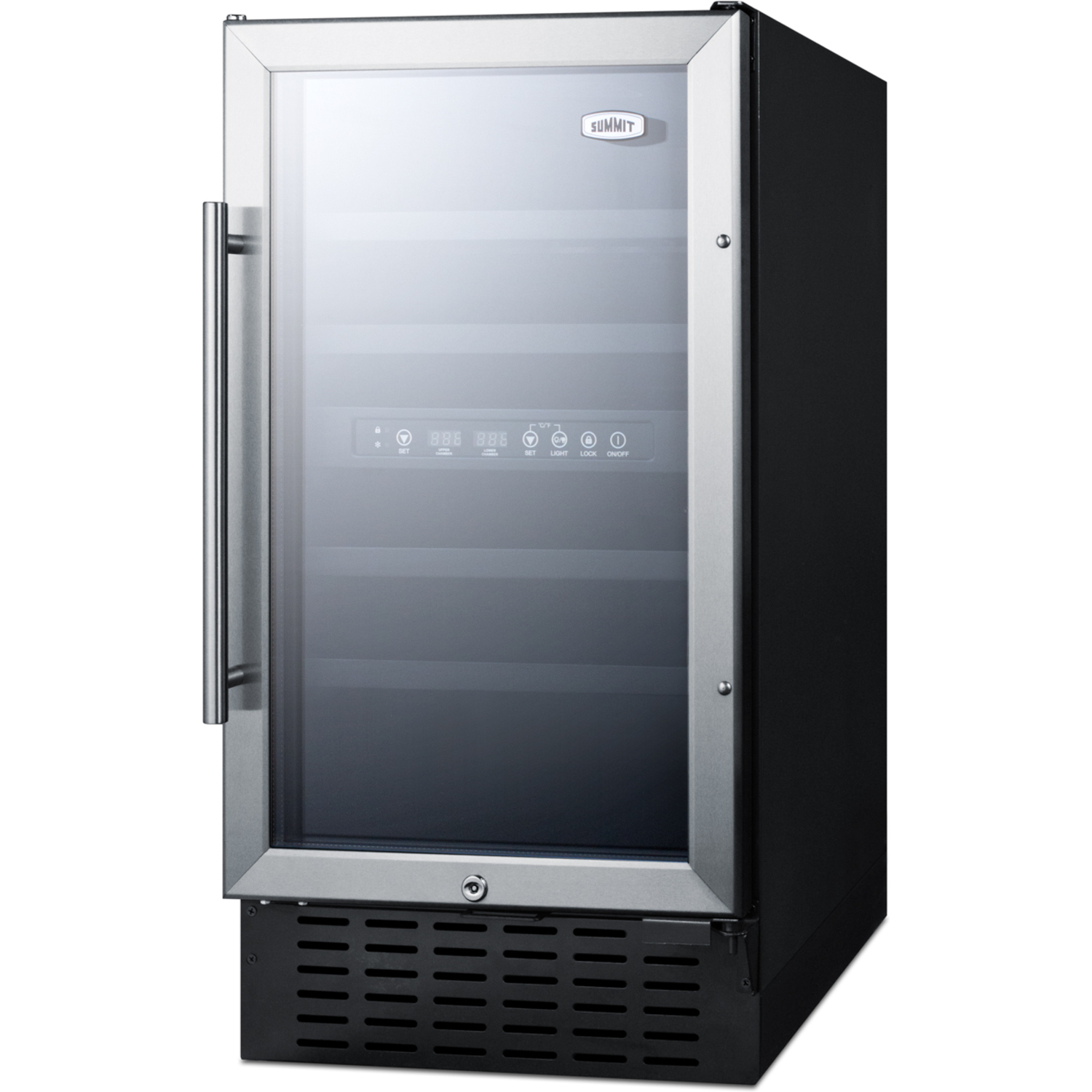

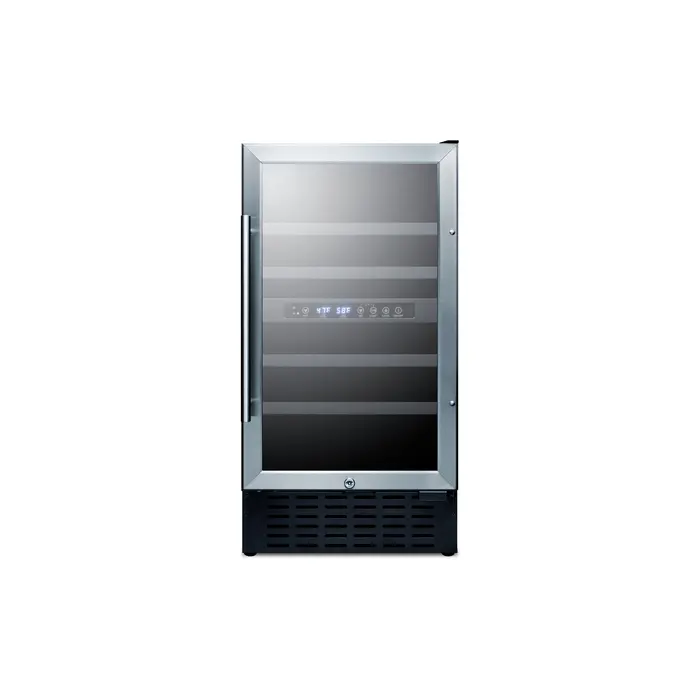

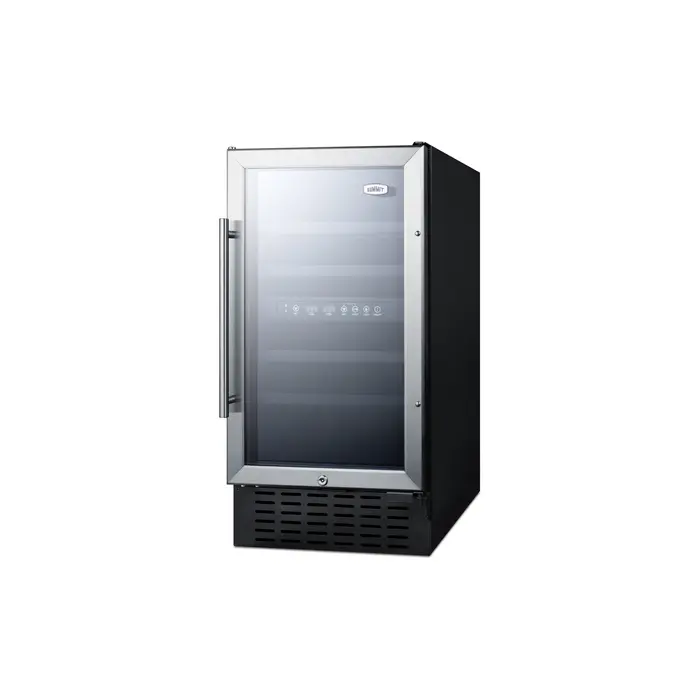

Summit 18 inch wide dual zone wine cellar for built-in or freestanding use, with digital controls, lock, and LED lighting, 7.61101e+011, SWC182Z

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

Sized just under 18" wide, the SWC182Z is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.

With its slim fit and convenient design, the SWC182Z makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZADA.

Nominal Height: 35
Height of Cabinet: 34.25
Height to Hinge Cap: 0
Nominal Width: 18
Width: 17.75
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 0
Depth with door at 90°: 39.75
Capacity: 3.3
Bottles: 28Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with door at 90° 39.75" (101 cm)

Capacity 3.3 cu.ft. (93 L)

Bottles 28 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101055084

Wine Cellar

Number of Zones 2

Door Swing RHD

Reversible Yes

Shelf Type Wood

Shelf Qty 4

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23 oz.

High Side PSI 150.0

Low Side PSI 50.0

Interior Height 1 10.63" (27 cm)

Interior Width 1 14.25" (36 cm)

Interior Depth 1 18.0" (46 cm)

Compressor Step Height 5.25" (13 cm)

Compressor Step Width 14.25" (36 cm)

Compressor Step Depth 5.0" (13 cm)

Level Legs 4

Temperature Range 41º to 64ºF

Interior Height 2 12.25" (31 cm)

Interior Width 2 14.25" (36 cm)

Interior Depth 2 18.0" (46 cm)

FEATURES

Commercially Approved ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

HTS CODE: 8418.50.0080 Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

Built-in capable Make the best use of space by installing your appliance under the counter

28 bottle capacity Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

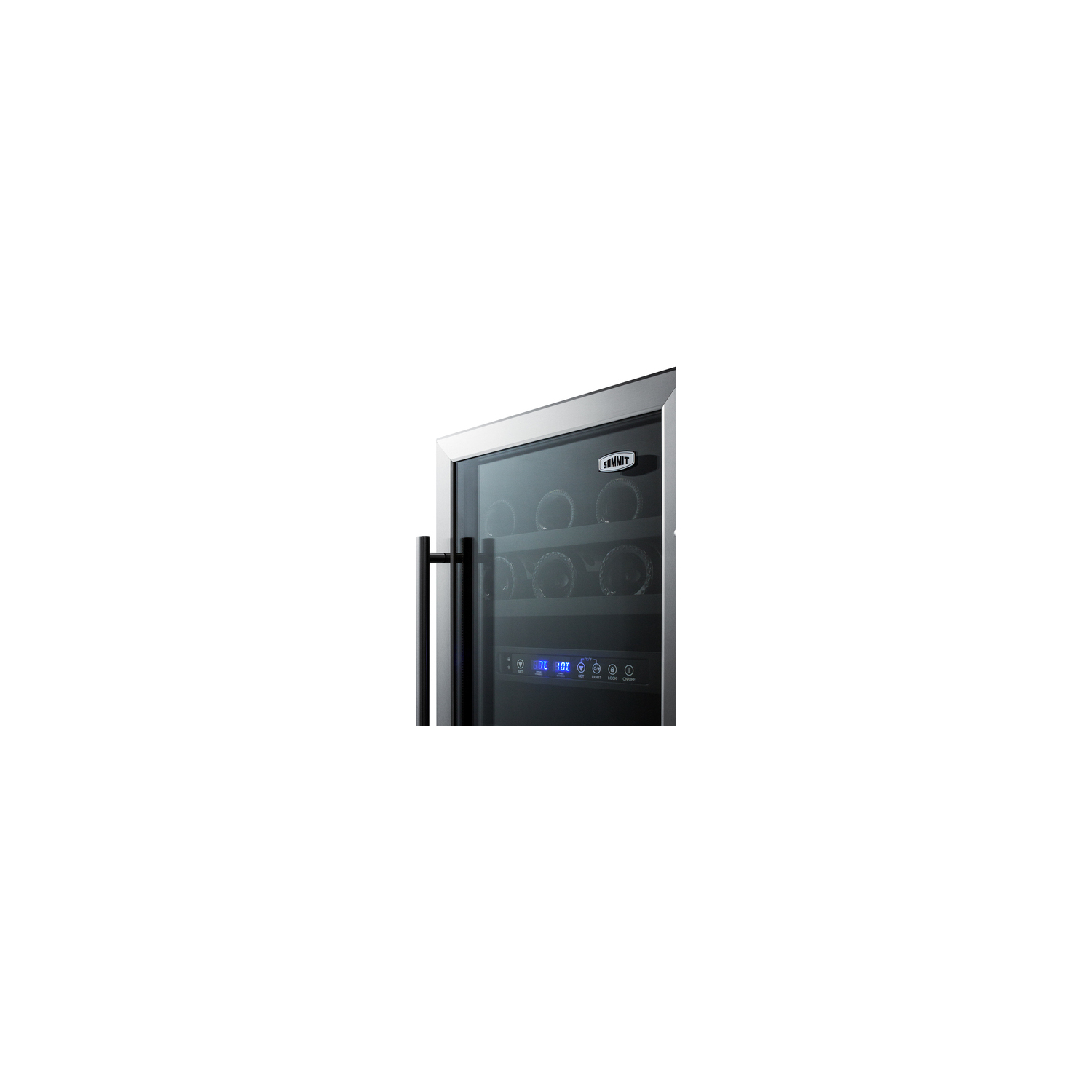

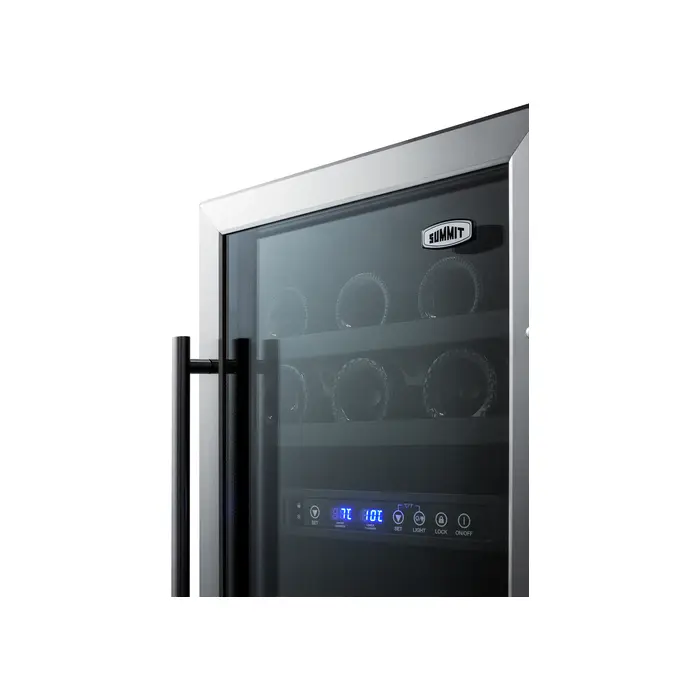

Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock Keyed lock for a secure interior, with 2 keys included

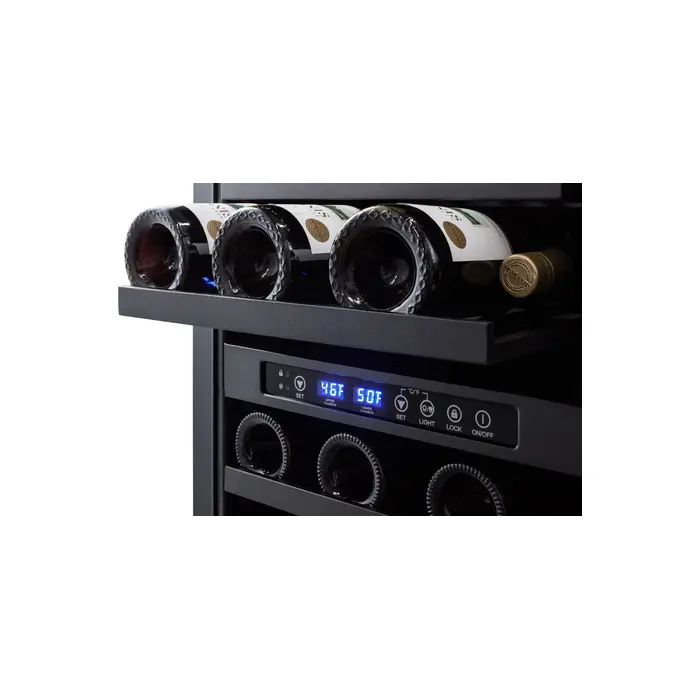

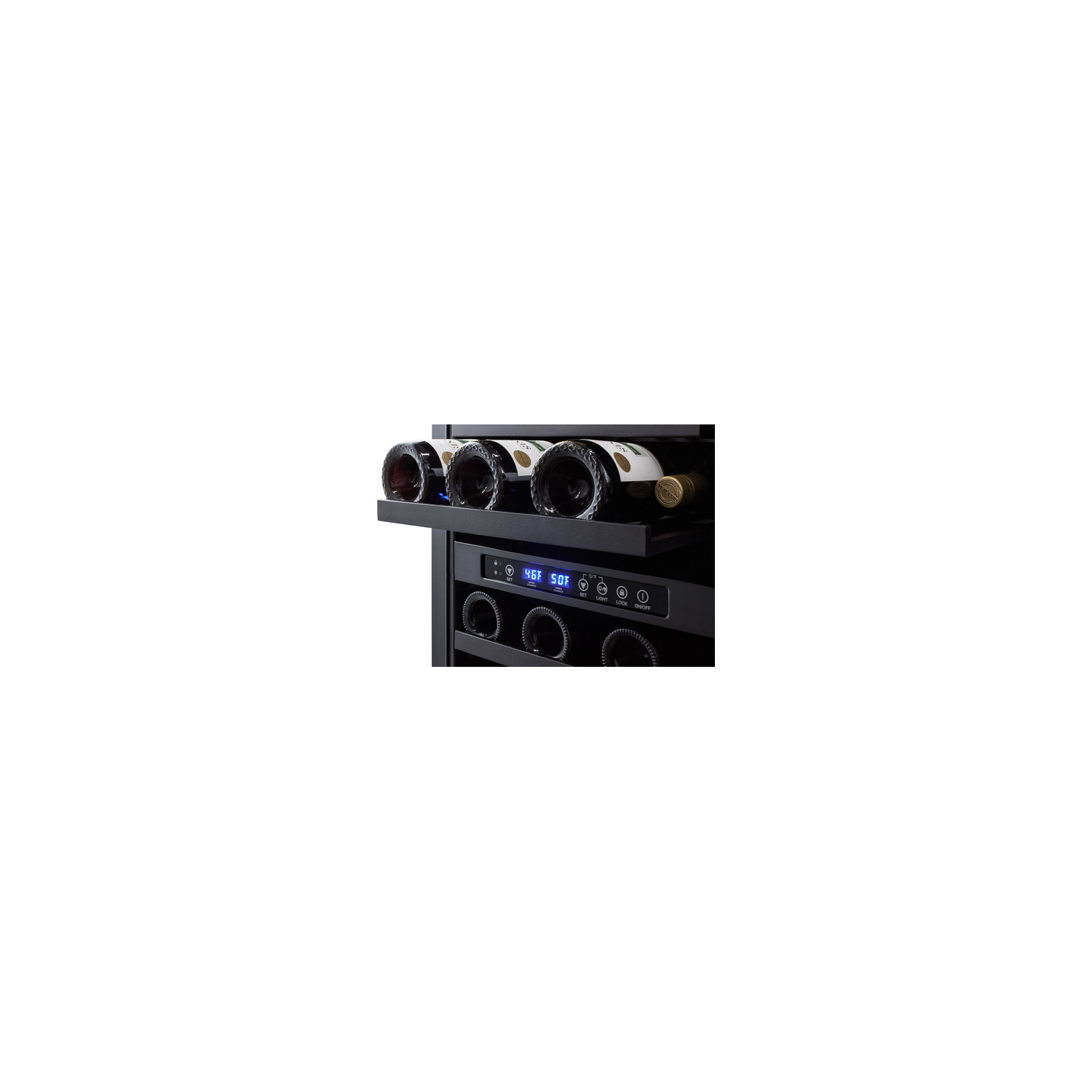

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination for each temperature zone for an elegant presentation

Wooden shelves 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish

Automatic defrost Reduced maintenance with the convenience of auto defrost

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle Stainless steel handle completes the look

Integrated door hinge Hinge is flush with cabinet, adding no height to the unit

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant ec

Dual zone storage Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
