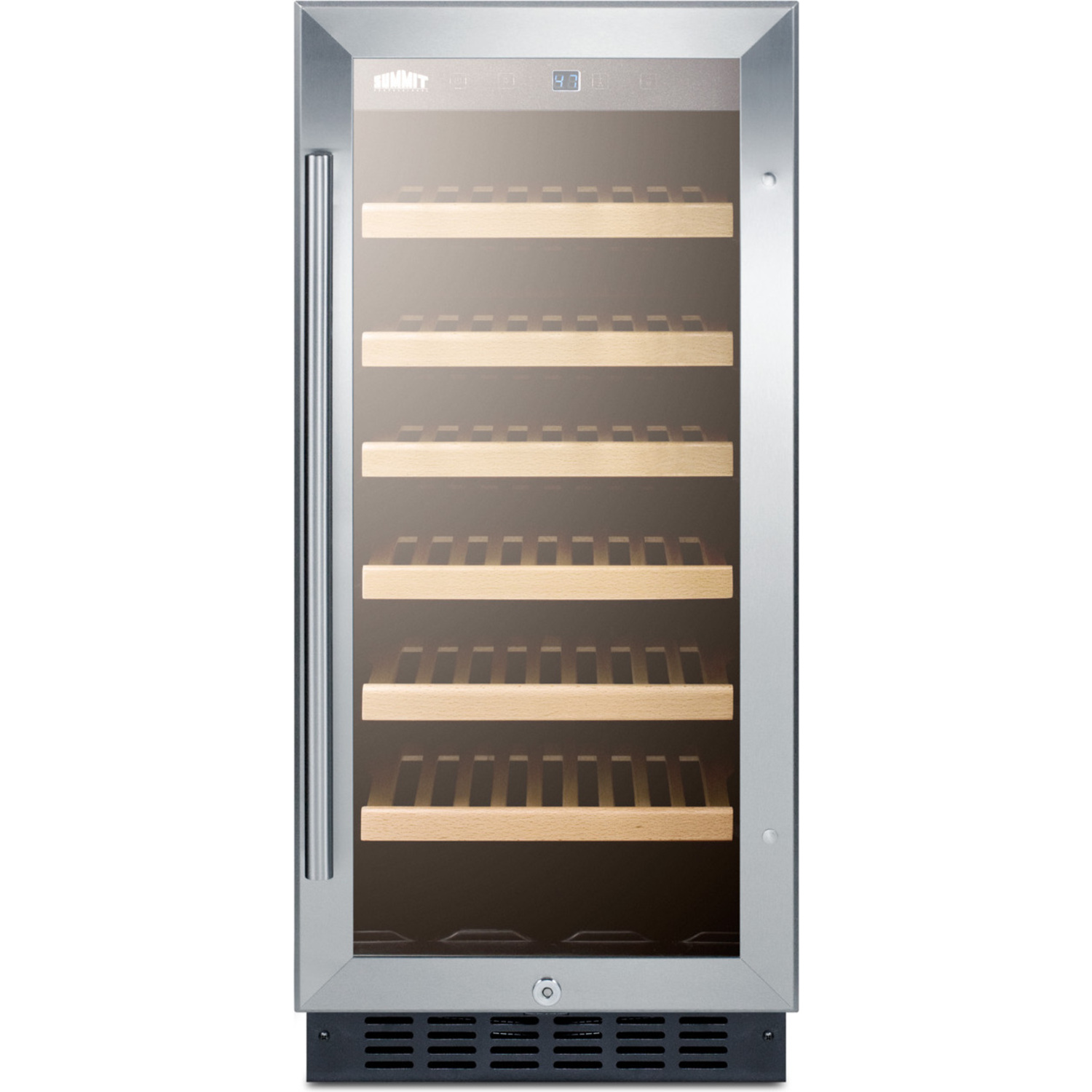

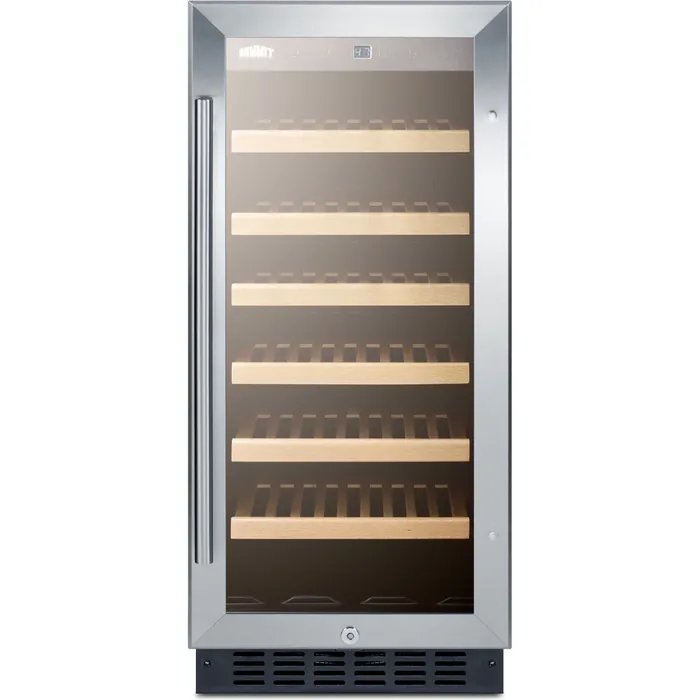

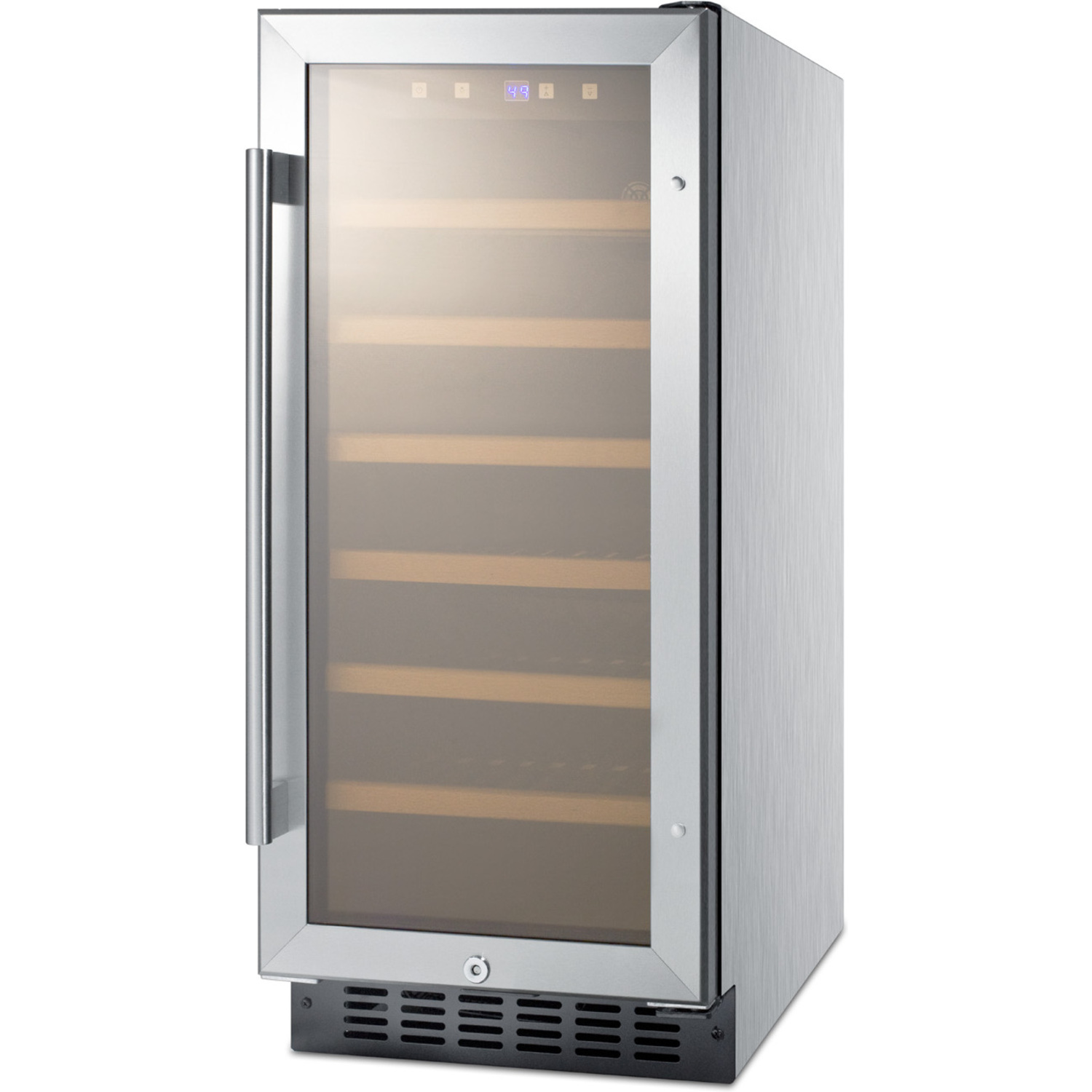

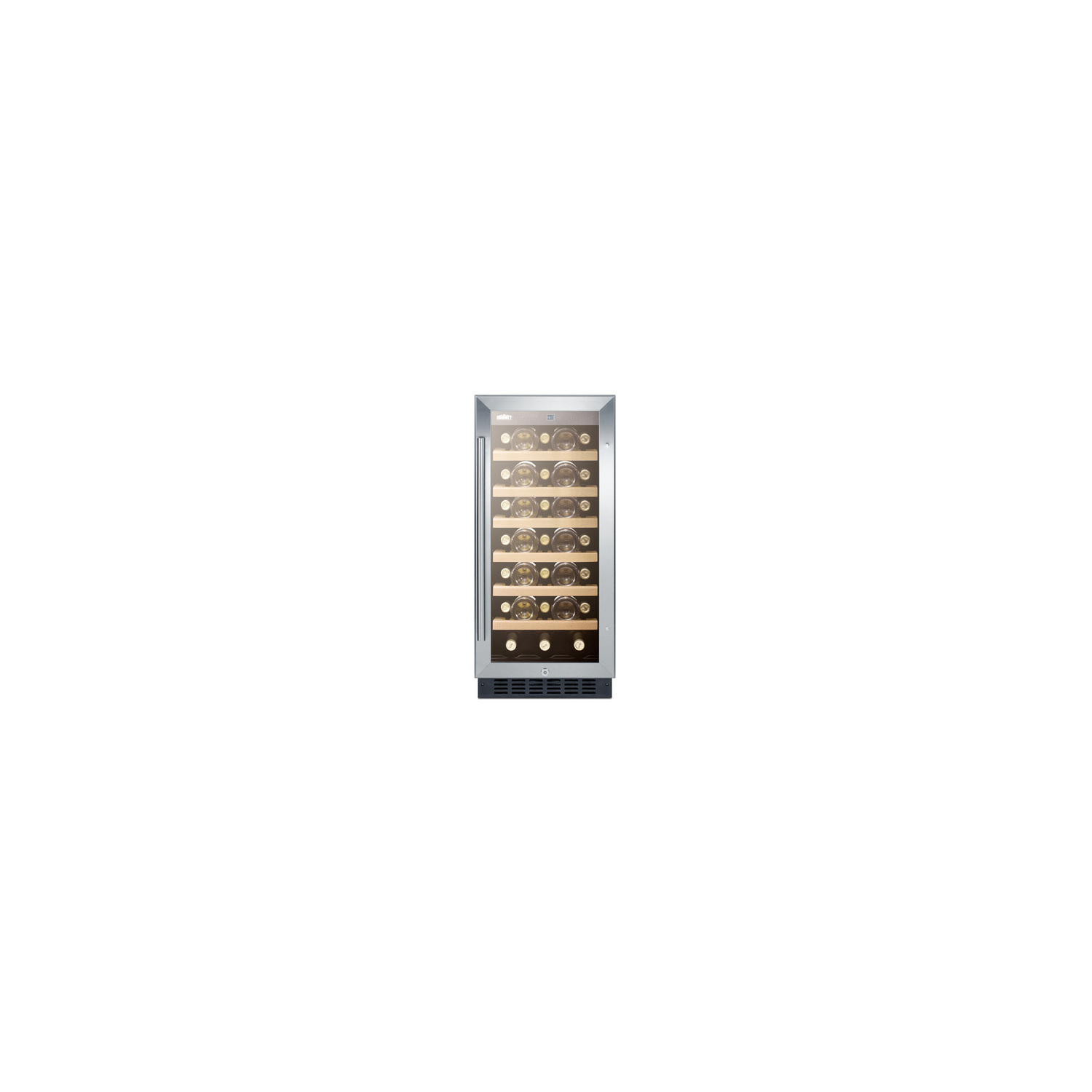

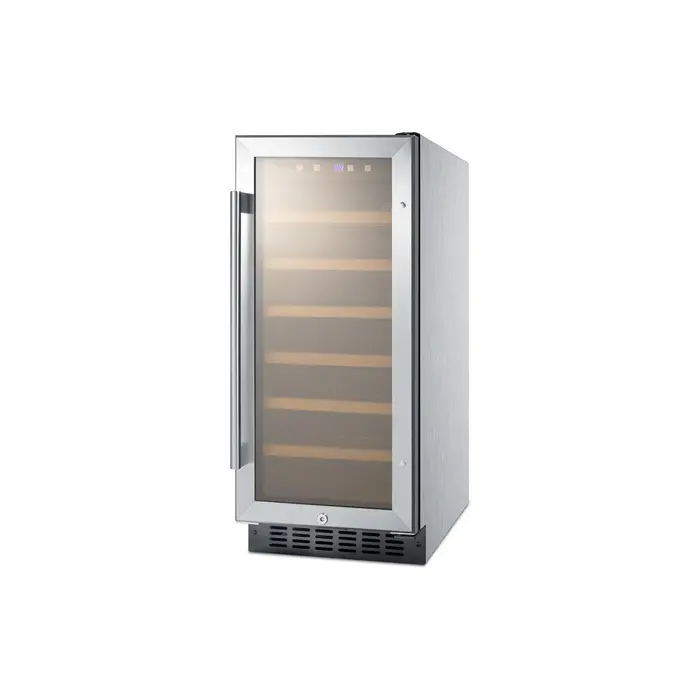

Summit 15 inch wide wine cellar for built-in or freestanding use, with stainless steel wrapped cabinet, glass door, and lock, 7.61101e+011, SWC1535BCSS
$1,316.66
Retail Price: $1,950.00
Shipping: $150
$ 1,316.66
Description
Give your wine collection the proper care with SUMMIT SWC1535BCSS, a slim-fitting wine cellar designed for built-in use under counters.

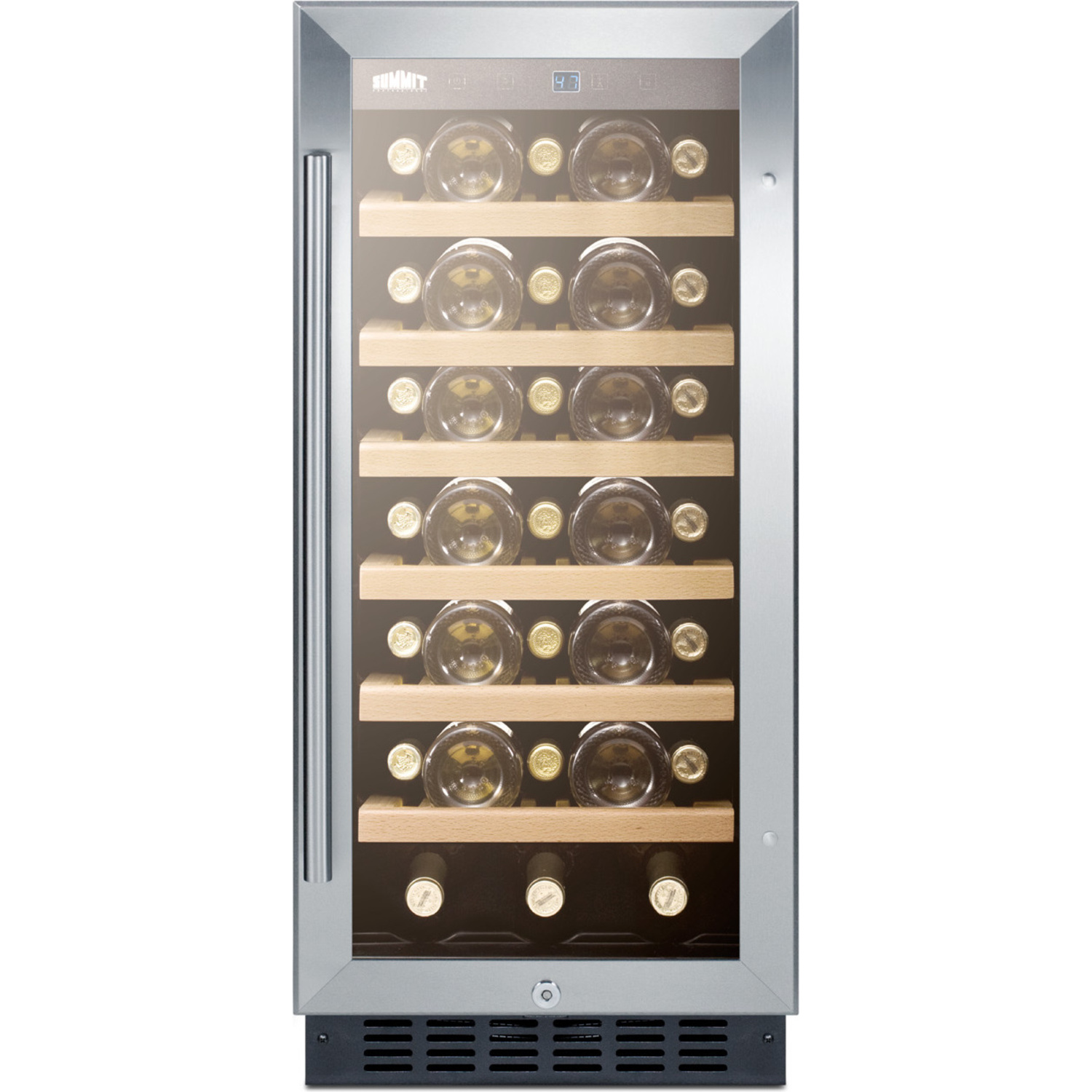

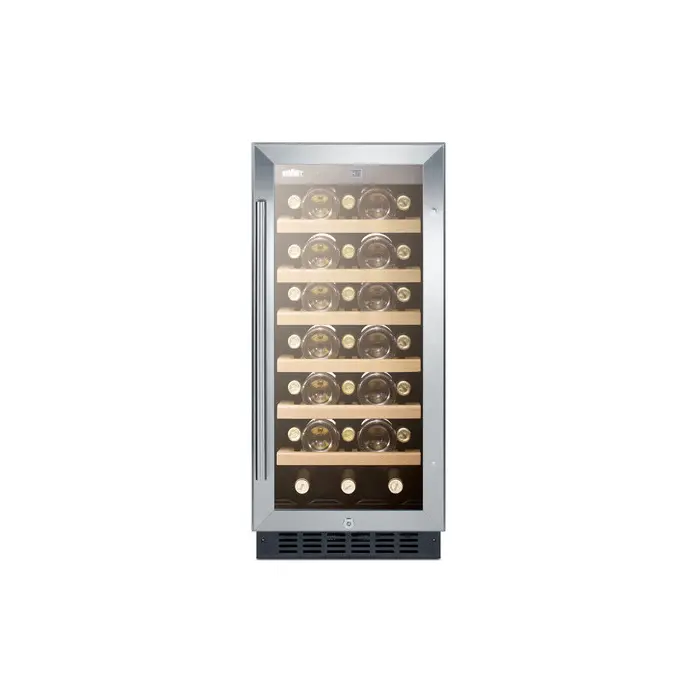

At just 14 ¾" wide, the SWC1535BCSS is thoughtfully sized to store up to 33 Bordeaux style bottles on six slide-out wooden shelves (if using this unit for wider Burgundy style bottles, you can remove every other shelf to accommodate their size). An interior LED light provides an elegant view behind a tempered glass door, elegantly trimmed in stainless steel. The reversible door includes a factory installed lock and professional handle. Inside, the digital thermostat makes temperature management easy and intuitive, with indicator lights to show when the interior is ideal for reds, whites, and sparkling wines.

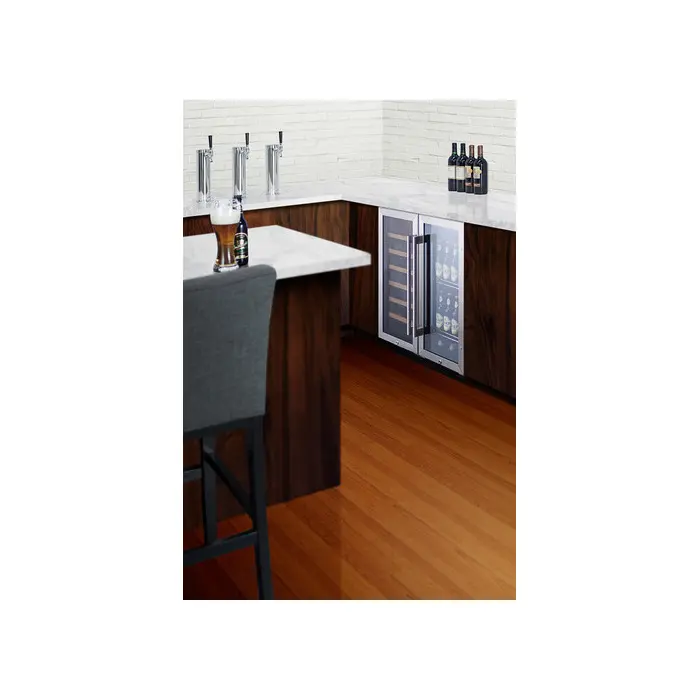

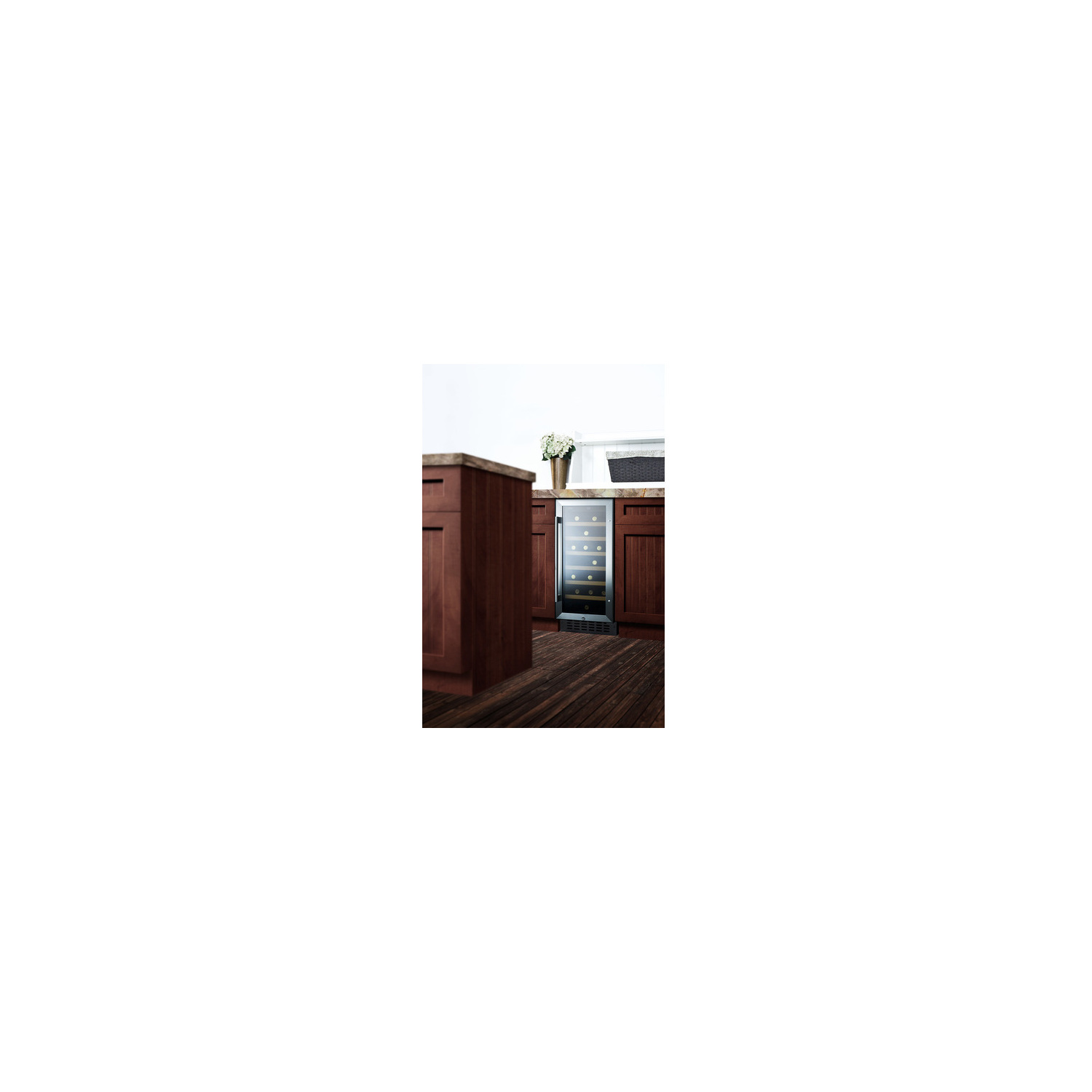

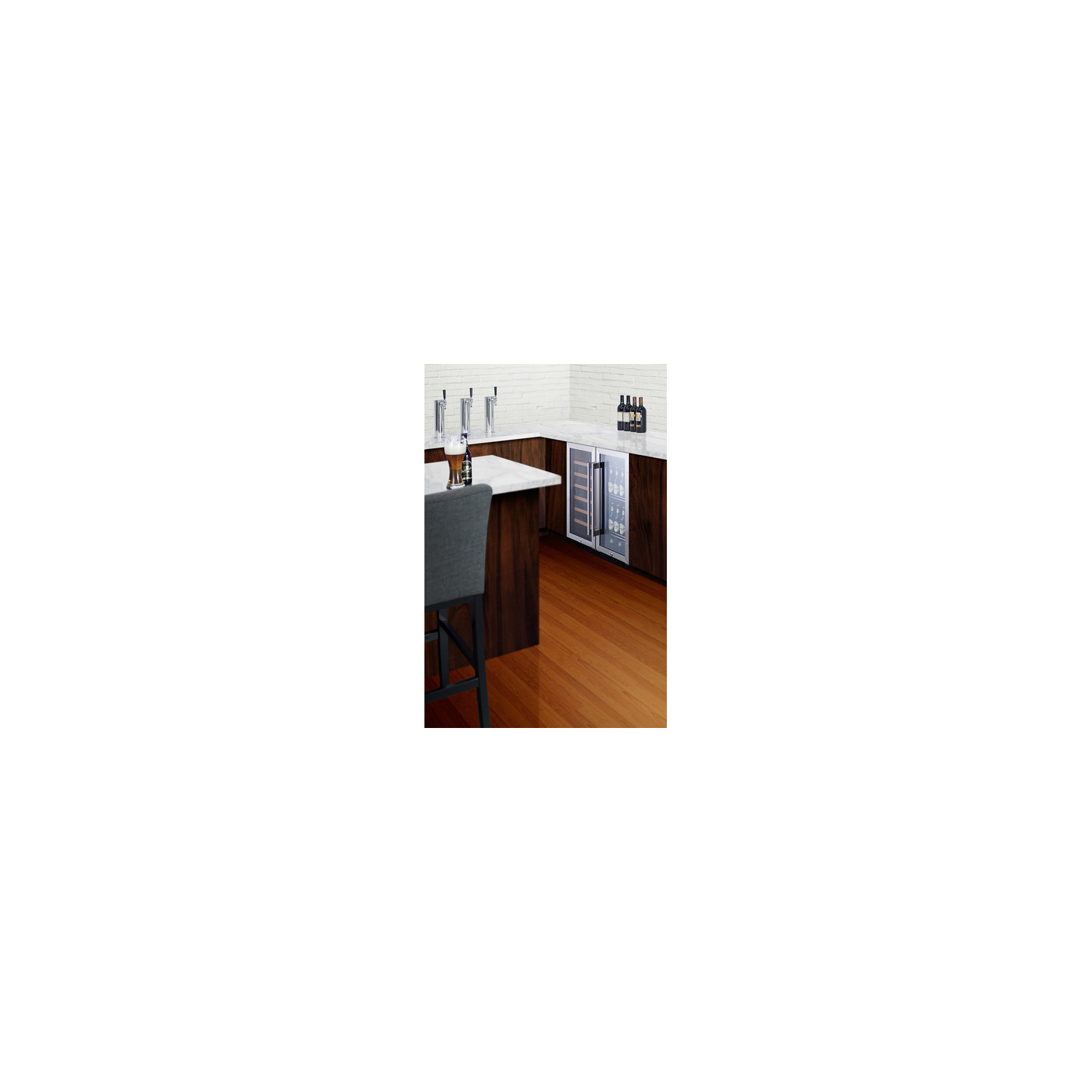

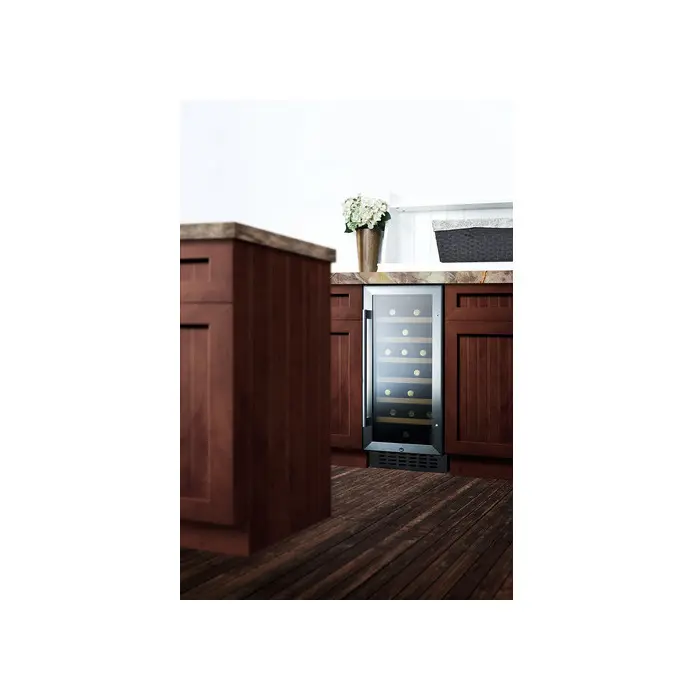

The SWC1535BCSS has a stainless steel wrapped cabinet and flush back design for easy installation under any counter. The unit can be used built-in or freestanding. For a matching glass door beverage refrigerator, see the SCR1536BCSS.
Nominal Height: 34
Height of Cabinet: 33.88
Height to Hinge Cap: 0
Nominal Width: 15
Width: 14.75
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.75
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 2.94
Bottles: 33Defrost Type: AutomaticDoor: GlassCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.88" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Capacity 2.94 cu.ft. (83 L)
Bottles 33 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 87.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101052441
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.64 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 27.0" (69 cm)
Interior Width 1 12.0" (30 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.0" (30 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes
FEATURES
Built-in capable Make the best use of space by installing your appliance under the counter
Factory installed lock Keyed security on the wine cellar door
Stainless steel cabinet Wrapped stainless steel exterior provides a professional look with lasting durability
Digital thermostat Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Glass door Heat-safe glass door offers a full view of stored contents
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Wooden shelves Classic look holds up to 33 bottles
LED lighting On/off button to illuminate your collection
Automatic defrost Reduced maintenance and steady temperature performance
Professional handle Stainless steel look for added elegance
33 bottle capacity Interior can store up to 33 standard Bordeaux style bottles. The floor can hold three wider bottles (including the Burgundy style or champagne). Alternatively, you can remove every other shelf to accommodate wider bottles
Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours
Flush back Space saving design
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
USE & CARE (SWC1535BCSS-User-Manual.pdf)
