Summit 15 inch wide 33 bottle wine cellar for built-in or freestanding use, with digital controls and LED lighting, 7.61101e+011, SWC1535B

Give your wine collection the proper care with SUMMIT SWC1535B, a slim-fitting wine cellar designed for built-in use under counters.

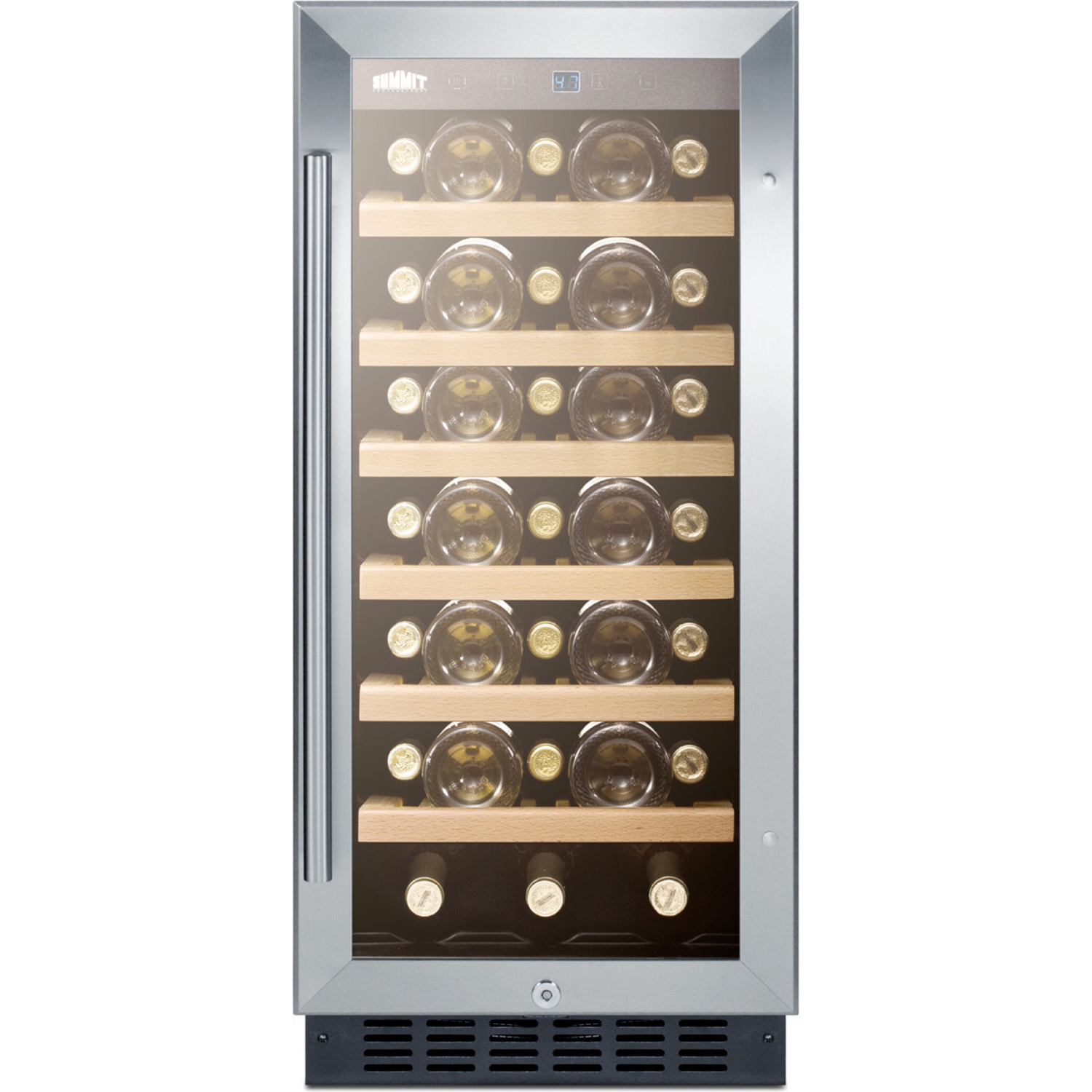

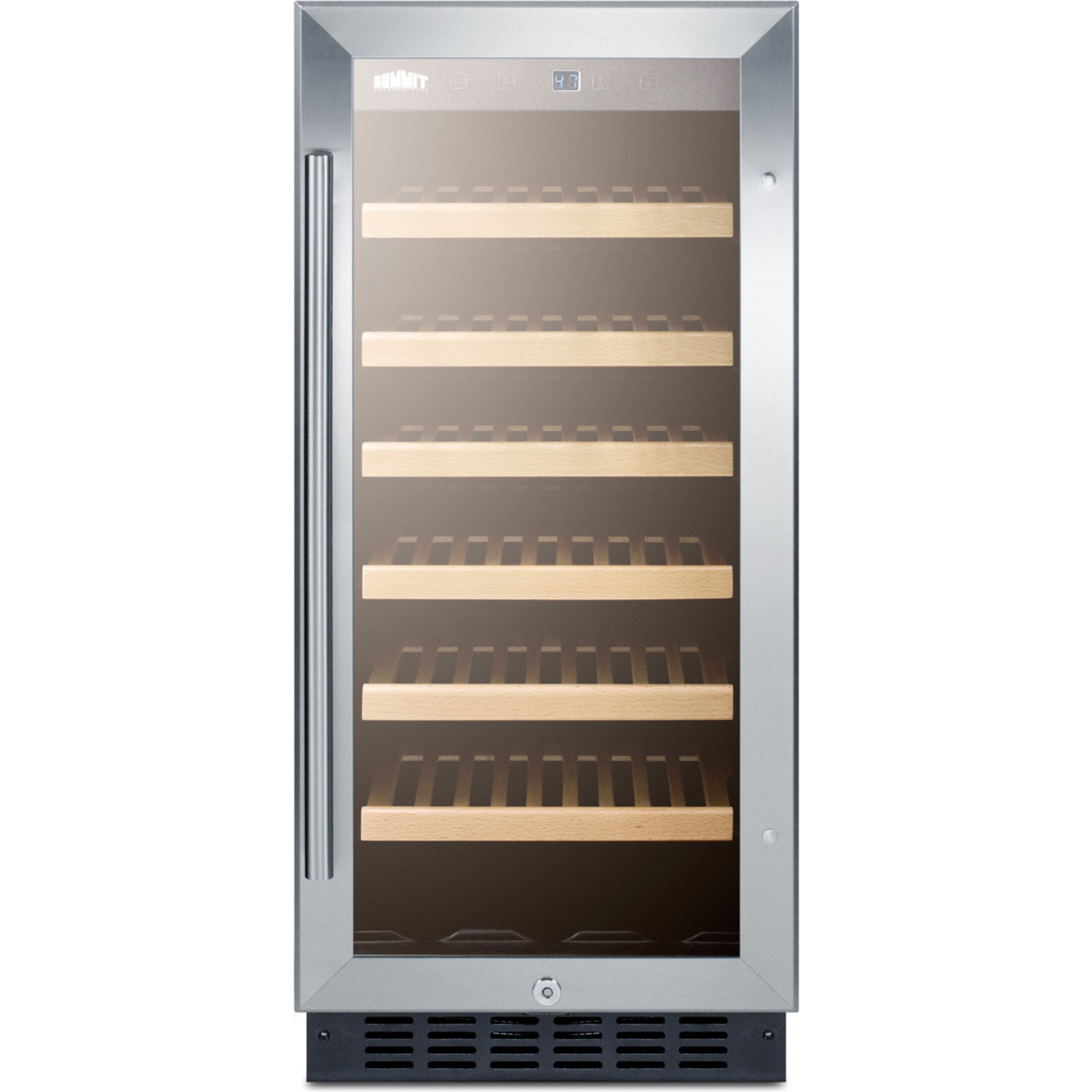

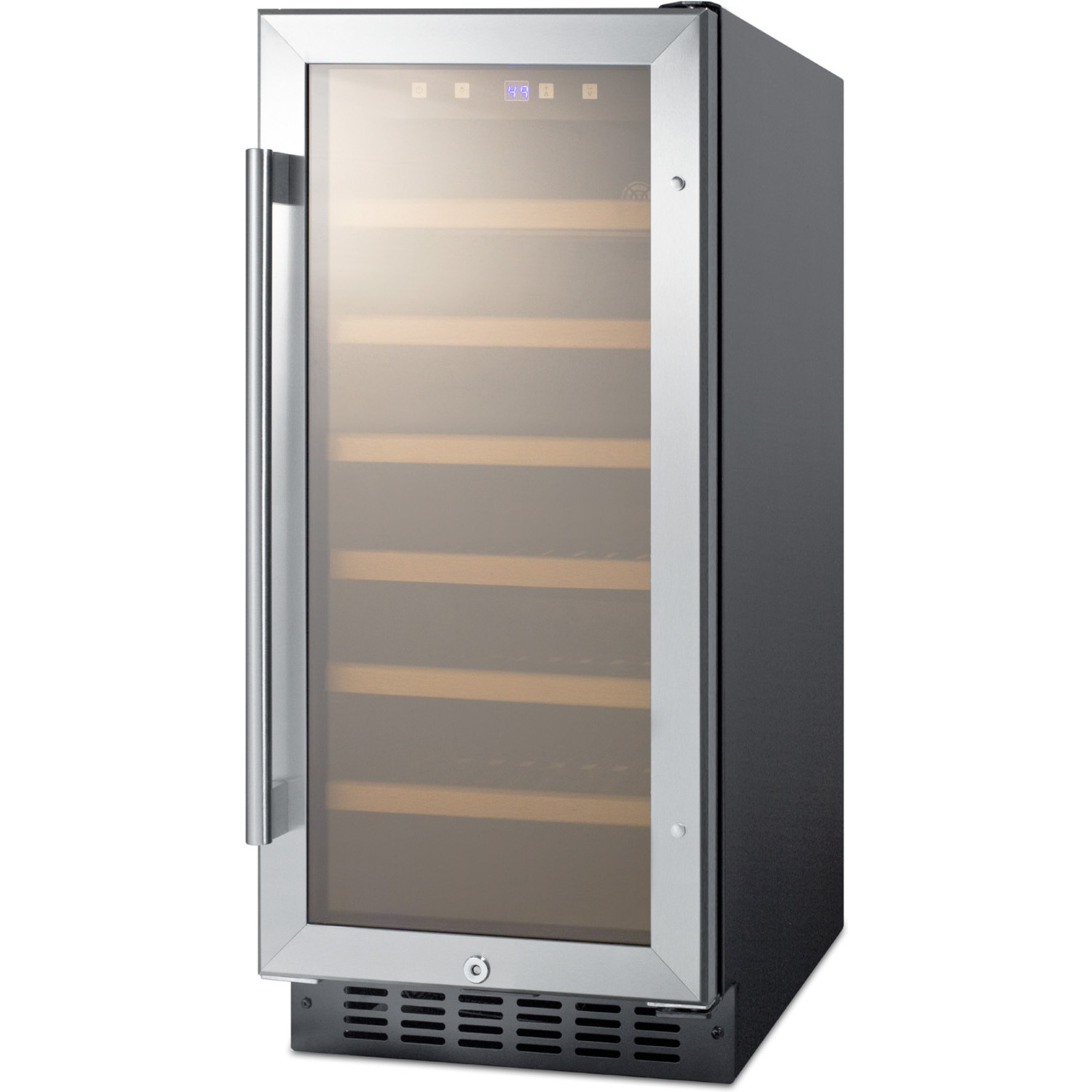

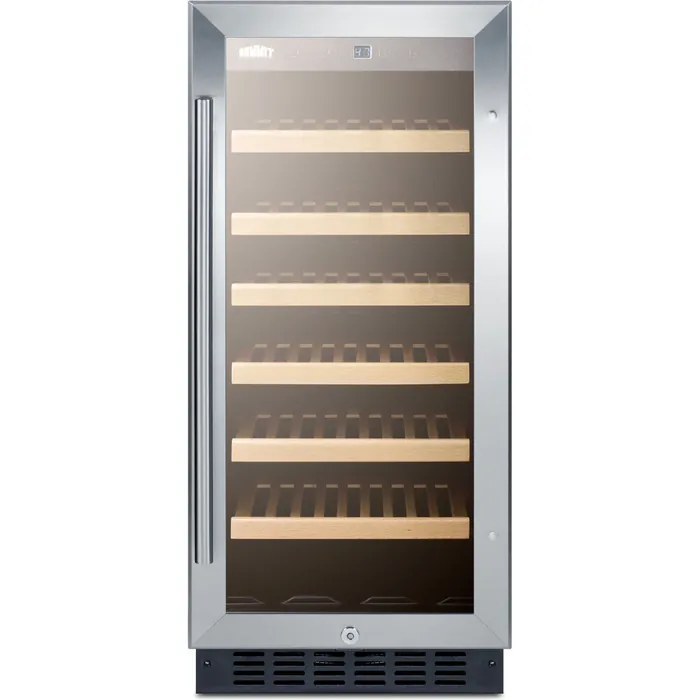

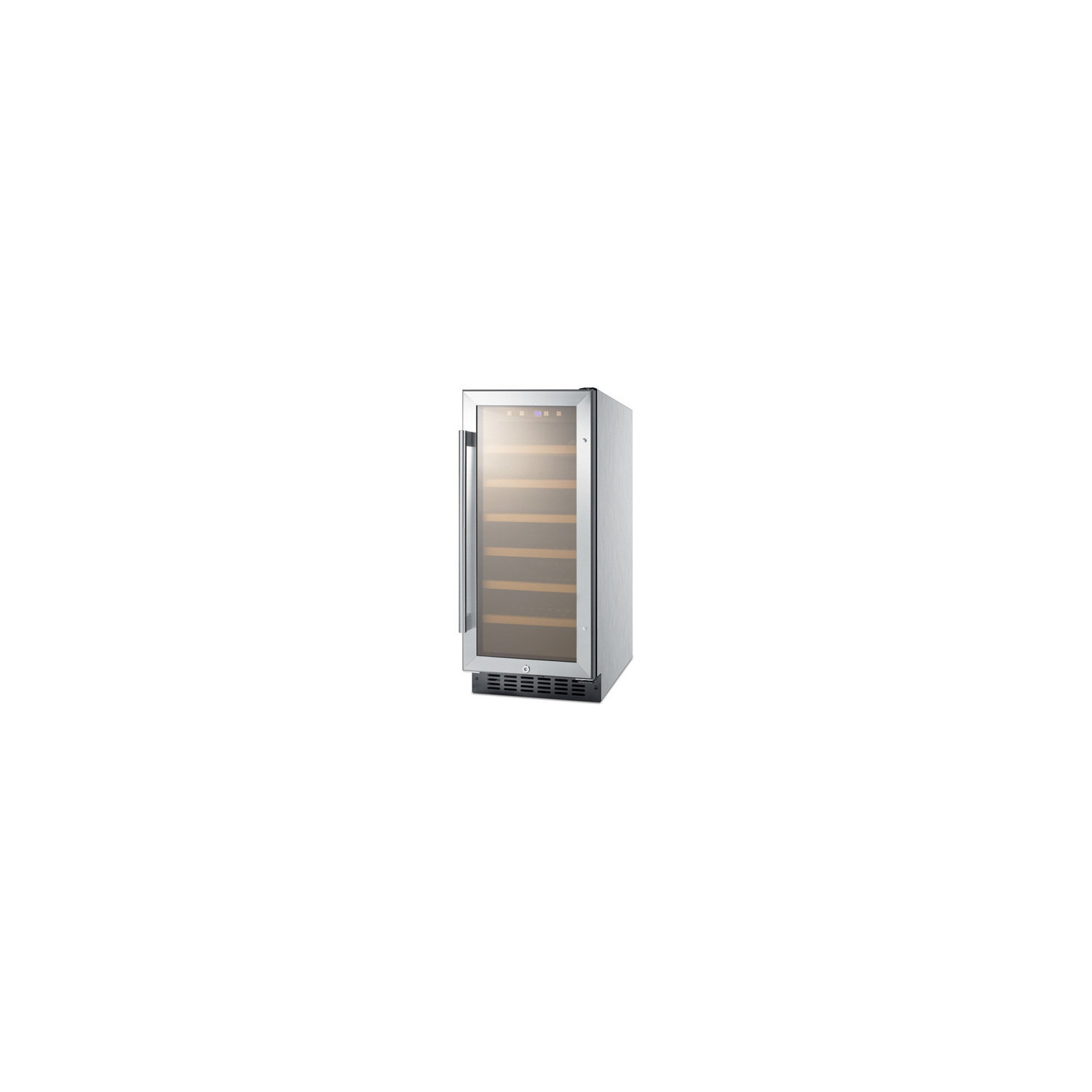

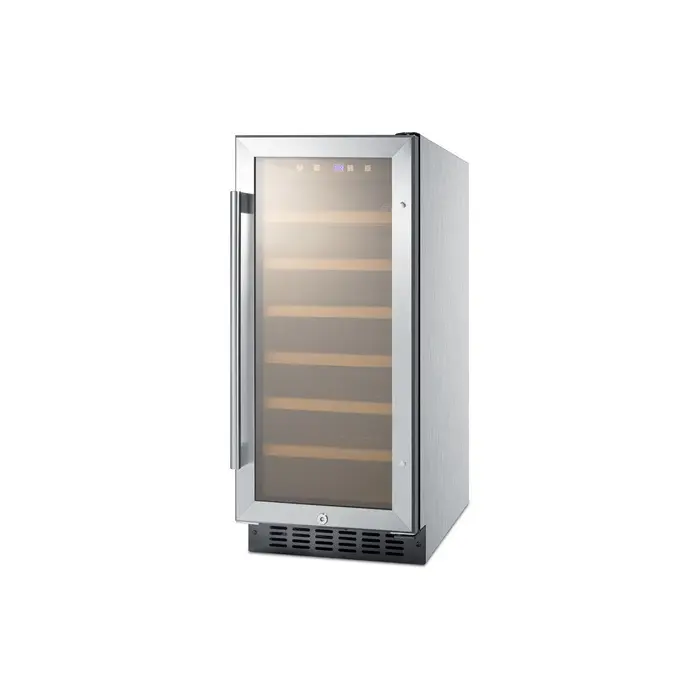

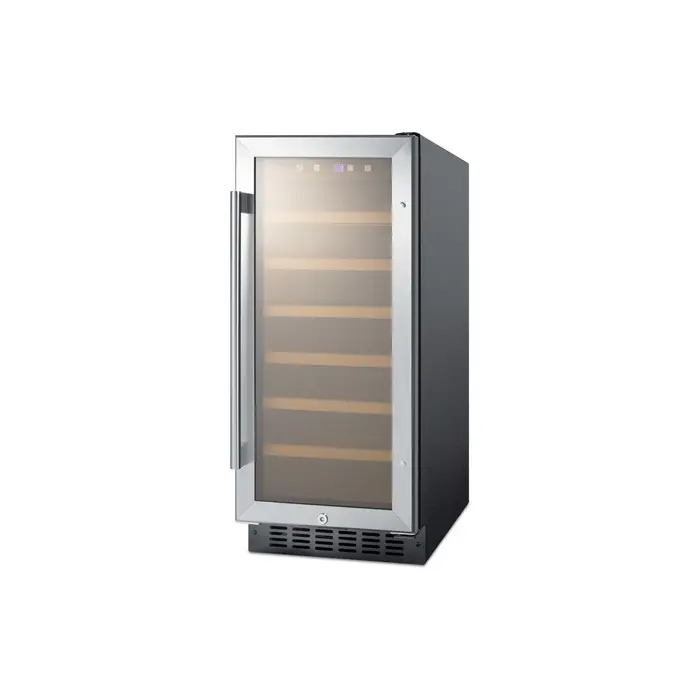

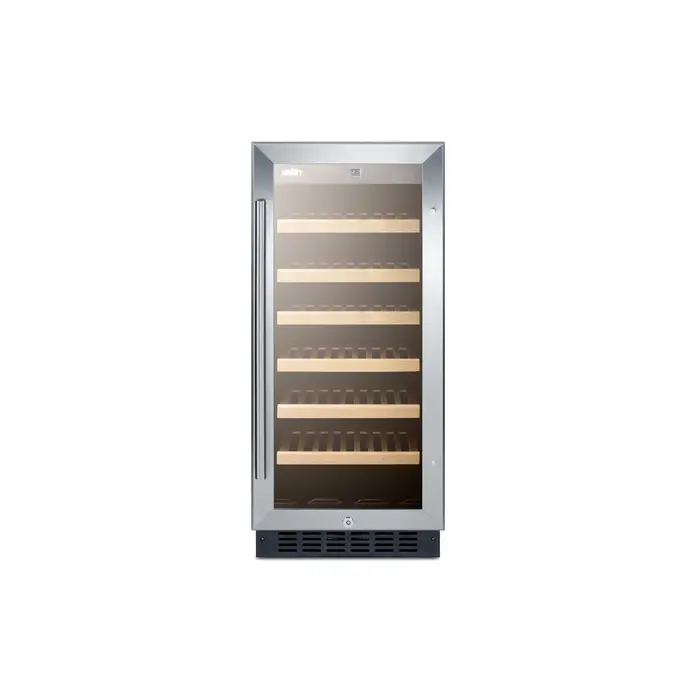

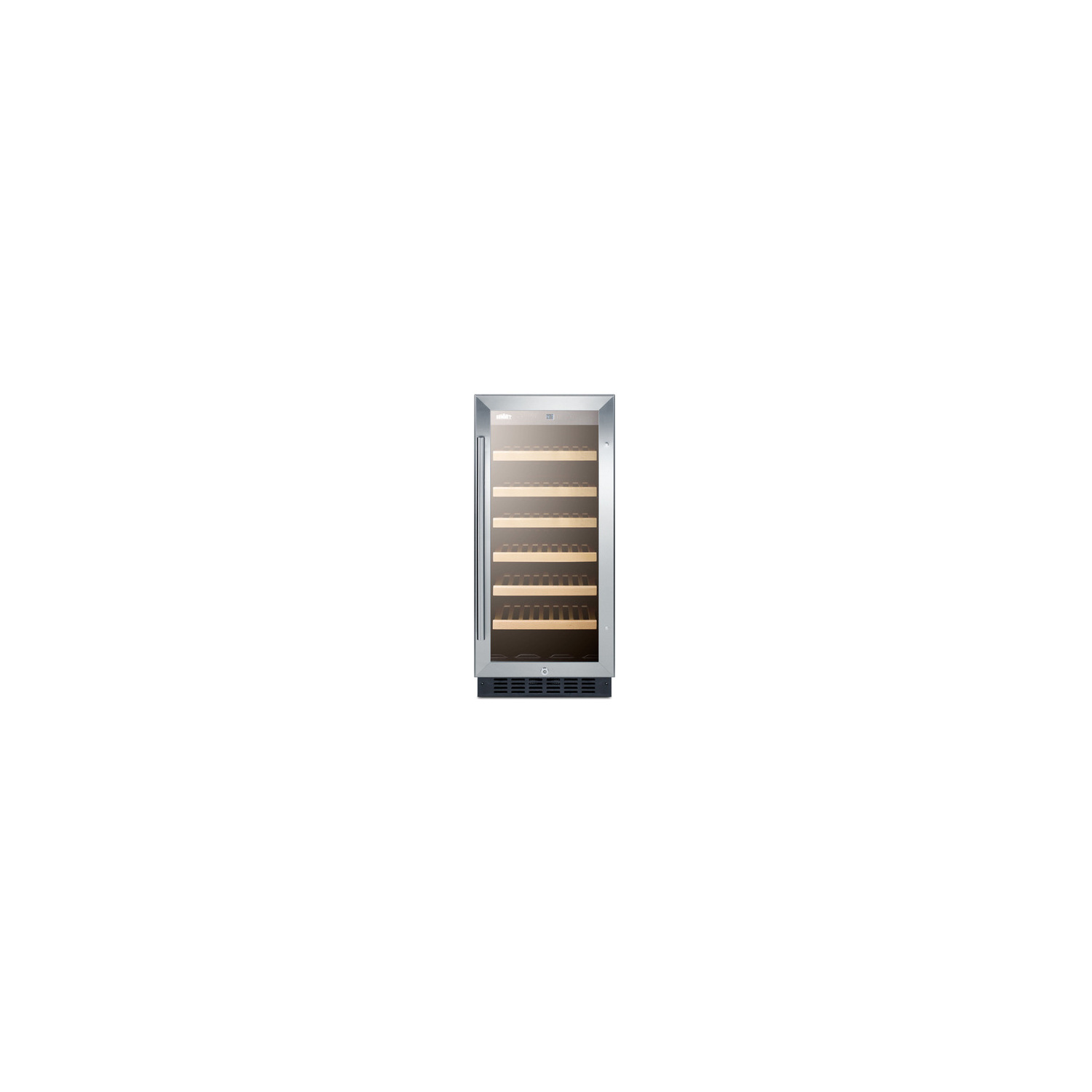

At just 14 ¾" wide, the SWC1535B is thoughtfully sized to store up to 33 Bordeaux style bottles on six slide-out wooden shelves (if using this unit for wider Burgundy style bottles, you can remove every other shelf to accommodate their size). An interior LED light provides an elegant view behind a tempered glass door, elegantly trimmed in stainless steel. The reversible door includes a factory installed lock and professional handle. Inside, the digital thermostat makes temperature management easy and intuitive, with indicator lights to show when the interior is ideal for reds, whites, and sparkling wines.

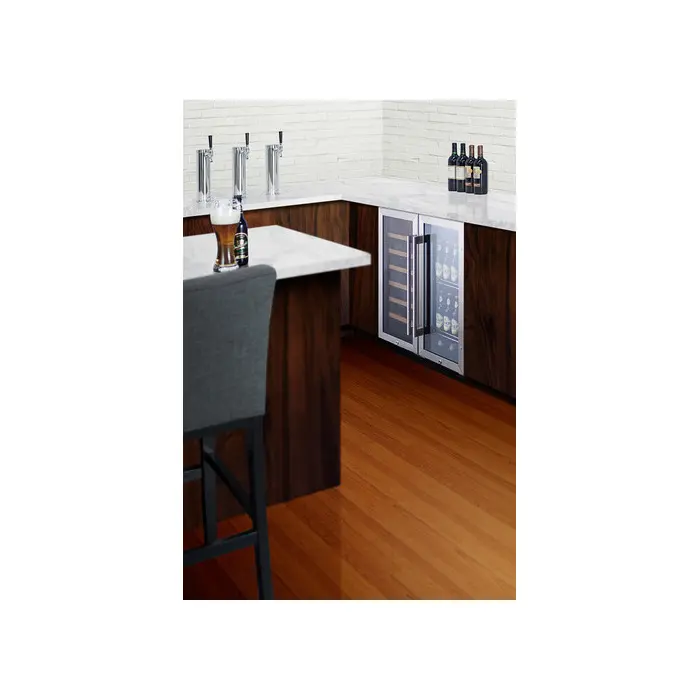

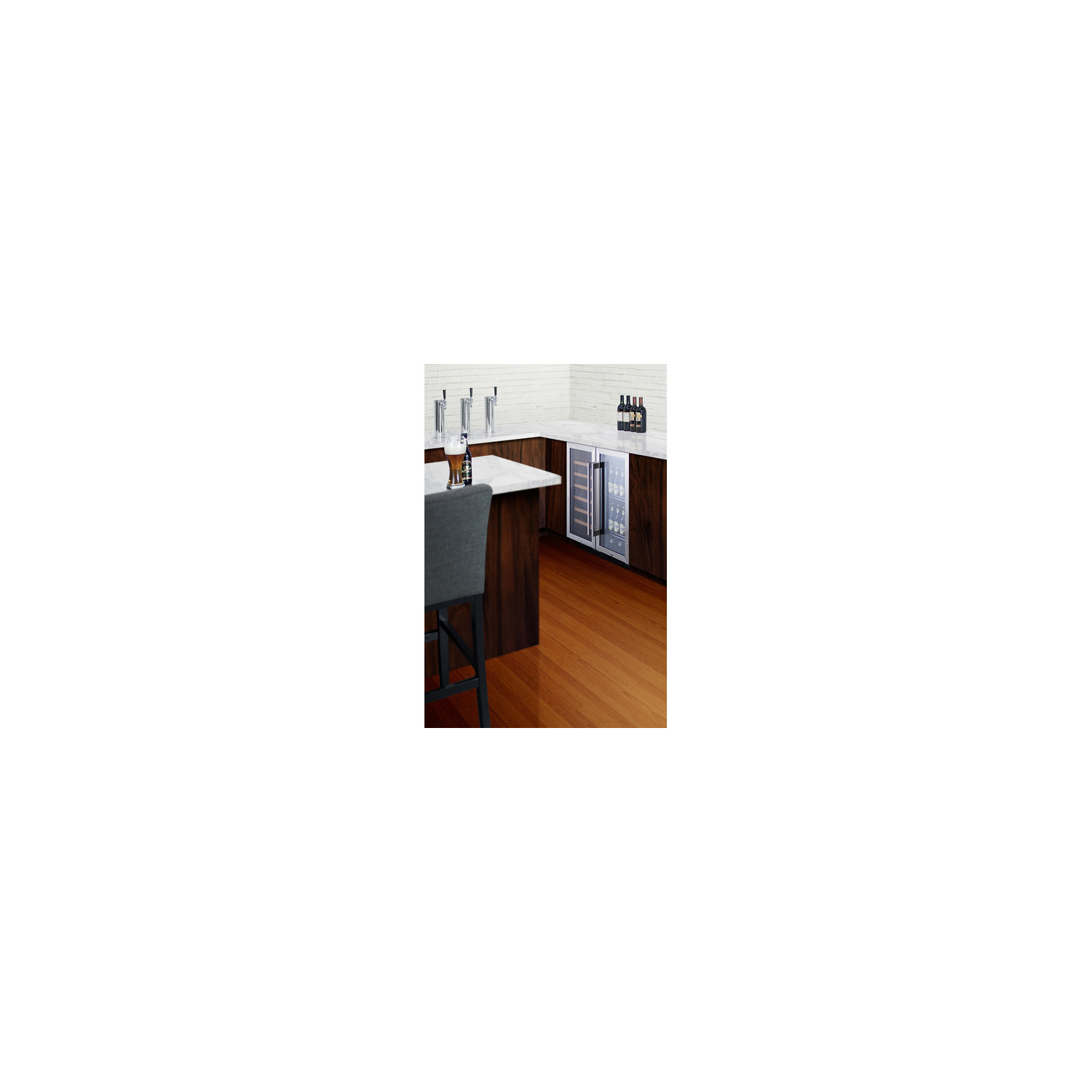

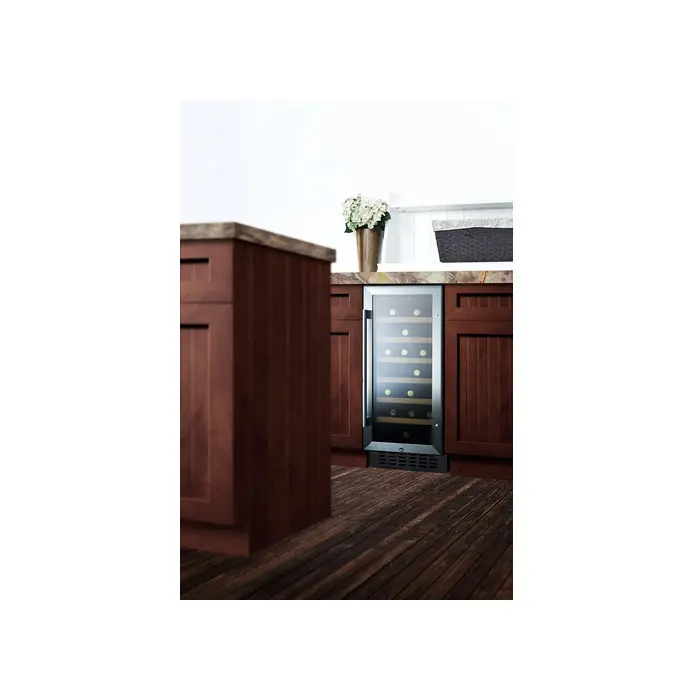

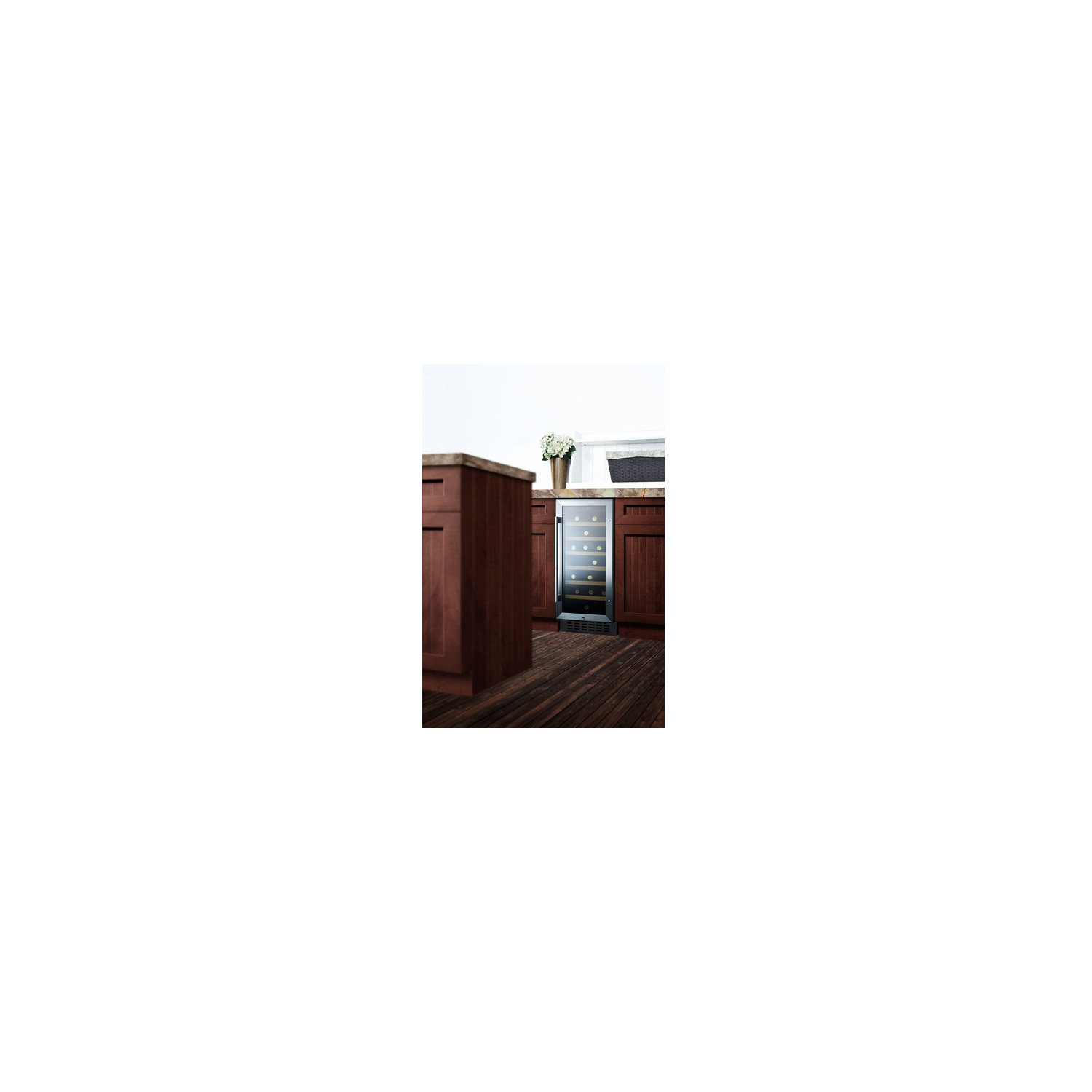

The SWC1535B has a jet black cabinet and flush back design for easy installation under any counter. The unit can be used built-in or freestanding. For a matching glass door beverage refrigerator, see the SCR1536B.

This model replaces SUMMIT SWC1535. Nominal Height: 34
Height of Cabinet: 33.88
Height to Hinge Cap: 0
Nominal Width: 15
Width: 14.75
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.75
Depth with Handle: 24.63
Depth with door at 90°: 36.25
Capacity: 2.94
Bottles: 33Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.88" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 36.25" (92 cm)

Capacity 2.94 cu.ft. (83 L)

Bottles 33 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 77.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101029436

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Shelf Type Wood

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 0.64 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 27.0" (69 cm)

Interior Width 1 12.0" (30 cm)

Interior Depth 1 17.5" (44 cm)

Level Legs 4

Temperature Range 41º to 64ºF

Sabbath Mode Yes

FEATURES

Built-in capable Make the best use of space by installing your appliance under the counter

Commercially Approved ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Fully finished black cabinet Allows the unit to be used freestanding

Glass door with stainless steel trim Provides a full display of your stored collection with a heat-safe double tempered design

Factory installed lock Keyed security on the wine cellar door

Flush back Space saving design

Digital thermostat Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Wooden shelves Classic look holds up to 33 bottles

LED lighting On/off button to illuminate your collection

Automatic defrost Reduced maintenance and steady temperature performance

Professional handle Stainless steel look for added elegance

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

33 bottle capacity Interior can store up to 33 standard Bordeaux style bottles. The floor can hold three wider bottles (including the Burgundy style or champagne). Alternatively, you can remove every other shelf to accommodate wider bottles

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080 Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

DOWNLOADS

BROCHURE w/ DRAWINGS (SWC1535B.pdf)

TECHNICAL DRAWING (.dwg) (SWC1535BWINECELLARA-C2000.dwg)

REVIT MODEL (QF_Summit_SWC1535B_Bottle_Commercial_Wine_Cellar.rfa)

USE & CARE (SWC1535B-User-Manual.pdf)

OTHER (SWC1535B_Shelving_Guide.pdf)

MSDS INFORMATION (R600a_K.pdf)
