Summit 12 inch wide built-in undercounter wine cellar with digital thermostat and LED lighting, 7.61101e+011, SWC1224B

SUMMIT's collection of built-in wine cellars provides the perfect conditions for storing your collection under the counter.

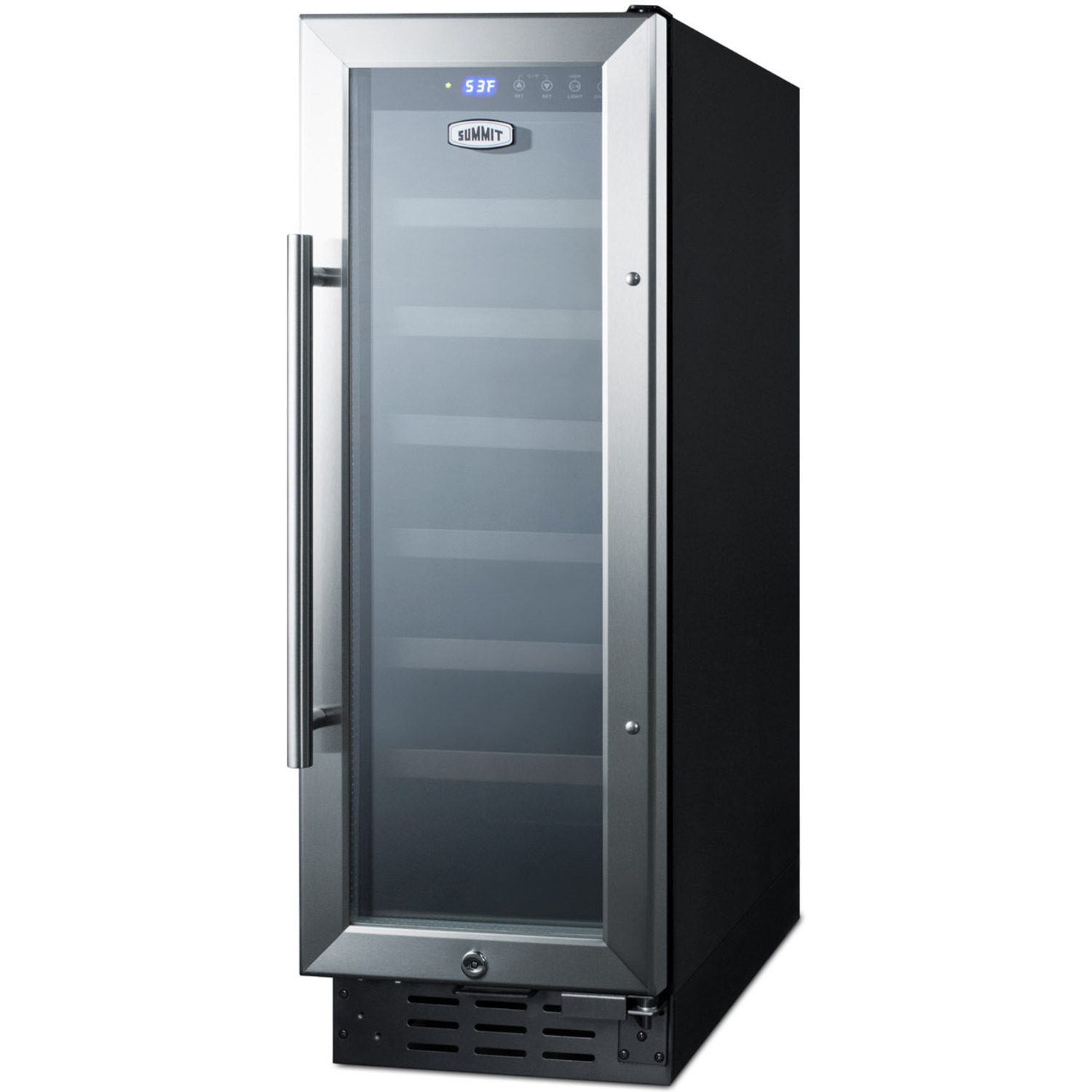

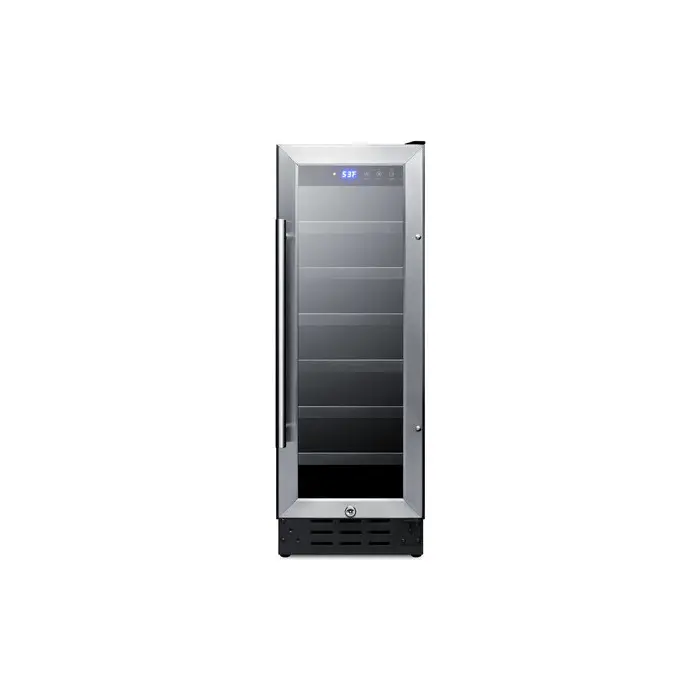

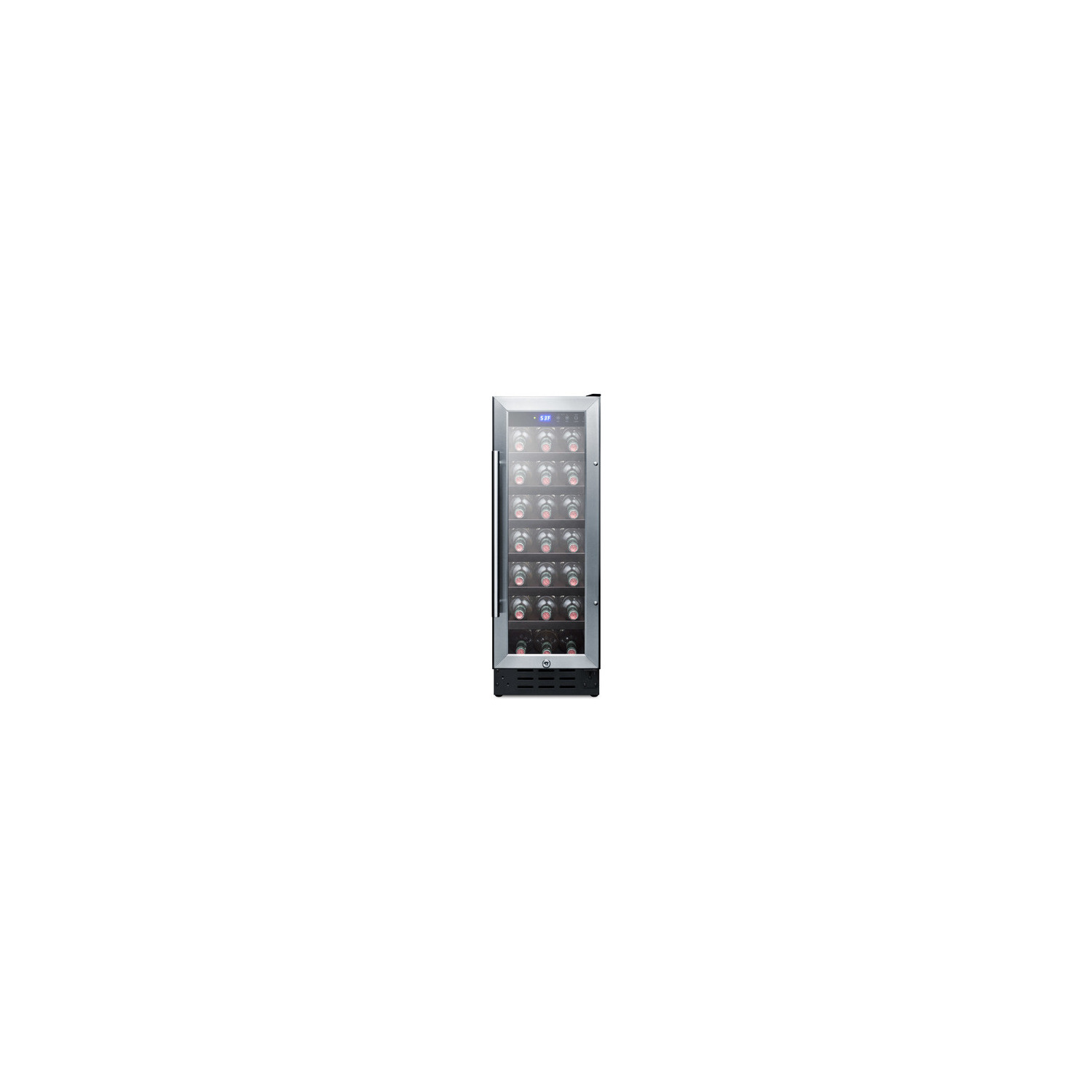

At just 12" wide, SUMMIT SWC1224B features a front-breathing design for built-in installation under counters, but also has a fully finished cabinet for alternate freestanding use. The interior can store up to 21 standard Bordeaux style or wider Burgundy style bottles. The reversible glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.

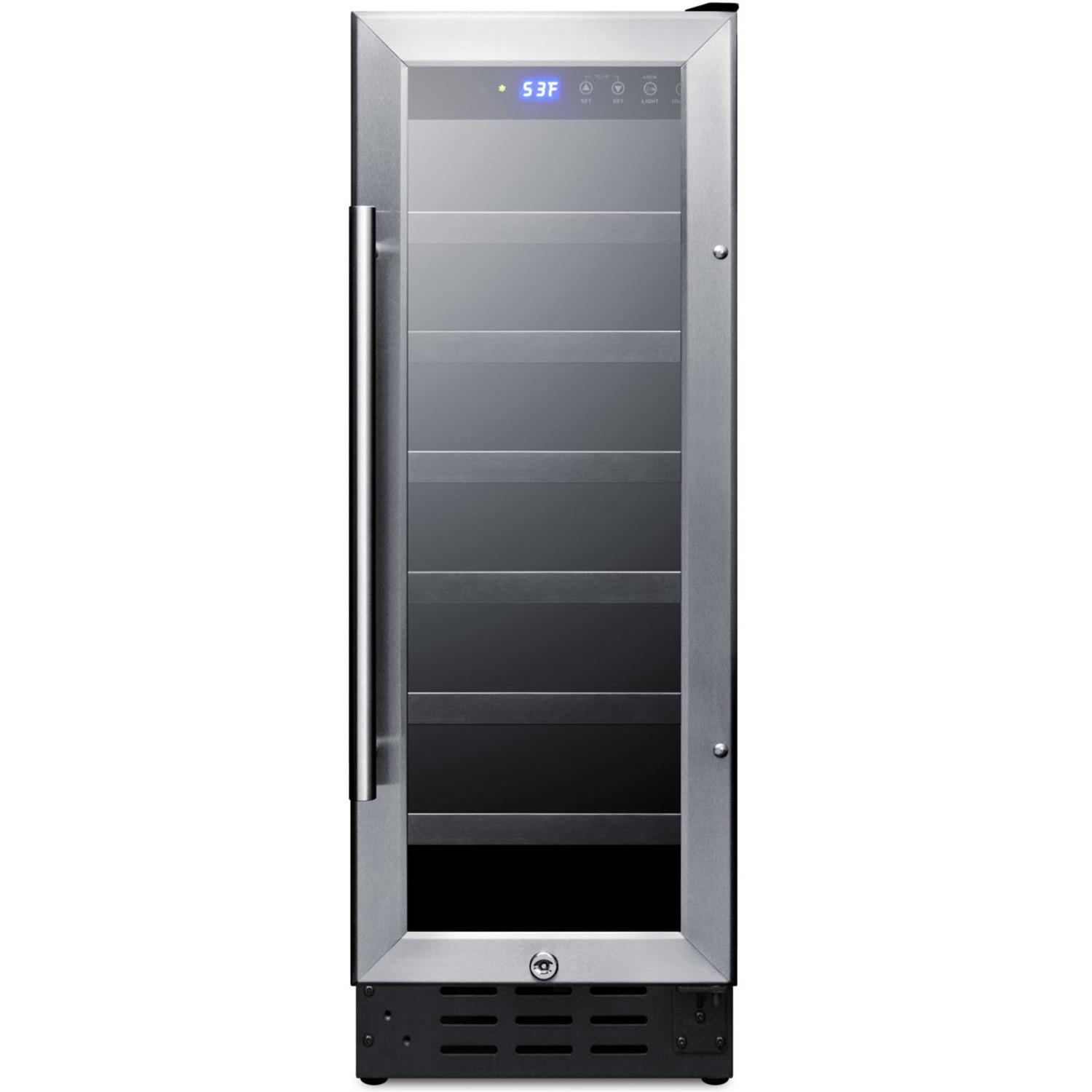

Inside, the SWC1224B includes six wooden shelves in a jet black finish and a floor specially slotted to hold bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit, with indicator lights to show the proper storage temperature for red, white, or sparkling wine.

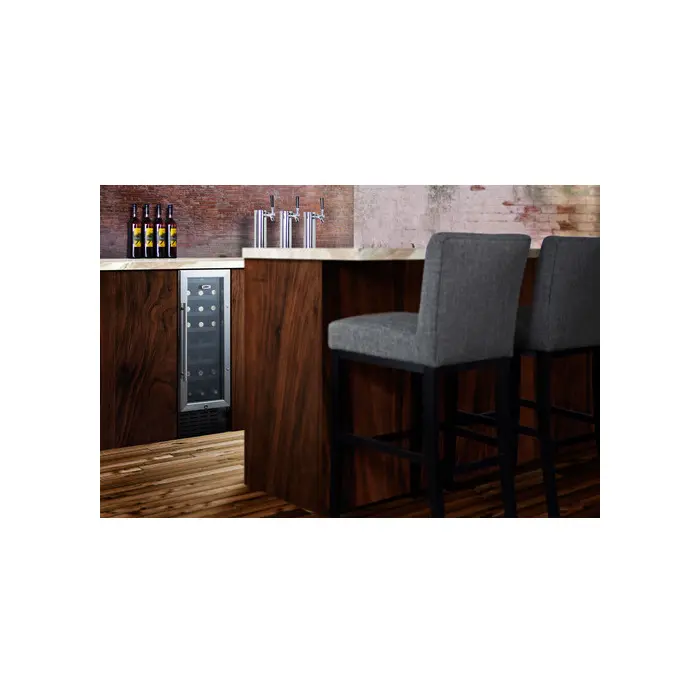

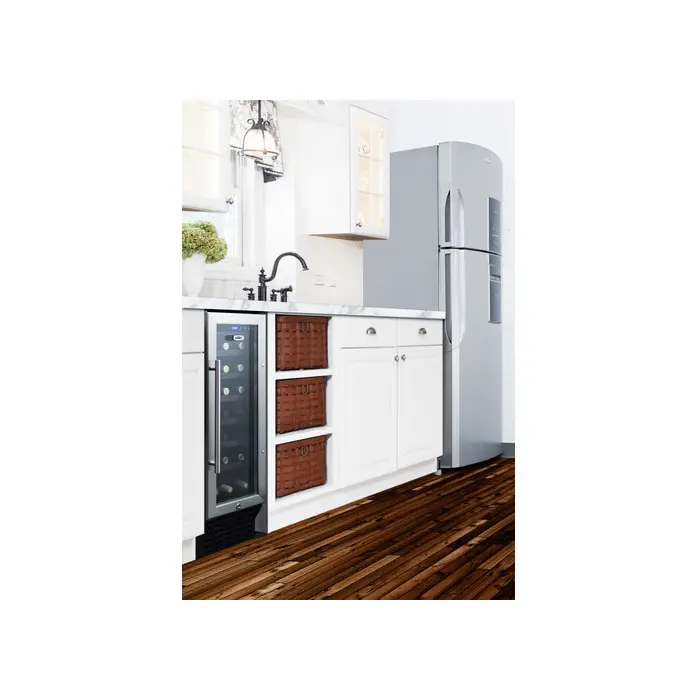

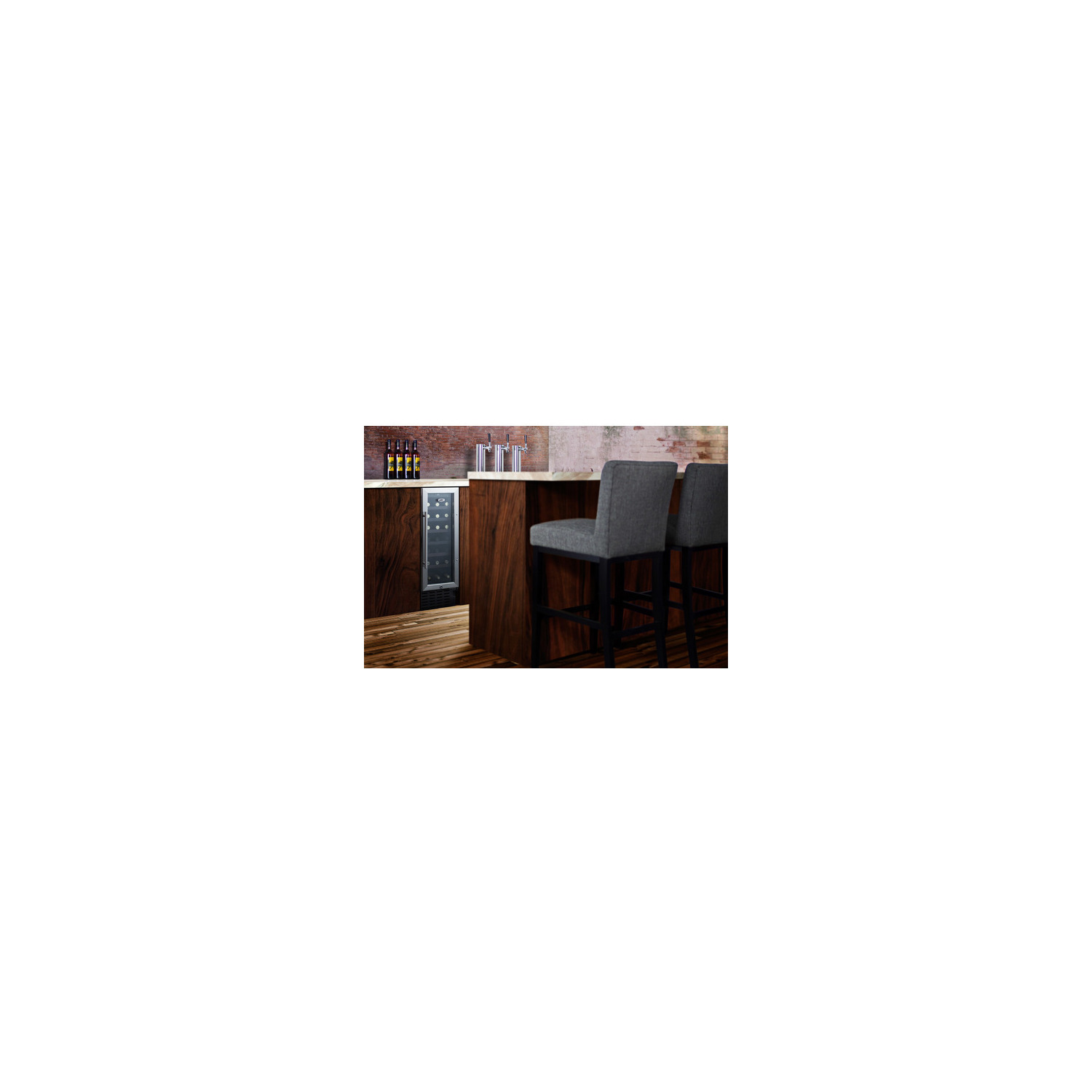

With its slim fit and user-friendly features, the SWC1224B is perfect for a 12" cutout in any wet bar or kitchen. This unit is ETL-S listed to NSF-7 standards and meets UL-471. For a matching beverage center, see the SCR1225B.

Nominal Height: 35
Height of Cabinet: 34.38
Height to Hinge Cap: 0
Nominal Width: 12
Width: 11.88
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.38
Depth with Handle: 24.13
Depth with door at 90°: 33
Capacity: 0
Bottles: 21Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.38" (87 cm)

Nominal Width 12.0" (30 cm)

Width 11.88" (30 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 24.13" (61 cm)

Depth with door at 90° 33.0" (84 cm)

Bottles 21 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 66.0 lbs. (30 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101059501

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.88 oz.

High Side PSI 150.0

Low Side PSI 50.0

Interior Height 1 25.0" (64 cm)

Interior Width 1 9.13" (23 cm)

Interior Depth 1 17.0" (43 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 9.13" (23 cm)

Compressor Step Depth 4.5" (11 cm)

Level Legs 4

Temperature Range 41 to 68ºF

FEATURES

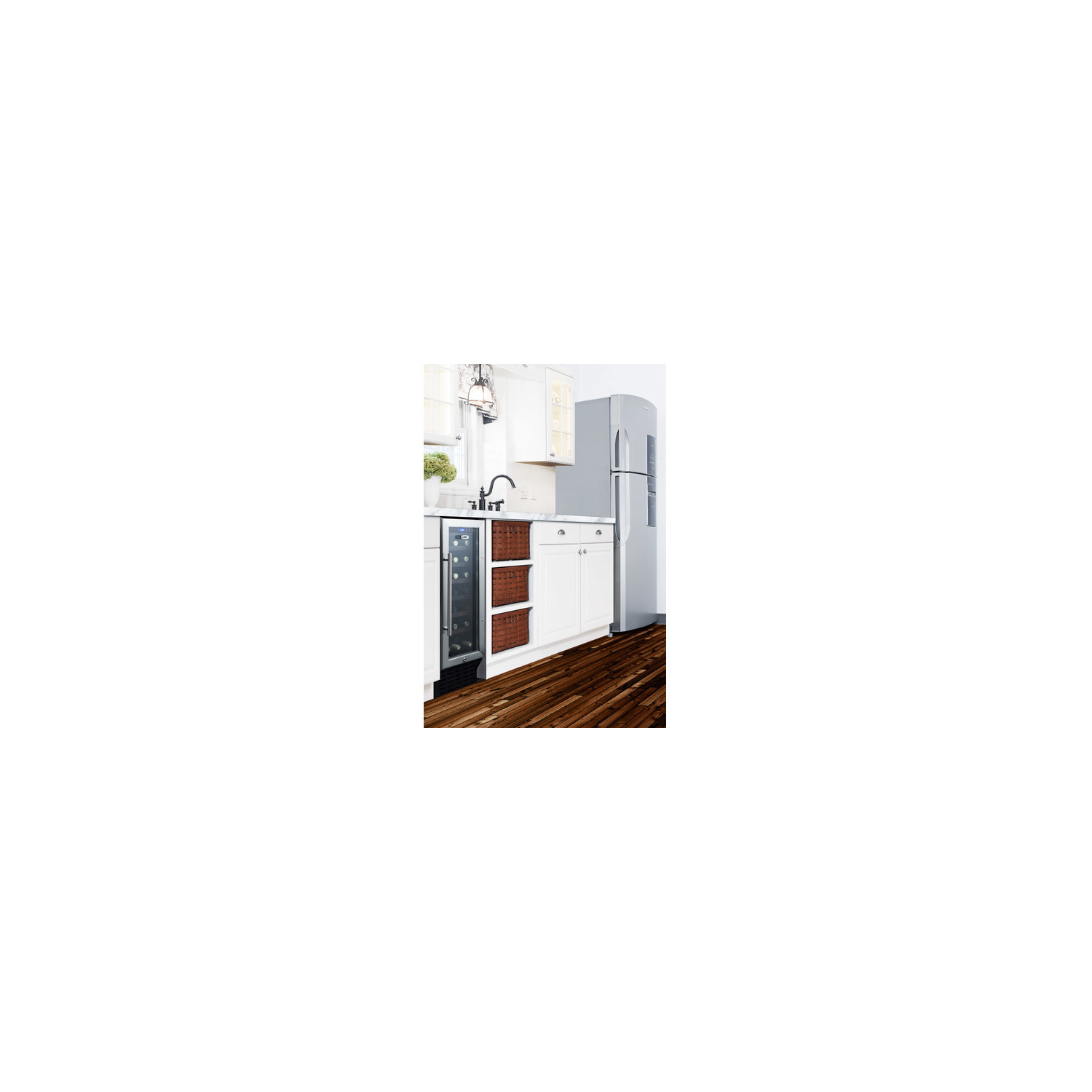

Built-in capable Make the best use of space by installing your appliance under the counter

Commercially approved Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

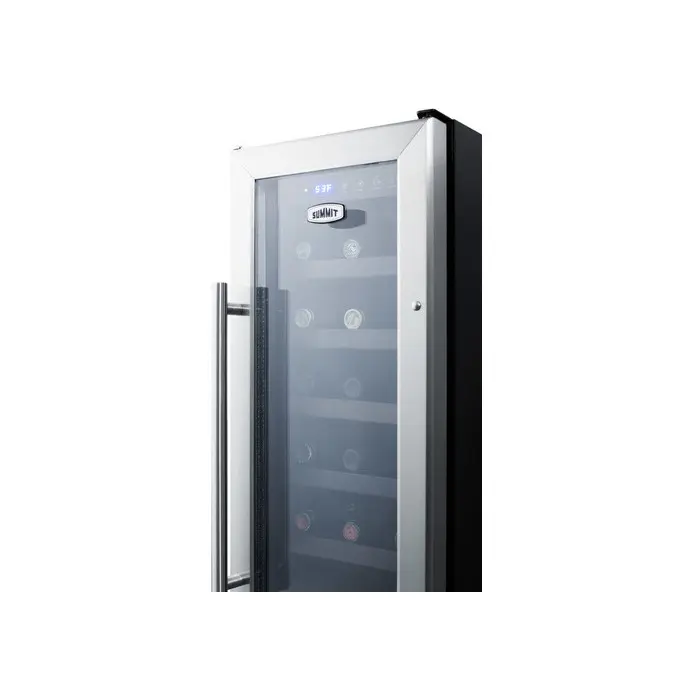

Glass door with stainless steel trim Provides a full display of your stored collection with a heat-safe double tempered design

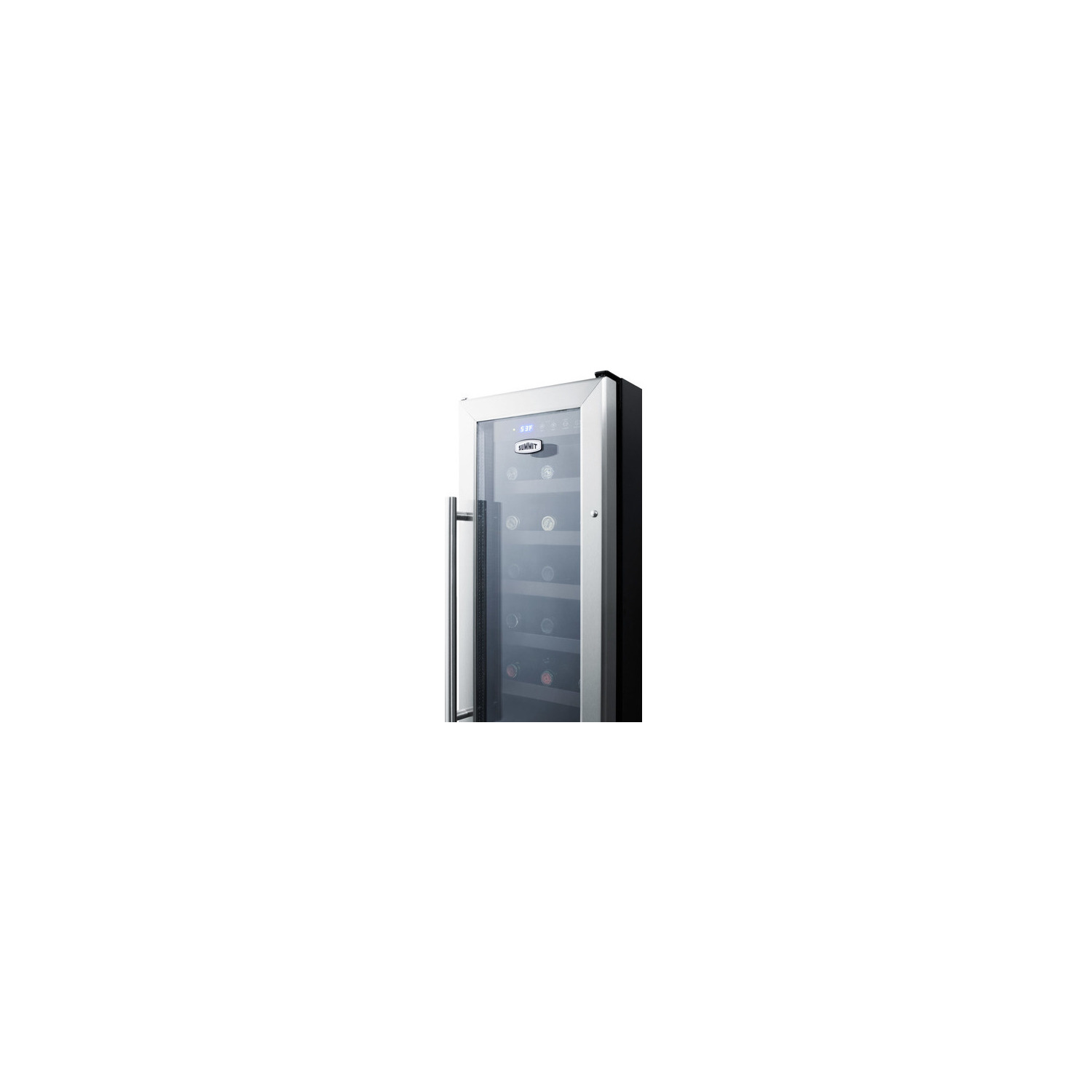

Factory installed lock Keyed security on the wine cellar door

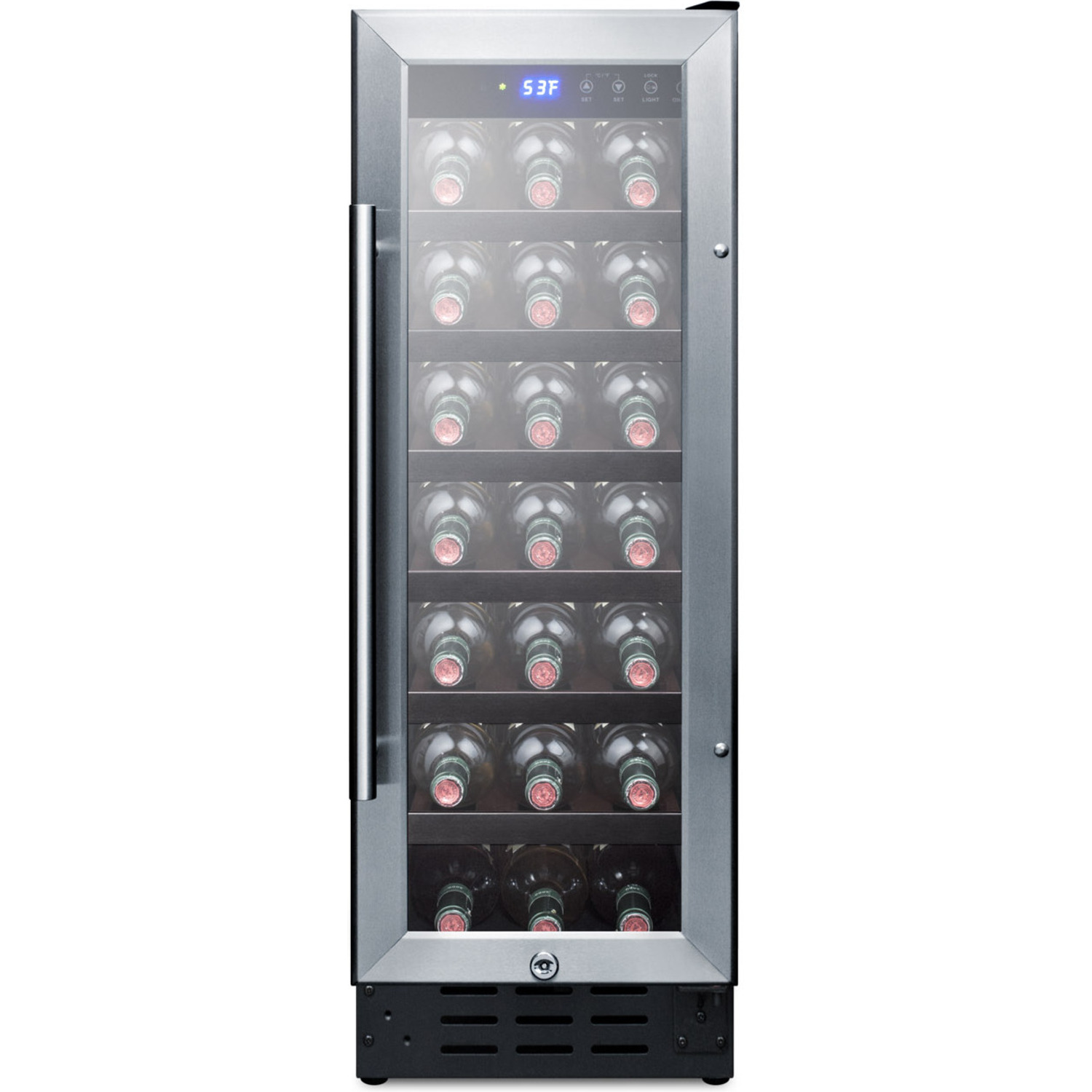

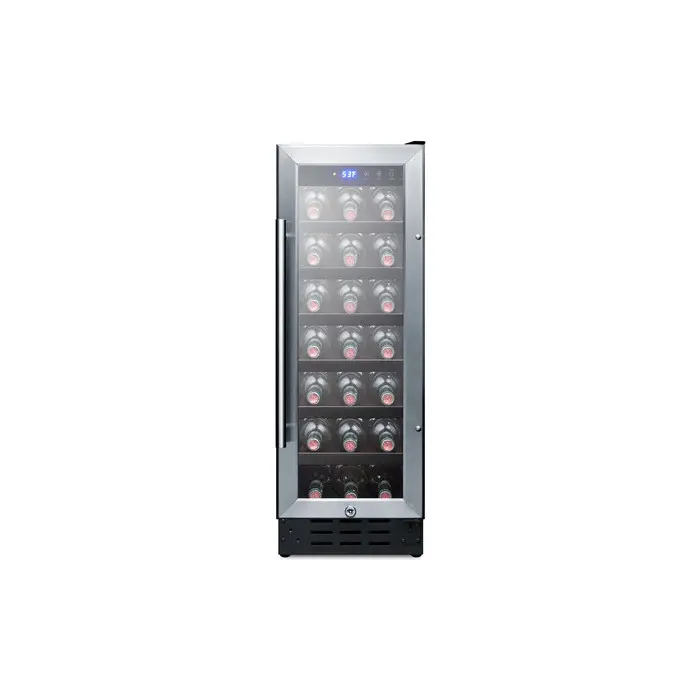

21 bottle capacity Interior can hold 21 bottles in standard Bordeaux style or wider Burgundy style

Digital thermostat Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Wooden shelves Slide-out shelves offer the perfect storage for bottles

LED lighting On/off button to illuminate your collection

Automatic defrost Reduced maintenance and steady temperature performance

Professional handle Stainless steel look for added elegance

Flush back Space saving design with easier cleanability

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080 Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

DOWNLOADS

BROCHURE w/ DRAWINGS (SWC1224B.pdf)

REVIT MODEL (QF_Summit_SWC1224B_12_Wide_Built_In_Undercounter.rfa)

USE & CARE (SWC1224B-User-Manual.pdf)

SUPPORT (SWC1224_Shelving_Guide.pdf)
