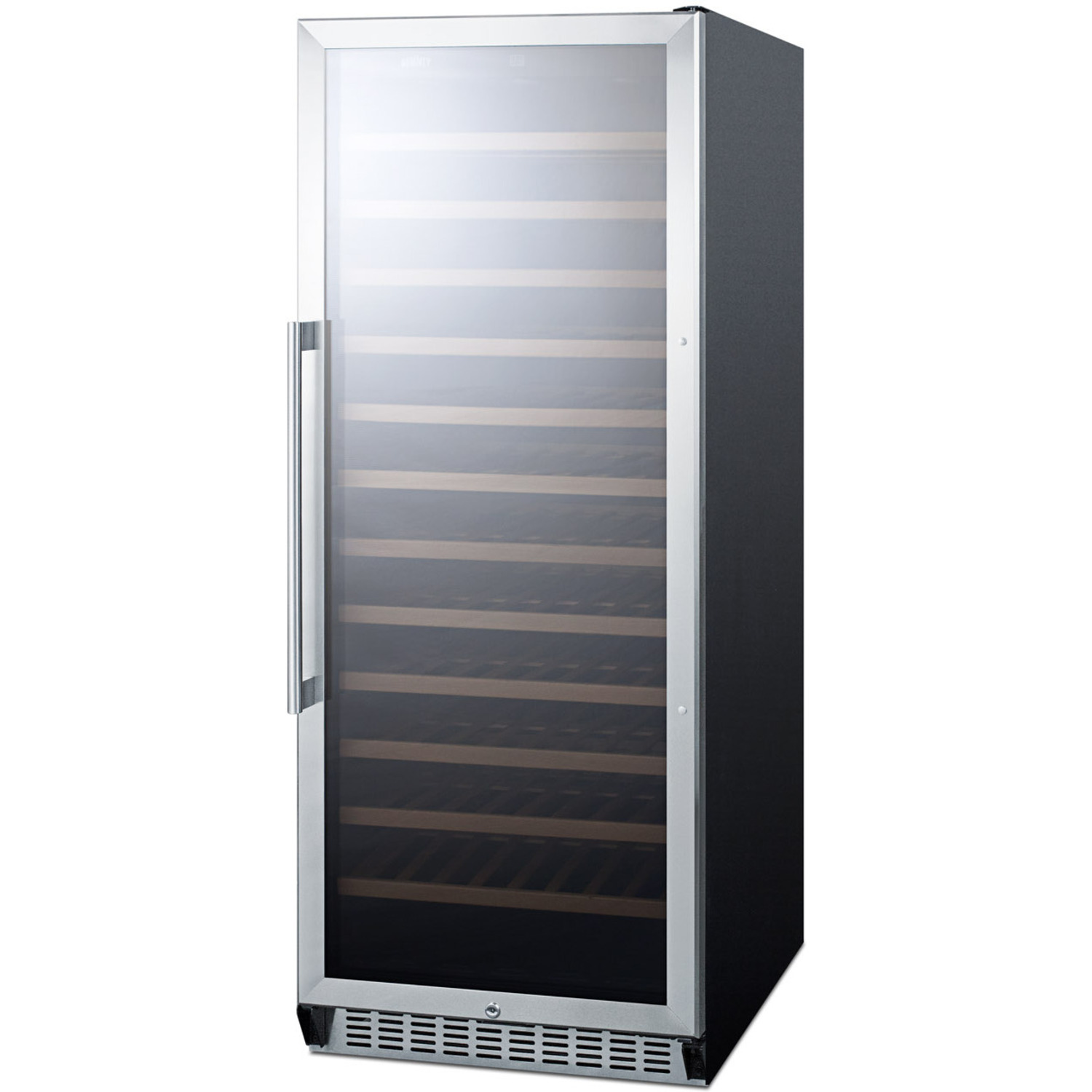

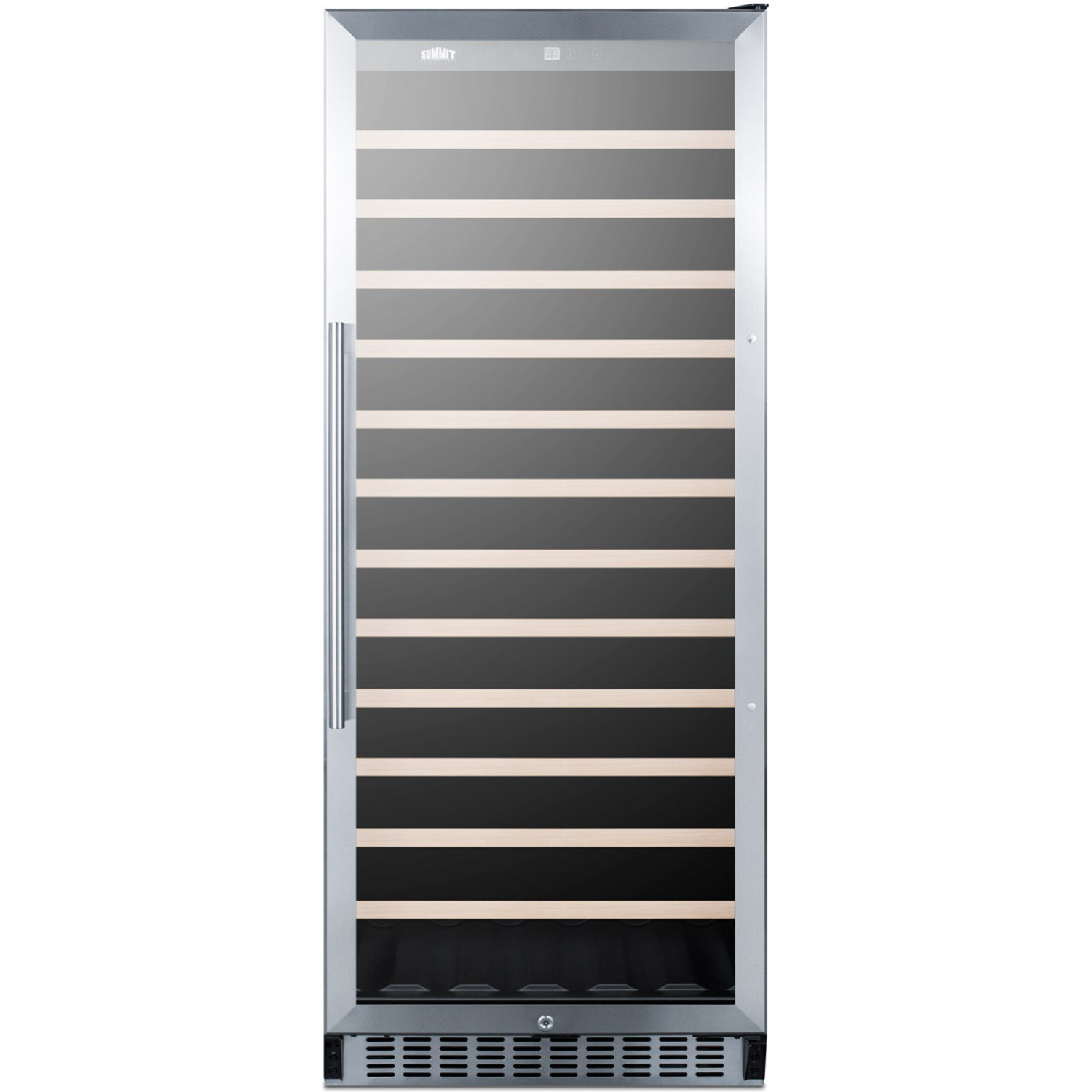

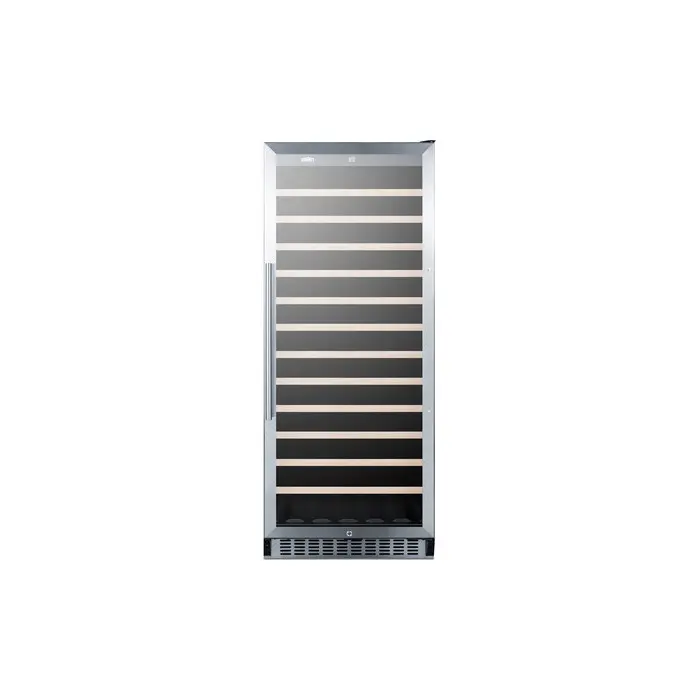

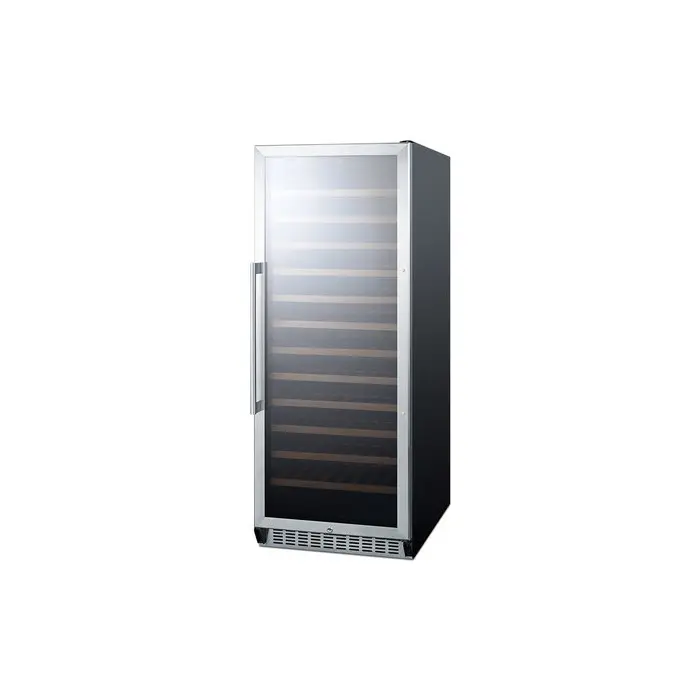

Summit 102 bottle single-zone wine cellar with glass door, digital thermostat, and black cabinet, 7.61101e+011, SWC1102

SUMMIT SWC1102 is a mid-sized wine cellar with a deluxe design for optimum storage.

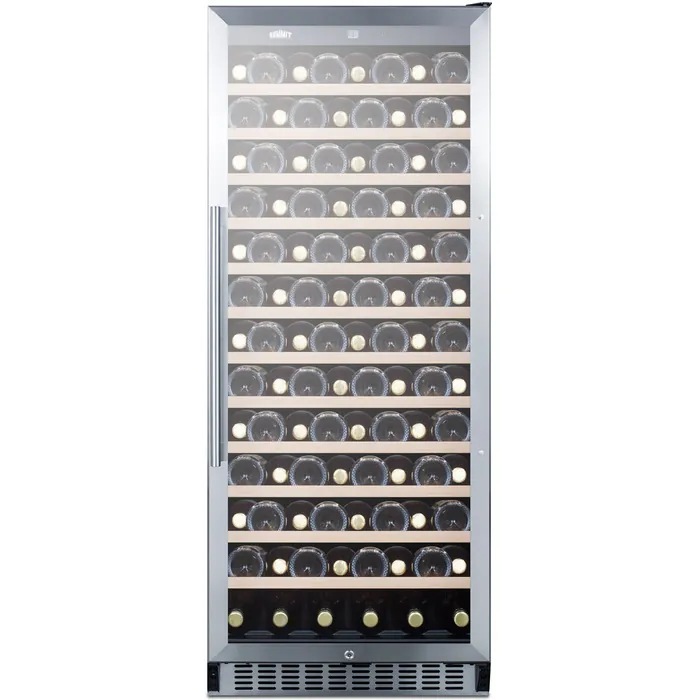

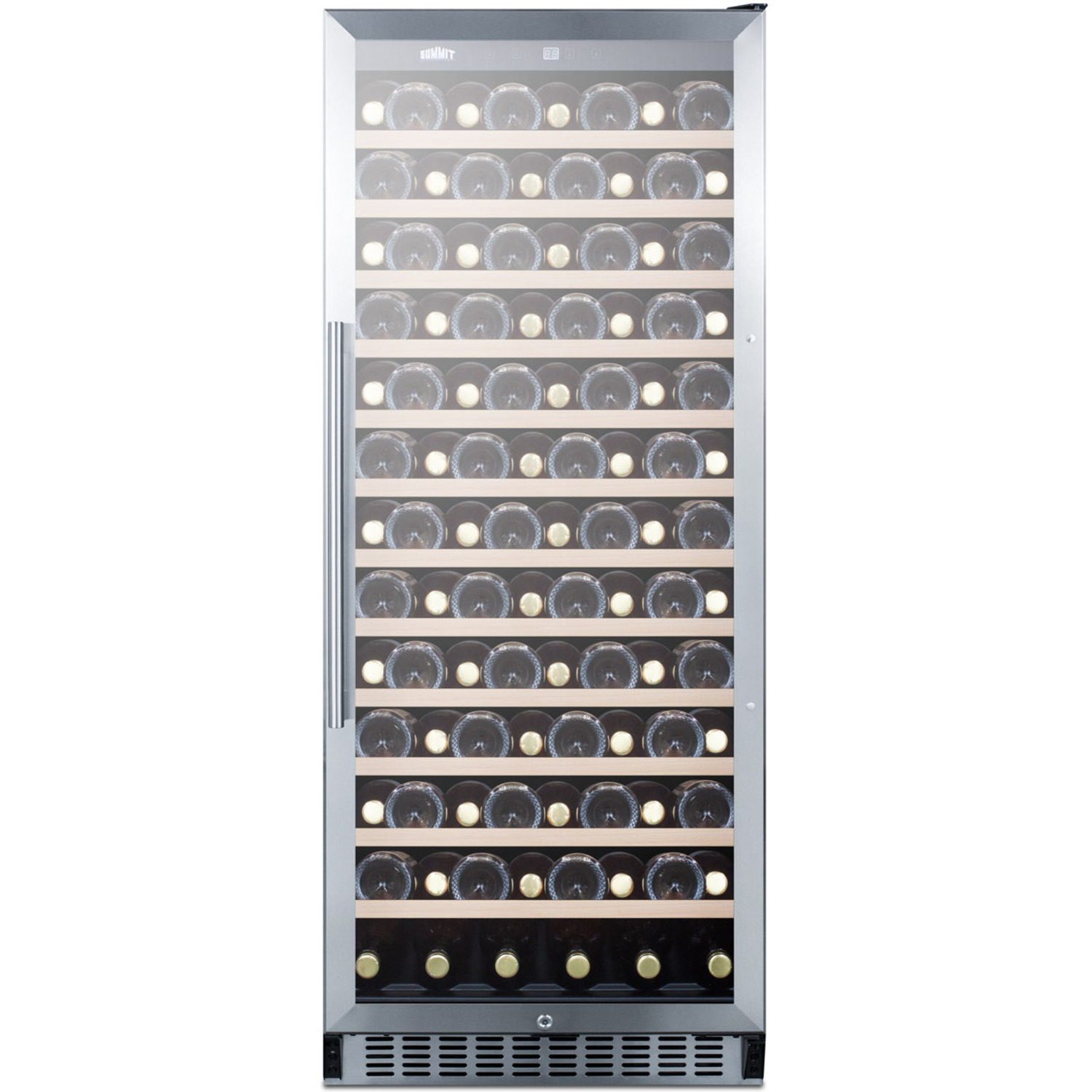

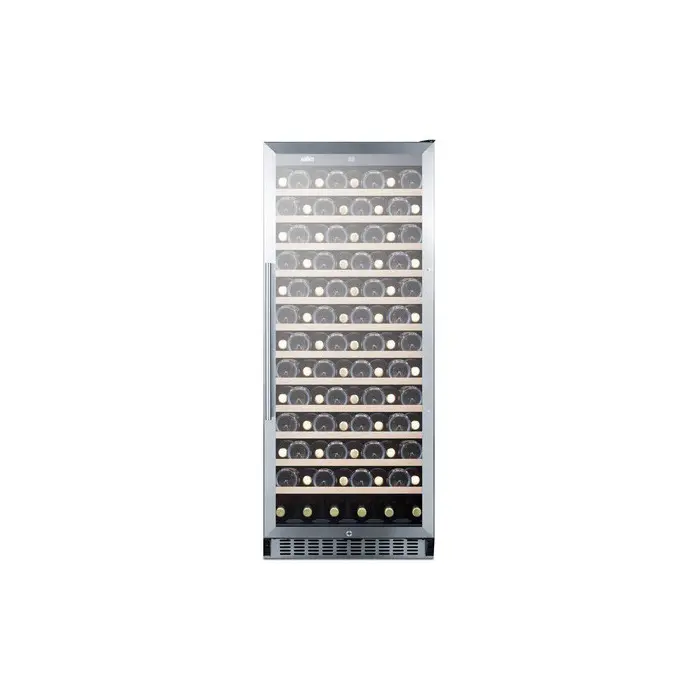

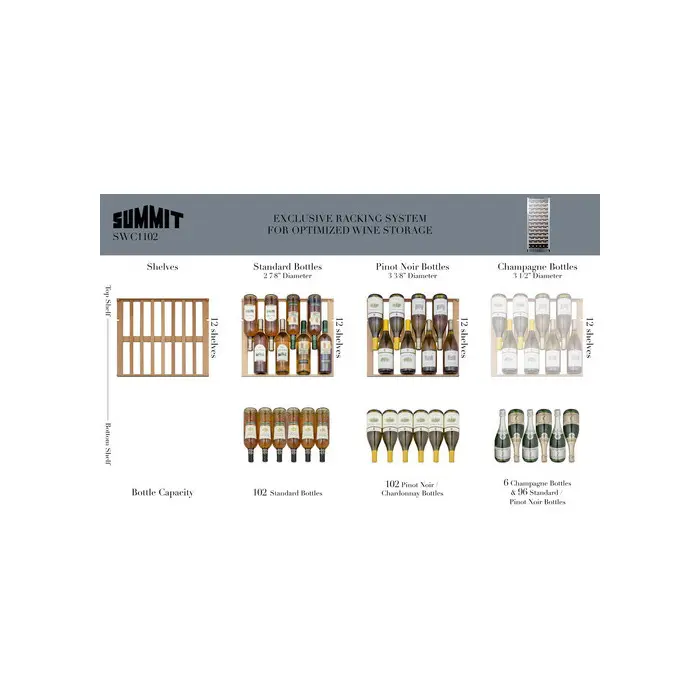

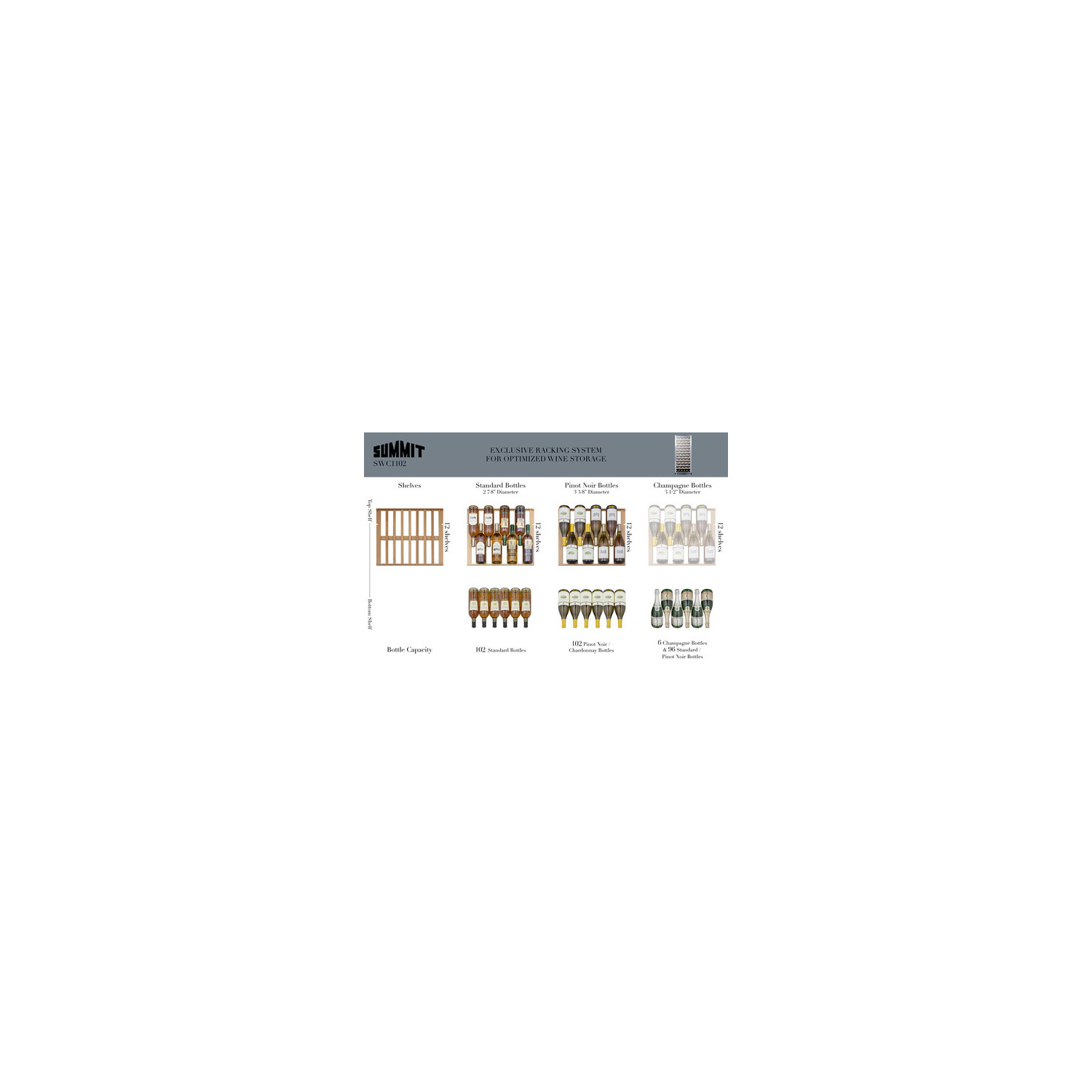

The SWC1102 features twelve slide-out wooden shelves that can store up to 102 of the standard 750ml Bordeaux bottles or larger diameter Pinot Noir/Chardonnay style bottles (for details, see our Racking System Guide in this product's image gallery). The single-zone interior features recessed LED lighting for an attractive presentation. A digital thermostat ensures easy and precise temperature management.

With a front-breathing design and fully finished cabinet, the SWC1102 can be used either built-in or freestanding. It features a jet black cabinet and stainless steel trimmed reversible glass door. A sleek handle and stainless steel kickplate complete the professional look. This unit includes a factory installed lock for added security for your collection.

Nominal Height: 59
Height of Cabinet: 58.5
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.63
Depth with Handle: 24.63
Depth with door at 90°: 44.88
Capacity: 0
Bottles: 102Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 59.0" (150 cm)

Height of Cabinet 58.5" (149 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 44.88" (114 cm)

Bottles 102 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 150.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101004082

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 12

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.66 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 48.75" (124 cm)

Interior Width 1 20.0" (51 cm)

Interior Depth 1 17.5" (44 cm)

Compressor Step Height 4.0" (10 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.25" (13 cm)

Level Legs 2

Temperature Range 41 to 72ºF

Sabbath Mode Yes

FEATURES

Double pane tempered glass door Tinted glass provides full view of interior, with a stainless steel trim for added accent

Commercial design Meets UL-471 commercial standards

Digital thermostat Intuitive electronic controls make it easy to manage the internal temperature of your collection

Slide-out wooden shelves 12 wooden wine shelves can hold up to 102 bottles

Versatile shelving Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details

LED lighting Recessed lighting offers an elegant view of your collection

Professional handle Sleek handle in stainless steel completes the elegant look

Automatic defrost Reduced user maintenance with auto defrost operation

Factory installed lock Keyed lock for trusted security

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Stainless steel kickplate Matches the handle for an attractive finish

Sealed back Space saving design with easier cleanability

Fully finished black cabinet Allows the unit to be used freestanding

Built-in capable Front-breathing design allows built-in installation

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC free Environmentally safe operation with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SWC1102.pdf)

TECHNICAL DRAWING (.dwg) (SWC1102WINECELLARA-C2000.dwg)

REVIT MODEL (QF_Summit_SWC1102_Single_Zone_Commercial_Wine.rfa)

USE & CARE (SWC1102-User-Manual.pdf)

SUPPORT (SWC1102_Shelving_Guide.pdf)

MSDS INFORMATION (R600a_K.pdf)
