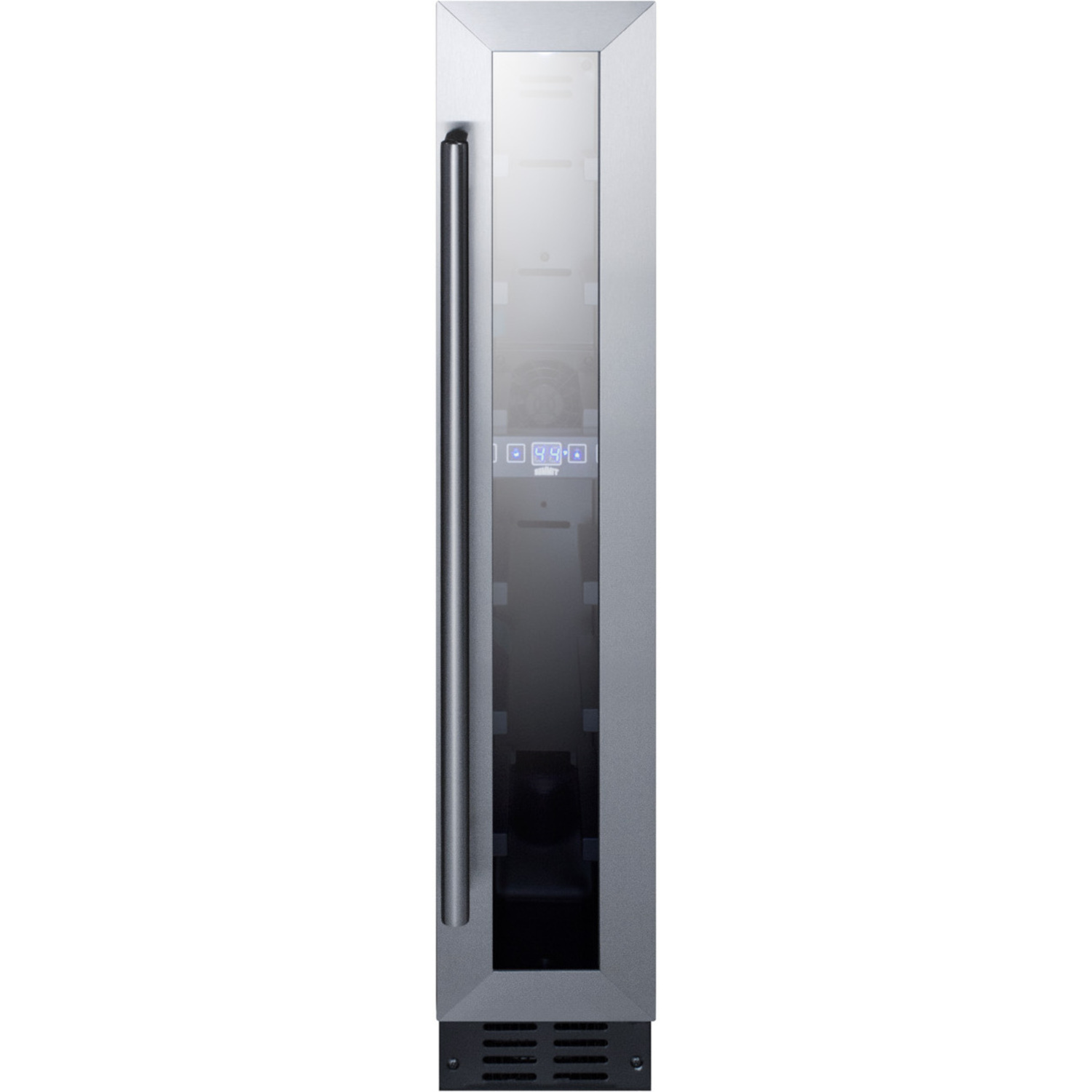

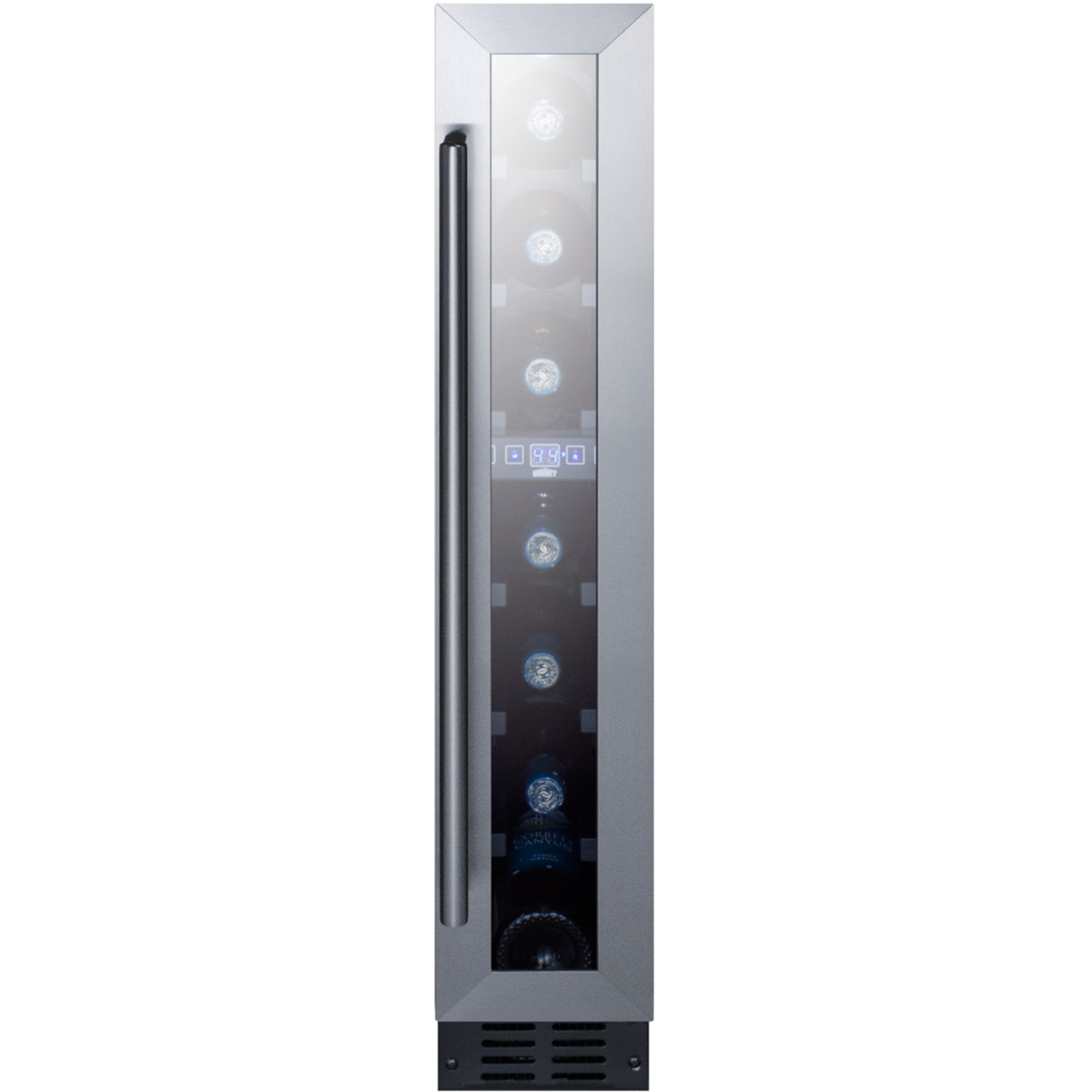

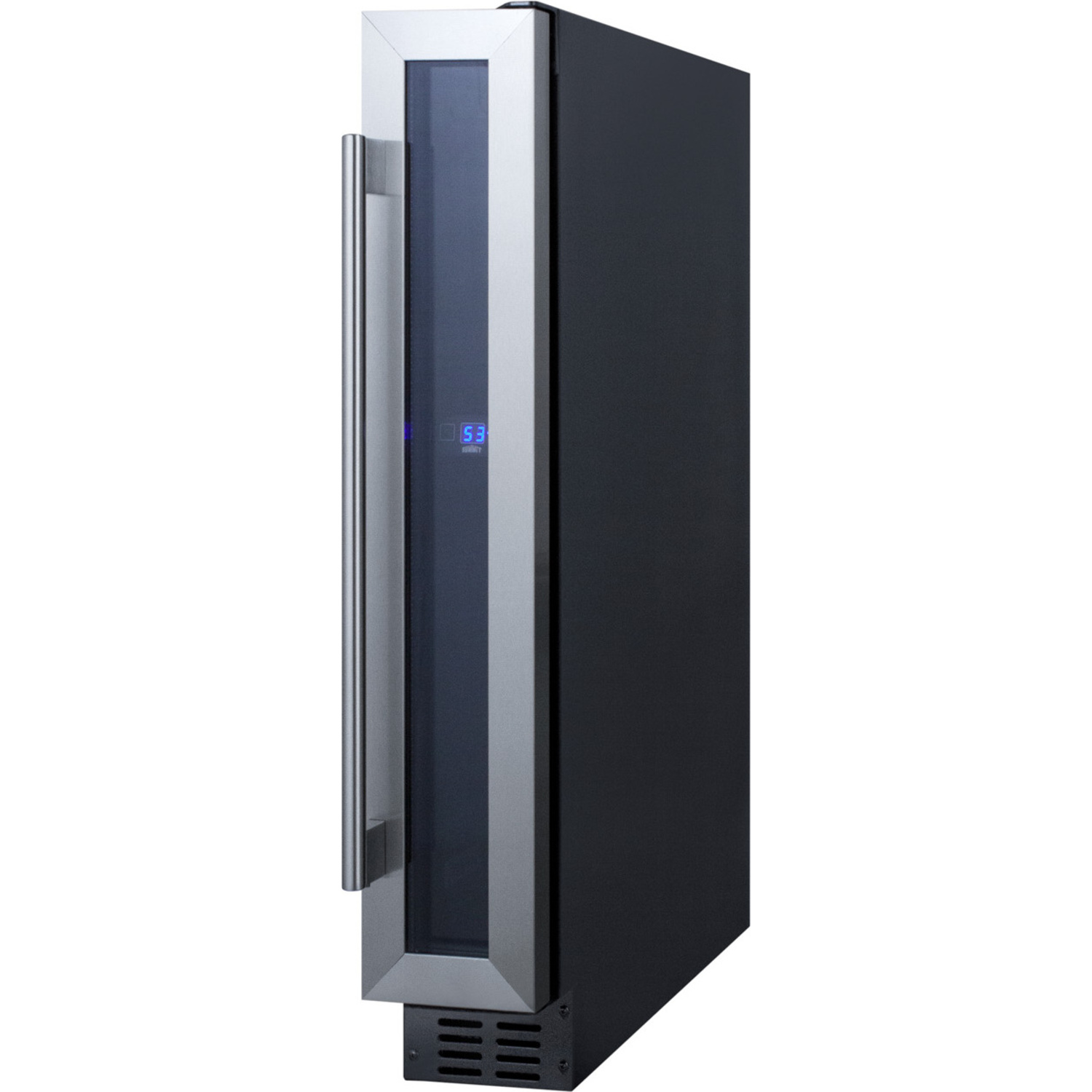

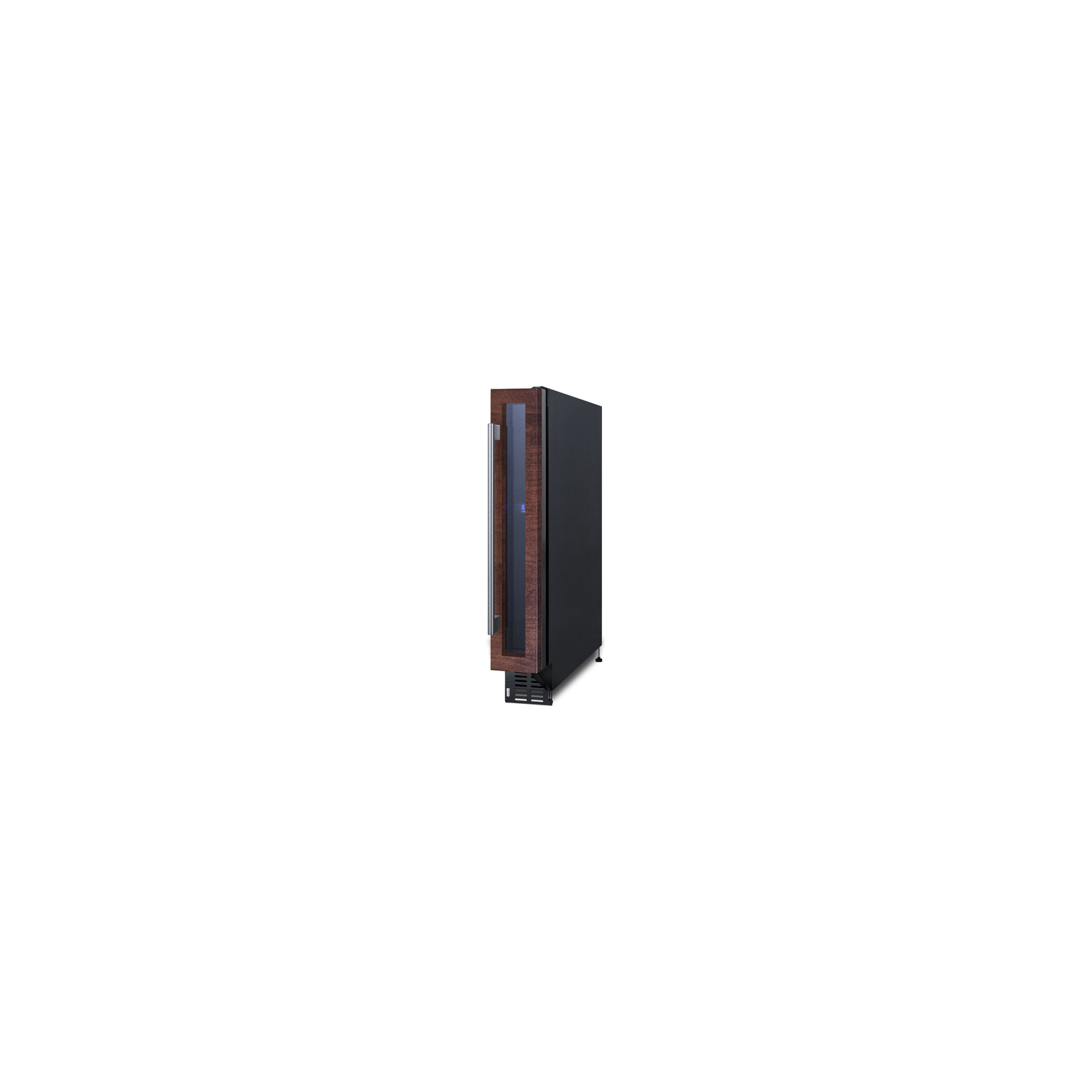

Summit 6 inch wide ADA compliant built-in undercounter wine cellar with digital thermostat and LED lighting, 7.61101e+011, SWC007
$751.57
Retail Price: $1,080.00
Shipping: $150
$ 751.57
Description

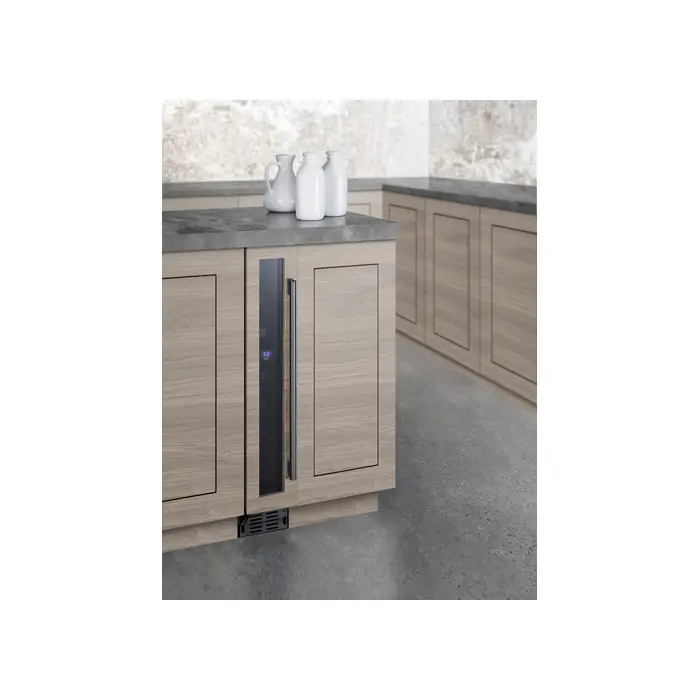

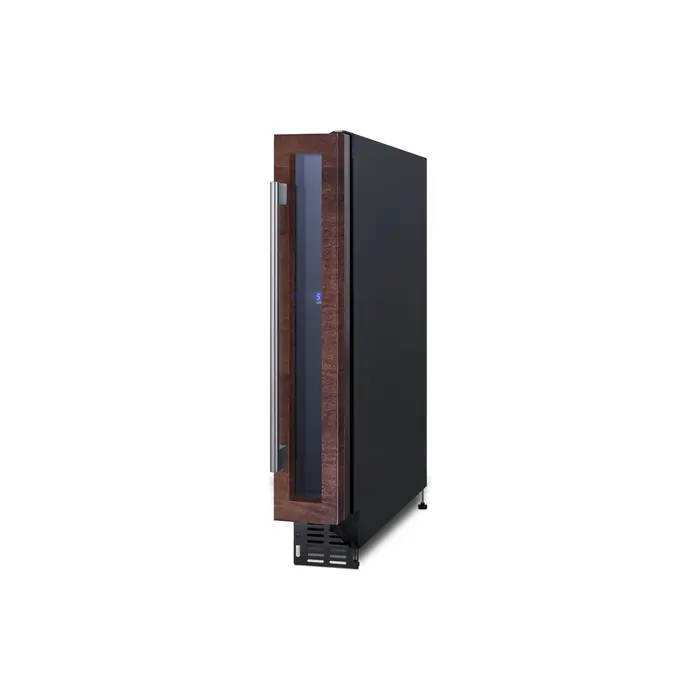

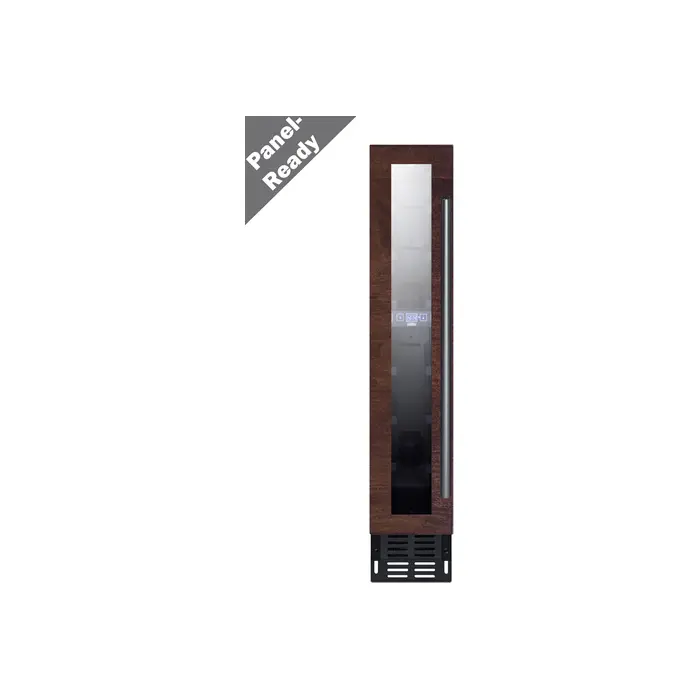

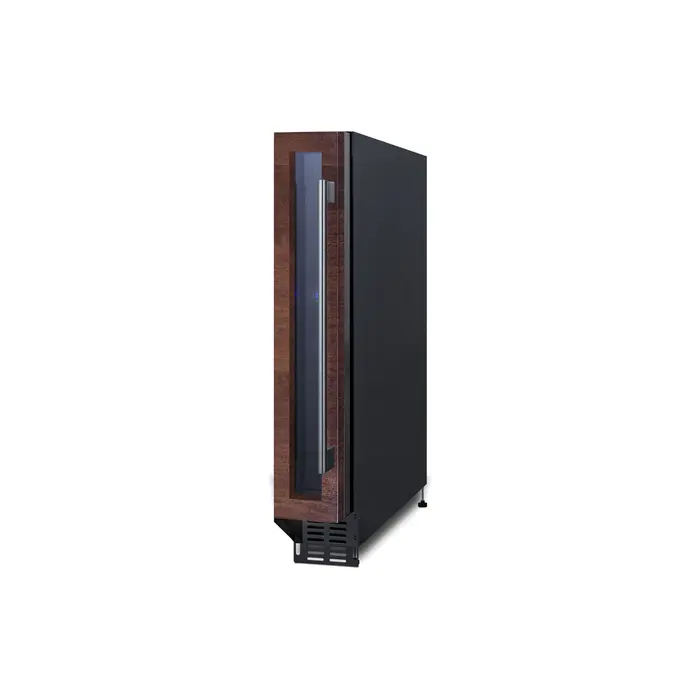

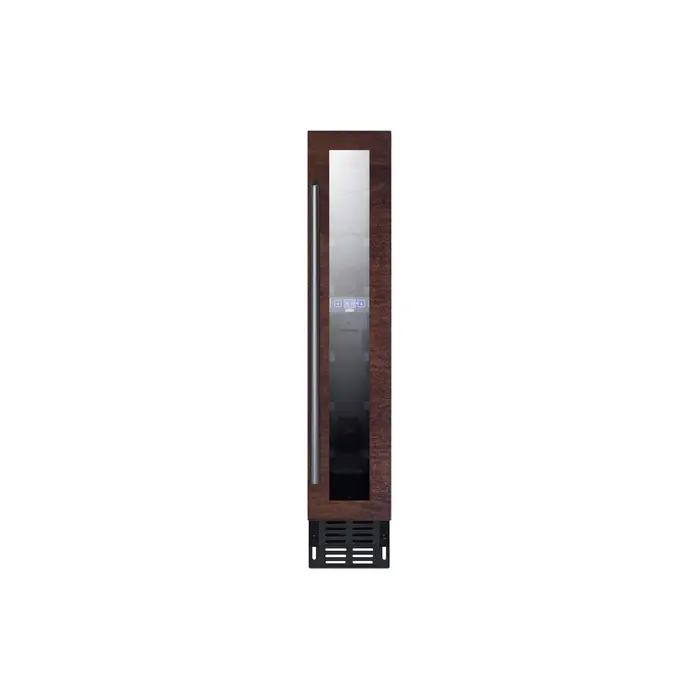

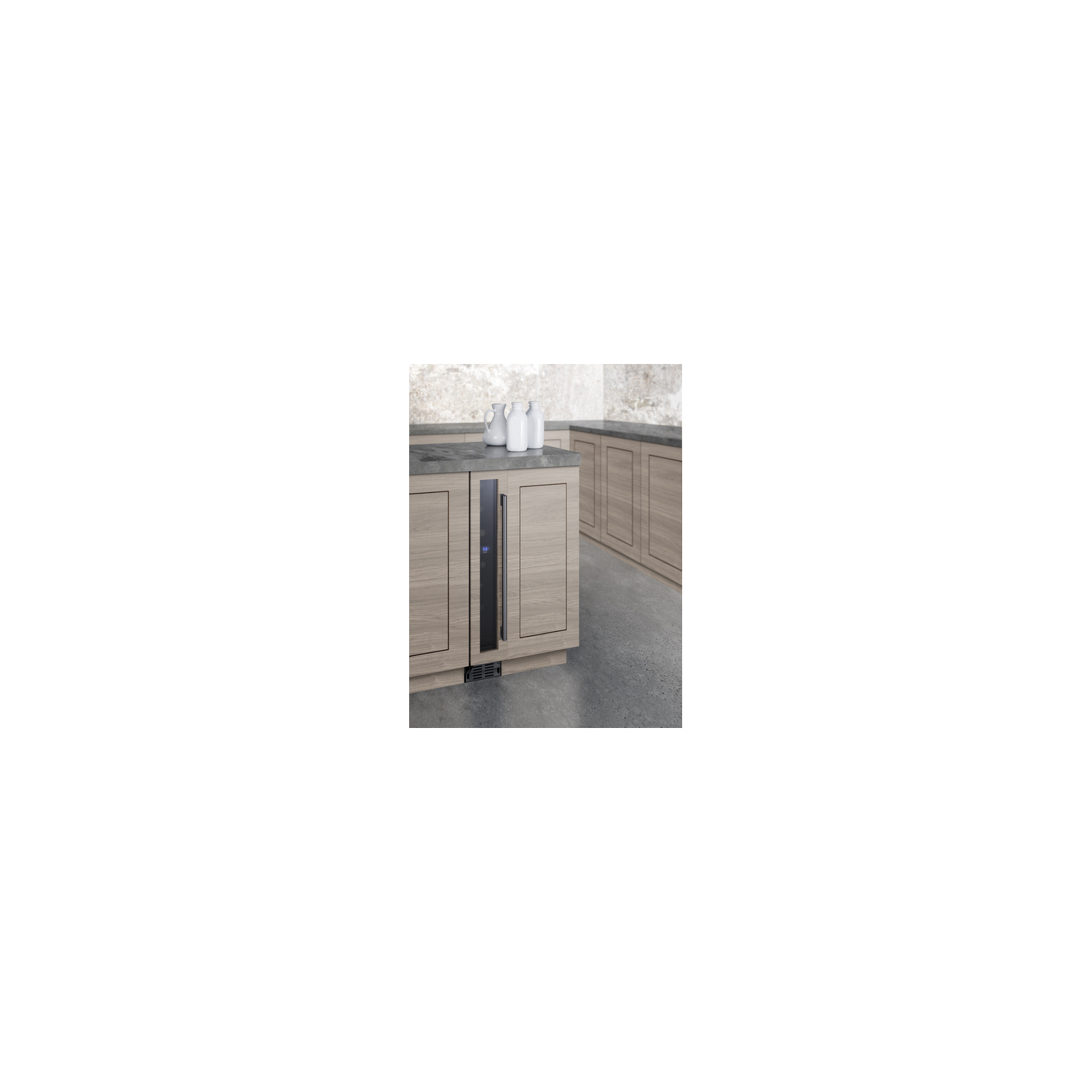

Complete any undercounter space in style with Summit's SWC007, a 6" wide wine cellar fully featured for user convenience.
Designed for built-in installation, the SWC007 features a front-breathing compressor-based cooling system. The stainless steel trimmed glass door includes a pro style handle and is user-reversible for added flexibility. This unit has a jet black exterior finish. The sealed back and right angle plug make it easy to install flush with cabinetry. At just 32 1/4"es high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2"es, ensuring an easy fit under standard countertops as well.

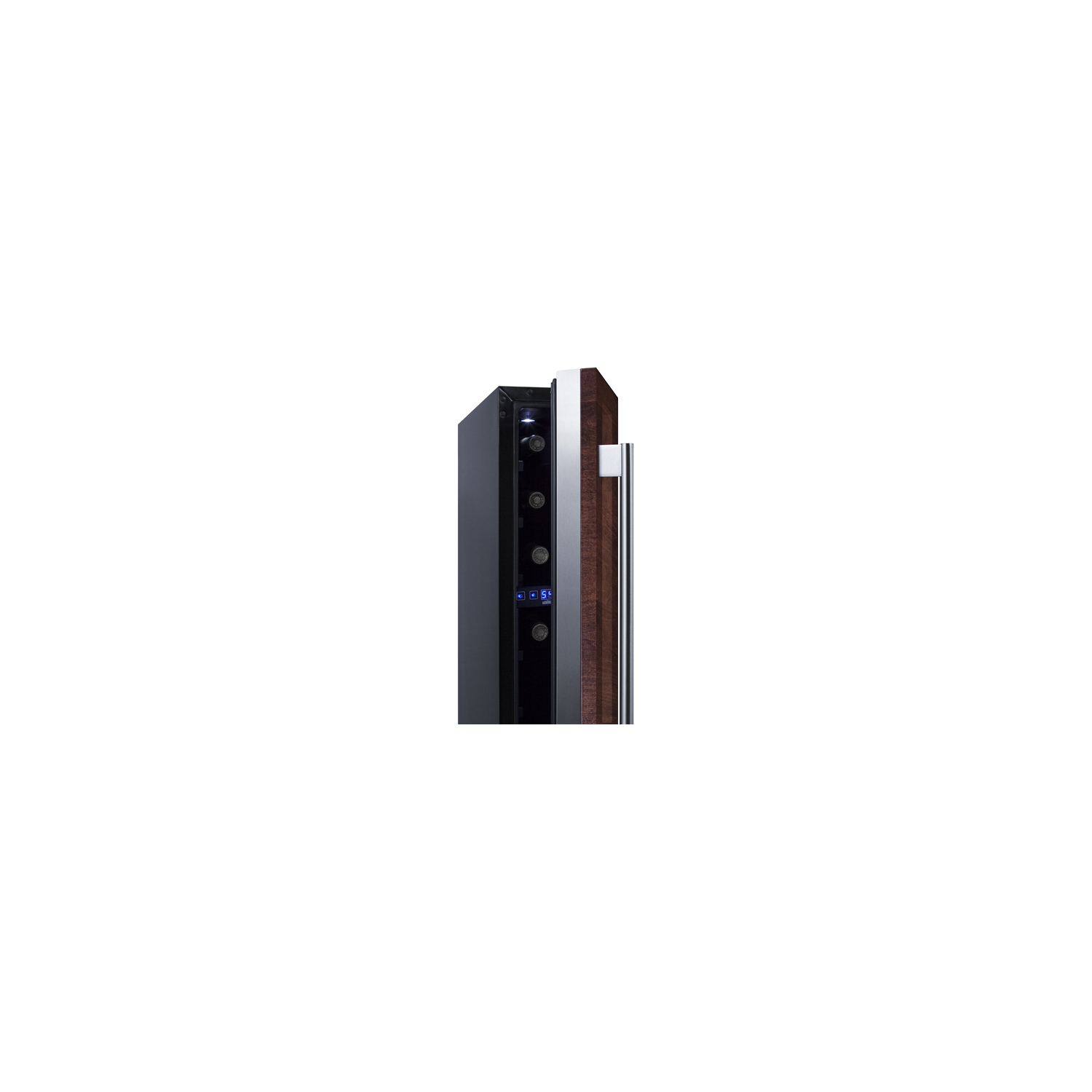

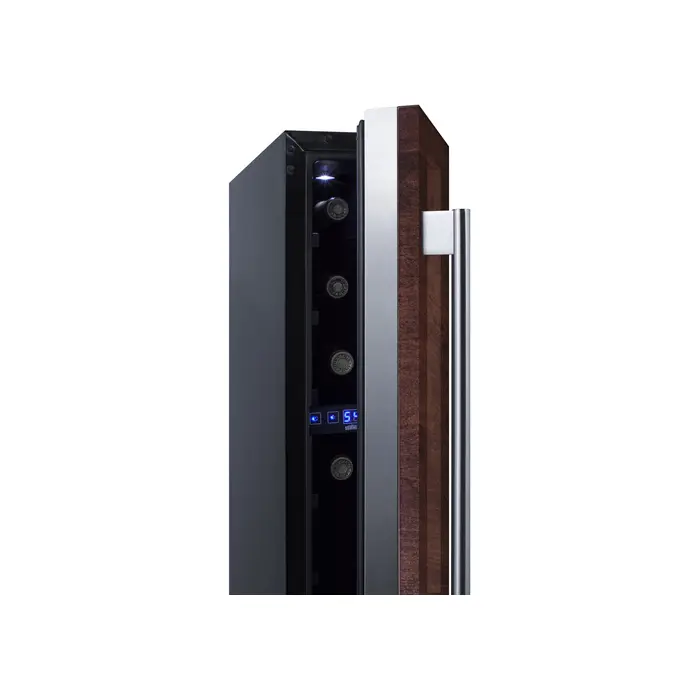

Inside, the SWC007 features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. Seven slots let you store wine bottles with ease, including a slightly angled floor slot that makes it easier to store bottles that have already been opened. This unit is equipped with an open door and high temperature alarm to help ensure your bottles are stored properly. The Sabbath mode setting allows you to disable certain features during periods of observance.
With its attractive design and innovative size, the SWC007 is the perfect way to finish any kitchen design.
Nominal Height: 32
Height of Cabinet: 32.25
Height to Hinge Cap: 0
Nominal Width: 6
Width: 5.88
Width with Door Open: 0
Nominal Depth: 21
Depth: 20.75
Depth with Handle: 22.38
Depth with door at 90°: 25.5
Capacity: 0
Bottles: 7Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.25" (82 cm)
Nominal Width 6.0" (15 cm)
Width 5.88" (15 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.75" (53 cm)
Depth with Handle 22.38" (57 cm)
Depth with door at 90° 25.5" (65 cm)
Bottles 7 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs. (18 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056319
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.57 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.75" (65 cm)
Interior Width 1 3.5" (9 cm)
Interior Depth 1 14.25" (36 cm)
Compressor Step Width 3.5" (9 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41 to 72ºF
Sabbath Mode Yes
Sound Level 33.8 dB
FEATURES
Slim 6 inch width Perfectly sized to complete any extra undercounter space
Designed for built-in use Make the best use of space by installing your appliance under the counter
ADA compliant Sized at 32 1/4" high to fit under most lower ADA compliant counters
Commercial design Meets UL-471 commercial standards
Height adjustable Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
Glass door with stainless steel trim Provides a full display of your stored collection with a heat-safe double tempered design
Digital thermostat Electronic controls for precise temperature management

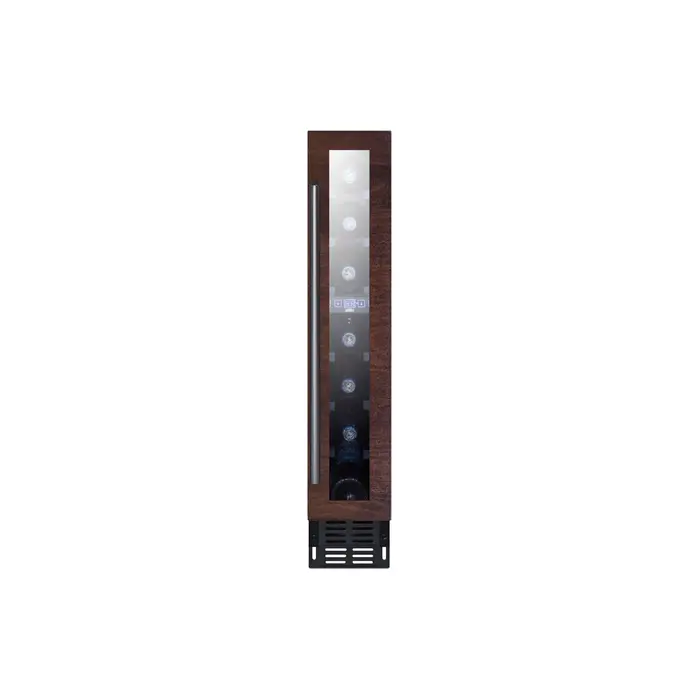

7 bottle capacity Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
Open bottle storage The floor slight is slightly angled, allowing you store bottles that have been uncorked at a gentle tilt
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Provides an attractive and efficient bottle display
Automatic defrost Reduced maintenance and steady temperature performance
Fan-forced cooling Interior fan helps to ensure the temperature is evenly distributed
Professional handle Stainless steel look for added elegance
Reversible door User-reversible door swing allows you to easily adjust to better accommodate your setting
Open door alarm Audible alarm will sound if the door is left ajar for over 60 seconds
High temperature alarm If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature memory function Unit will retain last temperature settings in the event of a power failure
Right angle plug Flat design offers added space savings by requiring no extra depth to plug the unit in
Flush back Space saving design with easier cleanability
Kickplate extender included Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
Quiet operation Runs at under 34 dB for a quiet performance in any setting
Quality storage Compressor-based operation to ensure reliable temperature performance
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
