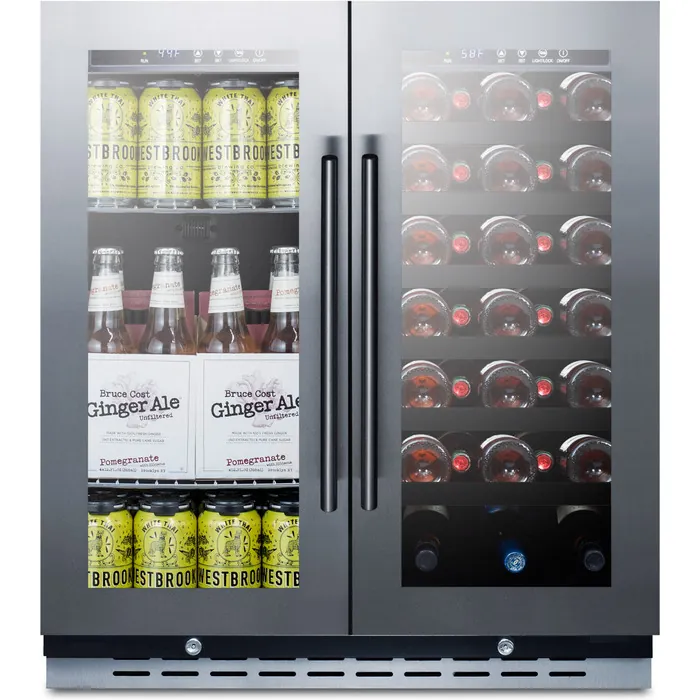

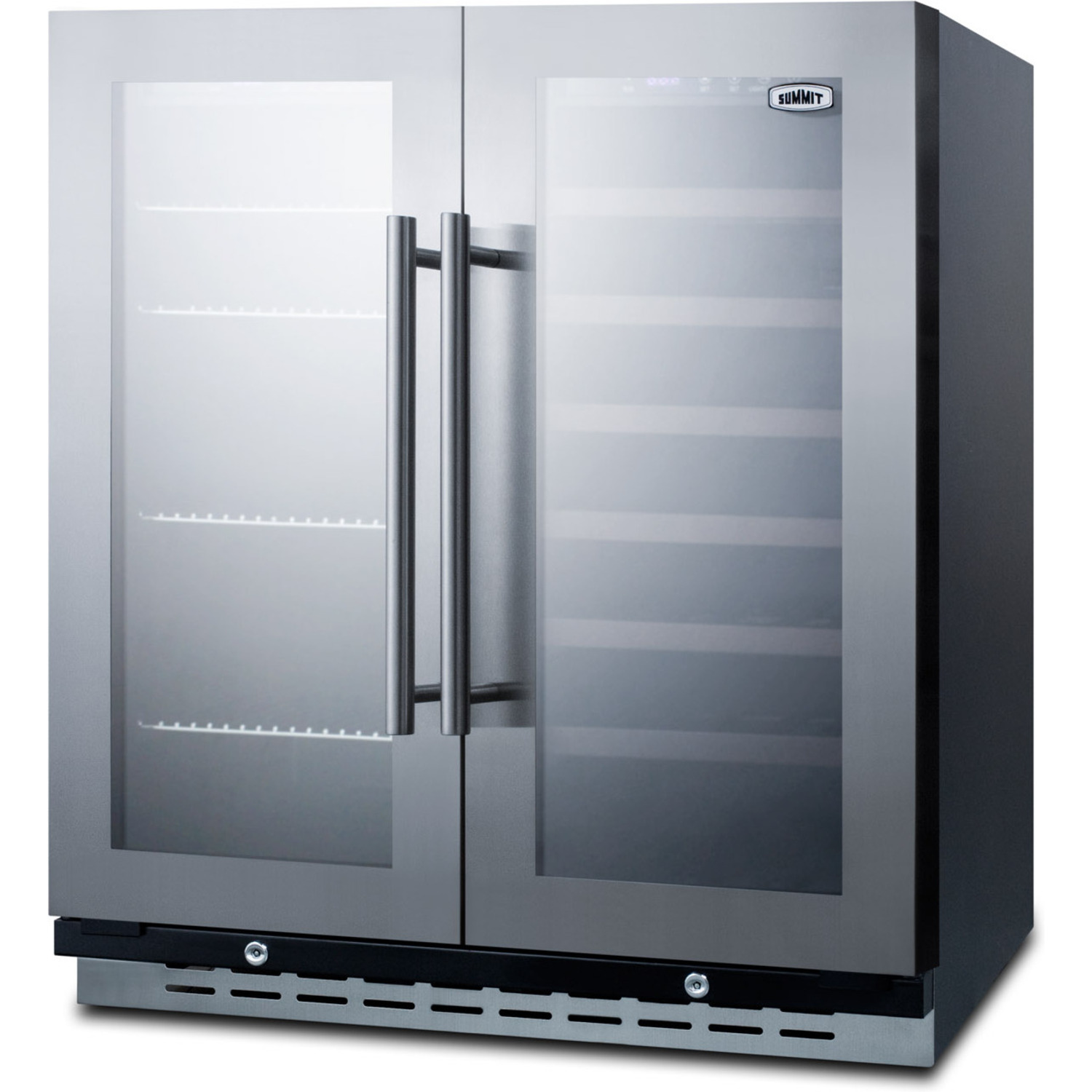

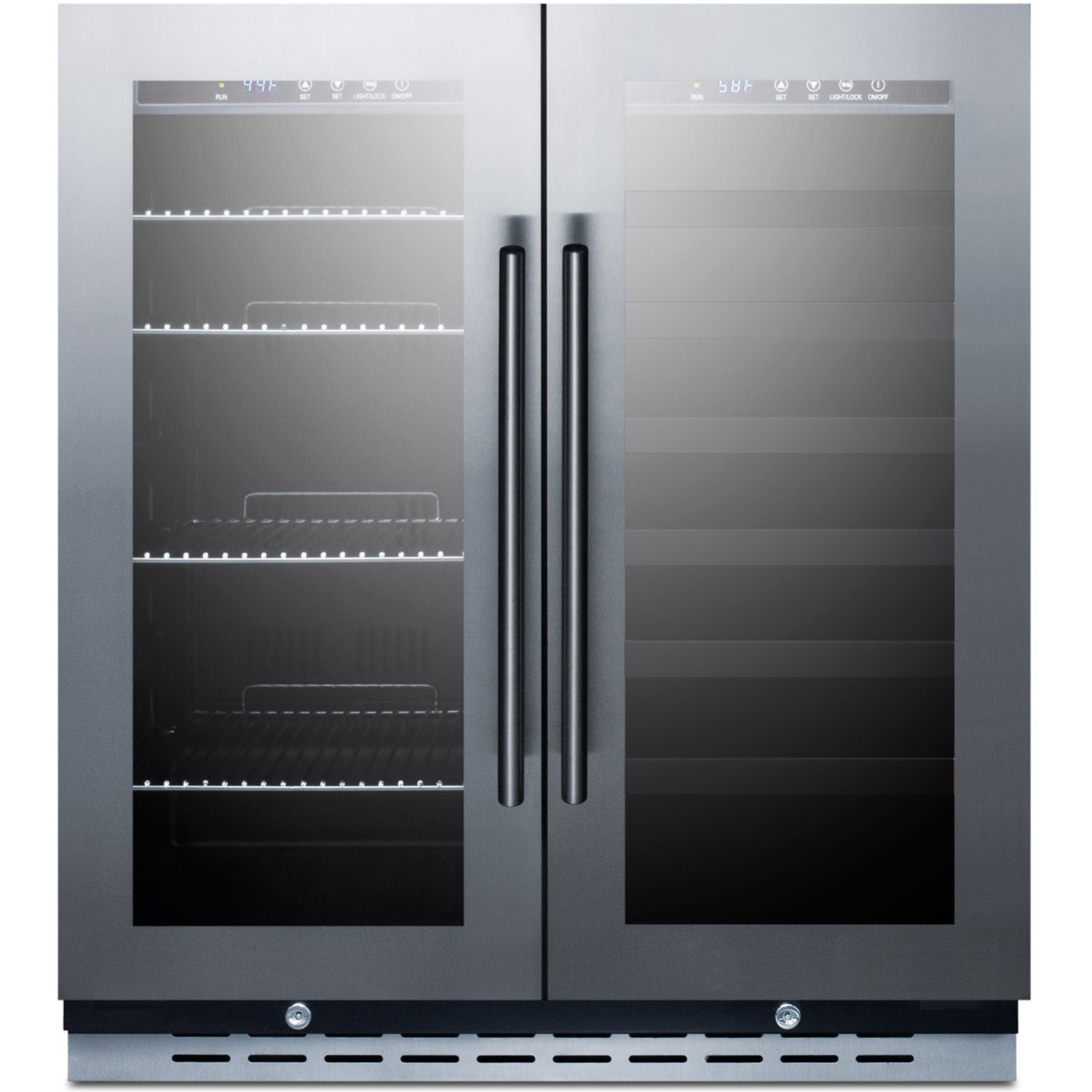

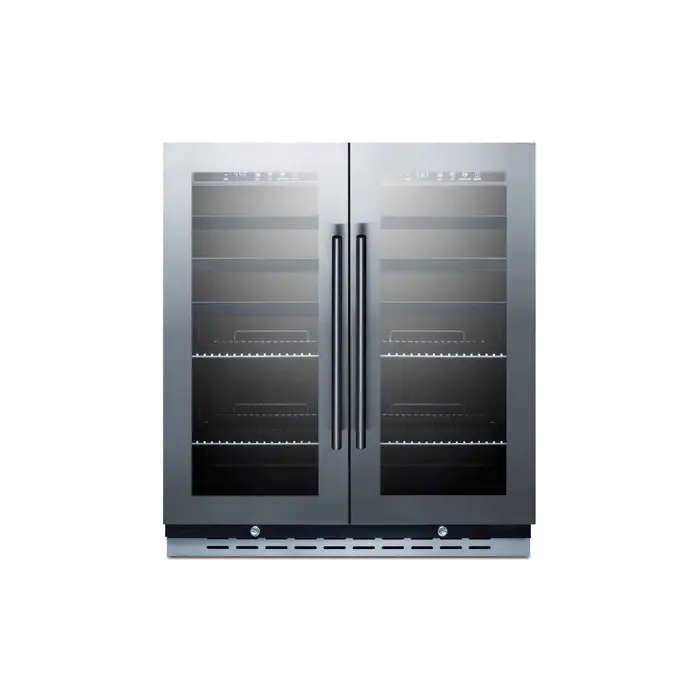

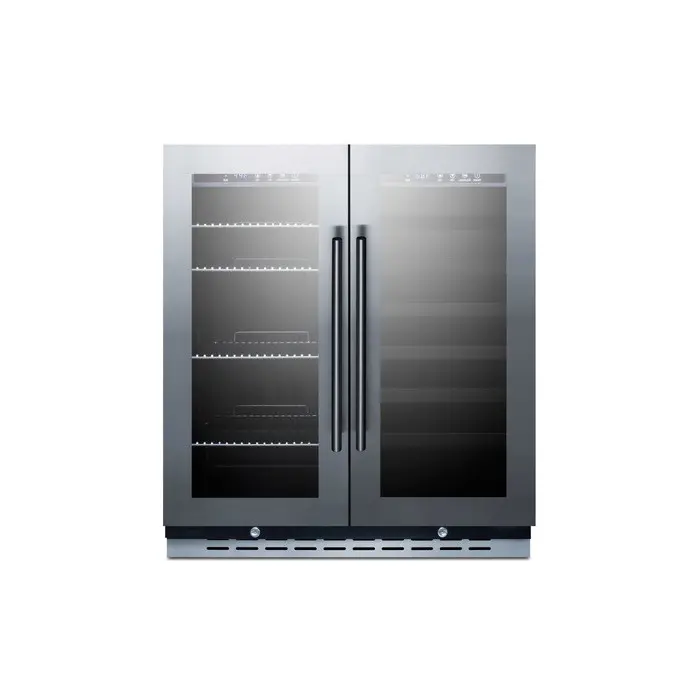

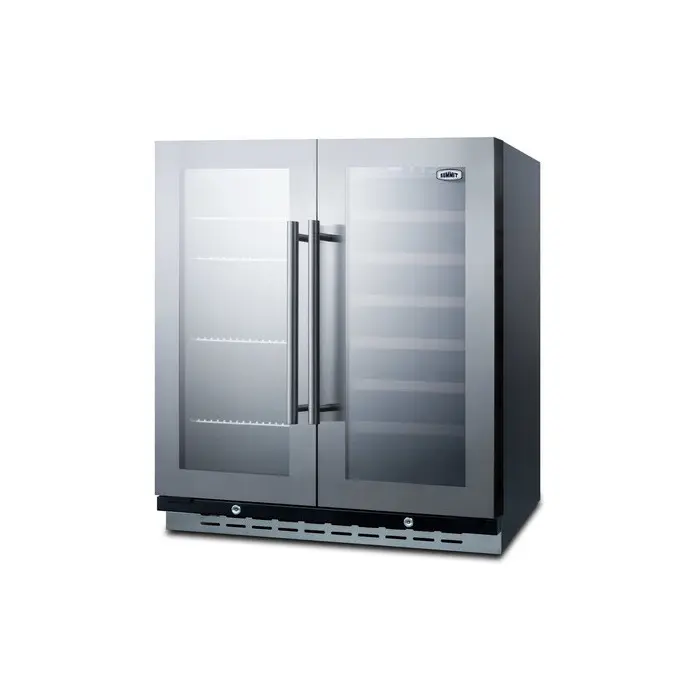

Summit 30 inch wide built-in undercounter dual zone wine and craft beer cooler with locks, digital thermostats, and glass doors in a French door swing, 7.61101e+011, SWBV3067B
$1,618.52
Retail Price: $2,395.00
Shipping: $150
$ 1,618.52
Description
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

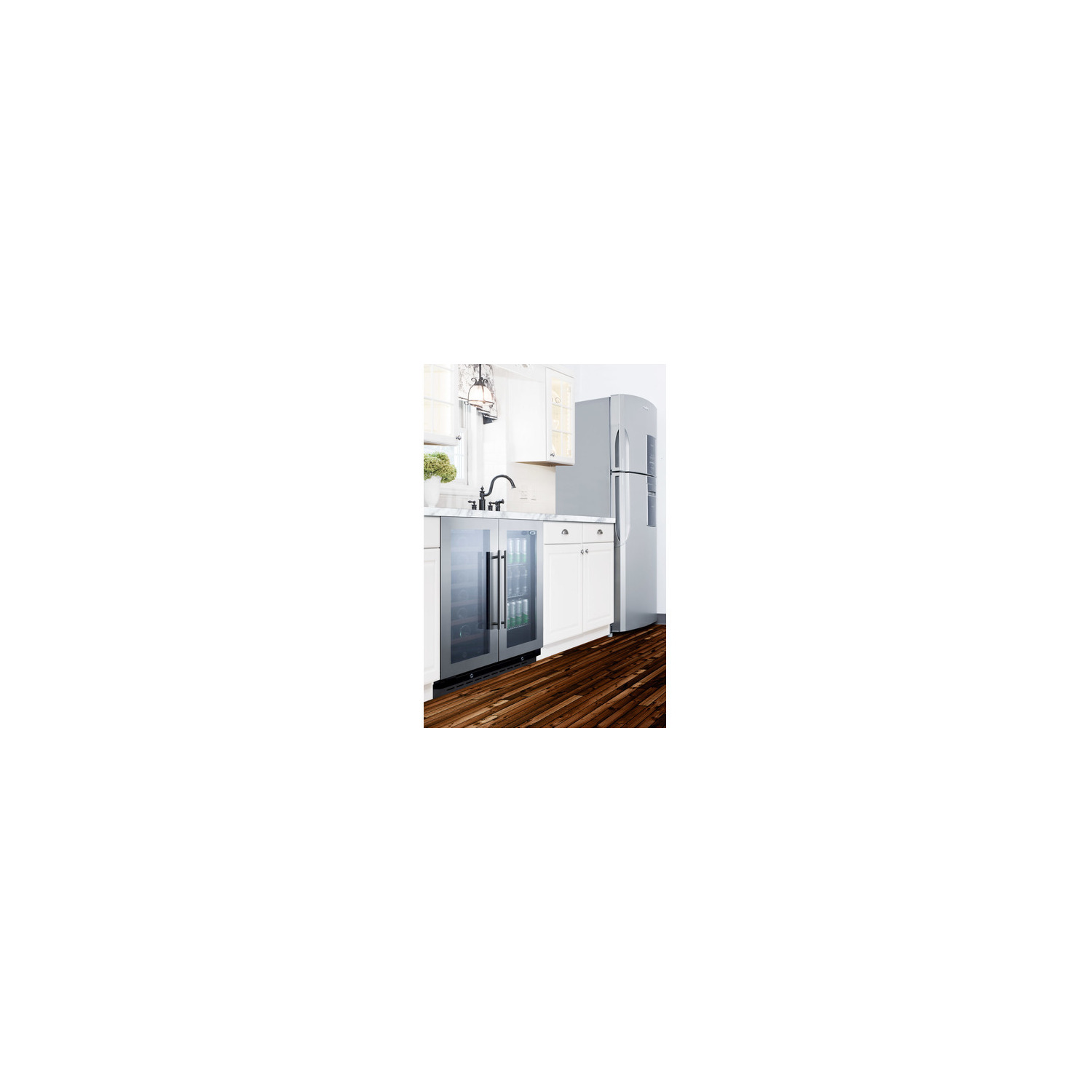

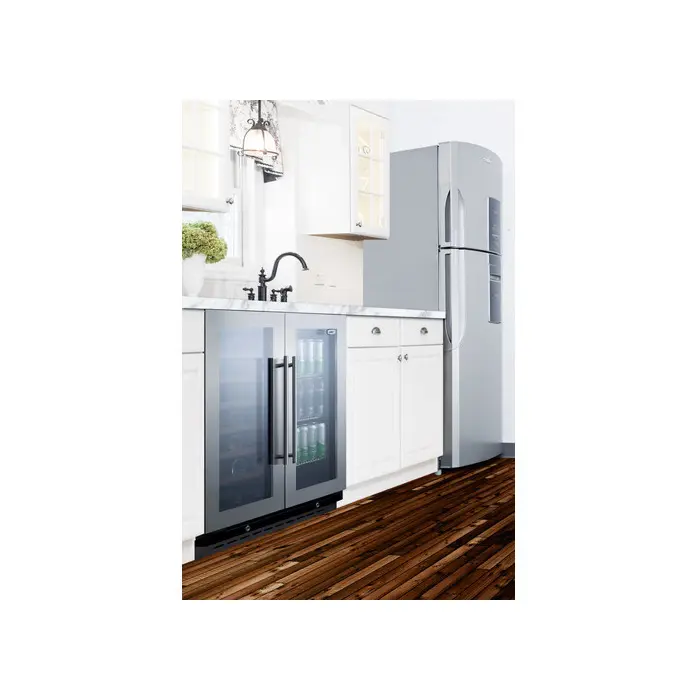

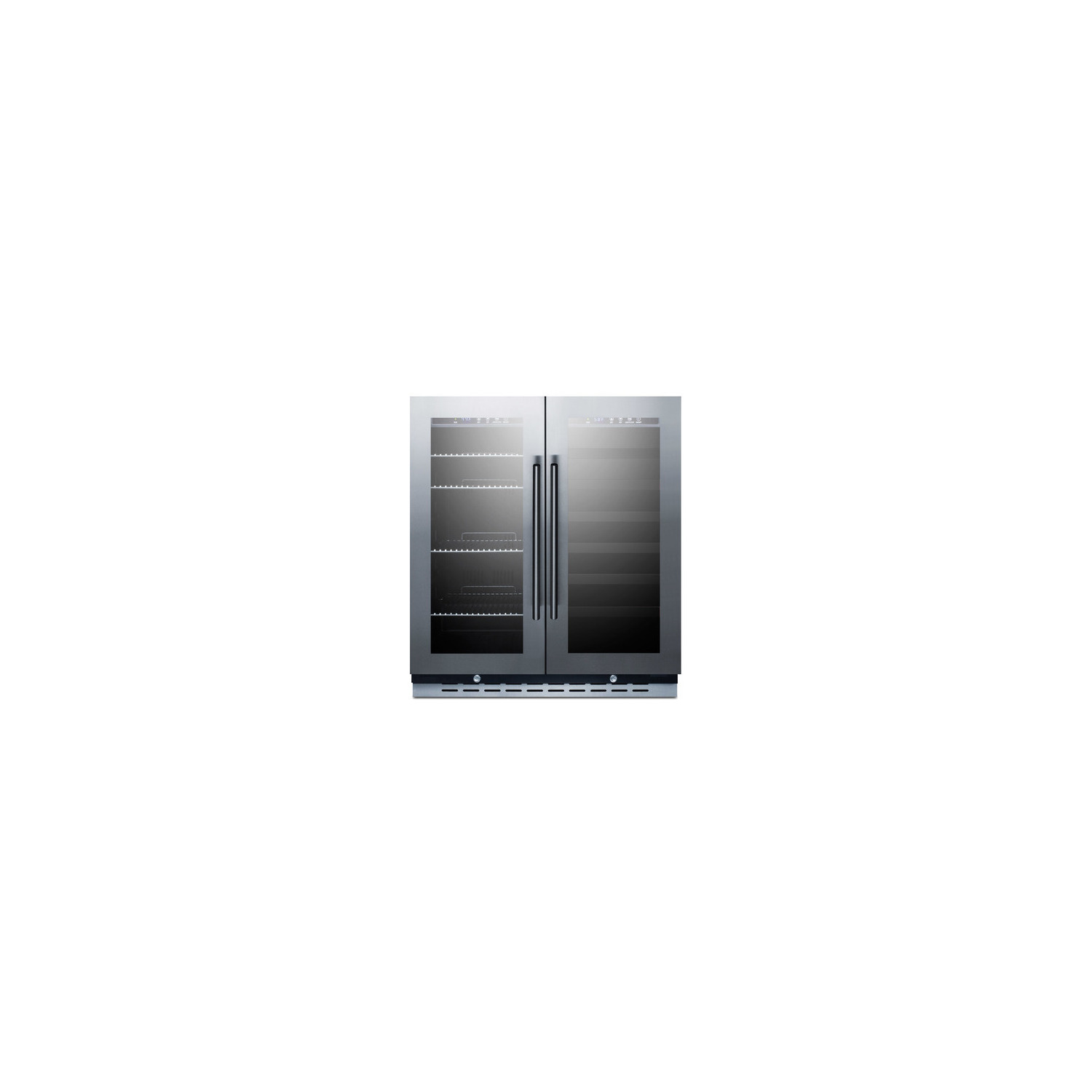

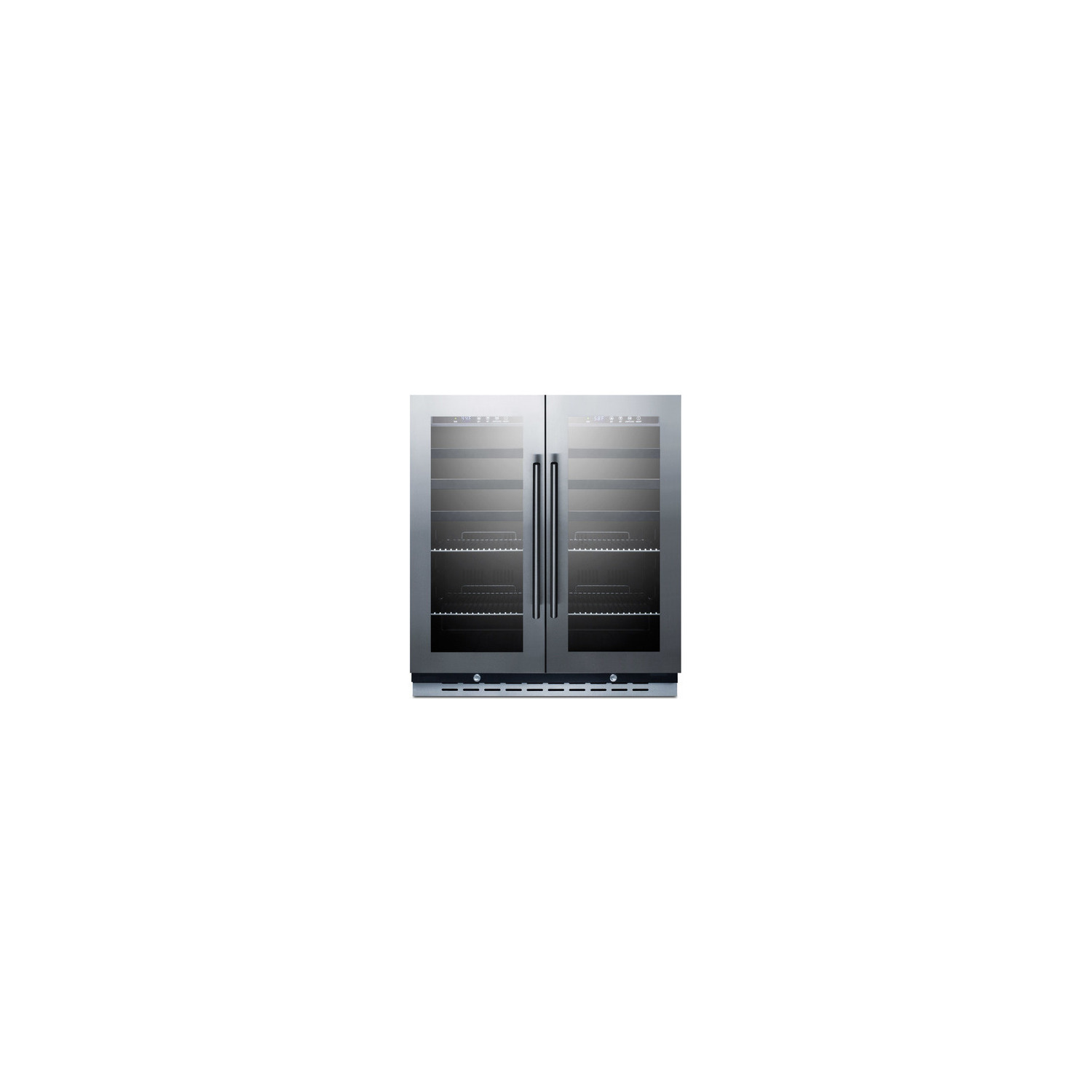

The SWBV3067B is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two glass doors with a unique French door swing and seamless stainless steel trim. Both include factory installed locks and professional handles. A stainless steel kickplate completes the look.

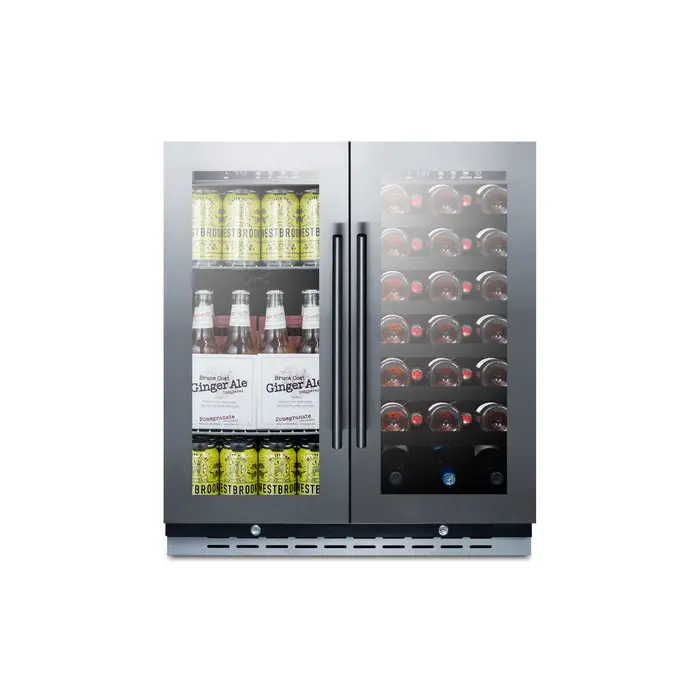

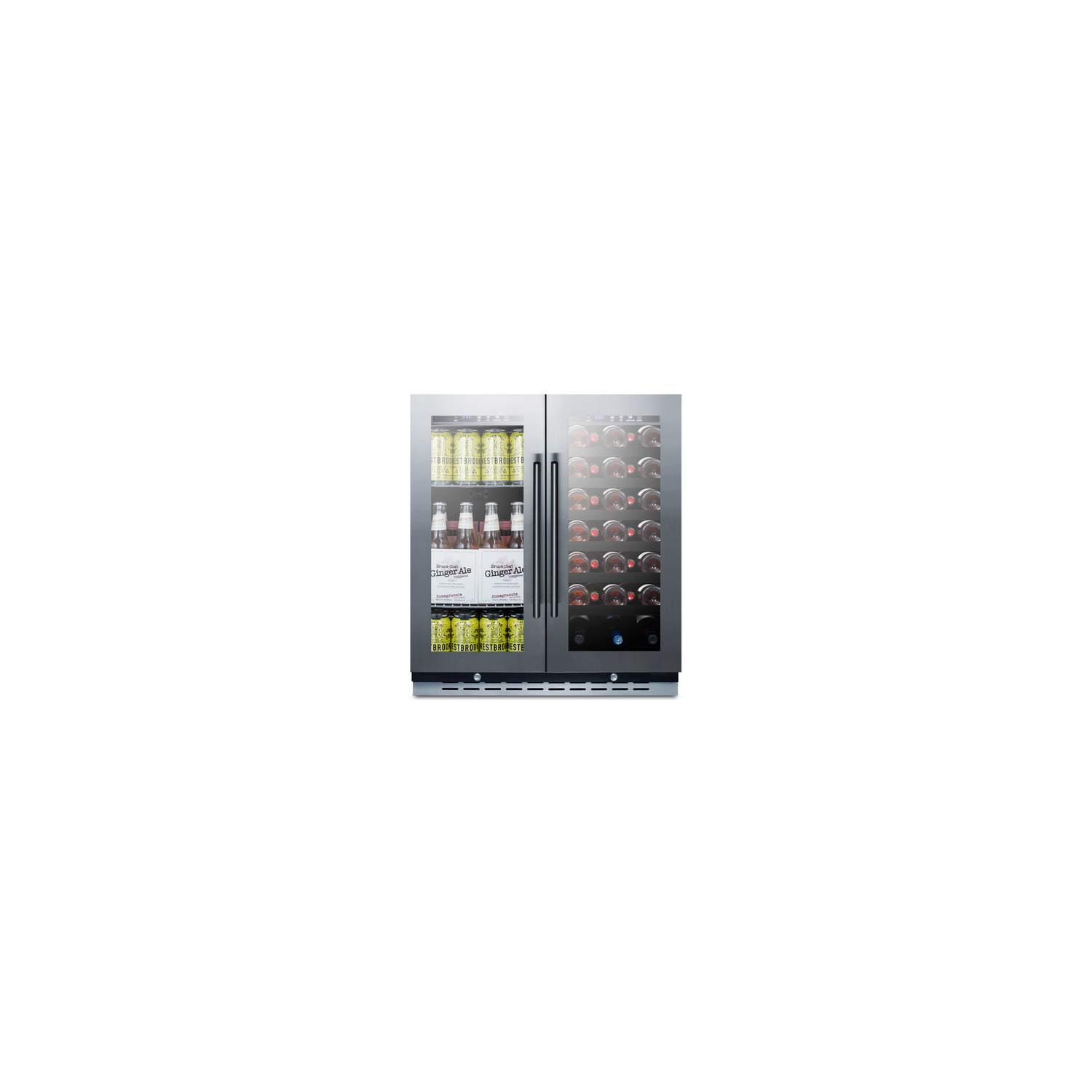

Two separate zones feature independent digital thermostats, letting you preserve red wine under warmer temperature conditions while keeping white wine or craft beer at colder temperatures. We provide six wooden wine shelves in a jet black finish and four wire chrome shelves, letting you arrange the shelving configuration to best suit your storage needs. Recessed LED lighting lets you display all items under an attractive, energy efficient glow.
With a professional look and innovative design, SUMMIT SWBV3067B is a unique and versatile addition to any home. For a similar unit designed solely for wine storage, see the SWC3066.
Nominal Height: 35
Height of Cabinet: 34.38
Height to Hinge Cap: 0
Nominal Width: 30
Width: 29.5
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.5
Depth with Handle: 24.25
Depth with door at 90°: 36
Capacity: 5.8
Bottles: 33Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.38" (87 cm)
Nominal Width 30.0" (76 cm)
Width 29.5" (75 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 5.8 cu.ft. (164 L)
Bottles 33 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 132.0 lbs. (60 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101055794
Wine Cellar
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Wire and Wood
Shelf Qty 10
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 27.38" (70 cm)
Interior Width 1 11.75" (30 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Width 11.75" (30 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41 to 64ºF
Interior Height 2 27.38" (70 cm)
Interior Width 2 11.75" (30 cm)
Interior Depth 2 17.5" (44 cm)
Sound Level 34.6 dB
FEATURES
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Built-in capable Make the best use of space by installing this unit under the counter and flush with other cabinetry
Fully finished cabinet Allows the unit to be used freestanding
Dual zone design Two independent zones allow you to store both red and white wine or craft beer at the proper conditions
Recessed LED lighting Gentle and energy efficient LED lighting offers an elegant view of stored items
Digital thermostats Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Adjustable wooden and chrome shelves Includes 6 wooden shelves for bottle storage and 4 flat wire shelves to hold craft beer cans or bottles
Professional handles Sleek stainless steel handles add an elegant touch to any setting

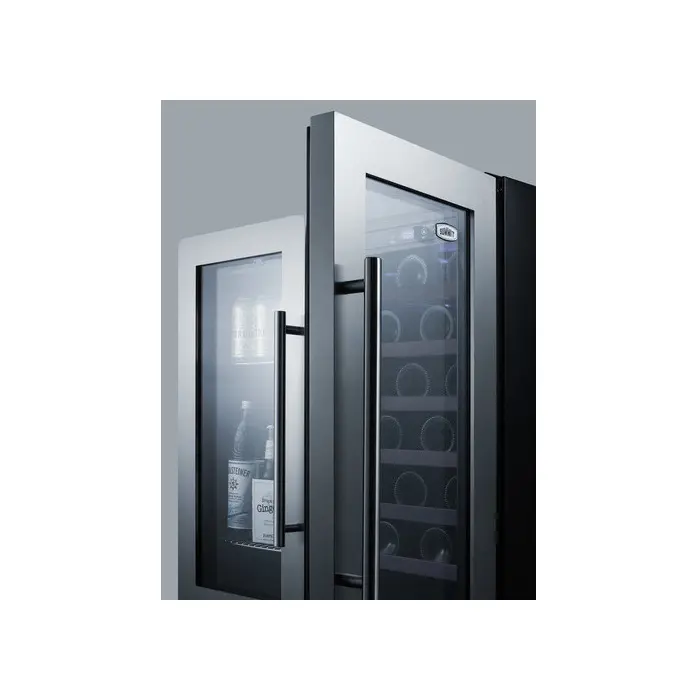

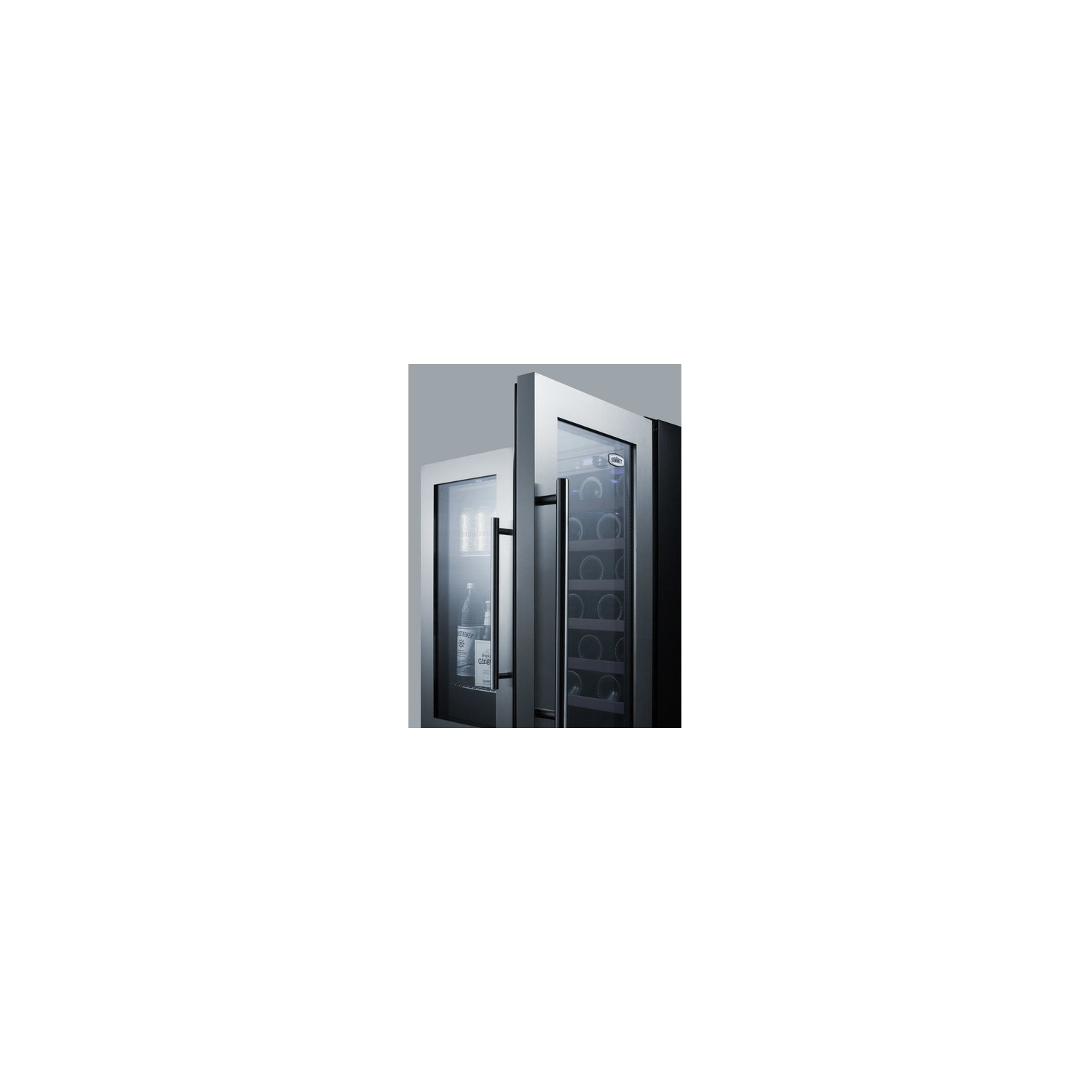

Glass doors French door swing offers a modern look, with stainless steel door trim for an added accent
Seamless stainless steel trimmed door frame Single-piece door trim offers a more deluxe look
Factory installed locks Keyed locks on both zones offer separate security for interior contents
Automatic defrost Reduced user maintenance with automatic defrost
Fan-forced cooling Internal fans ensure both interiors have a consistent temperature from top to bottom
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (SWBV3067B.pdf)
TECHNICAL DRAWING (.dwg) (SWBV3067WINEBEVERAGEA-C2000.dwg)
