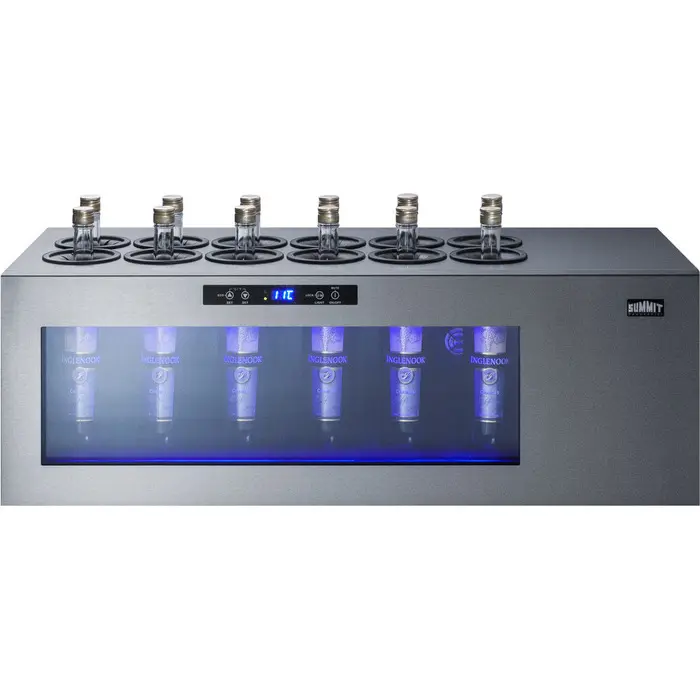

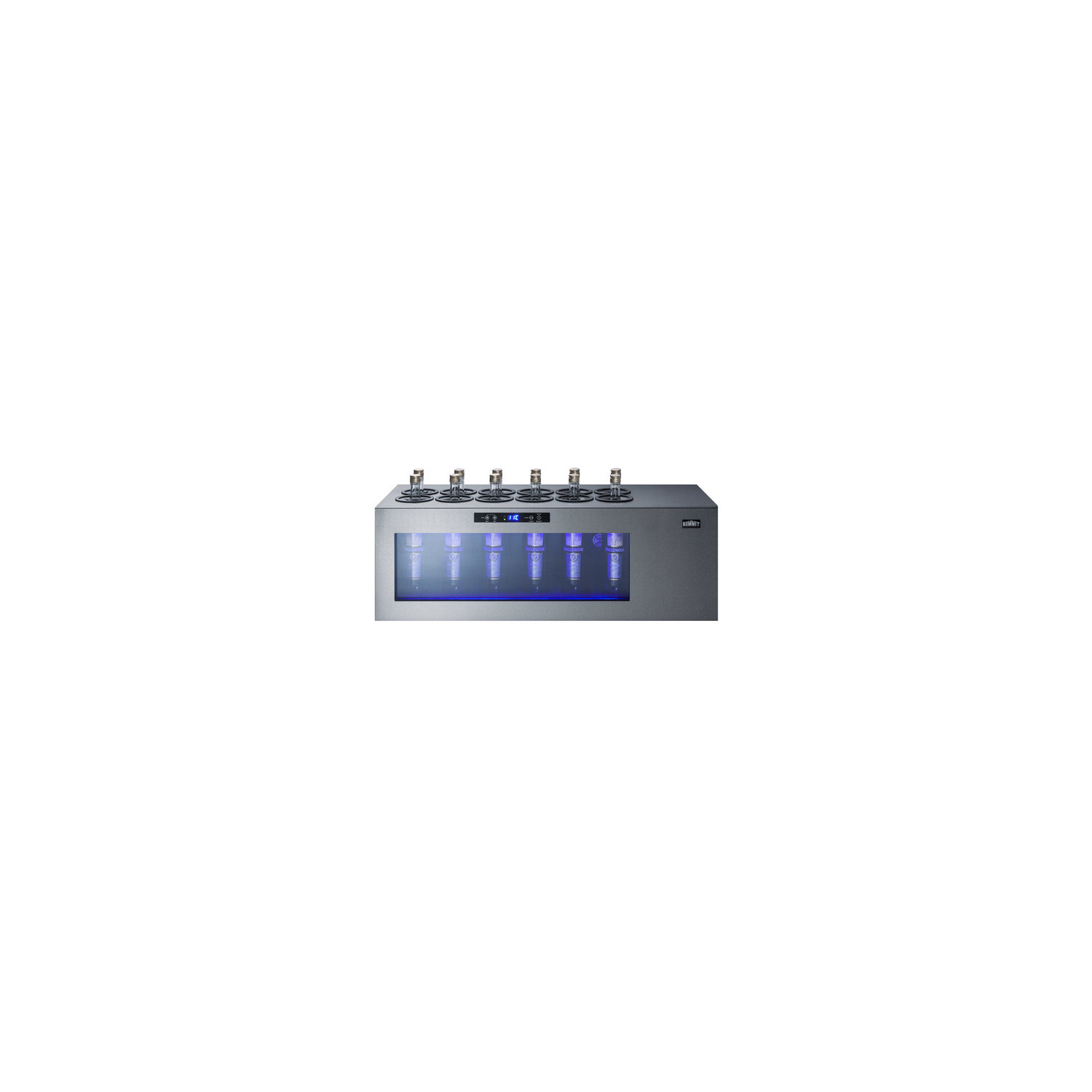

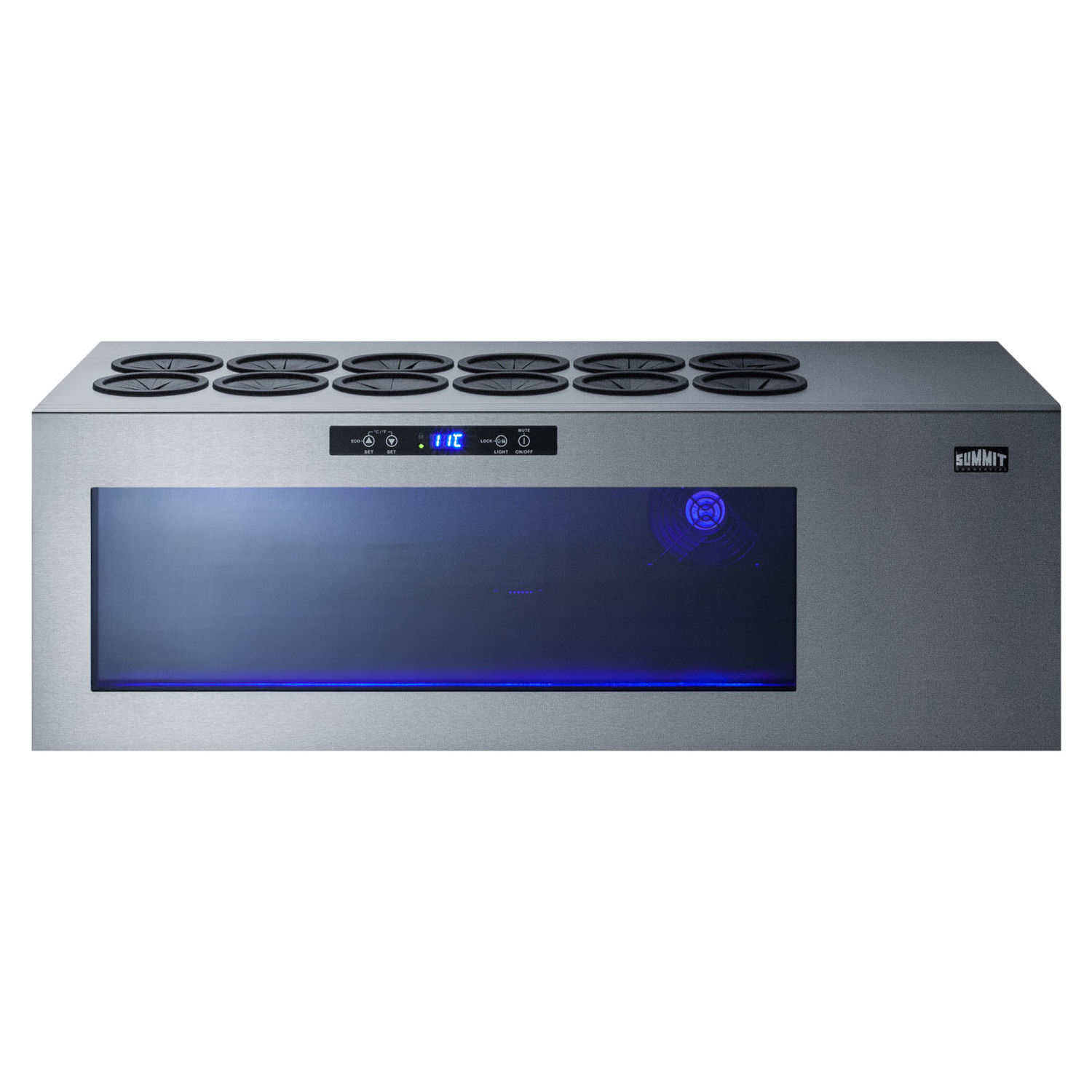

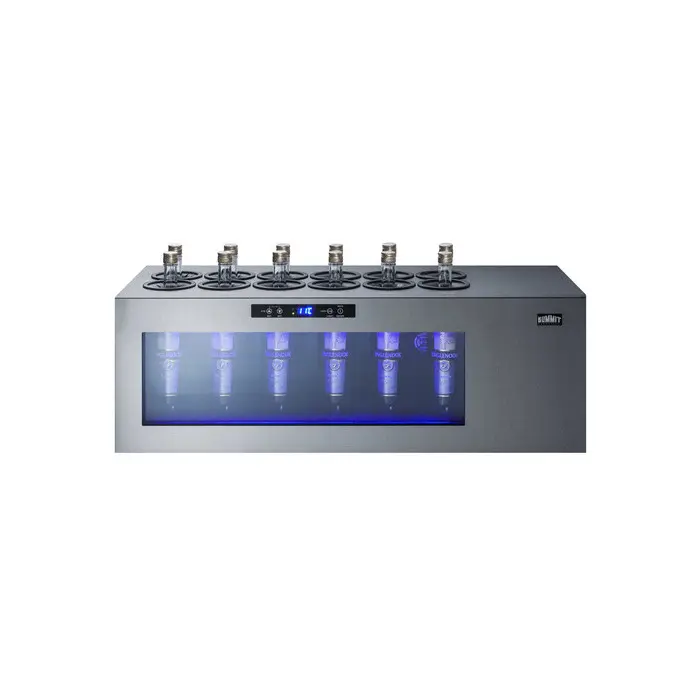

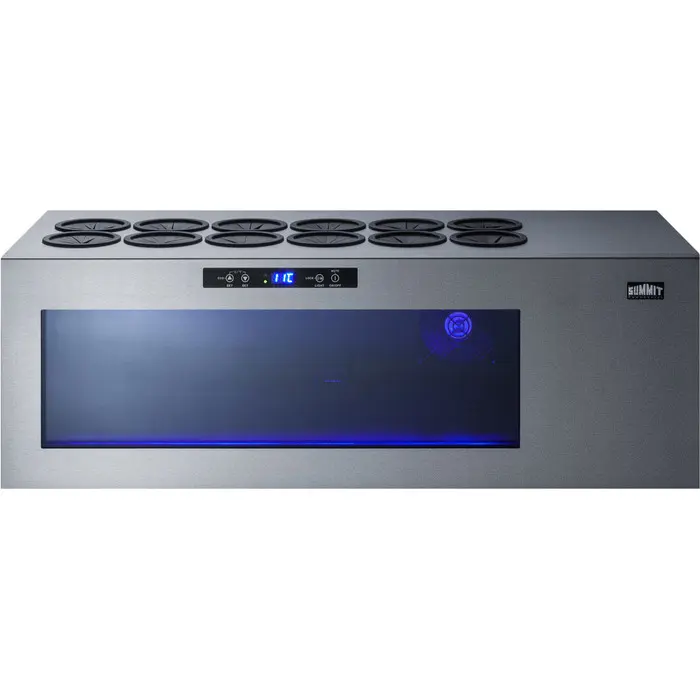

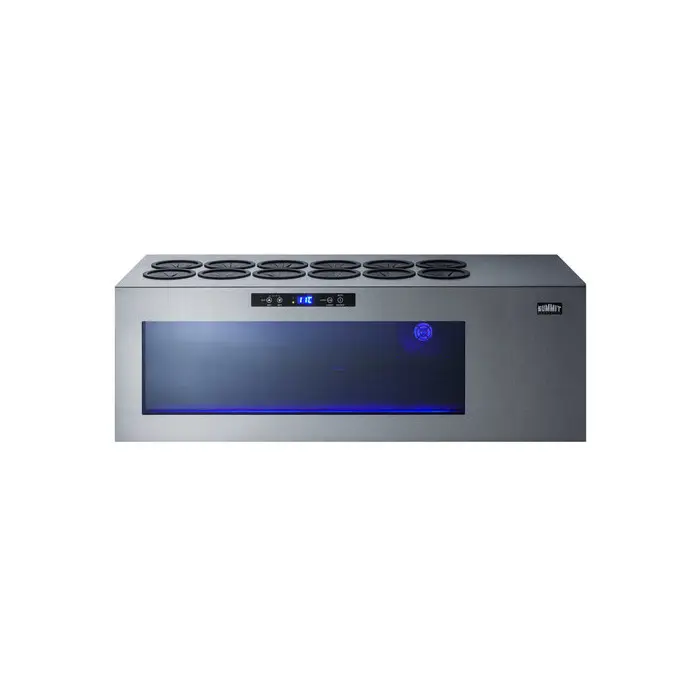

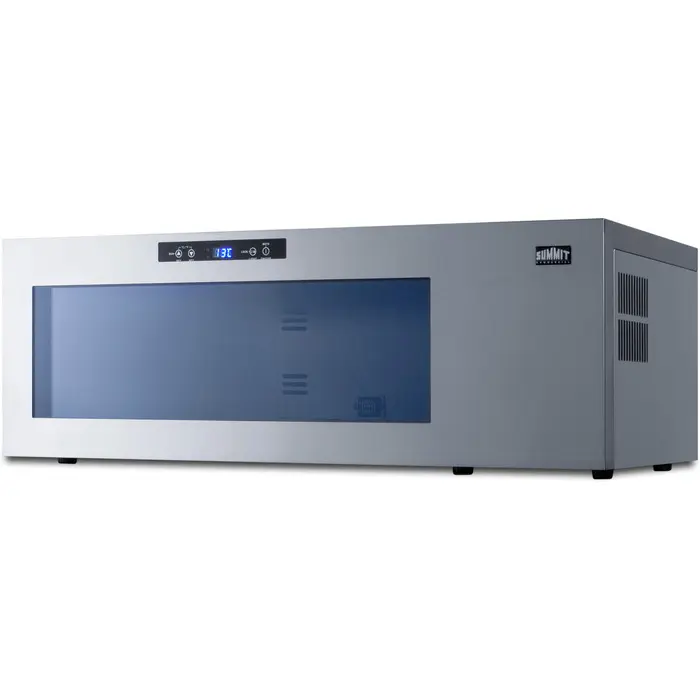

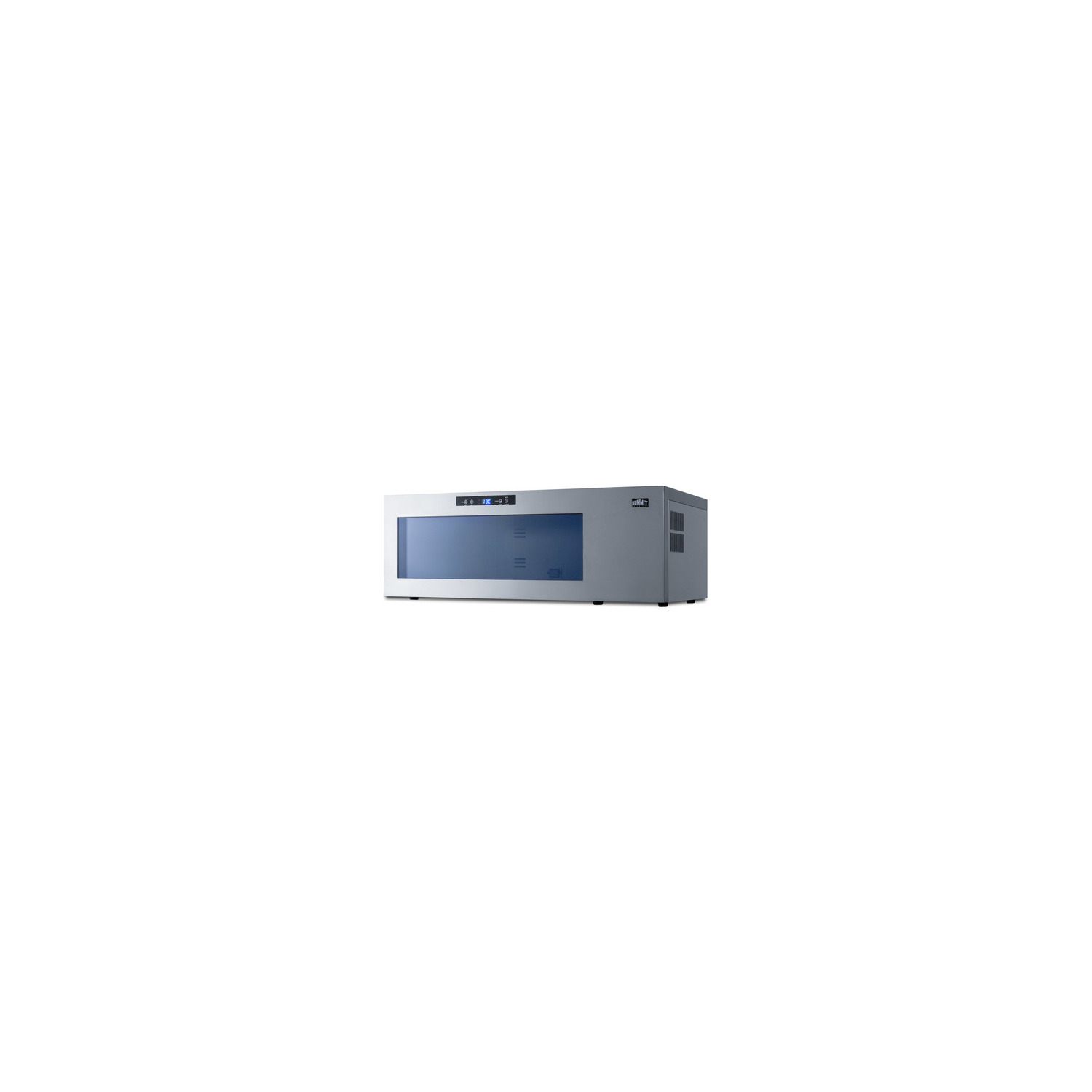

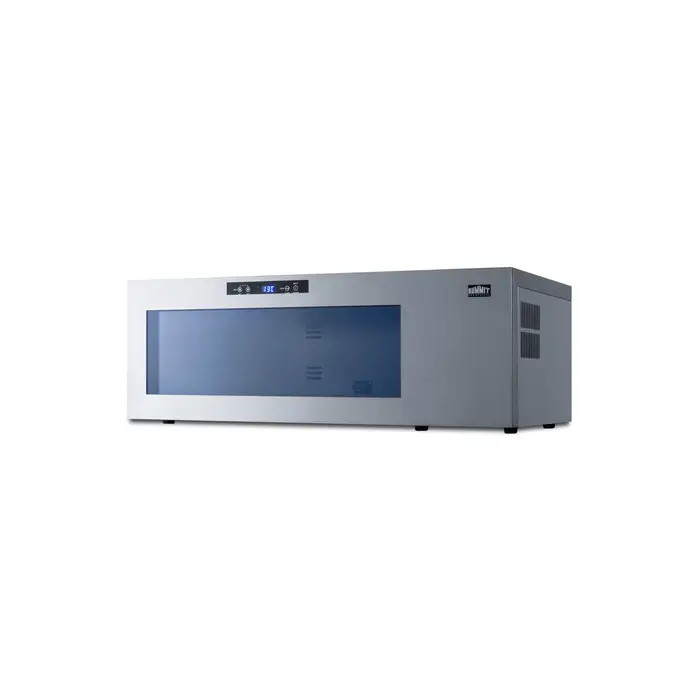

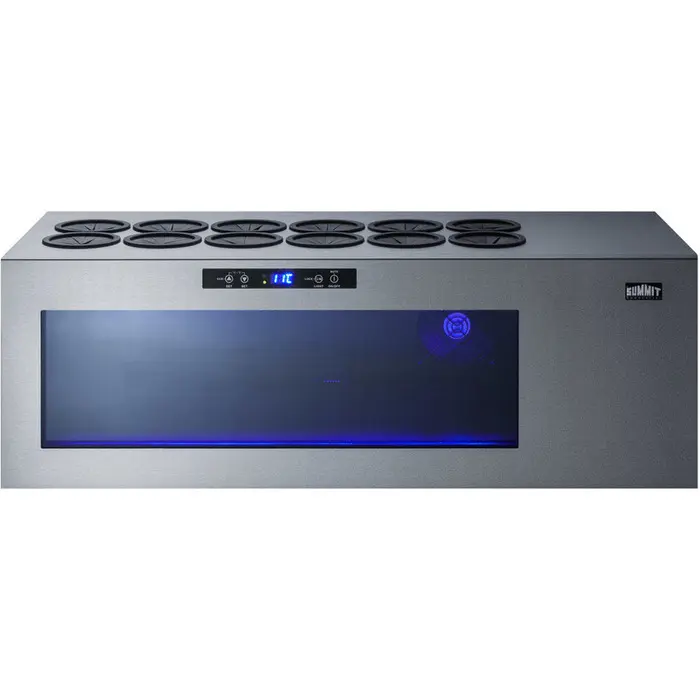

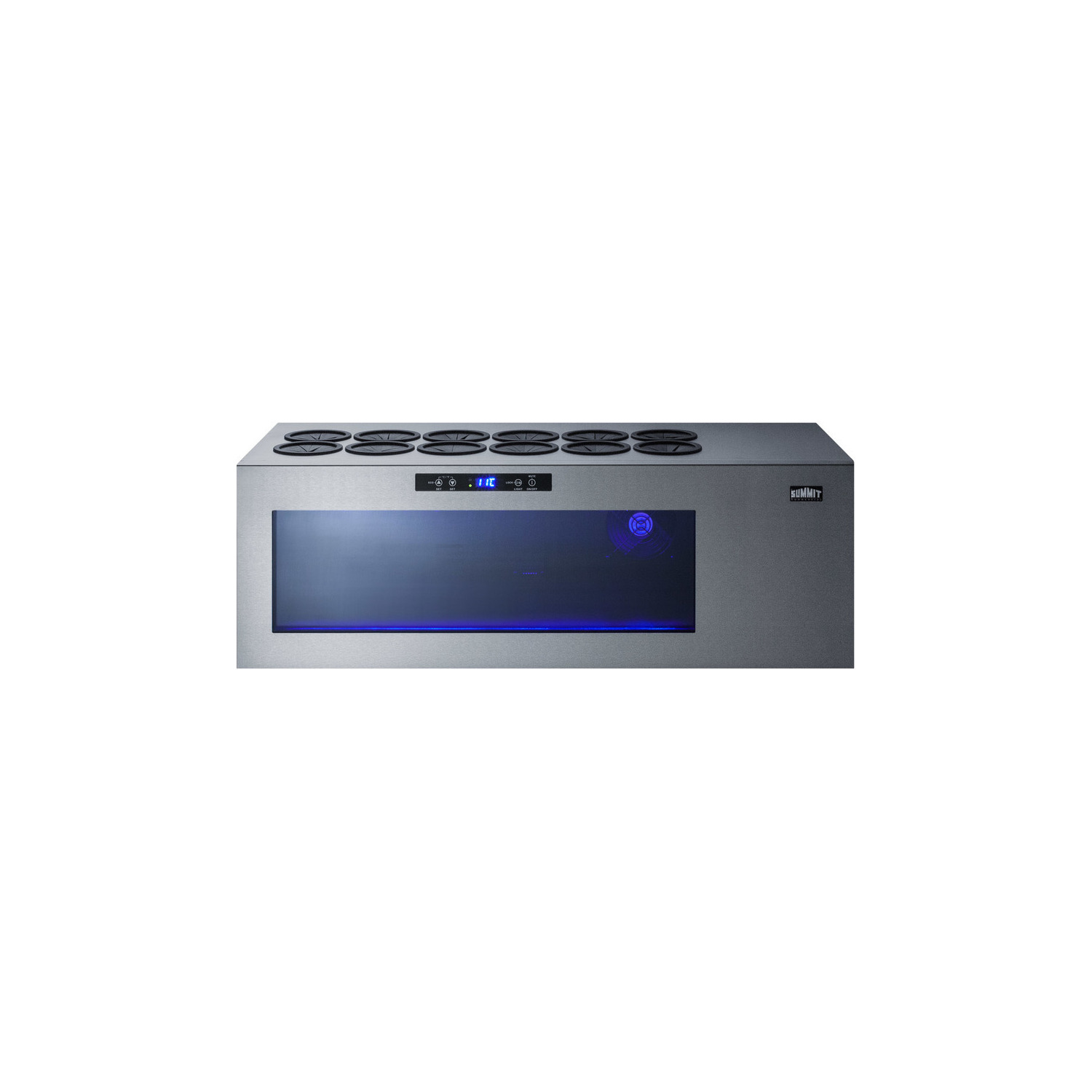

Summit 12-bottle countertop commercial wine cooler in stainless steel with compressor, STC12

Summit Commercial brings unique solutions to wine storage with the STC series of open bottle wine coolers.

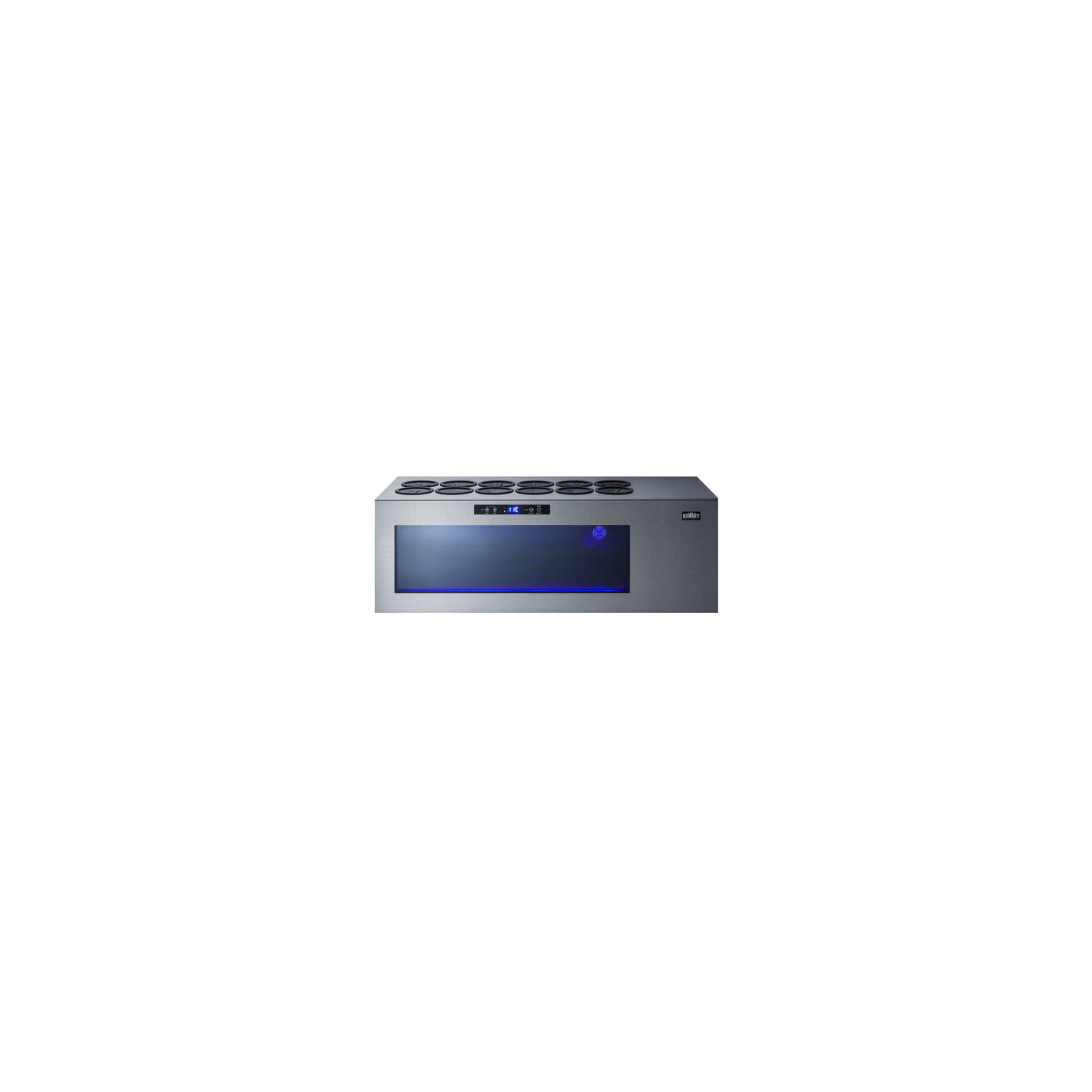

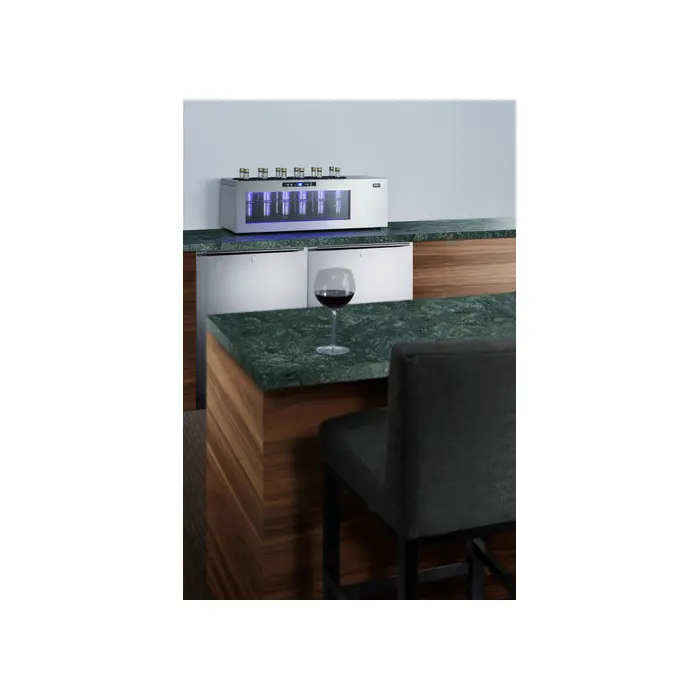

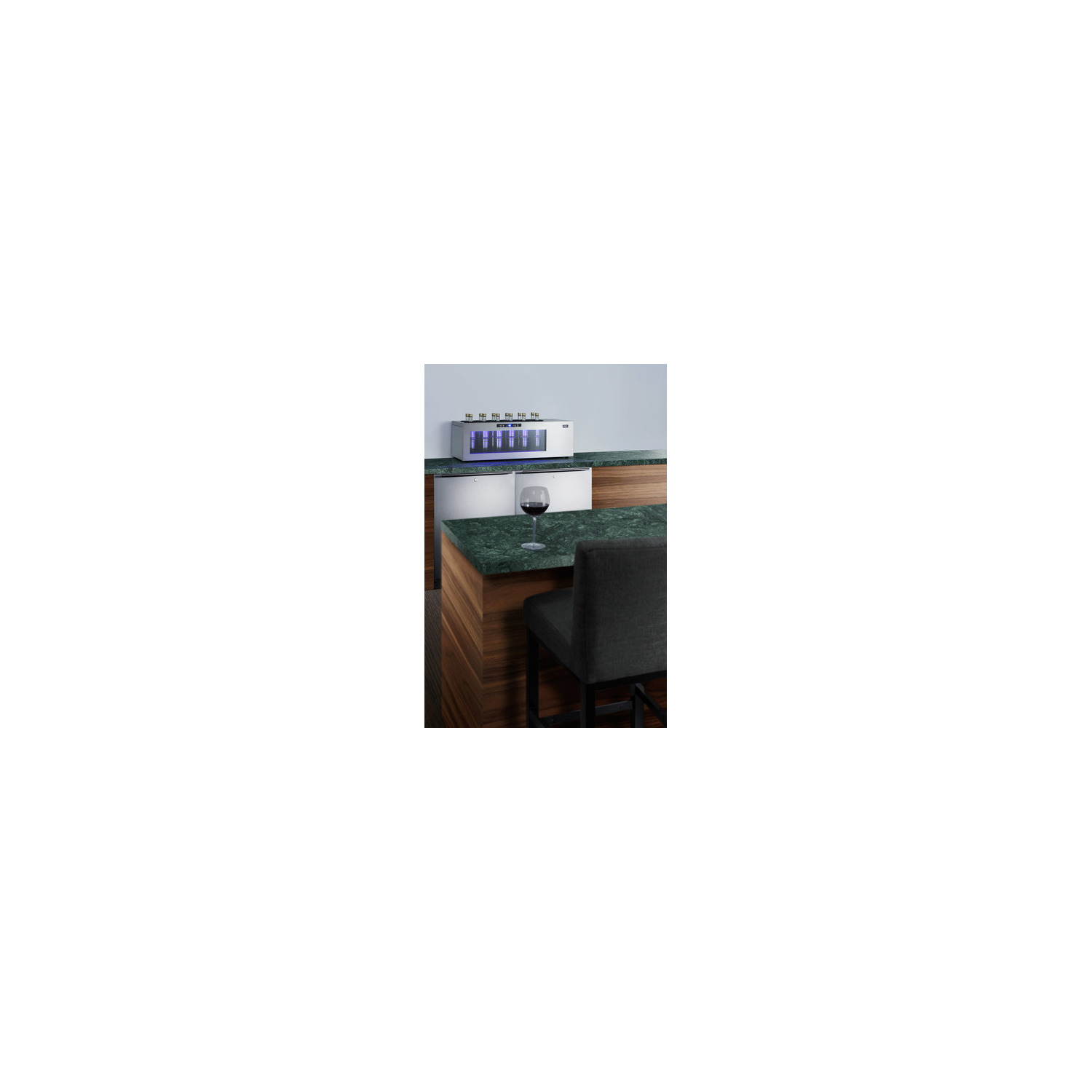

The STC12 is a countertop wine chiller that is ETL-S listed to NSF-7 commercial standards. The compressor-based cooling system ensures fast temperature pull-down ideal for use in bars, tasting rooms, and restaurants. Twelve slots let you store standard Bordeaux style bottles in an upright position, with a tinted glass window that offers an attractive, illuminated display of the front bottles' labels. The soft blue LED lighting can be adjusted from three levels of brightness to best suit your setting.

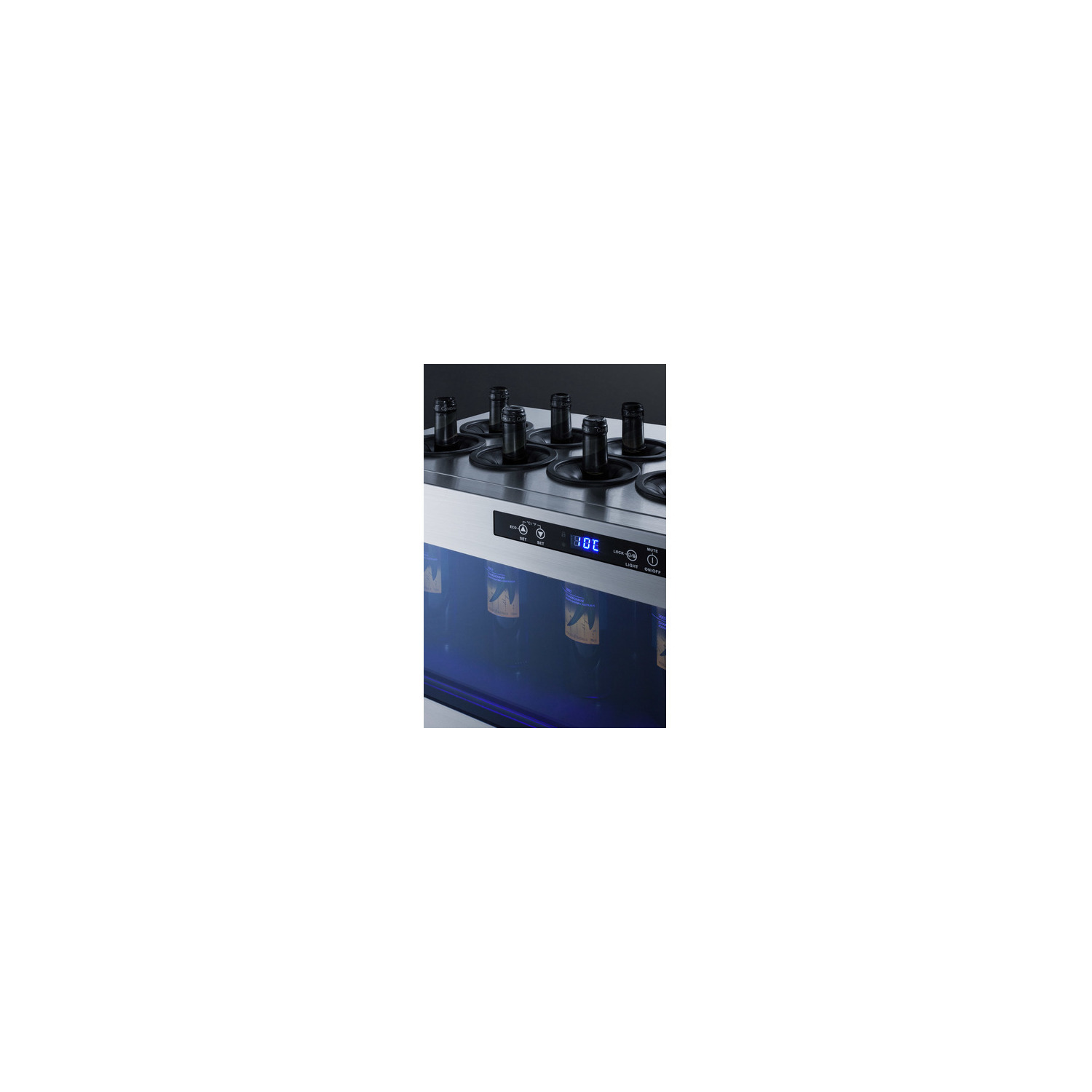

This unit is equipped with digital controls for easy temperature management. Temperature can be set between 41 and 68ºF to accommodate red or white wine. The display can be switched from Fahrenheit to Celsius at the touch of a button. An internal fan helps to evenly chill the stored bottles and an audible temperature alarm sounds if the cooler goes out of suggested range.

The STC12 features a stainless steel wrapped exterior cabinet for a professional look and lasting durability in busy commercial settings. For this unit with larger bottle slots to hold champagne or Burgundy style bottles, see the STC6.

Nominal Height: 13
Height of Cabinet: 12.5
Height to Hinge Cap: 0
Nominal Width: 36
Width: 35.75
Width with Door Open: 0
Nominal Depth: 16
Depth: 15.38
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 12Defrost Type: AutomaticDoor: Stainless SteelCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 13.0" (33 cm)

Height of Cabinet 12.5" (32 cm)

Nominal Width 36.0" (91 cm)

Width 35.75" (91 cm)

Nominal Depth 16.0" (41 cm)

Depth 15.38" (39 cm)

Bottles 12 bottles

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 73.0 lbs. (33 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101061436

Wine Cellar

Number of Zones 1

Thermostat Type Digital

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Temperature Range 41 to 68ºF

FEATURES

Commercially approved ETL-S listed to NSF-7 commercial standards for use in foodservice settings

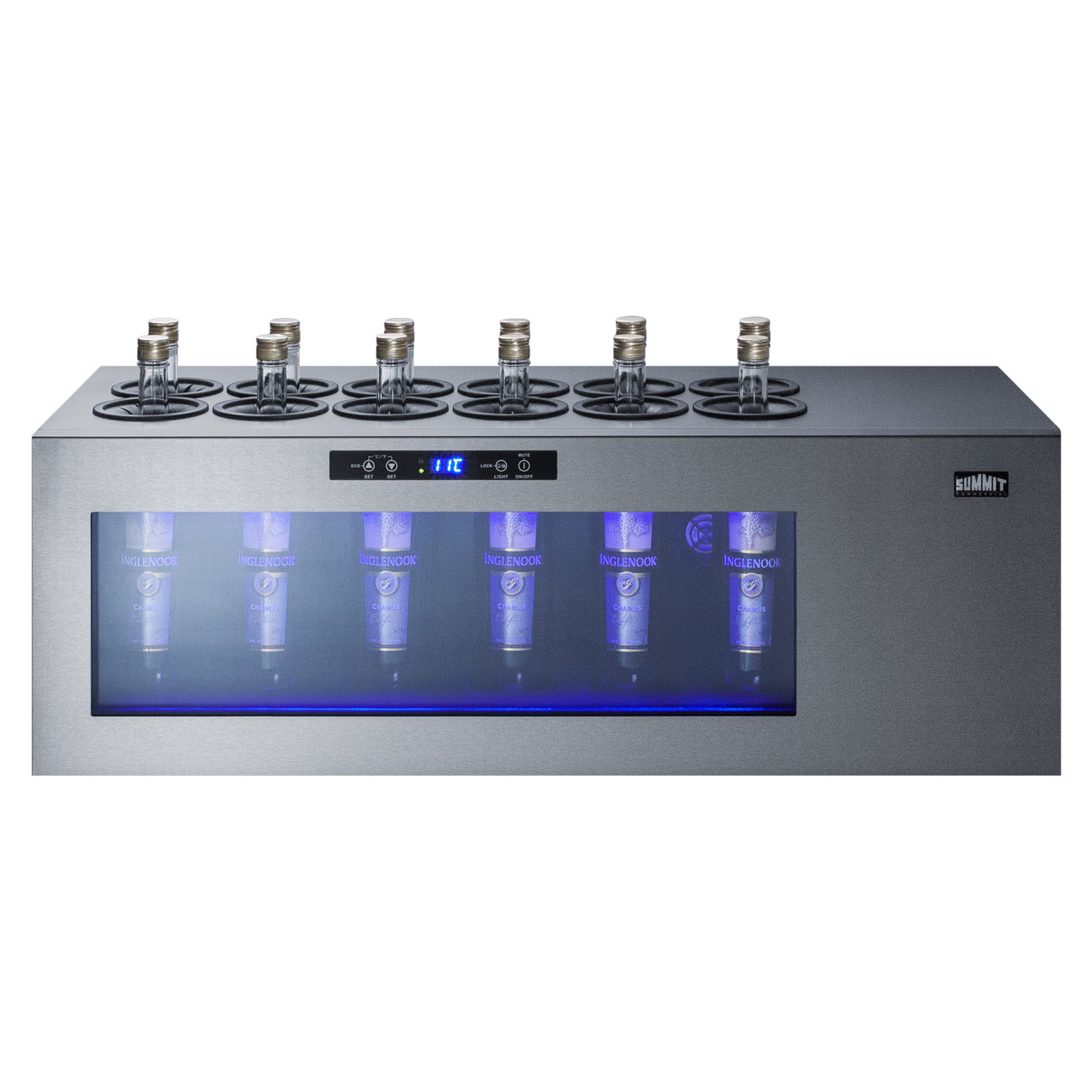

Upright bottle storage Interior can hold up to 12 Bordeaux style bottles in an upright position

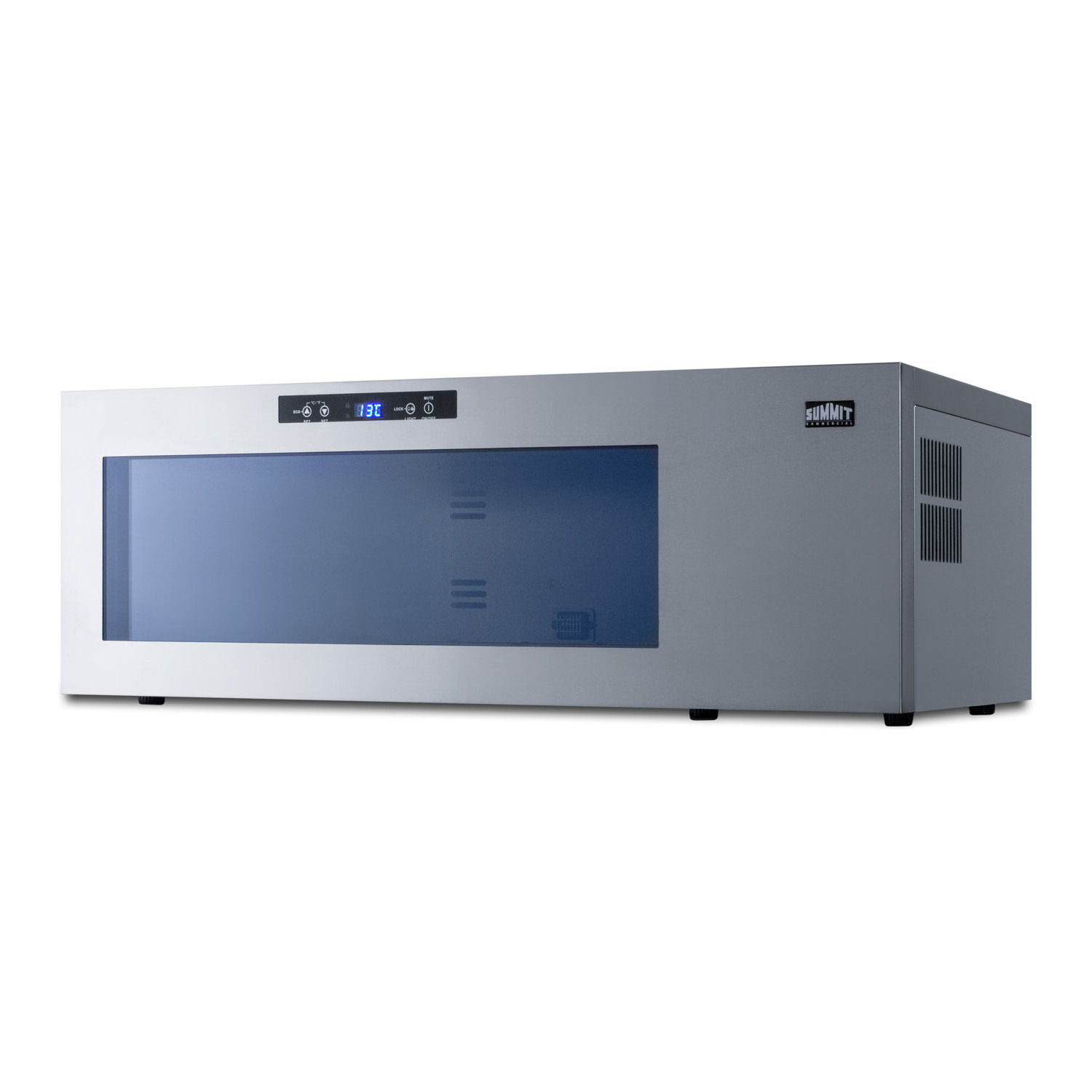

Stainless steel exterior Cabinet is wrapped in brushed stainless steel for a professional look with heavy duty durability

Compressor-based cooling design Quality commercial design ensures rapid temperature pull-down and more stabilized performance to keep bottles properly chilled

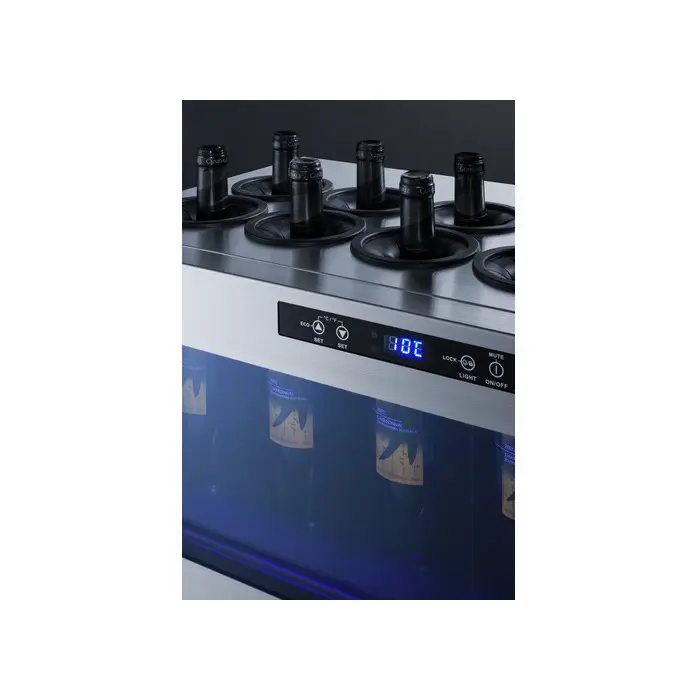

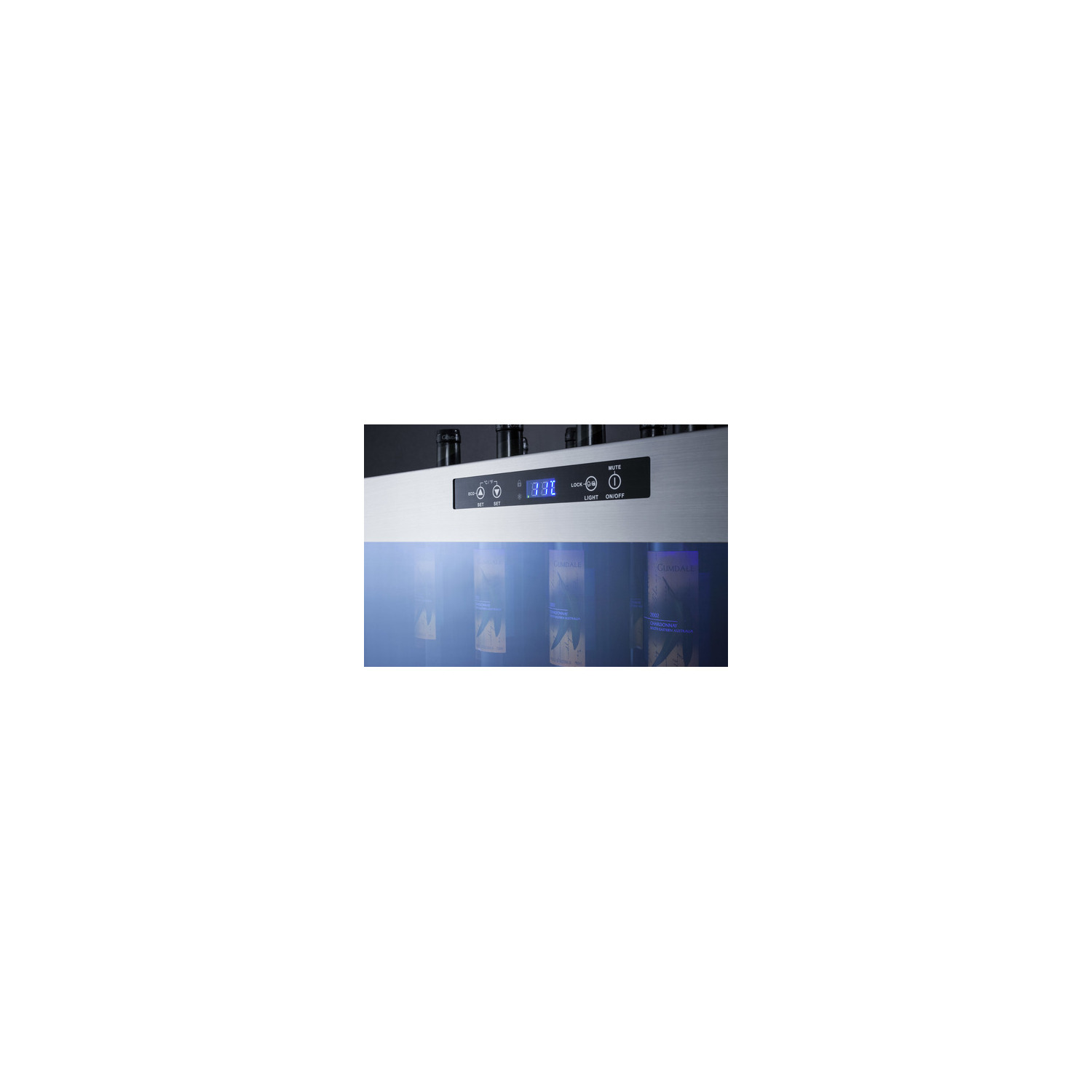

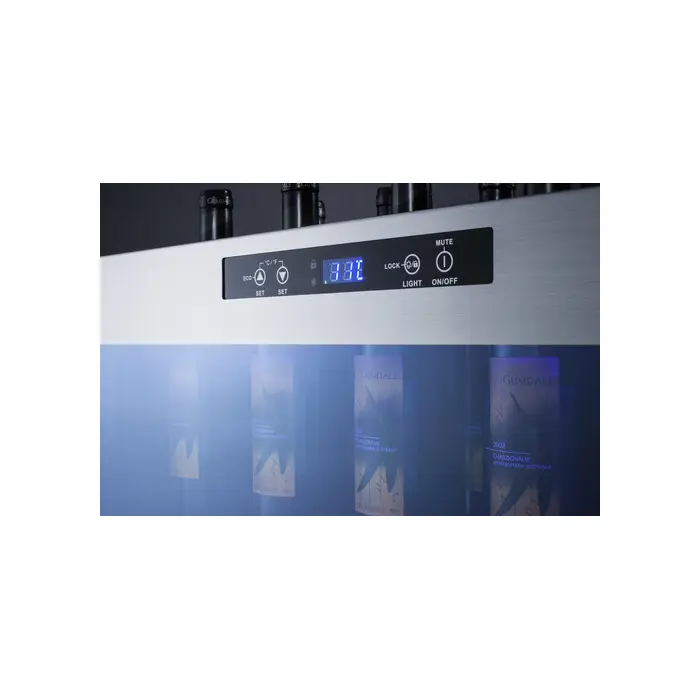

Digital thermostat Electronic controls for precise temperature management, with a readout switchable from Fahrenheit to Celsius for added flexibility

Wide temperature range Thermostat can be set between 41º and 68ºF for proper storage of white, blush, or red wine

Display window Illuminated window lets you display bottle labels

Adjustable LED lighting Three light settings and off mode let you access the perfect display conditions for every venue

Internal fan Fan-forced cooling helps to better circulate the temperature to keep each bottle stored under the right conditions

Temperature alarm Audible and visual alarms warn if the temperature rises or falls out of suggested range

Temperature memory function In the event of power loss, the unit will recover its last setting once power is restored

Control panel lock Allows you to freeze the control panel to avoid accidental temperature adjustments

Automatic defrost Easy user maintenance with an auto defrosting system, with control panel setting included for defrosting if the cooler is used in areas of high heat or humidity

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (STC12.pdf)

TECHNICAL DRAWING (.dwg) (STC12_WINE_COOLER__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_STC12_12_Bottle_Wine_Cooler.rfa)

USE & CARE (STC12-User-Manual.pdf)
