Summit Outdoor all-refrigerator for built-in use, with lock, digital thermostat, and stainless steel wrapped exterior, 7.61101e+011, SPR627OSCSS

SUMMIT's SPR627OS Series features built-in all-refrigerators equipped with user-friendly features for convenient use in any outdoor kitchen.

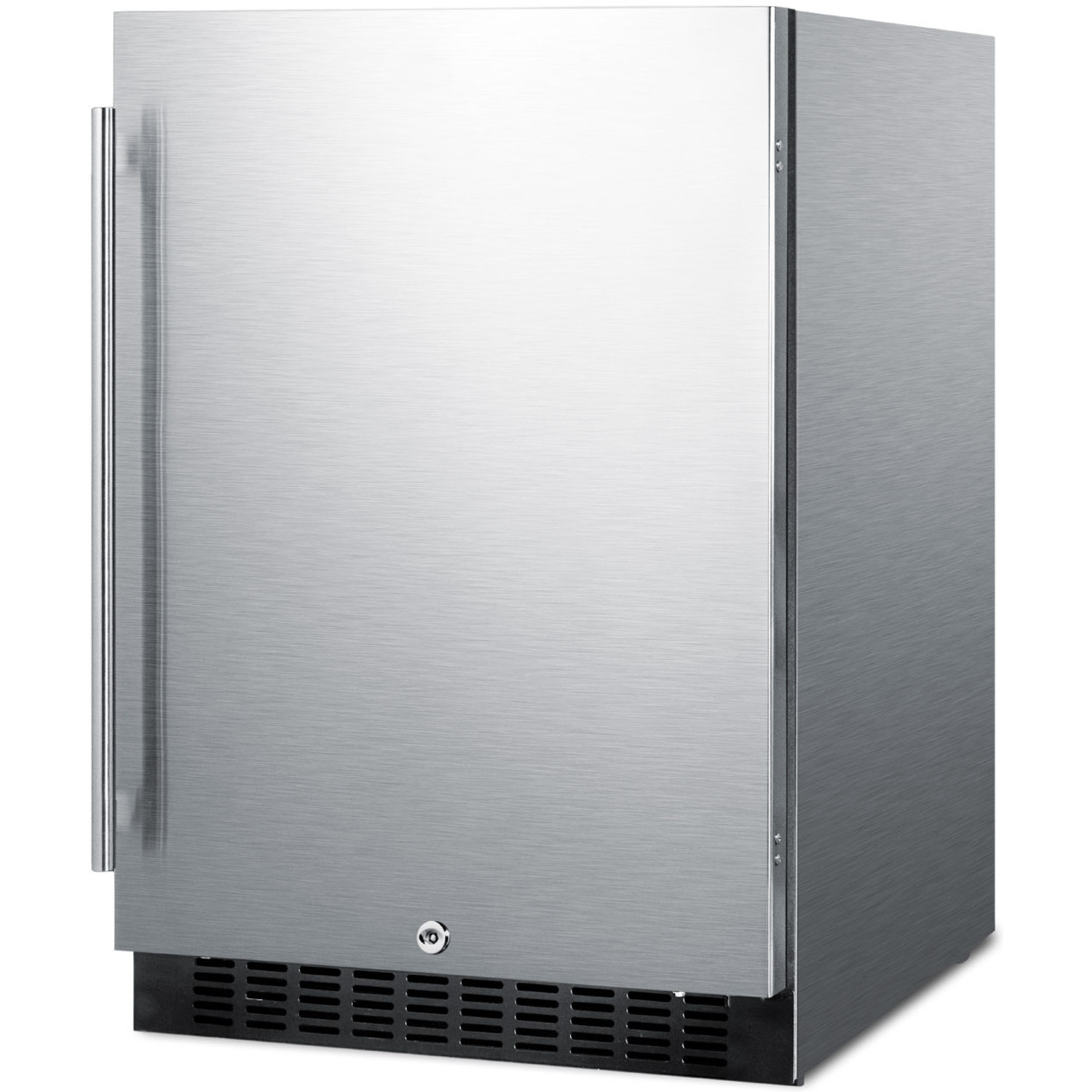

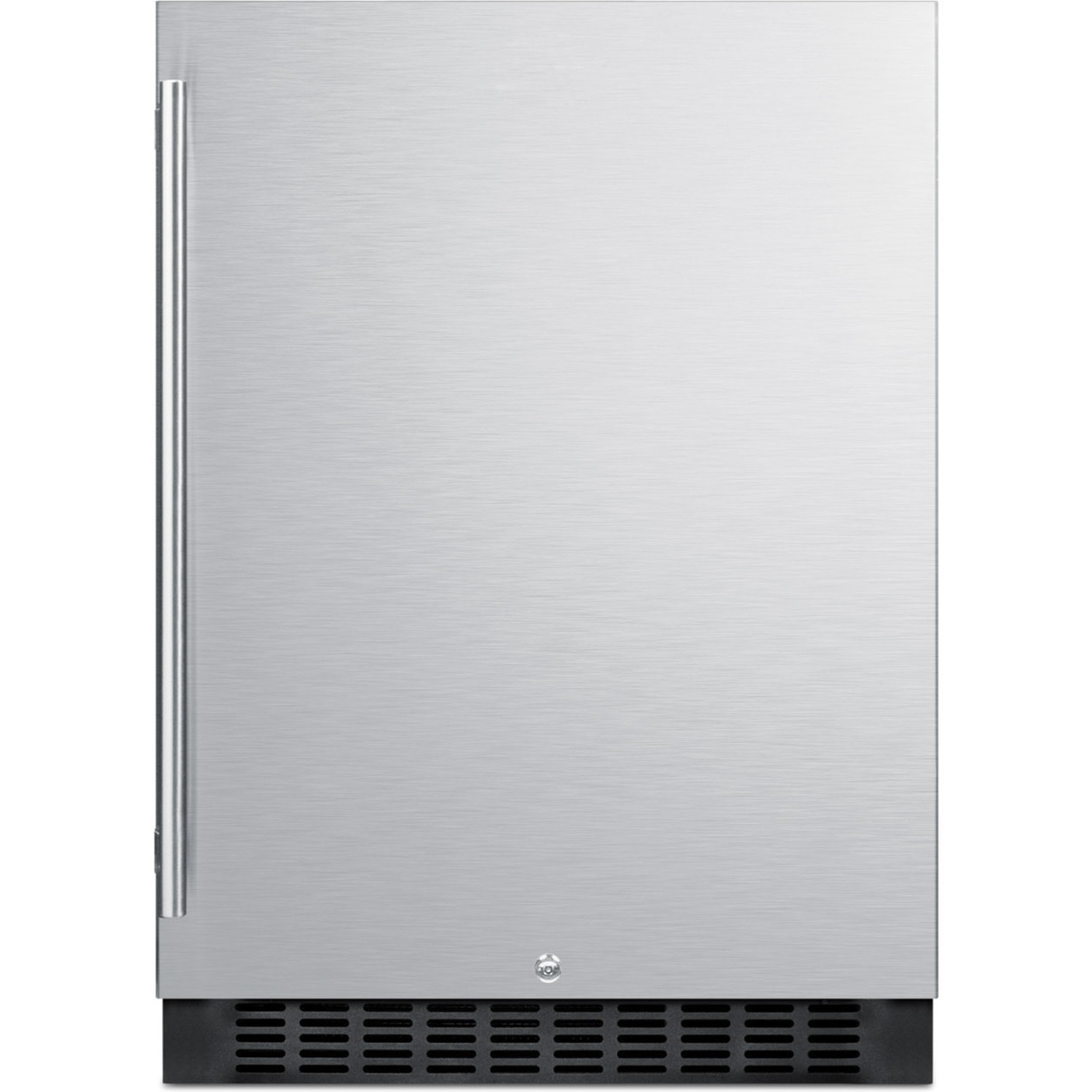

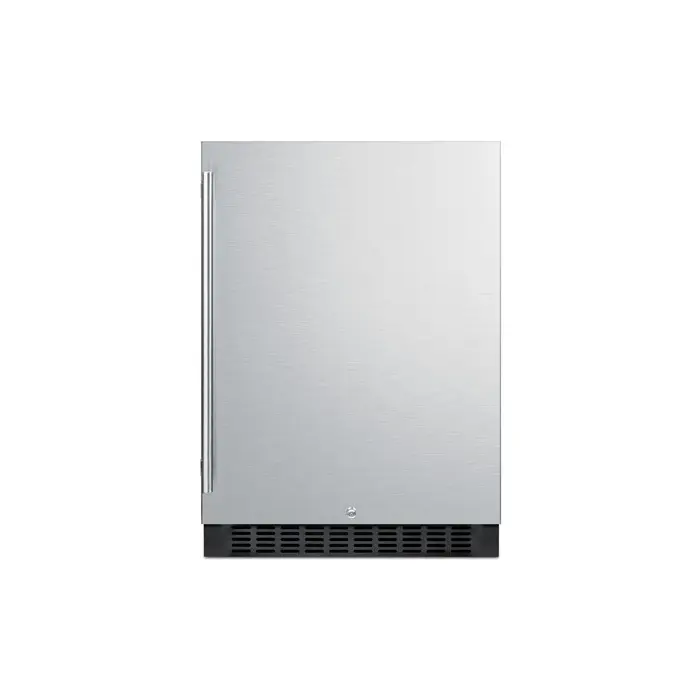

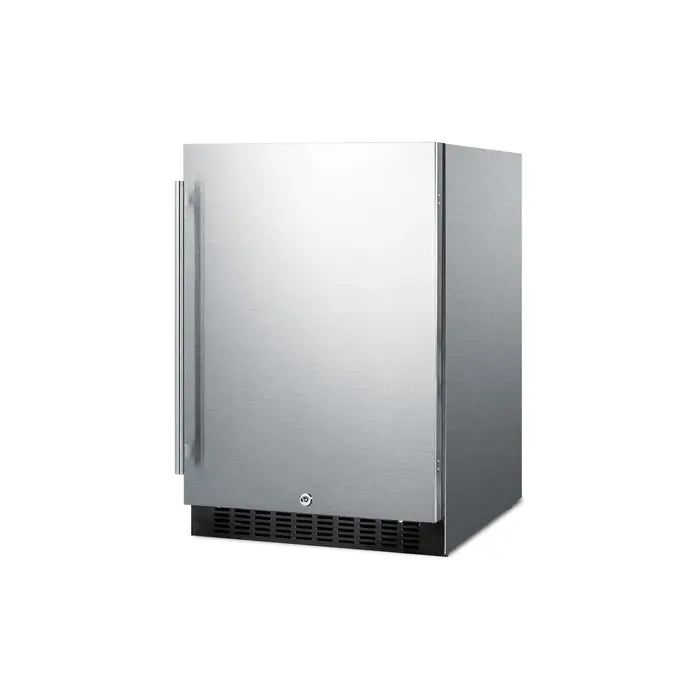

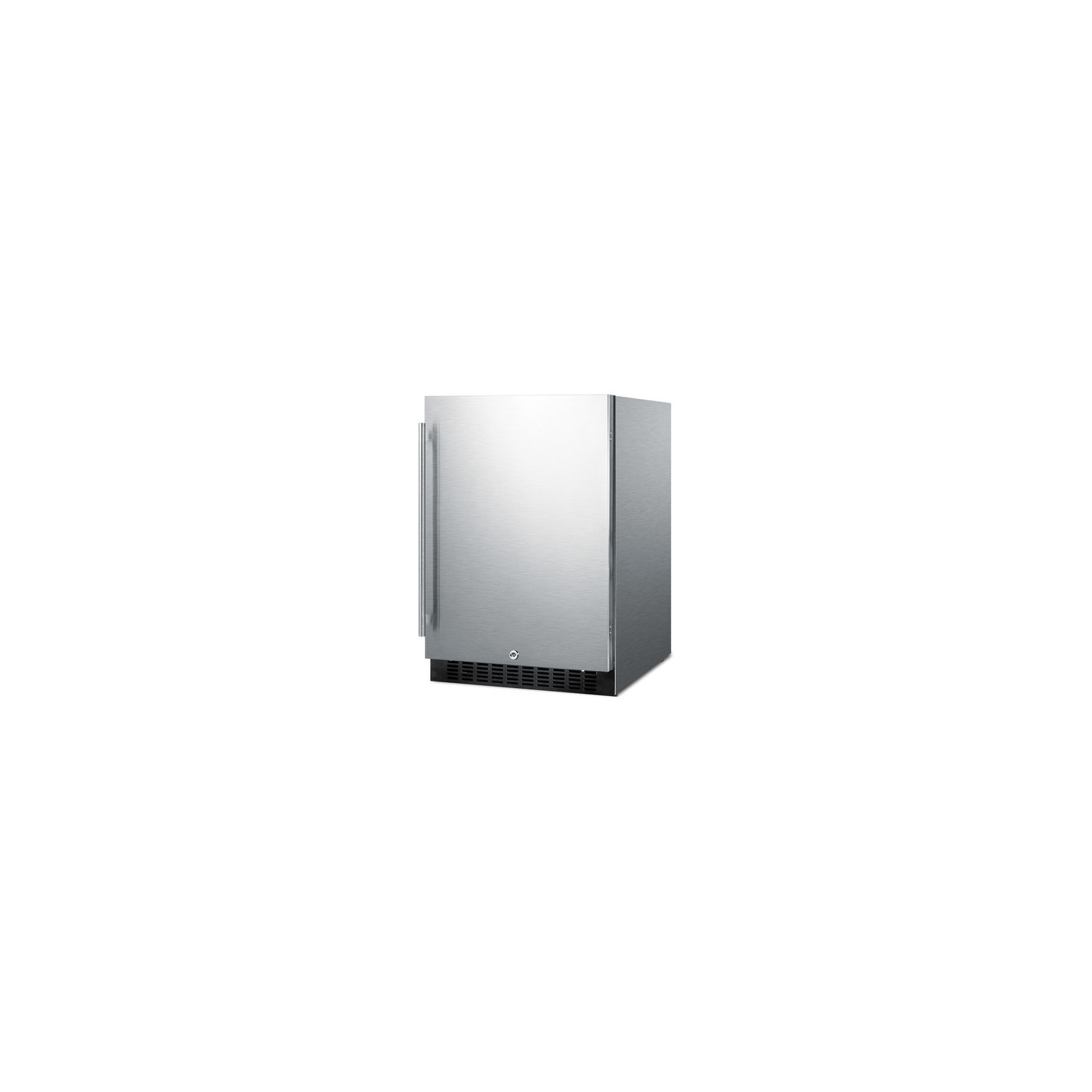

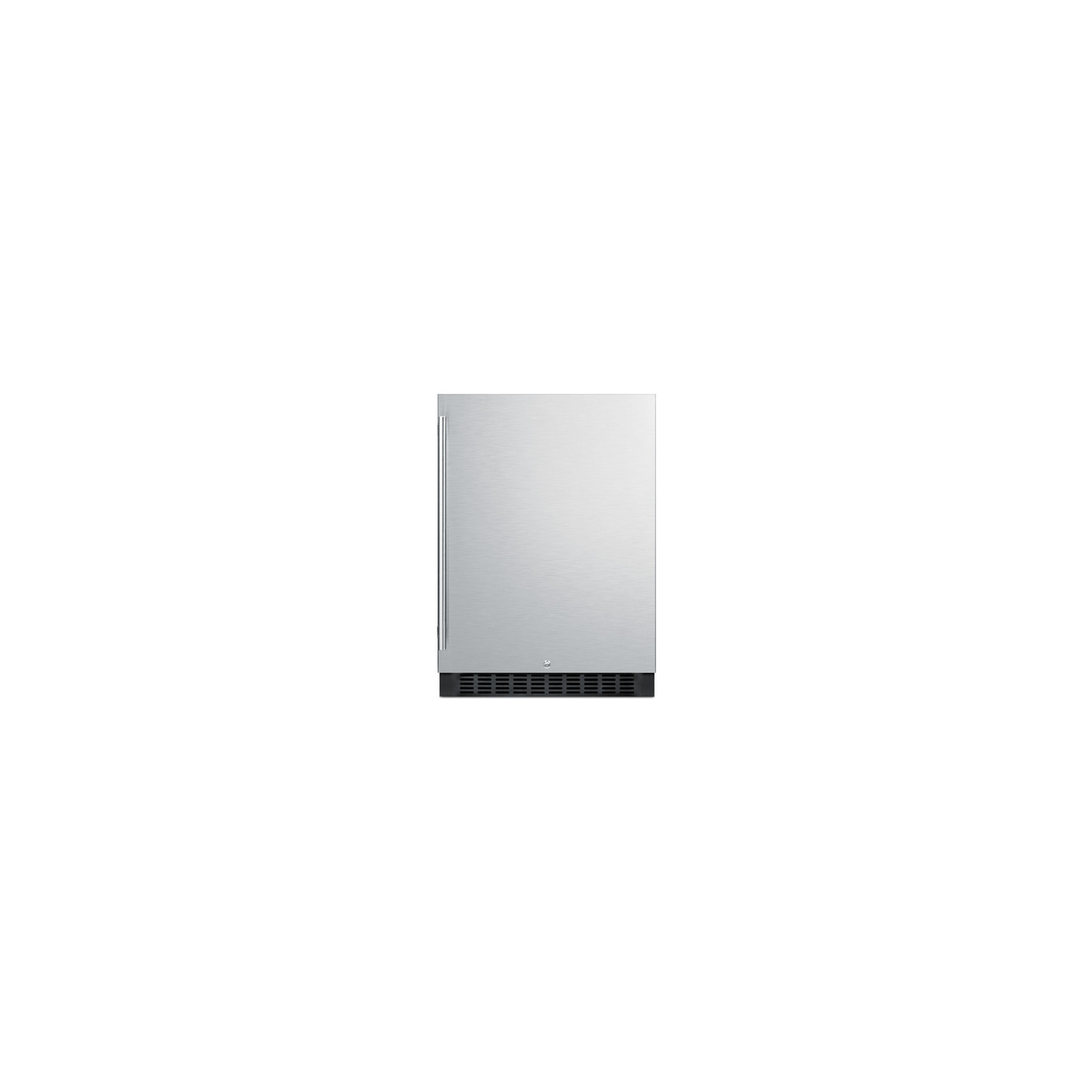

The SPR627OSCSS is a 24" wide all-refrigerator that can be used built-in or freestanding in any outdoor or indoor location. The cabinet and reversible door feature weatherproof stainless steel construction for lasting durability. A chrome handle completes the look and a factory installed lock offers added security.

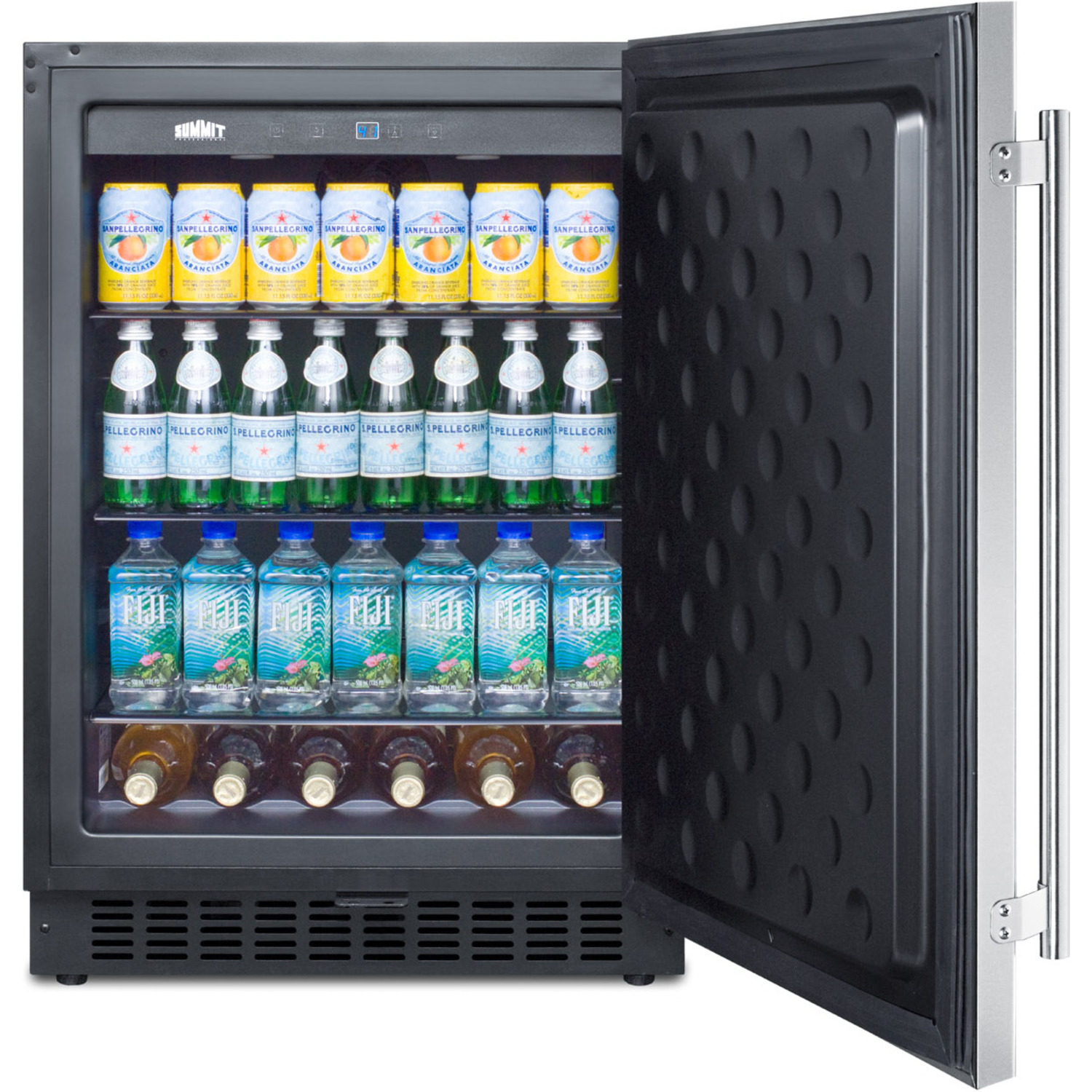

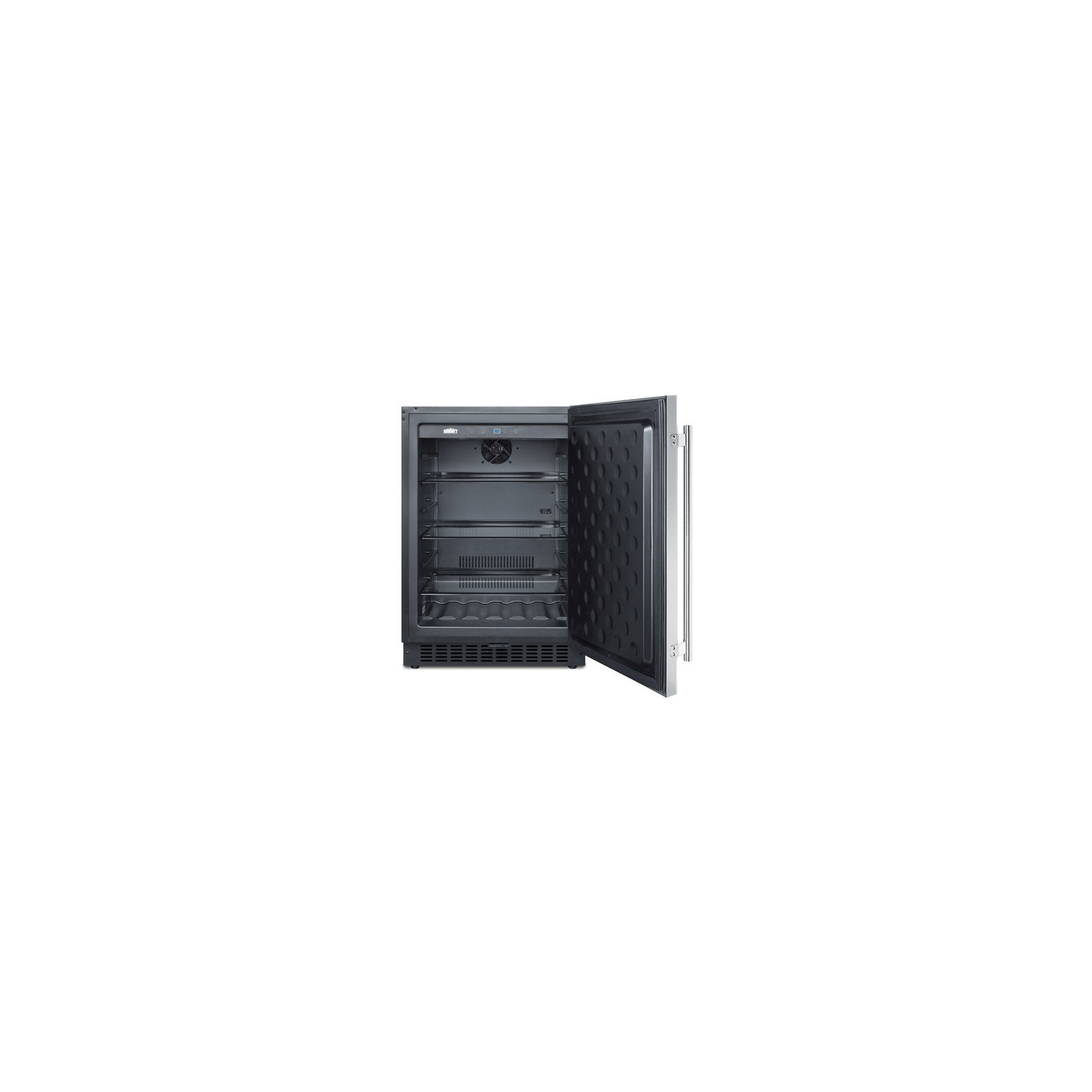

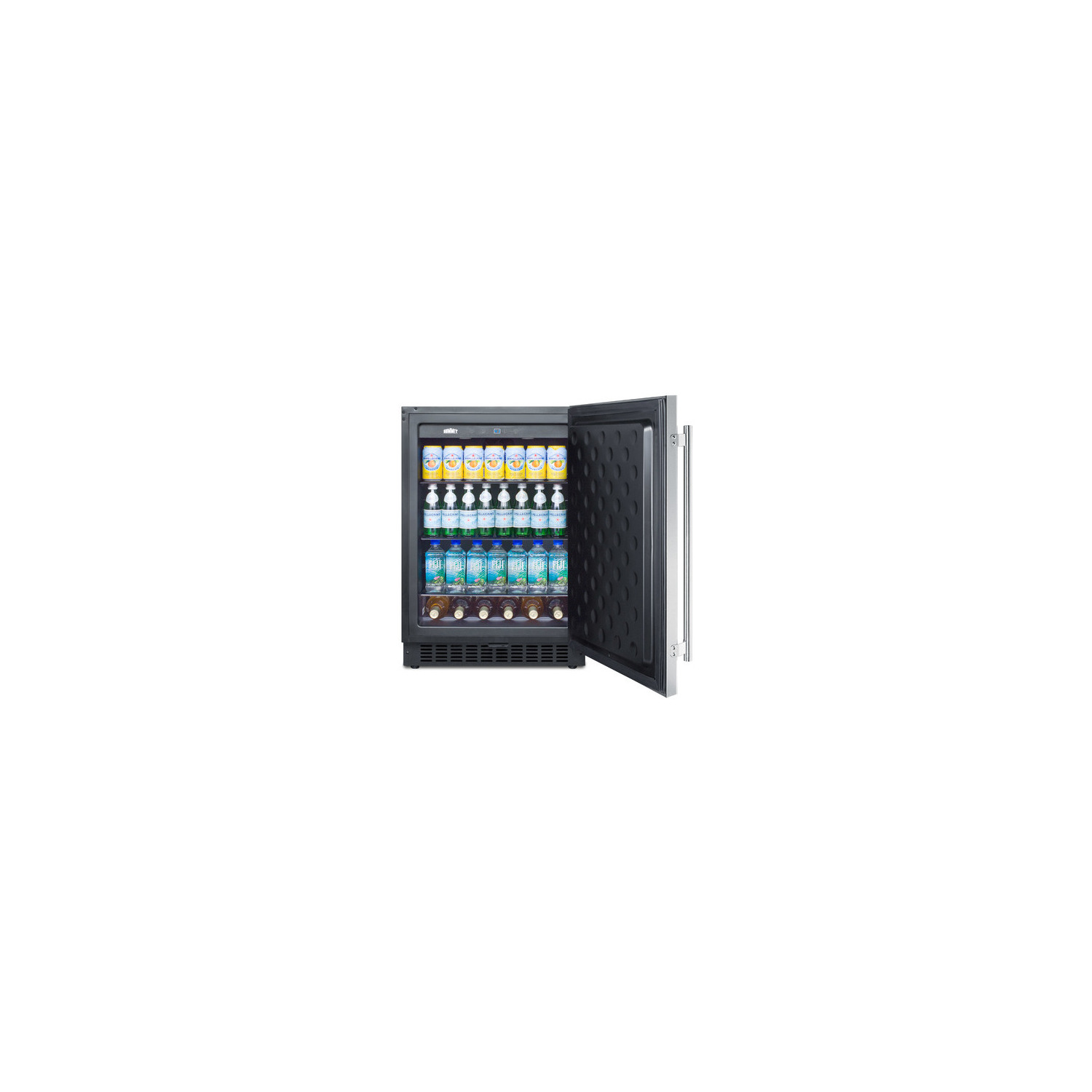

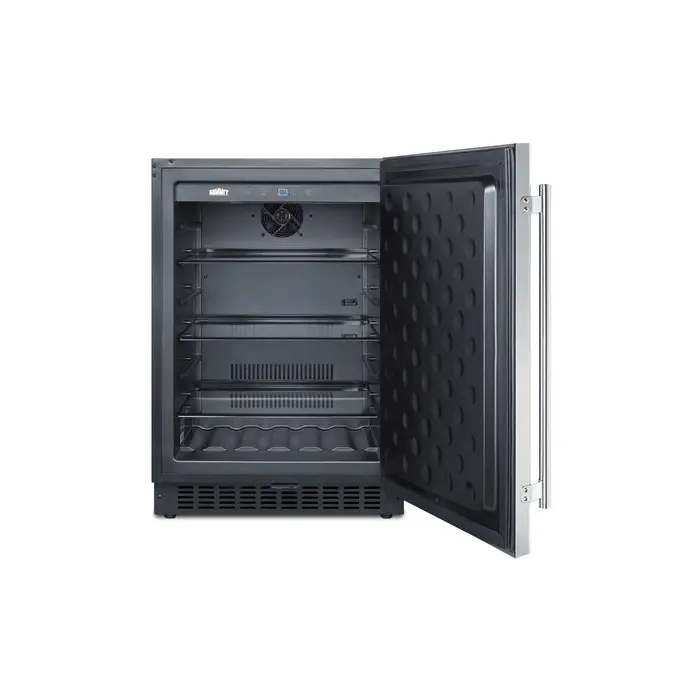

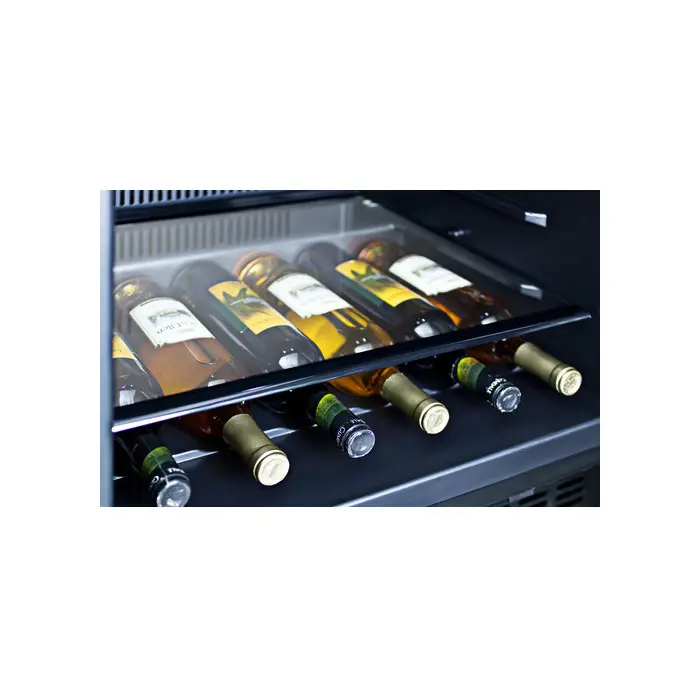

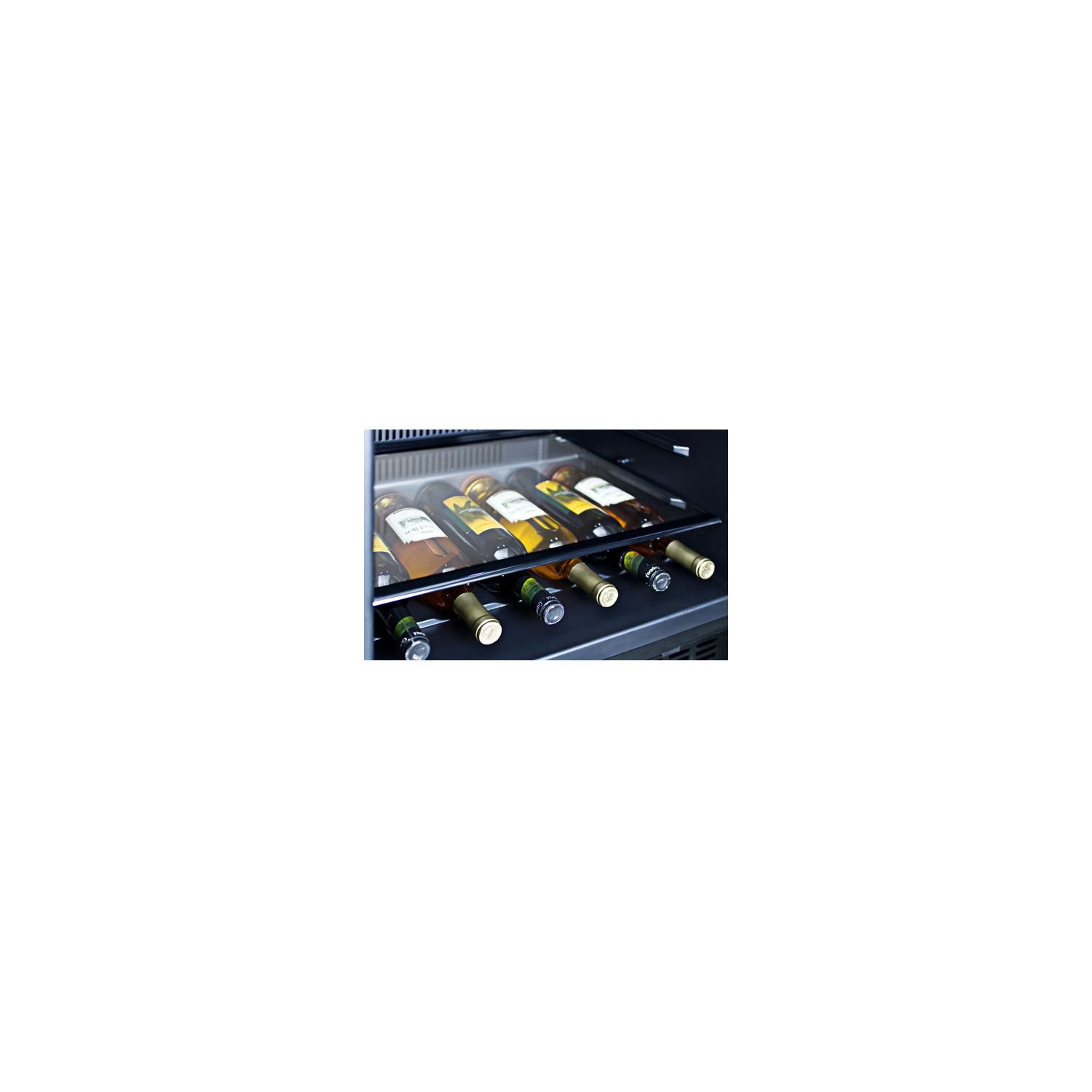

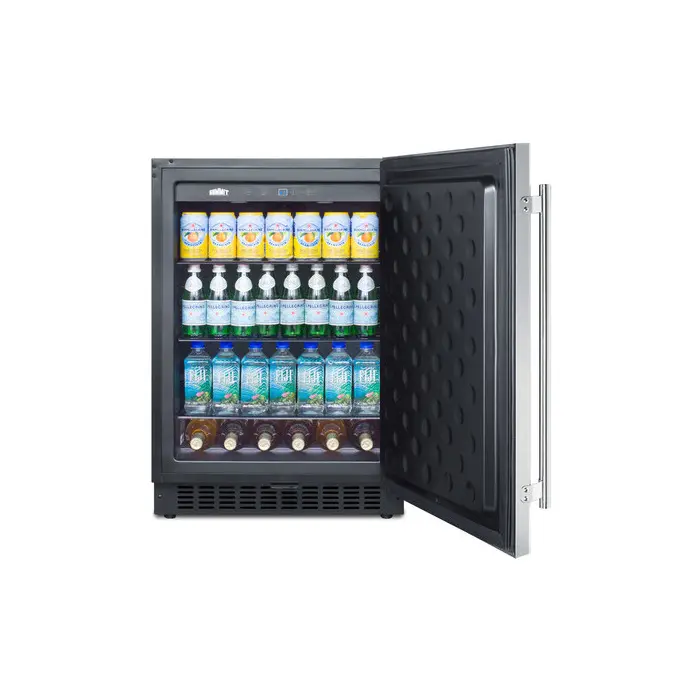

Inside, this frost-free refrigerator includes an internal fan for an evenly cooled interior and a recessed LED light for an elegant yet energy efficient glow. The digital thermostat (located in the interior) allows you to adjust the temperature at the touch of a button. Adjustable glass shelves make it easy to organize the 4.6 cu.ft. interior. The floor is specially slotted to hold bottles in place. This unit has a flat door liner to accept larger trays. For optional door storage, add our SHELFKIT627.

With a stunning design and convenient features, SUMMIT SPR627OSCSS is the ideal finish for any outdoor or indoor kitchen. For a matching freezer, see the SPFF51OSCSS. This unit is ETL-S listed to NSF-7 standards for use in commercial establishments and is ENERGY STAR certified as a commercial refrigerator. It also meets DOE standards for residential applications, using 25% less energy than the maximum allowed for this product class and capacity.

Nominal Height: 34
Height of Cabinet: 34
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.38
Depth with door at 90°: 45.63
Capacity: 4.6
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless SteelCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 4.6 cu.ft. (130 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101046846

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Light Yes

Dimensions

Interior Height 24.0" (61 cm)

Interior Width 19.25" (49 cm)

Interior Depth 17.5" (44 cm)

FEATURES

ENERGY STAR certified commercial performance Meets ENERGY STAR standards as a commercial refrigerator and meets DOE standards for residential use

CEE Tier II qualified Efficient design meets CEE Tier II specifications, using 25% less energy than DOE standards require for this product category

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel wrapped exterior Wrapped cabinet allows durable use in the outdoors

Fully finished cabinet Allows the unit to be used freestanding in the outdoors

Stainless steel door Durable construction with a professional look

Factory installed lock Keyed lock for a secure interior

Professional handle Includes a full-length pro handle in chrome

Frost-free operation No-frost operation for minimum user maintenance

Digital thermostat Electronic controls located inside the unit for precise temperature management

Recessed LED light Elegant lighting with a convenient on/off switch on the control panel

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Optional door storage Add accessory SHELFKIT627 for a set of door racks that you can install after order

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Ground Fault Circuit Interrupter Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

Reversible door User reversible door swing

Flat door liner Easy to clean, with more depth for storage

Sealed back No exposed electrical components allow safe use in the outdoors

Commercially approved Meets UL-471 and is ETL-S listed to NSF-7 Standards for use in commercial establishments

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR627OSCSS.pdf)

TECHNICAL DRAWING (.dwg) (SPR627OS_FF64BSS_REFRIGERATOR__A-C_2018__4.dwg)

USE & CARE (SPR627OSCSS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
