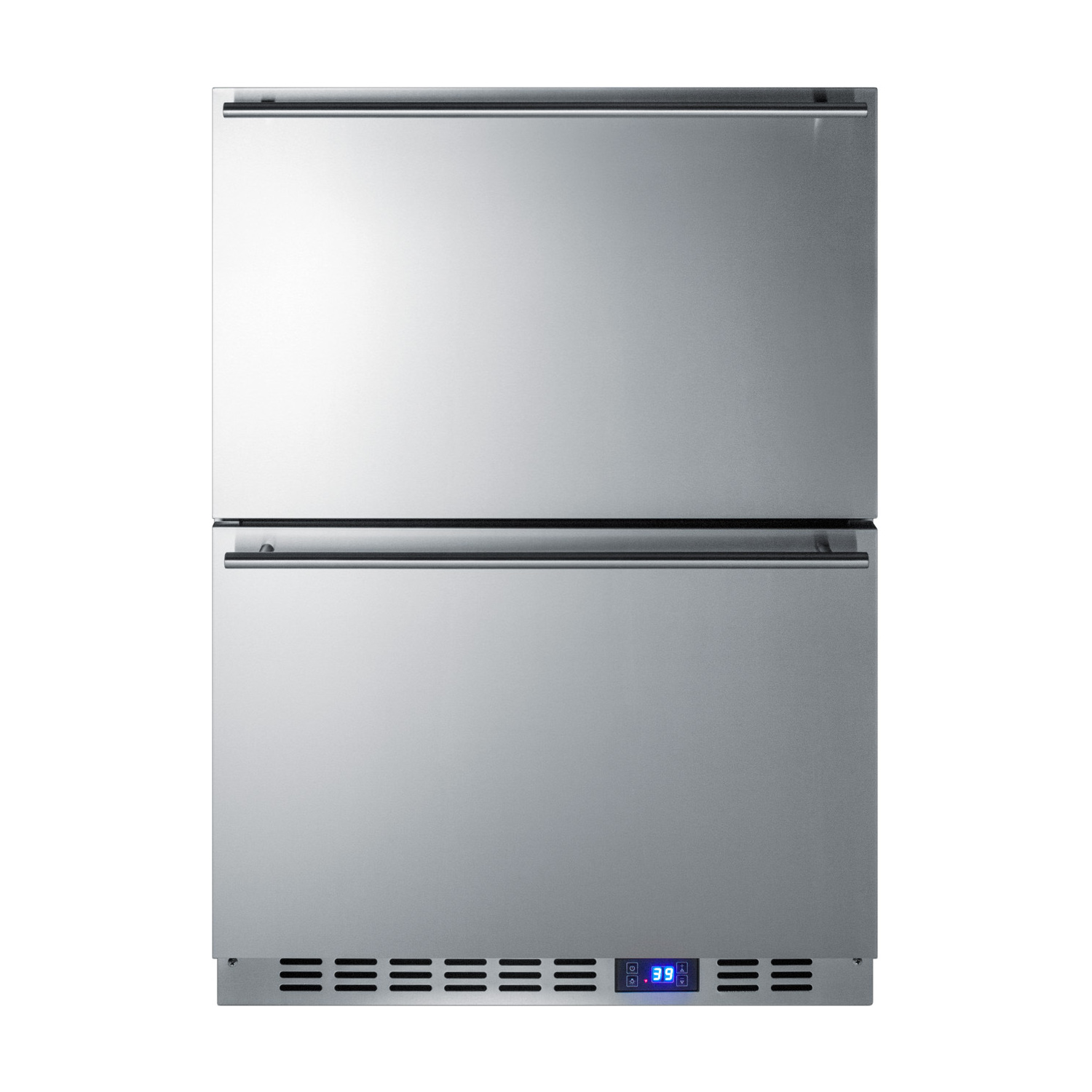

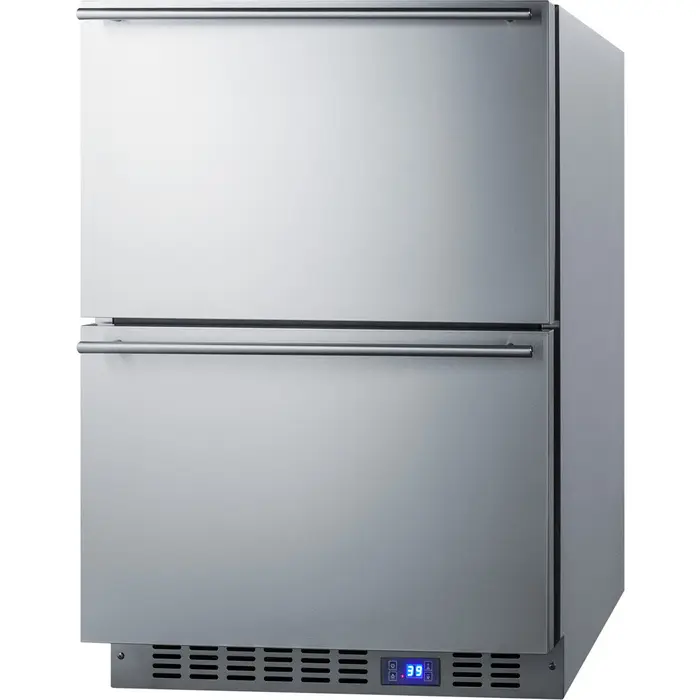

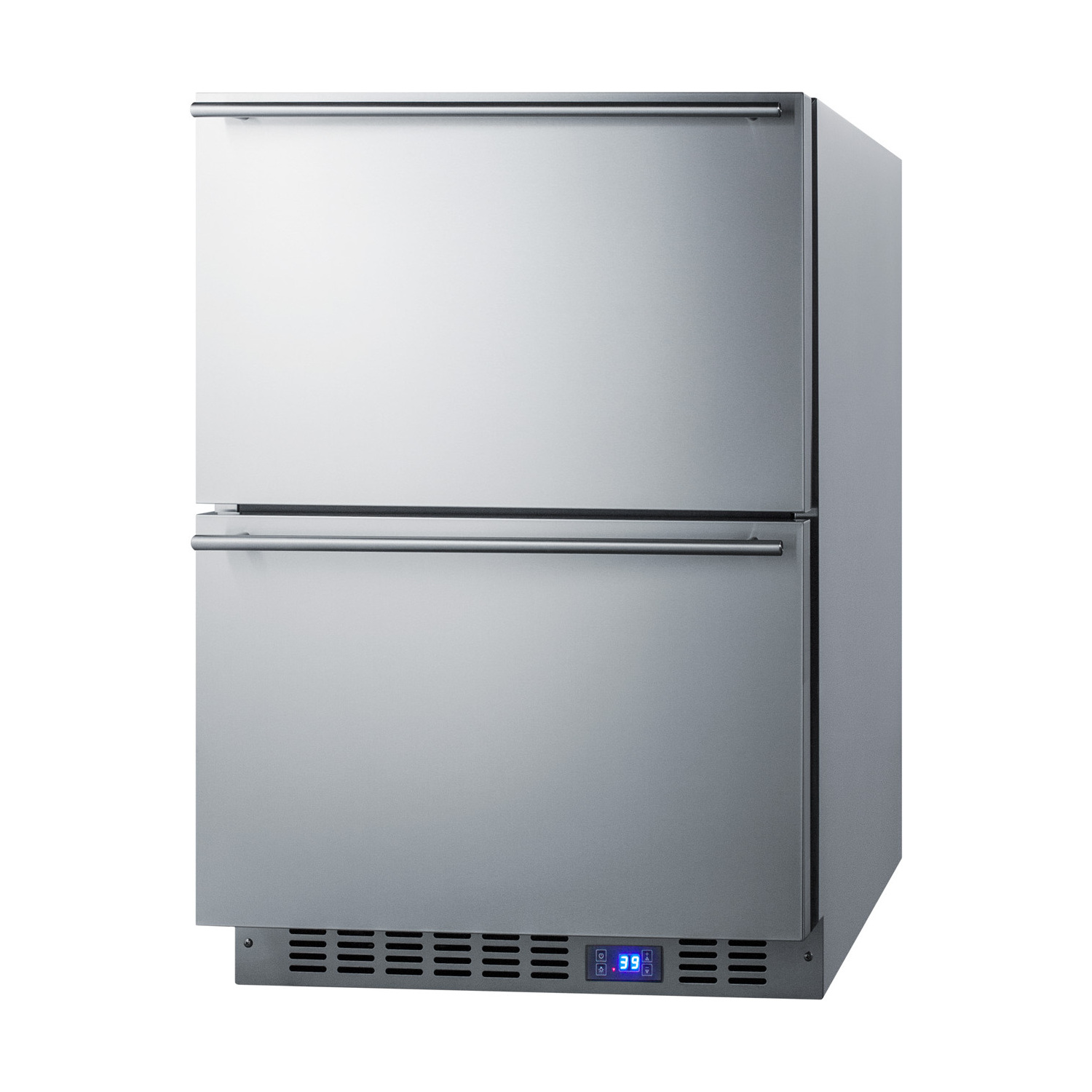

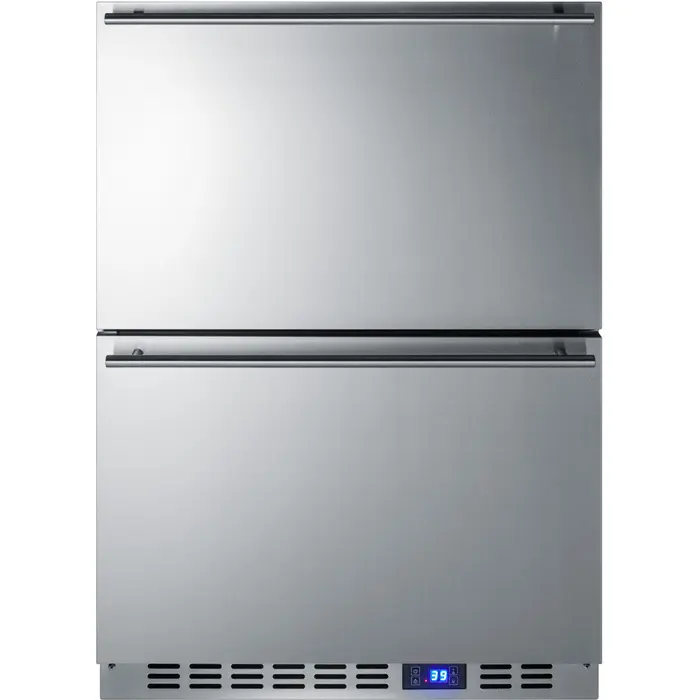

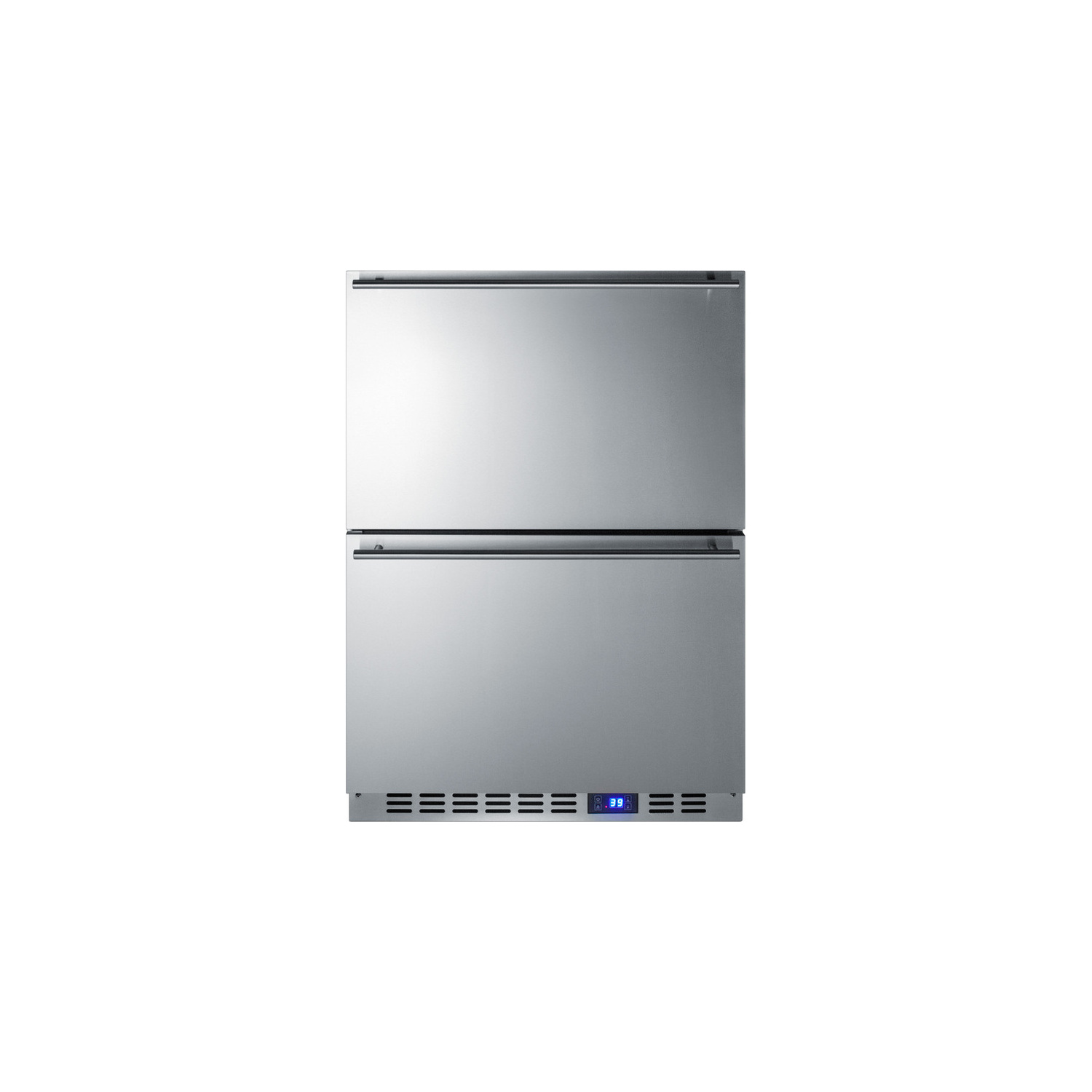

Summit Outdoor drawer refrigerator in stainless steel, for built-in residential or commercial use, 7.61101e+011, SPR627OS2D
$1,963.56
Retail Price: $2,730.00
Shipping: $250
$ 1,963.56
Description
SUMMIT's outdoor collection of stainless steel drawer refrigerators brings luxury style, quality construction, and user convenience to any outdoor kitchen.
Sized with a convenient 24" footprint, the SPR627OS2D can be built-in under counters or used freestanding. The cabinet and drawers are constructed from weatherproof stainless steel, with sleek handles to complete the look. An integrated Ground Fault Circuit Interrupter helps to protect the unit in the event of circuit breaks and the sealed back adds extra protection from the elements. We include an anti-tip bracket (installed by the user) for added safety.
Two sliding drawers offer convenient storage inside the 3.4 cu.ft. auto defrost interior, with fan-forced cooling to ensure even temperature distribution. The drawers are fully constructed from stainless steel for easy cleaning and long-lasting use. Inside, a full-width sliding wire basket offers easy storage, while two adjustable dividers let you organize both the top and bottom drawer by separating the interior to accommodate a variety of items. Recessed LED lighting offers an attractive yet energy efficient look inside. The digital thermostat located in the stainless steel kickplate offers a readout in Celsius or Fahrenheit. Additional features include a Sabbath mode setting, temperature memory function, and audible alarms for high temperature fluctuations and open drawer alerts.
The SPR627OS2D can be used in home or commercial settings. This unit is ETL-S listed to NSF-7 standards and meets UL Commercial Standard 471. For a matching frost-free freezer, see the SPFF51OS2D.
Nominal Height: 34
Height of Cabinet: 34
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.63
Depth with Handle: 25
Depth with door at 90°: 39.38
Capacity: 4.26
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless SteelCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 39.38" (100 cm)
Capacity 4.26 cu.ft. (121 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 260.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101038575
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 2
Interior Light Yes
Interior Drawers Yes
Interior Drawers Qty 2
Sound Level 32.9 dB
Drawer Dimensions
Interior Height 1 9.25" (23 cm)
Interior Width 1 17.25" (44 cm)
Interior Depth 1 15.5" (39 cm)
Interior Height 2 10.0" (25 cm)
Interior Width 2 17.25" (44 cm)
Interior Depth 2 15.5" (39 cm)
Dimensions
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 17.25" (44 cm)
Compressor Step Depth 4.0" (10 cm)
FEATURES
2-Drawer Outdoor Refrigerator 24" wide all-refrigerator with two slide-out drawers for built-in or freestanding use in outdoor kitchens
Weatherproof design Designed and constructed for durable use in the outdoors
Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter
Stainless steel exterior Cabinet and drawers are fully constructed from weatherproof stainless steel
Two drawers Slide-out drawers for full refrigeration storage
Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
LED lighting Elegant and efficient lighting offers a gentle illumination for the drawer interiors
Professional handles Sleek stainless steel handles add an elegant touch to any setting
Open drawer alarm Audible alarm will sound if either drawer is left open longer than one minute
Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours
Automatic defrost Reduced maintenance with auto defrost system
Internal fan Fan-forced cooling ensures even temperature distribution from top to bottom
Stainless steel kickplate Completes the professional look down to the toe kick
Ground Fault Circuit Interrupter Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Fully finished cabinet Allows the unit to be used freestanding in the outdoors
Sealed back No exposed electrical components allow safe use in the outdoors and easier cleanup
Drawer dividers Two adjustable dividers make it easier to organize the drawer interiors

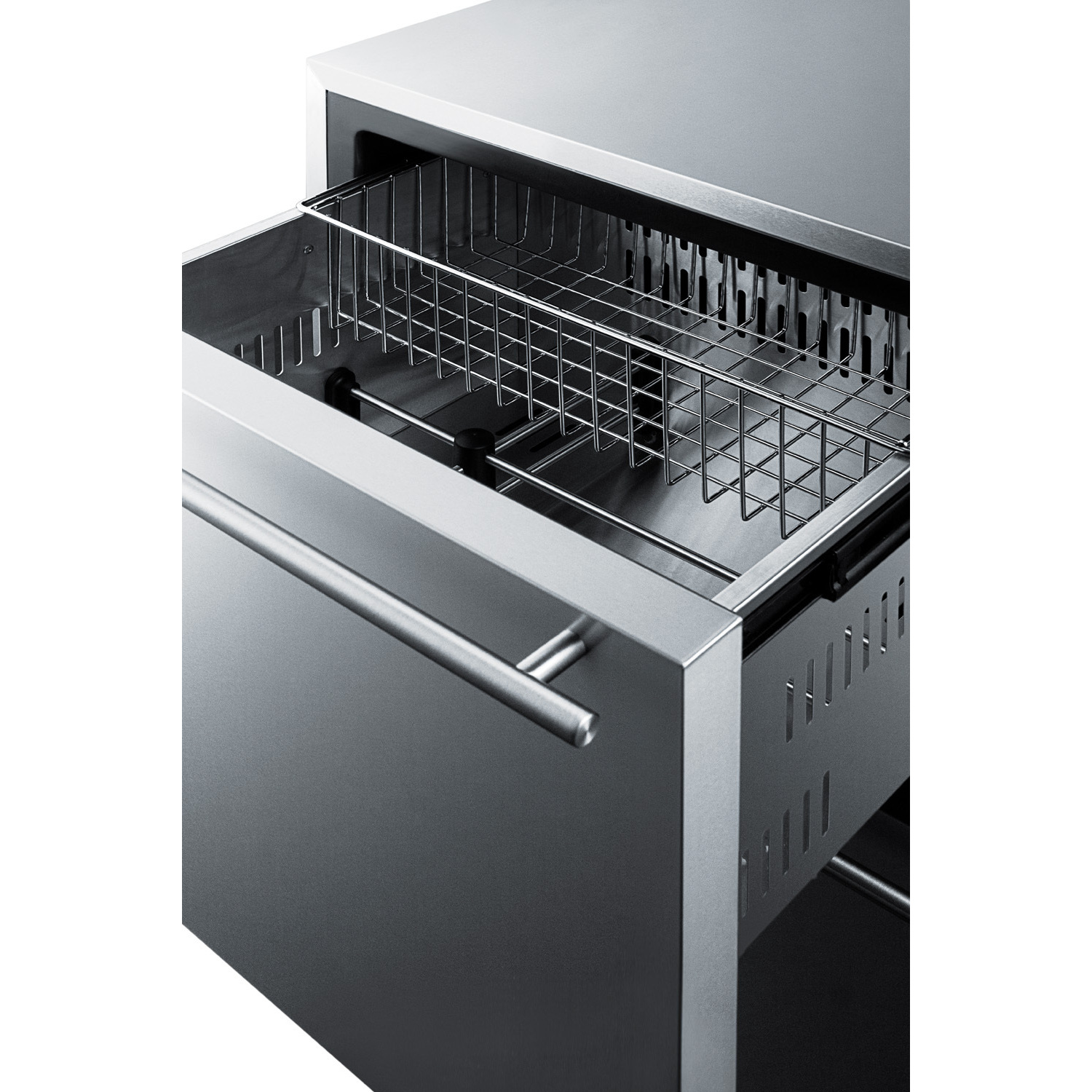

Sliding basket Removable chrome basket included for easier storage convenience
Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
Anti-tip bracket Included and recommended for user-installation to reduce the risk of tipping
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (SPR627OS2D.pdf)
TECHNICAL DRAWING (.dwg) (SPR626OS2DDRAWERO-DREF.A-C2000_2.dwg)
3D DRAWING (SPR627OS2DNoCord.obj)
REVIT MODEL (Qf_Summit_SPR627OS2D_24_inches_Wide_2-Drawer_All-Refrigerator.rfa)
USE & CARE (SPR627OS2D-User-Manual.pdf)
MSDS INFORMATION (R600a_K.pdf)
Energy Guide
