Summit Outdoor all-refrigerator for built-in use, with lock, digital thermostat, black cabinet, and stainless steel door, 7.61101e+011, SPR623OS

Summit's selection of outdoor refrigeration brings weatherproof luxury to the home, with durable construction and innovative design.

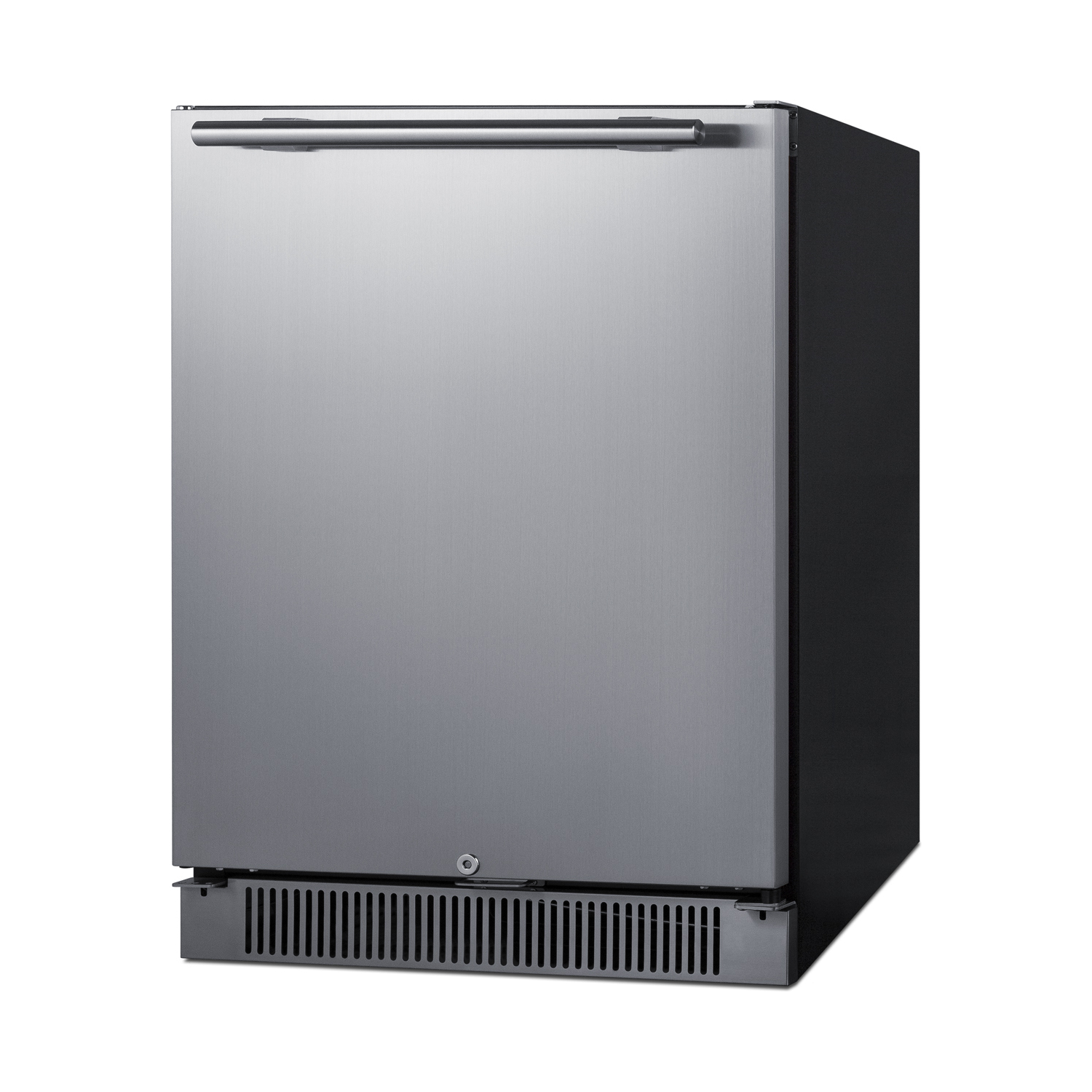

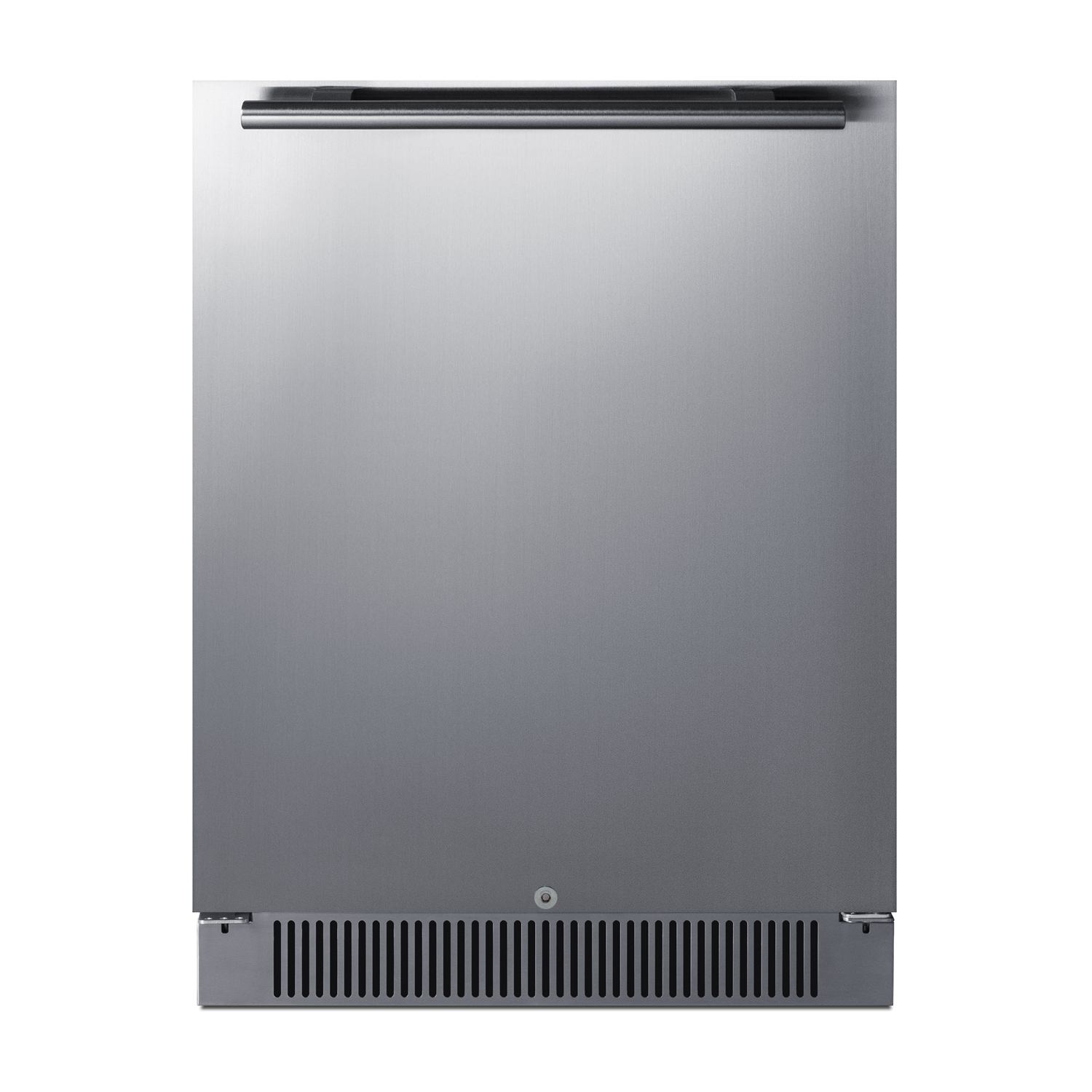

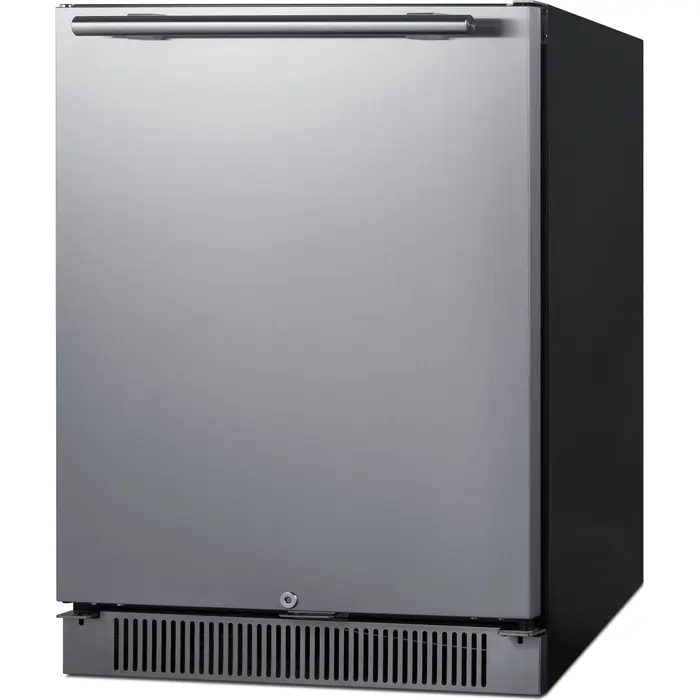

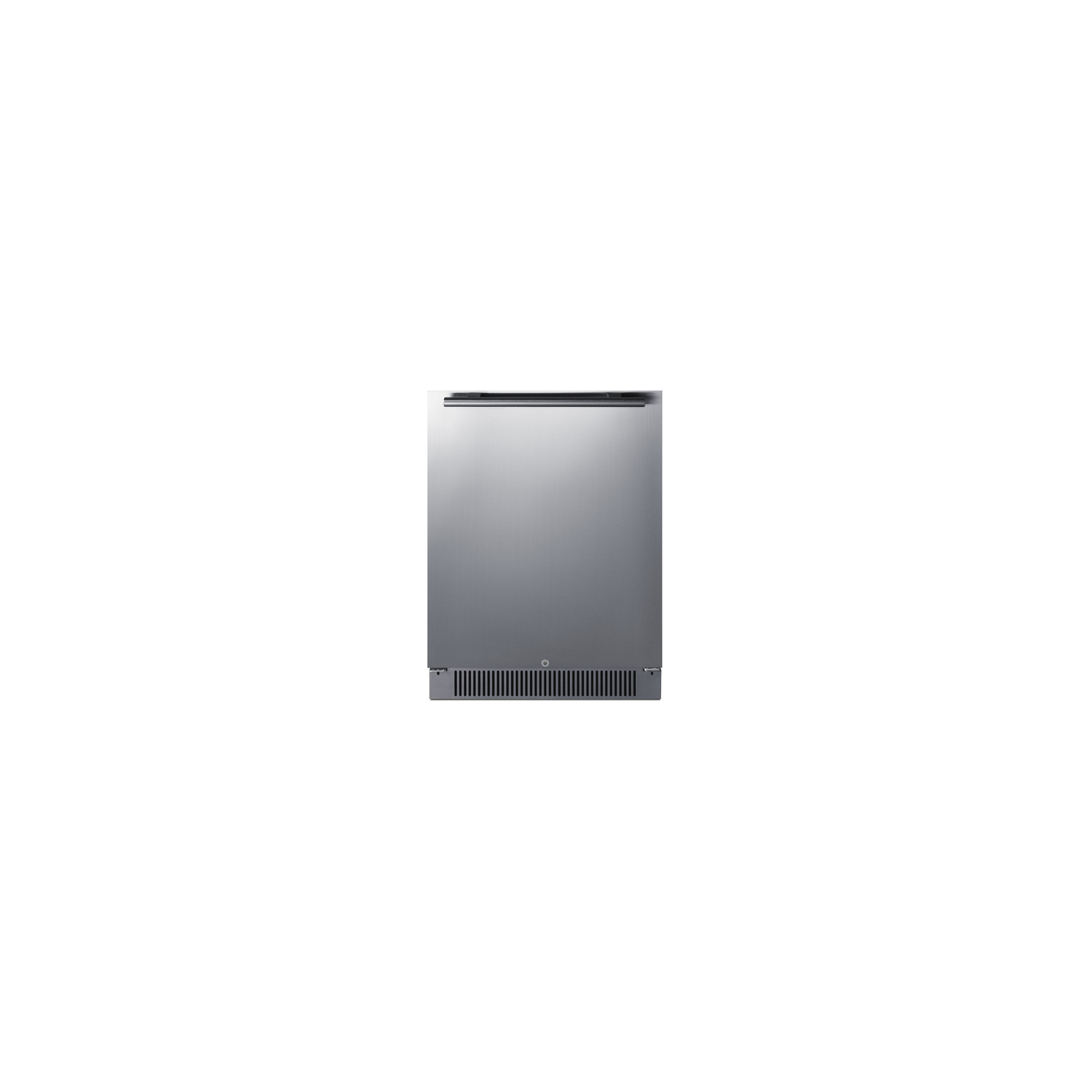

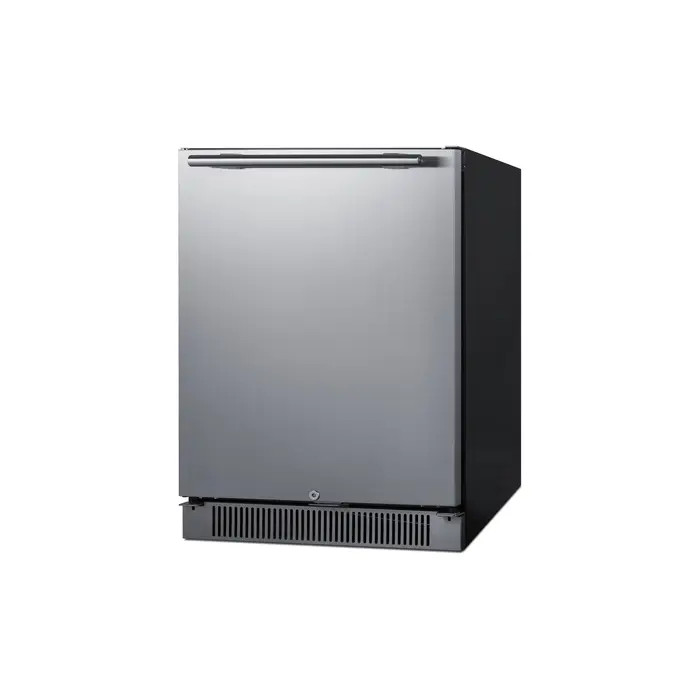

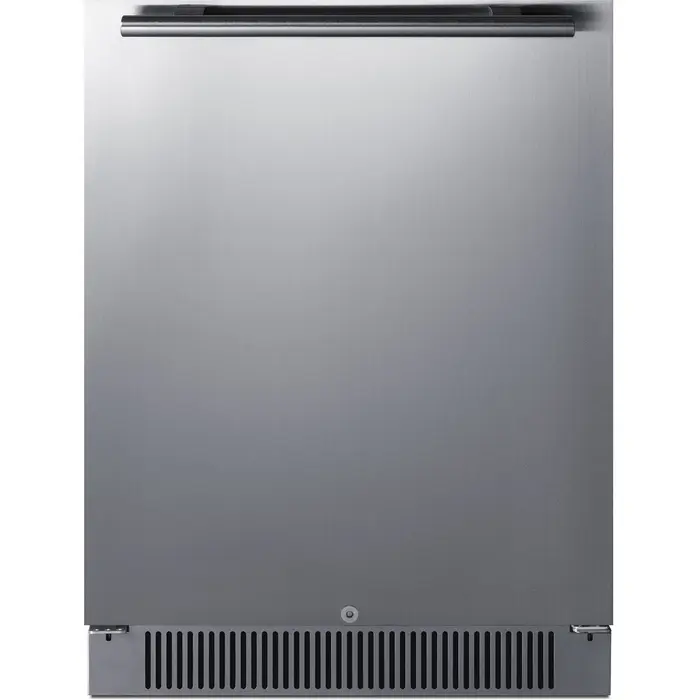

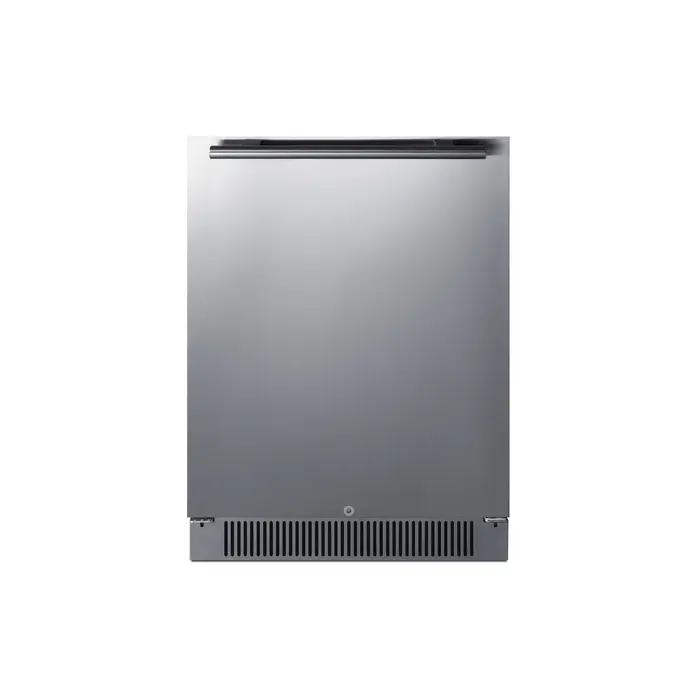

Model SPR623OS is an outdoor all-refrigerator sized with an easy-fitting 24" footprint. The front-breathing design allows built-in installation, while the fully finished cabinet enables freestanding use as well. The weatherproof exterior includes a sealed rear for better protection from the elements. The user-reversible door includes a thick tube style handle mounted horizontally and a factory-installed lock for added security. A designer kickplate completes the look.

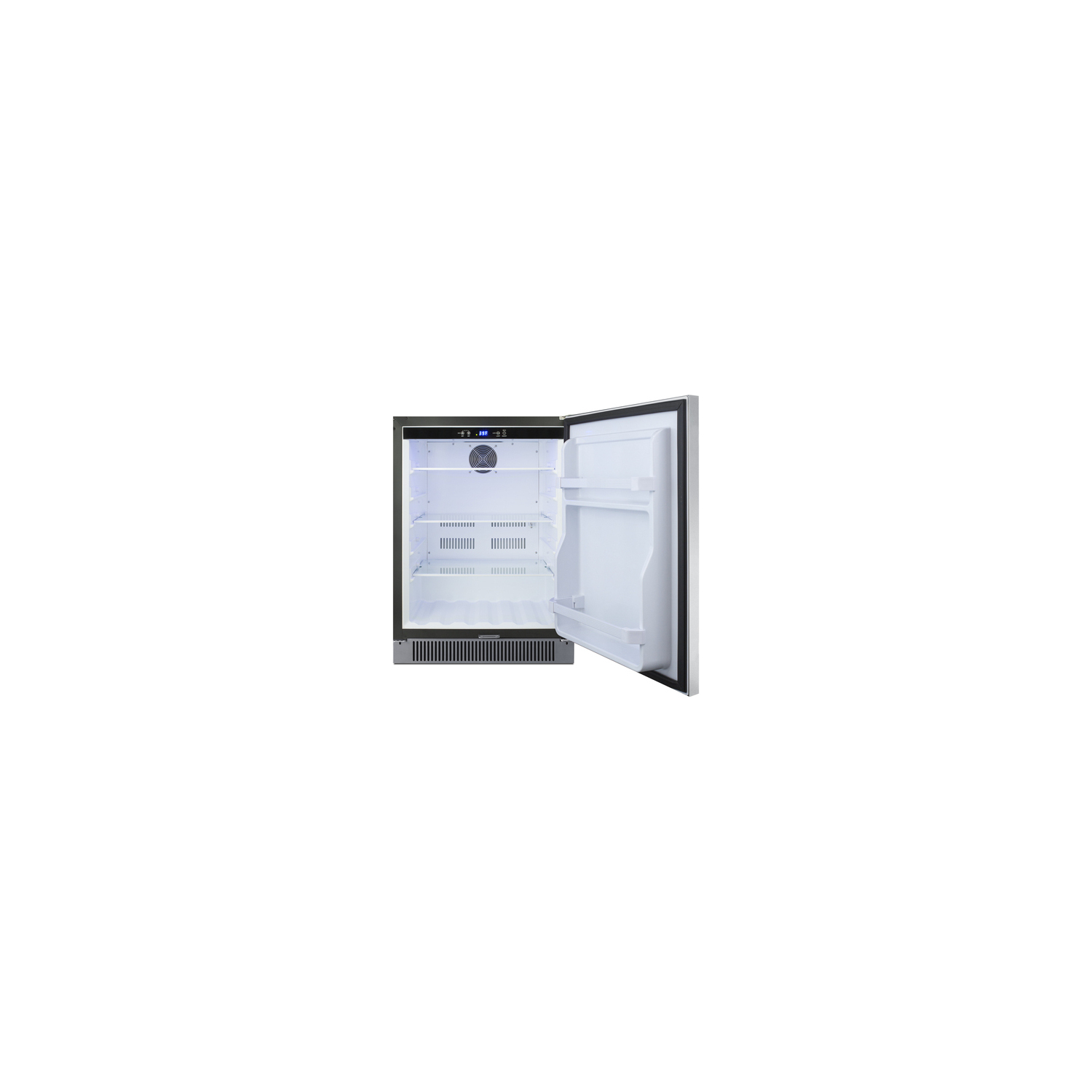

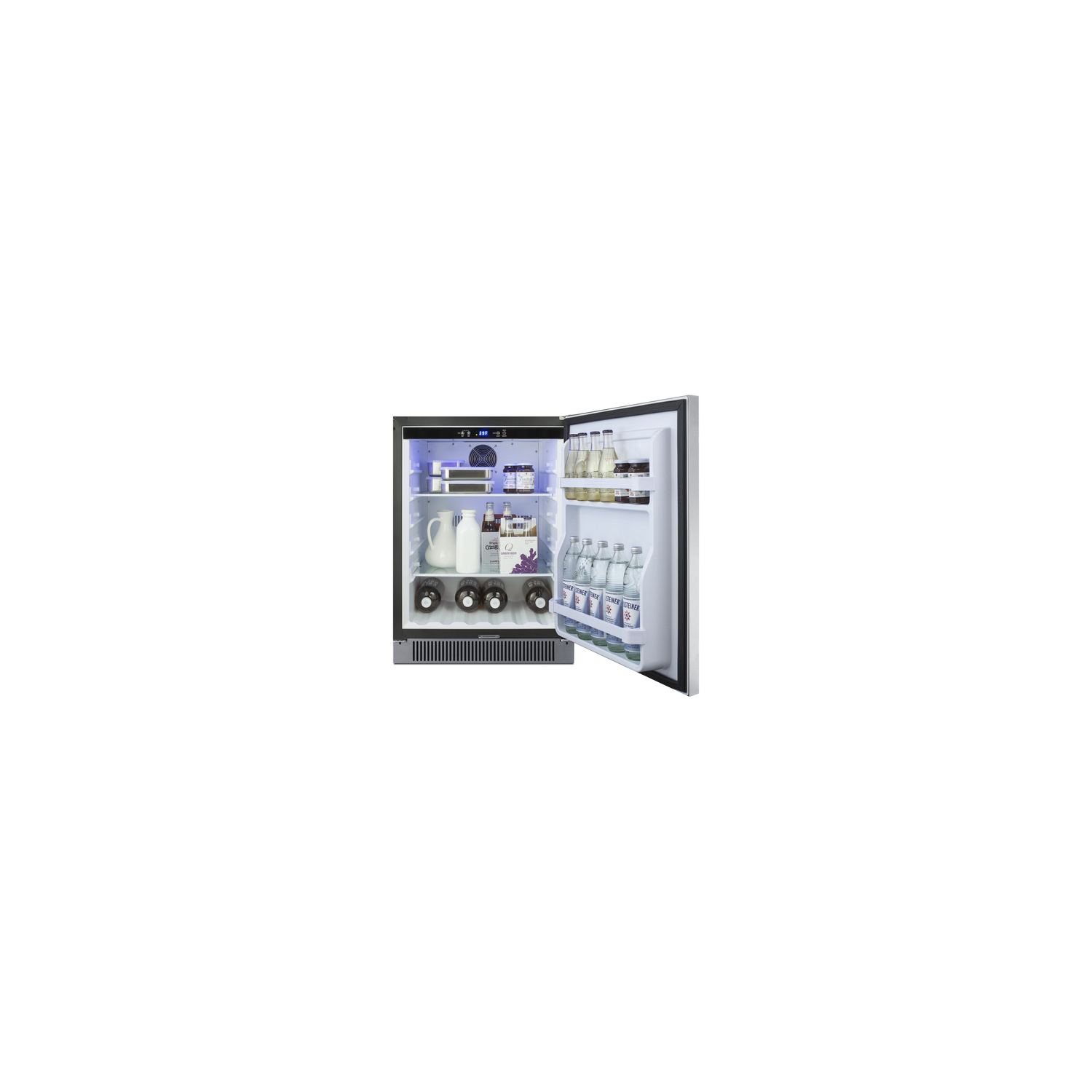

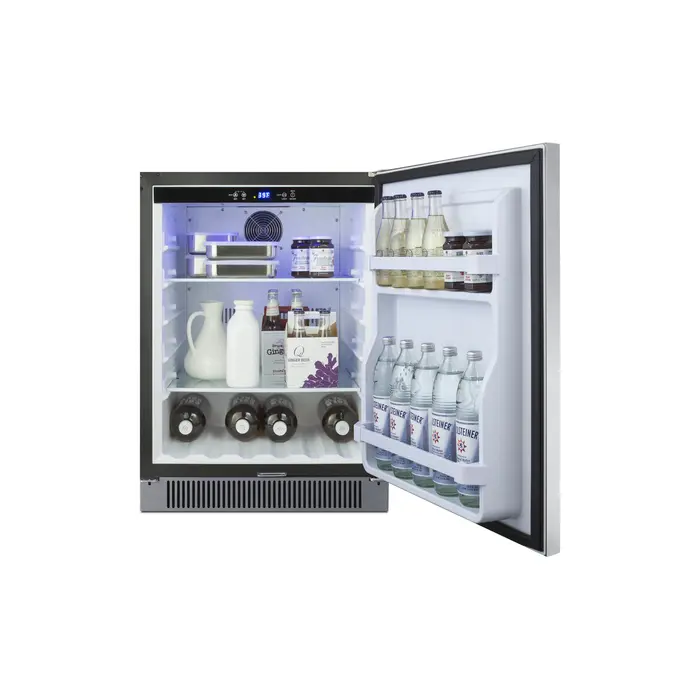

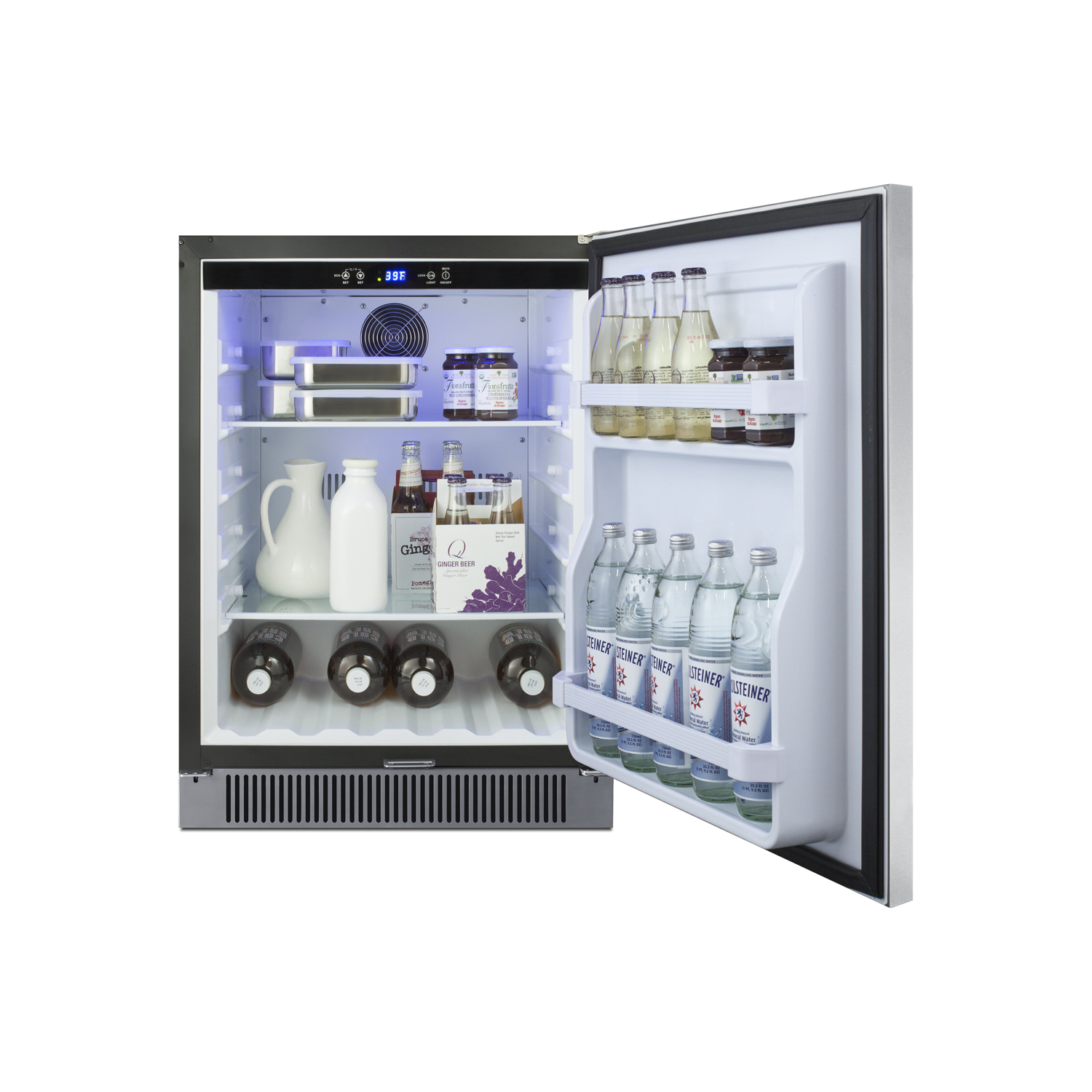

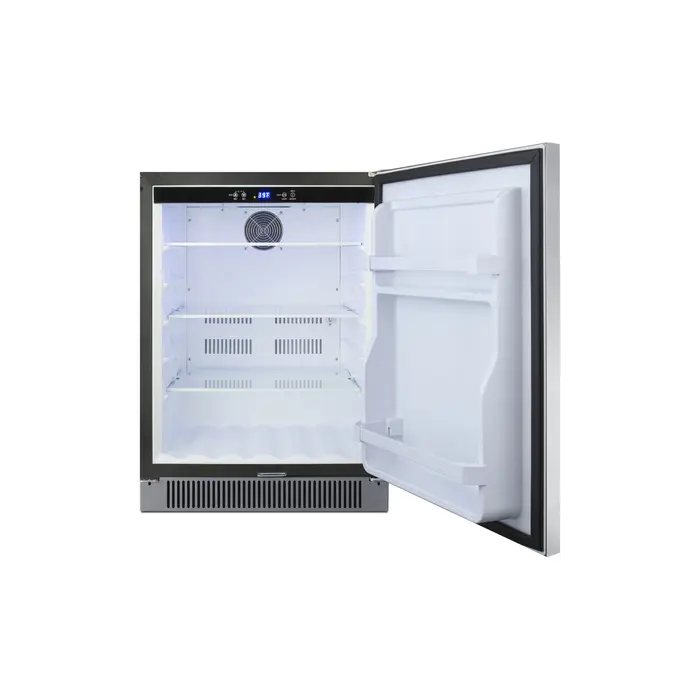

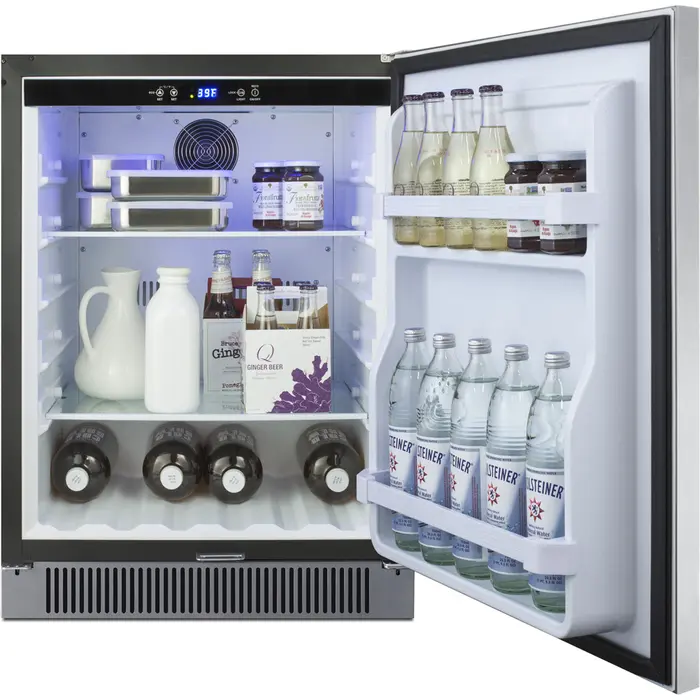

Inside, the SPR623OS offers maximum convenience with frost-free operation that eliminates the need to manually defrost the unit. Fan-forced cooling ensures the temperature stays consistent. The clean white interior and LED lighting provides a refreshingly bright view, with adjustable glass shelving for versatile storage. The door includes two storage racks ideal for holding condiments. The digital control panel is located inside, with a display switchable from Fahrenheit to Celsius at the touch of a button. This unit also includes an optional Sabbath Mode setting that disables the displays for a period of 96 hours.

With advanced features, durable construction and an elegant design, the SPR623OS refrigerator lets you complete any outdoor kitchen in proper style. This unit is approved to both residential and commercial standards. Nominal Height: 34
Height of Cabinet: 34
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.5
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.5
Depth with door at 90°: 45.75
Capacity: 4.6
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless SteelCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.5" (65 cm)

Depth with door at 90° 45.75" (116 cm)

Capacity 4.6 cu.ft. (130 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 294.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 114.0 lbs. (52 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101086255

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 35.6ºF to 46.4ºF

Sound Level 34 dB

Dimensions

Interior Height 25.75" (65 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 19.0" (48 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

24" Wide Outdoor Refrigerator Built-in undercounter all-refrigerator designed and constructed for safe use in outdoor kitchens

Weatherproof design Solid construction allows placement in the outdoors

Stainless steel door Elegant style with a vertical grain and designed to hold up in outdoor settings

Commercially listed ETL-S listed to ANSI-NSF Standard 7 for commercial use

Built-in capable Make the best use of space by installing your unit under the counter and flush with other cabinets

Frost-free operation No-frost operation for minimum user maintenance

White interior Classic interior allows for easy cleaning and viewing of products

Factory installed lock Keyed lock for a secure interior (2 keys included)

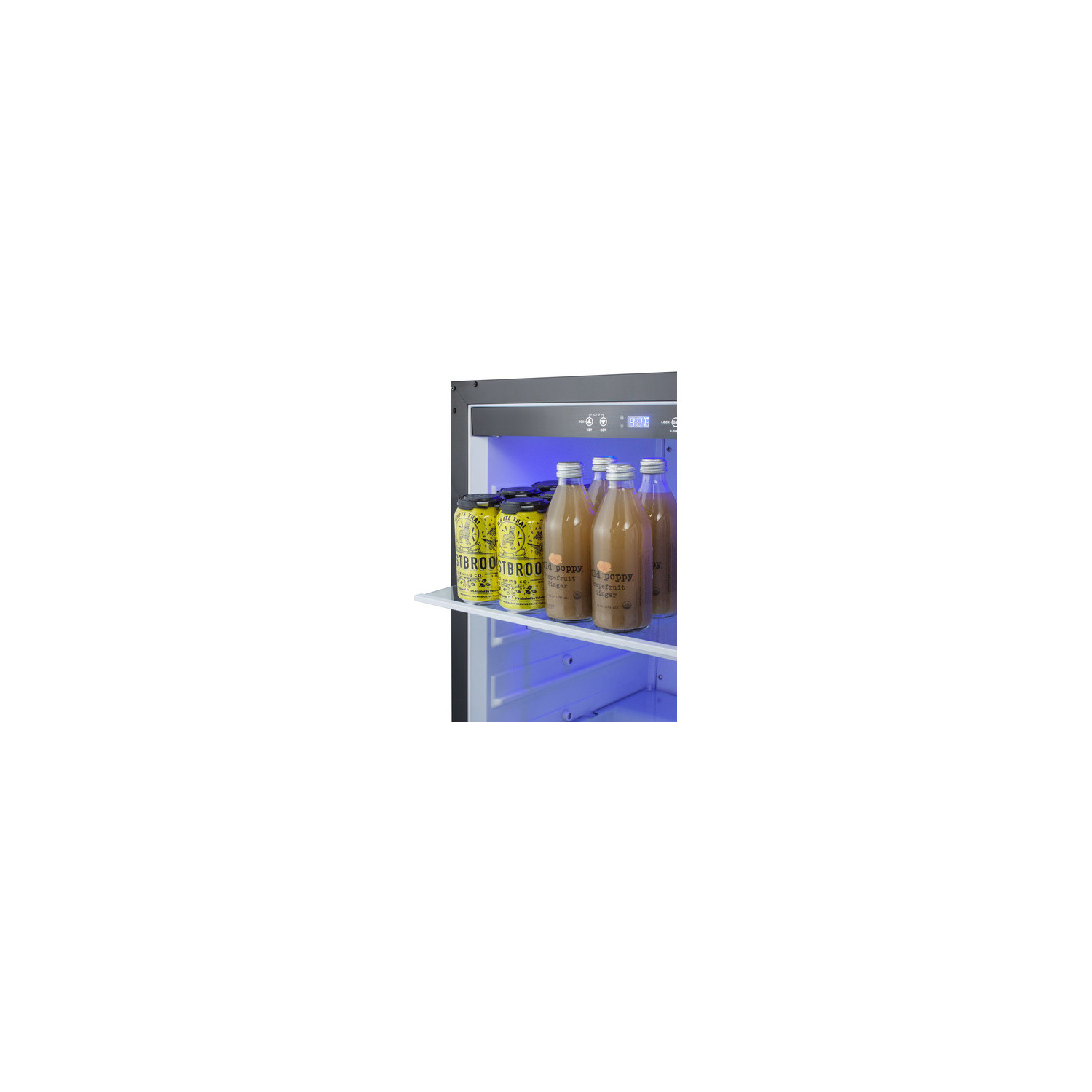

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage Two racks offer the perfect storage solution for tall bottles and condiments

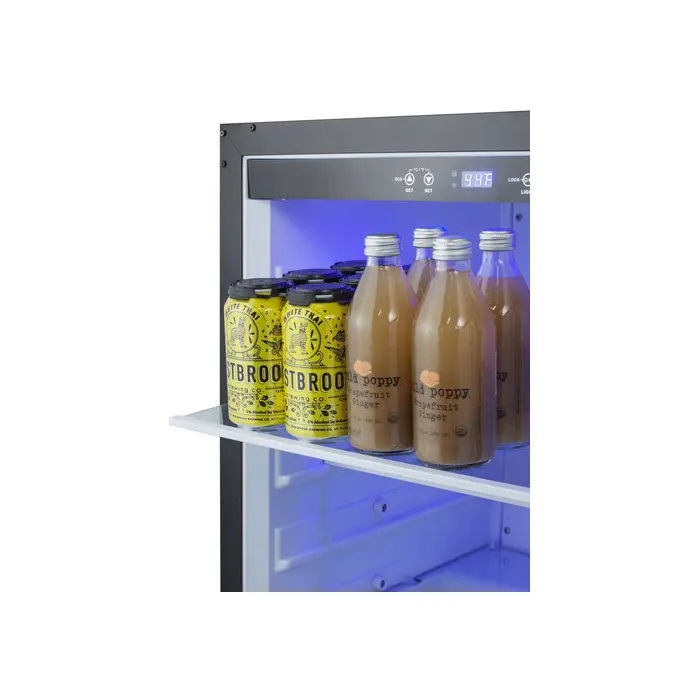

3-level LED lighting Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

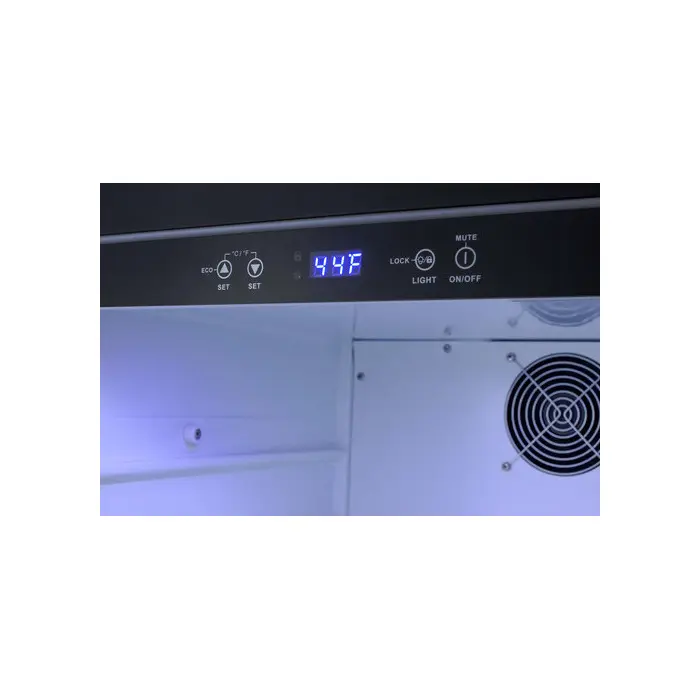

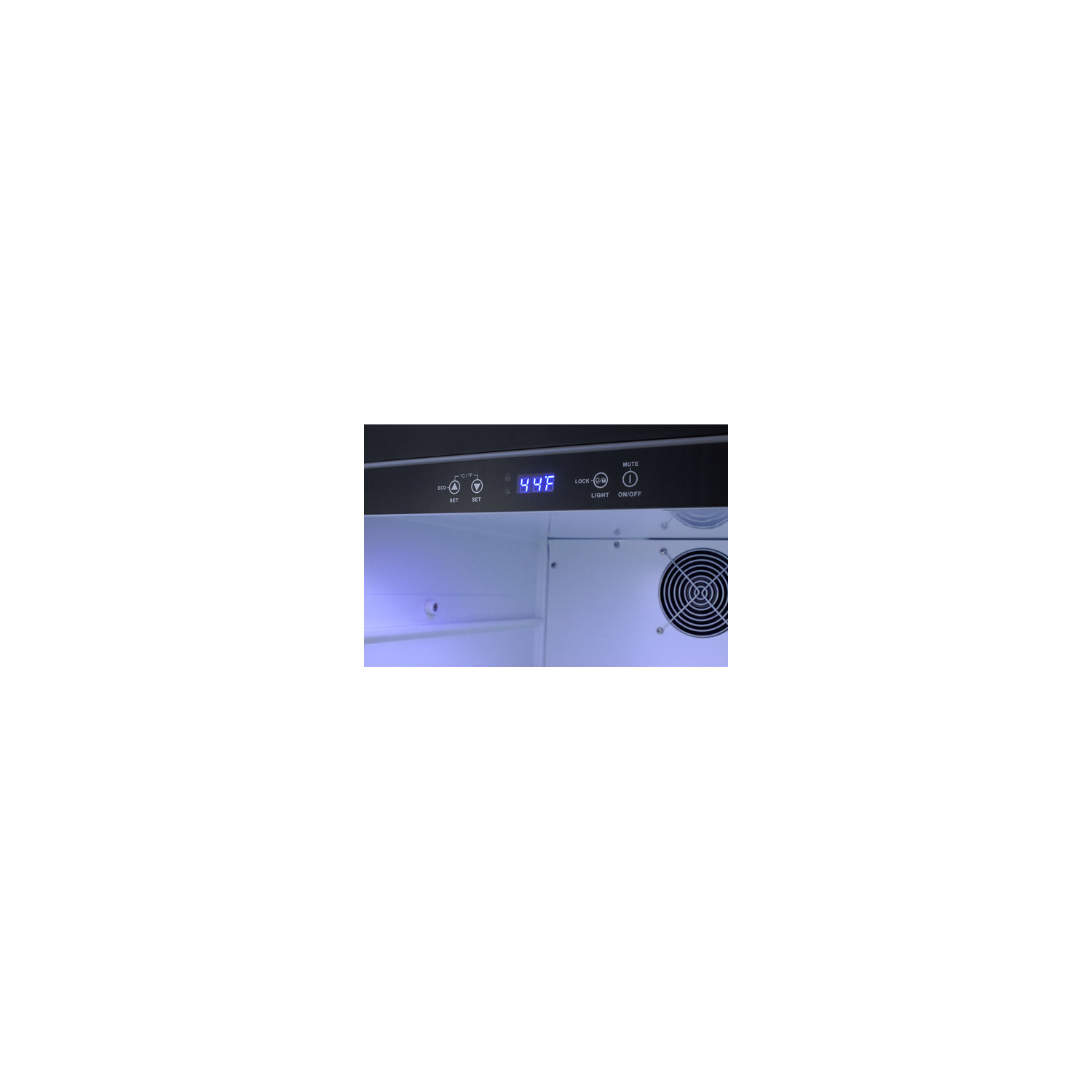

Digital thermostat Intuitive touch controls located inside the unit make temperature adjustment simple, with a temperature display in Celsius or Fahrenheit

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Slotted floor Allows for easy storage of bottles

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom

Fully finished cabinet Allows the refrigerator to be used as a freestanding model

Professional handle Horizontally mounted handle in brushed stainless steel complements many styles of cabinetry

Stainless steel kickplate Designer kickplate completes the look

Integrated hinge Flat stainless steel hinge ensures no added height is needed when installing under a counter

Sealed back Space saving design with easier cleanability

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR623OS.pdf)

TECHNICAL DRAWING (.dwg) (SPR623OS_SPR623OSCSS_REFRIGERATOR.dwg)

ASSEMBLY DRAWING (SPR623OS_ASS_Y.pdf)

REVIT MODEL (Qf_Summit_SPR623OS_24_inches_Wide_Built-In_Outdoor_All-Refrigerator.rfa)

USE & CARE (SPR623OS-User-Manual.pdf)

Energy Guide
