Summit 19 inch wide shallow depth ADA compliant indoor/outdoor beverage center with glass door and white interior, 7.61101e+011, SPR489OSADA

Summit's line of outdoor appliances includes slim-fitting, ADA compliant display beverage centers designed for optimum storage and product presentation.

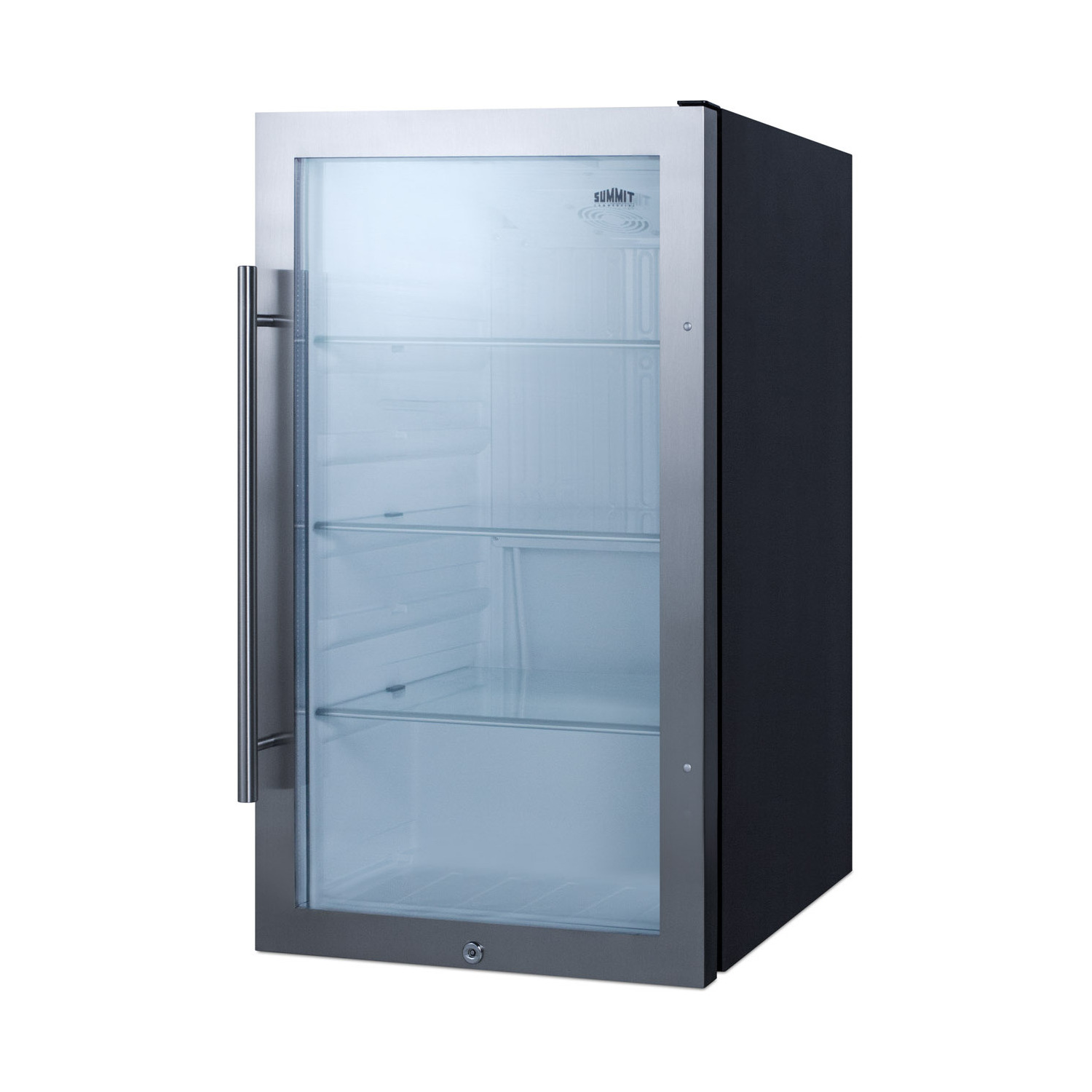

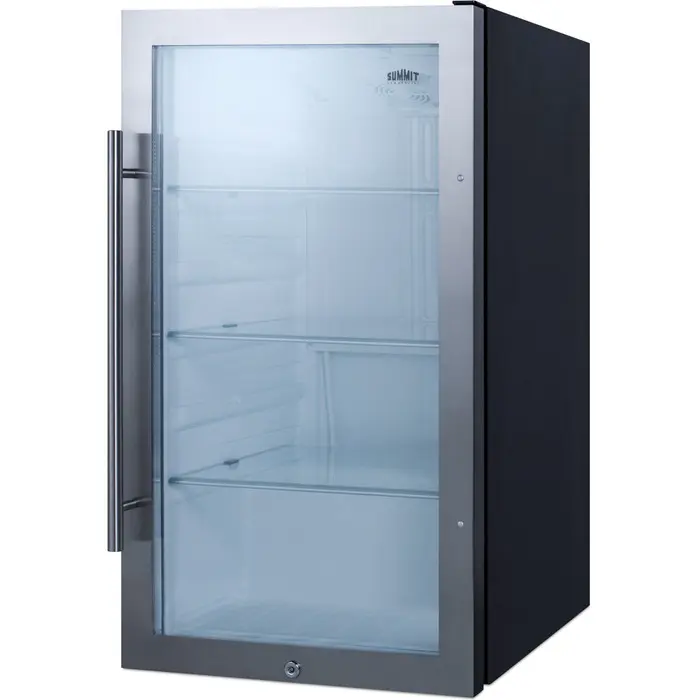

The SPR489OSADA features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized at just 19"es wide and 17"es deep, it features a jet black cabinet with a sealed back for safe installation in the outdoors. The user-reversible double pane tempered glass door includes a seamless stainless steel trim and a pro-style handle. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces.

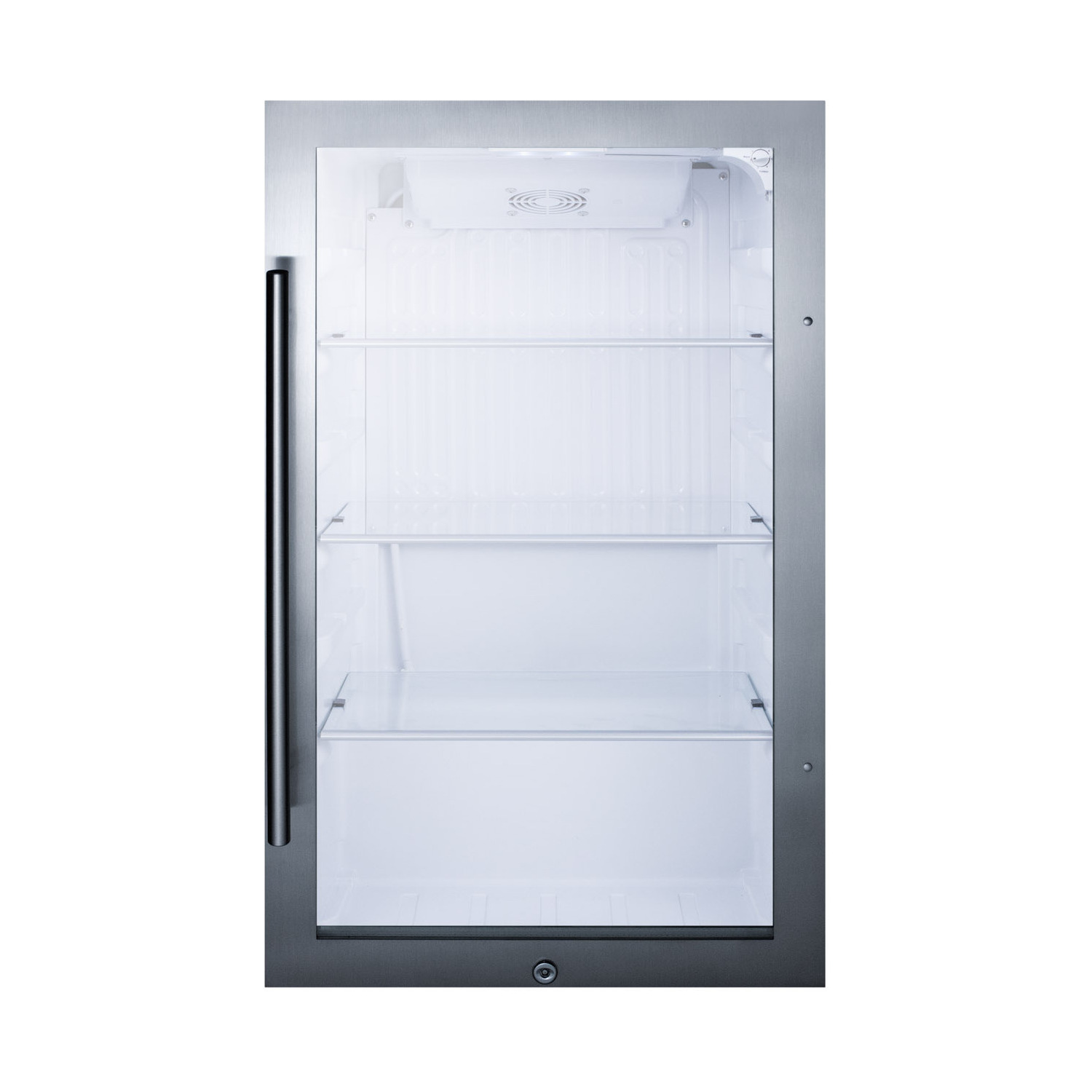

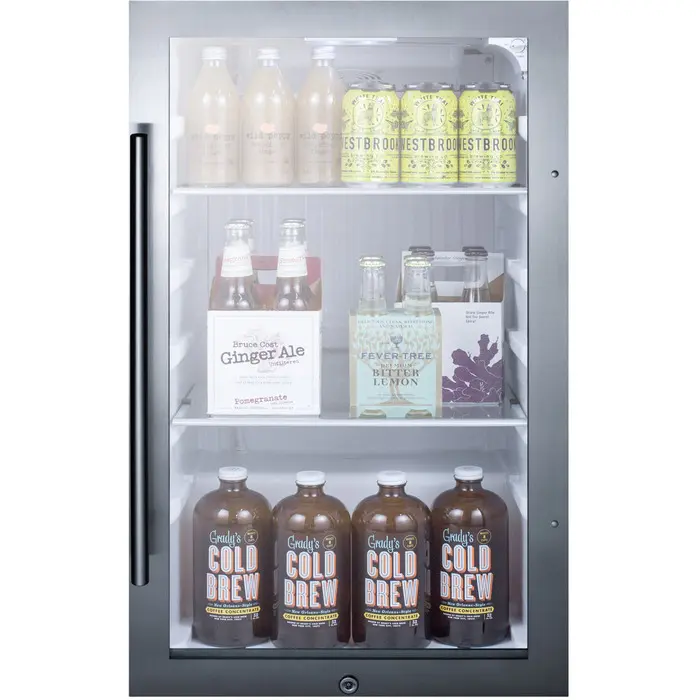

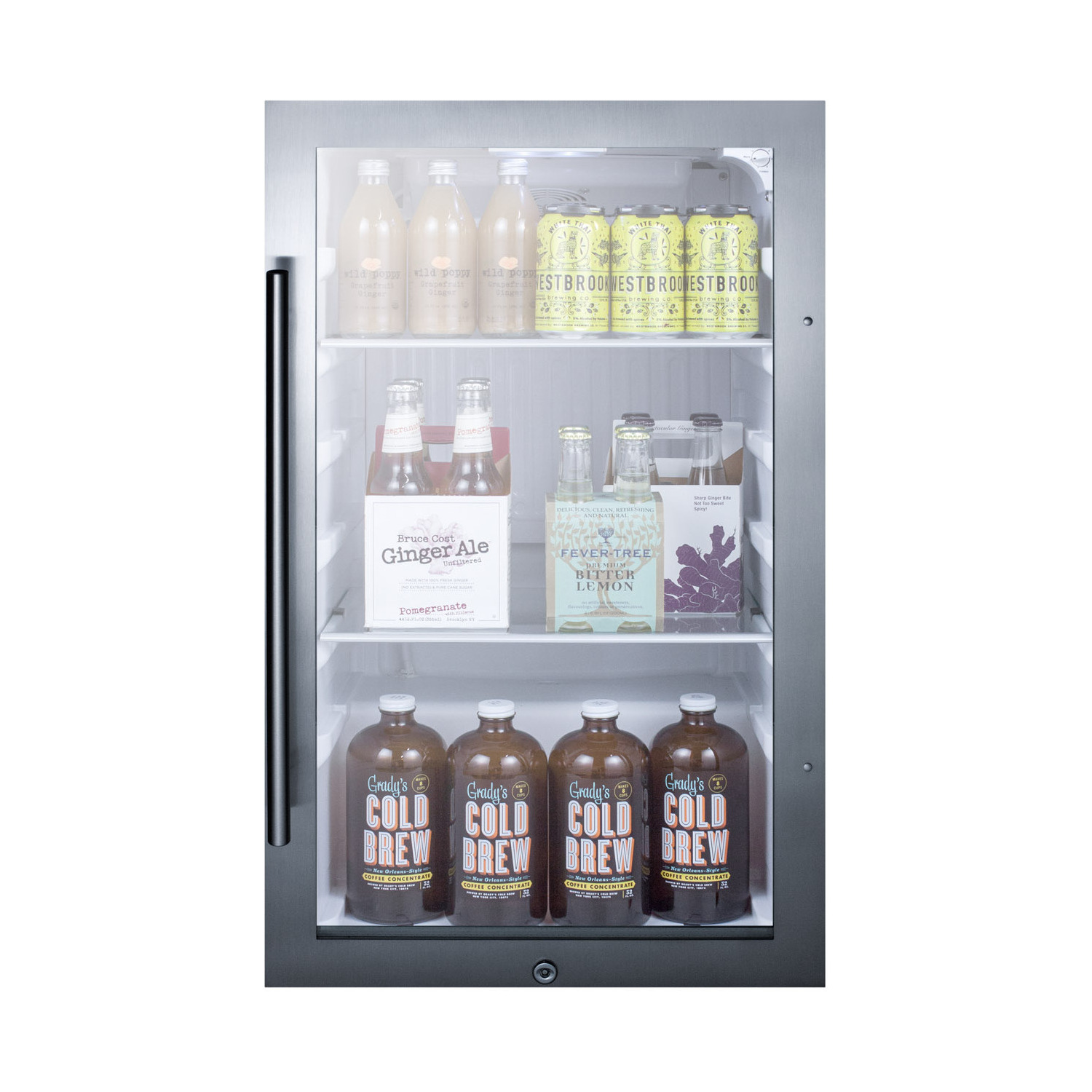

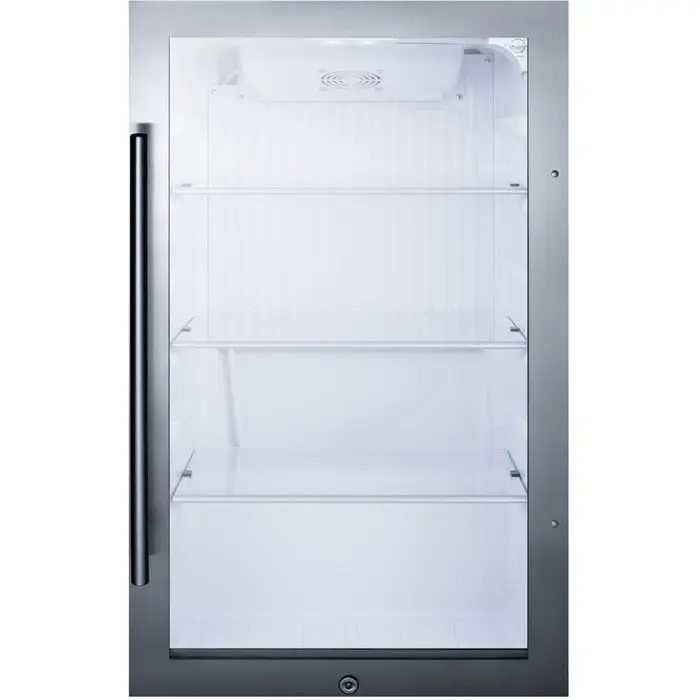

Inside, the SPR489OSADA utilizes an internal fan to ensure the interior is evenly cooled from top to bottom. An automatic defrost system allows for minimal user maintenance, while the white interior and LED lighting allows full visibility of stored items. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.

The SPR489OSADA is sized at 32.5"es high to fit under most lower ADA compliant counters. This unit can be used built-in or freestanding in indoor or outdoor settings.

Nominal Height: 32
Height of Cabinet: 32.5
Height to Hinge Cap: 0
Nominal Width: 19
Width: 19
Width with Door Open: 0
Nominal Depth: 17
Depth: 17
Depth with Handle: 18.63
Depth with door at 90°: 34.75
Capacity: 3.13
Bottles: 0Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.5" (83 cm)

Nominal Width 19.0" (48 cm)

Width 19.0" (48 cm)

Nominal Depth 17.0" (43 cm)

Depth 17.0" (43 cm)

Depth with Handle 18.63" (47 cm)

Depth with door at 90° 34.75" (88 cm)

Capacity 3.13 cu.ft. (89 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 285.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 70.0 lbs. (32 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101067681

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Can Storage Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.88oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34 to 50ºF

Sound Level 32.6 dB

Dimensions

Interior Height 29.0" (74 cm)

Interior Width 16.0" (41 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 16.0" (41 cm)

Compressor Step Depth 6.25" (16 cm)

FEATURES

Built-in capable Make the best use of space by installing your refrigerator under the counter

ADA compatible height Sized at 32.5" high for installation under most lower ADA compliant counters

17" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space

Weatherproof design Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door

Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Double pane tempered glass door Heat resistant design provides clear view of stored products, with an elegant trim in seamless stainless steel

Automatic defrost Reduced user maintenance with auto defrost system

Reversible door User-reversible door swing makes it easy to adjust to your setting as needed

Factory installed lock Keyed lock offers added security, with two keys included

Professional handle Stainless steel handle adds an attractive touch

Adjustable shelves Three glass shelves with six positions for optimal storage and easy cleaning

LED lighting Automatically illuminates when the door is open for an attractive and energy efficient view

White interior finish White interior offers improved visibility of stored contents

Adjustable thermostat Dial thermostat with seven temperature settings offers easy temperature management

Versatile construction Versatile design allows for residential use

Sealed back Space saving design with easier cleanability and added protection from the elements

Fully finished black cabinet Allows the unit to be used freestanding

Right-angle plug Provides flexibility in unit placement without needing added depth

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
