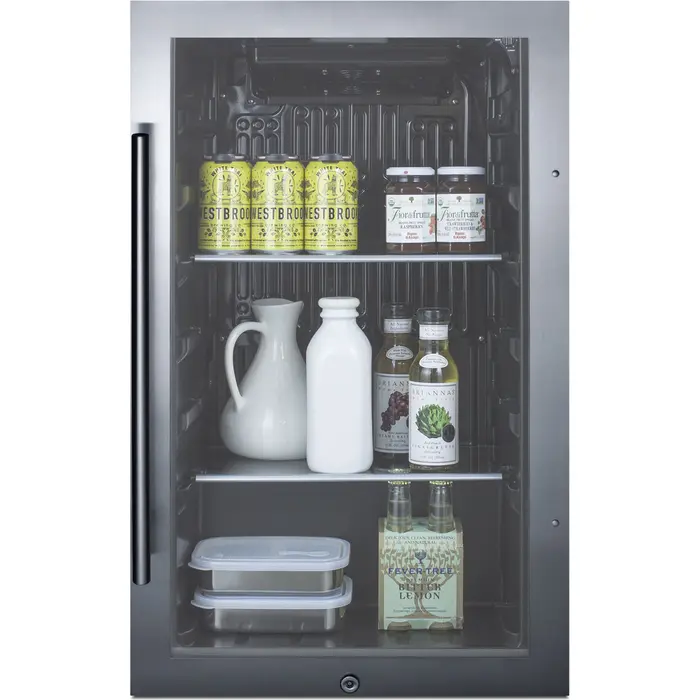

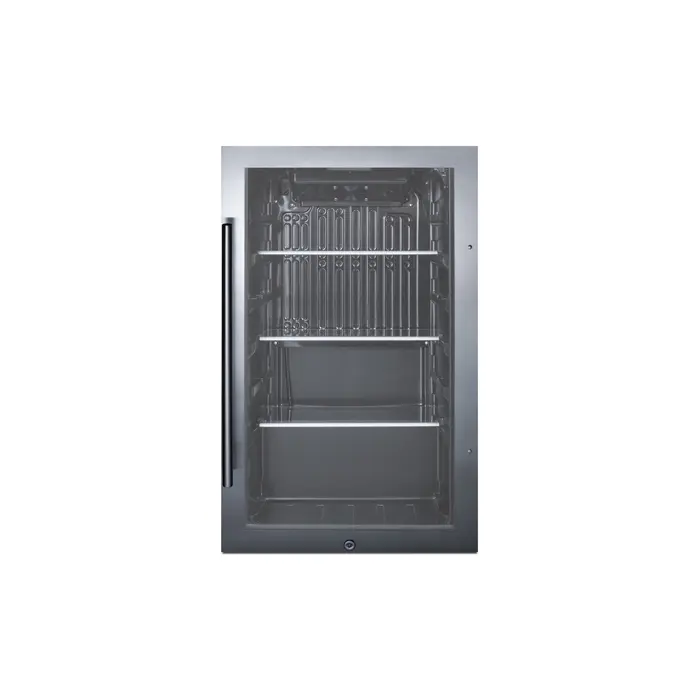

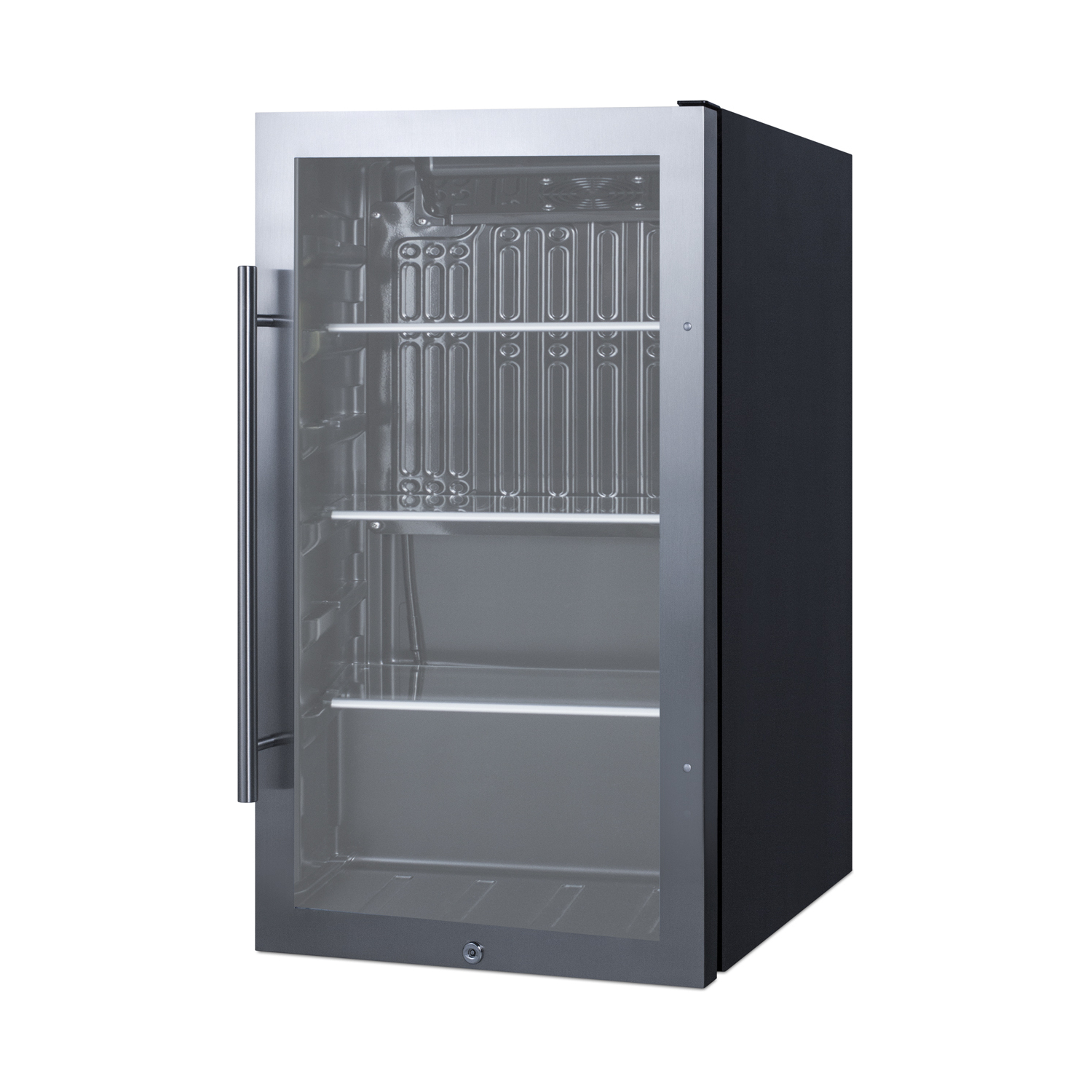

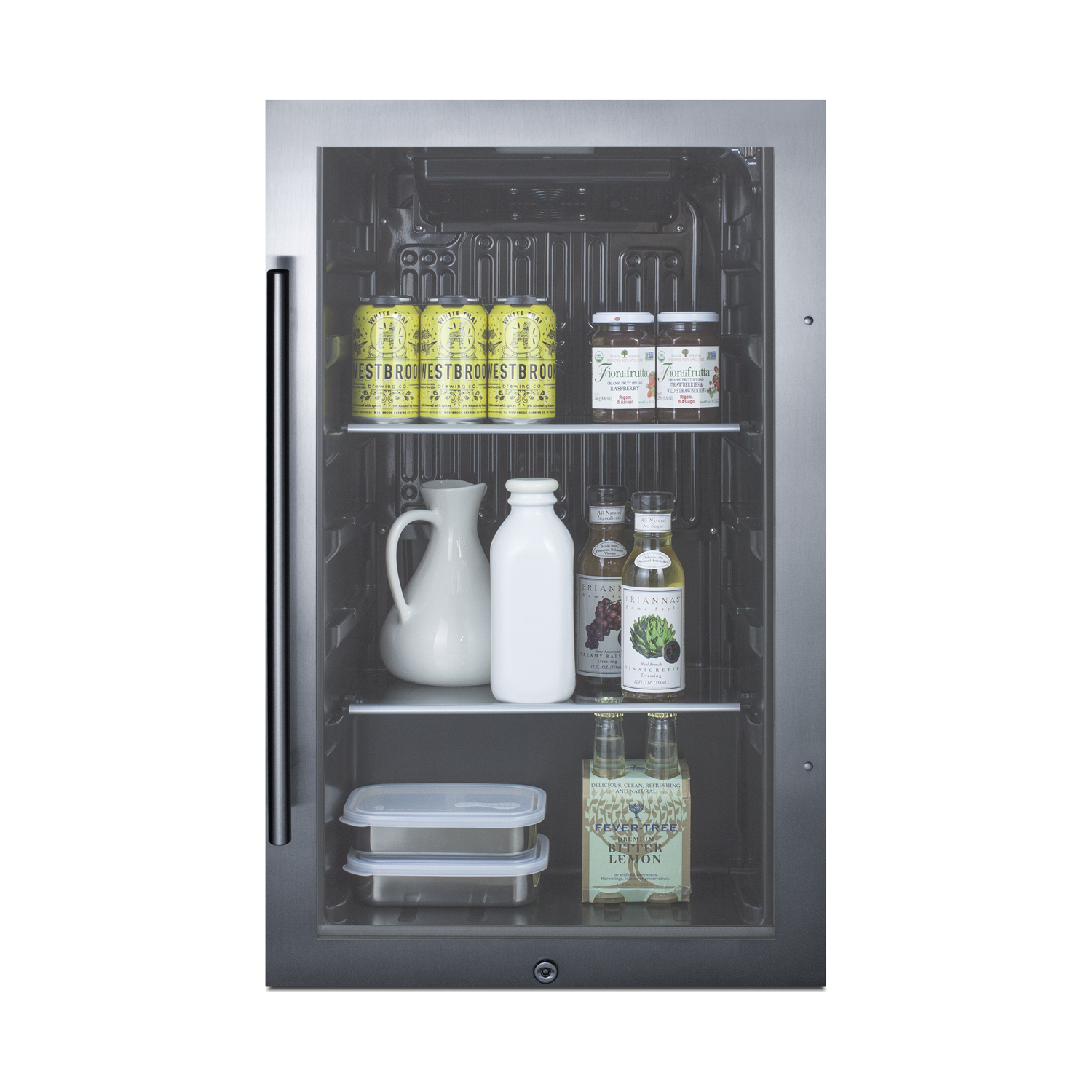

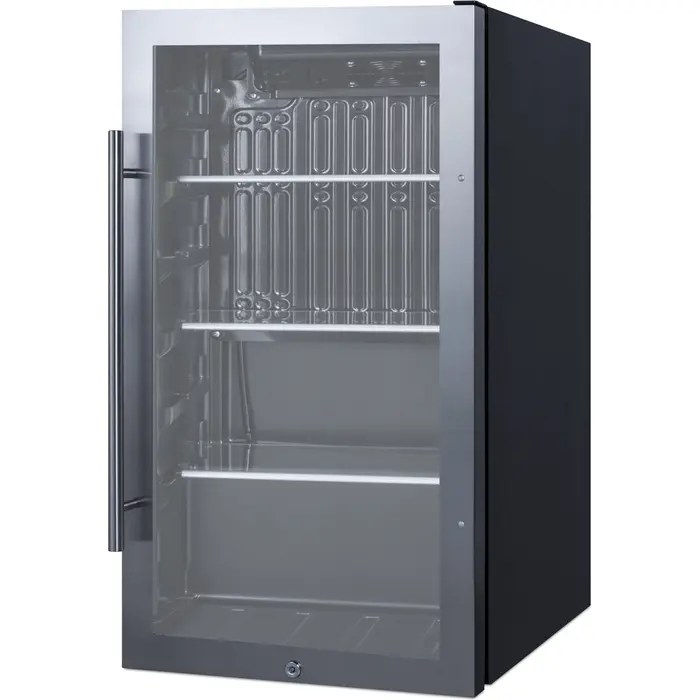

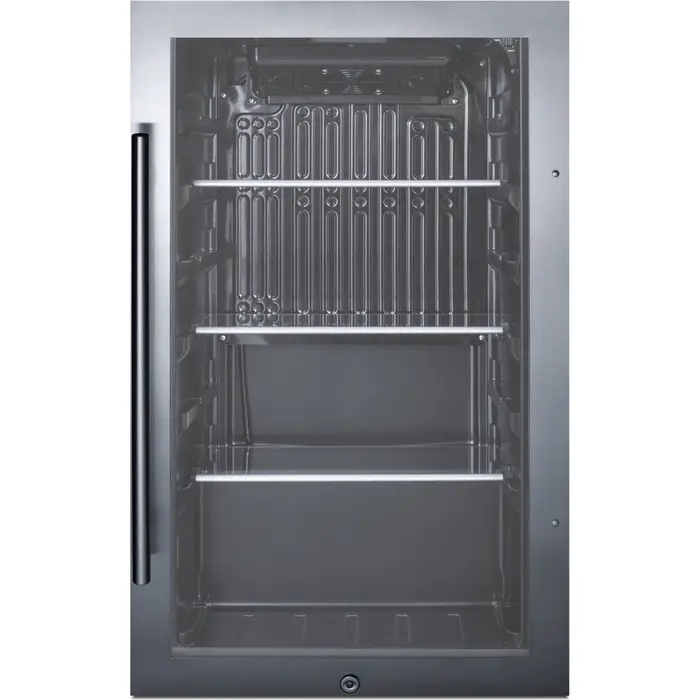

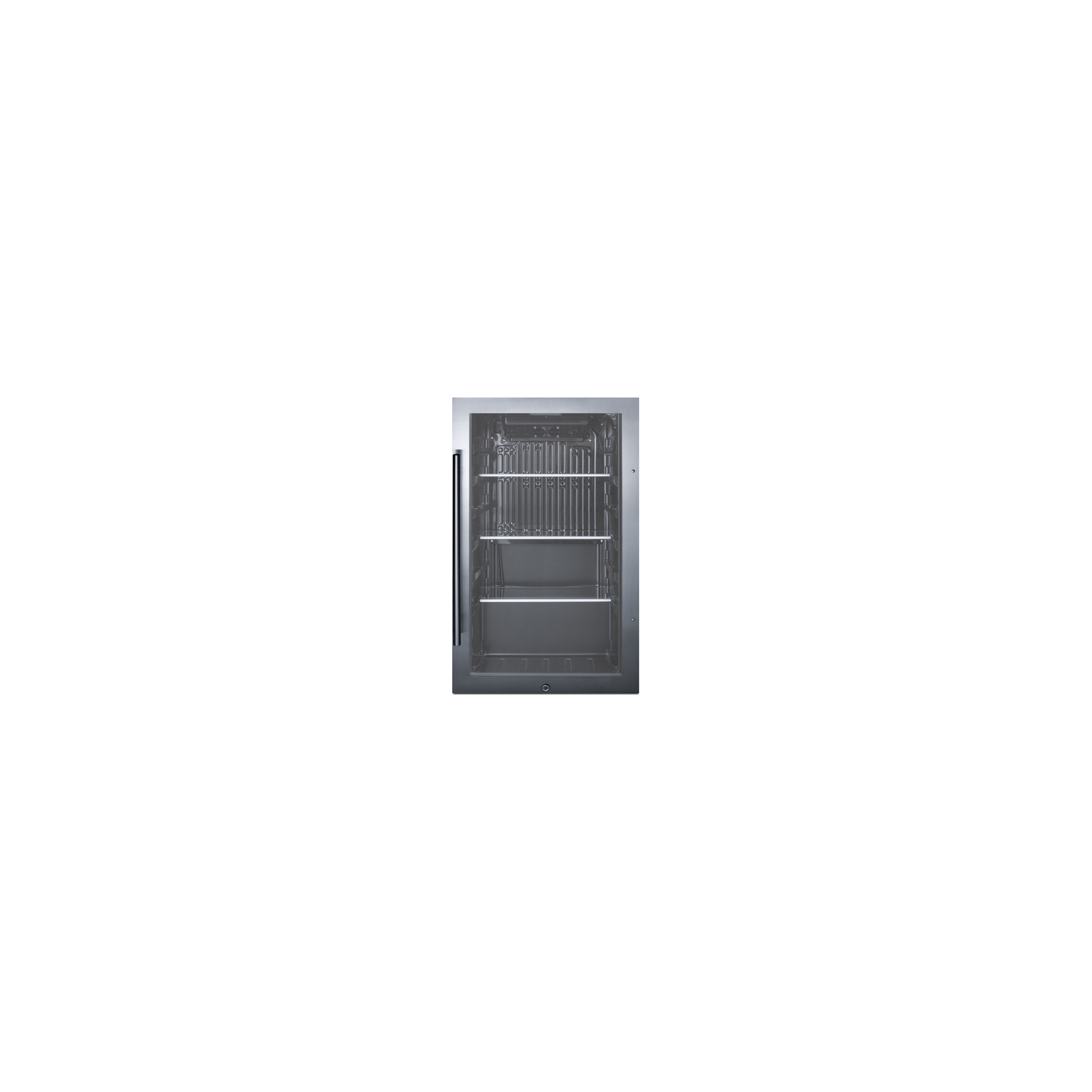

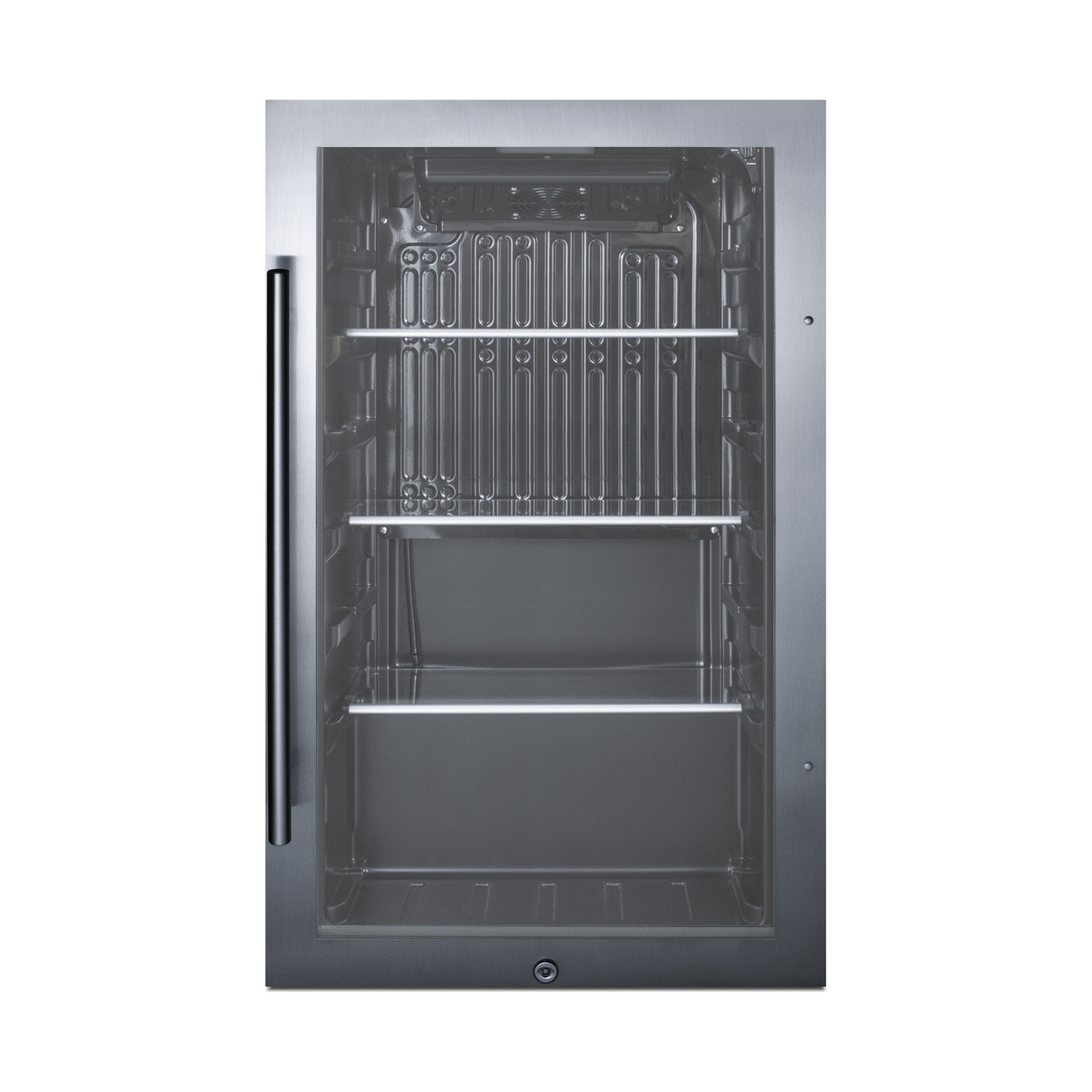

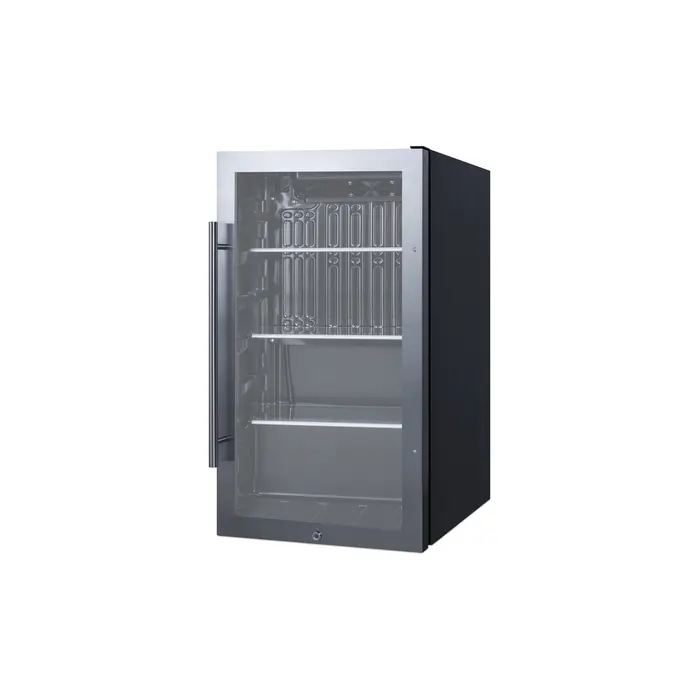

Summit 19 inch wide shallow depth ADA compliant indoor/outdoor beverage center with glass door and black interior, 7.61101e+011, SPR488BOSADA
$974.64
Retail Price: $1,470.00
Free shipping
$ 974.64
Description
Summit's line of outdoor appliances includes slim-fitting, ADA compliant display beverage centers designed for optimum storage and product presentation.
The SPR488BOSADA features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized at just 19"es wide and 17"es deep, it features a jet black cabinet with a sealed back for safe installation in the outdoors. The user-reversible double pane tempered glass door includes a seamless stainless steel trim and a pro-style handle. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces.
Inside, the SPR488BOSADA utilizes an internal fan to ensure the interior is evenly cooled from top to bottom, while the automatic defrost system allows for minimal user maintenance. LED lighting allows full visibility of stored items in the jet black interior. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.
The SPR488BOSADA is sized at 32.5"es high to fit under most lower ADA compliant counters. This unit can be used built-in or freestanding in indoor or outdoor settings.
Nominal Height: 32
Height of Cabinet: 32.5
Height to Hinge Cap: 0
Nominal Width: 19
Width: 19
Width with Door Open: 0
Nominal Depth: 17
Depth: 17
Depth with Handle: 18.63
Depth with door at 90°: 34.75
Capacity: 3.13
Bottles: 0Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.5" (83 cm)
Nominal Width 19.0" (48 cm)
Width 19.0" (48 cm)
Nominal Depth 17.0" (43 cm)
Depth 17.0" (43 cm)
Depth with Handle 18.63" (47 cm)
Depth with door at 90° 34.75" (88 cm)
Capacity 3.13 cu.ft. (89 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 285.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077796
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 50ºF
Sound Level 32.6 dB
Dimensions
Interior Height 29.0" (74 cm)
Interior Width 16.0" (41 cm)
Interior Depth 12.75" (32 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 6.25" (16 cm)
FEATURES
Built-in capable Make the best use of space by installing your refrigerator under the counter
ADA compatible height Sized at 32.5" high for installation under most lower ADA compliant counters
17" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space
Weatherproof design Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door
Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Double pane tempered glass door Heat resistant design provides clear view of stored products, with an elegant trim in seamless stainless steel
Automatic defrost Reduced user maintenance with auto defrost system
Reversible door User-reversible door swing makes it easy to adjust to your setting as needed
Factory installed lock Keyed lock offers added security, with two keys included
Professional handle Stainless steel handle adds an attractive touch
Adjustable shelves Three glass shelves with six positions for optimal storage and easy cleaning
LED lighting Automatically illuminates when the door is open for an attractive and energy efficient view
Black interior finish Allows for easy cleaning and organization within the interior of the unit
Adjustable thermostat Dial thermostat with seven temperature settings offers easy temperature management
Versatile construction Versatile design allows for residential use
Sealed back Space saving design with easier cleanability and added protection from the elements
Fully finished black cabinet Allows the unit to be used freestanding
Right-angle plug Provides flexibility in unit placement without needing added depth
100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
