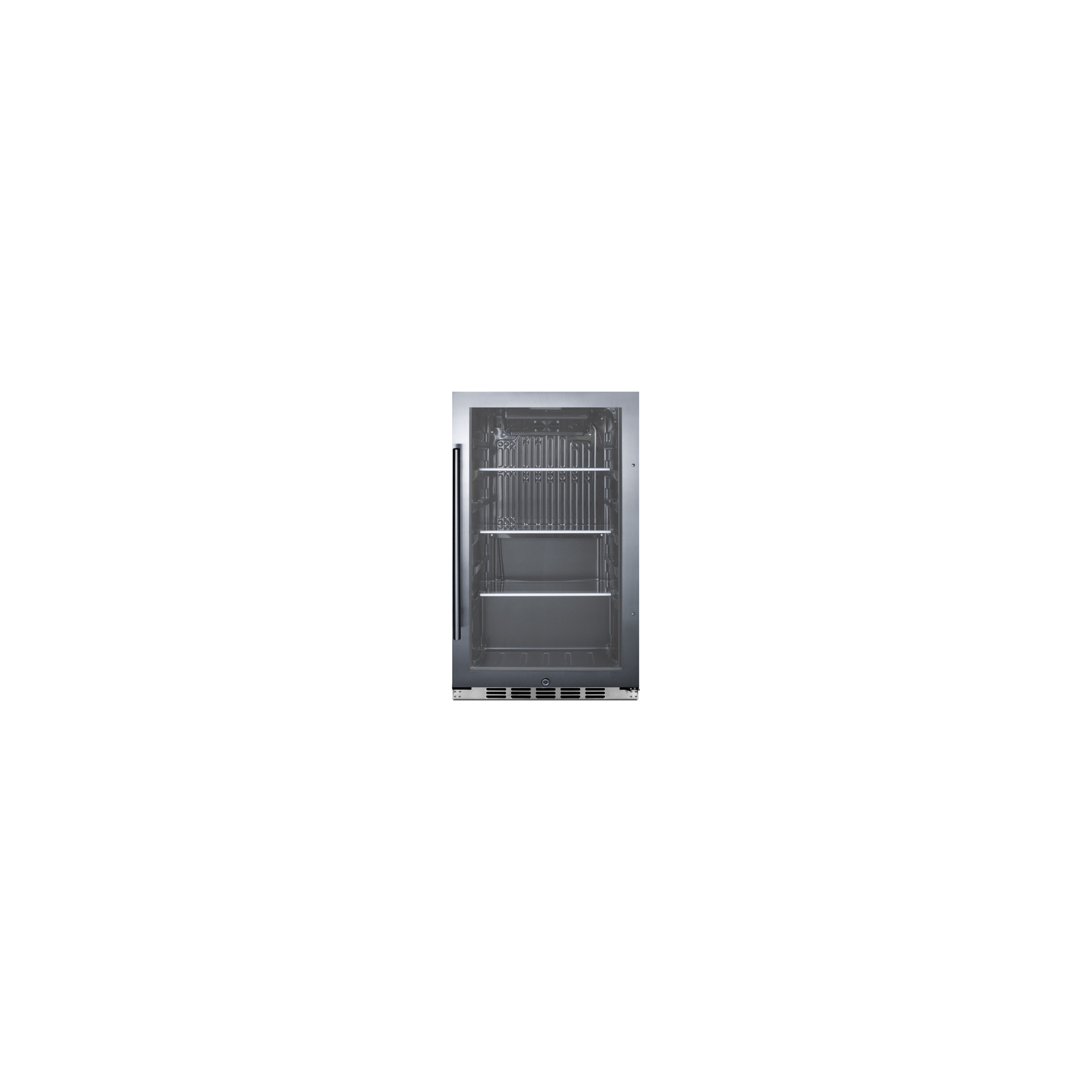

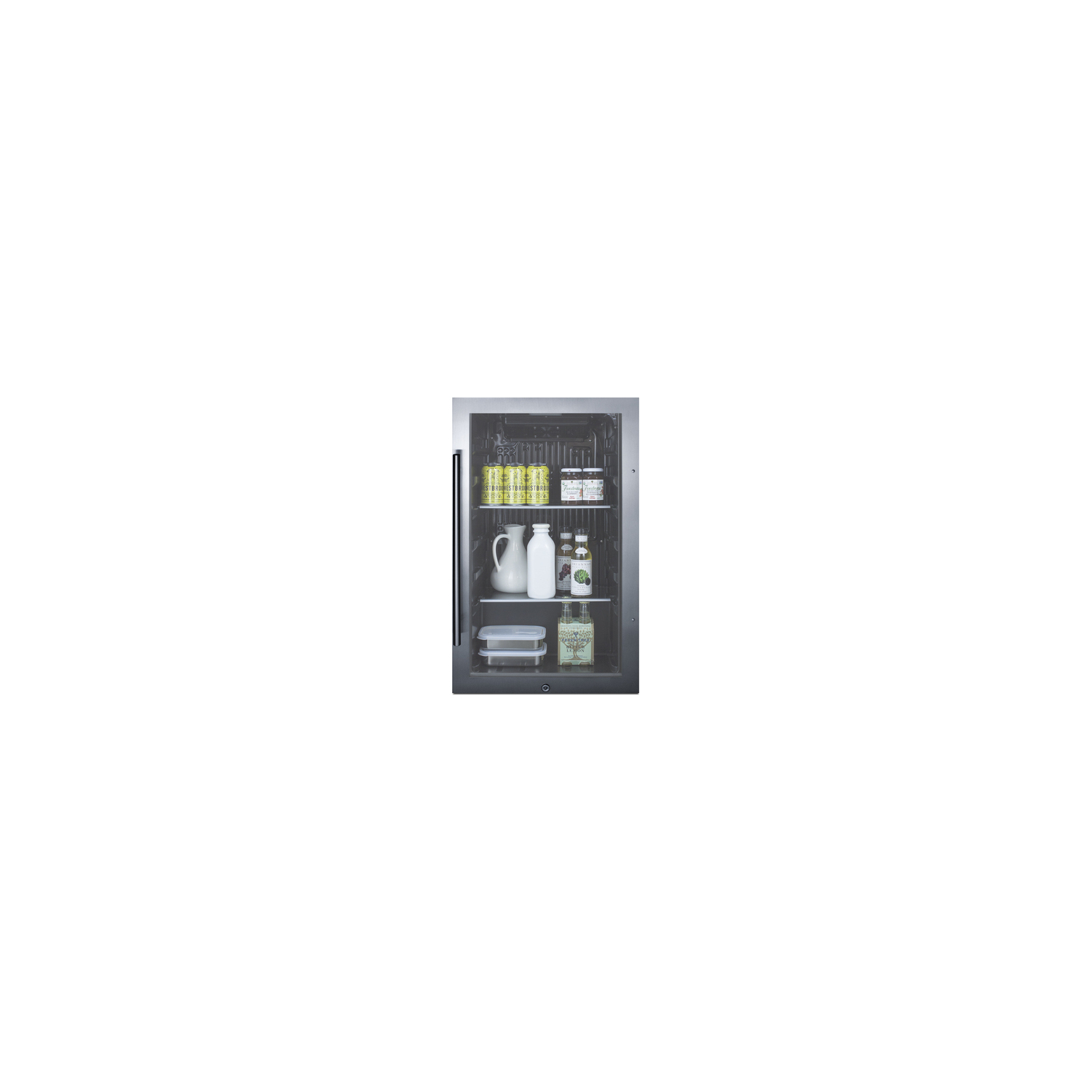

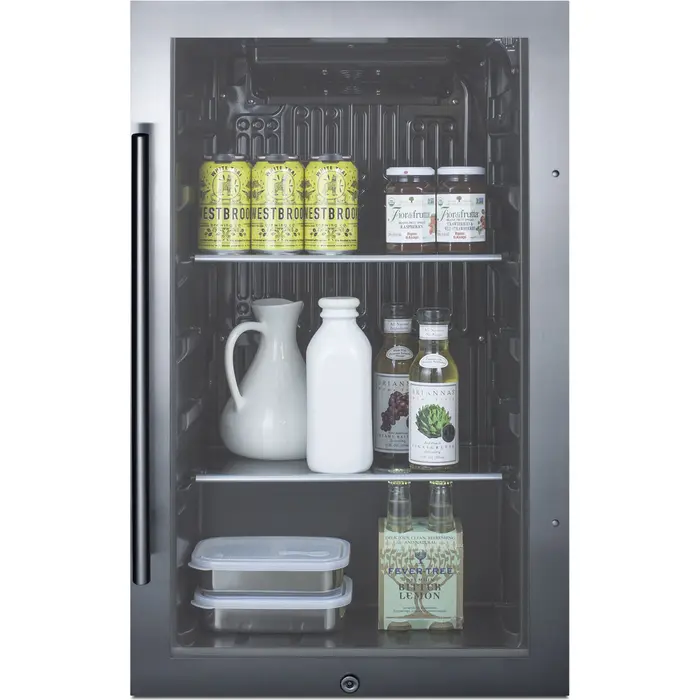

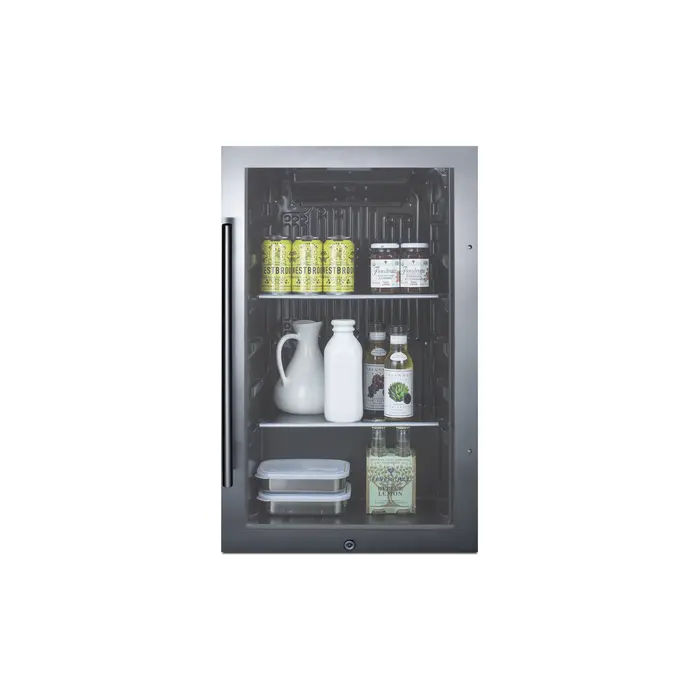

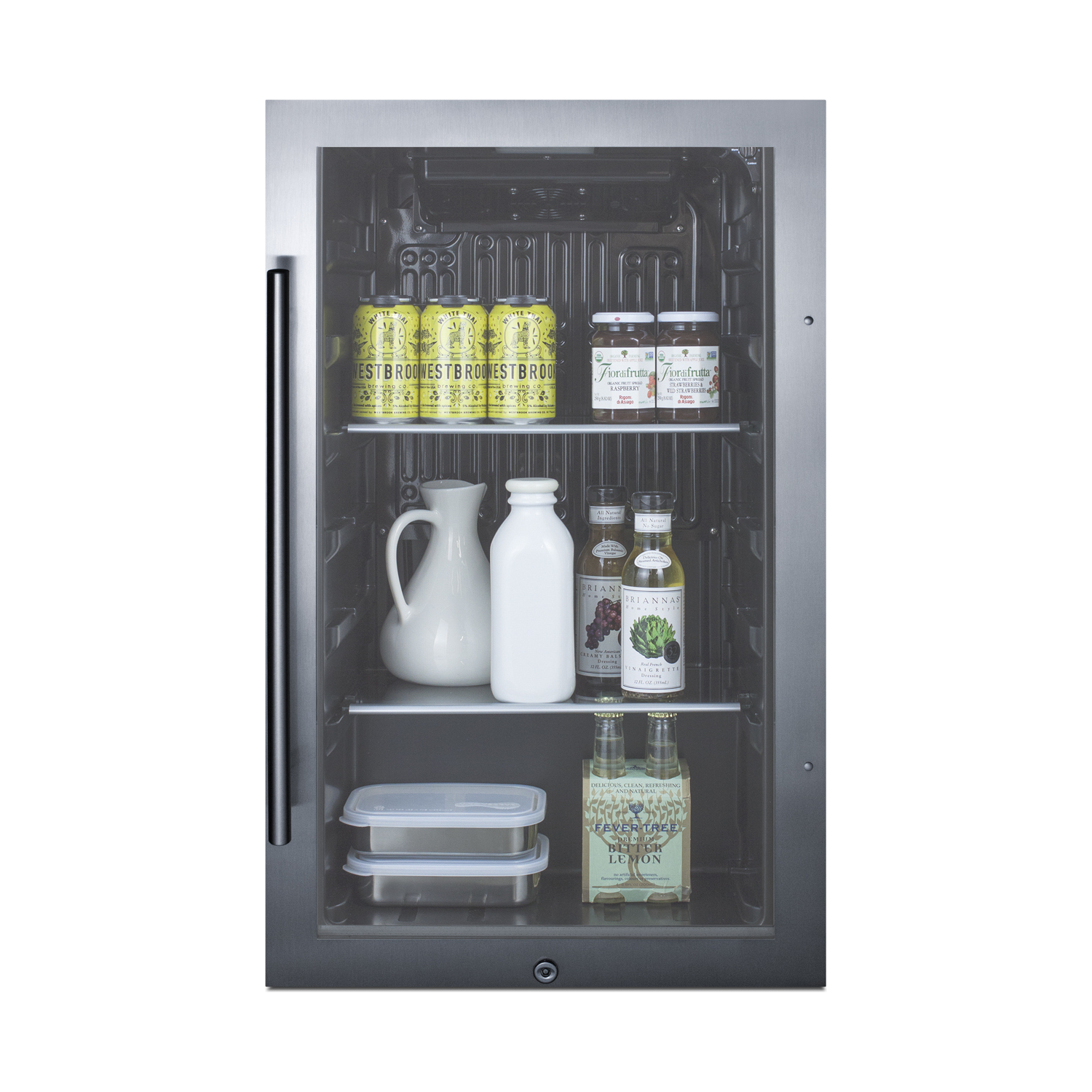

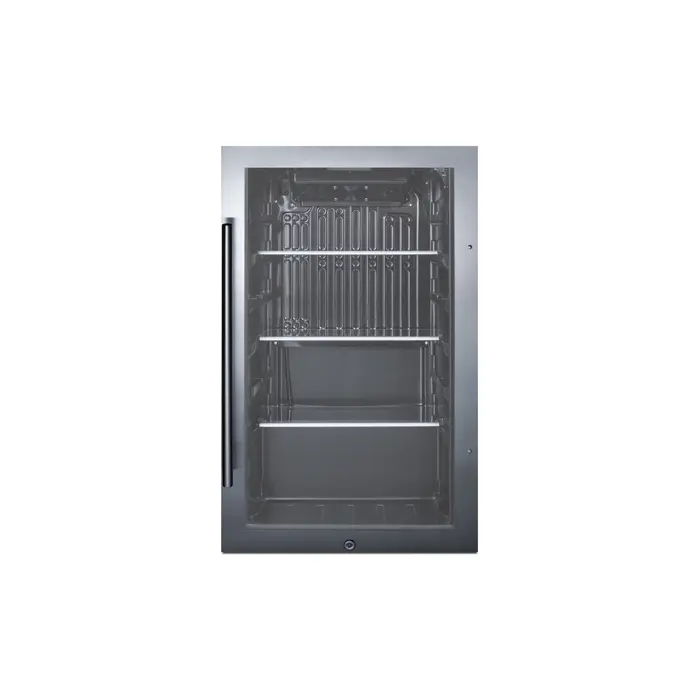

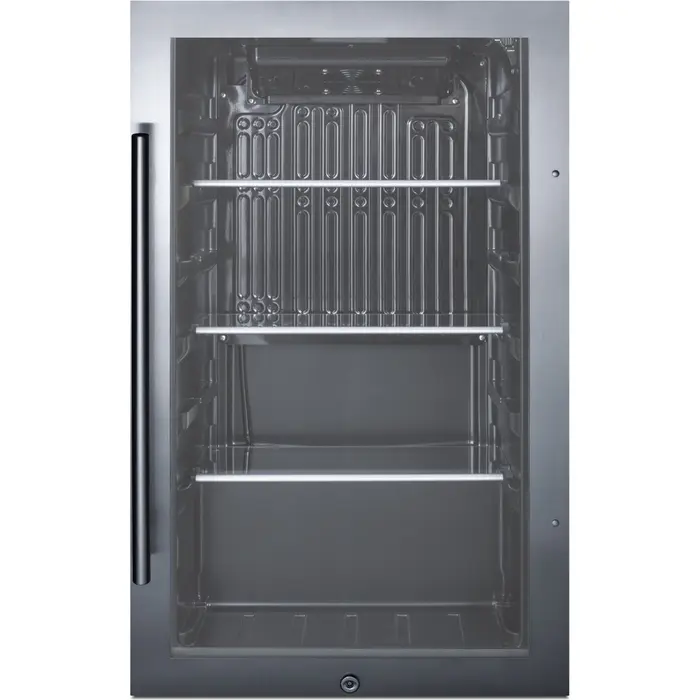

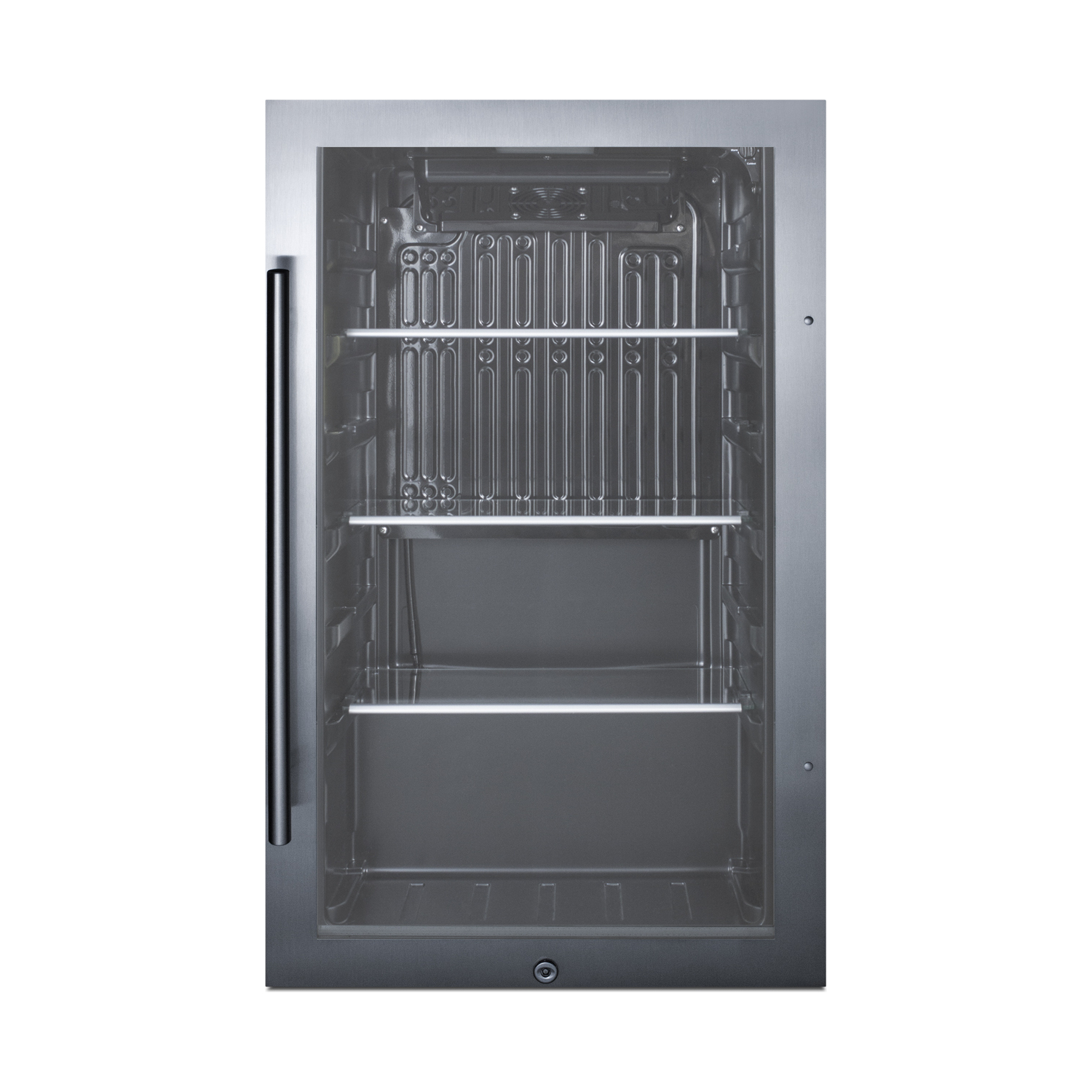

Summit 19 inch wide shallow depth indoor/outdoor beverage center with glass door and black interior, 7.61101e+011, SPR488BOS

Summit's line of outdoor appliances includes slim-fitting display beverage centers designed for optimum storage and product presentation.

The SPR488BOS features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized at just 19"es wide and 17"es deep, it features a jet black cabinet with a sealed back for safe installation in the outdoors. The user-reversible double pane tempered glass door includes a seamless stainless steel trim and a pro style handle. A factory installed lock offers added security, while the space-saving right angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces.

Inside, the SPR488BOS utilizes an internal fan to ensure the interior is evenly cooled from top to bottom, while the automatic defrost system allows for minimal user maintenance. LED lighting allows full visibility of stored items in the jet black interior. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.

The SPR488BOS can be installed indoors or outdoors and is designed for built-in or freestanding use. For this unit in a lower ADA compliant height, see the SPR488BOSADA.Nominal Height: 33
Height of Cabinet: 33
Height to Hinge Cap: 0
Nominal Width: 19
Width: 19
Width with Door Open: 0
Nominal Depth: 17
Depth: 17
Depth with Handle: 18.63
Depth with door at 90°: 34.75
Capacity: 3.13
Bottles: 0Defrost Type: AutomaticDoor: GlassCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 33.0" (84 cm)

Nominal Width 19.0" (48 cm)

Width 19.0" (48 cm)

Nominal Depth 17.0" (43 cm)

Depth 17.0" (43 cm)

Depth with Handle 18.63" (47 cm)

Depth with door at 90° 34.75" (88 cm)

Capacity 3.13 cu.ft. (89 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 285.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 70.0 lbs. (32 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101075877

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Can Storage Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.88oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34 to 50ºF

Sound Level 32.6 dB

Dimensions

Interior Height 29.0" (74 cm)

Interior Width 16.0" (41 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 16.0" (41 cm)

Compressor Step Depth 6.25" (16 cm)

FEATURES

Built-in capable Make the best use of space by installing your refrigerator under the counter

Weatherproof design Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door

Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Double pane tempered glass door Heat resistant design provides clear view of stored products, with an elegant trim in seamless stainless steel

Automatic defrost Reduced user maintenance with auto defrost system

17" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space

Reversible door User-reversible door swing makes it easy to adjust to your setting as needed

Factory installed lock Keyed lock offers added security, with two keys included

Professional handle Stainless steel handle adds an attractive touch

Adjustable shelves Three glass shelves with six positions for optimal storage and easy cleaning

LED lighting Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish Allows for easy cleaning and organization within the interior of the unit

Adjustable thermostat Dial thermostat with seven temperature settings offers easy temperature management

Versatile construction Versatile design allows for residential use

Sealed back Space saving design with easier cleanability and added protection from the elements

Fully finished black cabinet Allows the unit to be used freestanding

Right-angle plug Provides flexibility in unit placement without needing added depth

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080 Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR488BOS.pdf)

TECHNICAL DRAWING (.dwg) (SPR489OS_REFRIGERATOR__A-C_2018__2.dwg)

REVIT MODEL (Qf_Summit_SPR488BOS_Shallow_Depth_Indoor_Outdoor_Beverage_Cooler_2.rfa)

USE & CARE (SPR488BOS-User-Manual.pdf)

Energy Guide
