Summit 36 inch wide built-in undercounter 2-drawer all-refrigerator, 7.61101e+011, SPR36332D

Summit is expanding its popular lineup of built-in undercounter drawer refrigeration with a new luxury 36" wide unit for residential or commercial kitchen spaces.

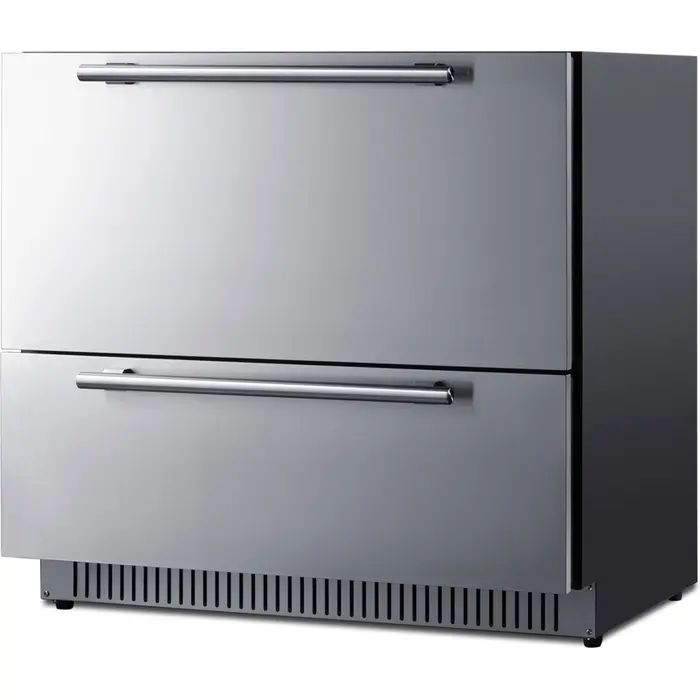

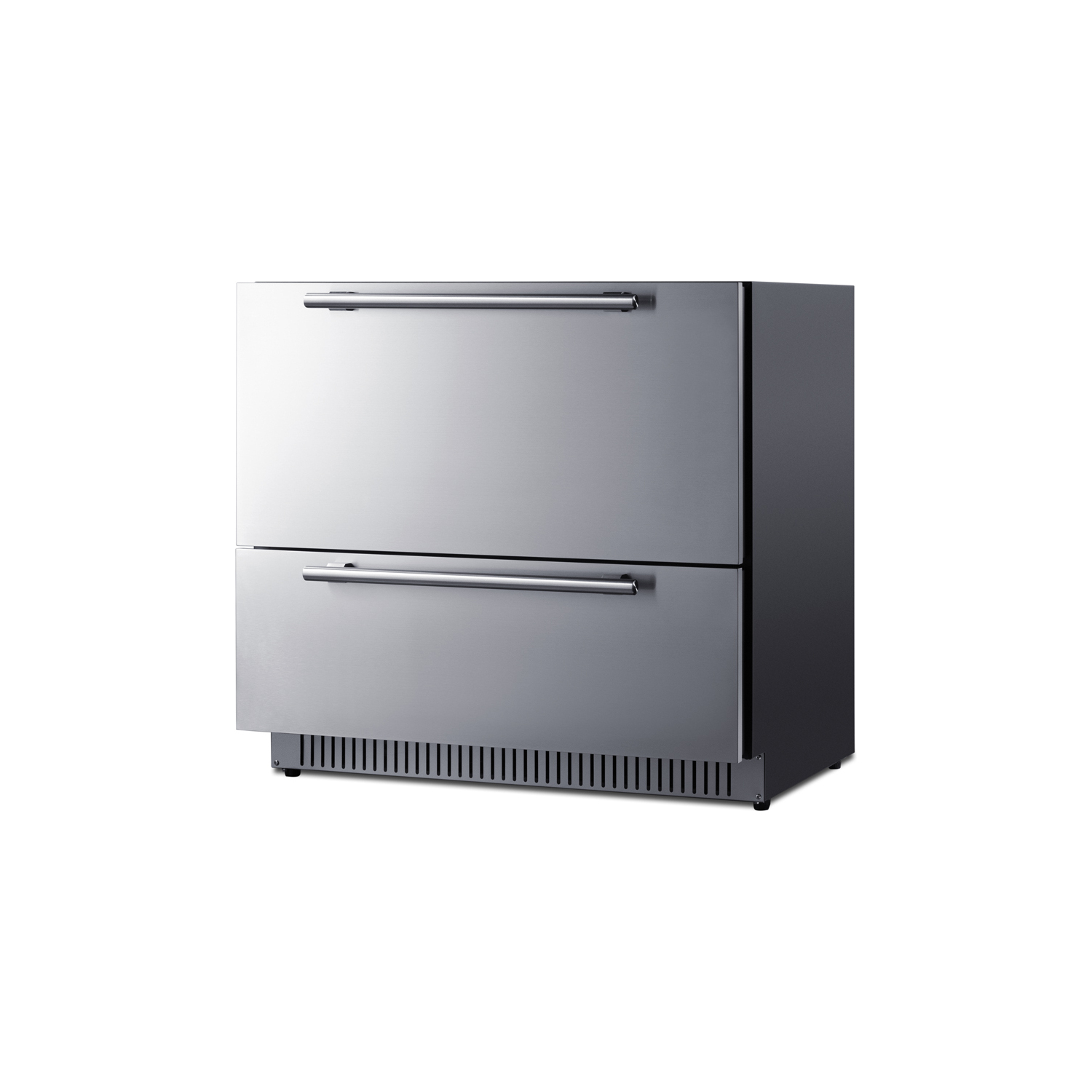

The SPR36332D is a 2-drawer all-refrigerator sized just under 36" wide and 24" deep for an easy fit under the counter in indoor or outdoor kitchens. Stainless steel drawers paired with professional stainless steel handles ensures lasting durability and a stunning, contemporary style to suit any setting. The fully finished drawer fronts can also be removed to accept full overlay panels for a custom look to match any kitchen style. This unit has a front-breathing design for built-in installation, with a fully finished cabinet to also allow freestanding use. The unit's sealed back and right-angle plug help to ensure an easy fit.

With a generous 7.15 cu.ft. interior capacity, the SPR36332D is perfect for keeping various items in easy reach. Each drawer includes a set of removable divider that lets you create six adjustable sections inside to help organize the interior. The intuitive digital control panel features a wide temperature range, allowing you to adjust your storage conditions for standard food items or beverages better held at warmer temperatures. The temperature display can be switched from Fahrenheit to Celsius for added convenience.

The SPR36332D operates with a frost-free system, which minimizes the need for manual defrosting and reduces maintenance. Internal fans help to maintain an evenly cooled interior, ensuring that your items are kept at the desired temperature. Additional features include open drawer alarms, a child lock to prevent changes to the controls, an eco mode setting, and a 96 hour sabbath mode to disable certain features for periods of observance. Both drawers feature LED lighting in a striking blue finish for elegant illumination.

The SPR36332D features weatherproof construction for safe installation in outdoor kitchens. It is ETL-S listed to NSF-7 commercial standards and also complies with residential regulations for home use. In addition to our 36" wide choice, Summit manufactures a wide selection of built-in undercounter and ADA-height drawer refrigeration starting at just 15" wide.

Browse Summit's extensive selection of built-in undercounter refrigeration to discover the perfect fit for virtually any kitchen space. Nominal Height: 34
Height of Cabinet: 33.88
Height to Hinge Cap: 0
Nominal Width: 36
Width: 35.5
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.5
Depth with door at 90°: 0
Capacity: 7.15
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless Steel/Panel-ReadyCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.88" (86 cm)

Nominal Width 36.0" (91 cm)

Width 35.5" (90 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.5" (65 cm)

Capacity 7.15 cu.ft. (202 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 290.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 152.0 lbs. (69 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101107165

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.41oz.

High Side PSI 150.0

Low Side PSI 50.0

Interior Light Yes

Temperature Range 34°F to 46°F

Drawer Dimensions

Interior Height 1 11.25" (29 cm)

Interior Width 1 29.25" (74 cm)

Interior Depth 1 15.75" (40 cm)

Interior Height 2 7.63" (19 cm)

Interior Width 2 29.25" (74 cm)

Interior Depth 2 15.75" (40 cm)

Dimensions

Compressor Step Height 5.0" (13 cm)

Compressor Step Width 29.25" (74 cm)

Compressor Step Depth 4.63" (12 cm)

FEATURES

36" Wide 2-Drawer All-Refrigerator Uniquely sized luxury all-refrigerator for undercounter built-in installation in residential or commercial kitchen settings

Commercially approved ETL-S listed to NSF-7 standards allows use in commercial kitchens

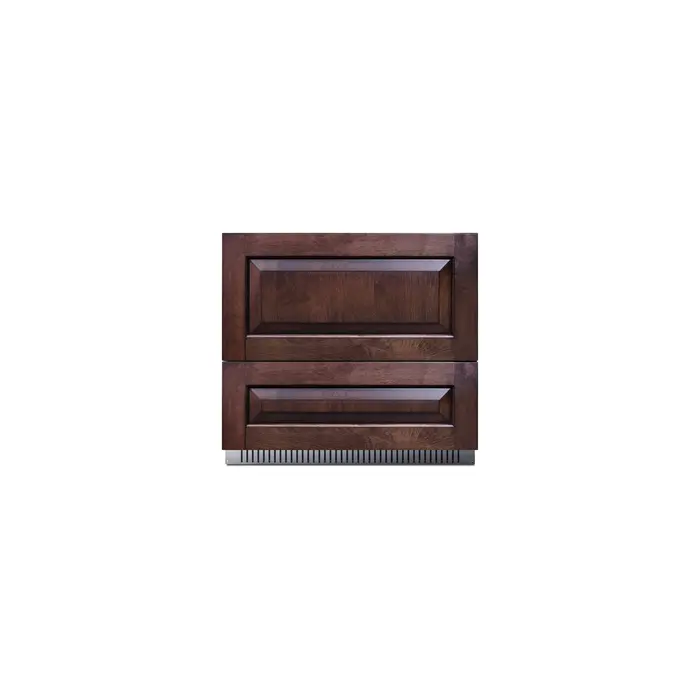

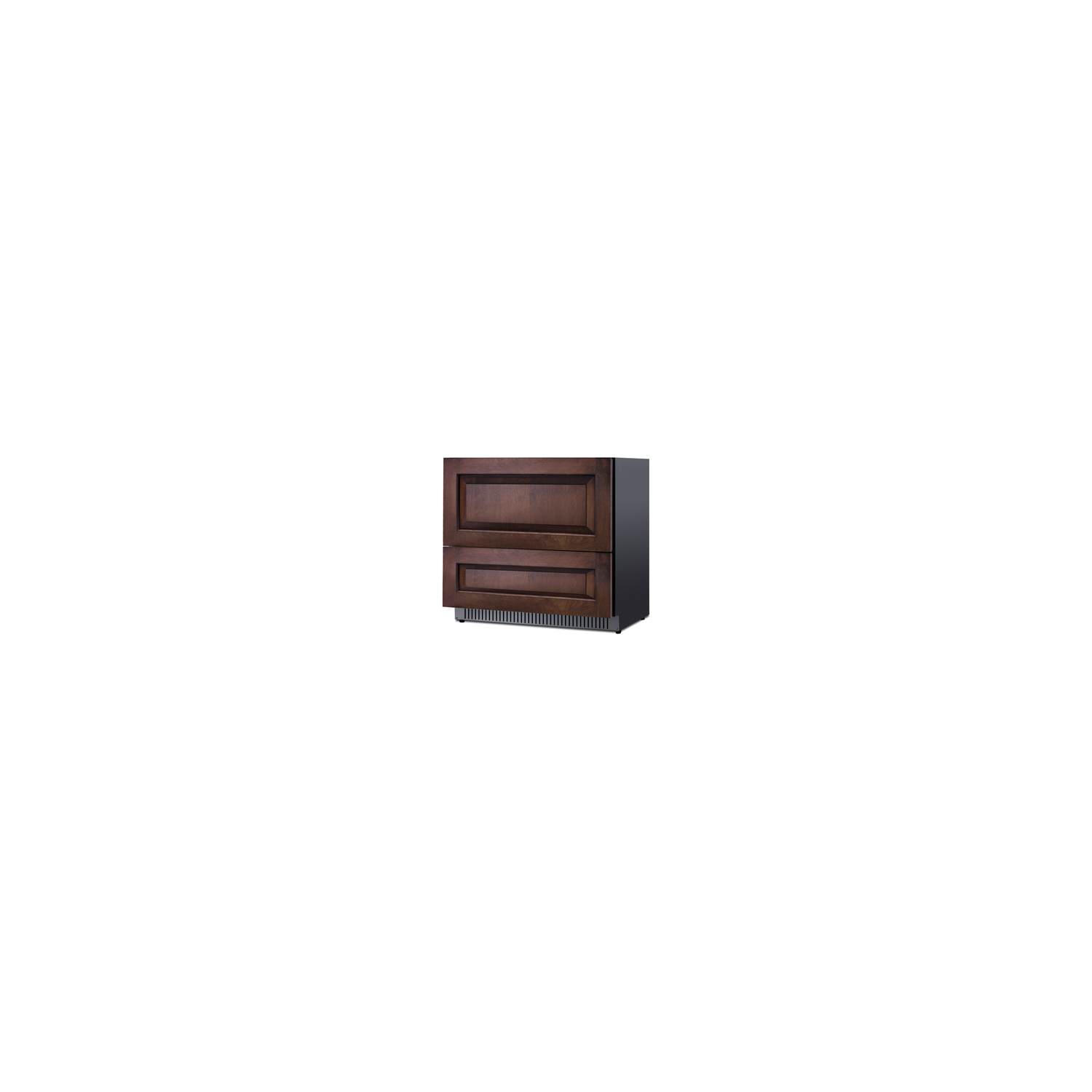

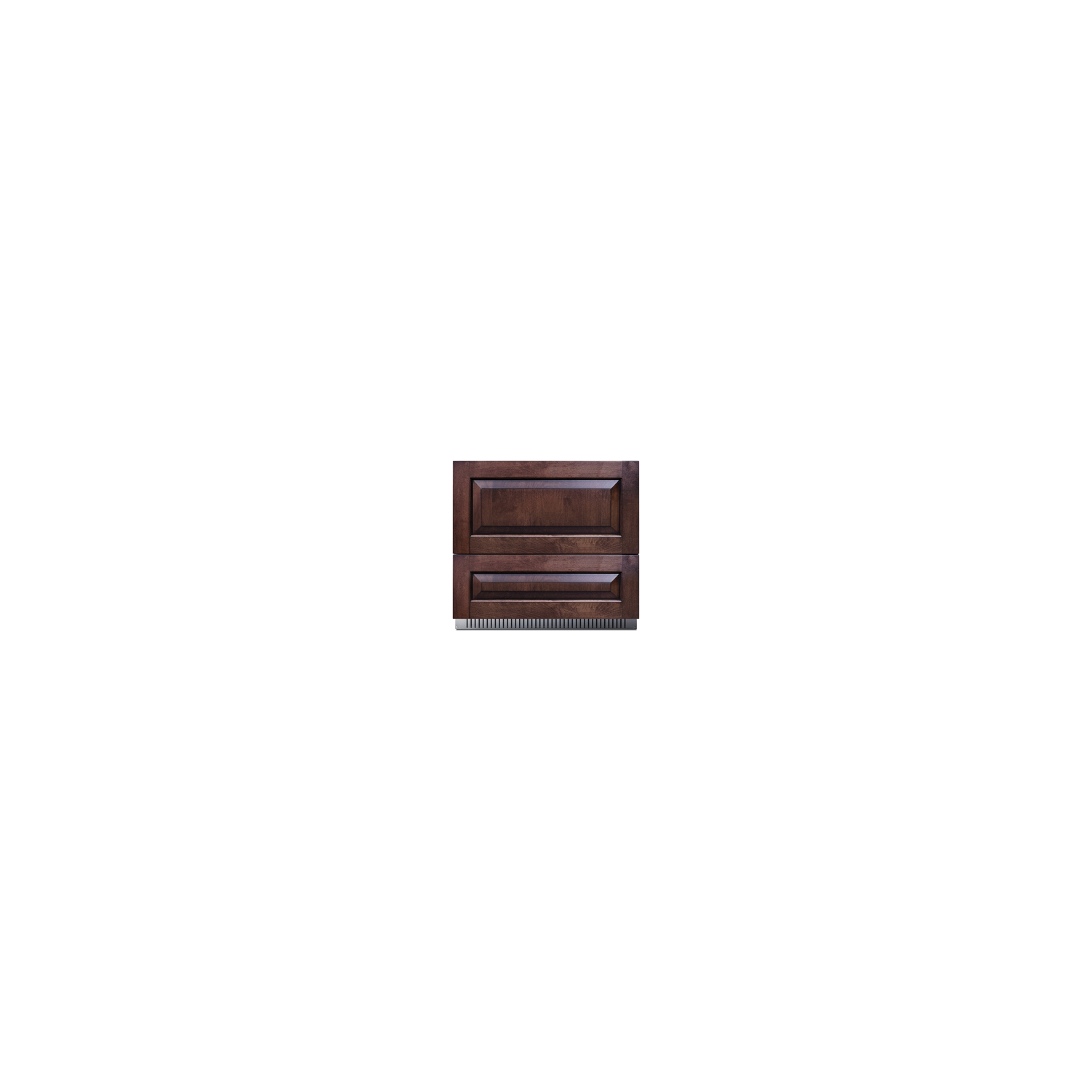

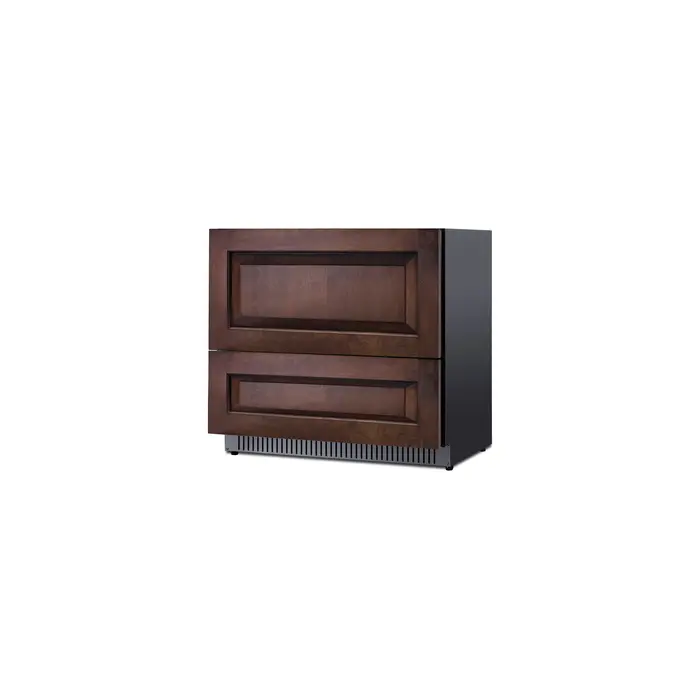

Panel-ready drawer fronts Drawers can be customized with overlay panels to match or accent existing cabinetry (recommended panel sizes: 35.35" W x 17.48" H (upper drawer) and 35.35" W x 12.05" H (lower drawer) at 3/4" thickness

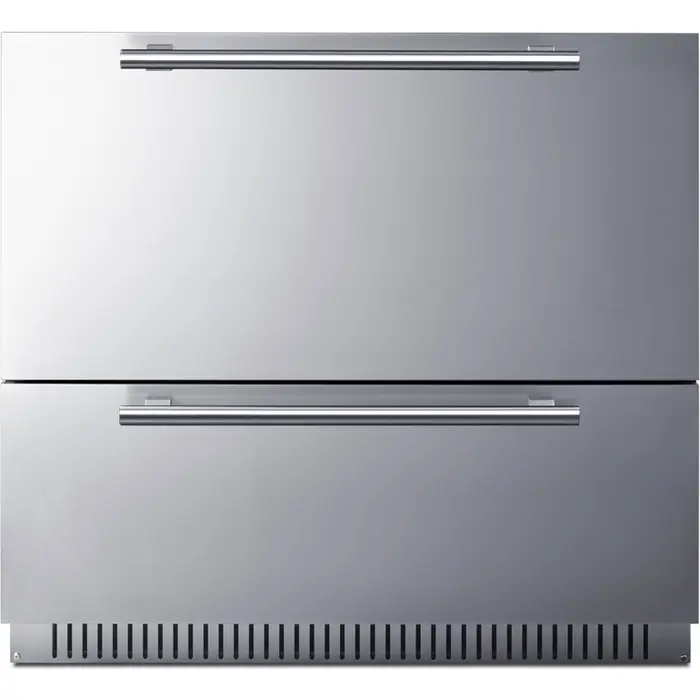

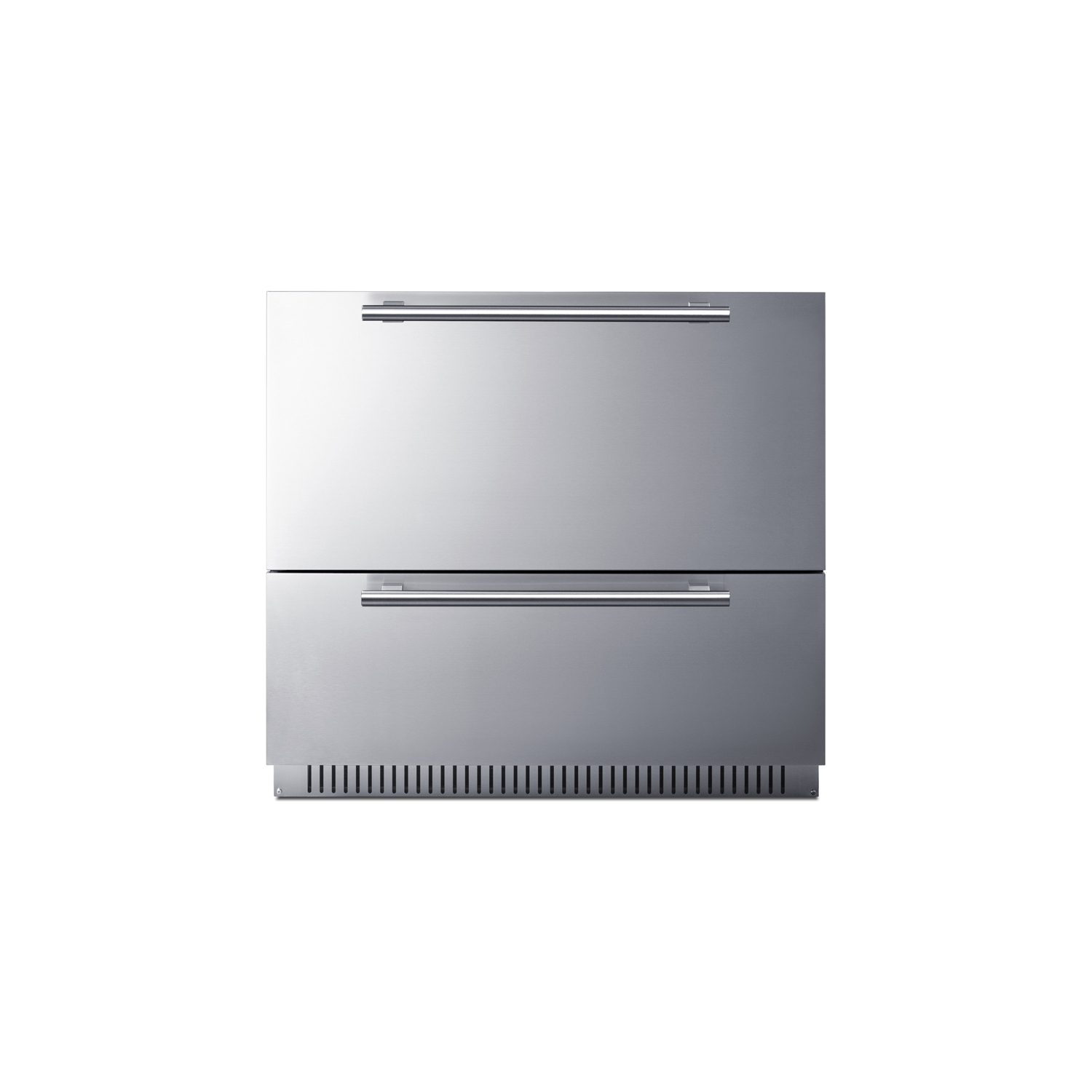

Stainless steel drawers Interior and exterior drawer fronts feature stainless steel construction in a horizontal grain for long-lasting luxury under the counter

Built-In capable Front-breathing design allows the unit to be built-in under counters

Indoor/Outdoor compatible Durable, weatherproof construction designed to hold up to the elements

Frost-free operation No-frost operation for minimal user maintenance

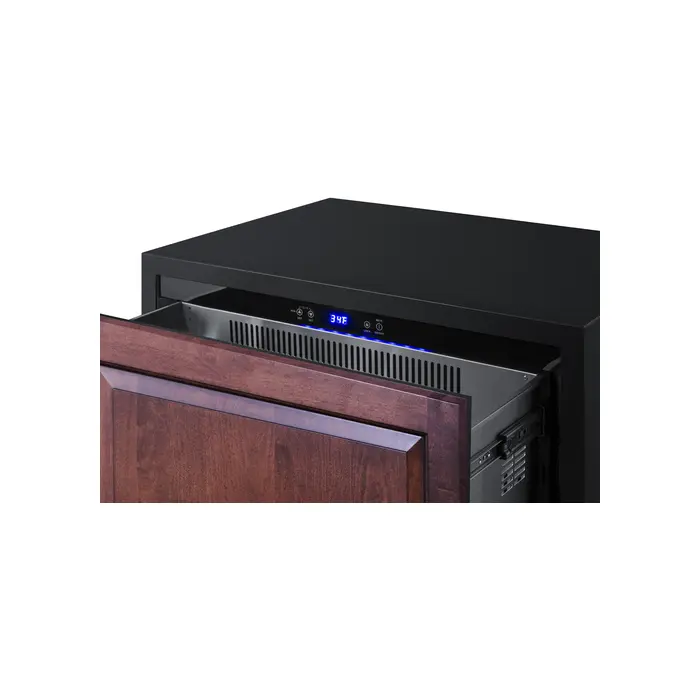

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

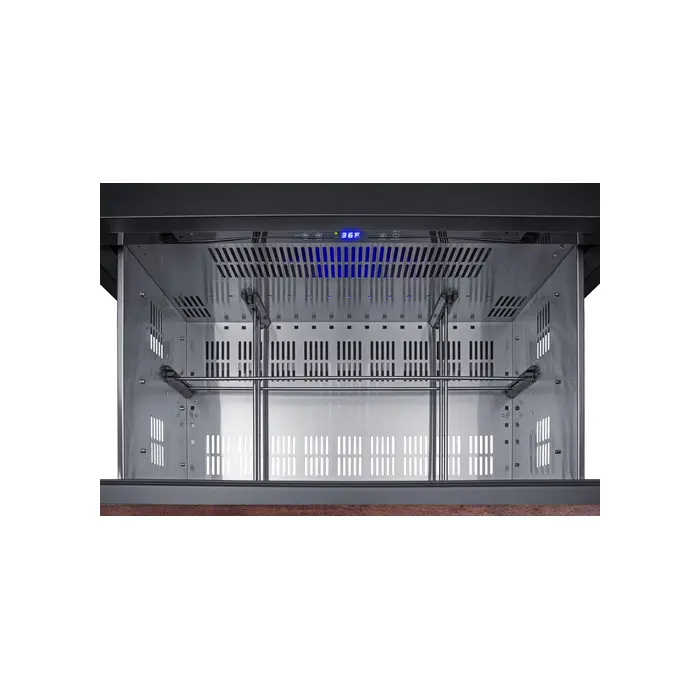

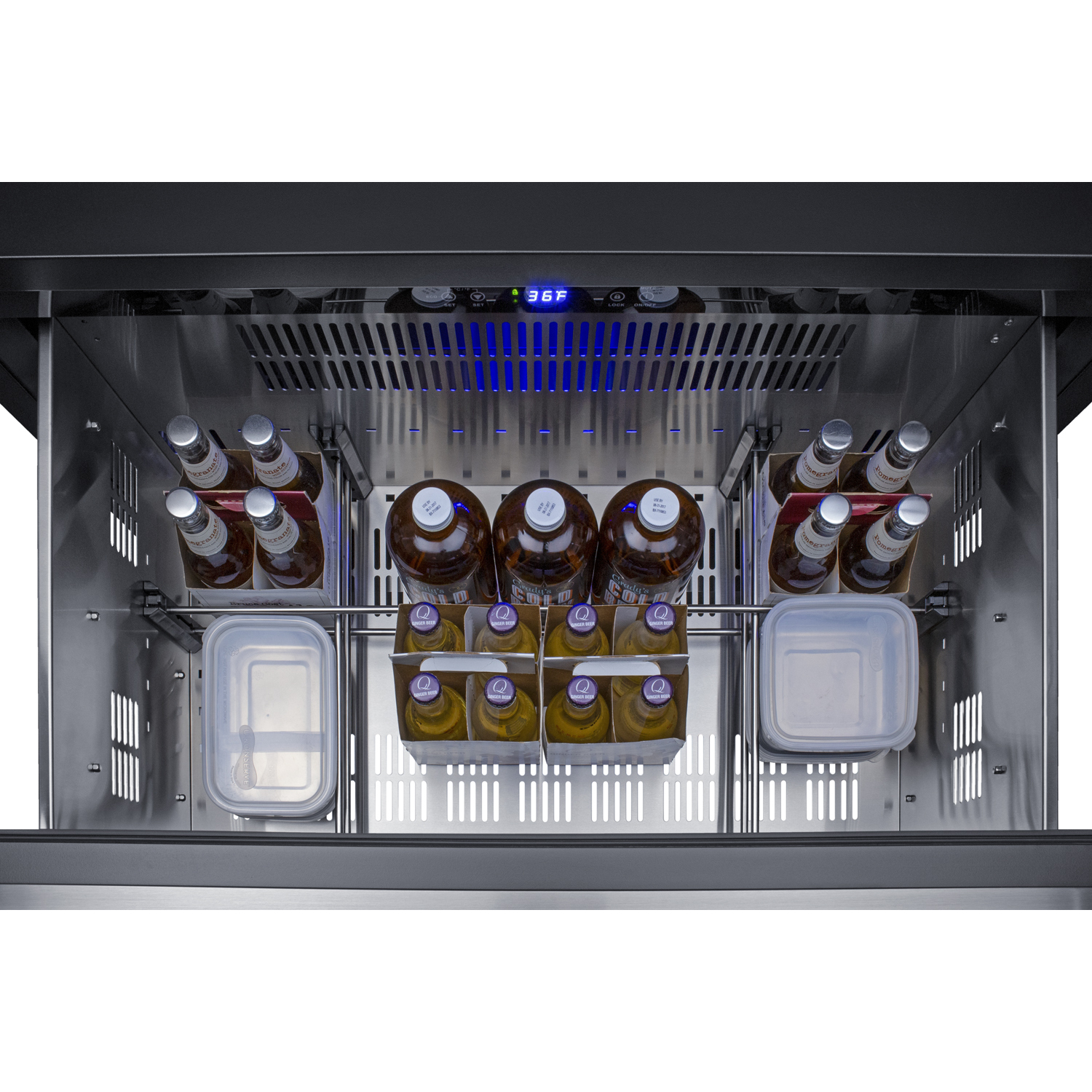

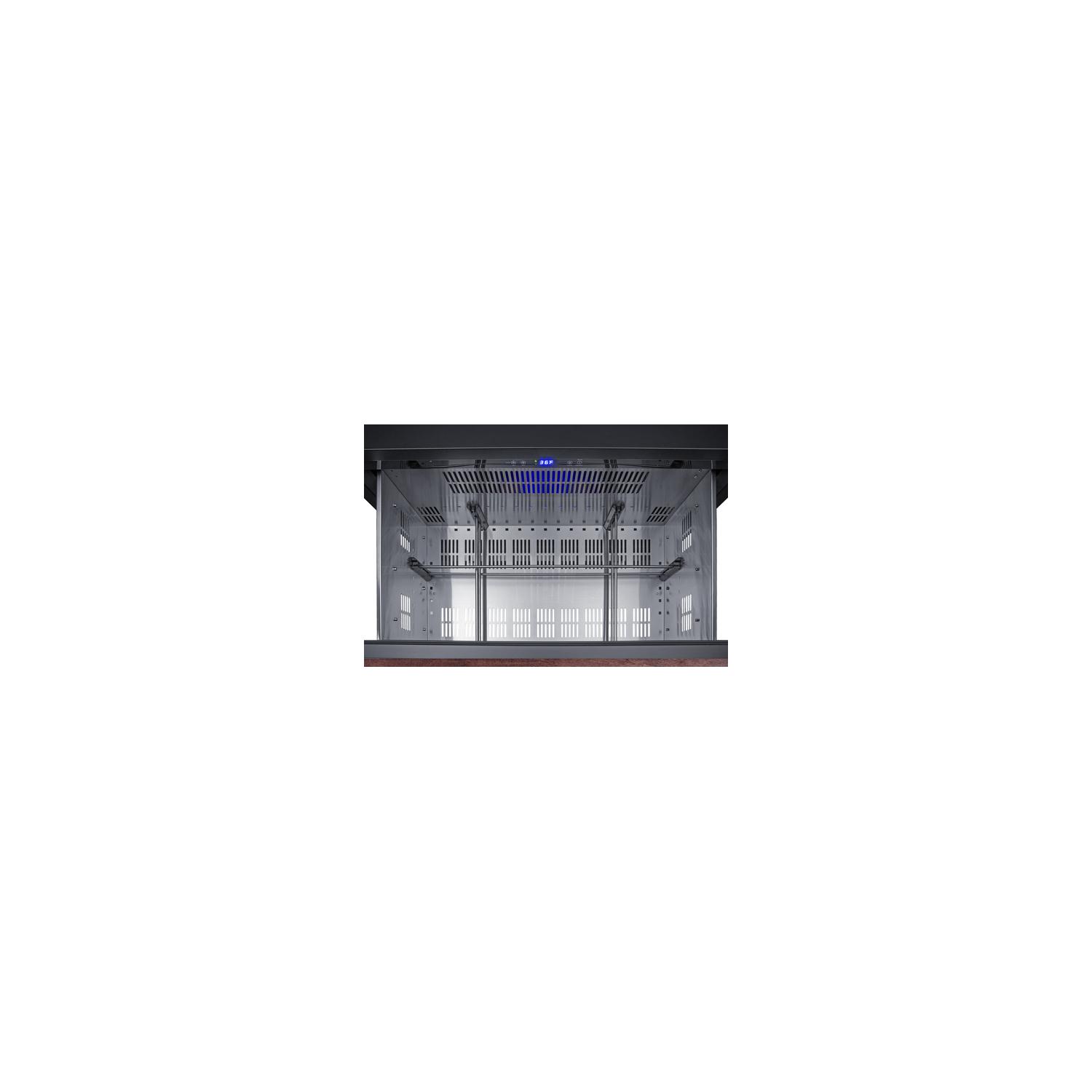

Drawer dividers Each drawer includes a removable accessory that lets you divide your storage into six adjustable sections for better organization of the interior

Open drawer alarm Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

LED lighting Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

Professional handles Stainless steel handles add style to any setting

Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety

Sealed back Space-saving design with no exposed coils for easier cleanability

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-Tip bracket Bracket (included) helps prevent tipping for added safety

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR36332D.pdf)

TECHNICAL DRAWING (.dwg) (SPR36332D.dwg)

ASSEMBLY DRAWING (SPR36332D-Assembly.pdf)

USE & CARE (SPR36332D-User-Manual.pdf)

Energy Guide
