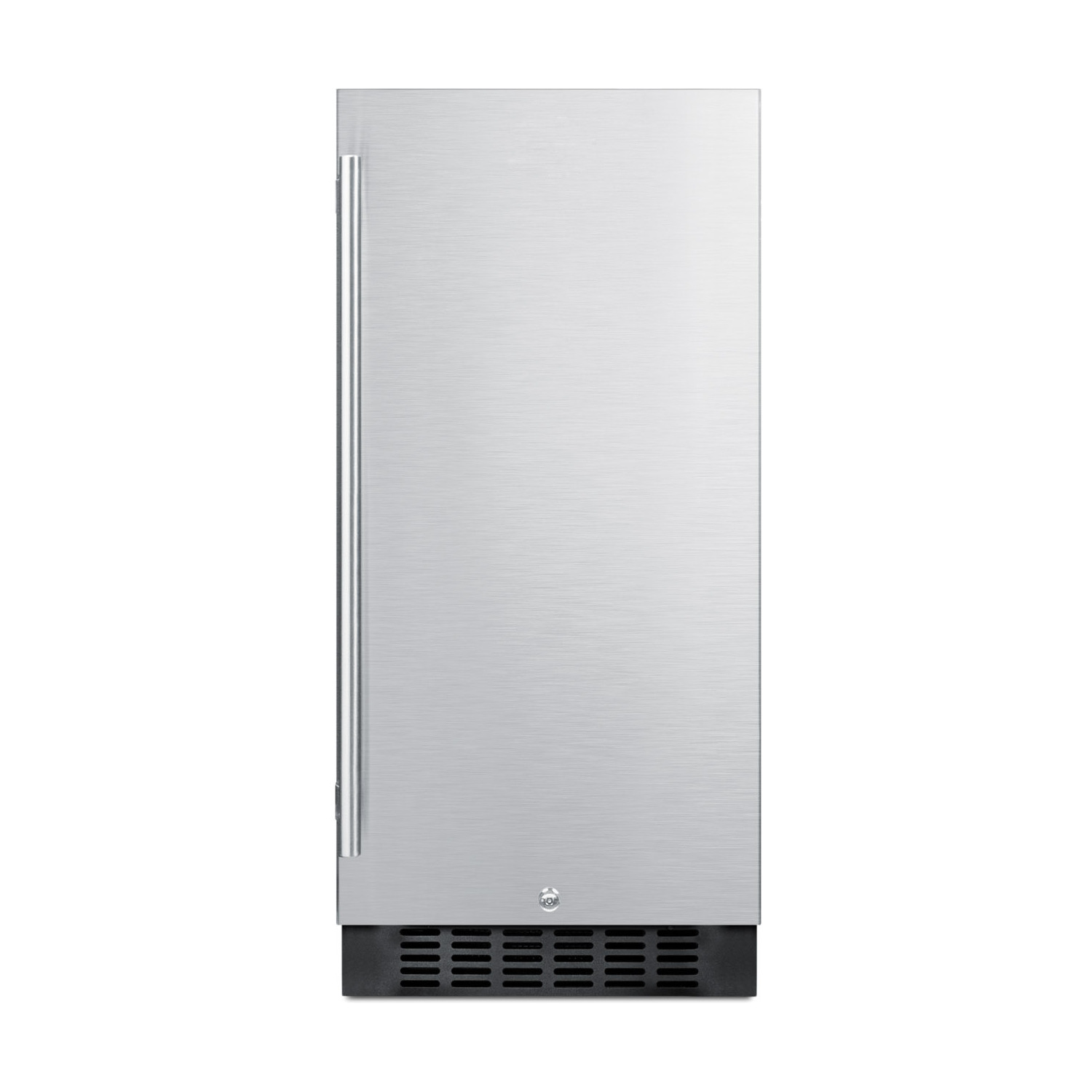

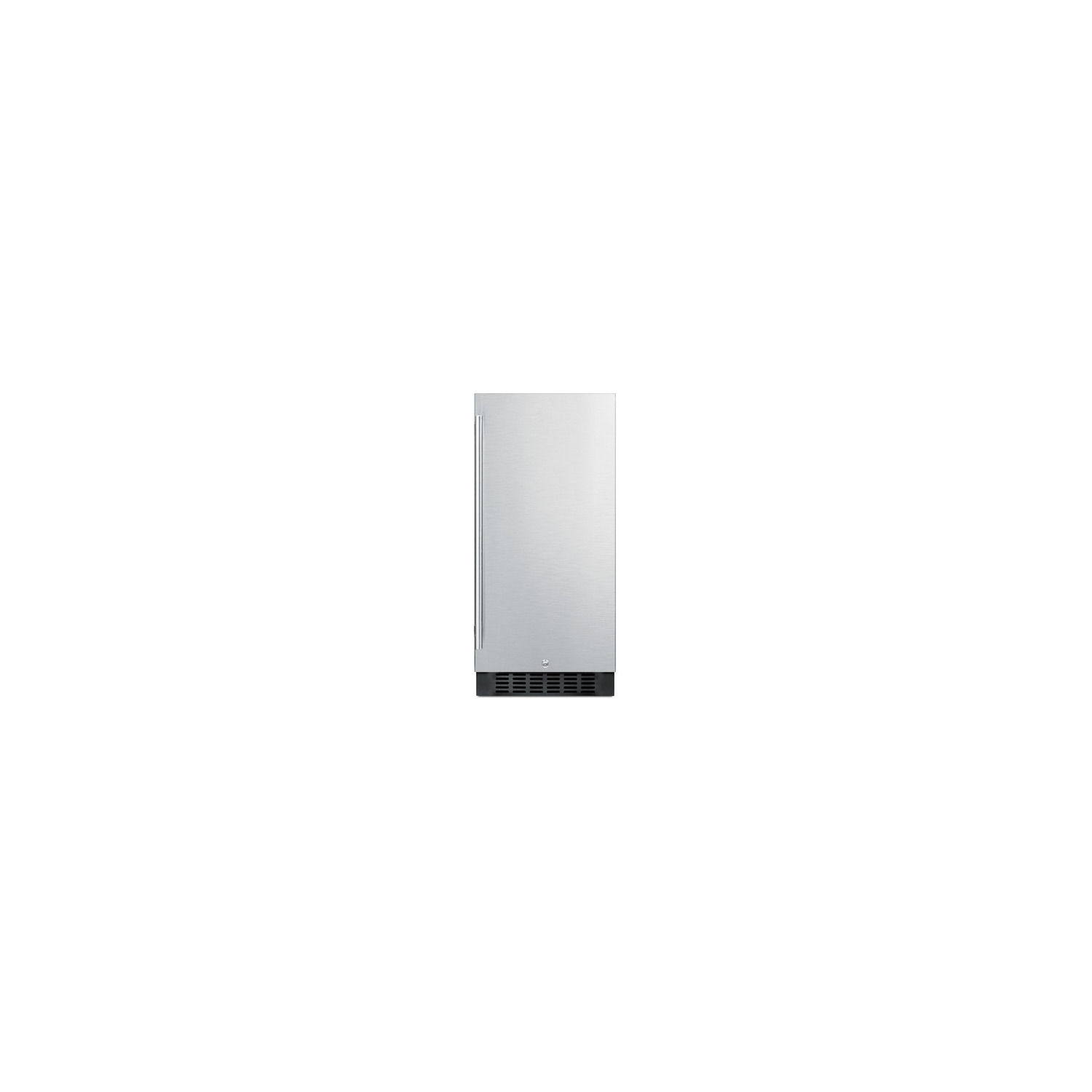

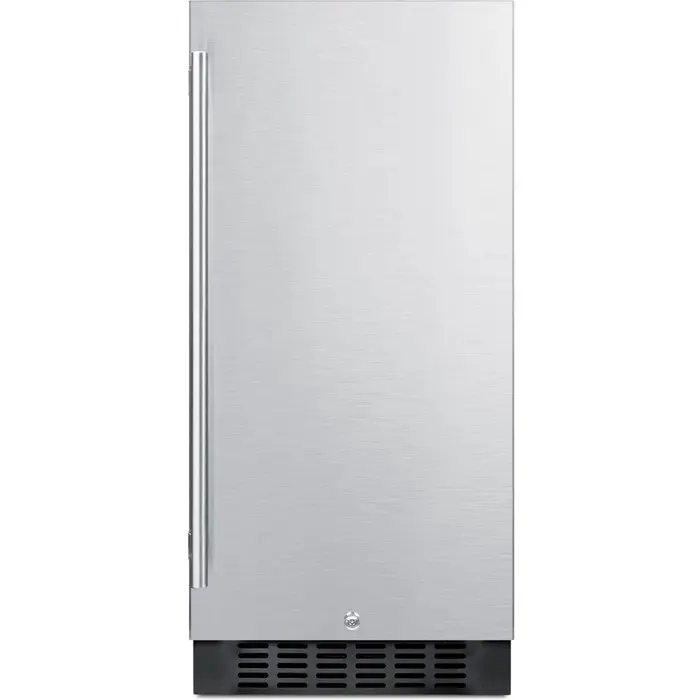

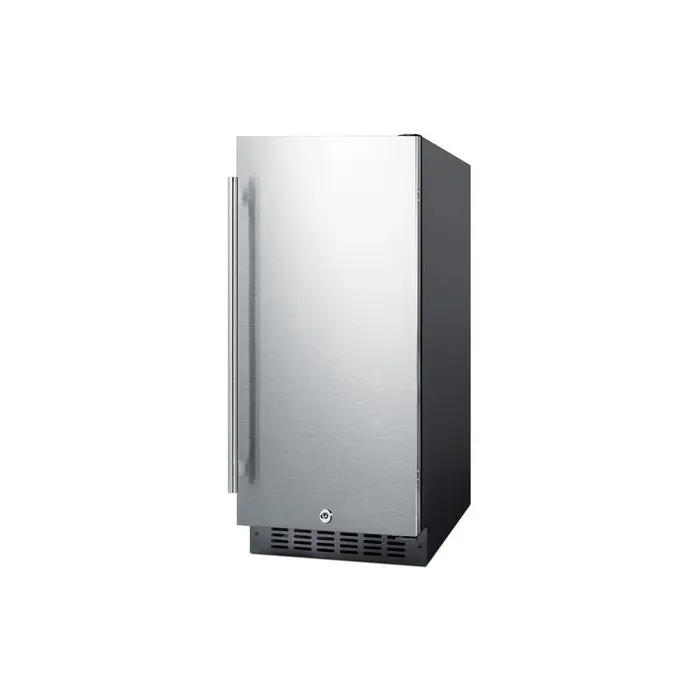

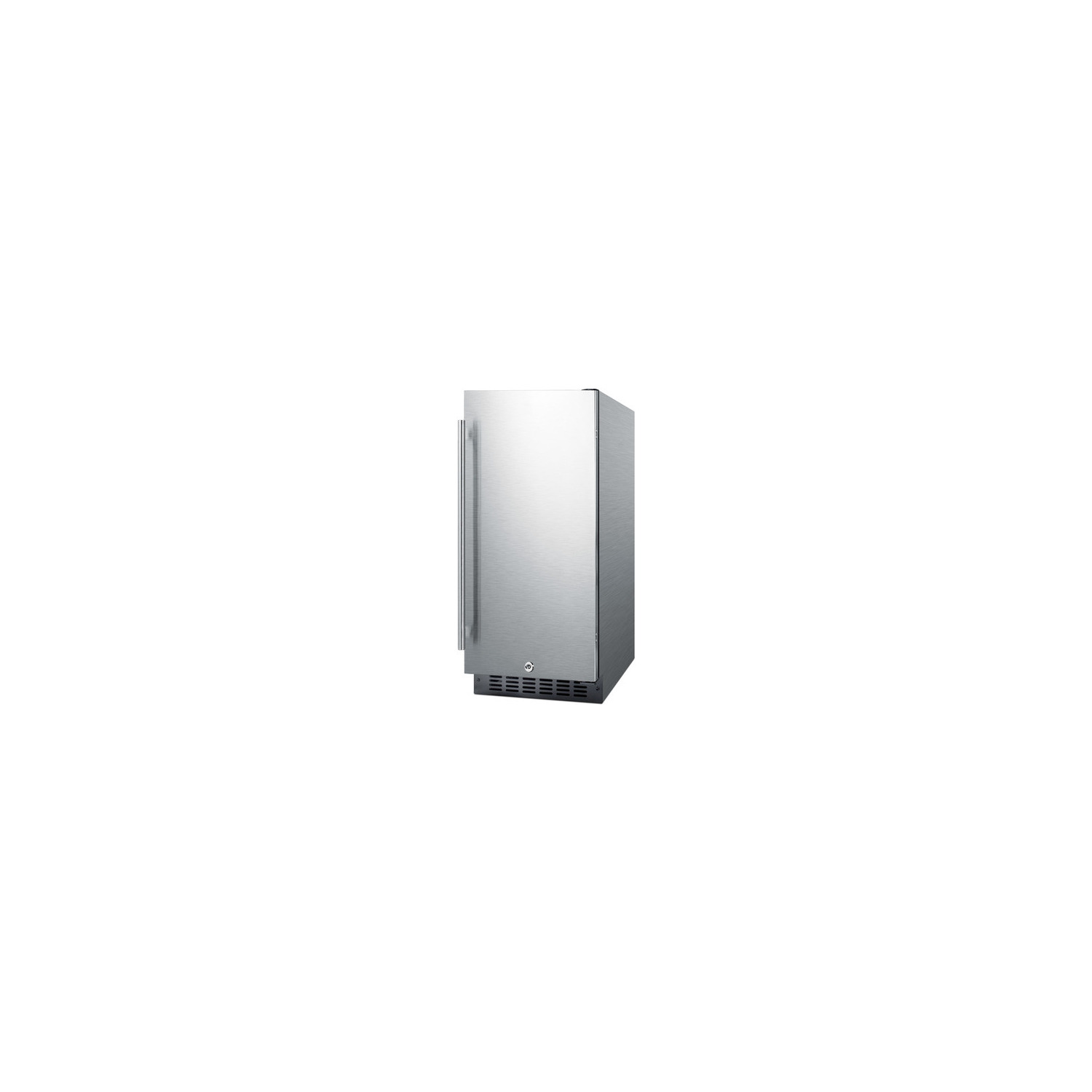

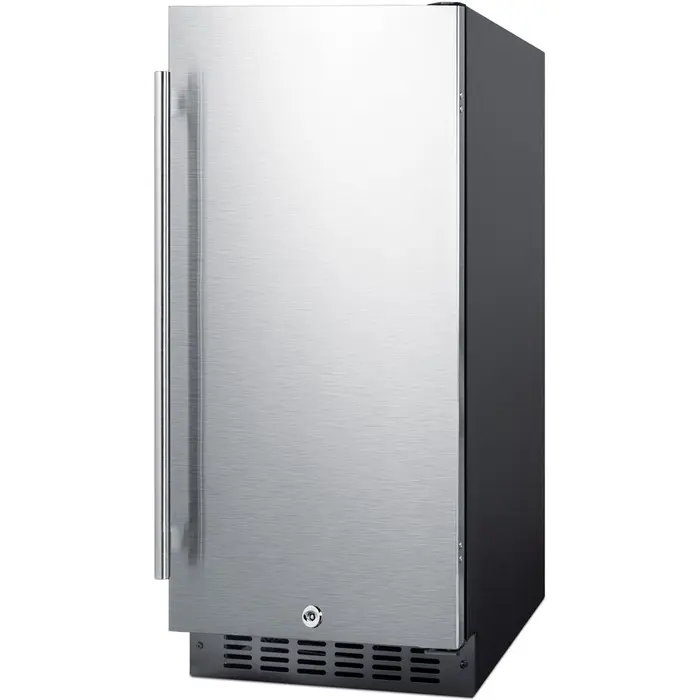

Summit 15 inch wide built-in outdoor refrigerator with black cabinet, stainless steel door, and lock, 7.61101e+011, SPR316OS
$1,162.22
Retail Price: $1,590.00
Shipping: $250
$ 1,162.22
Description
SUMMIT SPR316OS is a versatile all-refrigerator designed for use in residential or commercial outdoor kitchens.

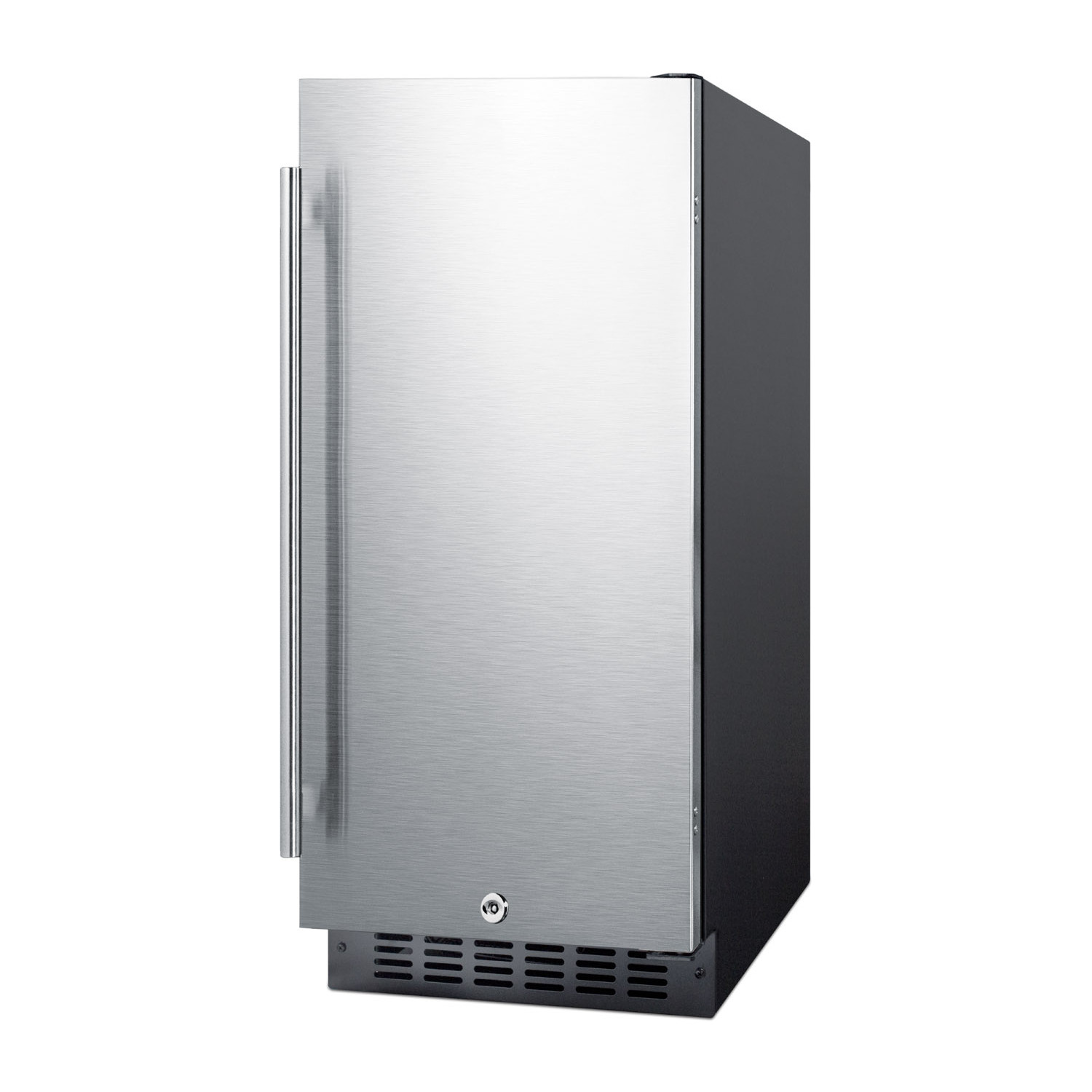

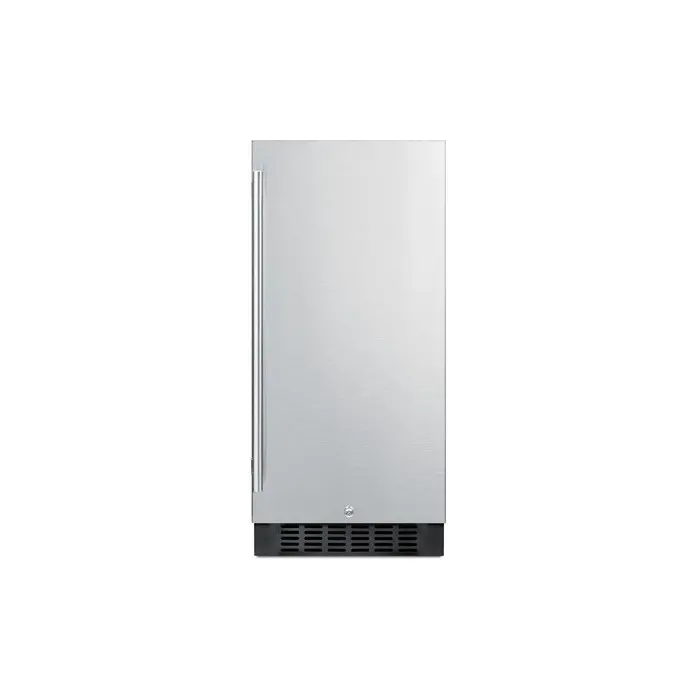

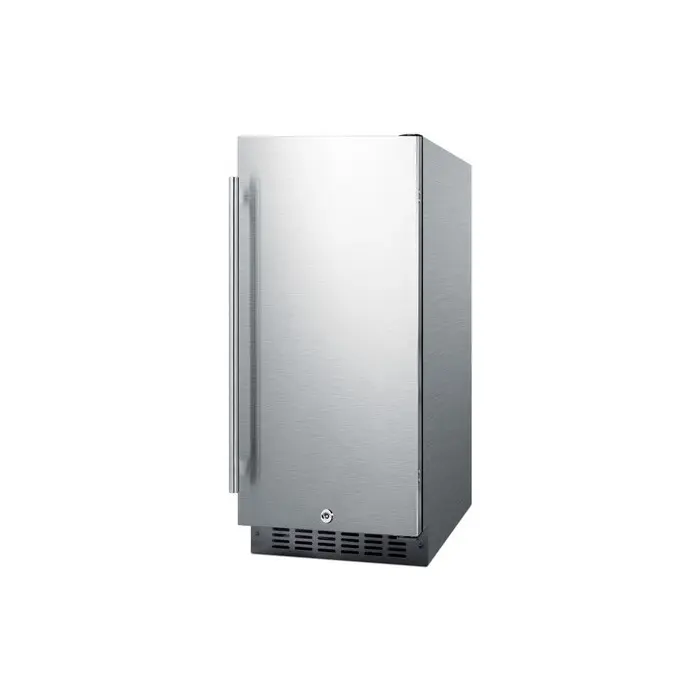

At just 15" wide, the SPR316OS is ideally sized for built-in installation in any outdoor kitchen, with a fully finished cabinet that also allows freestanding use. The reversible stainless steel door includes a 20" long handle for a professional look and a factory installed lock for added security.

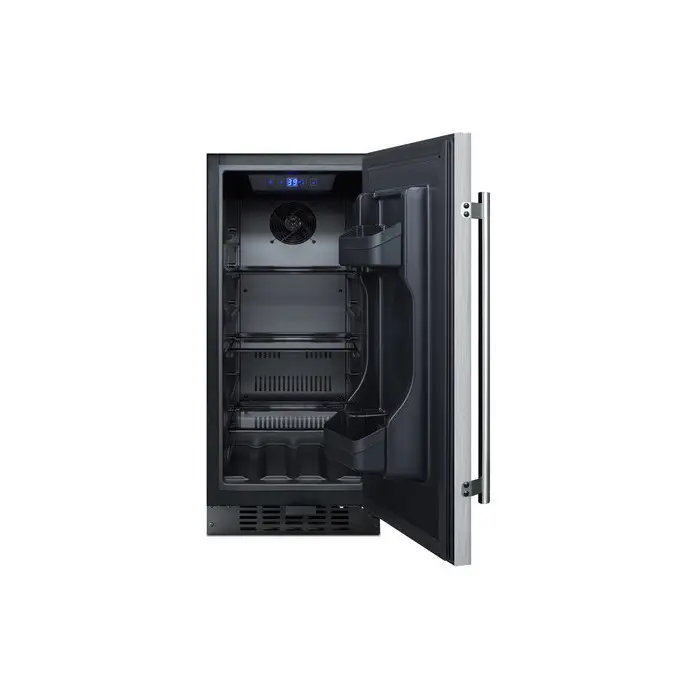

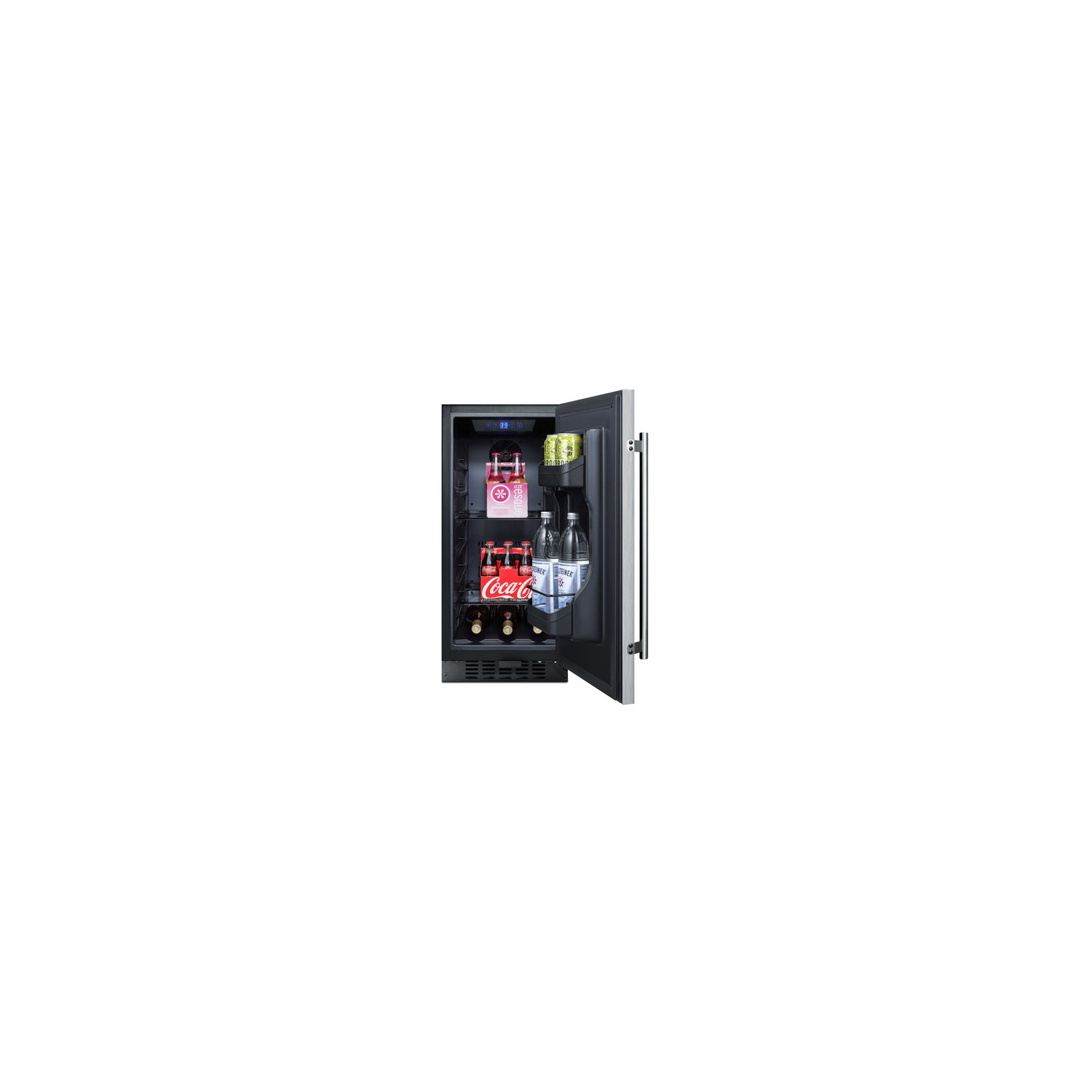

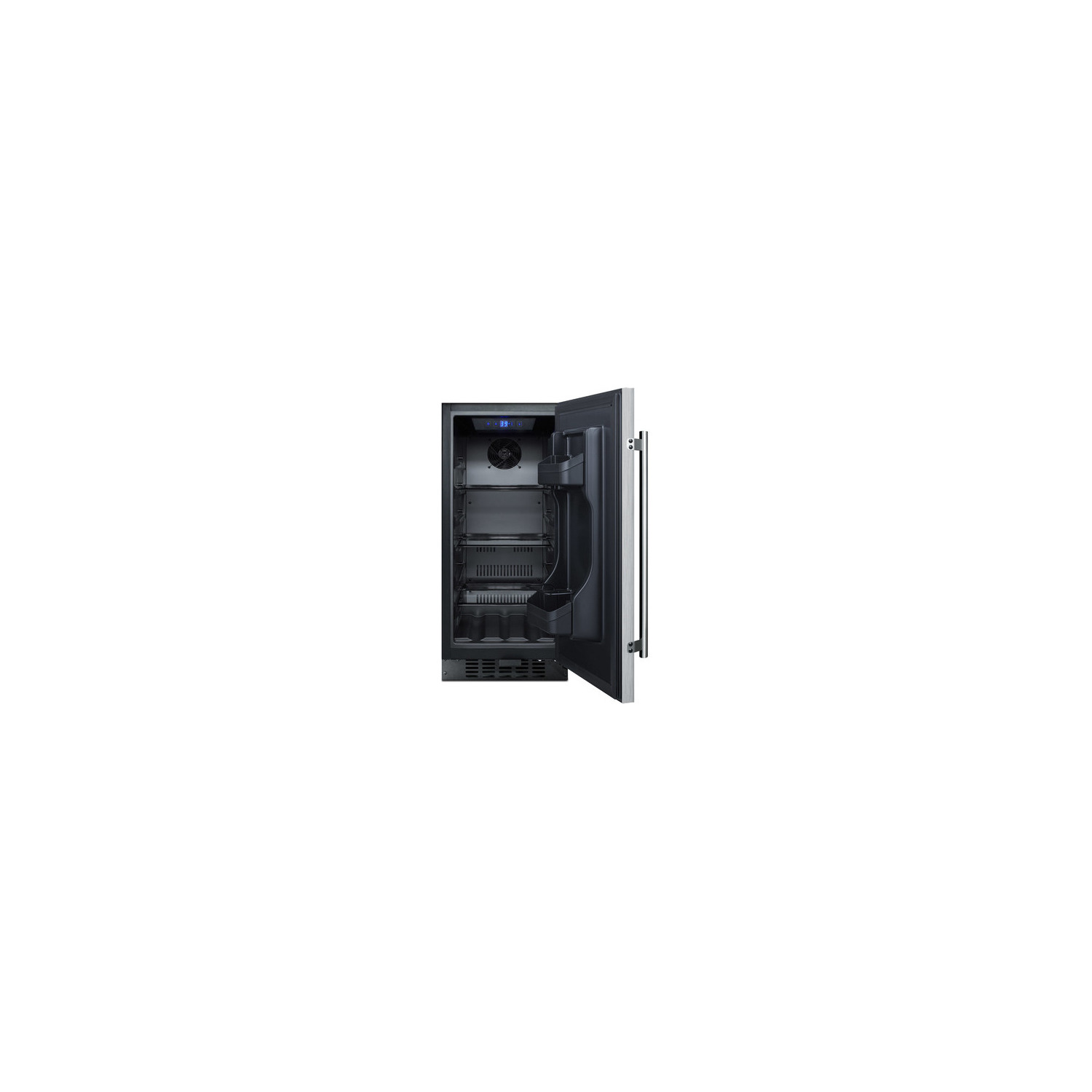

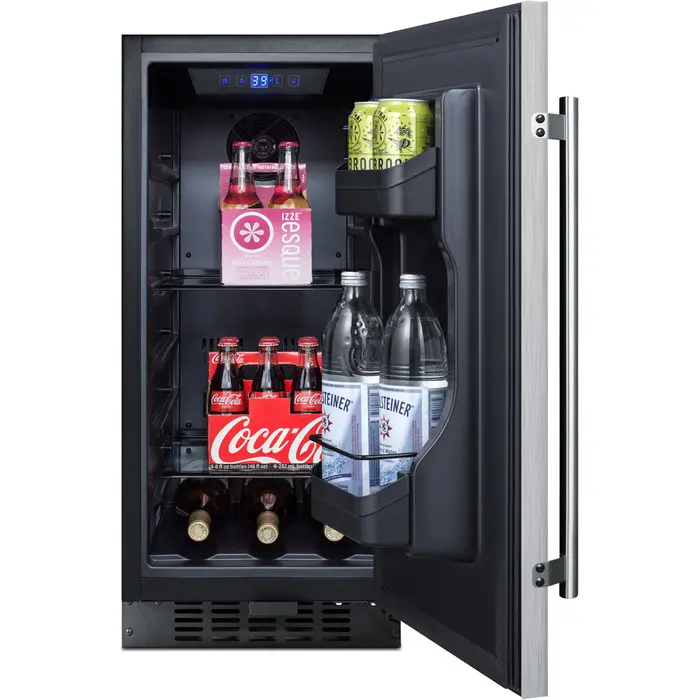

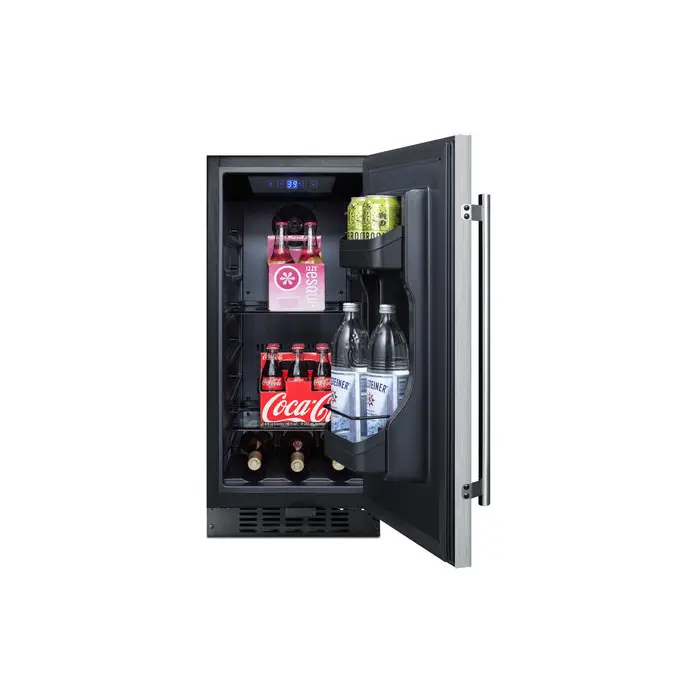

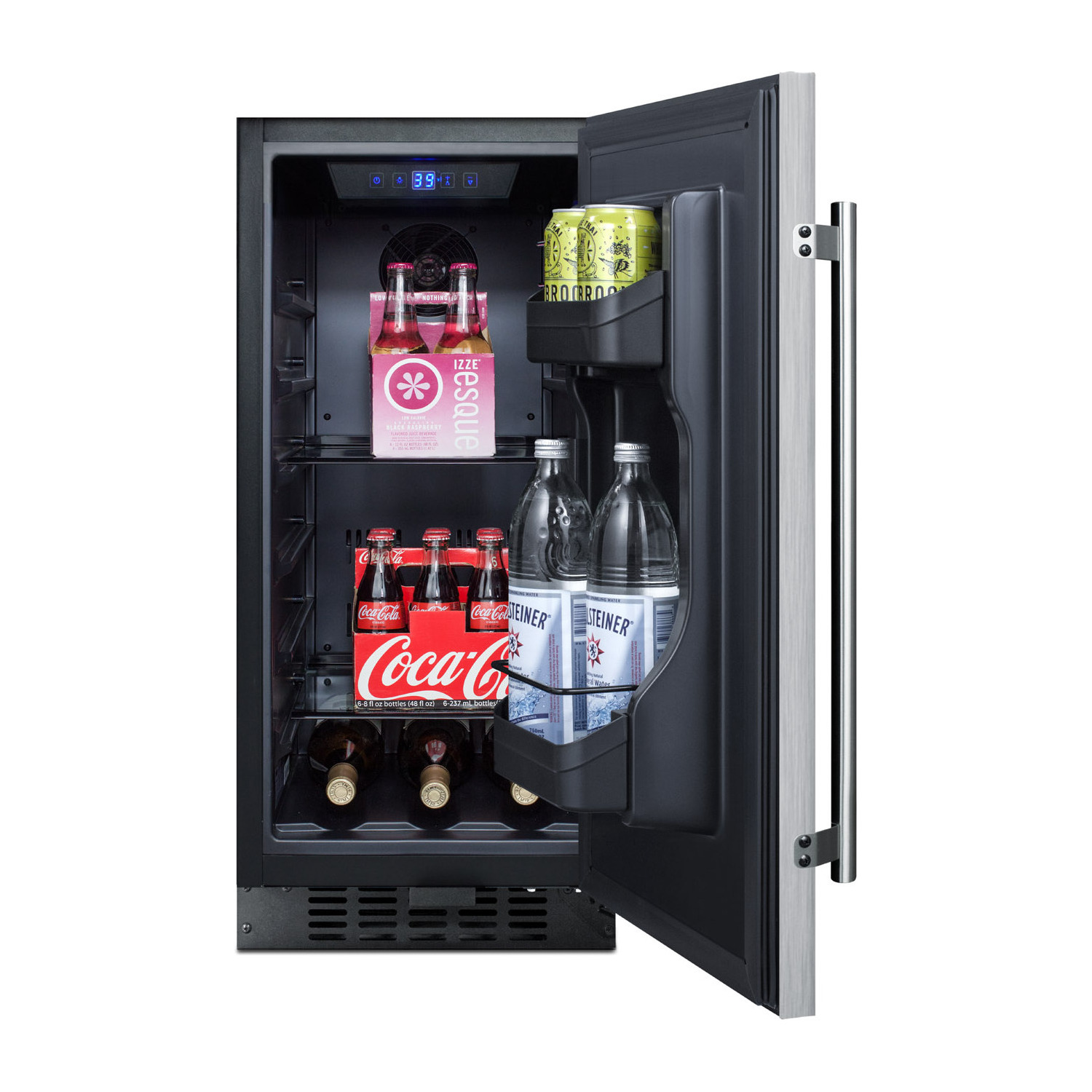

Inside, the SPR316OS offers 3 cu.ft. of storage space. Three adjustable glass shelves allow easy storage while the floor features slots carefully sized to hold wine bottles in place. The door includes two racks for keeping condiments and beverages in easy reach. This unit includes a digital thermostat with interior controls and recessed LED lighting. Frost-free operation ensures low maintenance, while the integrated GFCI cord offers added protection in the outdoors.
Sized to fit and designed for convenience, the SPR316OS makes an ideal addition to any outdoor kitchen space. This model is ETL-S listed to NSF-7 standards for commercial use.
Nominal Height: 35
Height of Cabinet: 34.25
Height to Hinge Cap: 0
Nominal Width: 15
Width: 14.88
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.75
Depth with Handle: 24.5
Depth with door at 90°: 36.38
Capacity: 3
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless SteelCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 15.0" (38 cm)
Width 14.88" (38 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.5" (62 cm)
Depth with door at 90° 36.38" (92 cm)
Capacity 3.0 cu.ft. (85 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 255.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 62.0 lbs. (28 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101038551
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 2
Interior Light Yes
Sound Level 32.8 dB
Dimensions
Interior Height 24.75" (63 cm)
Interior Width 11.88" (30 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.0" (8 cm)
Compressor Step Width 11.88" (30 cm)
Compressor Step Depth 5.0" (13 cm)
FEATURES
Designed for outdoor use Weatherproof construction allows operation in the outdoors
Built-in capable Make the best use of space by installing this unit under the counter and flush with other cabinetry
Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
CEE Tier I qualified Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category
Recessed LED lighting Top-mounted light offers an attractive and energy efficient display of stored contents
Digital thermostat Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit
Frost-free operation Reduced user maintenance with automatic defrost
Factory installed lock Keyed lock for a secure interior
Reversible door User-reversible door swing
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage Two racks offer the perfect storage solution for tall bottles and condiments
Professional handle 20" long stainless steel handle offers a professional look
Integrated GFCI cord Ground Fault Circuit Interrupter protects the unit from circuit breaks
Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours
Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom
Fully finished cabinet Allows the unit to be used freestanding
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
TECHNICAL DRAWING (.dwg) (SPR315OSOUTDOORFEF.A-C2000.dwg)
REVIT MODEL (QF_Summit_SPR316OS_Outdoor_Refrigerator.rfa)
USE & CARE (SPR316OS-User-Manual.pdf)
MSDS INFORMATION (R600a_K.pdf)
Energy Guide
