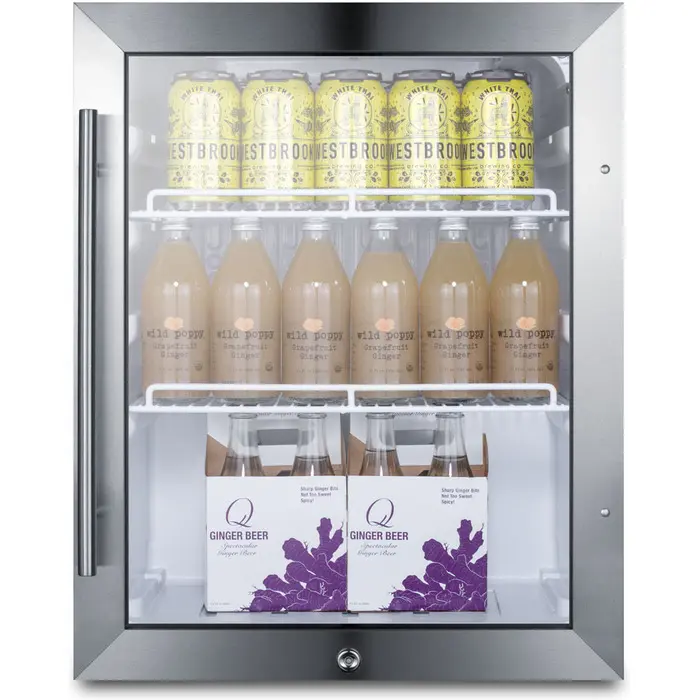

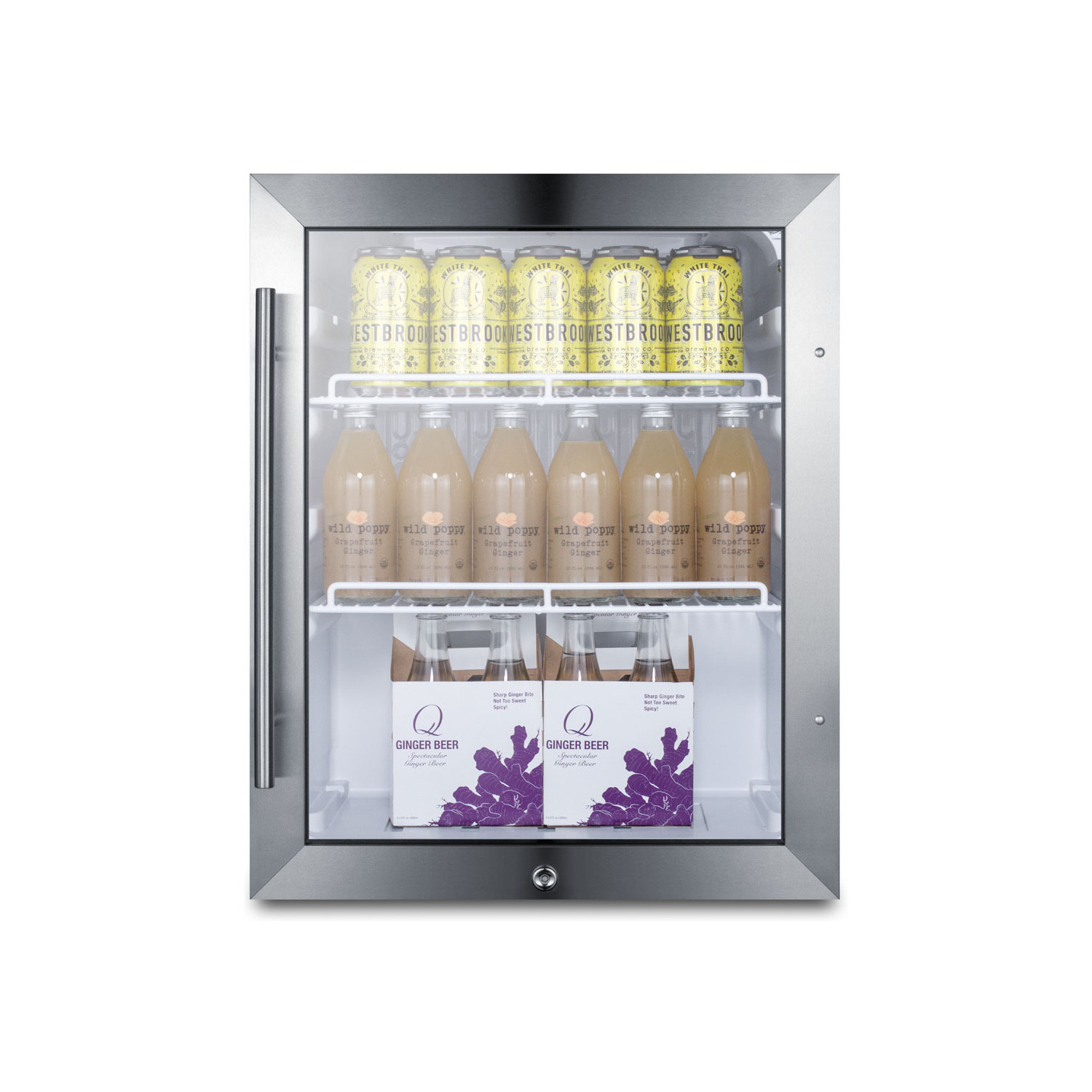

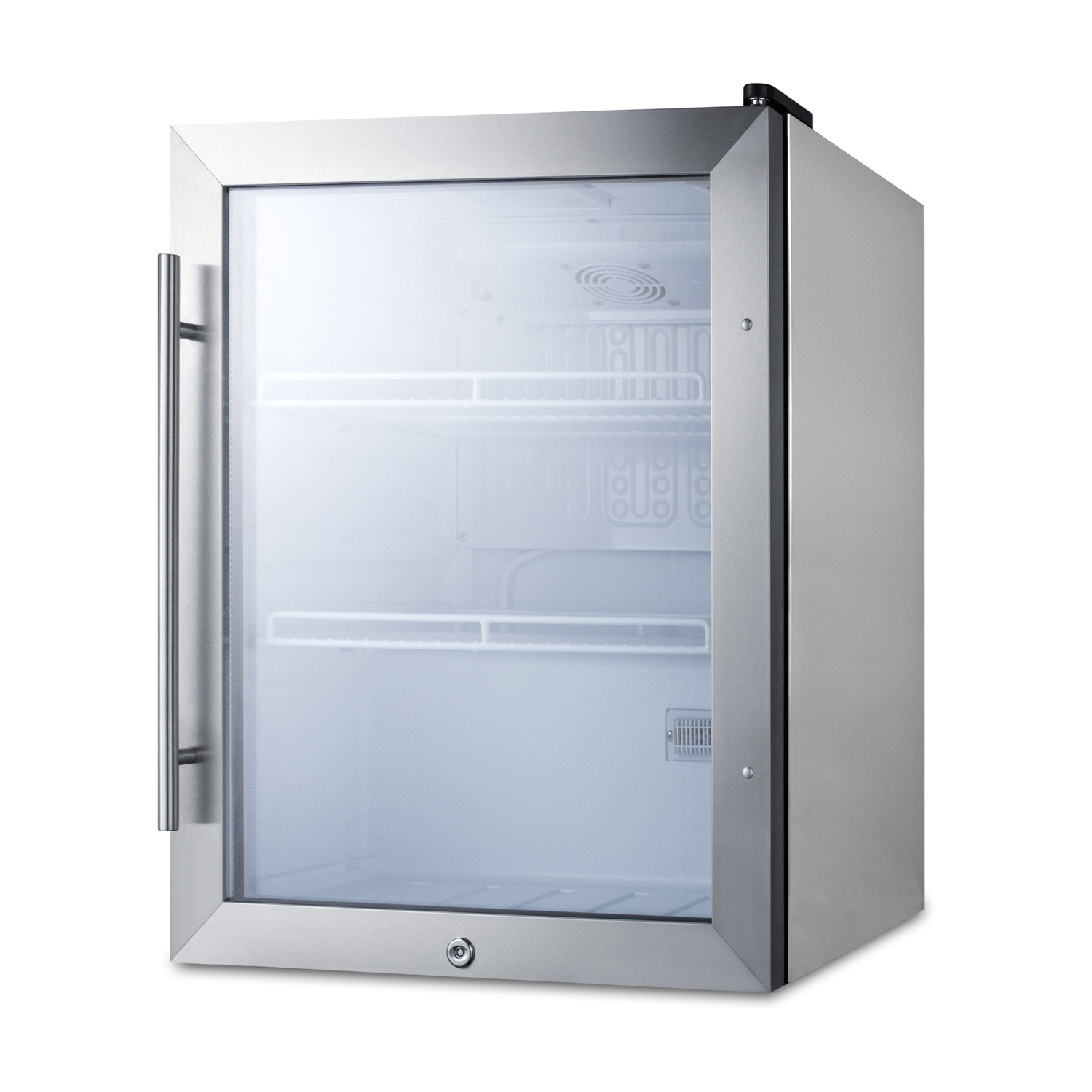

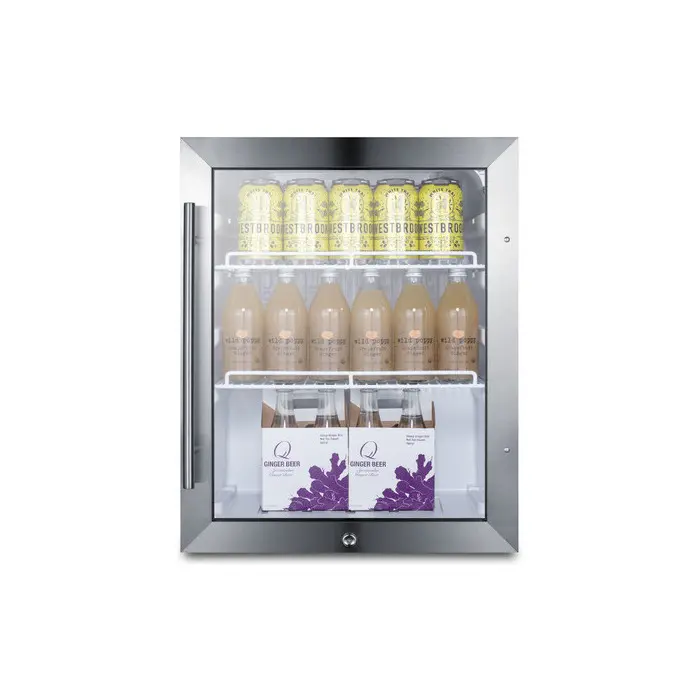

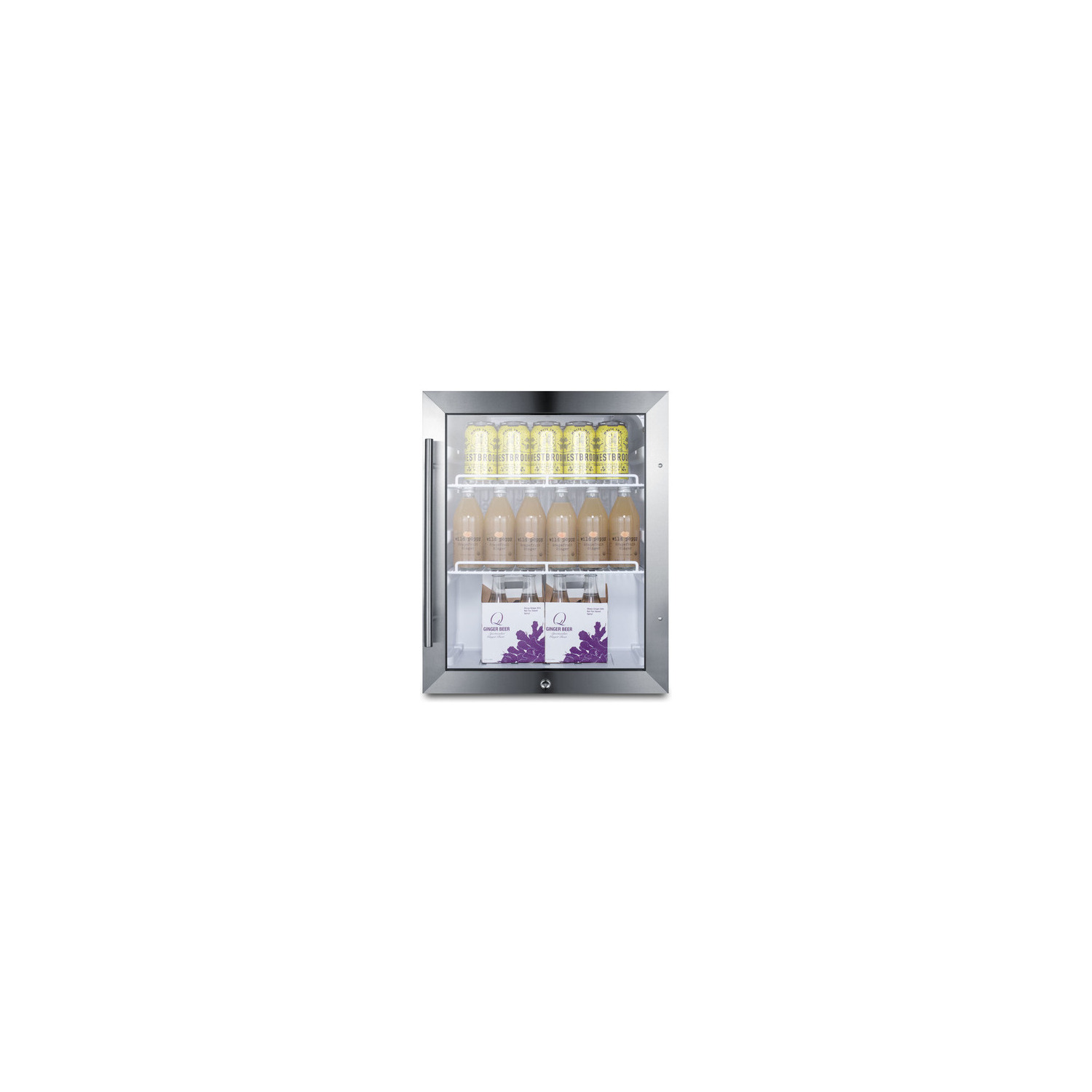

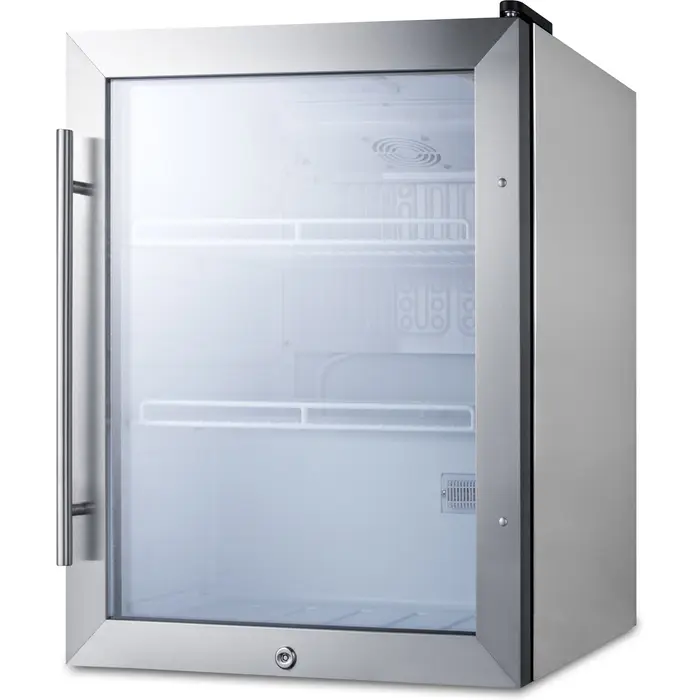

Summit Outdoor compact commercial beverage center with lock, 7.61101e+011, SPR314LOSCSS

Summit Commercial's line of weatherproof appliances offers compact solutions for beverage storage in a variety of outdoor foodservice settings.

The SPR314LOSCSS is a compact beverage merchandiser conveniently sized for freestanding use on top of counters. It is ETL-S listed to NSF-7 standards and meets UL-471, with a weatherproof design to ensure safe use in outdoor spaces. The stainless steel trimmed double pane tempered glass door includes a pro style handle and front lock for added security. The door is user-reversible to accommodate any setup. This unit comes in a stainless steel wrapped cabinet and sealed back for added protection from the elements.

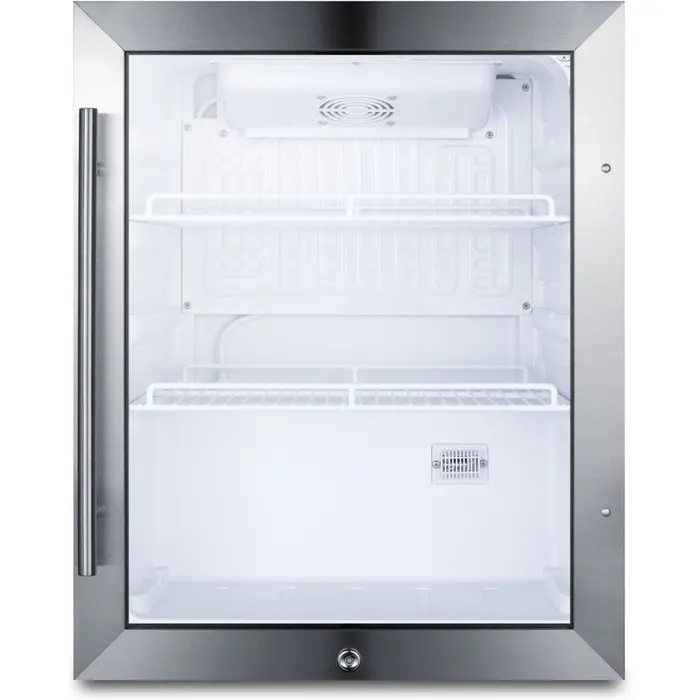

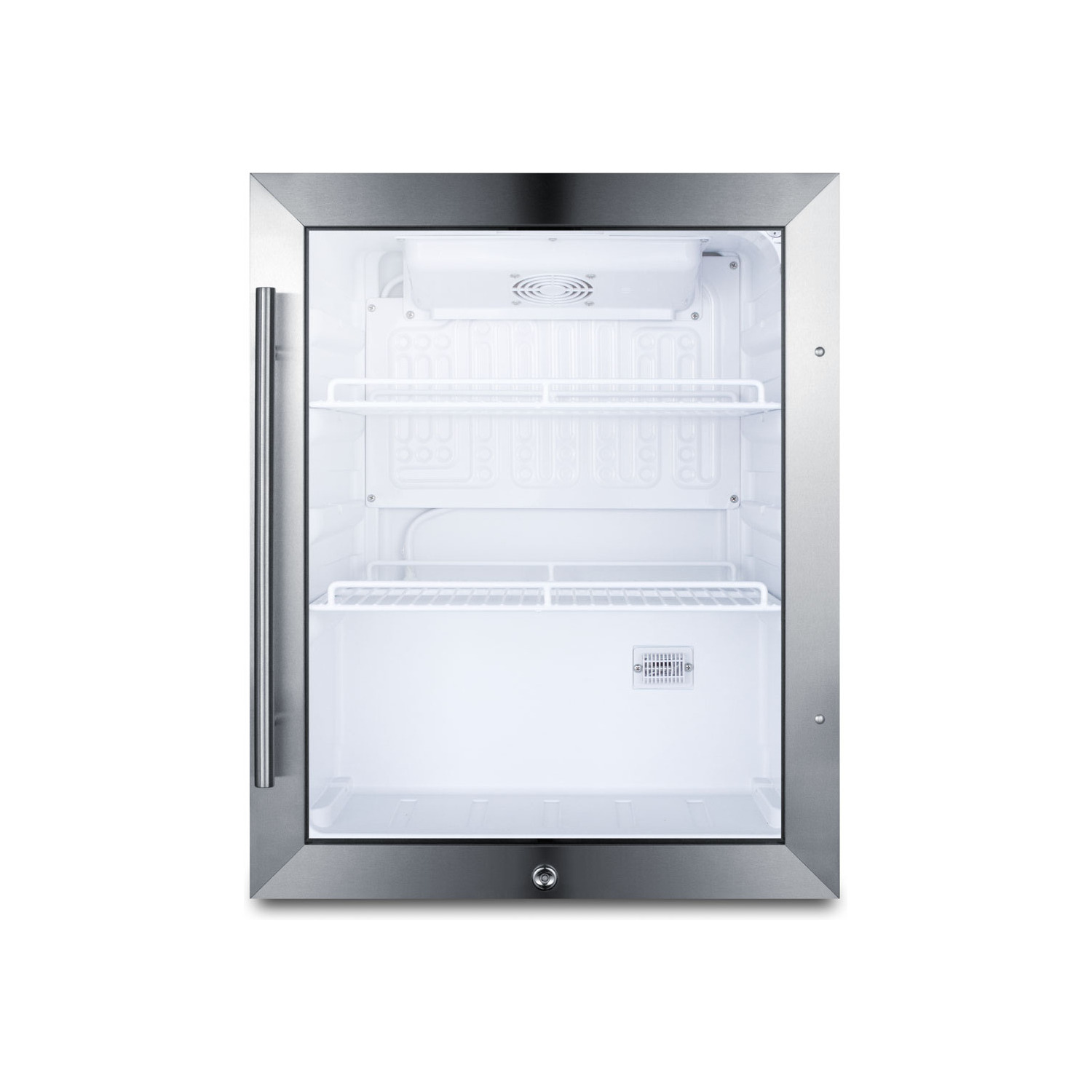

Inside, the SPR314LOSCSS features LED lighting to provide an attractive display when the door is opened. Two adjustable wire shelves offer plenty of storage options, and the white interior finish helps to ensure better visibility for stored products. This unit utilizes automatic defrost to reduce user maintenance. The dial thermostat is located inside to prevent unsupervised temperature changes.

With its compact size and weatherproof construction, the SPR314LOSCSS is an ideal choice for restaurants with outdoor seating, bar counters, hydration stations, and other areas in need of reliable refrigeration in an easy fit.

Nominal Height: 25
Height of Cabinet: 24.25
Height to Hinge Cap: 24.75
Nominal Width: 19
Width: 18.88
Width with Door Open: 0
Nominal Depth: 17
Depth: 17
Depth with Handle: 18.38
Depth with door at 90°: 35
Capacity: 2.1
Bottles: 0Defrost Type: AutomaticDoor: GlassCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.25" (62 cm)

Height to Hinge Cap 24.75" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.88" (48 cm)

Nominal Depth 17.0" (43 cm)

Depth 17.0" (43 cm)

Depth with Handle 18.38" (47 cm)

Depth with door at 90° 35.0" (89 cm)

Capacity 2.1 cu.ft. (59 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 63.0 lbs. (29 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101075716

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.71oz.

High Side PSI 320.0

Low Side PSI 120.0

Interior Light Yes

Temperature Range 34°F to 46°F/1 to 8ºC

Sound Level 33.5 dB

Dimensions

Interior Height 20.75" (53 cm)

Interior Width 15.75" (40 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 15.75" (40 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471

Weatherproof design Sealed system ensures safe use in outdoor settings

Countertop size Less than 19" wide and just 17" deep for easy placement in outdoor bars and restaurants

Double pane tempered glass door Heat-safe view for full visibility, with stainless steel trim for an attractive look

User-reversible door swing Door can be reversed to accommodate any setup

Professional handle Brushed stainless steel finish suits any setting

Stainless steel wrapped cabinet 304 grade stainless steel finish for lasting durability in the outdoors

Factory installed lock Keyed lock offers added security (2 keys included)

Automatic defrost No-frost convenience for reduced user maintenance

Interior LED light Automatically illuminates when the door is open to provide an attractive and efficient view of stored contents

Adjustable shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Adjustable thermostat Dial thermostat located inside to prevent unsupervised changes

Sealed back Closed rear offers easier cleanup and added protection from the elements

Fully finished cabinet Allows the unit to be used freestanding

Optional door tint Choose from five styles of door tinting to provide an added layer of protection from UV rays; visit summitappliance.com/tint to learn more

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR314LOSCSS.pdf)

TECHNICAL DRAWING (.dwg) (SPR314LOS_BEVERAGE_CENTER__A-C_2010__-_Copy_2.dwg)

USE & CARE (SPR314LOSCSS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)
