Summit 30 inch wide built-in undercounter ADA height 2-drawer outdoor all-refrigerator, 7.61101e+011, SPR3032DADA

Summit is expanding its popular lineup of built-in undercounter ADA compliant refrigeration with new luxury choices for 30" wide spaces in residential or commercial kitchen indoor and outdoor spaces.

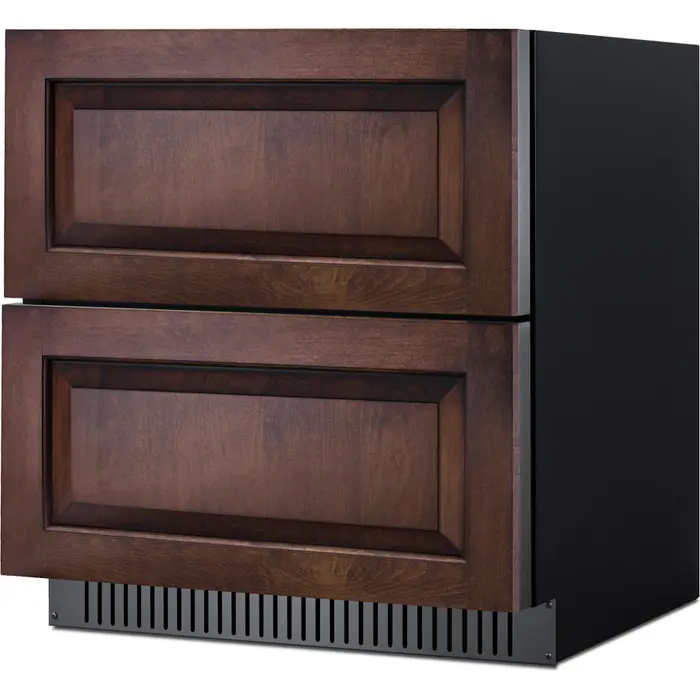

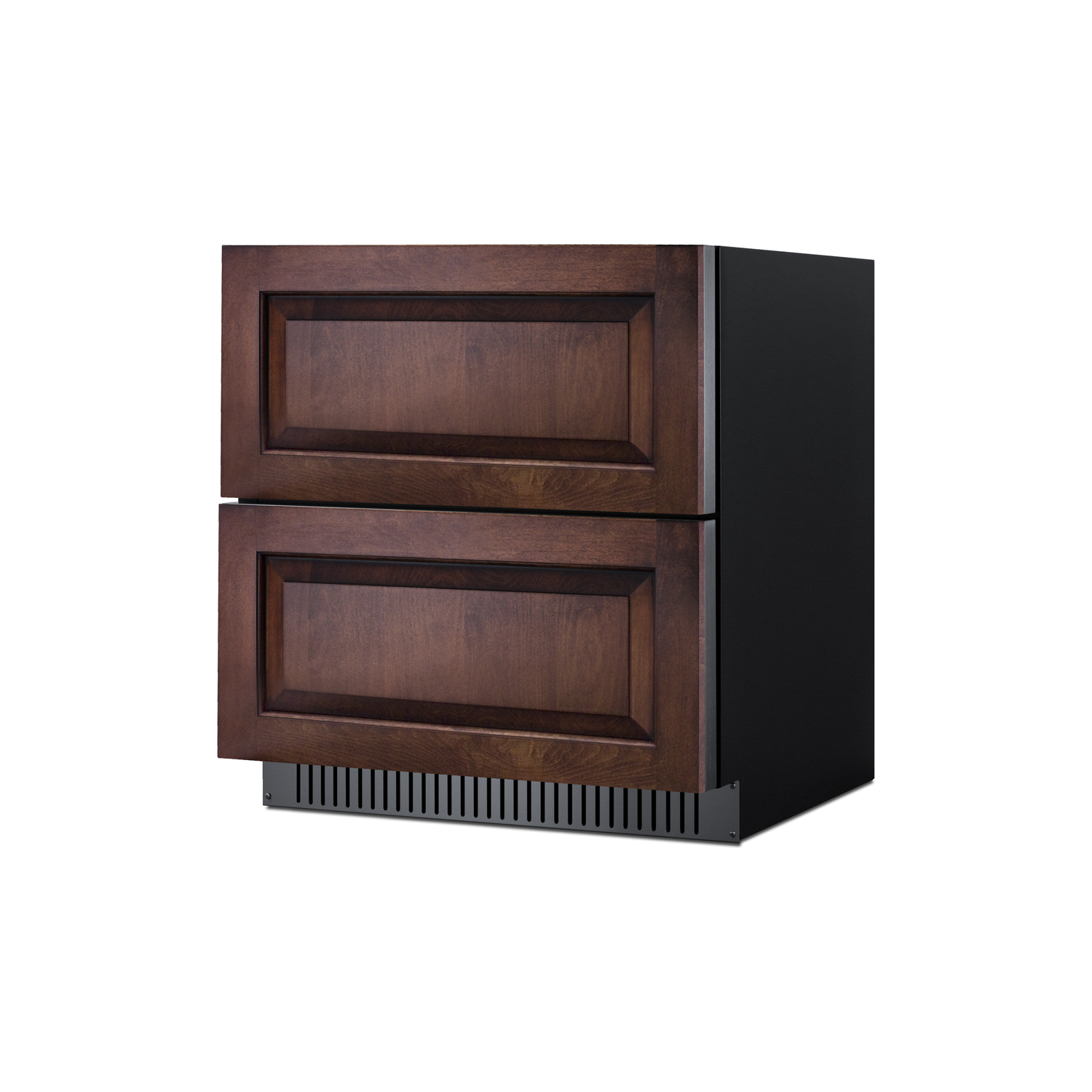

Model SPR3032DADA is a 30" wide 2-drawer all-refrigerator sized just under 32" high for an easy fit under lower ADA compliant counters. It comes in a shallow depth just under 24" for added space savings. Stainless steel drawer construction ensures lasting durability and a stunning look to suit any setting, with a set of pro style handles included. The fully finished drawer fronts can also accept overlay panels for a custom look to blend into your own cabinetry. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The sealed back and right angle plug help to ensure an easy fit.

With a generous 5.42 cu.ft. interior capacity, the SPR3032DADA is perfect for keeping a variety of items in easy reach. Each drawer includes a removable divider that lets you create four adjustable sections inside to help organize the interior. The intuitive digital control panel features a wide range from 34 to 65ºF, allowing you to adjust your storage conditions for standard food items or beverages better held at warmer temperature. The temperature display can be switched from Fahrenheit to Celsius for added convenience.

Both drawers feature LED lighting in a striking blue finish for elegant illumination. Frost-free operation minimizes maintenance and internal fans help to maintain an evenly cooled interior. Additional features include open drawer alarms, a child lock to prevent changes to the controls, an eco mode setting, and a 96 hour sabbath mode to disable certain features for periods of observance.

The SPR3032DADA features weatherproof construction for safe installation in outdoor kitchens. It is ETL-S listed to NSF-7 commercial standards and also complies with residential regulations for home use. In addition to this refrigerator, we also manufacture the same style in a 27" fit. Browse Summit's extensive selection of built-in undercounter refrigeration to discover the perfect fit for virtually any kitchen space. Nominal Height: 32
Height of Cabinet: 31.88
Height to Hinge Cap: 0
Nominal Width: 30
Width: 29.5
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.25
Depth with Handle: 25.25
Depth with door at 90°: 37.75
Capacity: 5.42
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless Steel/Panel-ReadyCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.88" (81 cm)

Nominal Width 30.0" (76 cm)

Width 29.5" (75 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.25" (59 cm)

Depth with Handle 25.25" (64 cm)

Depth with door at 90° 37.75" (96 cm)

Capacity 5.42 cu.ft. (153 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 305.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 126.0 lbs. (57 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101090146

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Height Adjustable Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 2

Temperature Range 34 to 65ºF

Sound Level 35.6 dB

Drawer Dimensions

Interior Height 1 9.88" (25 cm)

Interior Width 1 23.75" (60 cm)

Interior Depth 1 16.5" (42 cm)

Interior Height 2 8.75" (22 cm)

Interior Width 2 23.75" (60 cm)

Interior Depth 2 16.5" (42 cm)

Dimensions

Compressor Step Height 5.0" (13 cm)

Compressor Step Width 23.75" (60 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

30" wide 2-drawer all-refrigerator Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

ADA Compliant height 32" height allows easy installation under lower ADA compliant counters

Less than 24" deep Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

Stainless steel drawers Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter

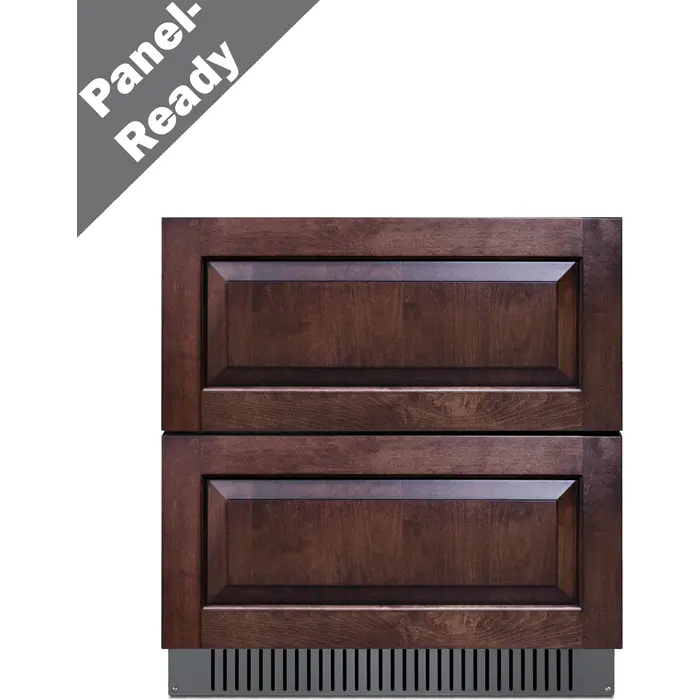

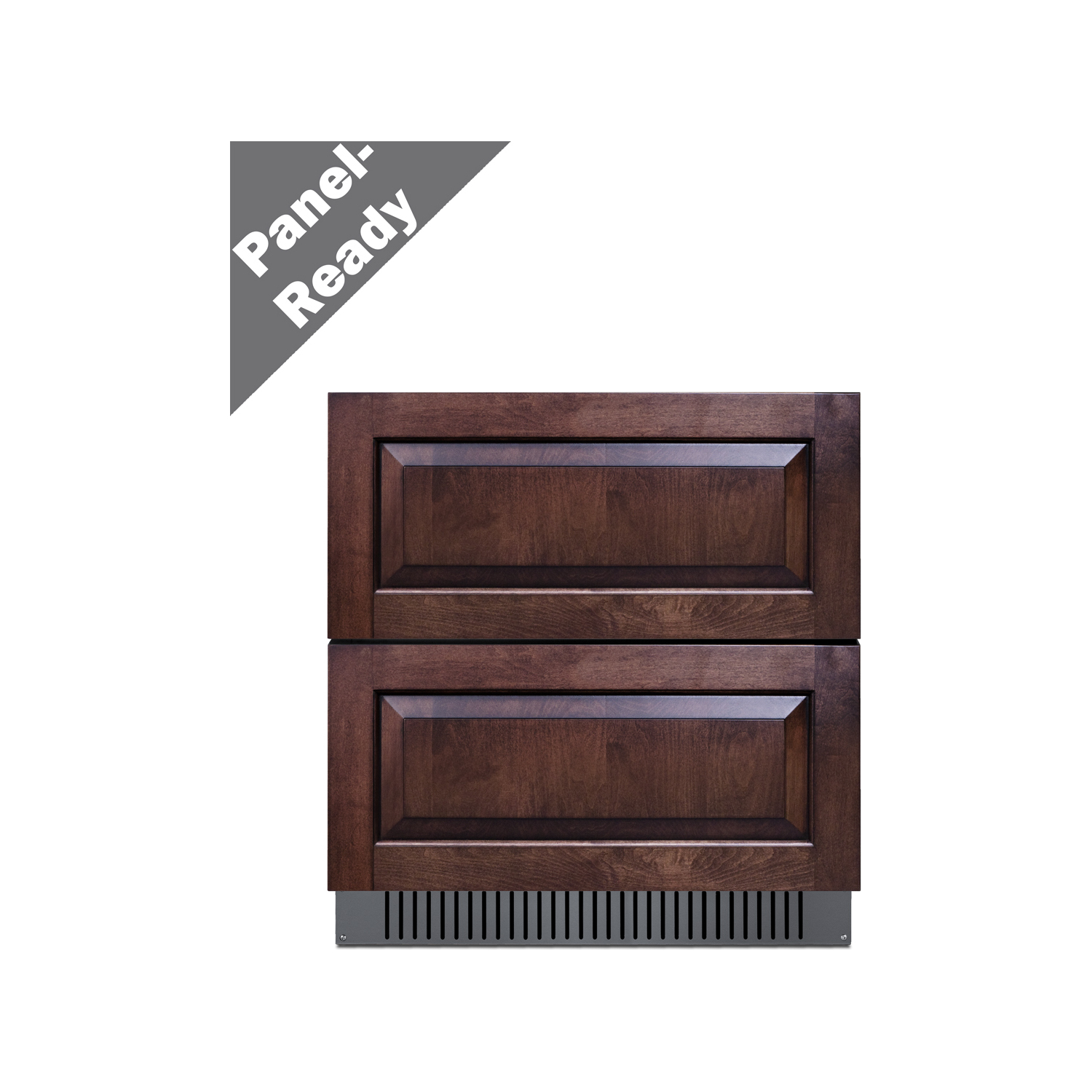

Panel-ready drawer fronts Drawers can be customized with overlay panels (sized at 29.5" x 13.78" at 3/4" thick) to match or accent existing cabinetry

Built-in capable Front-breathing design allows the unit to be built-in under counters

Indoor/Outdoor compatible Durable, weatherproof construction designed to hold up to the elements

Commercially approved ETL-S listed to NSF-7 standards allows use in commercial kitchens

Professional handles Stainless steel handles add style to any setting

Frost-free No-frost operation for minimal user maintenance

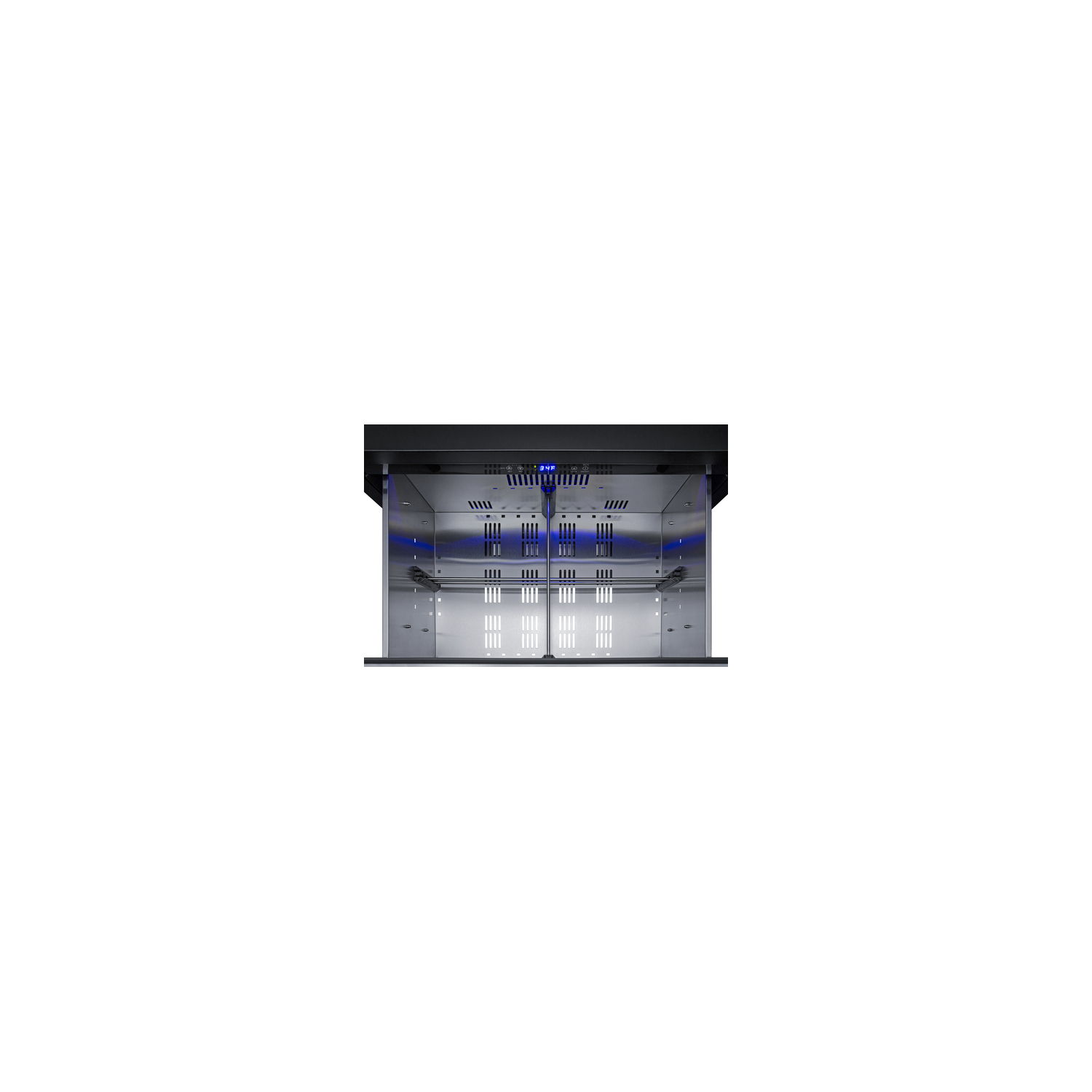

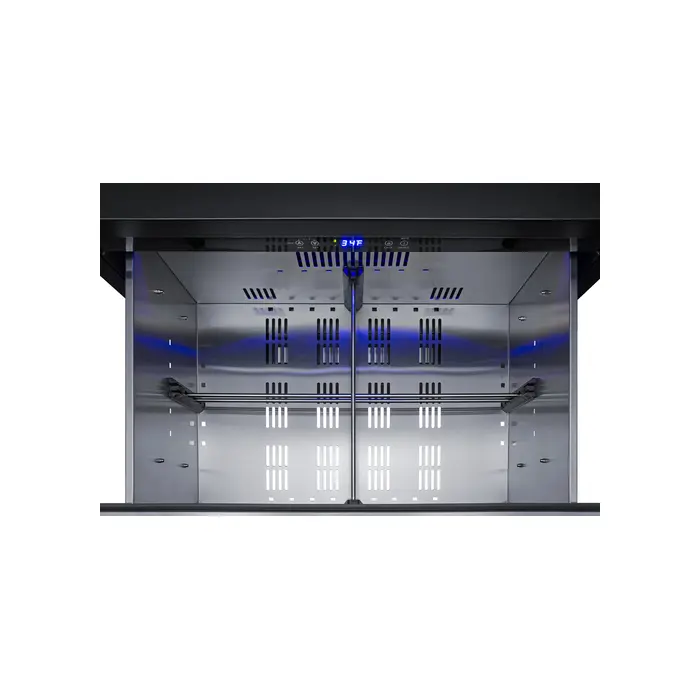

LED lighting Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Drawer dividers Each drawer includes a removable accessory that lets you divide your storage into four sections

Open drawer alarm Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability

Fan-forced cooling Provides for efficient, even cooling of the entire unit

Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety

Anti-tip bracket Bracket (included) helps prevent tipping for added safety

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR3032DADA.pdf)

TECHNICAL DRAWING (.dwg) (SPR3032DADA.dwg)

ASSEMBLY DRAWING (SPR3032DADA-Assembly.pdf)

REVIT MODEL (Qf_Summit_SPR3032DADA_30_inches_Wide_2-Drawer_All-Refrigerator_ADA_Compliant.rfa)

USE & CARE (SPR3032DADA-User-Manual.pdf)

Energy Guide
