Summit 27 inch wide built-in undercounter 2-drawer outdoor all-refrigerator, SPR275OS2DCSS

Summit 27" wide built-in undercounter 2-drawer outdoor all-refrigerator, 7.61101e+011, SPR275OS2DCSS
MPN:SPR275OS2DCSS
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

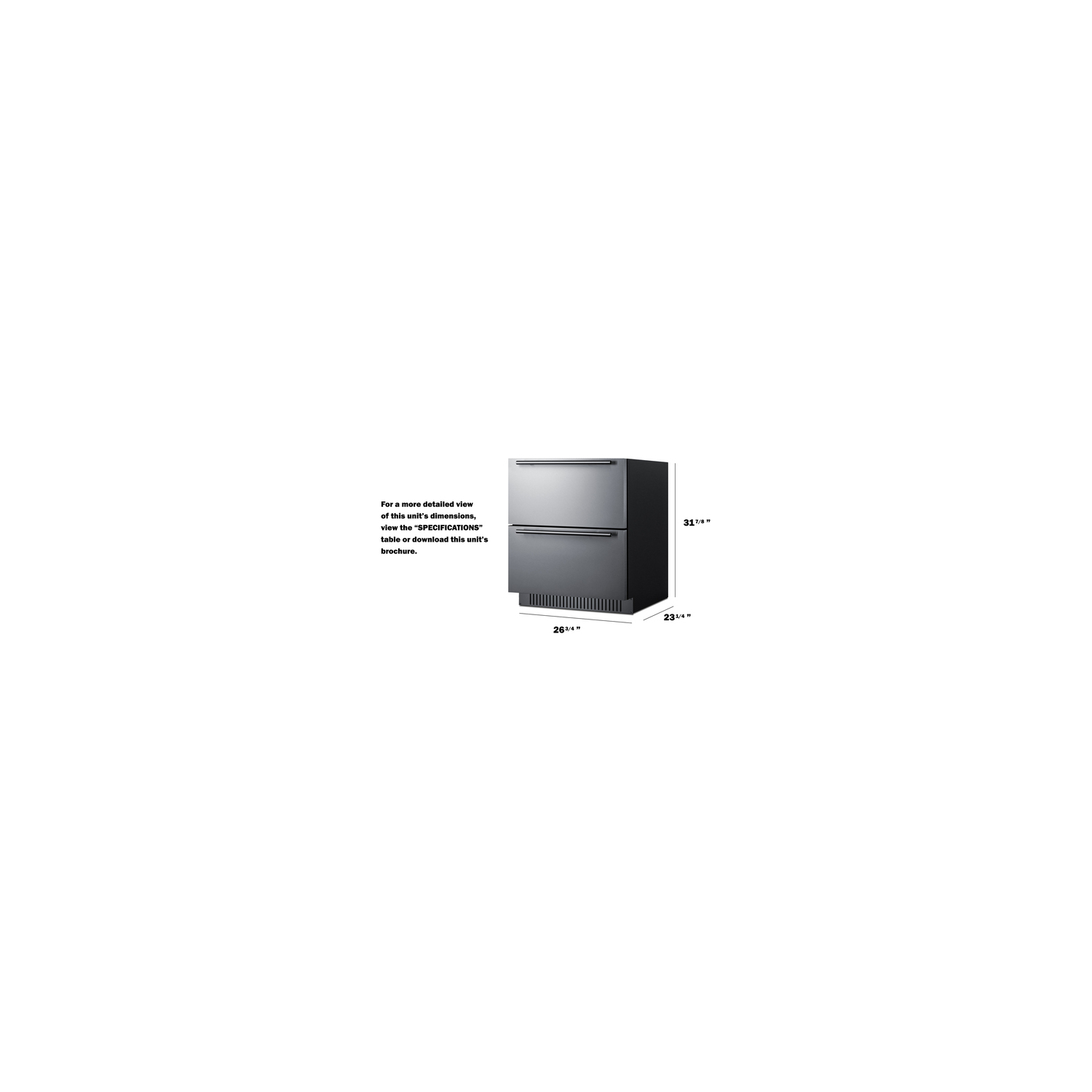

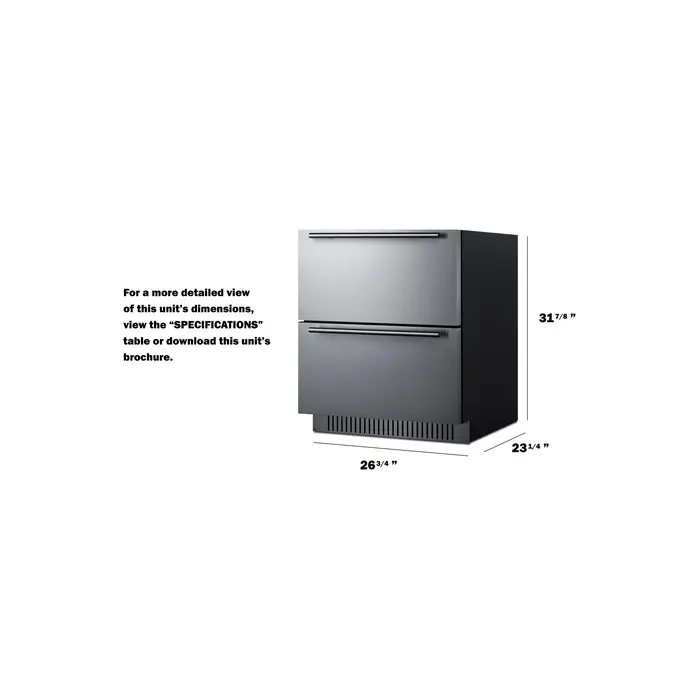

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.88" (86 cm)

Nominal Width 27.0" (69 cm)

Width 26.75" (68 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.25" (59 cm)

Depth with Handle 25.25" (64 cm)

Depth with door at 90° 37.75" (96 cm)

Capacity 4.83 cu.ft. (137 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 303.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 121.0 lbs. (55 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101153216

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Height Adjustable Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 2

Temperature Range 34 to 65ºF

Sound Level 35.2 dB

Drawer Dimensions

Interior Height 1 9.88" (25 cm)

Interior Width 1 21.0" (53 cm)

Interior Depth 1 16.5" (42 cm)

Interior Height 2 8.75" (22 cm)

Interior Width 2 21.0" (53 cm)

Interior Depth 2 16.5" (42 cm)

Dimensions

Compressor Step Height 5.0" (13 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

27" Wide 2-Drawer All-Refrigerator Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

Less than 24" deep Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

Stainless steel drawers Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter

Panel-ready drawer fronts Drawers can be customized with overlay panels (sized at 26.77" x 13.78" at 3/4" thick) to match or accent existing cabinetry

Built-in capable Front-breathing design allows the unit to be built-in under counters

Indoor/Outdoor compatible Durable, weatherproof construction designed to hold up to the elements

Commercially approved ETL-S listed to NSF-7 standards allows use in commercial kitchens

Wide temperature range Temperature can be set between 34 and 65ºF for versatile storage of food, beverages, wine, and other items

Professional handles Stainless steel handles add style to any setting

Frost-free No-frost operation for minimal user maintenance

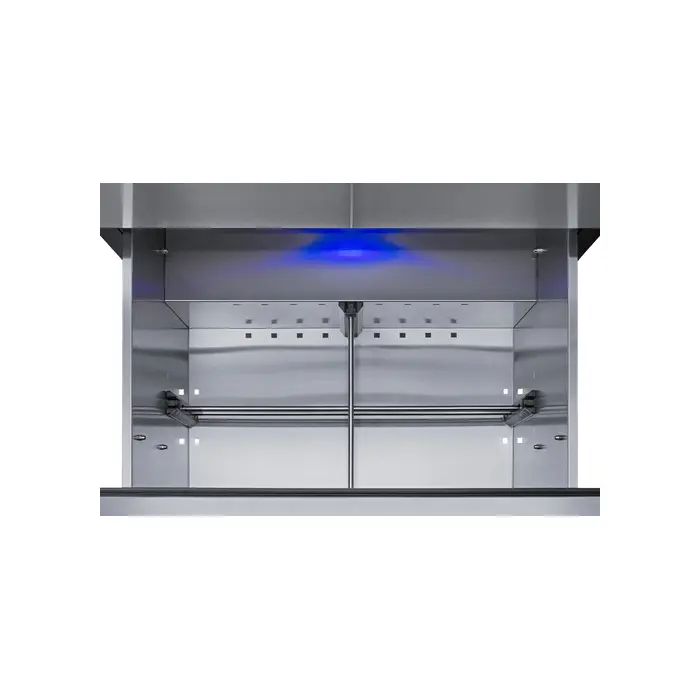

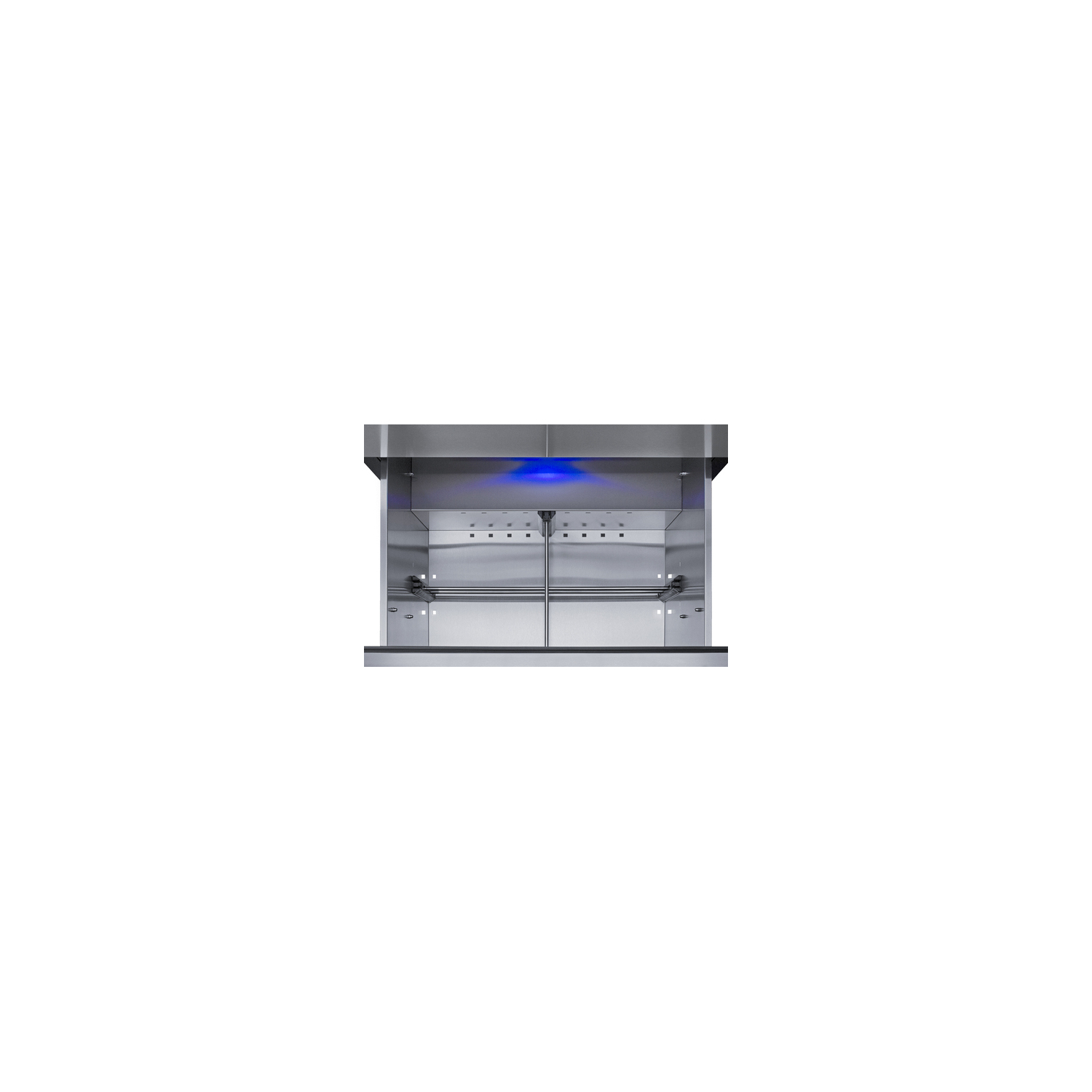

LED lighting Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

Digital thermostat Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

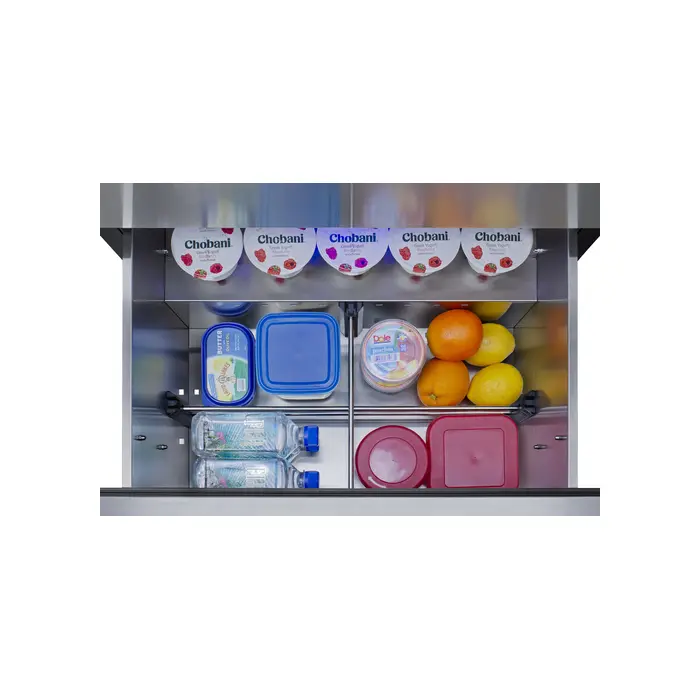

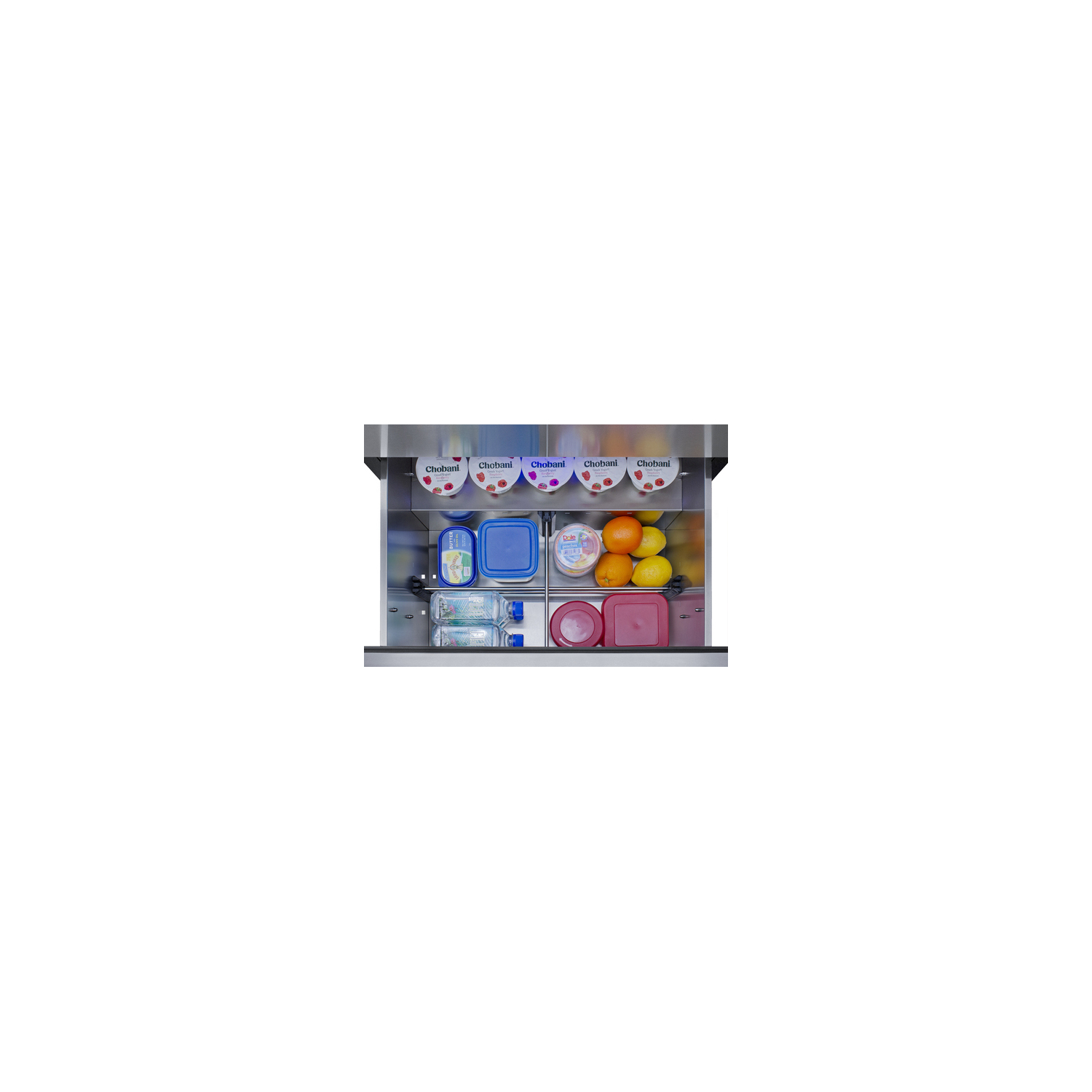

Drawer dividers Each drawer includes a removable accessory that lets you divide your storage into four sections

Open drawer alarm Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability

Fan-forced cooling Provides for efficient, even cooling of the entire unit

Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety

Anti-tip bracket Bracket (included) helps prevent tipping for added safety

Stainless steel wrapped cabinet Exterior features durable, attractive stainless steel for a professional look

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPR275OS2DCSS.pdf)

TECHNICAL DRAWING (.dwg) (SPR275OS2D_5.dwg)

ASSEMBLY DRAWING (SPR275OS2D-Assembly_3.pdf)

3D DRAWING (SPR275OS2D_3.3ds)

3D DRAWING (SPR275OS2D_6.dwg)

3D DRAWING (SPR275OS2DNoCord_3.obj)

REVIT MODEL (Qf_Summit_SPR275OS2D_27_inches_Wide_2-Drawer_All-Refrigerator_2.rfa)

USE & CARE (SPR275OS2DCSS-User-Manual.pdf)

Energy Guide
