Summit 24 inch wide 19 inch deep outdoor all-refrigerator with slide-out side storage compartment, 7.61101e+011, SPR196OS24

Summit's shallow depth series of built-in undercounter refrigeration includes residential outdoor options with pull-out side compartments for added storage convenience in a modern style.

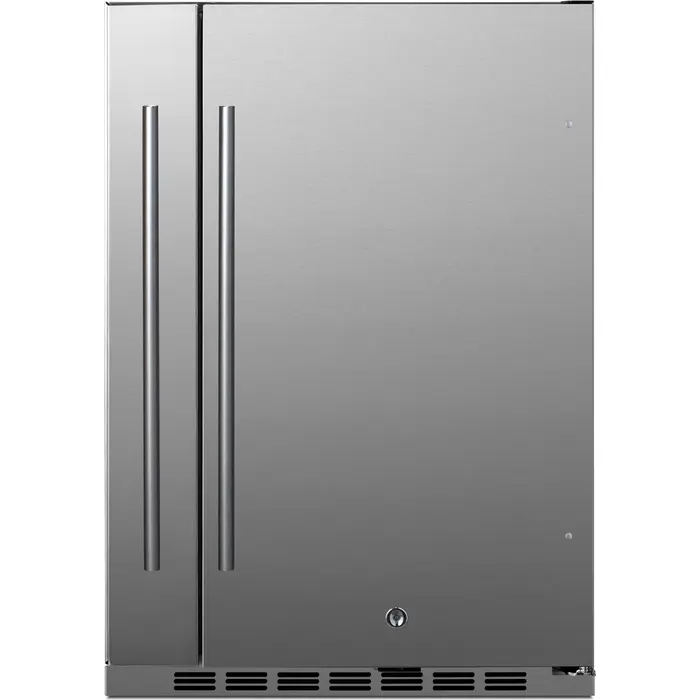

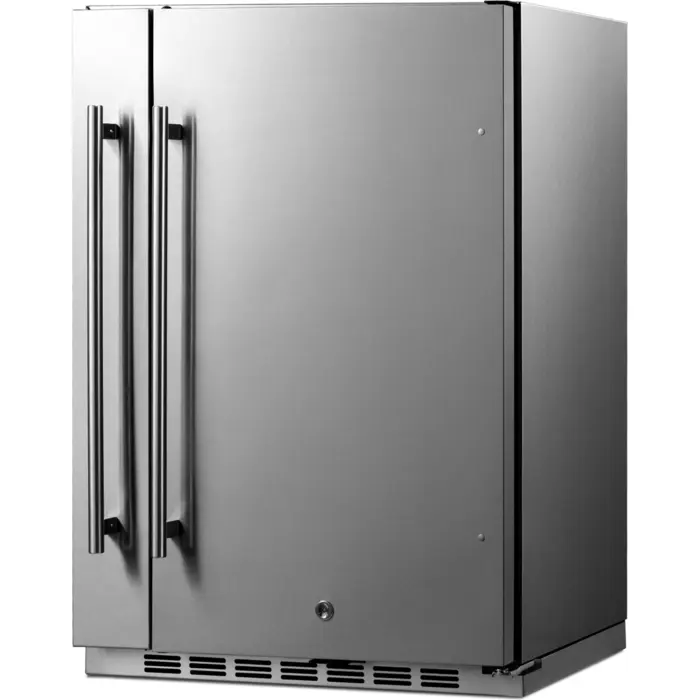

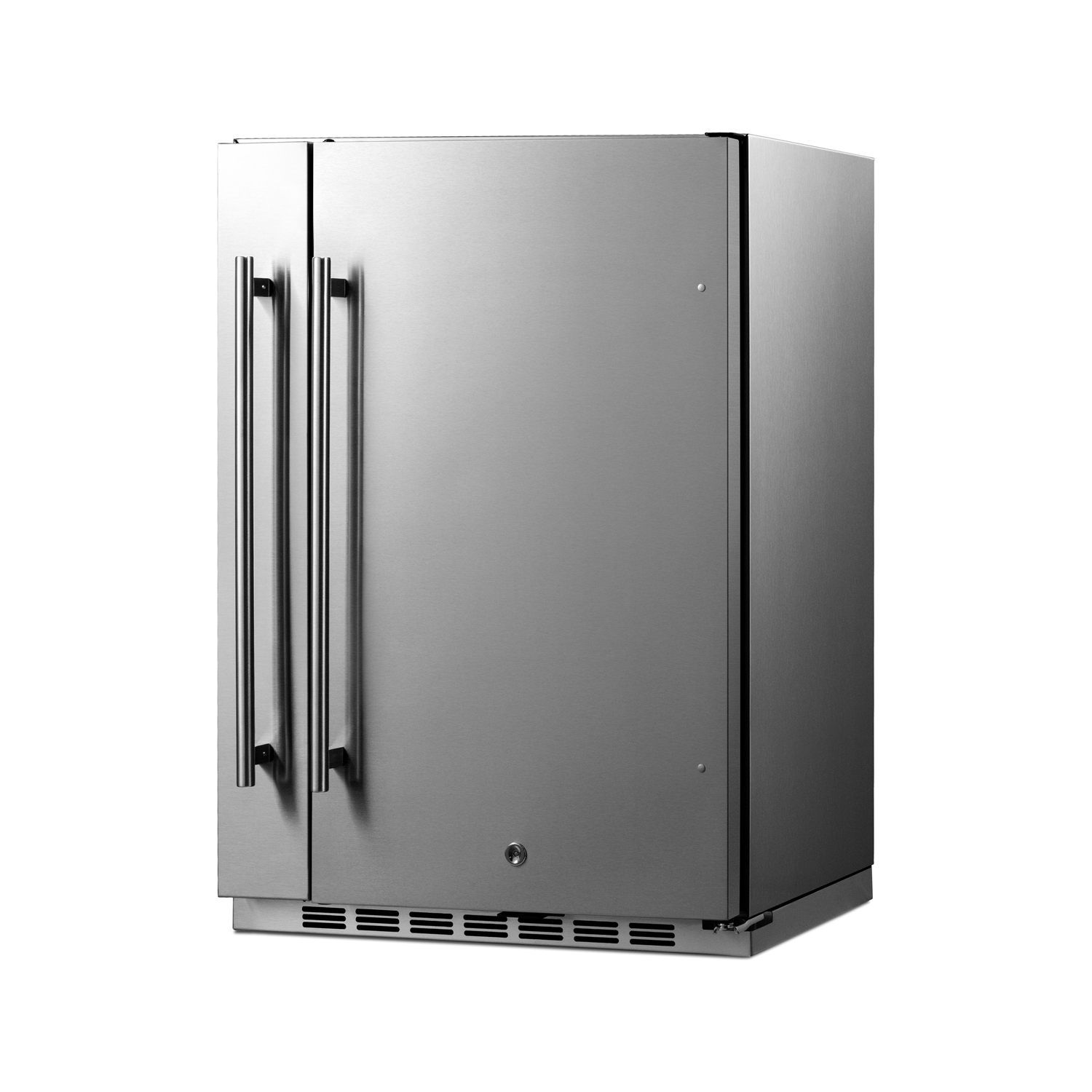

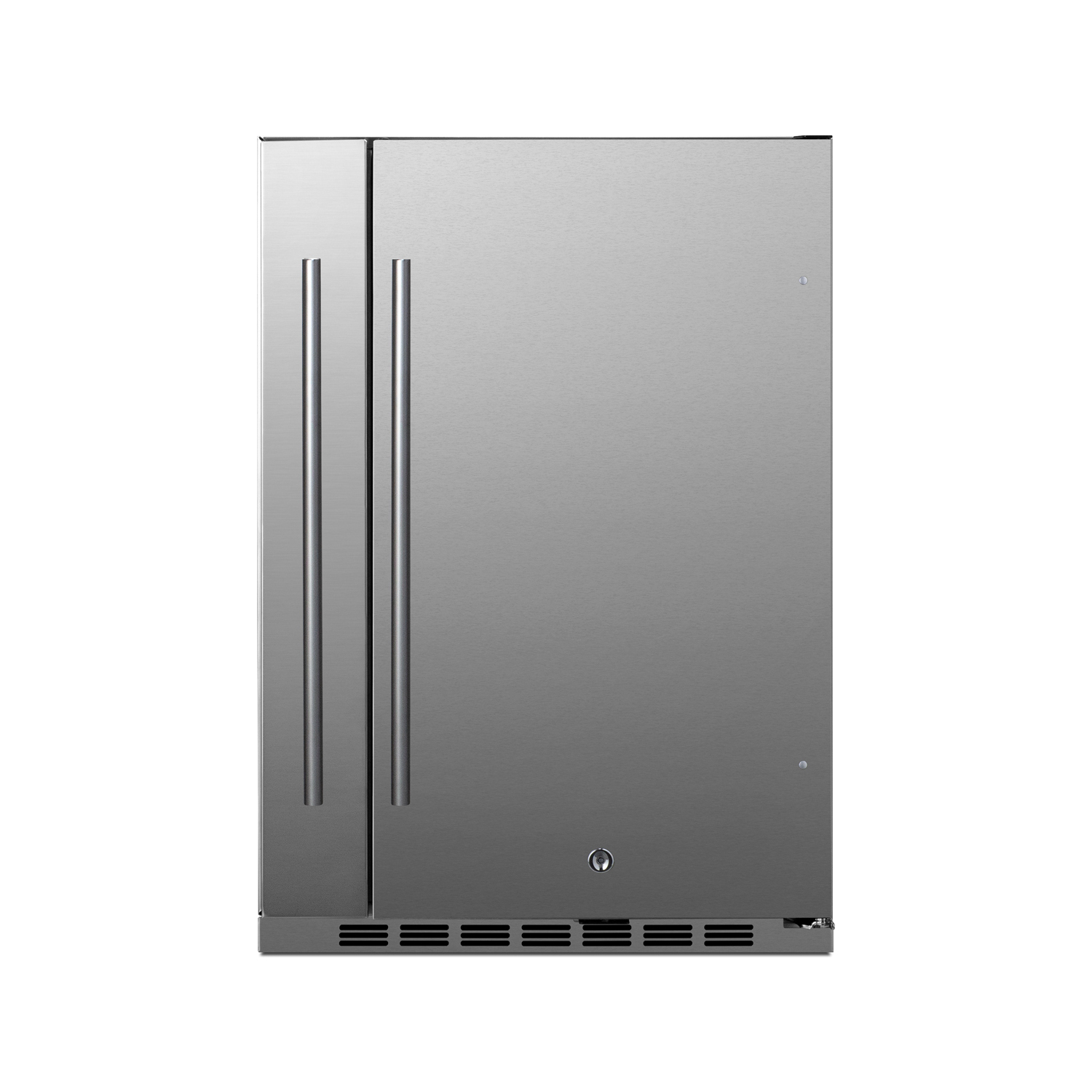

The SPR196OS24 is sized at just 24"es wide and 17.25"es deep, with a front-breathing design for built-in installation under counters and a fully finished stainless steel wrapped cabinet to also allow freestanding use. The sealed back ensures safe installation outdoors and protection from the elements. The stainless steel refrigerator door and storage drawer front bring elegance to any setting, with pro-style handles to complete the look. A factory-installed lock offers added security in the refrigeration compartment, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. For added protection against the elements, we include a vinyl outdoor cover to ensure proper protection while not in use. Two leveling legs keep the unit level on uneven surfaces.

For added storage convenience, this unit includes a non-refrigerated pull-out storage compartment in complete stainless steel, with a matching handle to the refrigerator section. The interior features two height adjustable stainless steel full-width shelves providing storage space for non-heat sensitive items such as glassware and sealed, shelf-stable foods including canned goods, dried fruits, crackers, and certain boxed foods like mac and cheese. We include three adjustable two-prong peg hooks that let you hang lighter accessories such as tongs and other cooking utensils. The upper part of the cabinet is slotted, allowing you to suspend slimmer glasses from the ceiling.

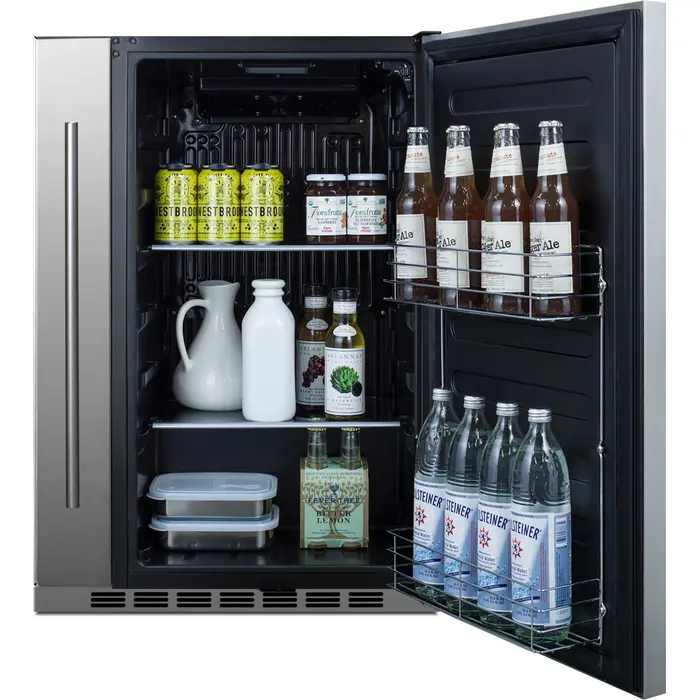

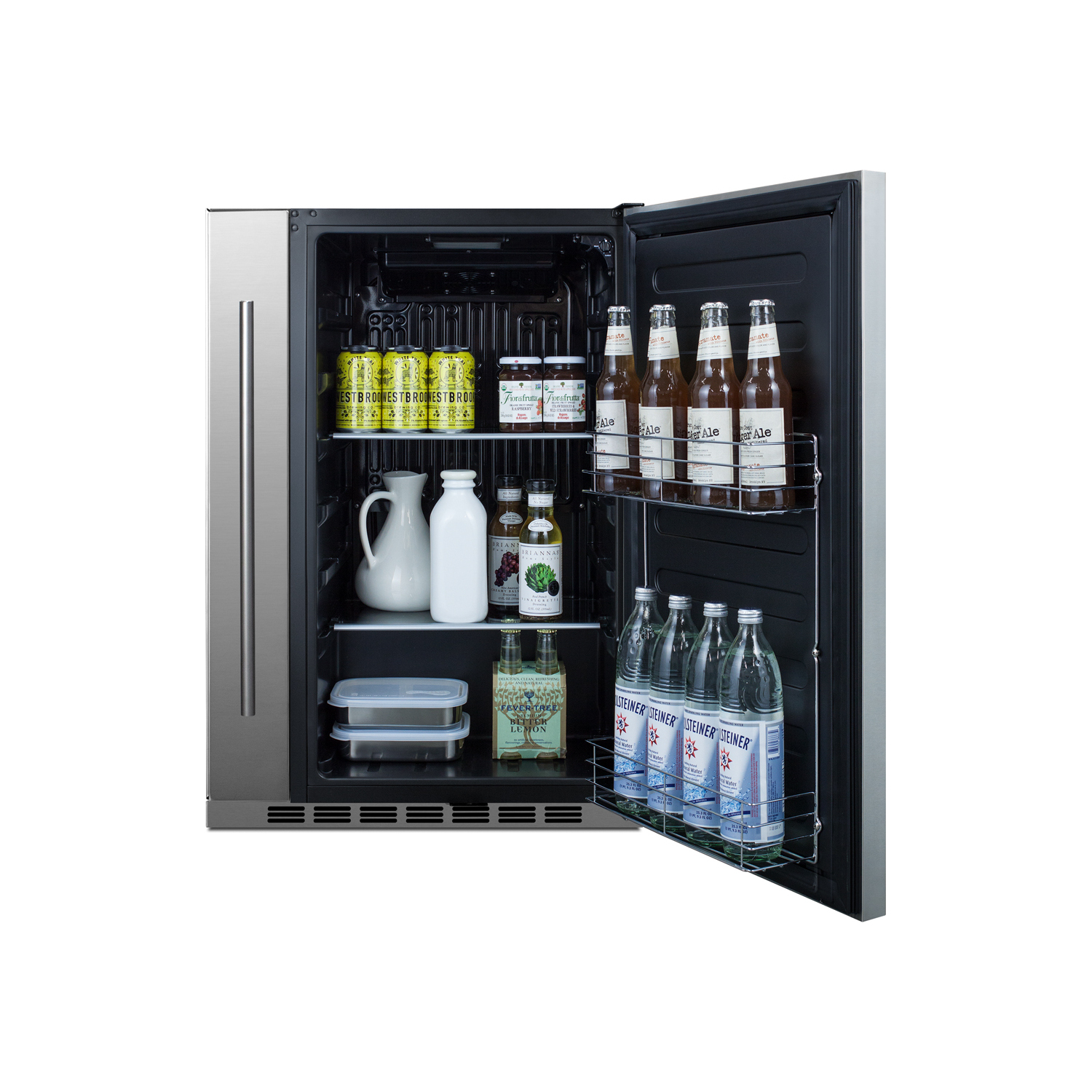

Inside, the SPR196OS24 utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

With its unique space-saving design and convenient shallow depth fit, the SPR196OS24 is the perfect addition to any outdoor home bar or residential space. For an indoor version, see the FF19524.Nominal Height: 35
Height of Cabinet: 34.25
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.75
Width with Door Open: 0
Nominal Depth: 18
Depth: 17.25
Depth with Handle: 19
Depth with door at 90°: 35
Capacity: 3.13
Bottles: 0Defrost Type: AutomaticDoor: Stainless SteelCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.25" (44 cm)

Depth with Handle 19.0" (48 cm)

Depth with door at 90° 35.0" (89 cm)

Capacity 3.13 cu.ft. (89 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 259.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101079097

Refrigerator Features

Door Swing RHD

Reversible No

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.88oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 34 to 50ºF

Sound Level 33.4 dB

Drawer Dimensions

Interior Height 1 29.0" (74 cm)

Interior Width 1 4.25" (11 cm)

Interior Depth 1 12.75" (32 cm)

Dimensions

Interior Height 29.0" (74 cm)

Interior Width 16.0" (41 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 16.0" (41 cm)

Compressor Step Depth 6.25" (16 cm)

FEATURES

All-refrigerator with extra storage Perfectly designed to maximize storage convenience in a slim, shallow fit

Weatherproof design Approved for use in the outdoors with a stainless steel door for added durability

17.25" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space

Complete stainless steel construction Stainless steel wrapped cabinet, kickplate, and exterior front brings an elegant look in a durable design

Pull-out side compartment Non-refrigerated side compartment with a smoothly gliding pull-out door offers convenient storage of non-heat sensitive items such as glassware and cooking utensils and sealed, shelf-stable foods

Vinyl outdoor cover Included for user convenience and protects against the elements while outside and unit is not in use

Factory installed lock Keyed lock offers added security, with two keys included

Professional handles Stainless steel handles on both compartments add an attractive touch

Stainless steel shelves (side compartment) Two adjustable full-width stainless steel shelves afford convenient added storage

3 peg hooks (side compartment) Adjustable two-prong hooks allow users to hang cooking utensils, washcloths, and other lightweight items as needed

Wine glass storage (side compartment) Slide-out compartment includes three upper slots to suspend slim wine or champagne glasses

Automatic defrost Reduced user maintenance with auto defrost system

Adjustable shelves Three glass shelves with brake system ensures safe, optimal storage

Door racks Two chrome racks accommodate a variety of sizes for optimal interior storage

LED lighting Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish Allows for easy cleaning and organization within the interior of the unit

Adjustable thermostat Dial thermostat with seven temperature settings offers easy temperature management

Sealed back Space saving design with easier cleanability and added protection from the elements

Fully finished stainless steel cabinet Allows the unit to be used freestanding

Right-angle plug Provides flexibility in unit placement without needing added depth

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
