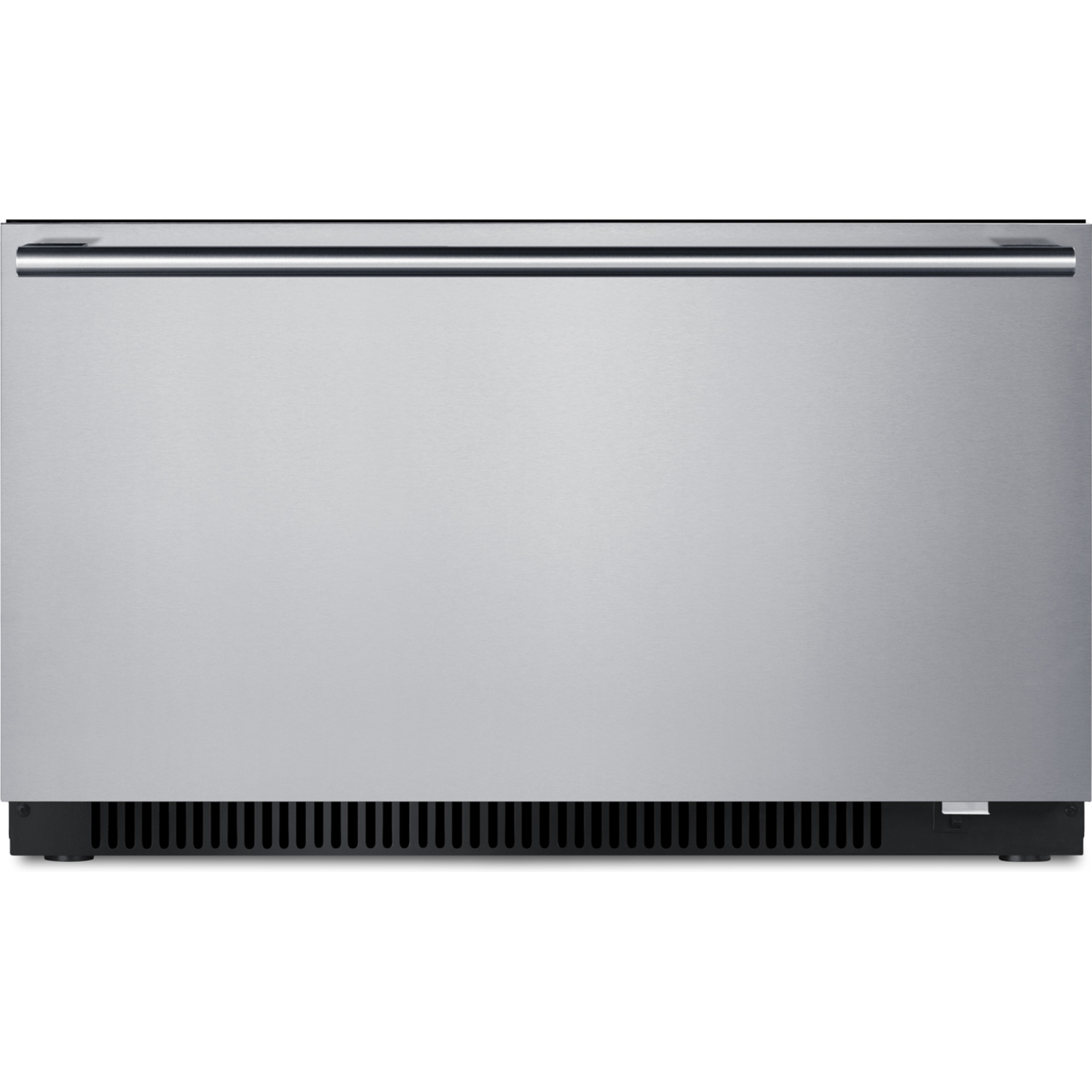

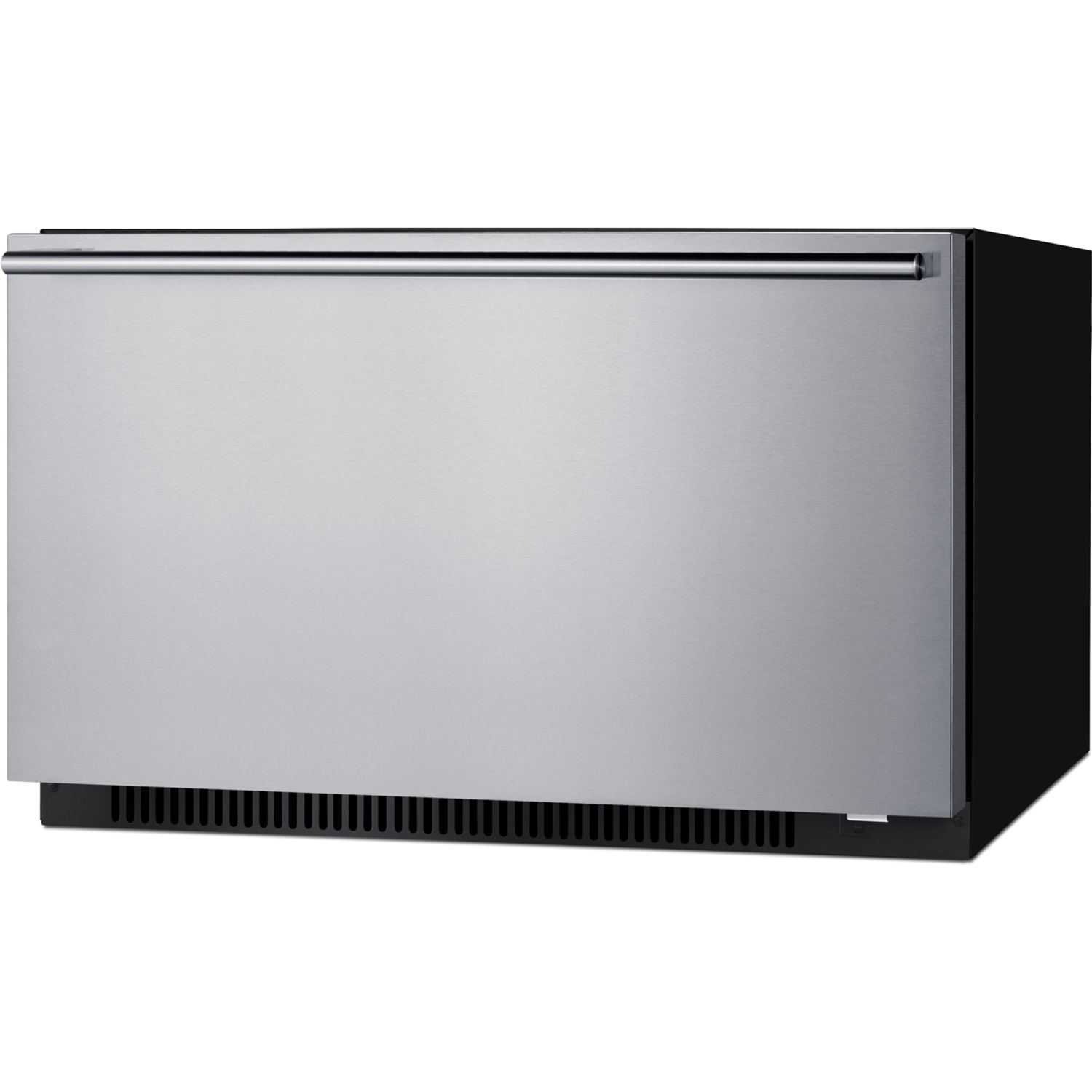

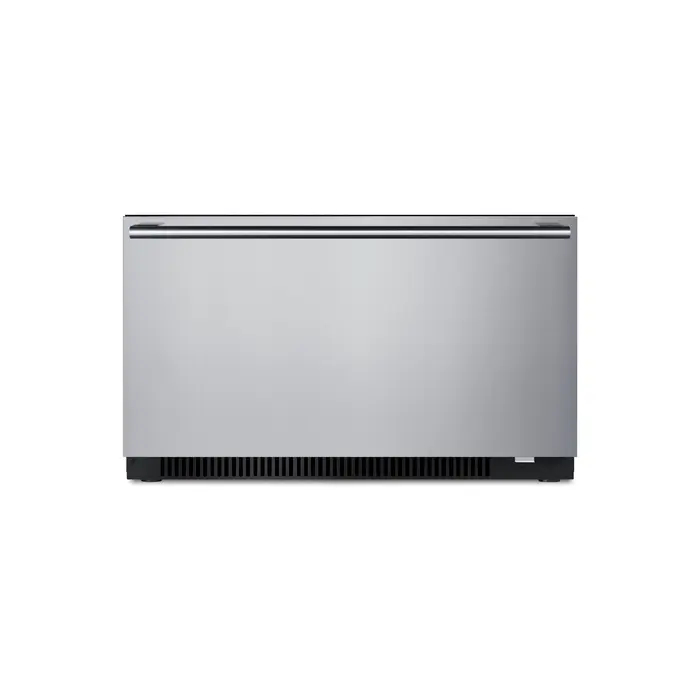

Summit Convertible warming or Cooling drawer - built in, 7.61101e+011, SPHC30

Summit is excited to introduce our SPHC30, the industry's first convertible warming and cooling drawer.

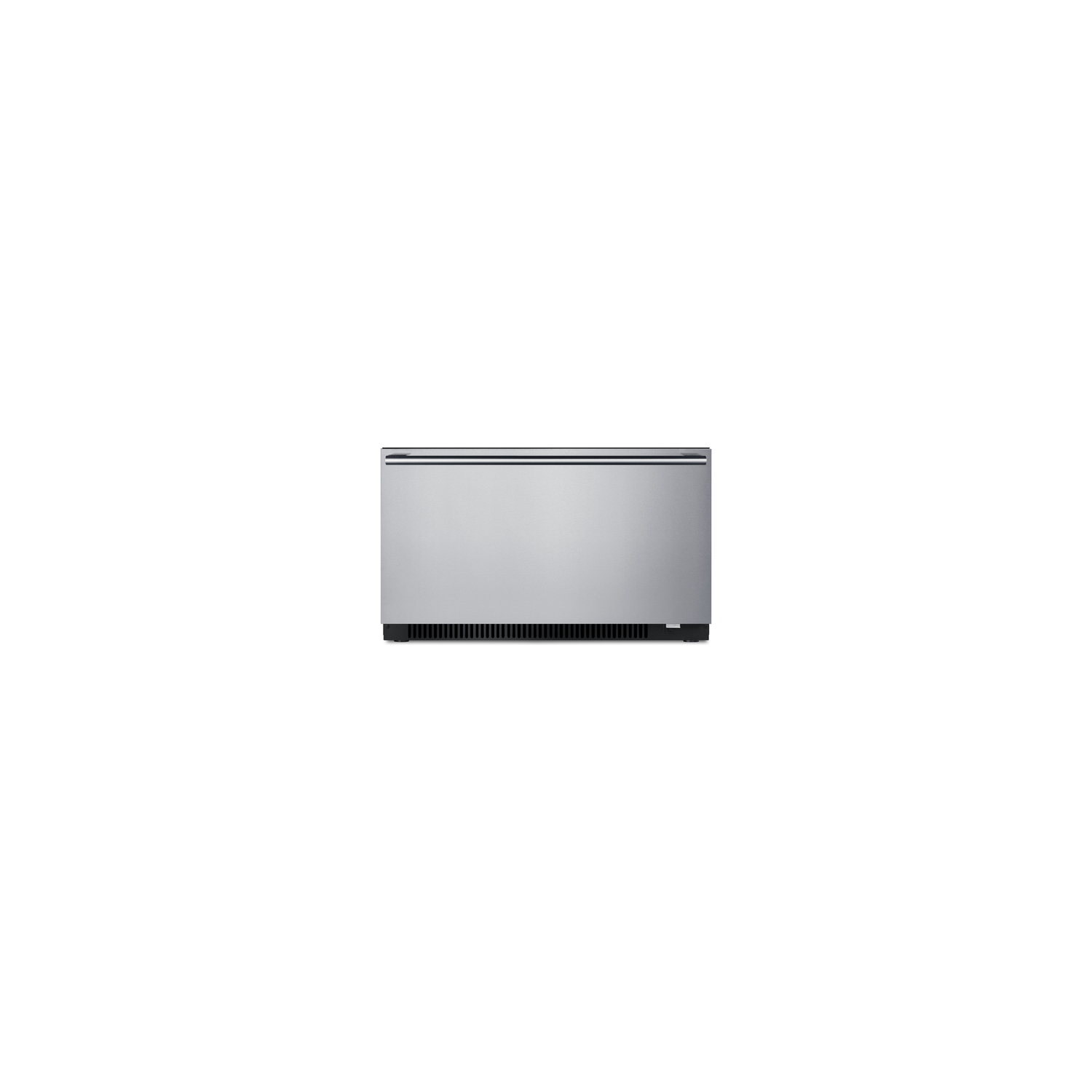

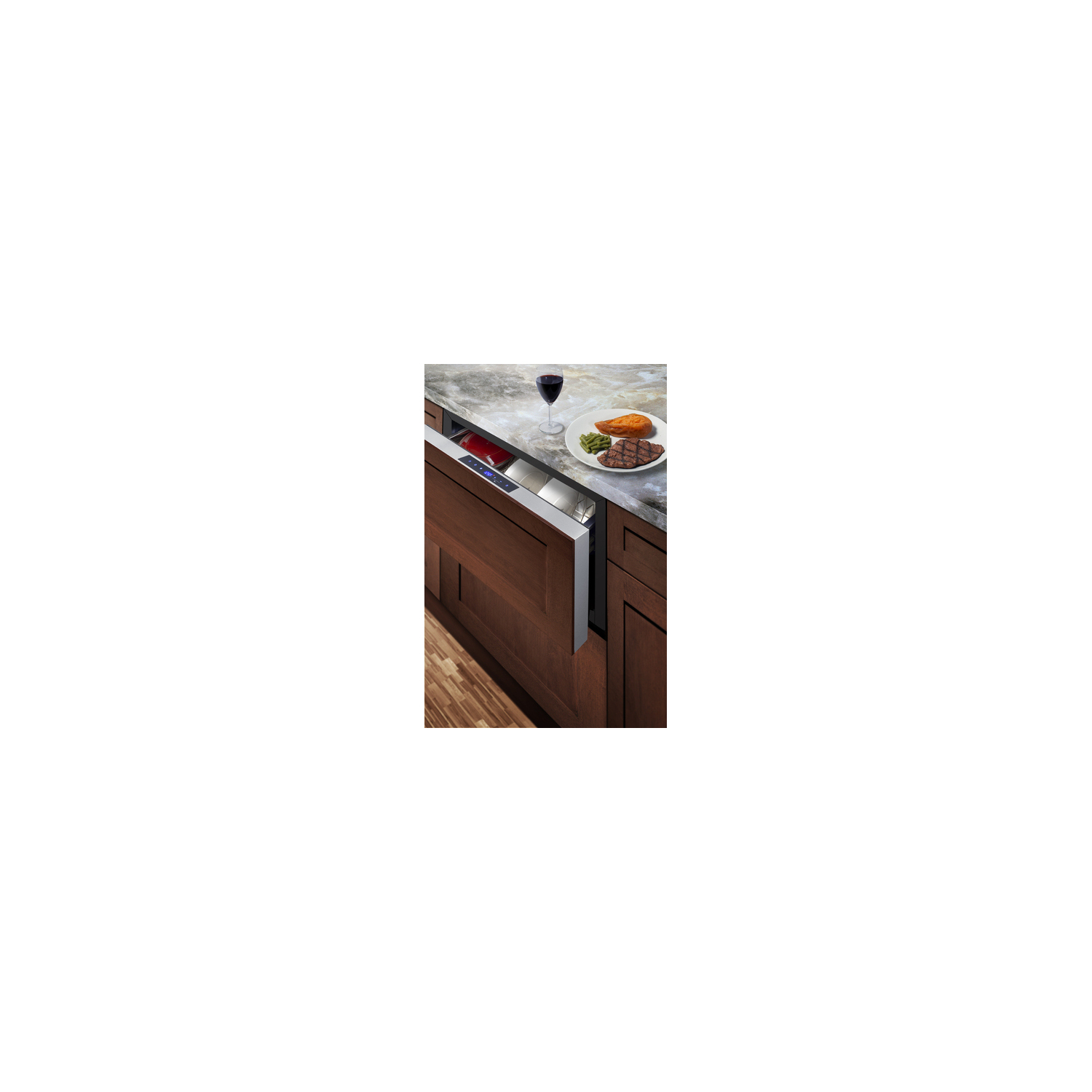

The SPHC30 is sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The drawer is constructed from 304-grade stainless steel, with a pro-style handle and a fully finished front. The drawer can be customized with overlay panels to match or accent existing cabinetry design.

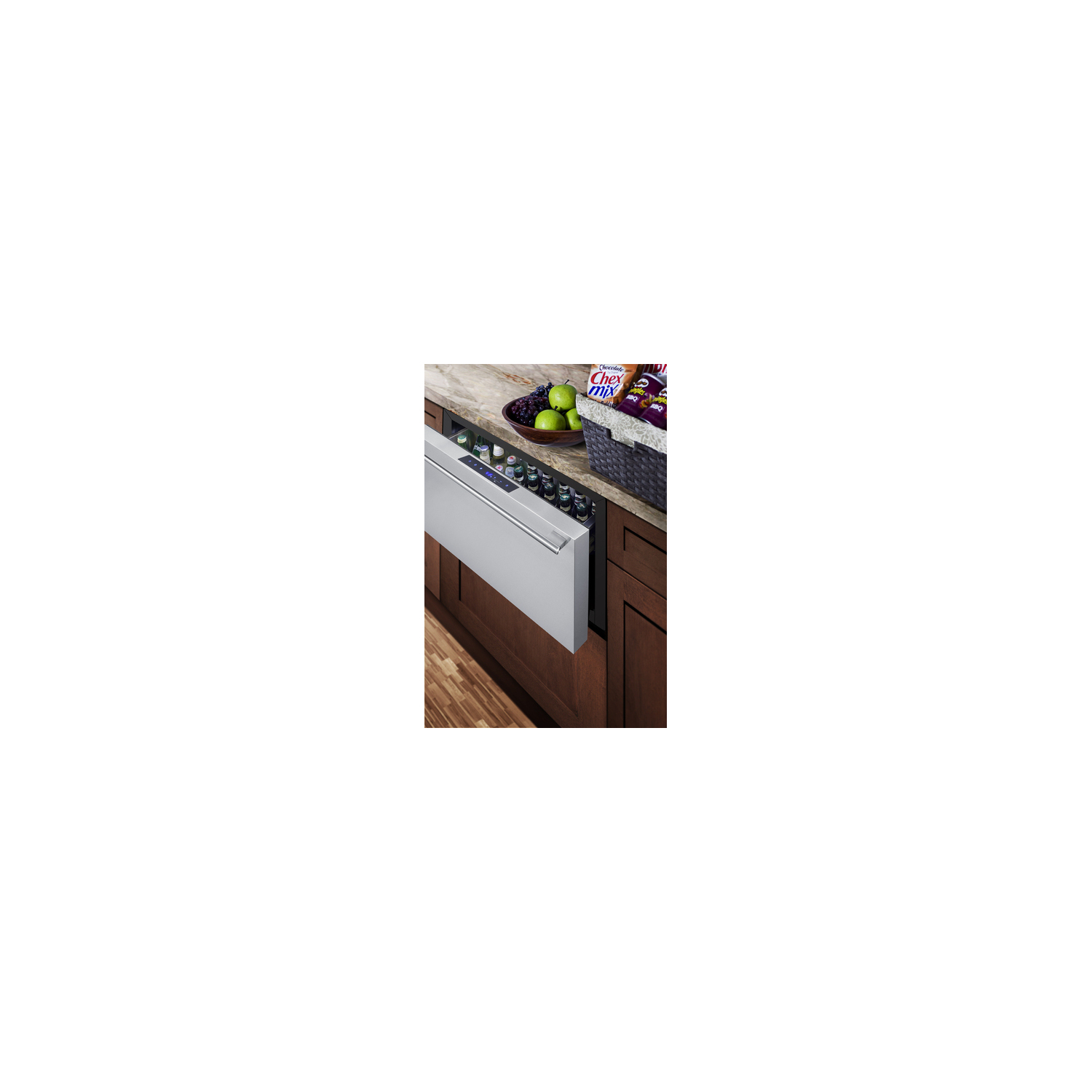

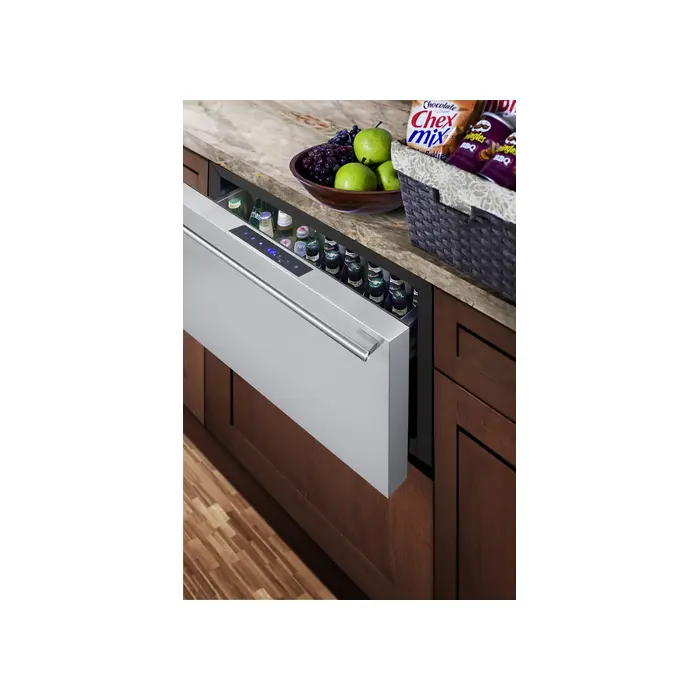

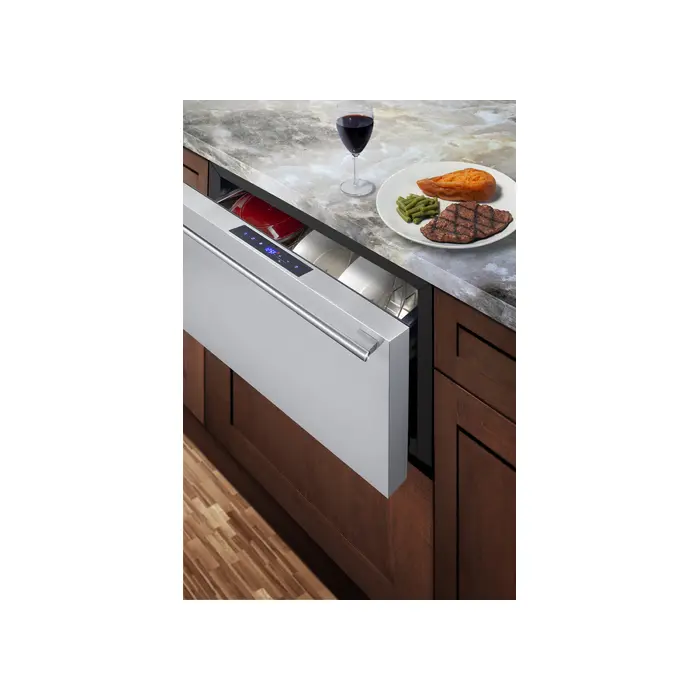

With 2.4 cu.ft of storage space and true versatility, our SPHC30 can function as both a cooling drawer and a warming drawer with a simple touch of a button. When in Cooling Mode, the unit is perfect for keeping beverages and snacks chilled (temperatures range from 36°F/2°C to 43°F/6°C.) Meanwhile, Warming Mode is ideal for helping bread dough rise, and can even be used to keep dishes warm until serving (temperatures range from 80°F/20°C to 200°F/95°C.) For maximum convenience, this unit ships with a removable dish rack.

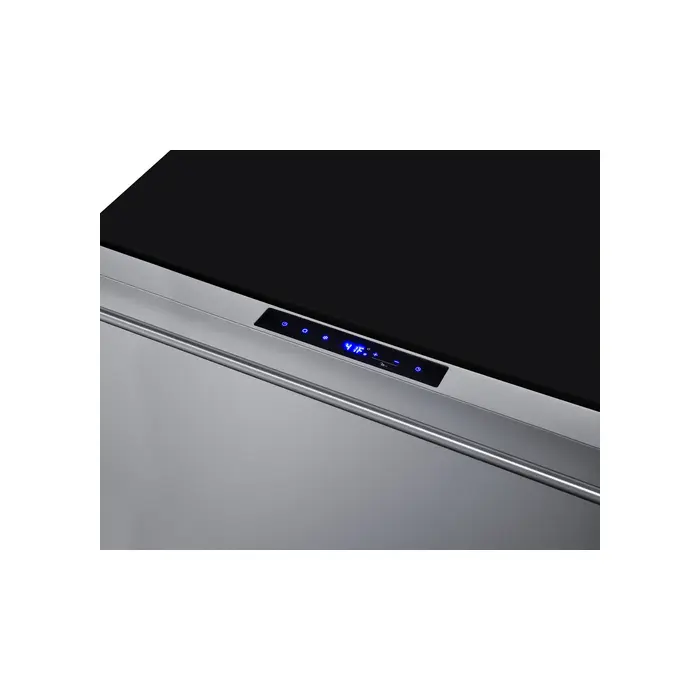

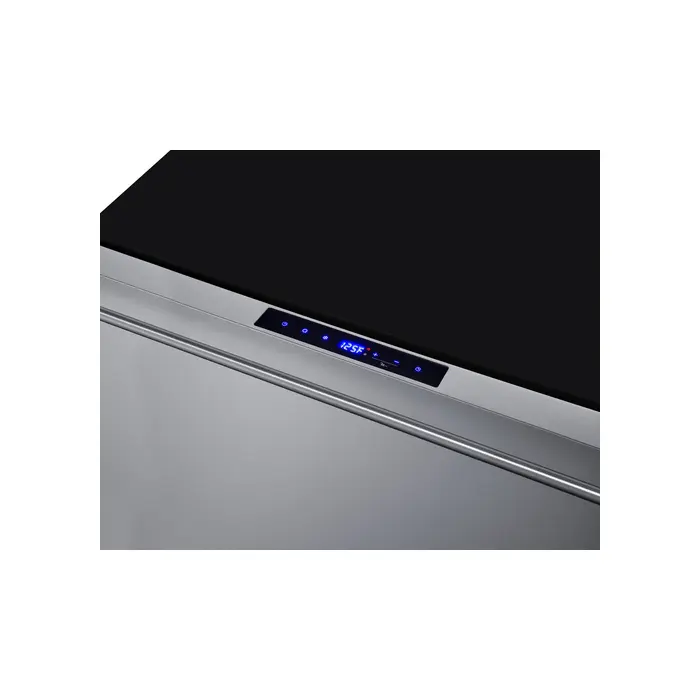

The control panel includes a digital thermostat with an LED display (with Celsius or Fahrenheit readout) located atop the drawer. There's also a user-friendly timer, a temperature memory function in the event of a power interruption, a convenient sabbath mode, and even an automatic child lock to help prevent accidents. The SPHC30 is a 115v unit that ships with a power cord, though professional installation is required.

With its weatherproof construction, the SPHC30 is safe for use in both indoor and outdoor settings. With a sealed back and a fully finished black cabinet to ensure all components are protected from the elements. This unit is ETL-S listed to NSF-7 standards.

Though our SPHC30 is unique in functionality, we manufacture additional drawer-style refrigerators, freezers, and even wine cellars.

Visit summitappliance.com to browse our complete collections.Nominal Height: 18
Height of Cabinet: 17.88
Height to Hinge Cap: 0
Nominal Width: 30
Width: 29.5
Width with Door Open: 0
Nominal Depth: 23
Depth: 22.13
Depth with Handle: 23.88
Depth with door at 90°: 37.88
Capacity: 2.4
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless Steel/Panel-ReadyCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 18.0" (46 cm)

Height of Cabinet 17.88" (45 cm)

Nominal Width 30.0" (76 cm)

Width 29.5" (75 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.13" (56 cm)

Depth with Handle 23.88" (61 cm)

Depth with door at 90° 37.88" (96 cm)

Capacity 2.4 cu.ft. (68 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 280.0kWh/year

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101102849

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Reversible No

Shelf Type Chrome

Shelf Qty 1

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.2oz.

Level Legs Qty 4

Temperature Range 36 to 43ºF/80 to 200ºF

Dimensions

Interior Height 10.75" (27 cm)

Interior Width 23.5" (60 cm)

Interior Depth 15.5" (39 cm)

Compressor Step Height 5.13" (13 cm)

Compressor Step Width 23.5" (60 cm)

Compressor Step Depth 4.88" (12 cm)

FEATURES

30" Wide Warming And Cooling Drawer Specially designed to switch functions between a standard refrigerator or warming cabinet

Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

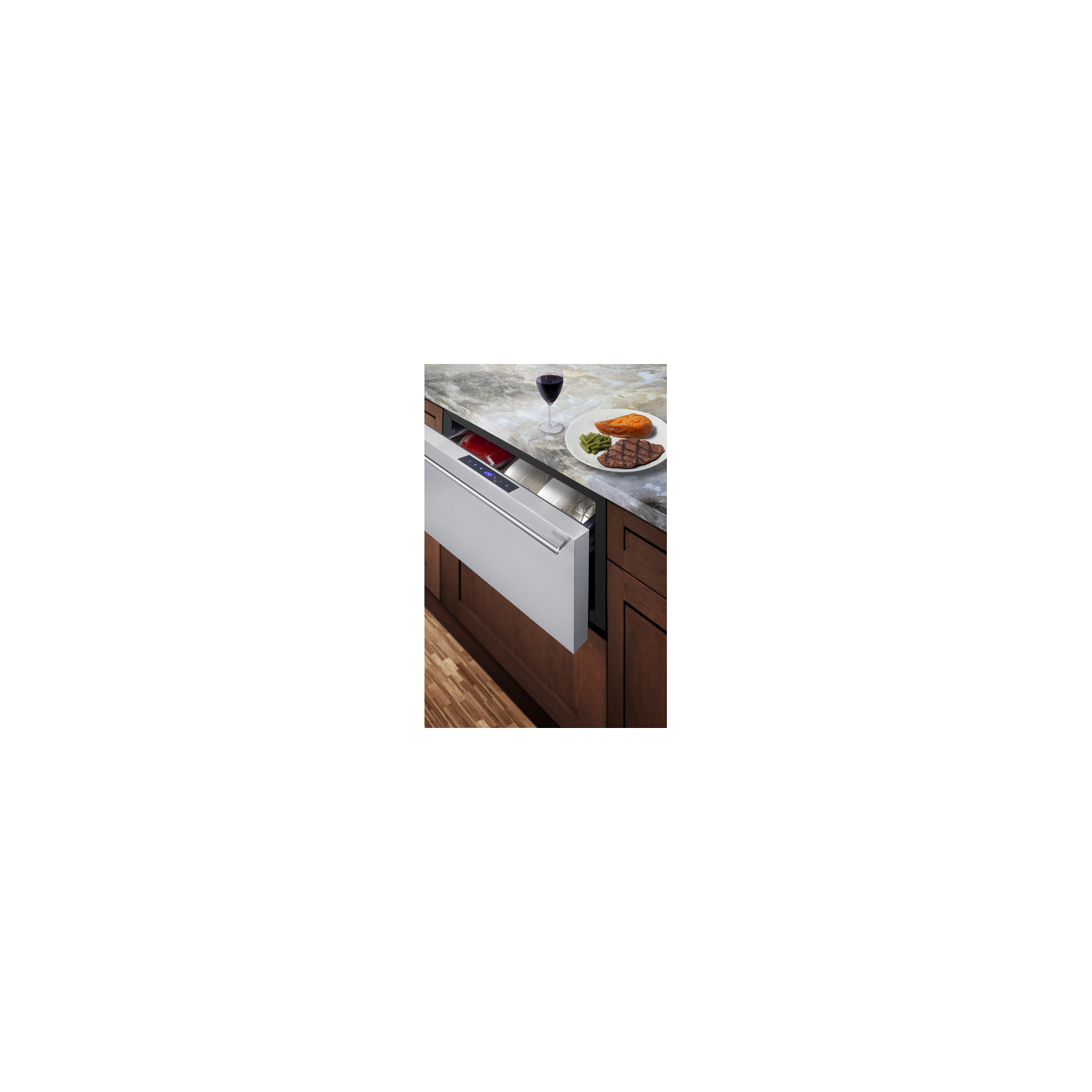

Built-in capable Front-breathing design allows you to build the drawer into cabinetry

Weatherproof design Durable construction allows safe installation in outdoor kitchens

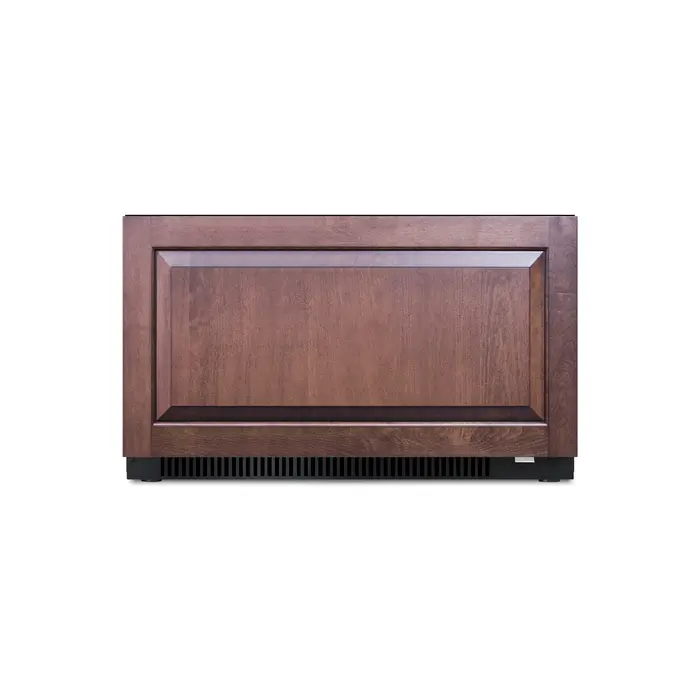

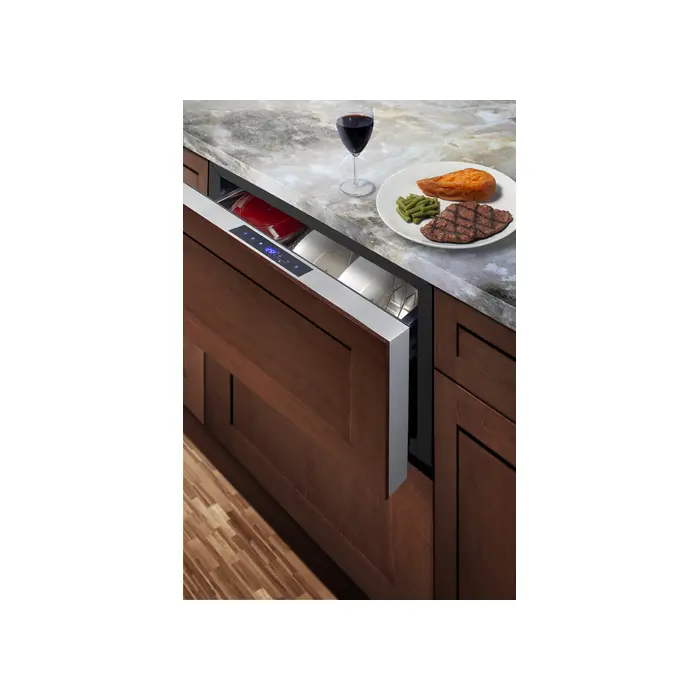

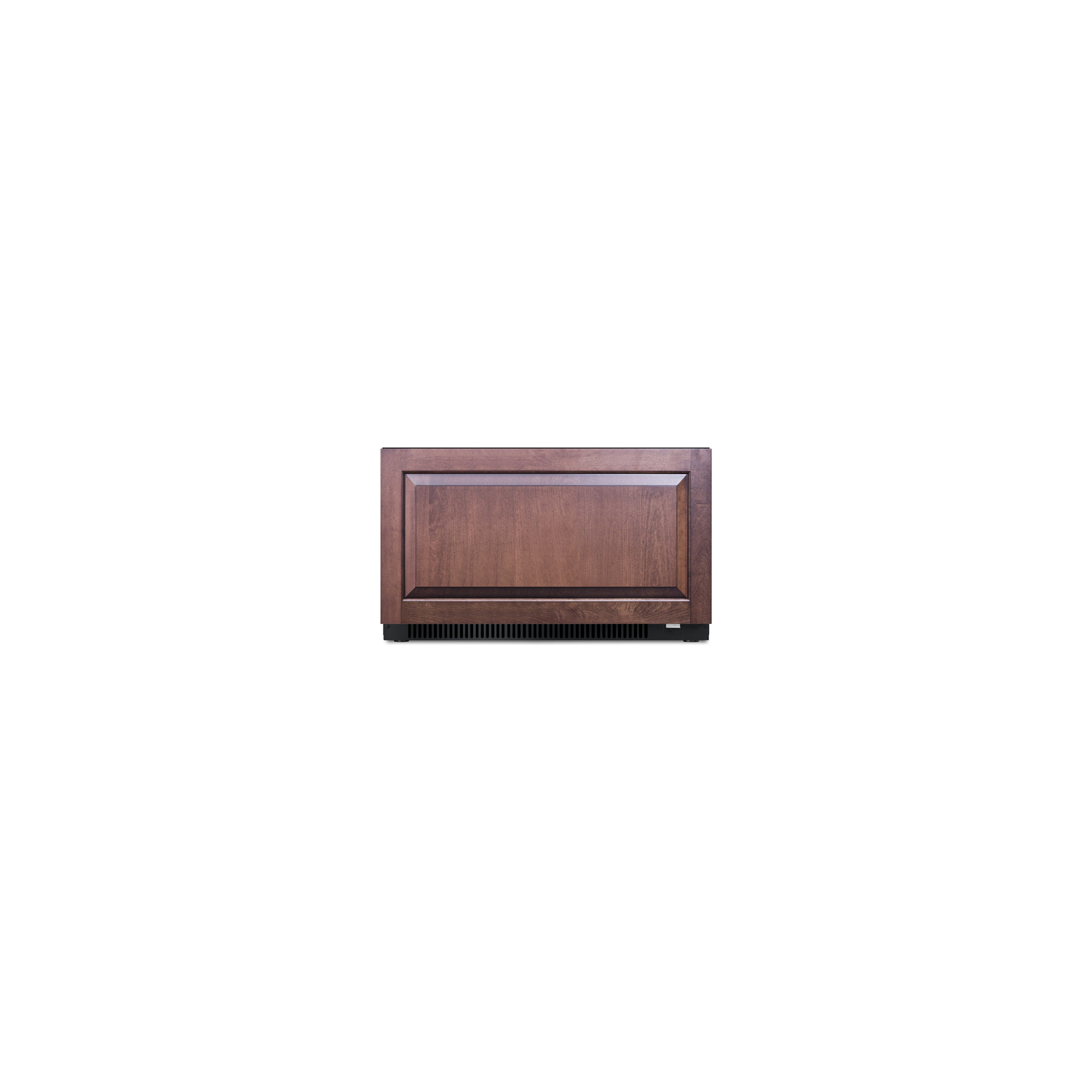

Panel-ready drawer front Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design

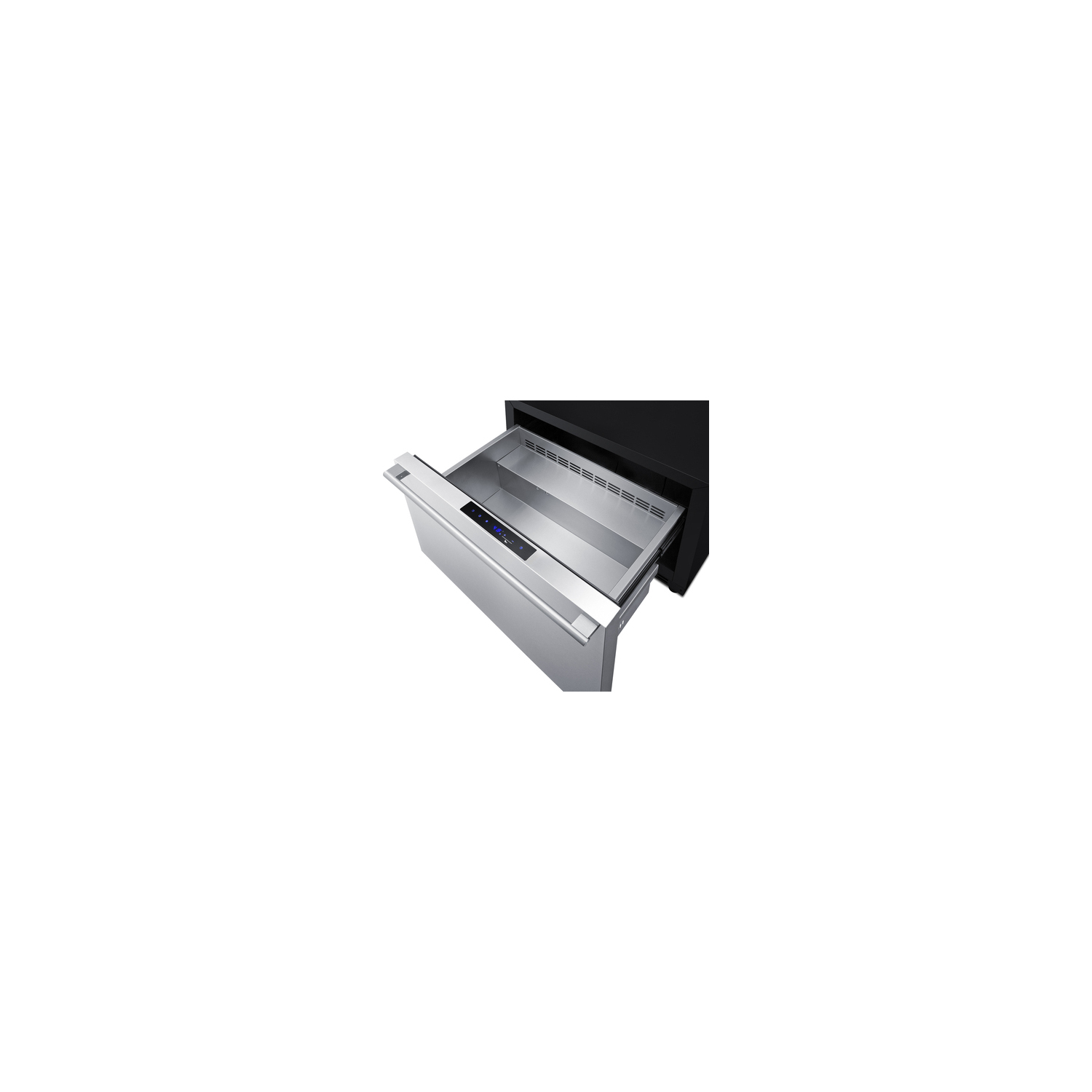

304 grade stainless steel drawer Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Warming function Perfect for proofing bread with a temperature range of 80°F/20°C to 200°F/95°C

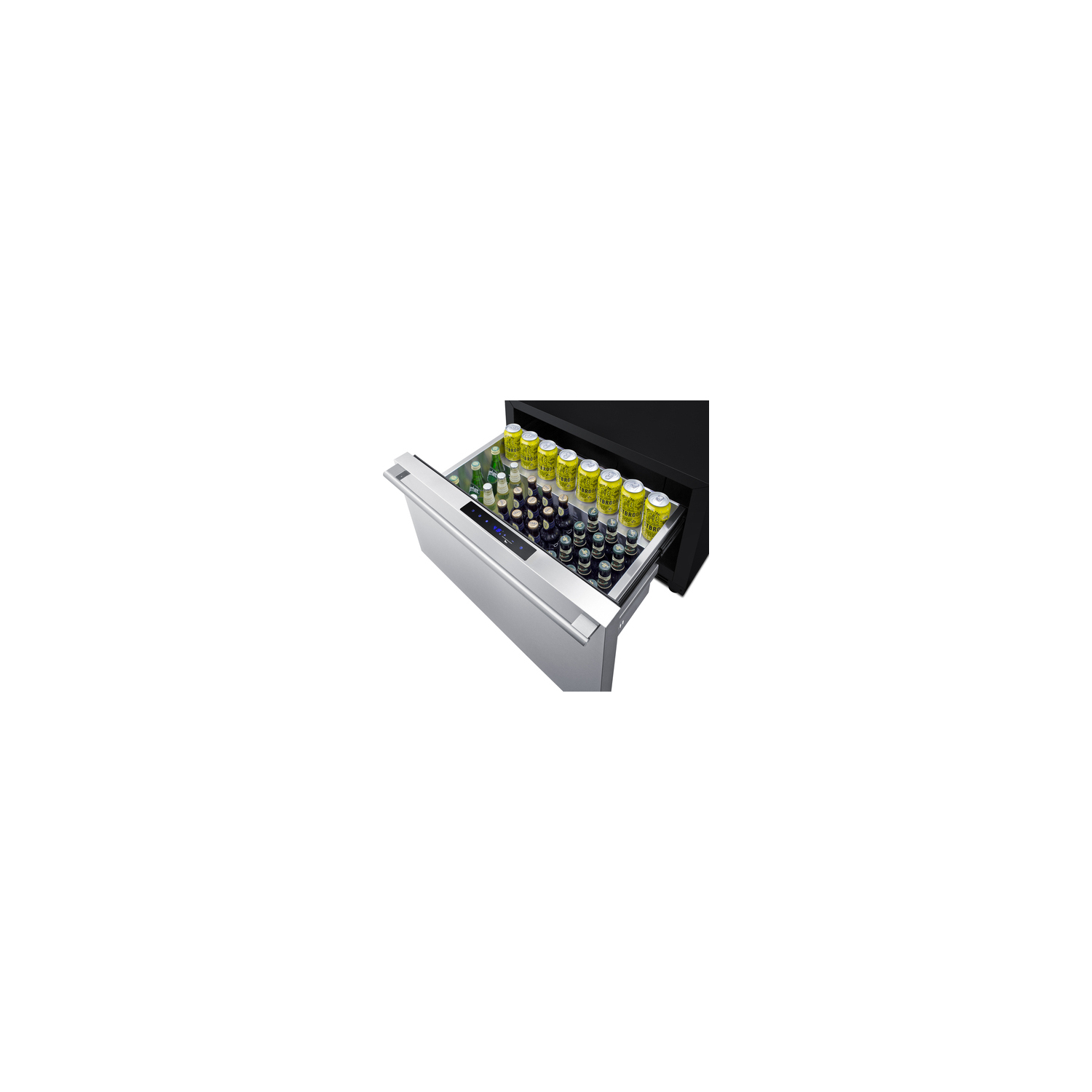

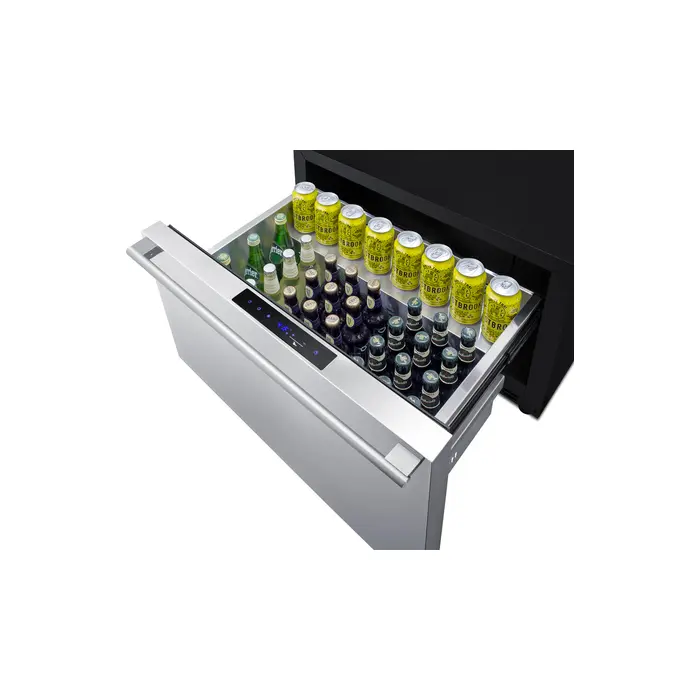

Cooling function Perfect for chilling beverages with a temperature range of 36°F/2°C to 43°F/6°C

Frost-free operation Minimum user maintenance with a fully no-frost operation system

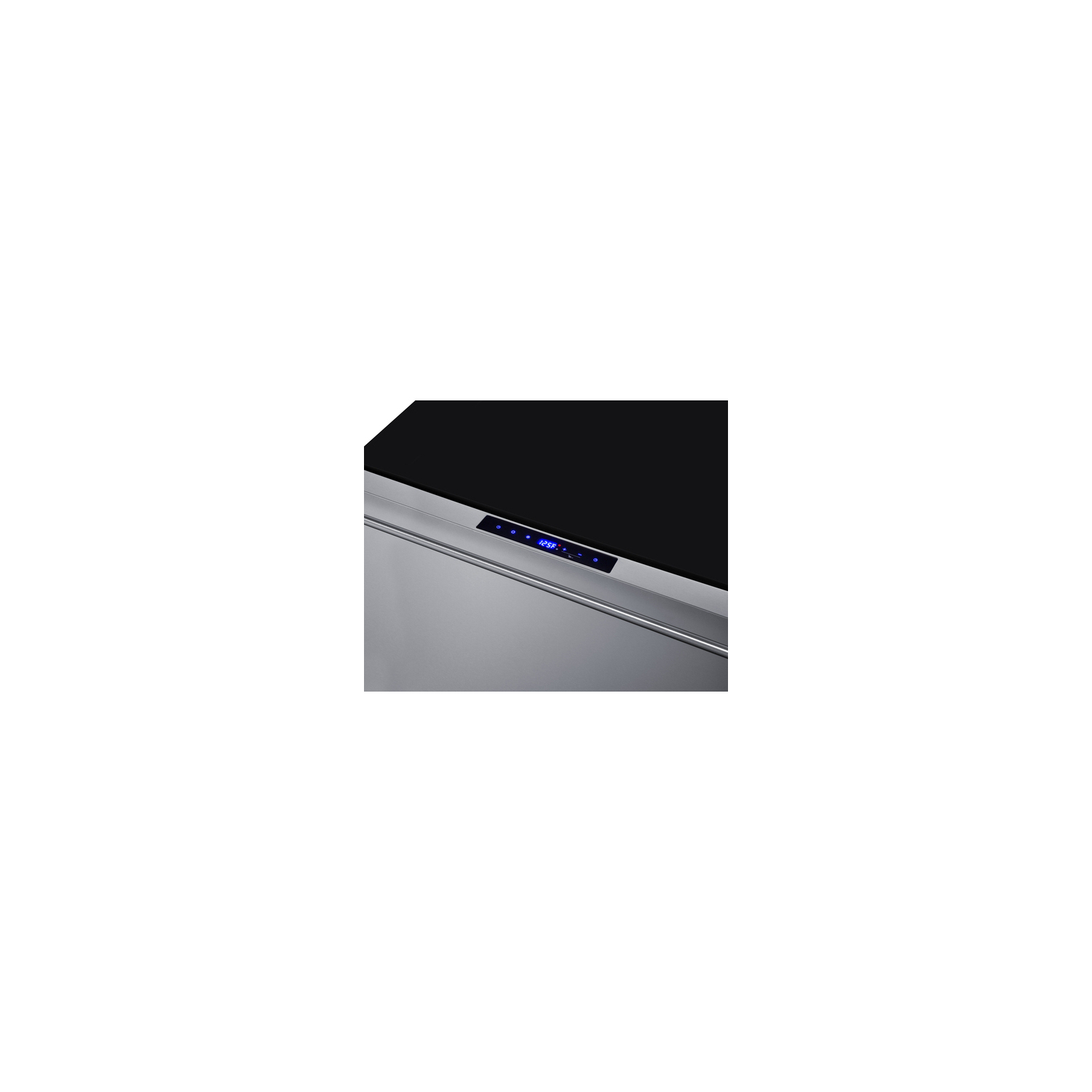

Digital thermostat Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

Internal fan Fan-forced cooling ensures the unit is evenly cooled

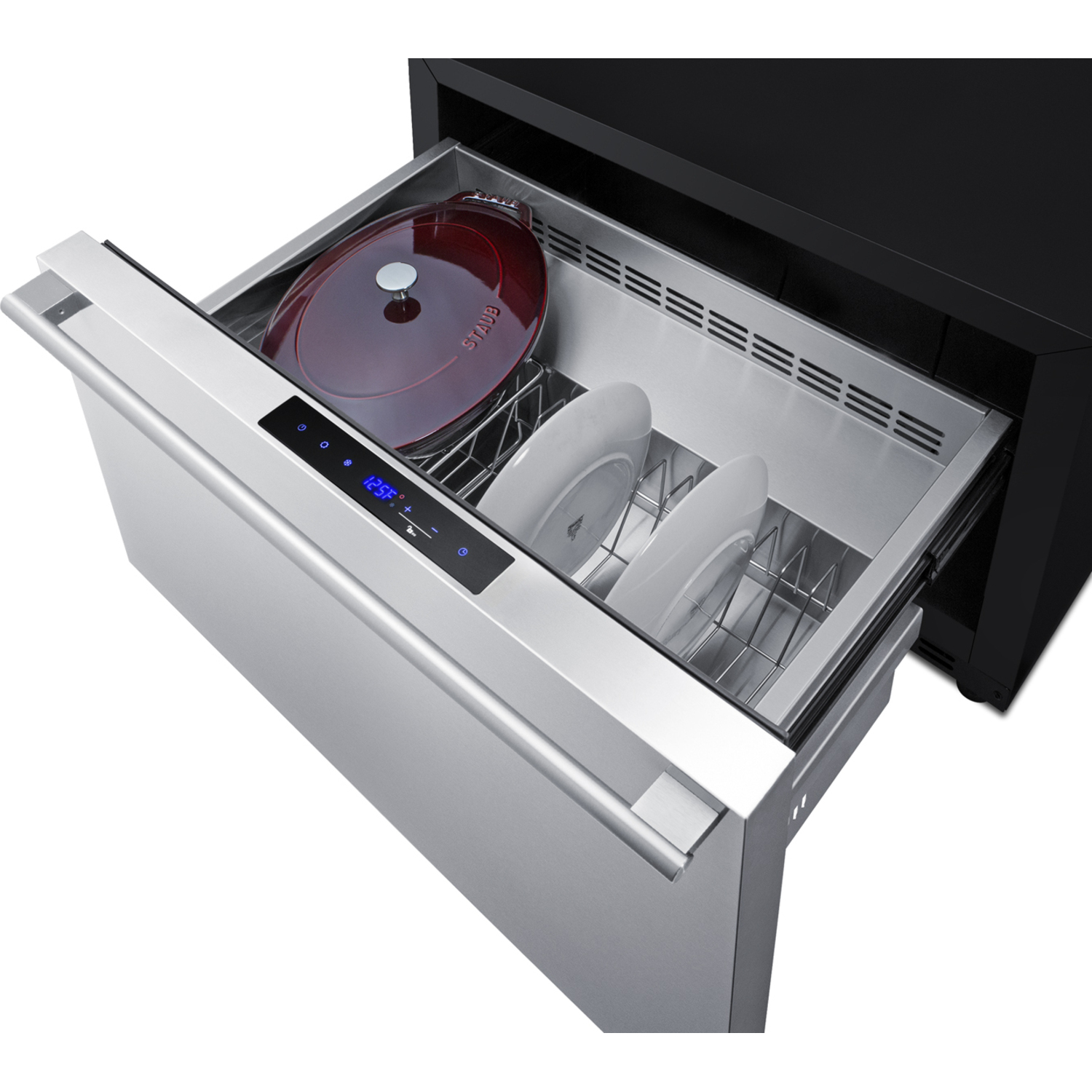

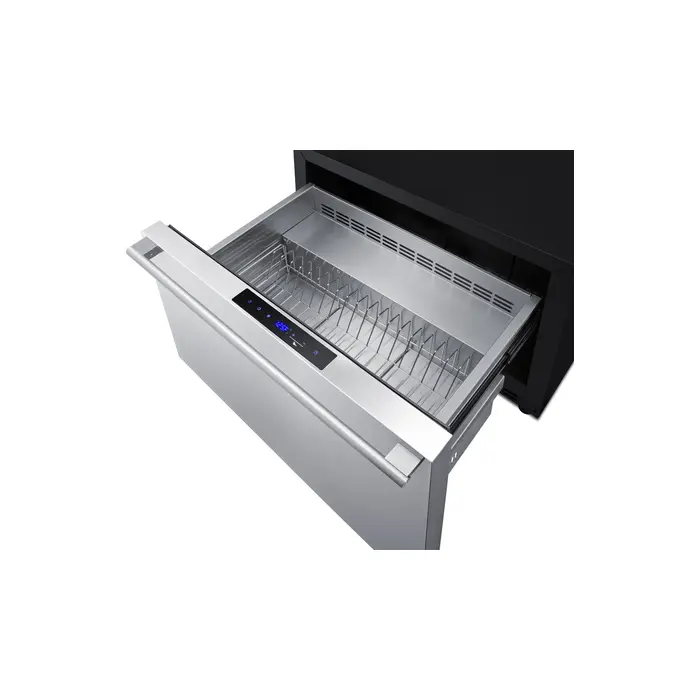

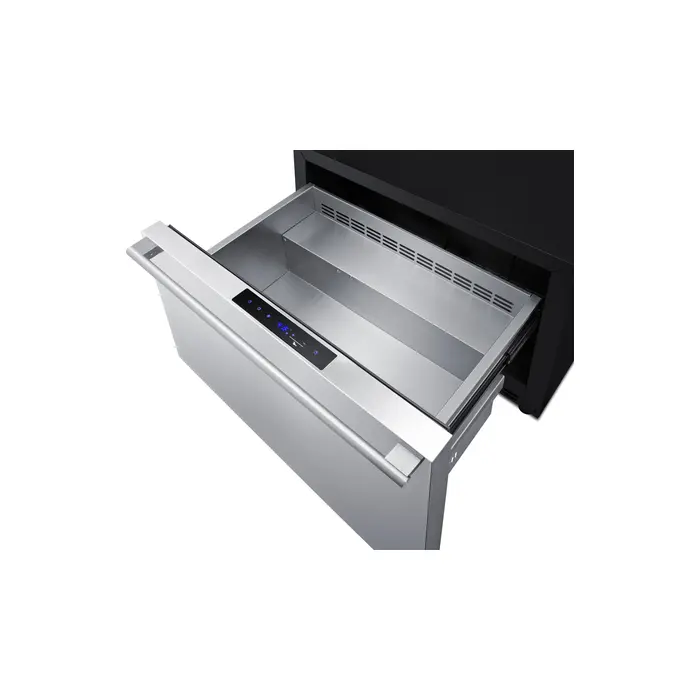

Removable dish rack Steel rack included to maximize capacity by storing dishes upright

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Professional handle A sleek stainless steel handle adds an elegant touch to any setting

Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm Audible alarm will sound if the drawer is left open longer than one minute

Sabbath Mode Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Child lock Disables digital controls after two minutes of activity for added safety

Sealed back Space-saving design with no exposed coils for easier cleanability

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPHC30.pdf)

TECHNICAL DRAWING (.dwg) (SPHC30.dwg)

ASSEMBLY DRAWING (SPHC30-Assembly.pdf)

3D DRAWING (SDR24.obj)

USE & CARE (SPHC30-User-Manual.pdf)

Energy Guide
