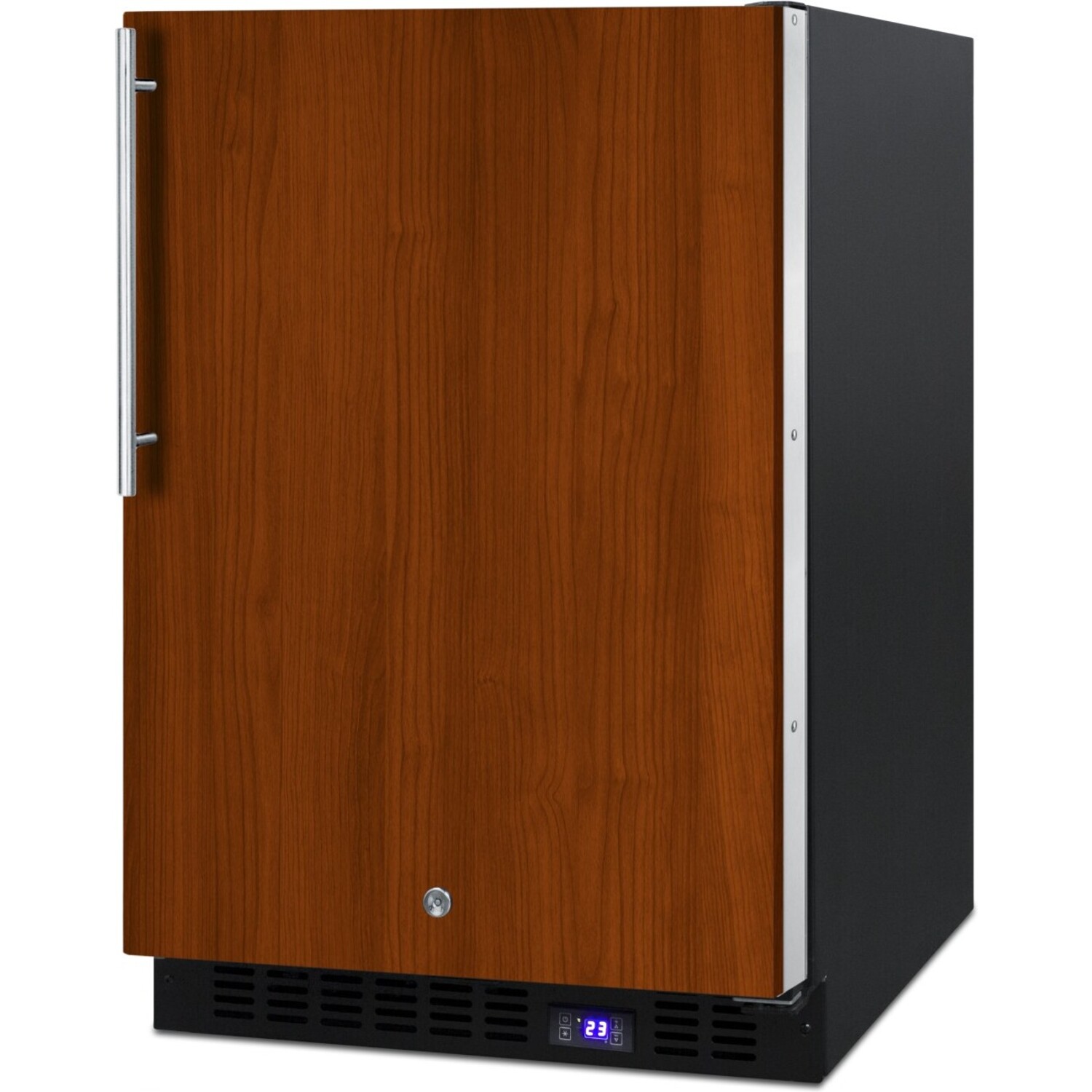

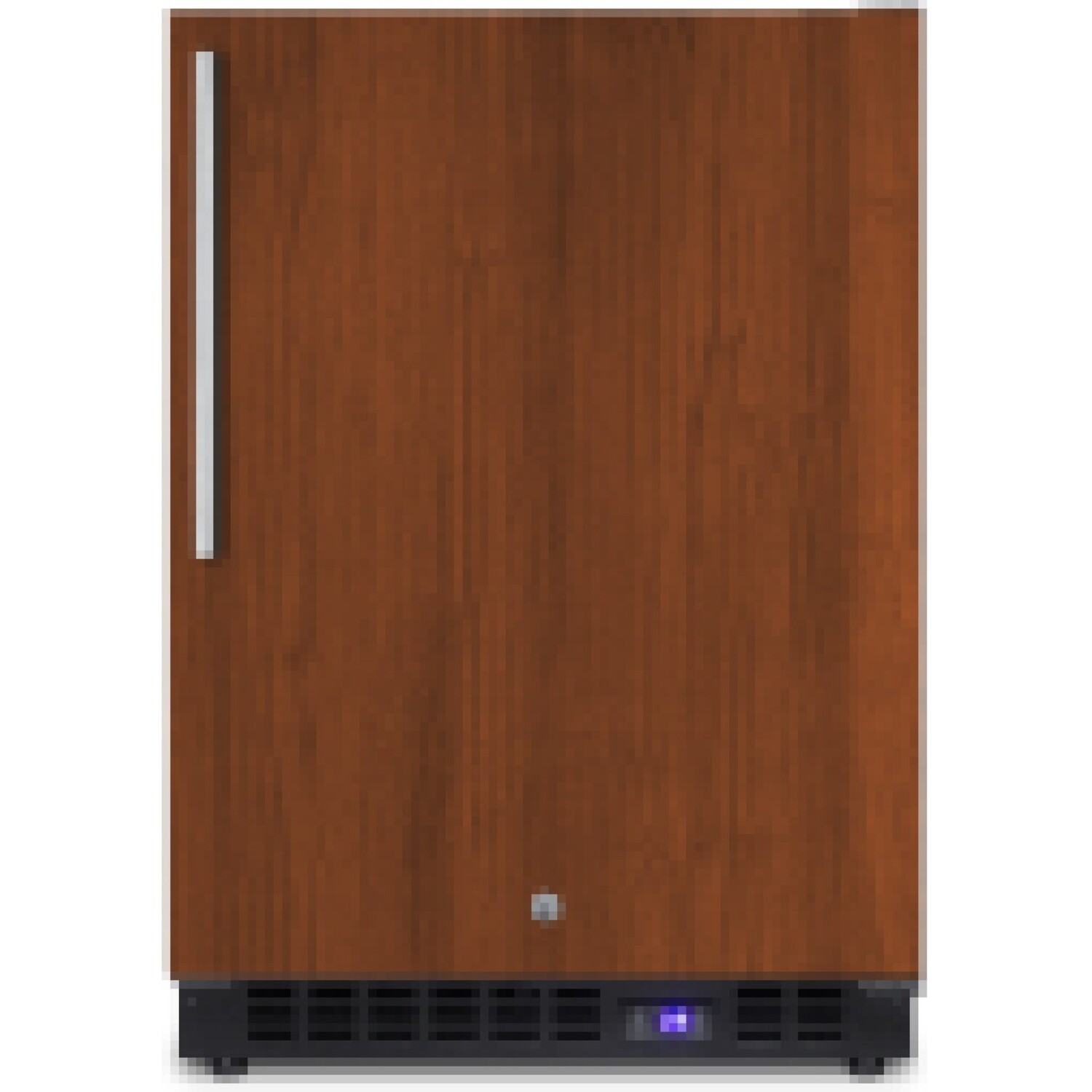

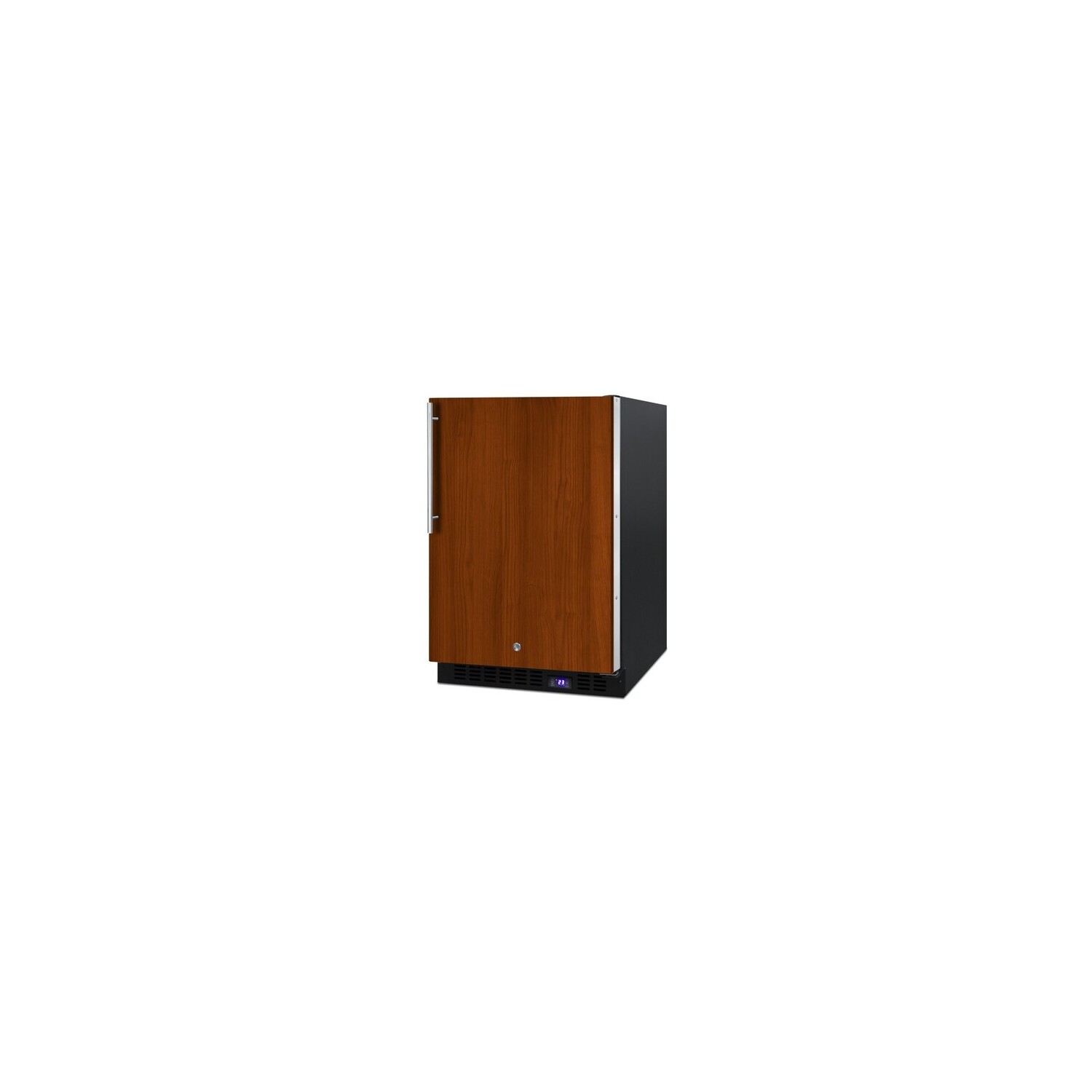

Summit Frost-free outdoor all-freezer for built-in or freestanding use with panel-ready door, black cabinet, digital thermostat, and LED lighting, 7.61101e+011, SPFF51OSIF

SUMMIT SPFF51OS Series features versatile frost-free all-freezers perfectly sized and featured for convenient use in outdoor spaces.

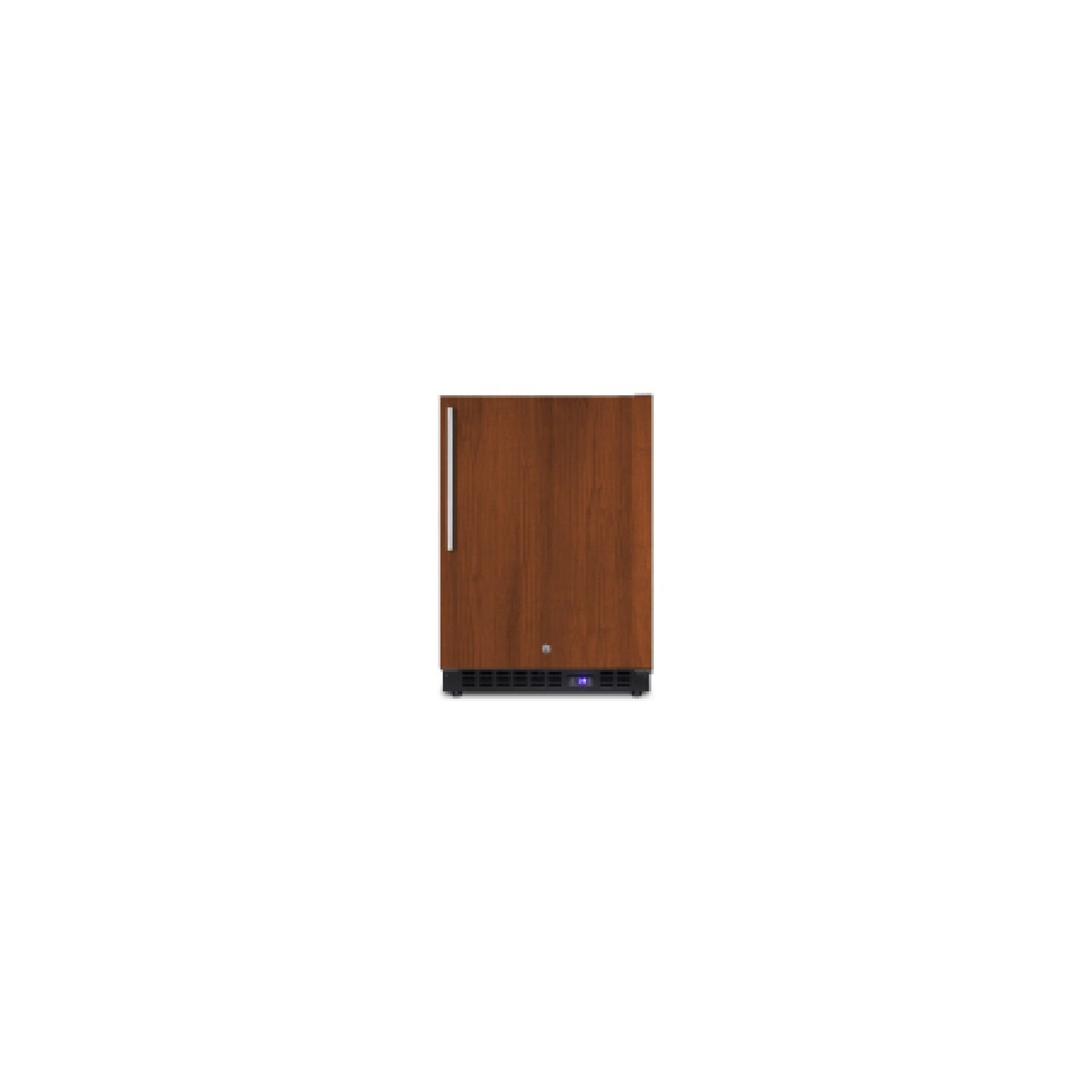

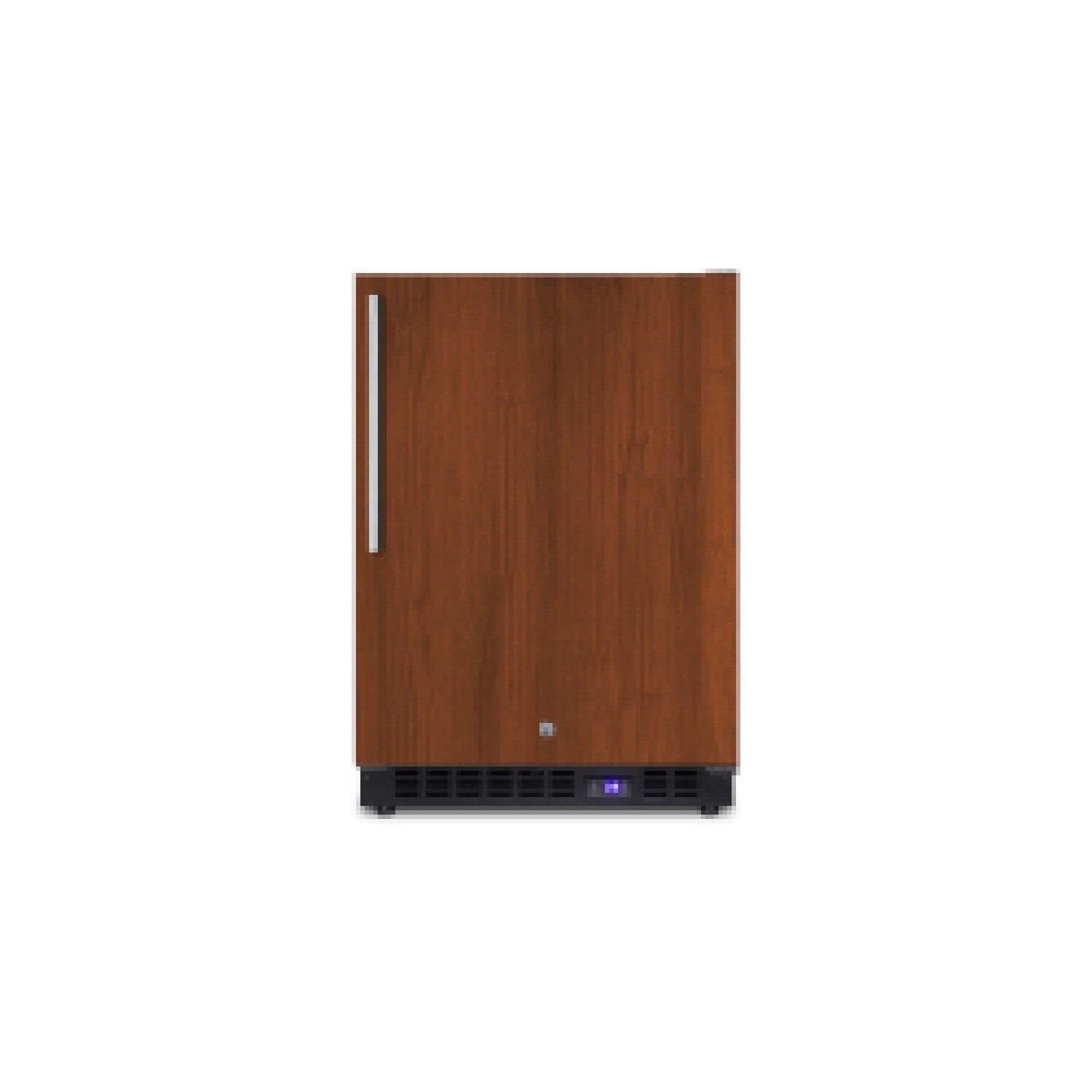

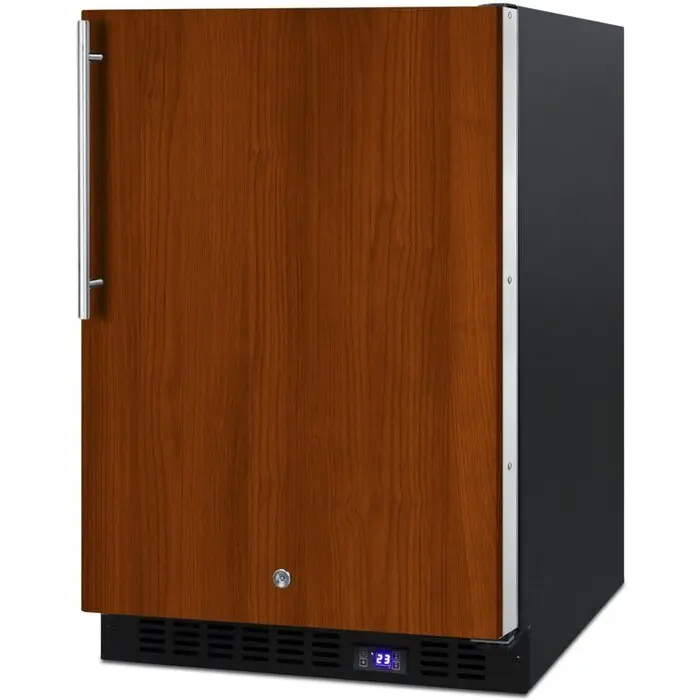

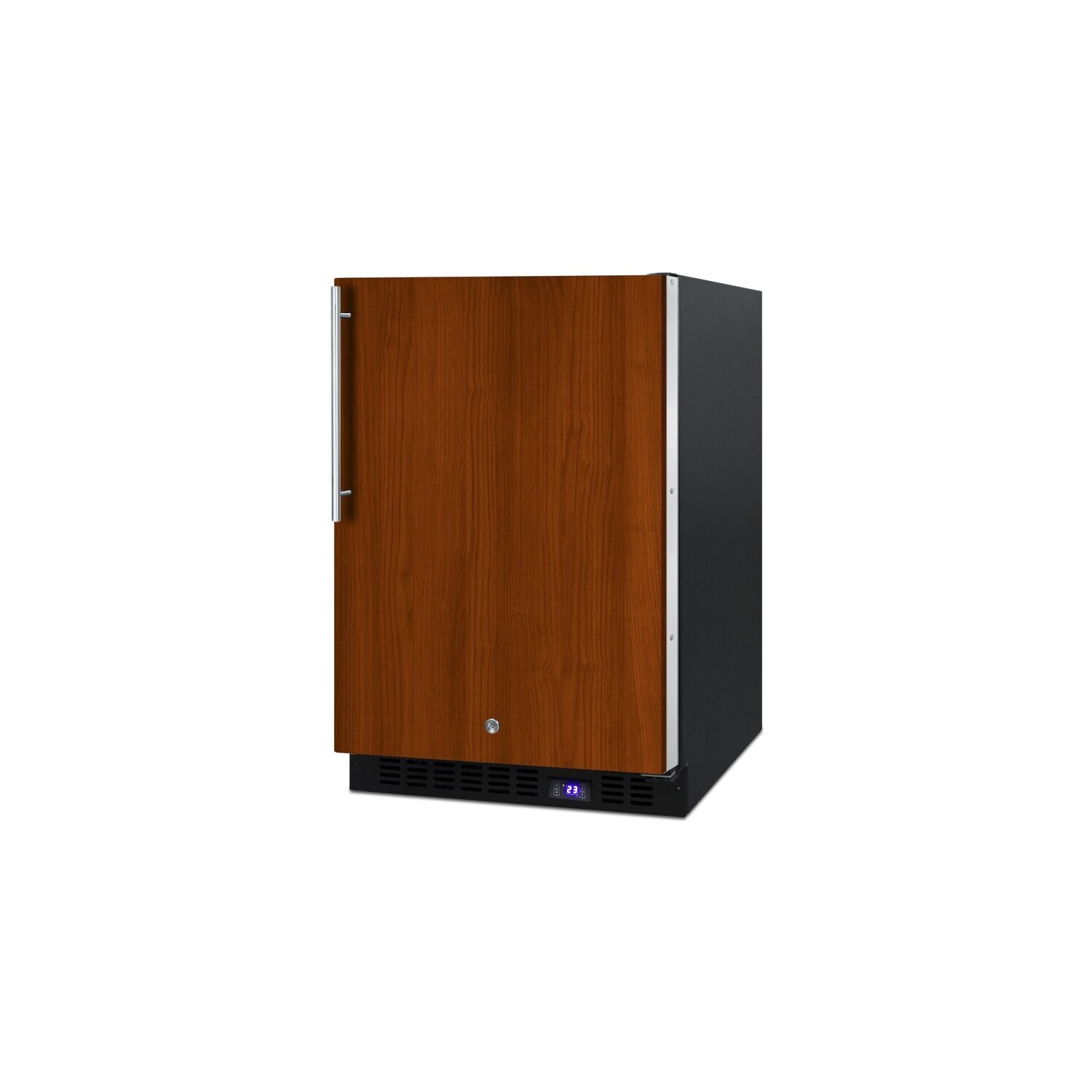

Designed for built-in or freestanding use, the SPFF51OSIF comes in an easy fitting 24" width with a fully finished black cabinet. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to seamlessly blend the freezer into your cabinet design. Users provide their own handle to finish the custom look. NOTE: If installing the unit outdoors, be sure to use a weatherproof panel and handle.

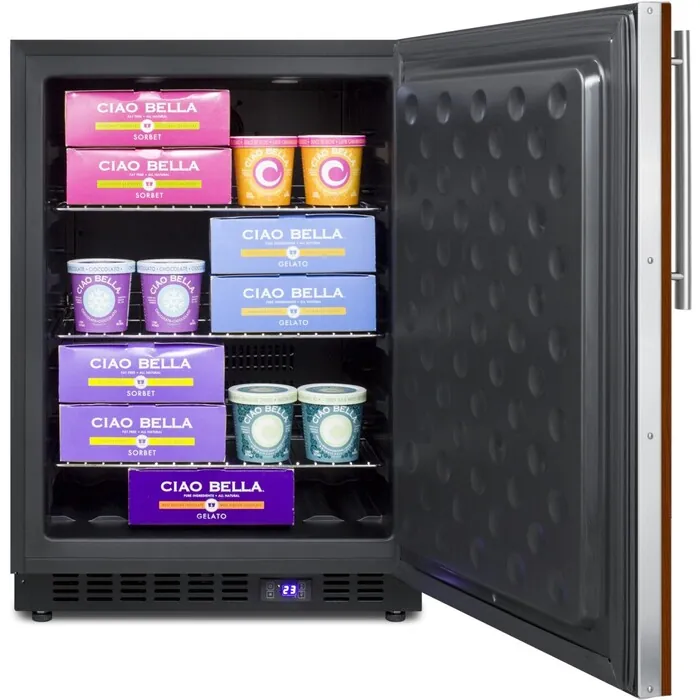

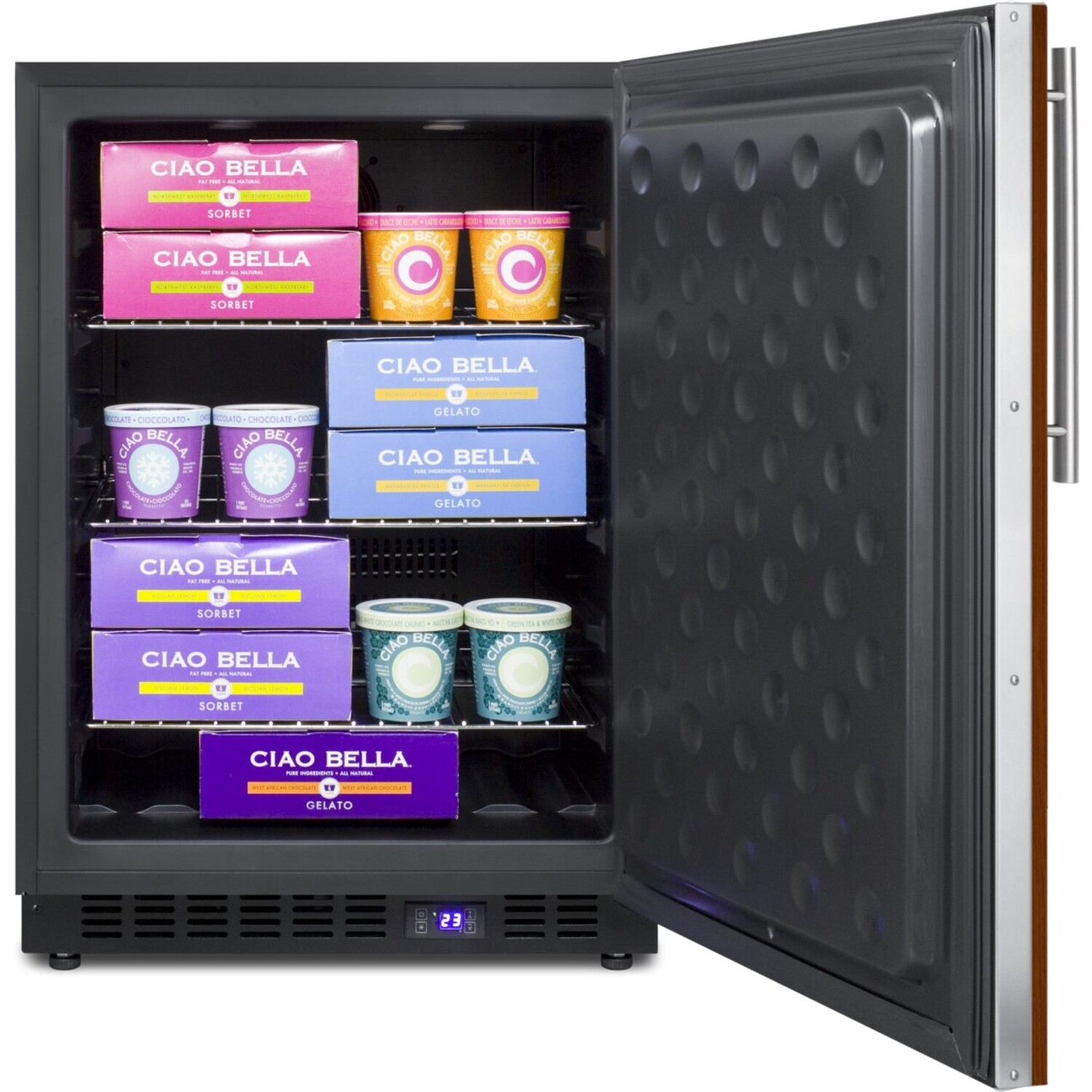

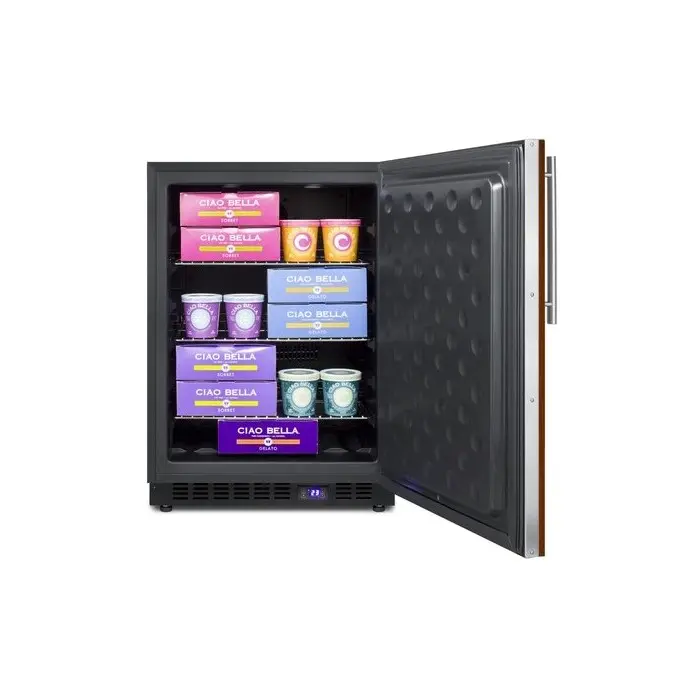

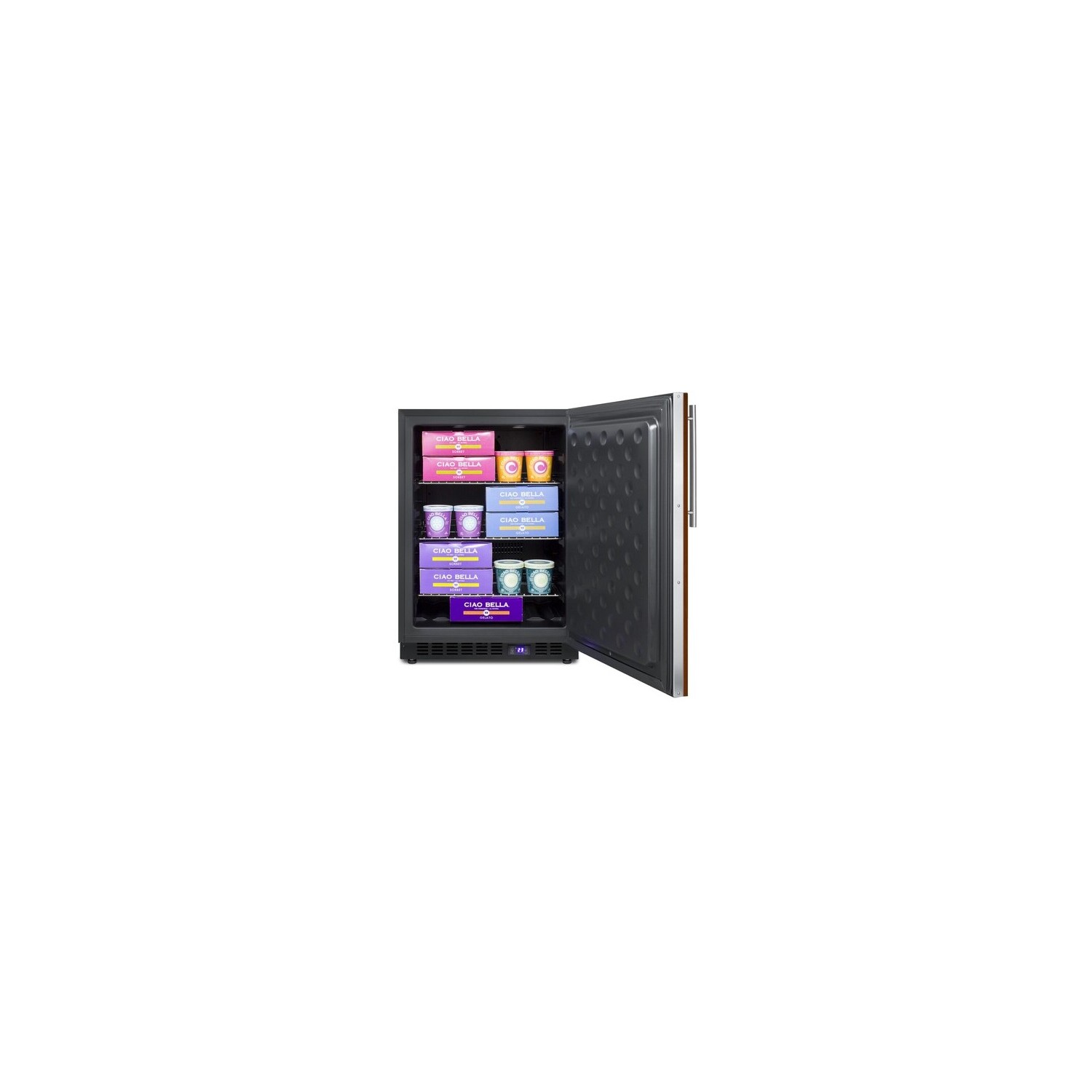

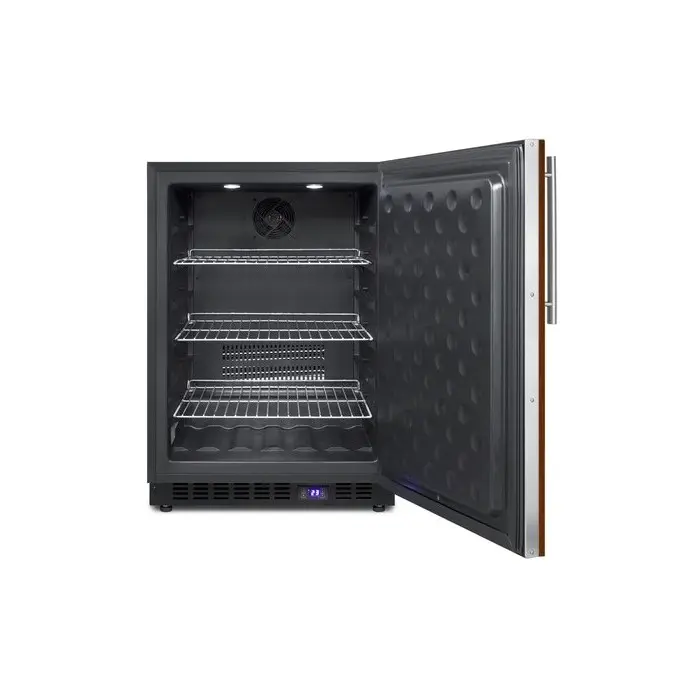

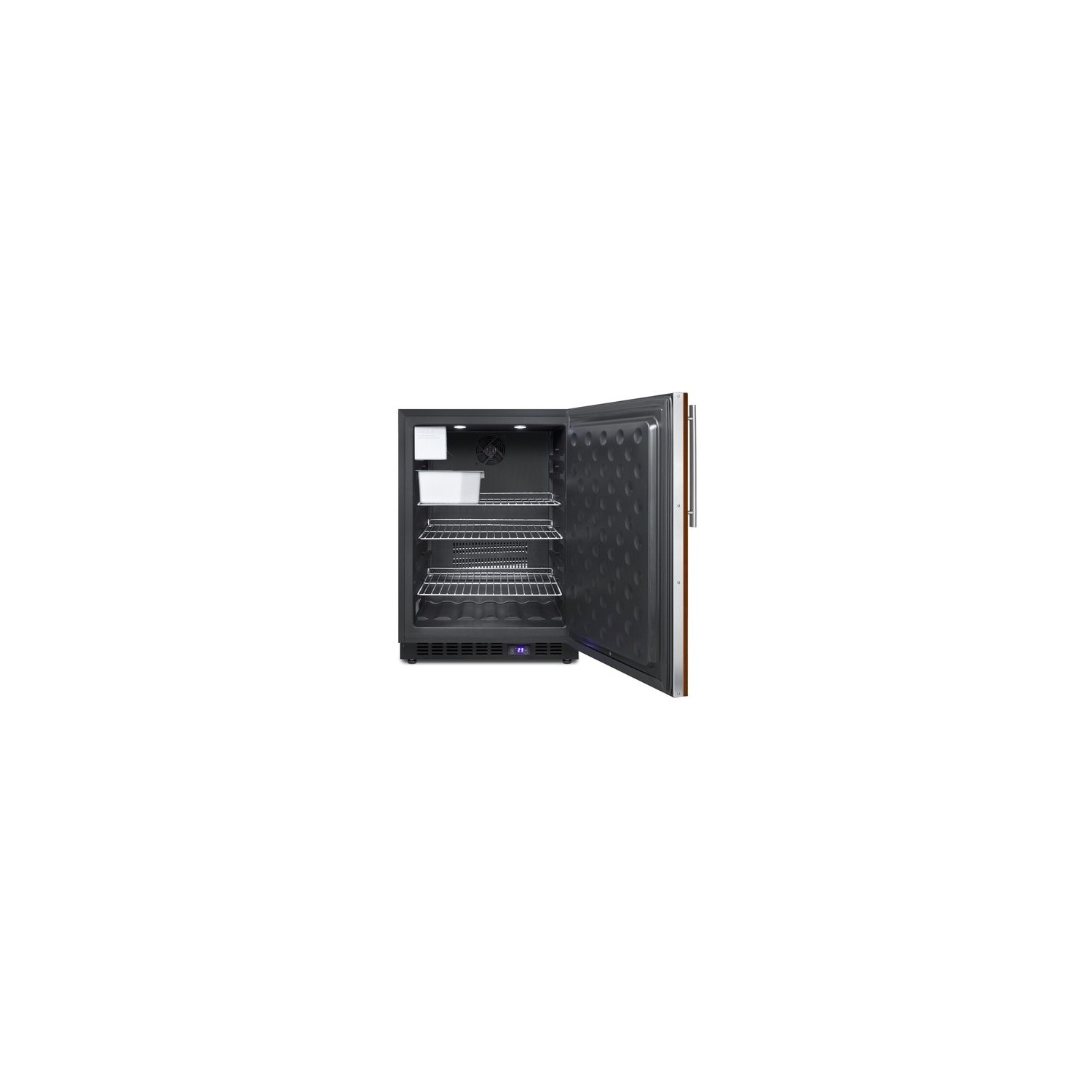

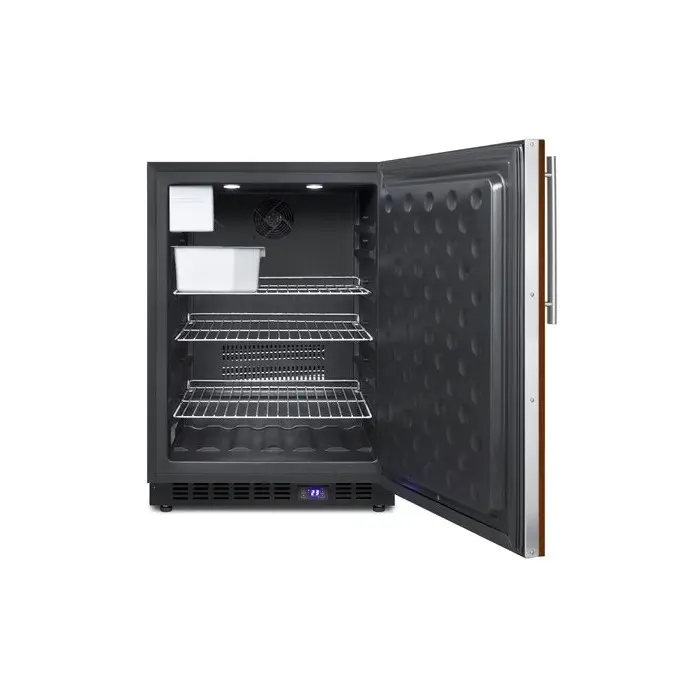

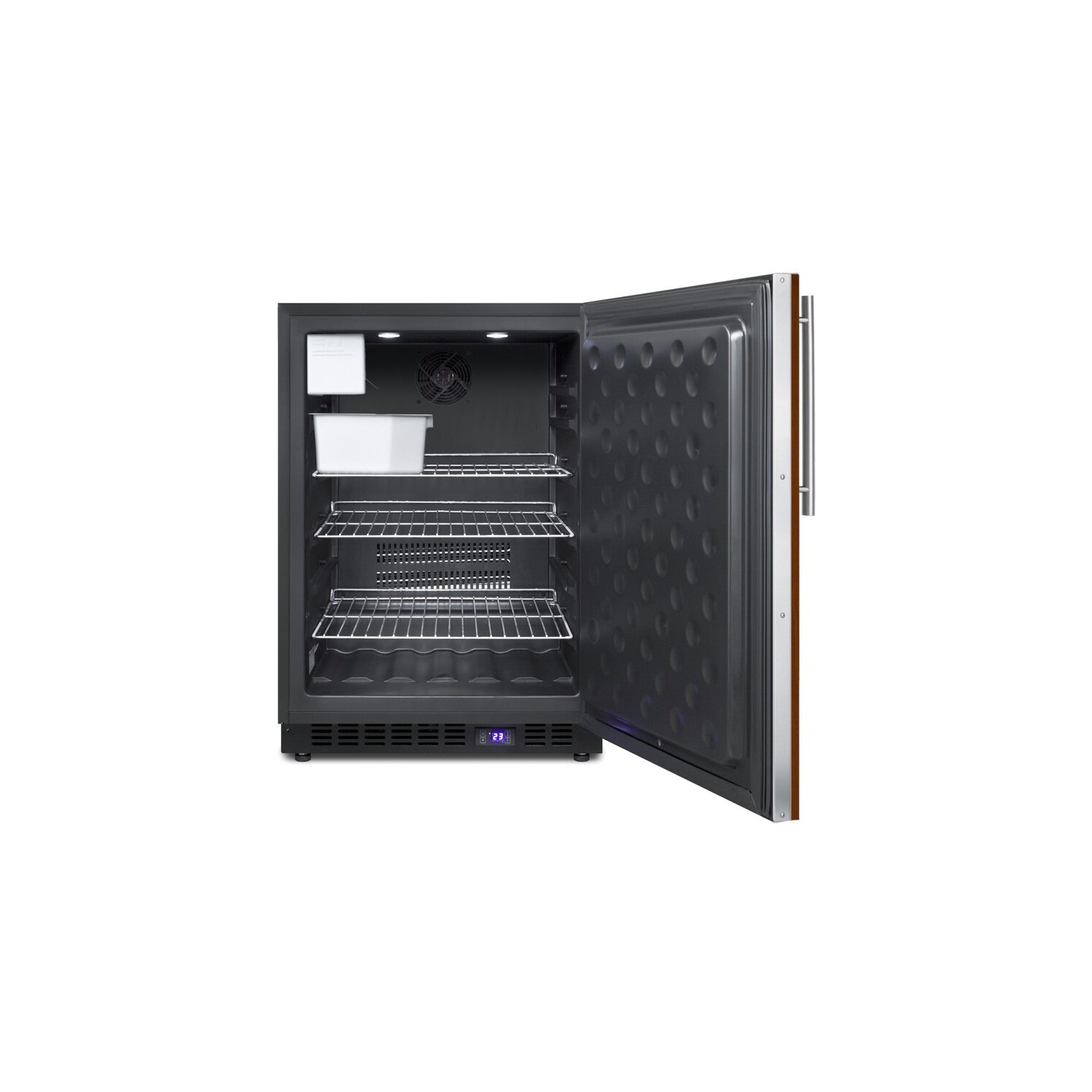

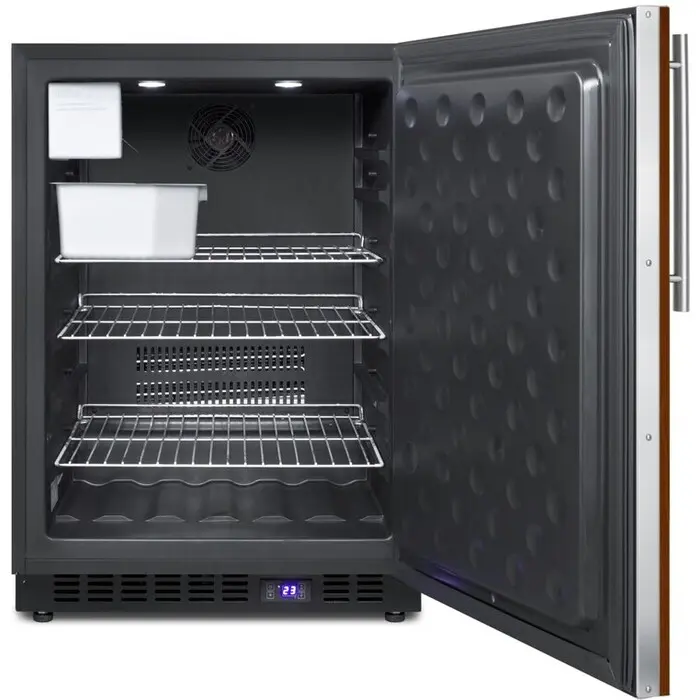

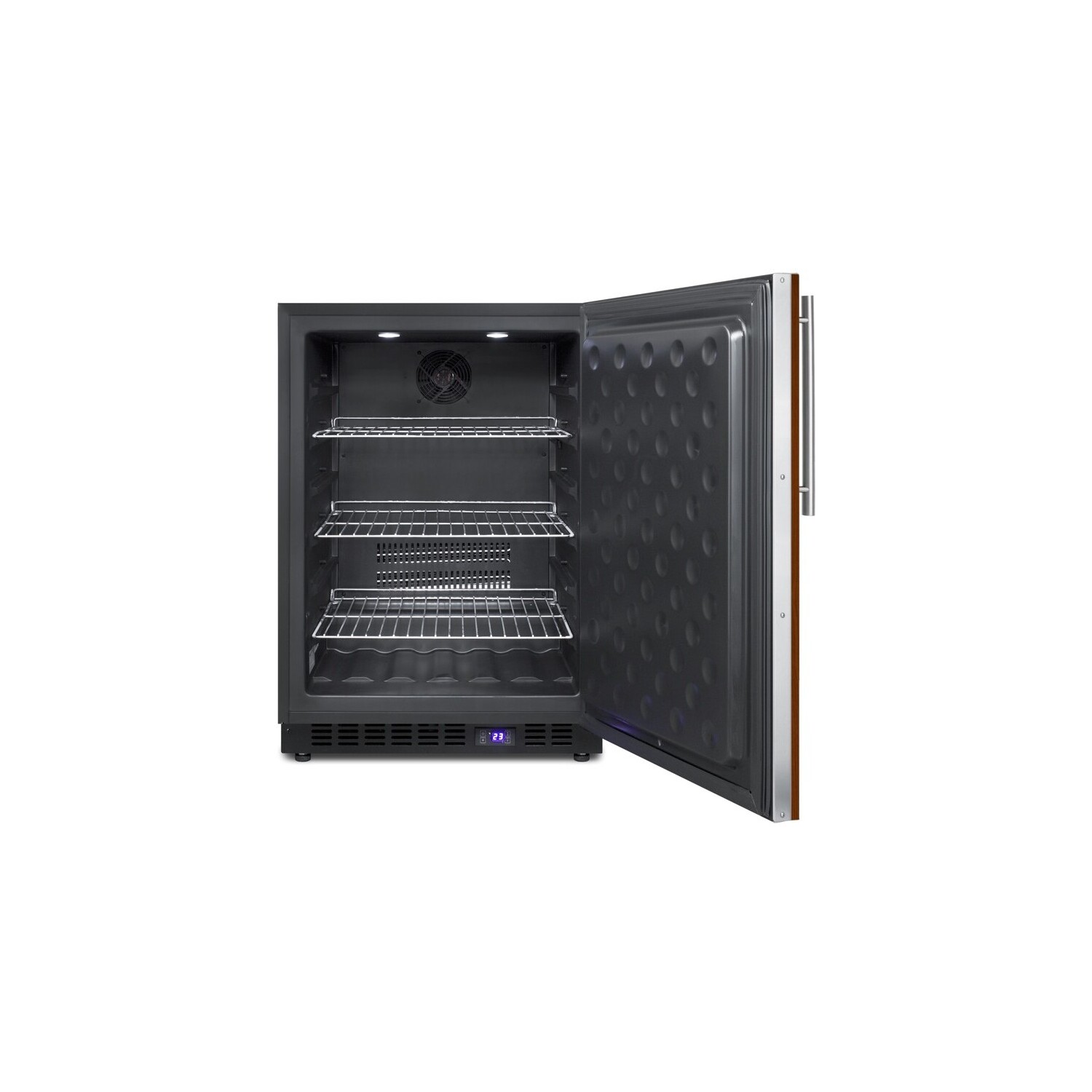

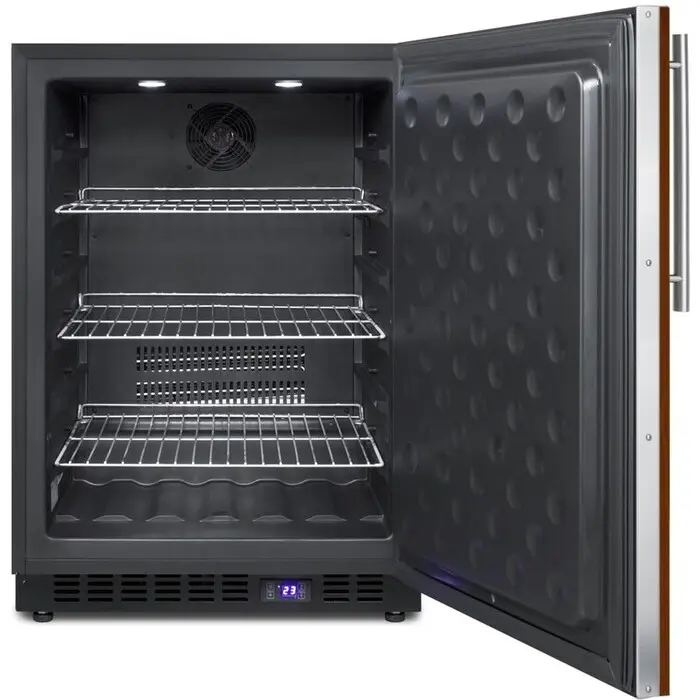

Inside, the SPFF51OSIF includes user-friendly features for low maintenance operation. The frost-free design eliminates the need for manual defrosting and adjustable shelves offer storage flexibility. This unit also includes a digital thermostat and recessed LED lighting.

For alternate door finishes, browse the full SPFF51OS Series. This unit is ETL-S listed to NSF-7 standards for commercial use.Nominal Height: 34
Height of Cabinet: 34
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 0
Depth with door at 90°: 45.63
Capacity: 4.72
Bottles: 0Defrost Type: Frost-FreeDoor: Panel-ReadyCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 4.72 cu.ft. (134 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 390.0kWh/year

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 88.0 lbs. (40 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101049991

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 25.75" (65 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.25" (44 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.24 oz.

High Side PSI 270.0

Low Side PSI 106.0

Temperature Range -11 to 11ºF

Sabbath Mode Yes

FEATURES

Weatherproof design Designed and constructed for use in the outdoors

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 1/2" W x 30" H and at least 3/4" thick, maximum weight: 10 lbs.; customers provide their own handles

Digital thermostat Electronic controls offer easy and intuitive temperature management

Recessed LED light Elegant and efficient interior lighting automatically illuminates when the door is opened

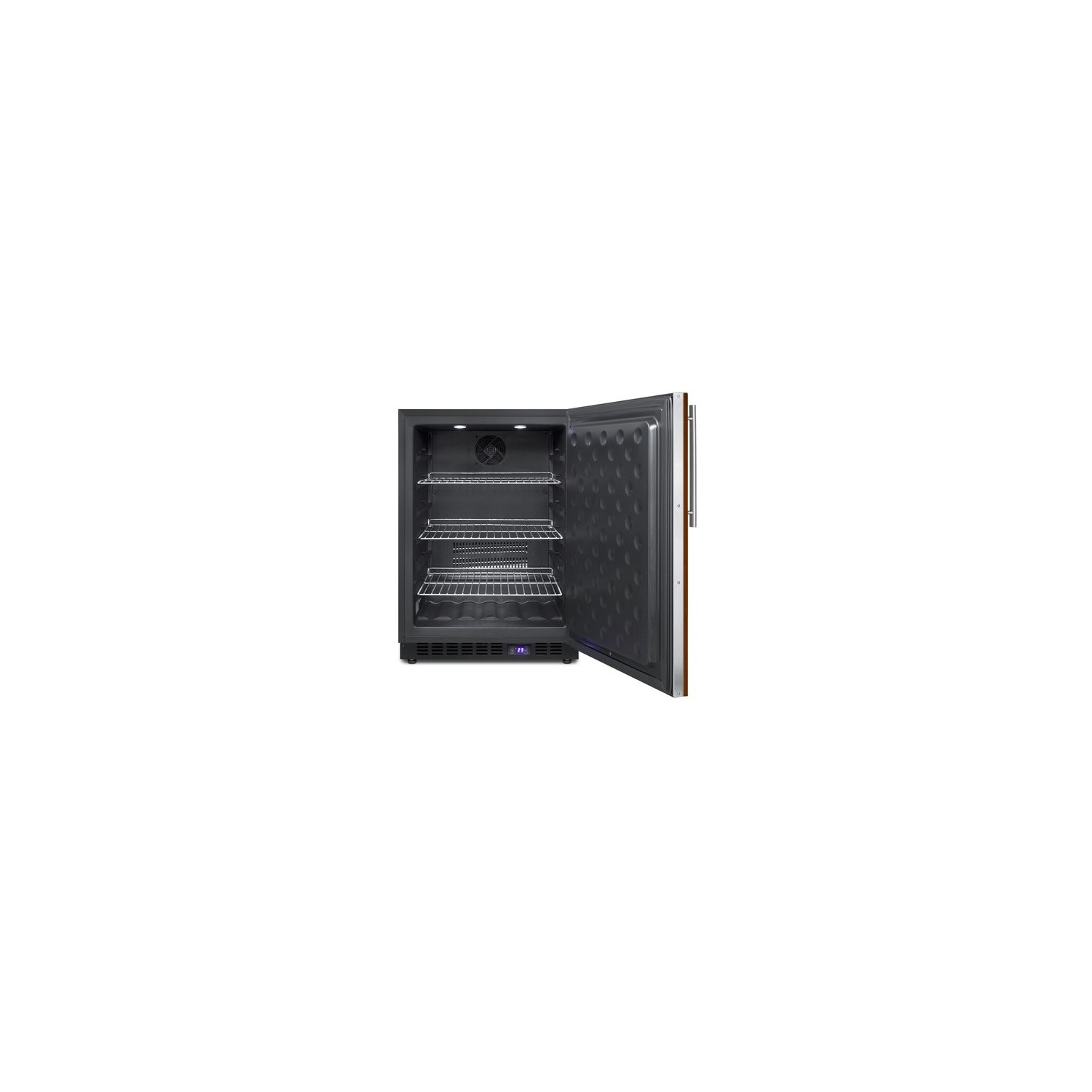

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours

Fully finished cabinet Allows the freezer to be used as a freestanding model

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
