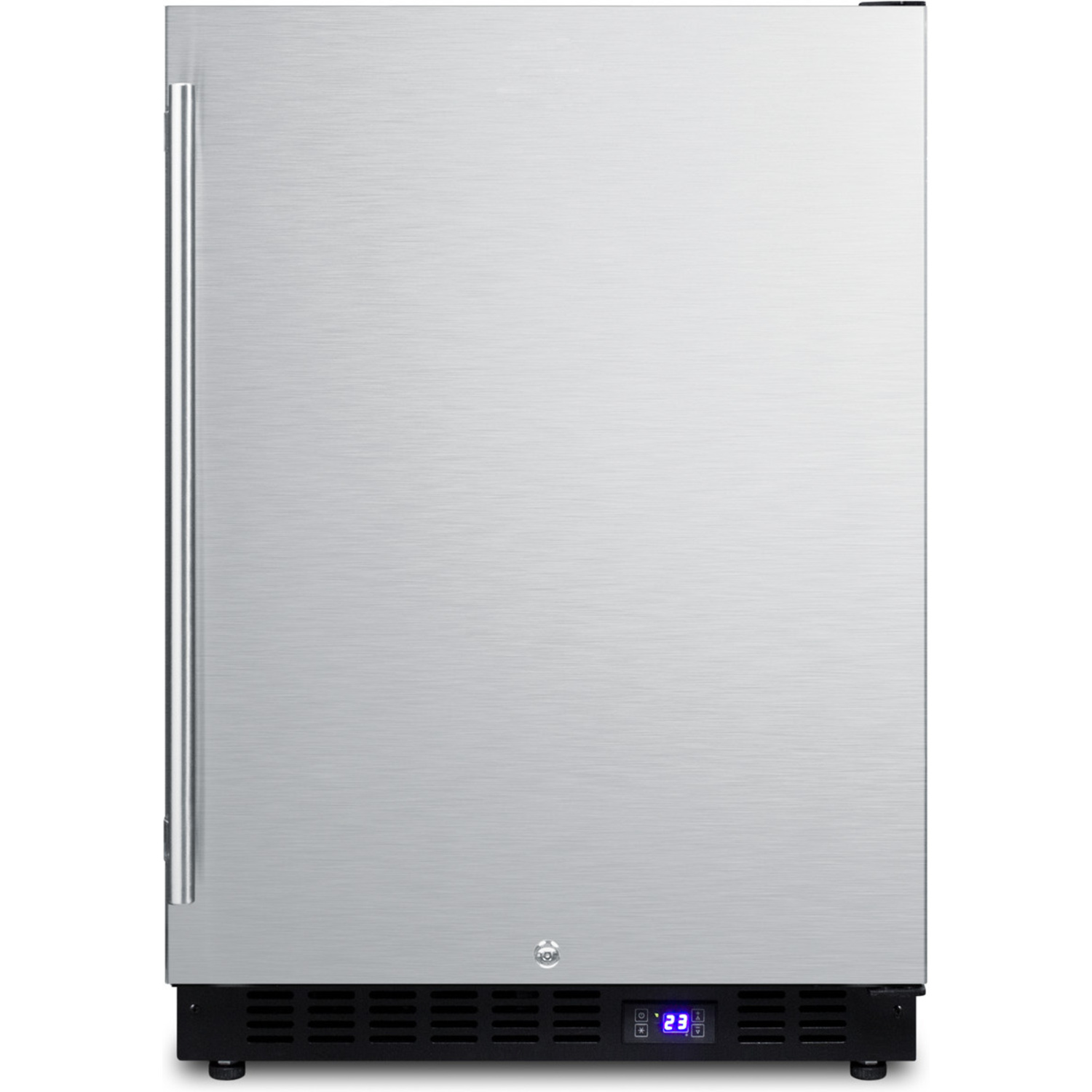

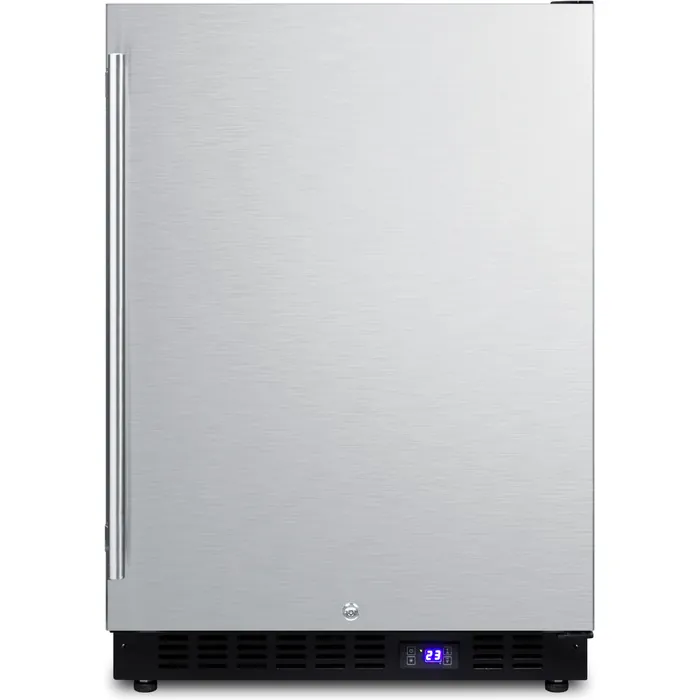

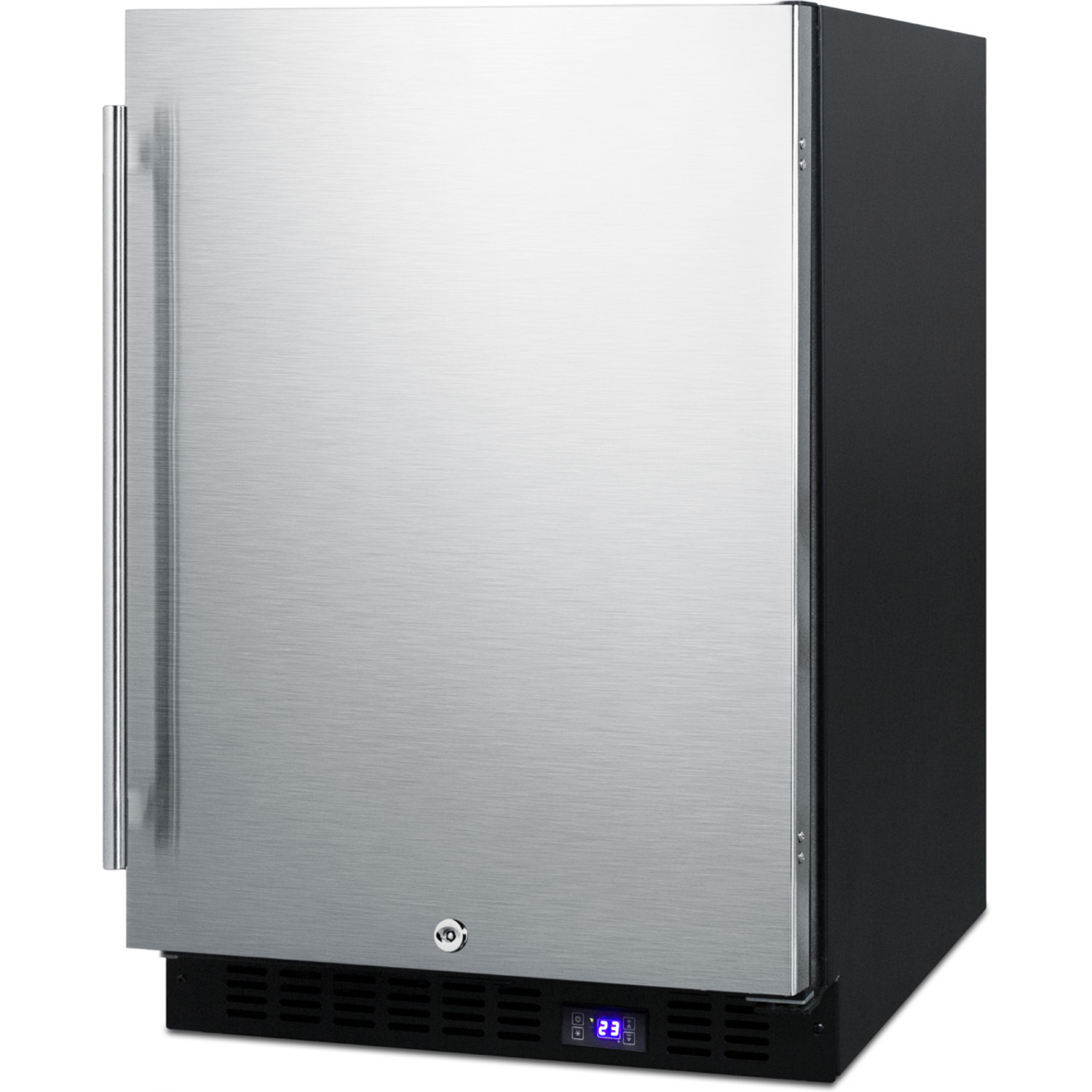

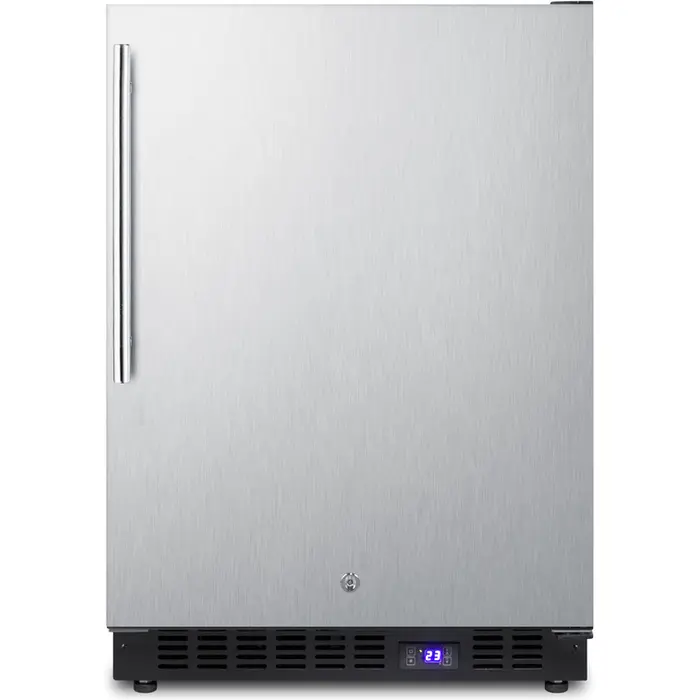

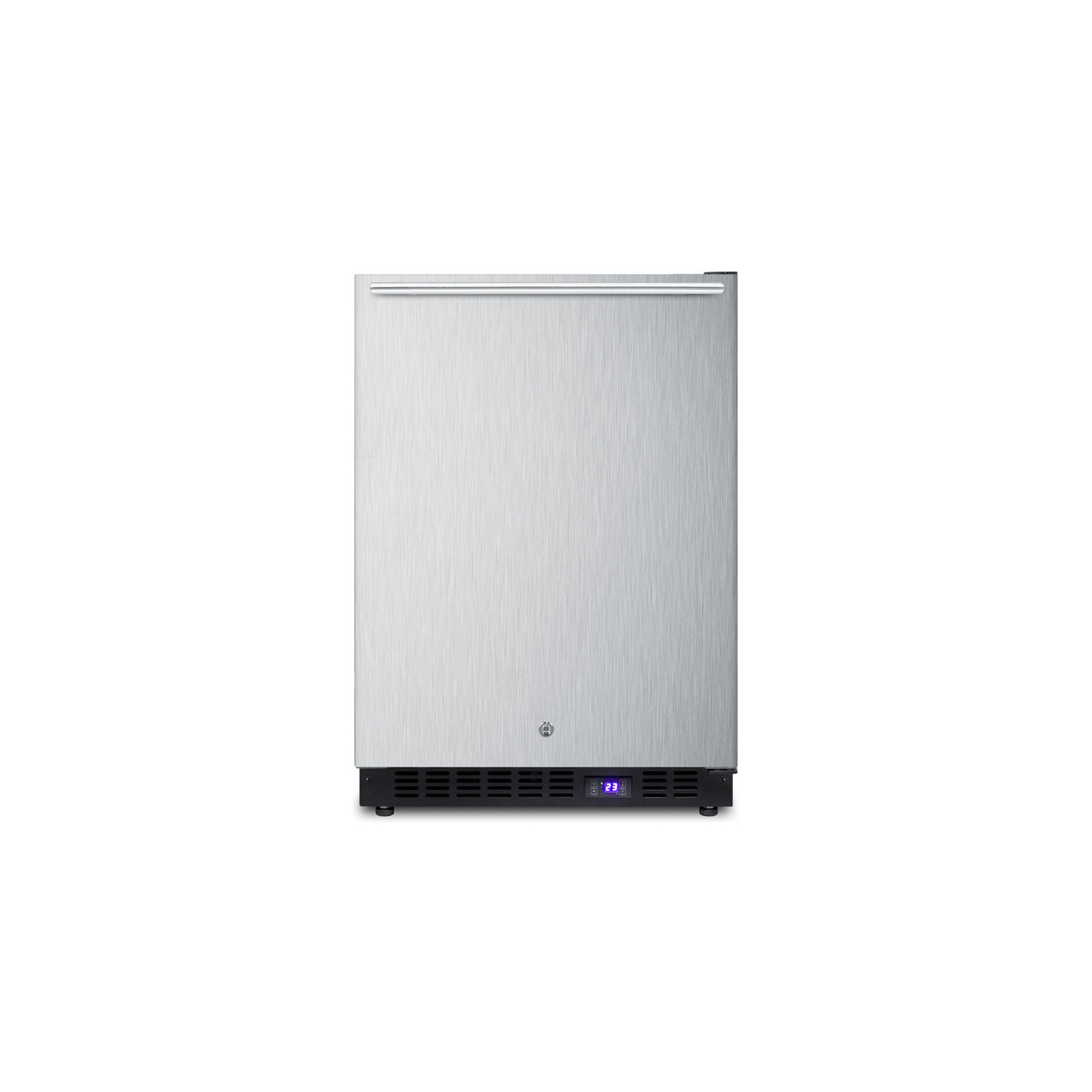

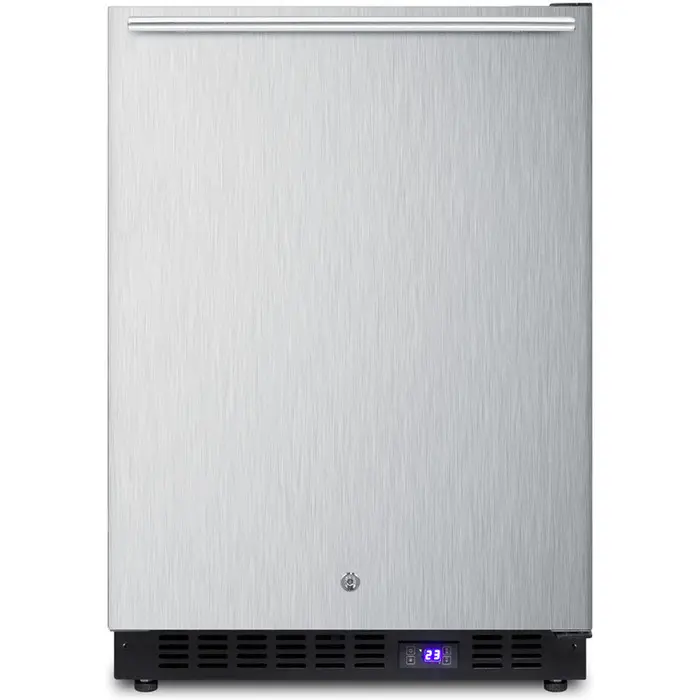

Summit Frost-free outdoor all-freezer for built-in or freestanding use with black cabinet, stainless steel door, digital thermostat, LED lighting, and lock, 7.61101e+011, SPFF51OS

Complete any outdoor kitchen with SUMMIT's SPFF51OS, a frost-free all-freezer fully featured for versatile use.

Designed for built-in or freestanding use, the SPFF51OS comes in an easy fitting 24" width with a fully finished black cabinet. The reversible stainless steel door includes a factory installed lock and professional chrome handle.

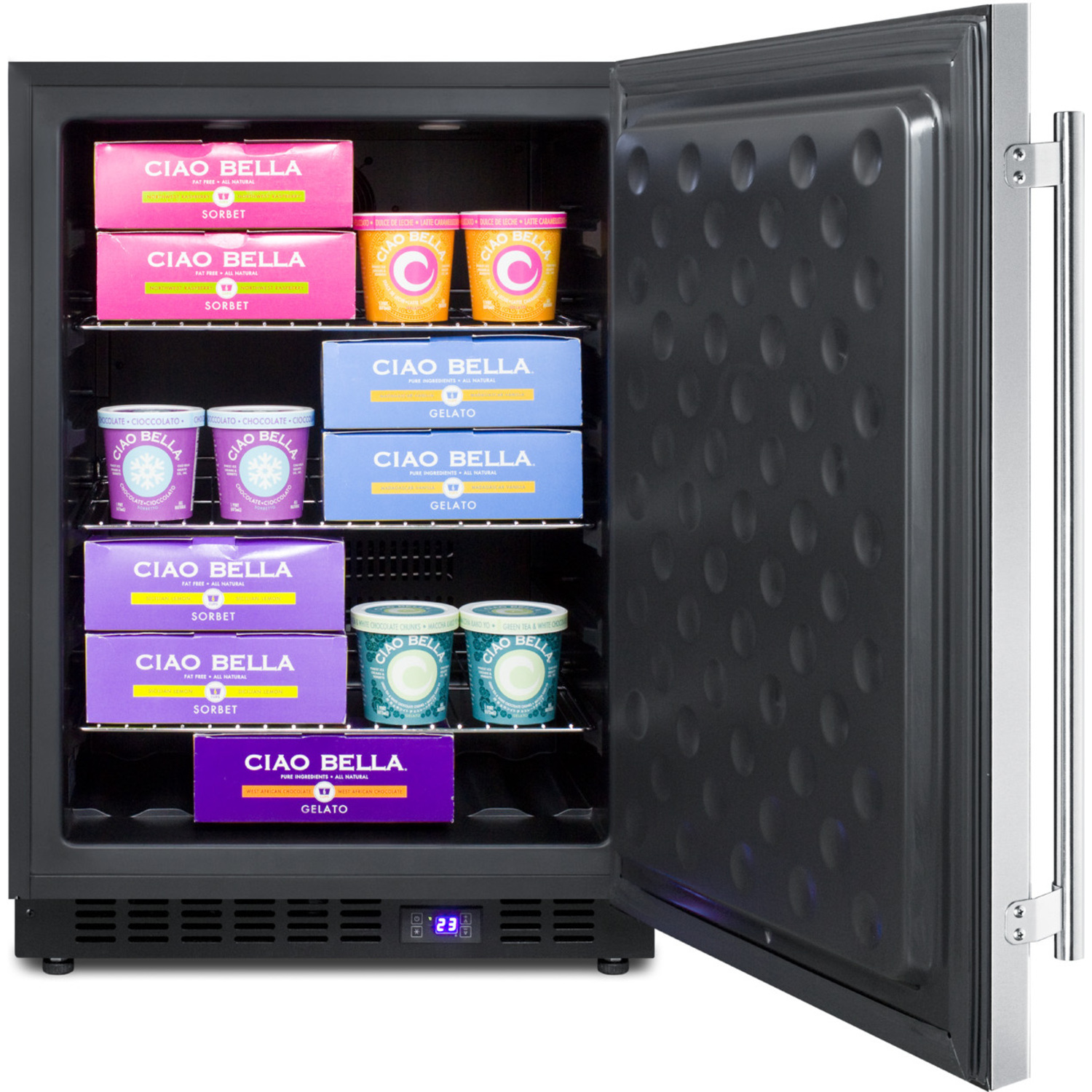

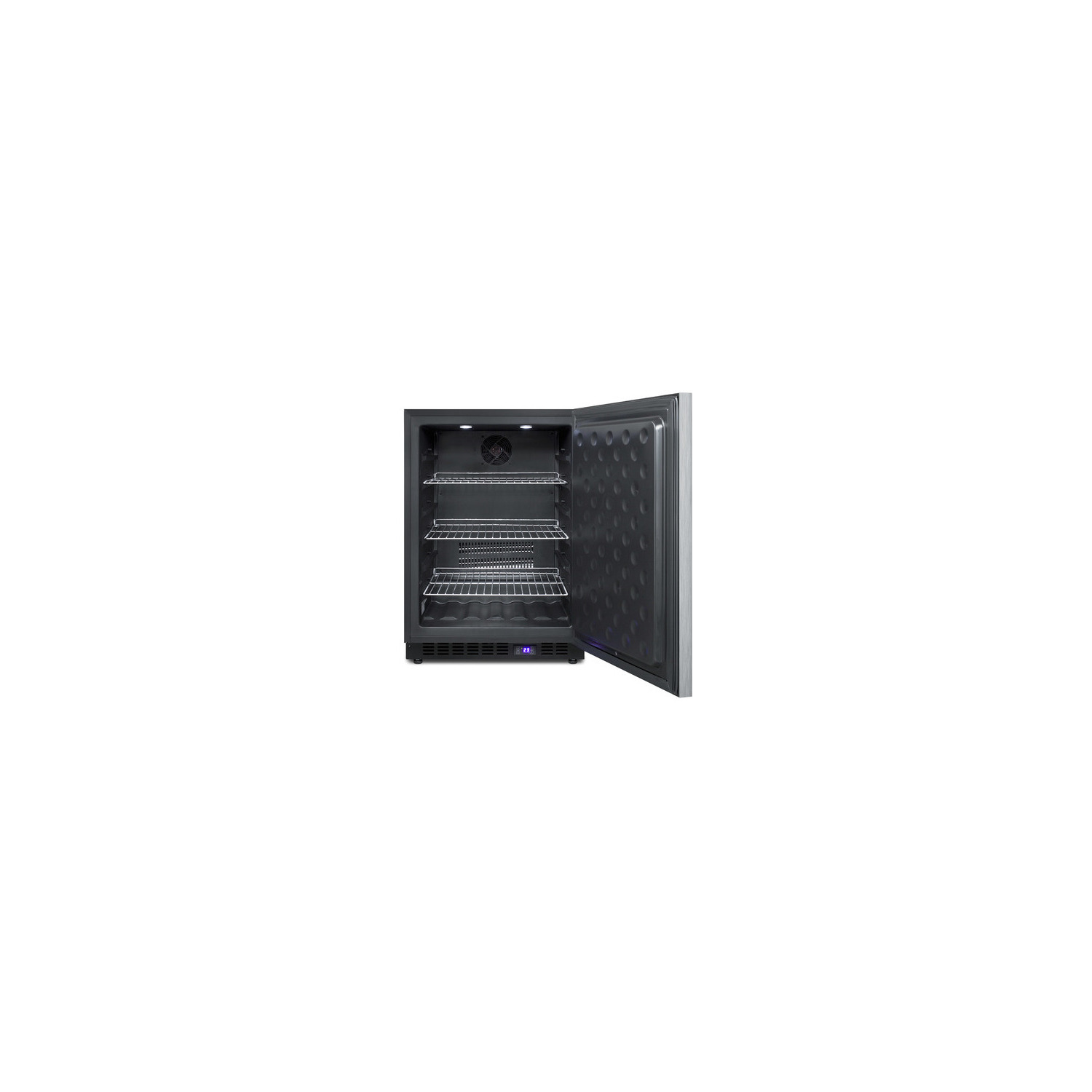

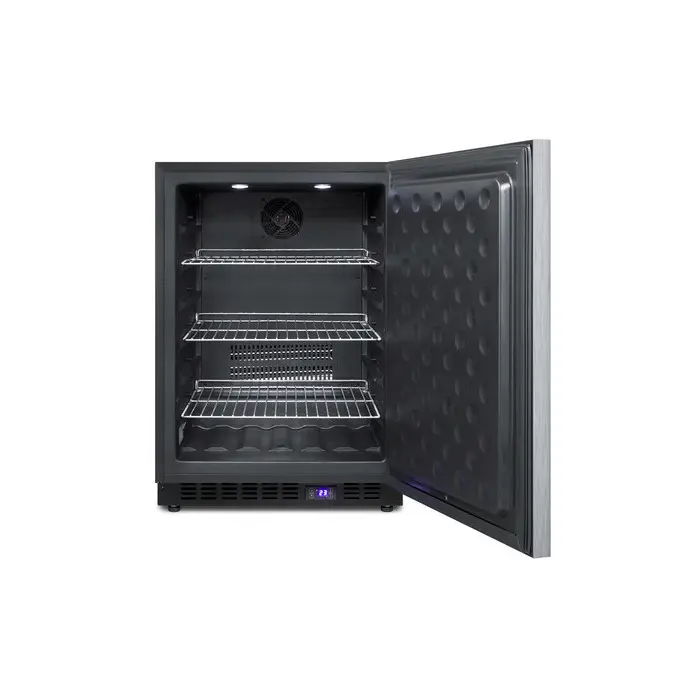

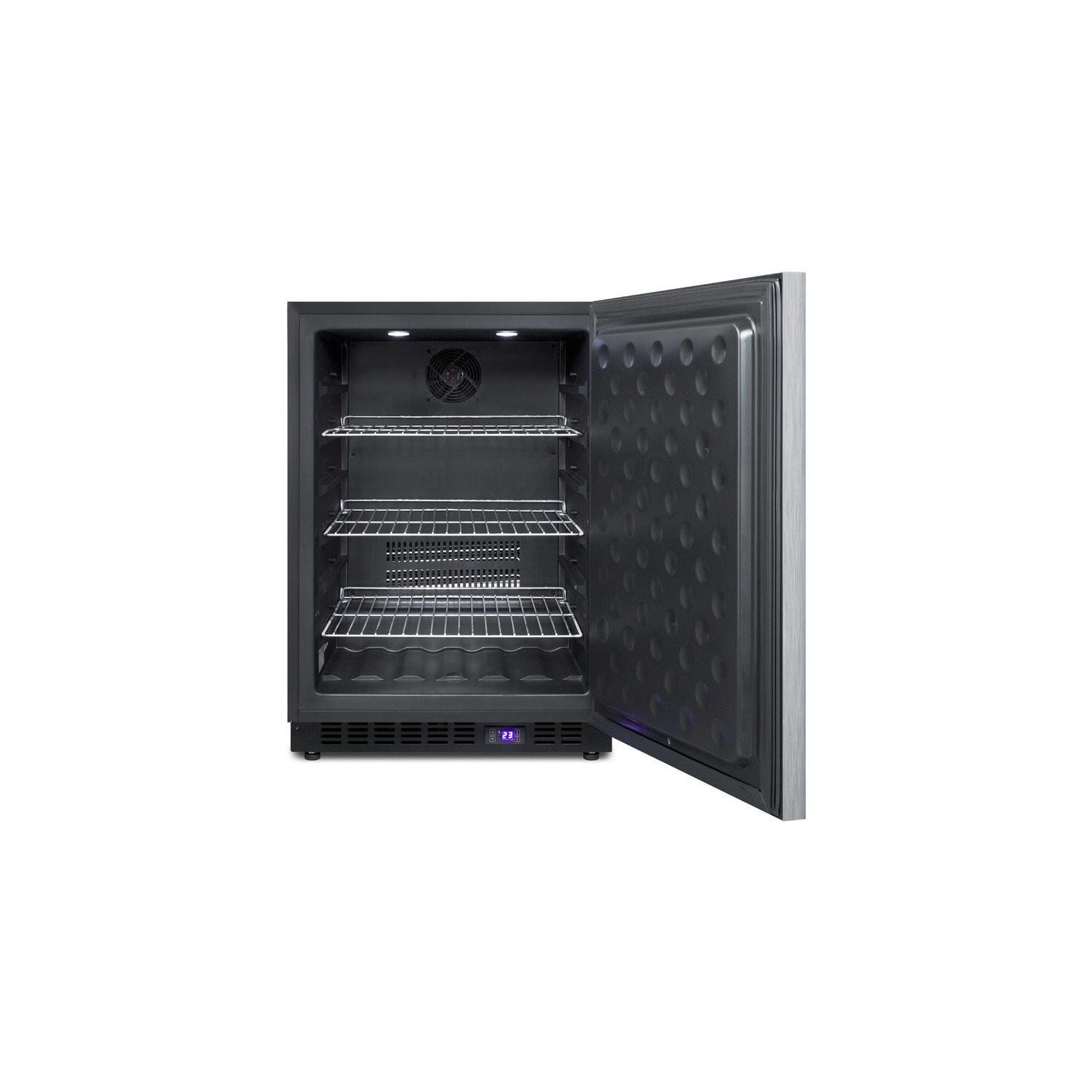

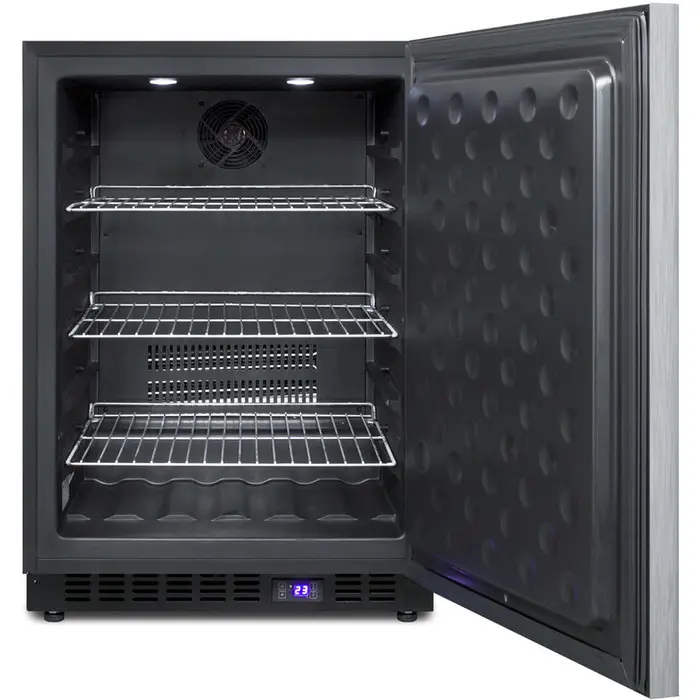

Inside, the SPFF51OS includes user-friendly features for low maintenance operation. The frost-free design eliminates the need for manual defrosting and adjustable shelves offer storage flexibility. This unit also includes a digital thermostat and recessed LED lighting.

With a convenient size and user-friendly design, the SPFF51OS is the ideal addition to any outdoor kitchen.

Nominal Height: 34
Height of Cabinet: 34
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.5
Depth with Handle: 25.35
Depth with door at 90°: 45.63
Capacity: 4.6
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless SteelCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.35" (64 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 4.6 cu.ft. (130 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 390.0kWh/year

Amps 0.9

Voltage/Frequency 115 V AC/60 Hz

Weight 88.0 lbs. (40 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101038506

Freezer

Door Swing RHD

Reversible Yes

Interior Height 25.75" (65 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.25" (44 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.24 oz.

High Side PSI 270.0

Low Side PSI 105.0

Temperature Range -11 to 11ºF

Sabbath Mode Yes

FEATURES

Weatherproof design Designed and constructed for use in the outdoors

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets

Digital thermostat Electronic controls offer easy and intuitive temperature management

Recessed LED light Elegant and efficient interior lighting automatically illuminates when the door is opened

Reversible door User reversible door swing for added placement flexibility

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock Keyed lock for a secure interior

Professional handle Attractive chrome handle adds a touch of modern style

Commercially listed ETL-S listed to NSF-7 standards for use in commercial settings

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours

Fully finished cabinet Allows the freezer to be used as a freestanding model

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SPFF51OS.pdf)

TECHNICAL DRAWING (.dwg) (SCFF51OSFREEZERA-C2000_8.dwg)

REVIT MODEL (QF_Summit_SPFF51OS_Frost_Free_Outdoor_All_Freezer.rfa)

USE & CARE (SPFF51OS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
