Summit 24 inch wide 3-drawer undercounter all-refrigerator, 7.61101e+011, SP6DS3D

Summit brings luxury and convenience under the counter with a fully featured 3-drawer all-refrigerator.

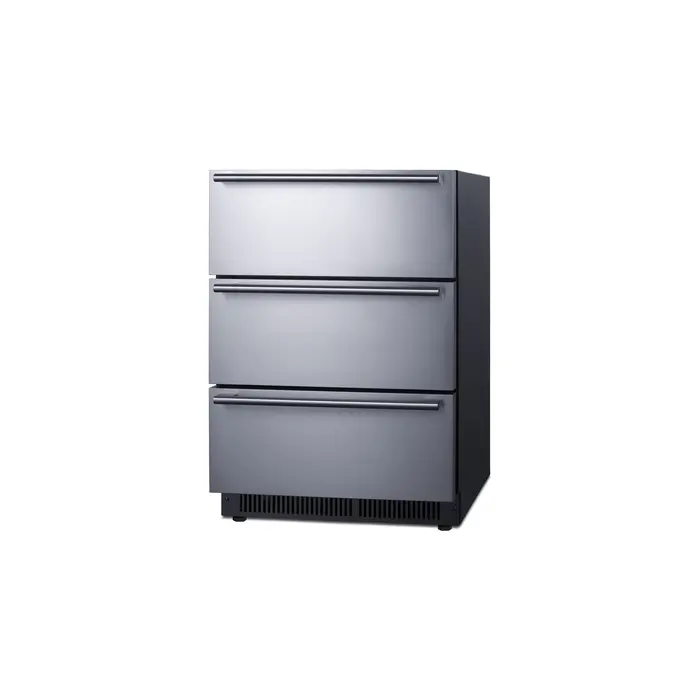

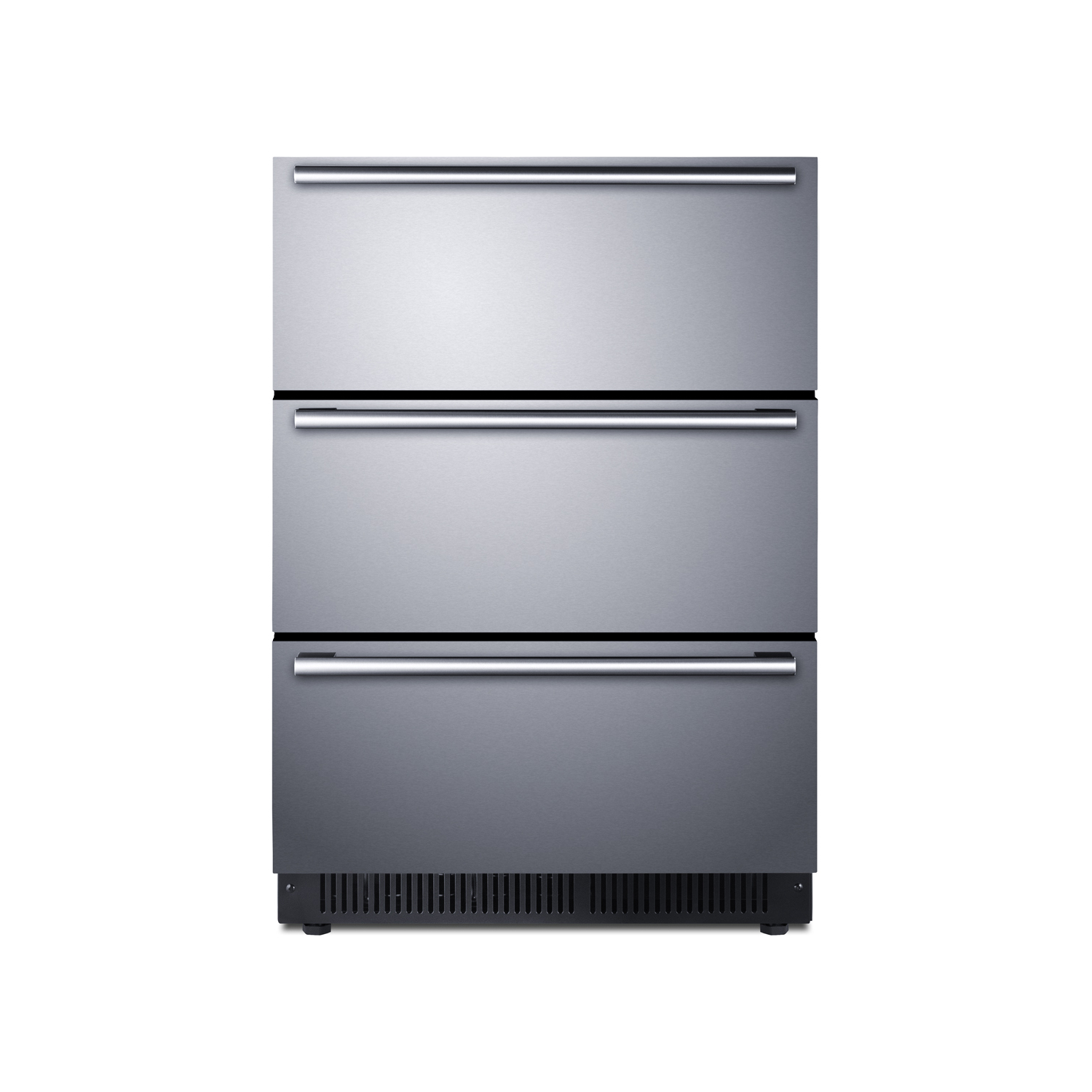

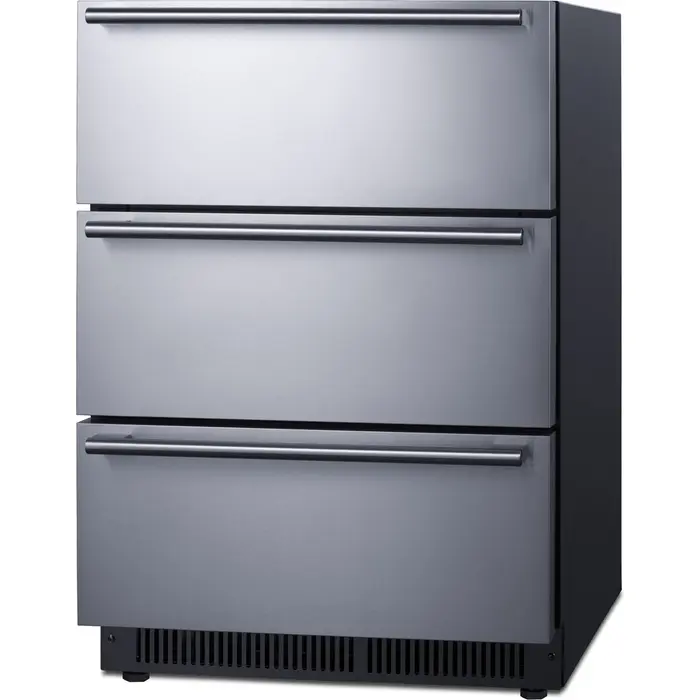

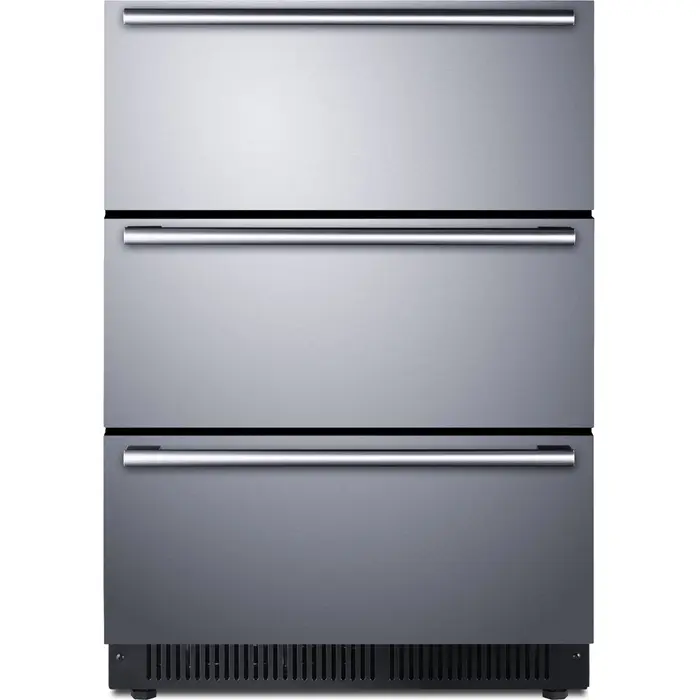

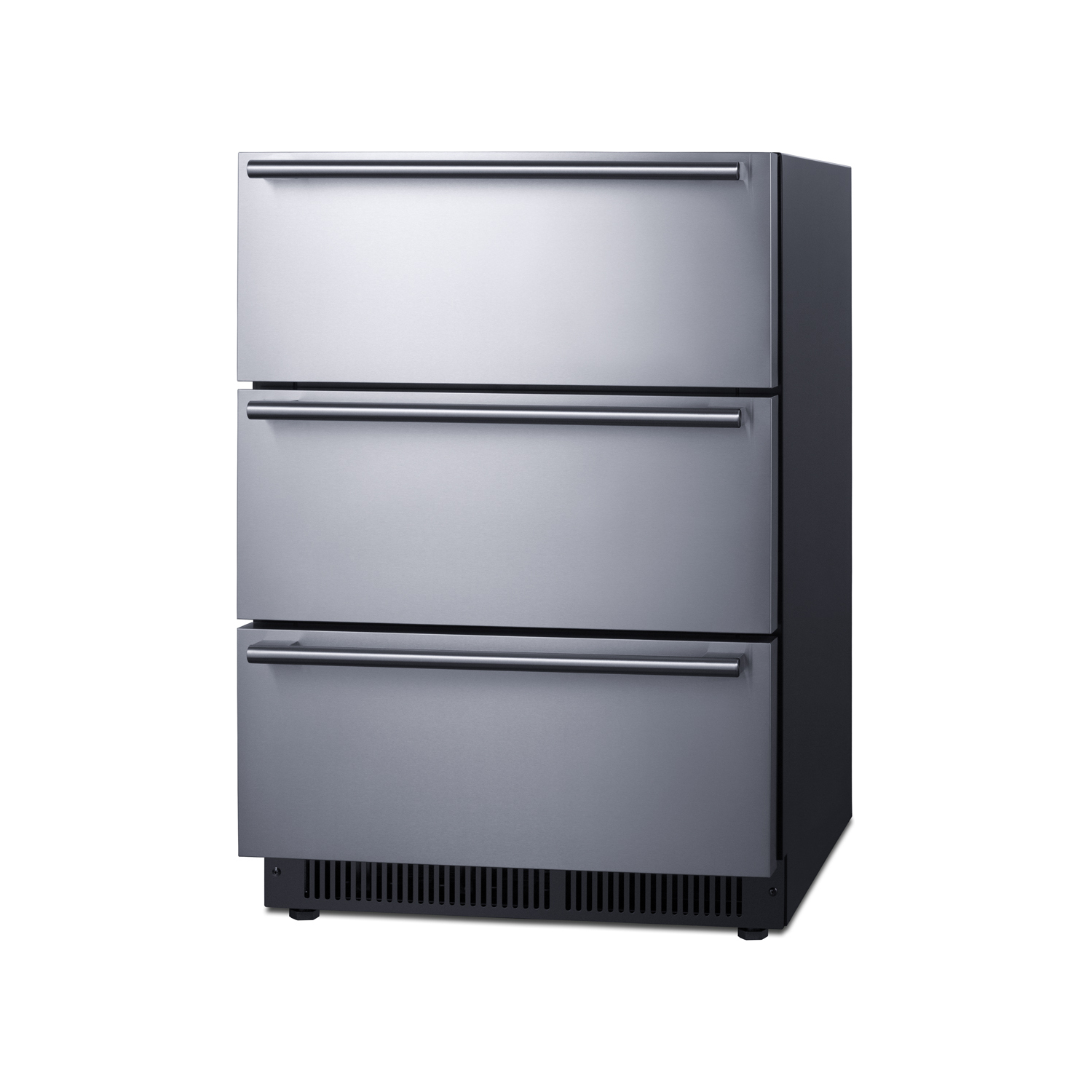

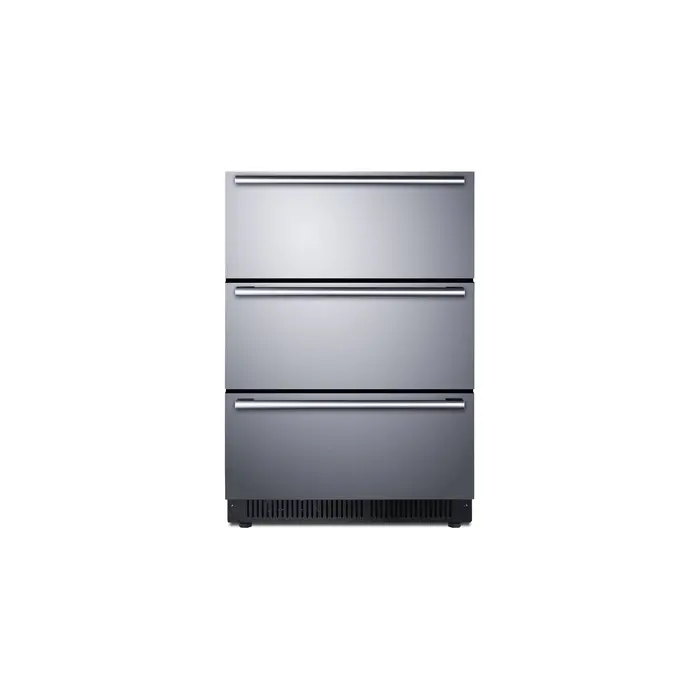

Model SP6DS3D is sized with an easy-fitting 24" footprint. The front-breathing system allows built-in installation, while the fully finished cabinet enables freestanding use. The three drawers are constructed from stainless steel inside and out for lasting durability and easy-to-clean convenience. Professional handles complete the look. This unit has a sealed back and right angle plug for added space savings.

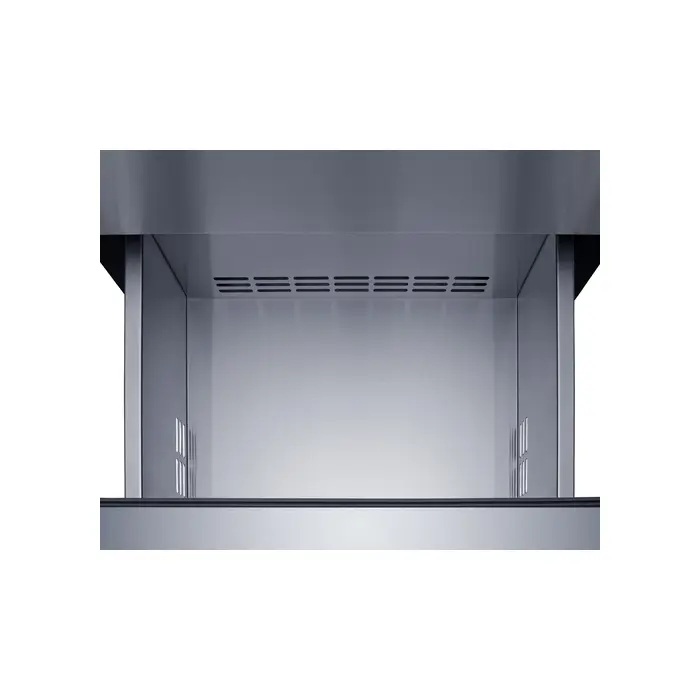

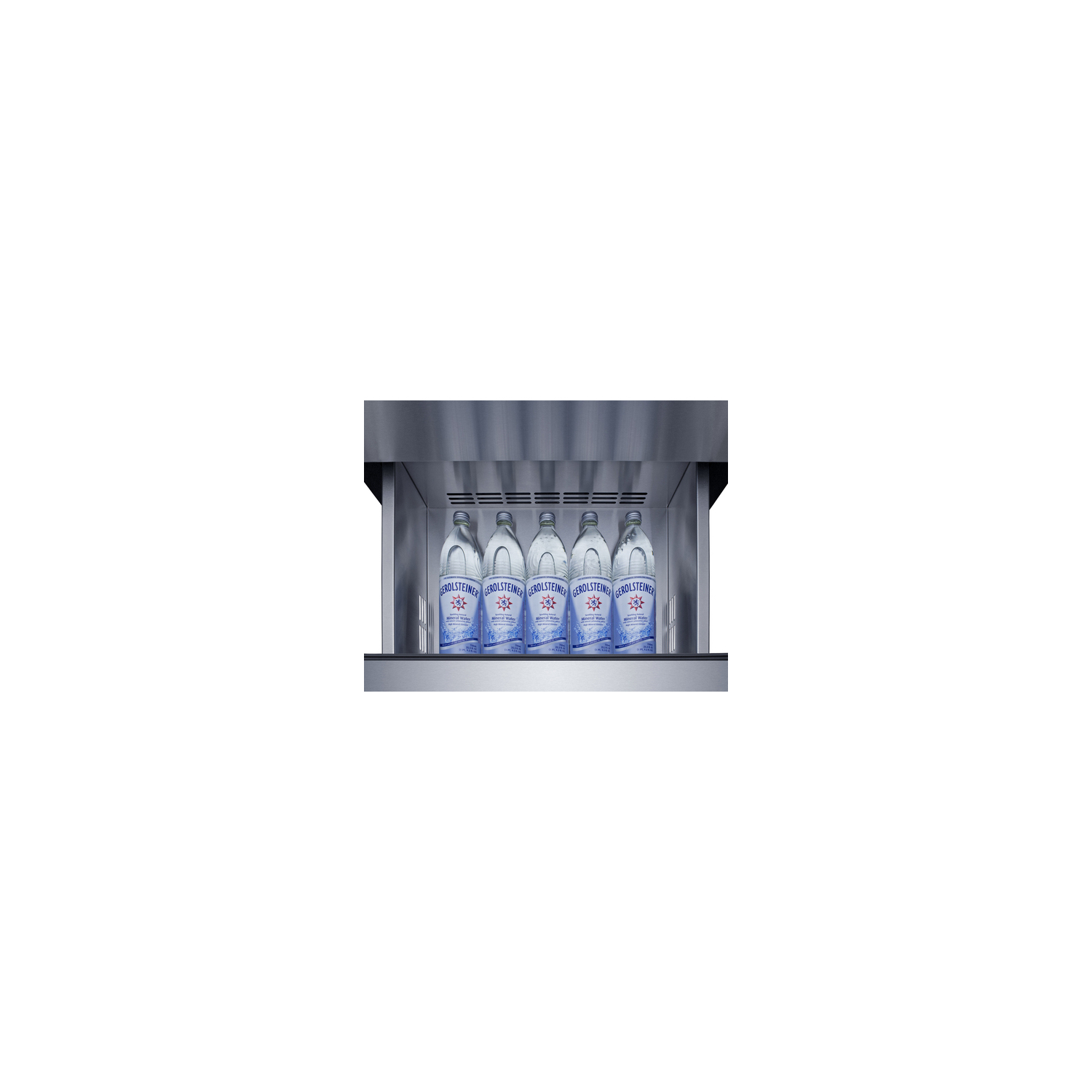

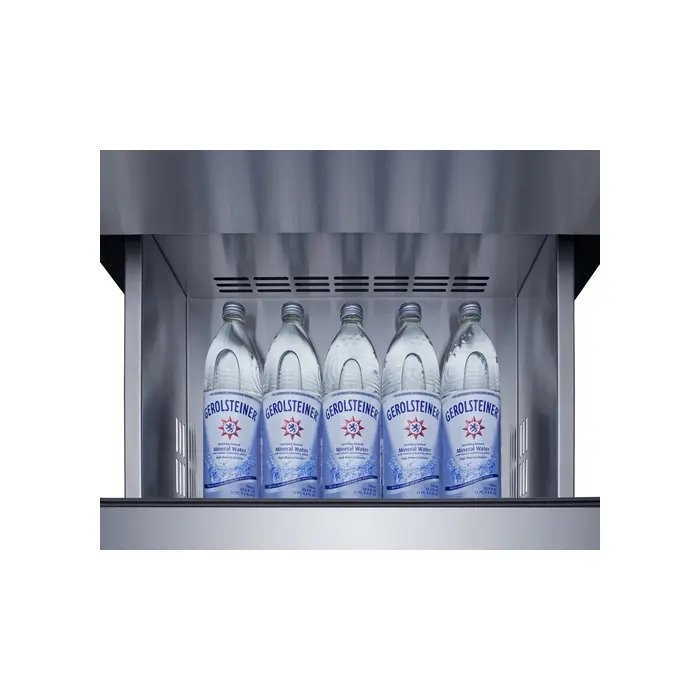

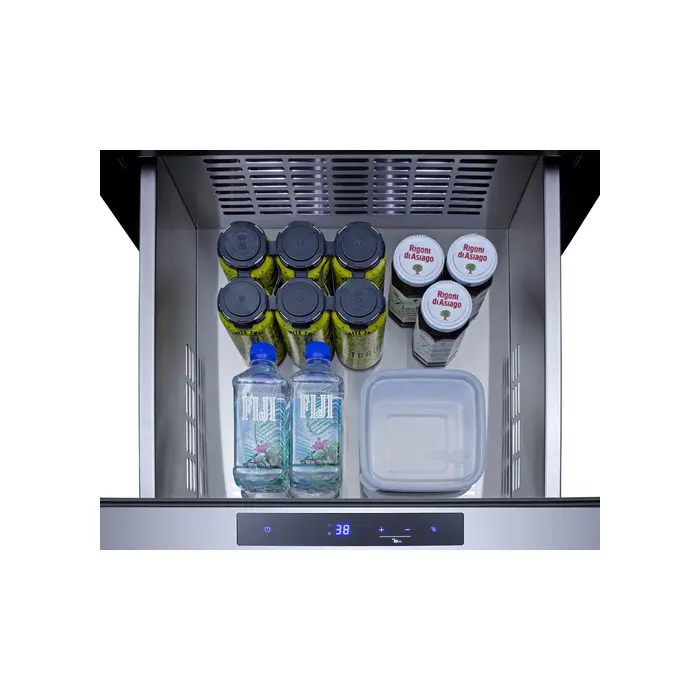

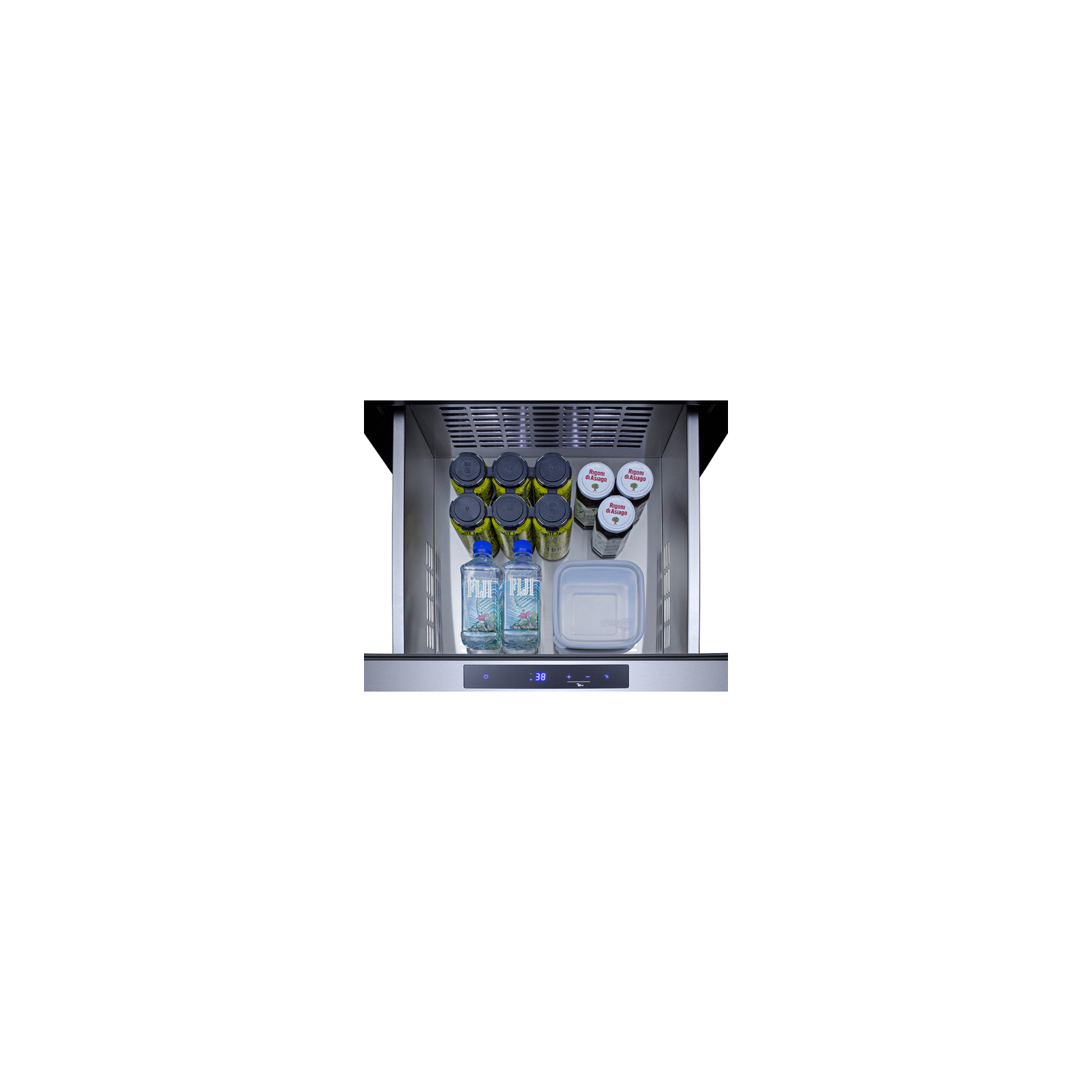

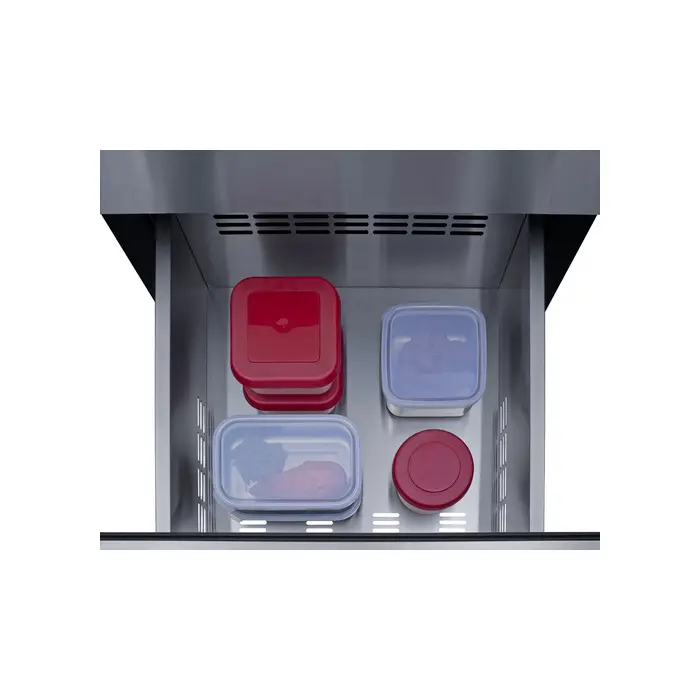

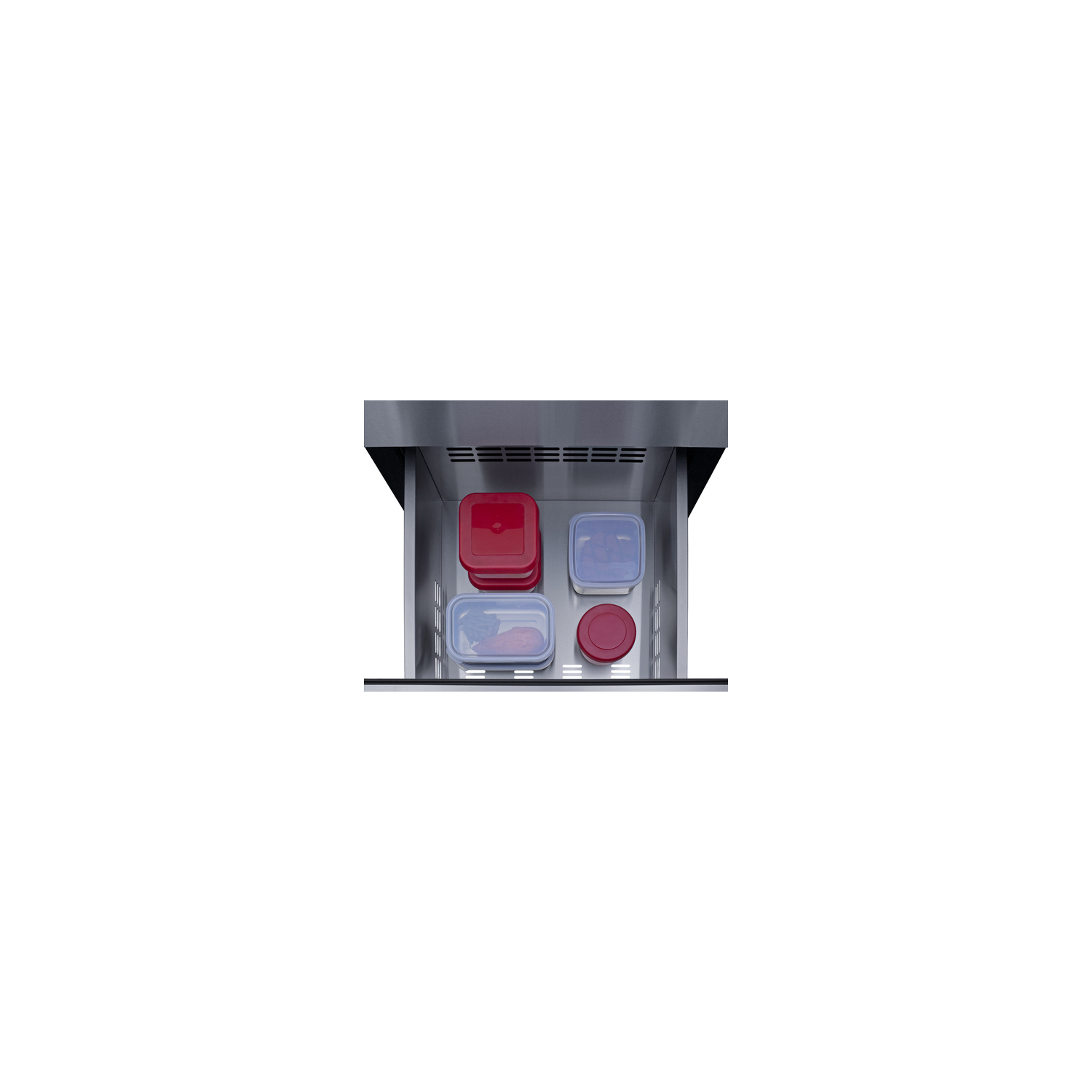

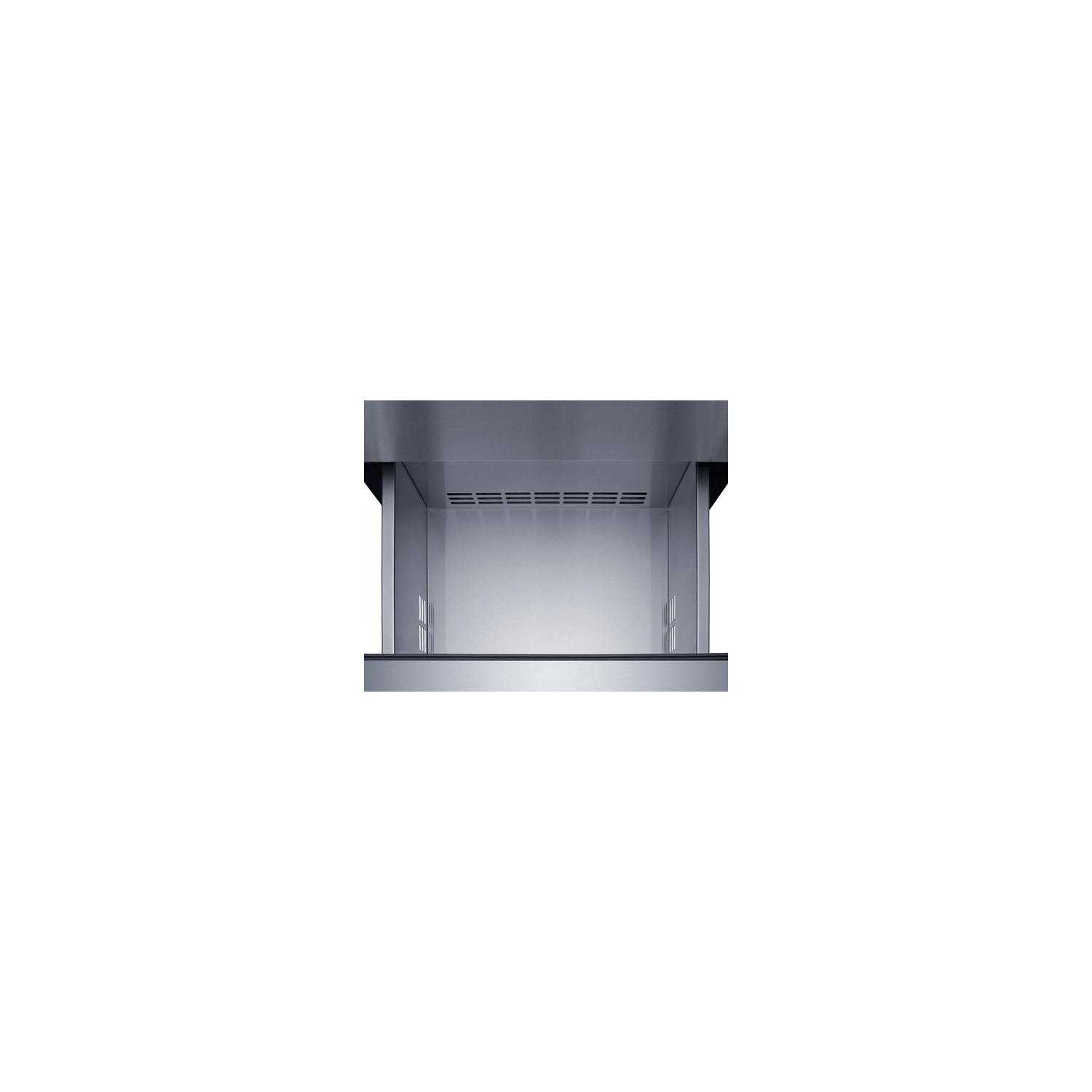

Inside, the SP6DS3D utilizes frost-free cooling for minimum user maintenance. With three separate drawers, this refrigerator allows you to better organize your items. Keep meat separate from dairy, or animal products separate from plant-based. The durable steel interiors are perfect for holding cans or horizontally placed bottles as well. LED lighting in the top drawer offers an efficient and attractive view.

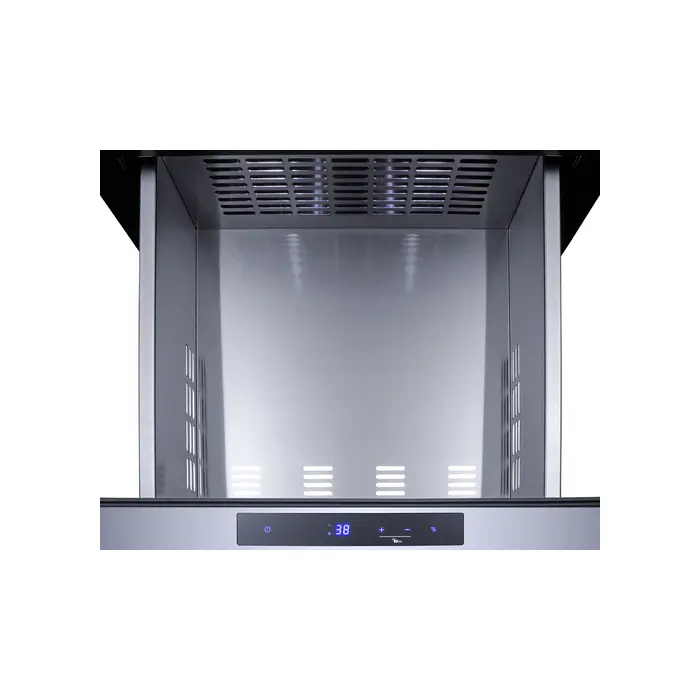

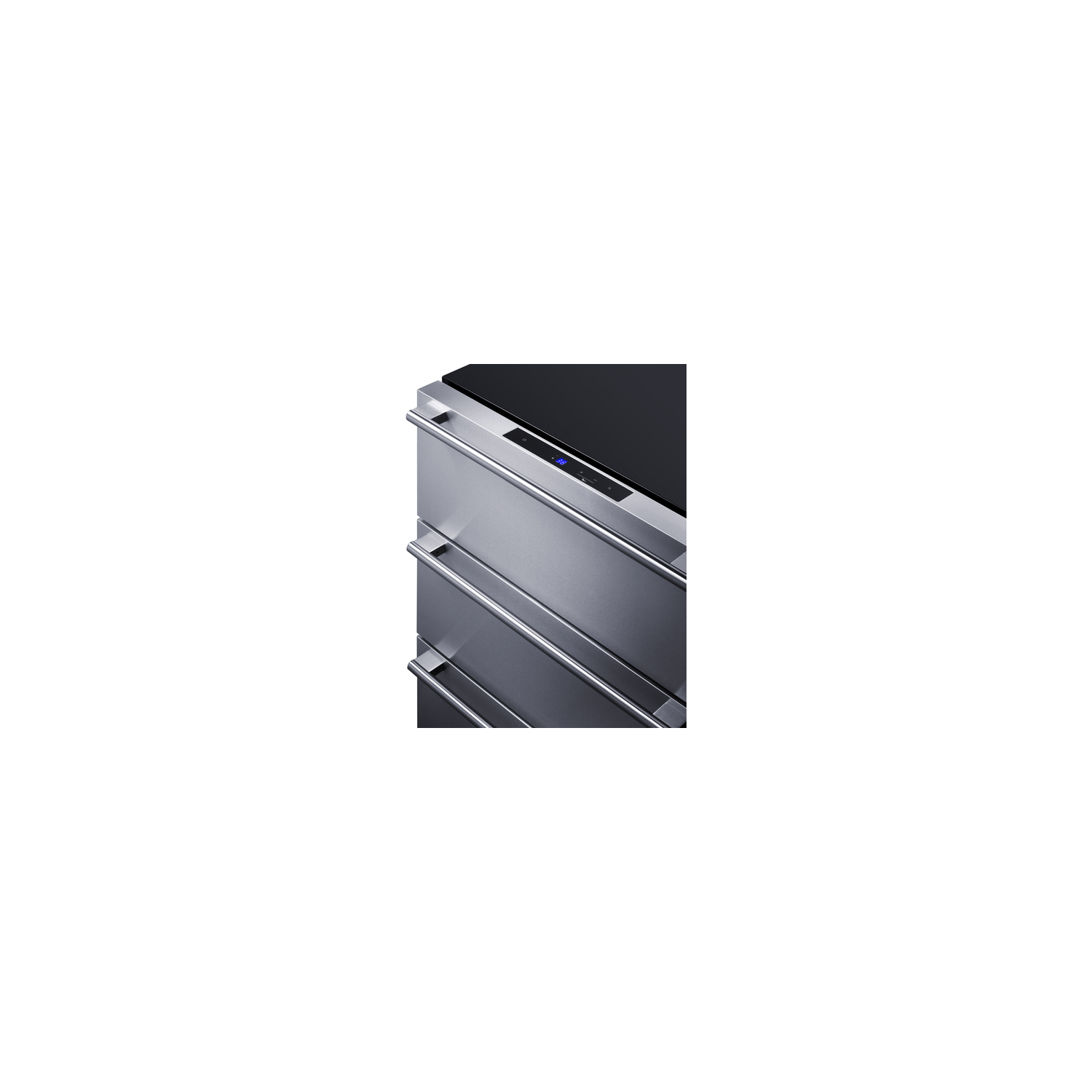

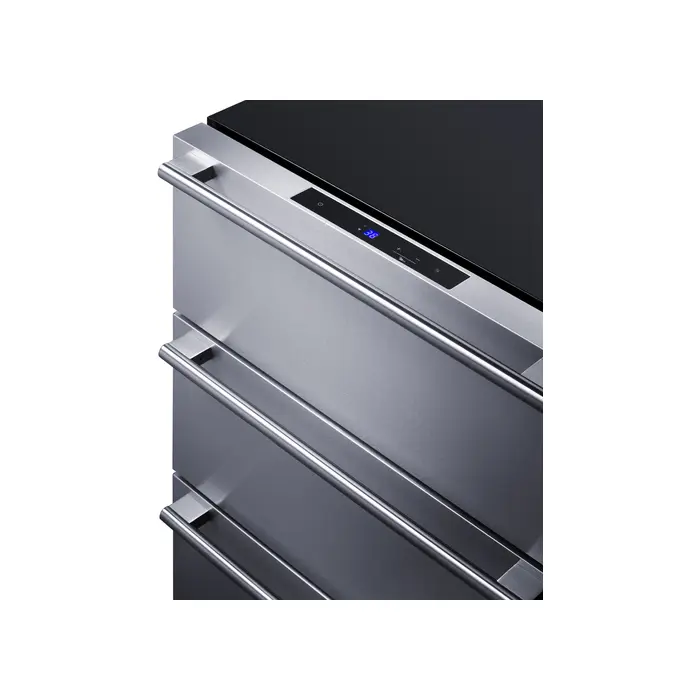

The intuitive digital control panel is easy to read and even easier to use, featuring an indicator light to announce which function is activated with an external readout in Celsius or Fahrenheit. It is externally located on the top drawer for easy access. Additional features ensure the unit is running at its best. These include a high temperature alarm and an open drawer alarm. A temperature memory function helps to recover all settings in the event of power loss. This model also includes a Sabbath Mode Setting that disables certain electrical features for up to 96 hours during periods of religious observance.

The SP6DS3D can be used in home or commercial settings. This unit is ETL-S listed to NSF-7 standards and meets UL Commercial Standard 471. For an outdoor version, see model SP6DS3DOS. Additional 2-drawer refrigerators are available in 15", 18", 24", 27", 30", and 36" widths. Browse the full Summit lineup to explore the industry's most extensive collection of built-in drawer refrigeration. Nominal Height: 34
Height of Cabinet: 33.88
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.38
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.88
Depth with Handle: 25.63
Depth with door at 90°: 37.25
Capacity: 4.9
Bottles: 0Defrost Type: Frost-FreeDoor: Stainless SteelCabinet: BlackUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.88" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.88" (61 cm)

Depth with Handle 25.63" (65 cm)

Depth with door at 90° 37.25" (95 cm)

Capacity 4.9 cu.ft. (139 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 260.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101108216

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 3

Temperature Range 36°F to 43°F

Drawer Dimensions

Interior Height 1 5.25" (13 cm)

Interior Width 1 17.25" (44 cm)

Interior Depth 1 12.0" (30 cm)

Interior Height 2 5.25" (13 cm)

Interior Width 2 17.25" (44 cm)

Interior Depth 2 17.0" (43 cm)

Interior Height 3 5.25" (13 cm)

Interior Width 3 17.25" (44 cm)

Interior Depth 3 17.0" (43 cm)

FEATURES

3-Drawer Refrigerator 24" wide all-refrigerator with three slide-out drawers for built-in or freestanding use

Three stainless steel drawers Slide-out drawers for full refrigeration storage and easy seperation of meats, cheeses, and produce

Commercially approved ETL-S listed to NSF-7 standards allows use in commercial kitchens

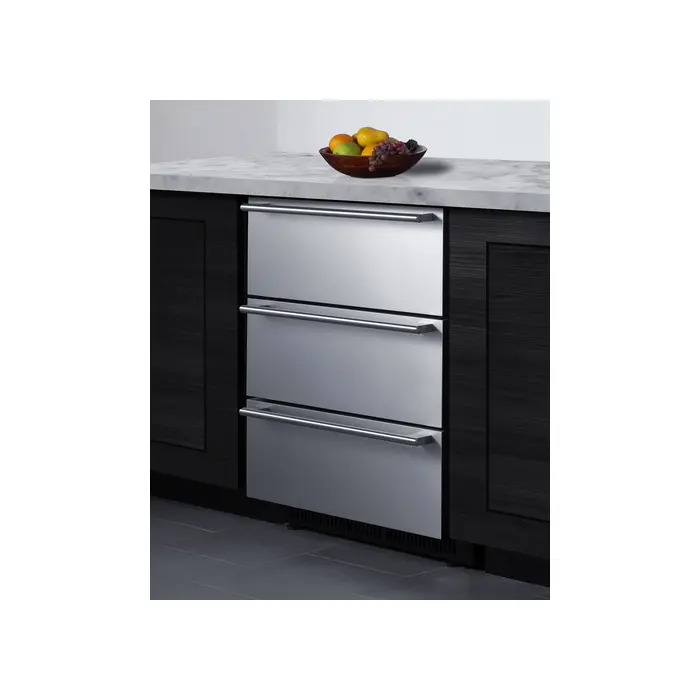

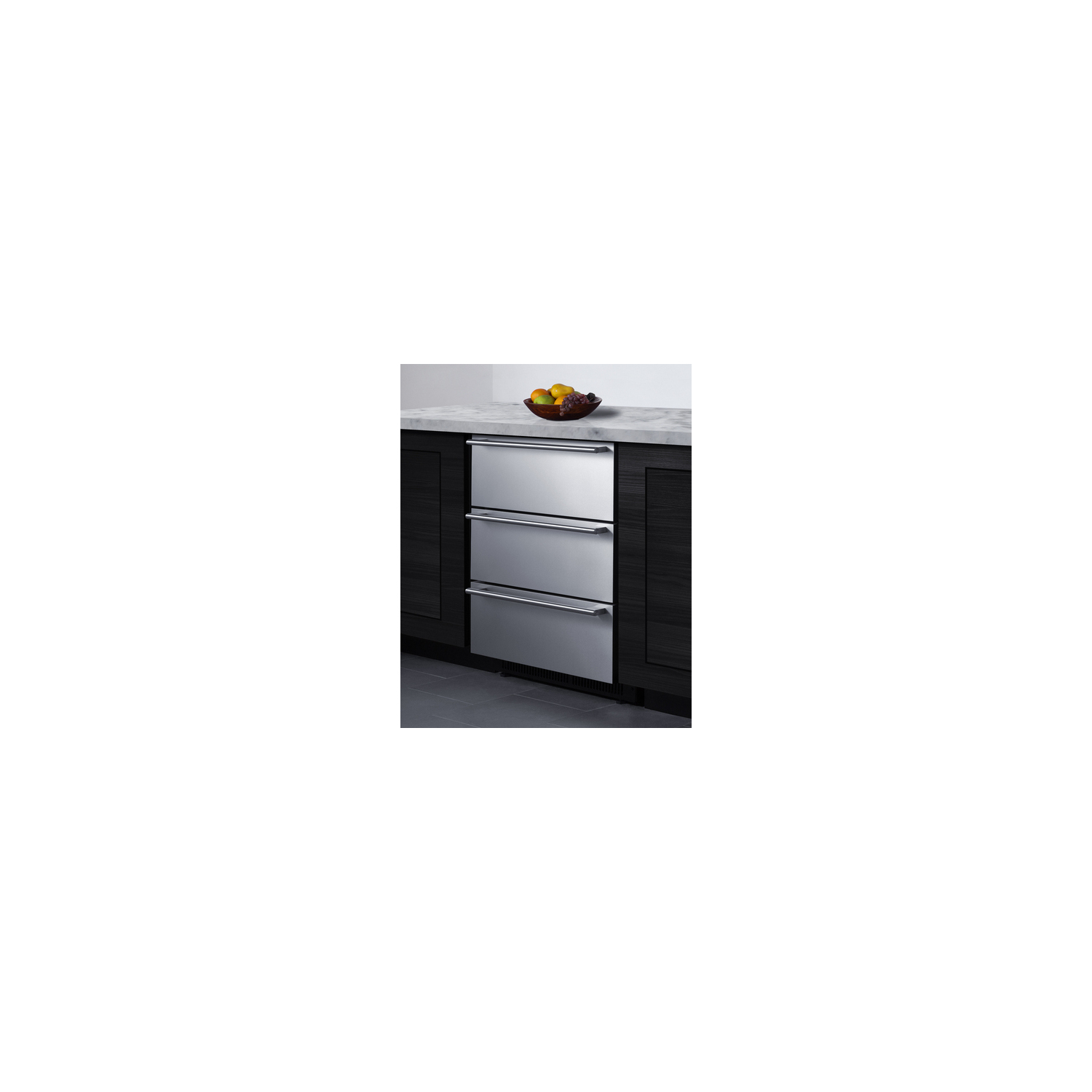

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel front & interior Durable construction in a luxury finish

Indoor/outdoor capable Durable, weatherproof construction designed to hold up to the elements

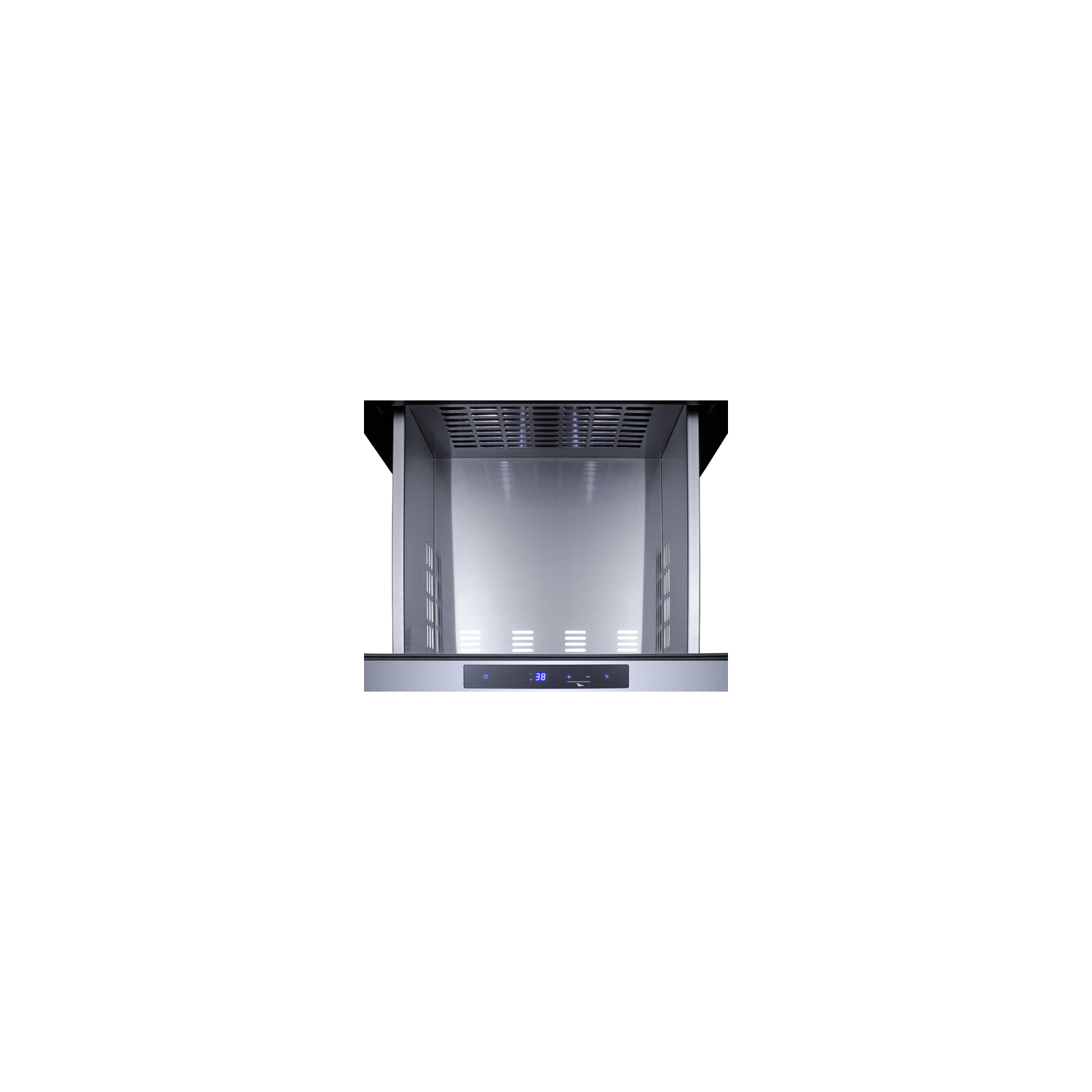

Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Frost-free operation No-frost operation for minimum user maintenance

Open drawer alarm Audible alarm will sound if the drawers are left ajar for over a minute

Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

LED lighting Elegant and efficient lighting offers a gentle illumination

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 96 hours

Sealed back Space saving design with easier cleanability

Anti-slam drawers Soft-close glides prevent drawers from slamming shut for additional durability and safety

Fully finished cabinet Allows the unit to be used freestanding

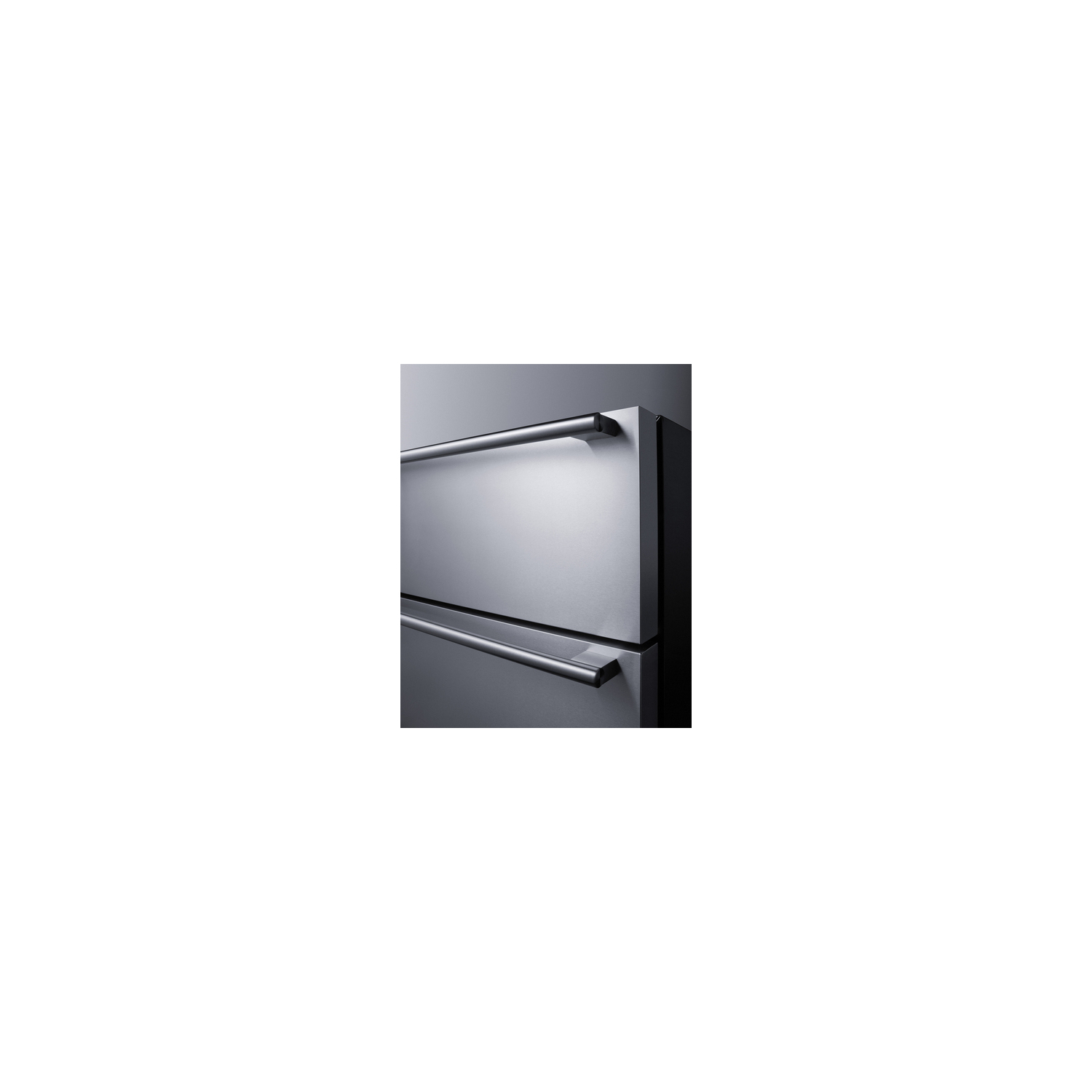

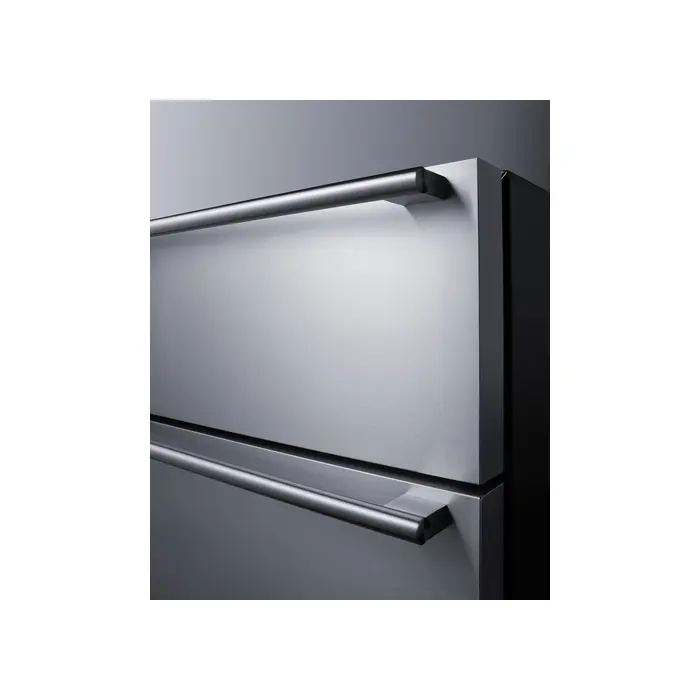

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Anti-tip bracket Included and recommended for user-installation to reduce the risk of tipping

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SP6DS3D.pdf)

TECHNICAL DRAWING (.dwg) (SP6DS3D.dwg)

ASSEMBLY DRAWING (SP6DS3D-Assembly.pdf)

USE & CARE (SP6DS3D-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
