Summit Commercially approved ADA compliant two-drawer refrigerator in stainless steel for built-in use, 7.61101e+011, SP6DBS2D7ADA

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

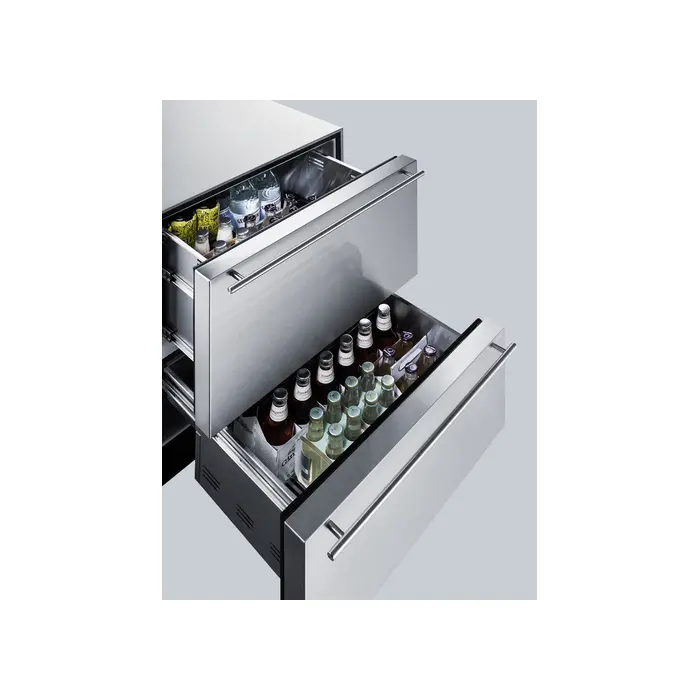

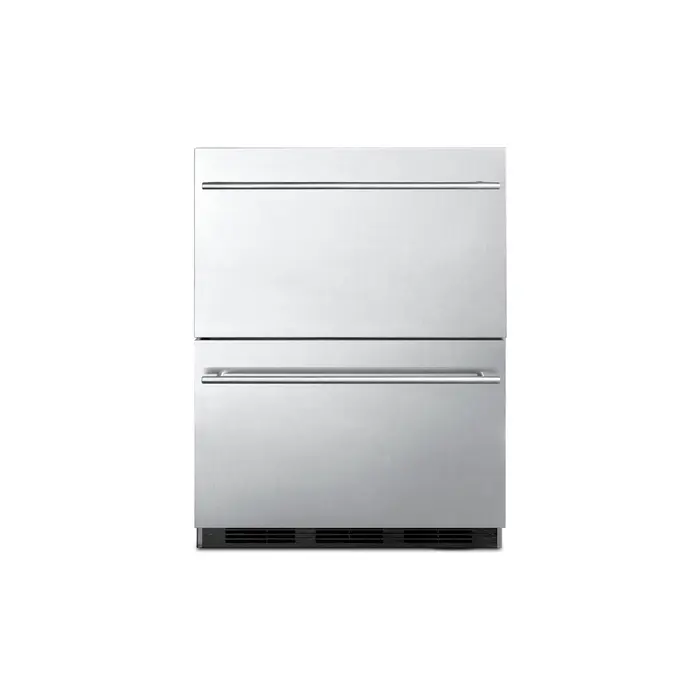

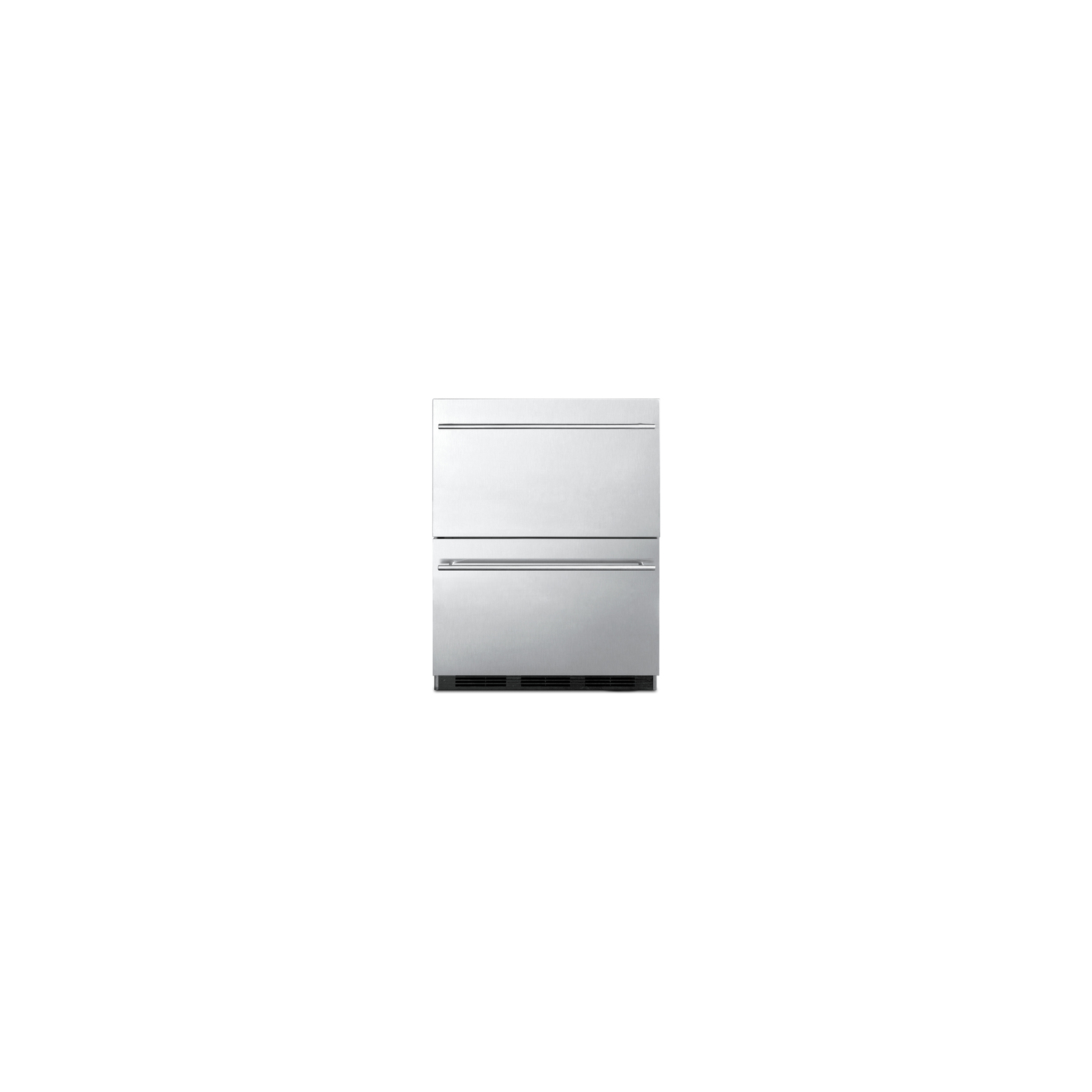

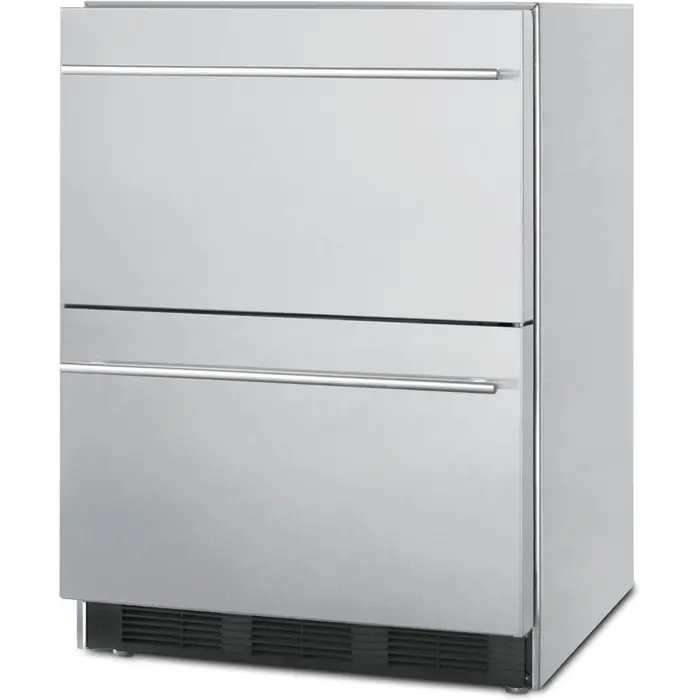

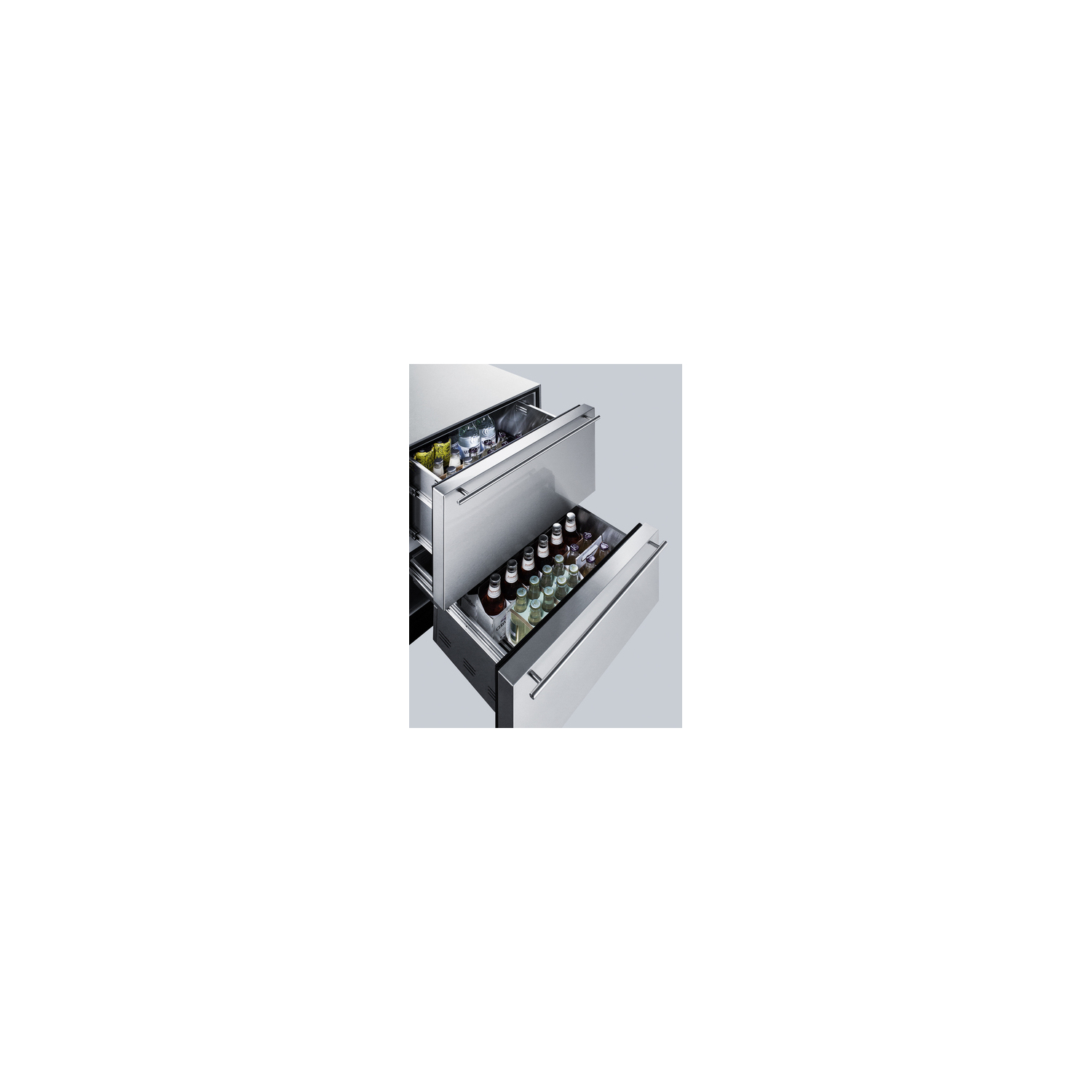

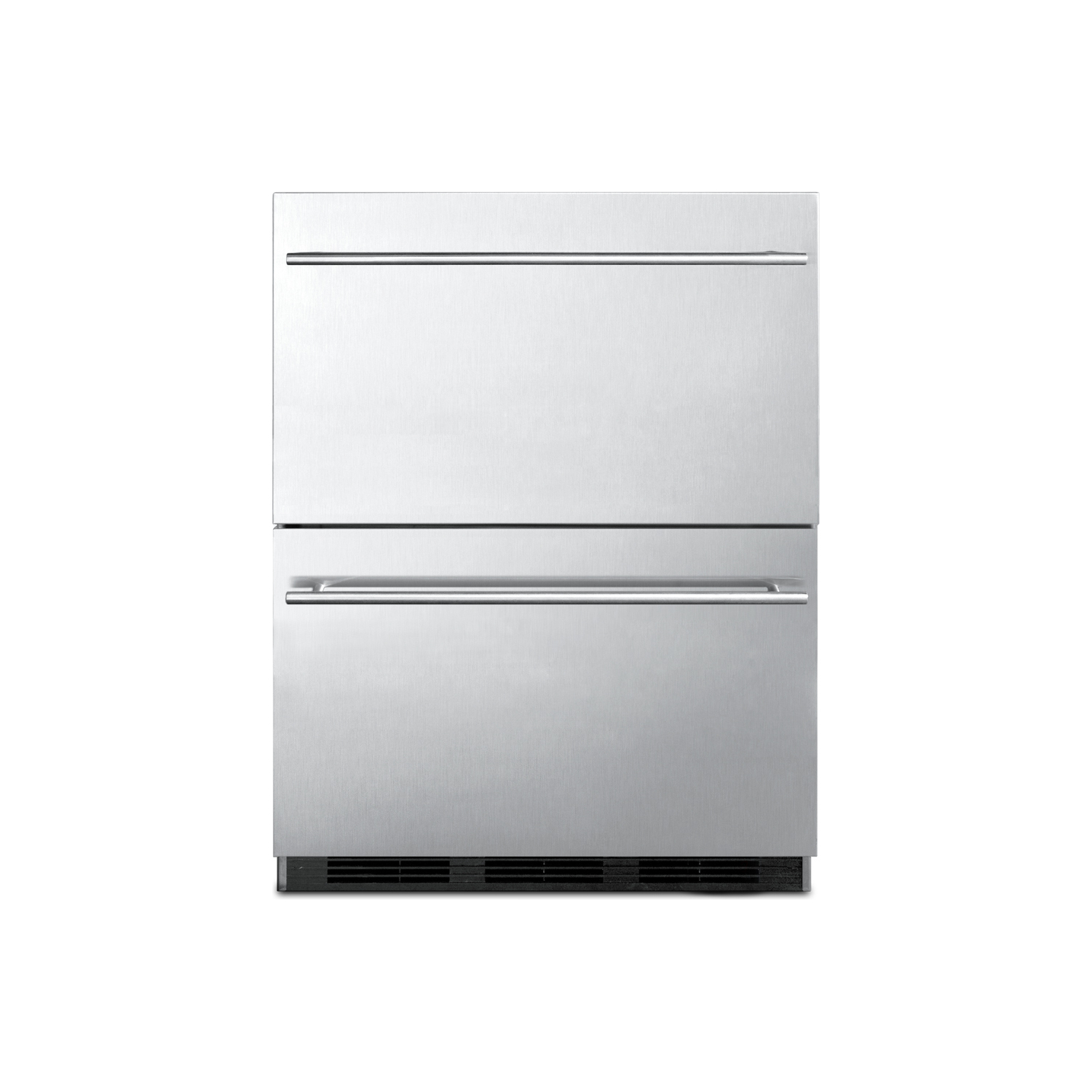

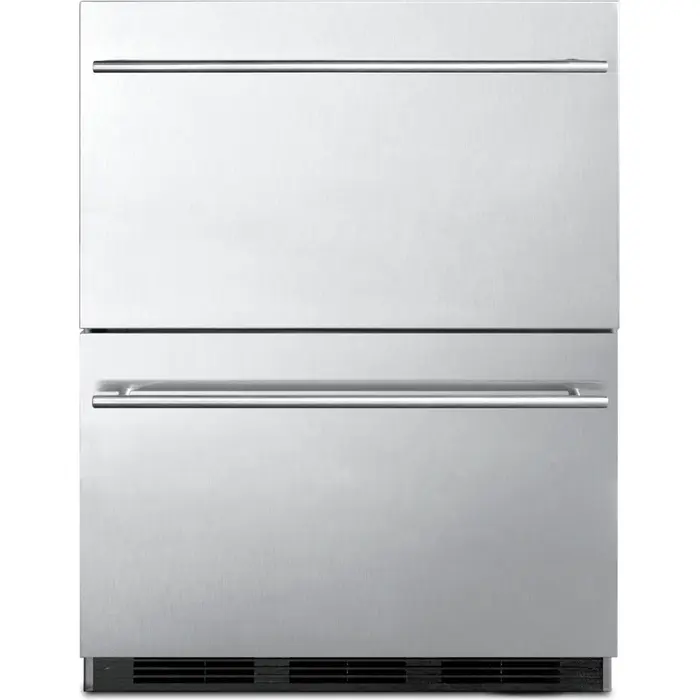

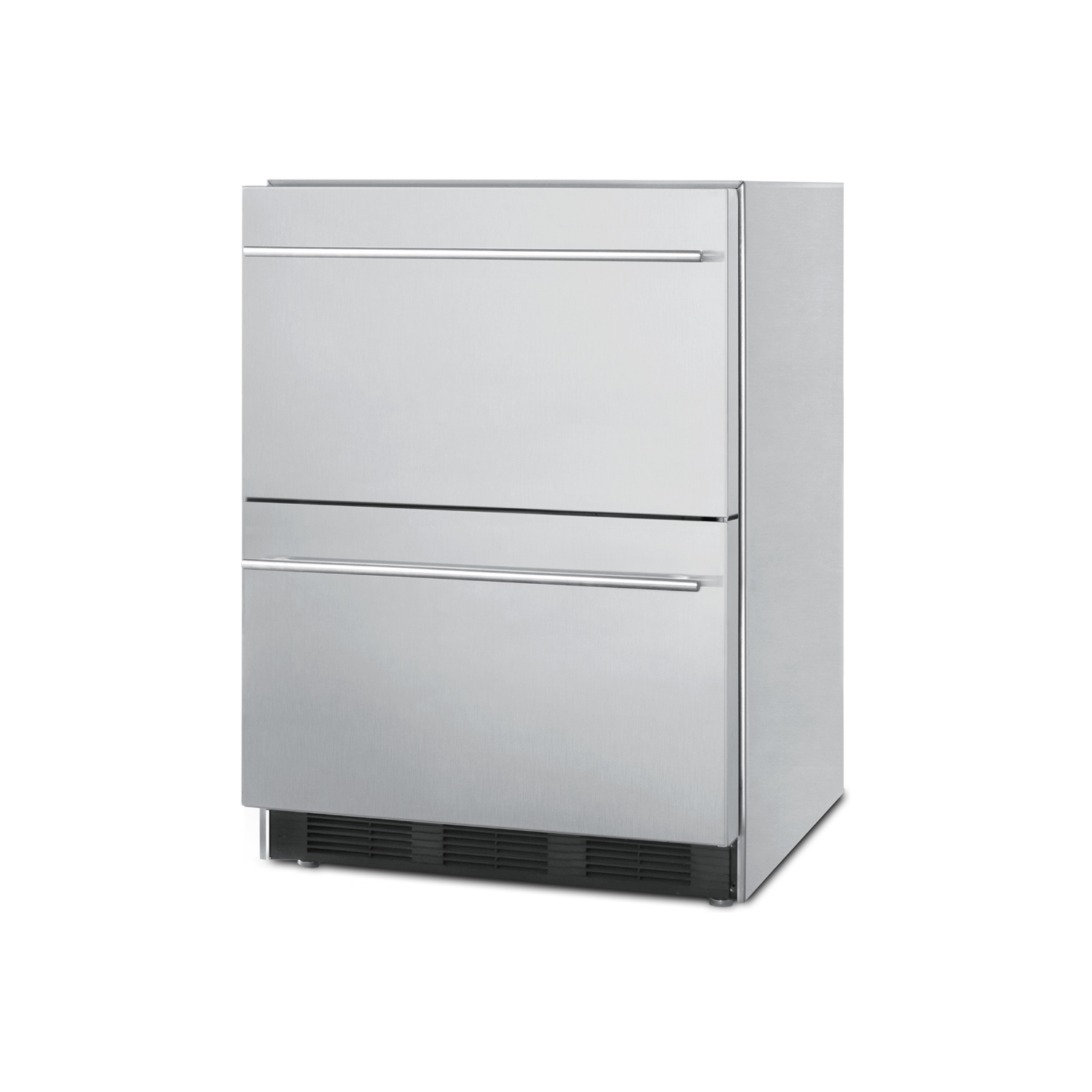

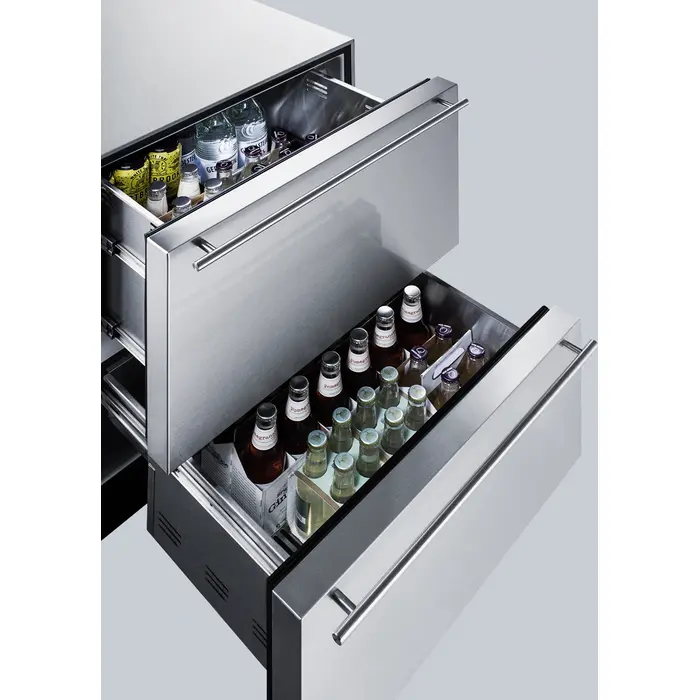

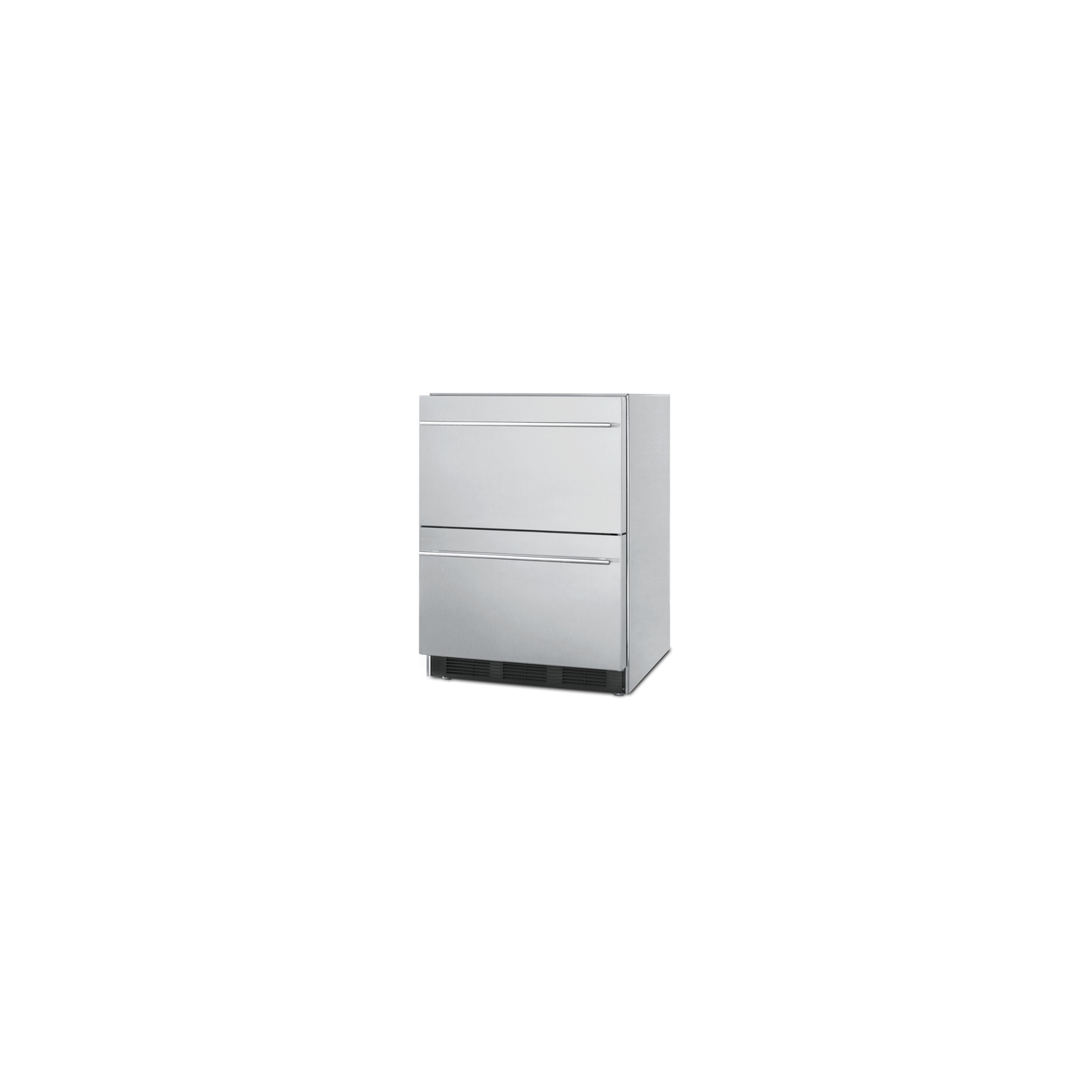

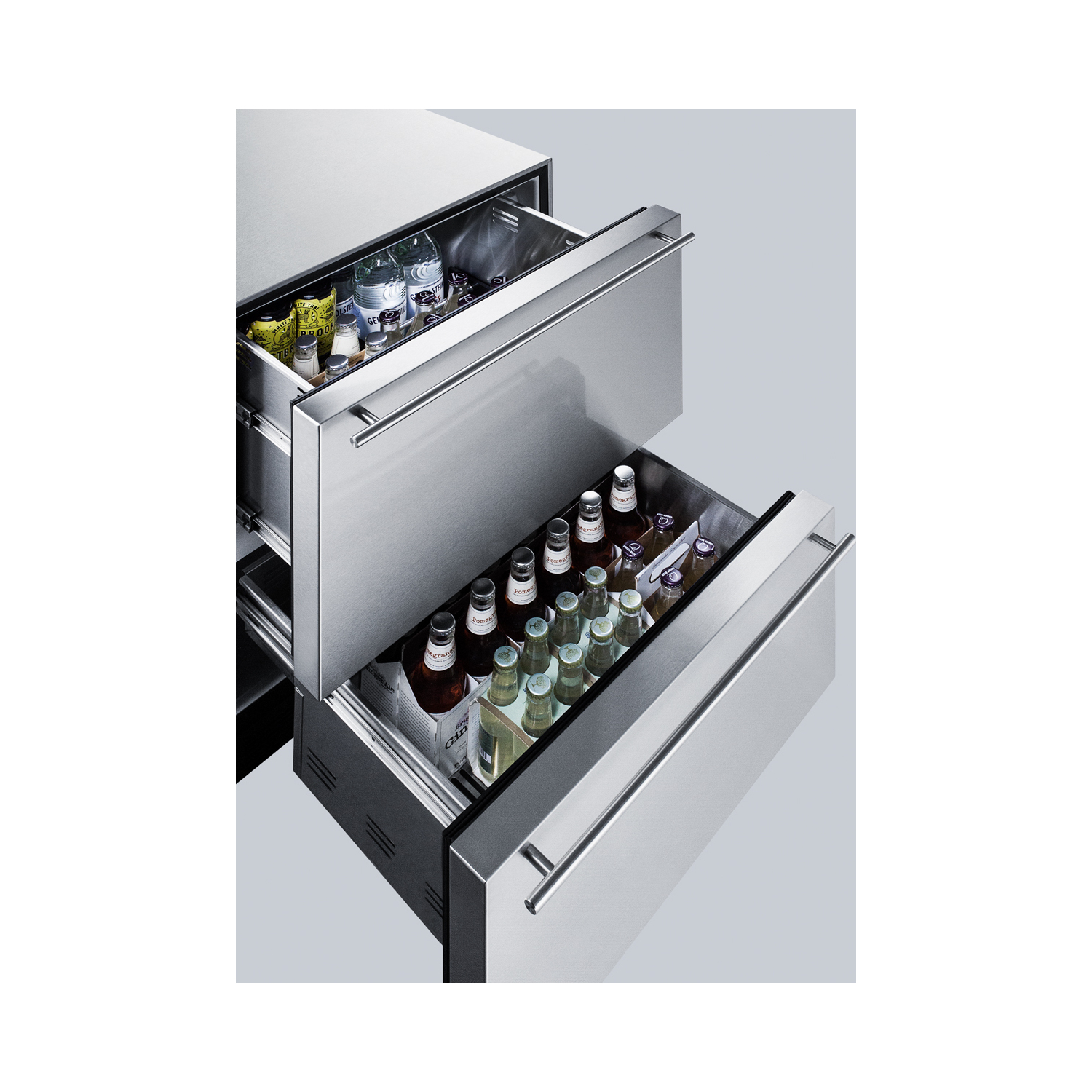

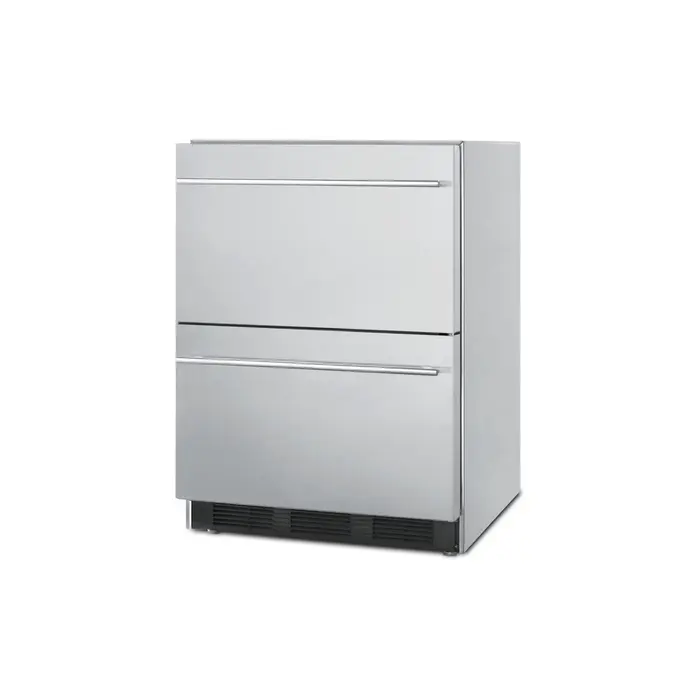

The SP6DBS2D7ADA is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. This unit includes an adjustable divider that lets you better organize your storage. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit).

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBS2D7.

Nominal Height: 32
Height of Cabinet: 32.25
Height to Hinge Cap: 0
Nominal Width: 24
Width: 23.63
Width with Door Open: 0
Nominal Depth: 24
Depth: 23.88
Depth with Handle: 25.38
Depth with door at 90°: 41.25
Capacity: 3.1
Bottles: 0Defrost Type: AutomaticDoor: Stainless SteelCabinet: Stainless SteelUS Electrical Safety: ETLCanadian Electrical Safety: ETL-CSanitation: ETL-SVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: 5 Years

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.88" (61 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 41.25" (105 cm)

Capacity 3.1 cu.ft. (88 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.2

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101069517

Refrigerator Features

Thermostat Type Dial

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 4

Drawer Dimensions

Interior Height 1 9.5" (24 cm)

Interior Width 1 18.75" (48 cm)

Interior Depth 1 12.0" (30 cm)

Interior Height 2 12.63" (32 cm)

Interior Width 2 17.25" (44 cm)

Interior Depth 2 16.0" (41 cm)

Dimensions

Compressor Step Height 5.75" (15 cm)

Compressor Step Width 18.75" (48 cm)

Compressor Step Depth 4.0" (10 cm)

FEATURES

ADA Compliant 32 inch height is designed to fit under ADA compliant counters

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments

Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished cabinet Allows the unit to be used freestanding

Complete stainless steel construction Built with solid durability, inside and out

Automatic defrost Reduced maintenance with auto defrost system

Adjustable thermostat Dial thermostat for easy temperature management

Rapid chill compartment Special rear section is perfect for chilling wine and beer from room to drinking temperature in under an hour

Adjustable drawer divider Wire divider lets you separate items into four sections for easier organization

Large top drawer Holds two liter bottles, gallon containers, and wine bottles in 12 1/2" height

Customizable drawer fronts Order our conversion kit to install your own panels over the drawers

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (SP6DBS2D7ADA.pdf)

TECHNICAL DRAWING (.dwg) (SP6DS2D7ADA_DRAWER_REF.__A-C_2000_.dwg)

OTHER (Panel_Kit_-_SP6DS2D7___OS_Rev._1-17.pdf)

USE & CARE (SP6DBS2D7ADA-User-Manual.pdf)
