Summit 24 inch wide open burner gas cooktop in bisque with battery start ignition, 7.61101e+011, SNL03P

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability, with non-electrical options ideal for off-grid and remote kitchens without traditional power access.

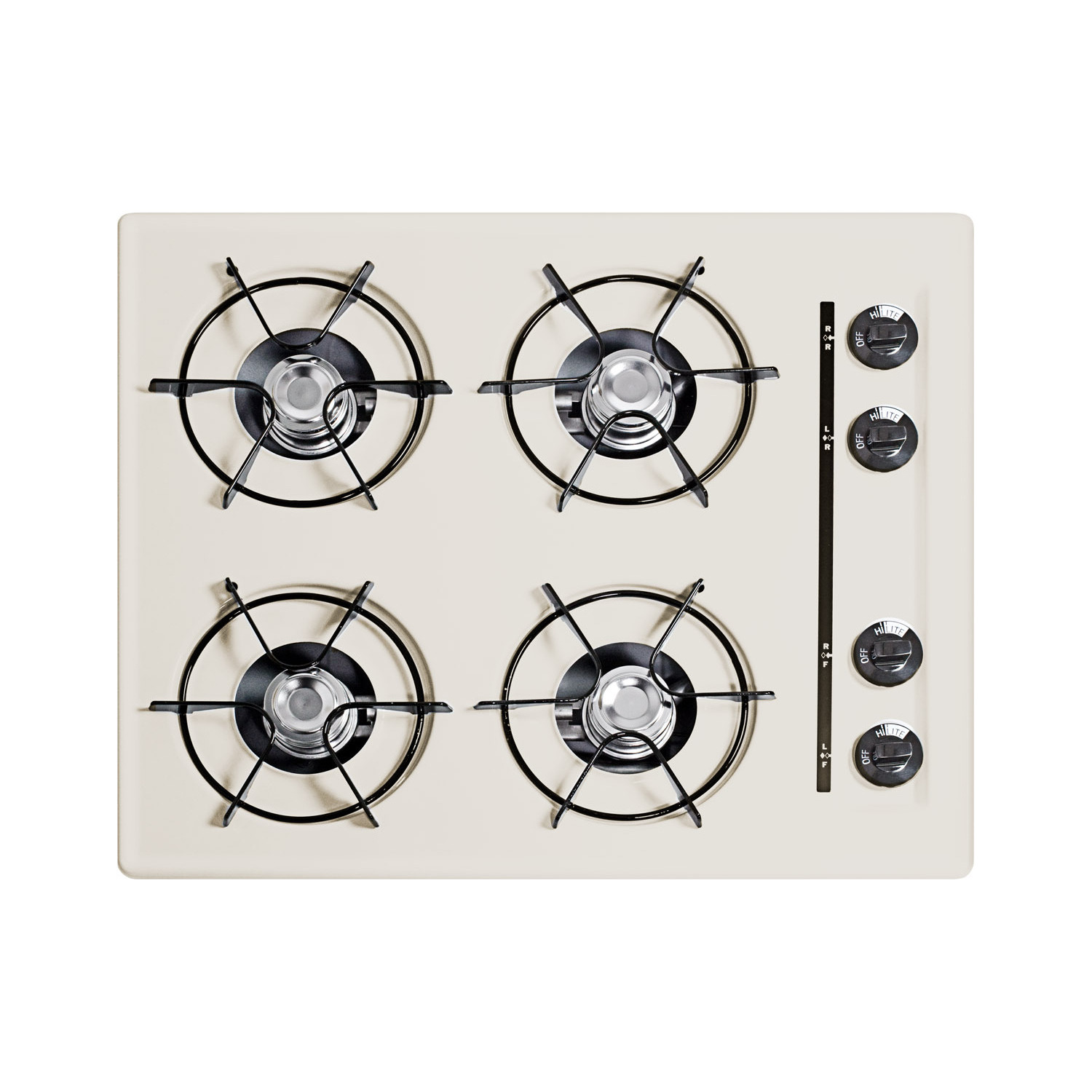

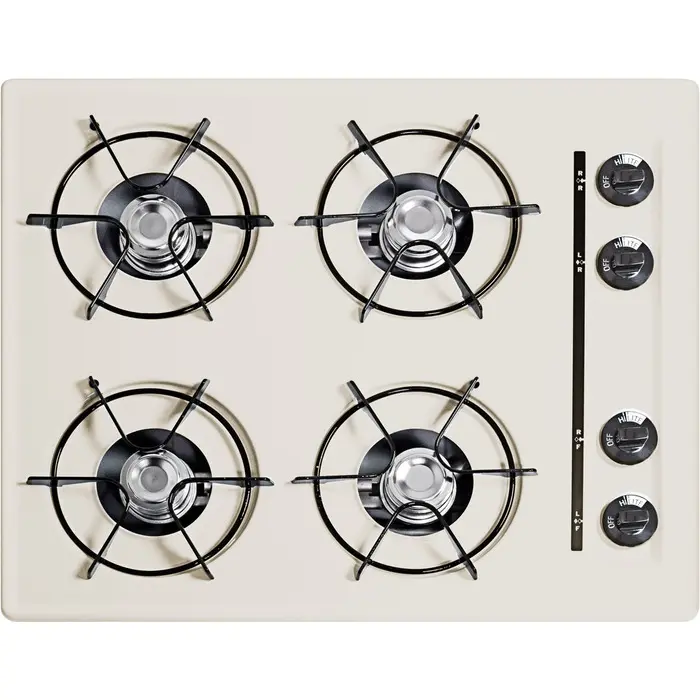

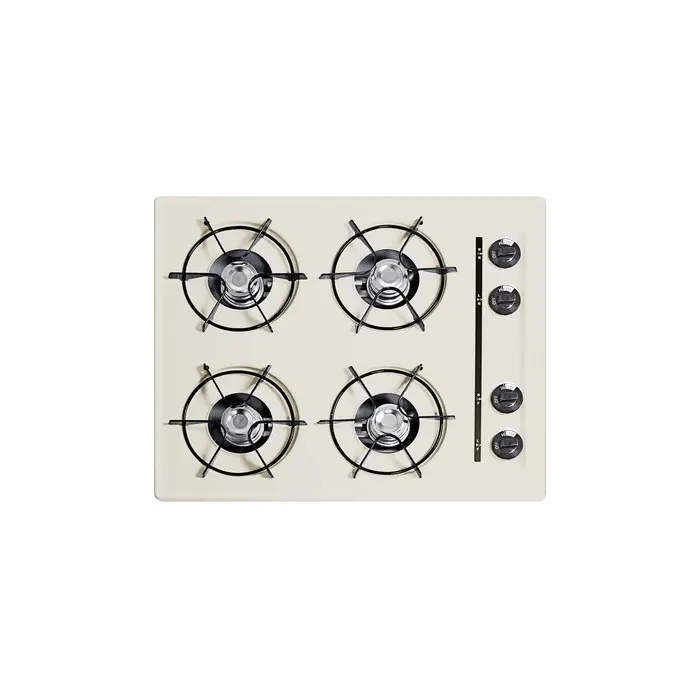

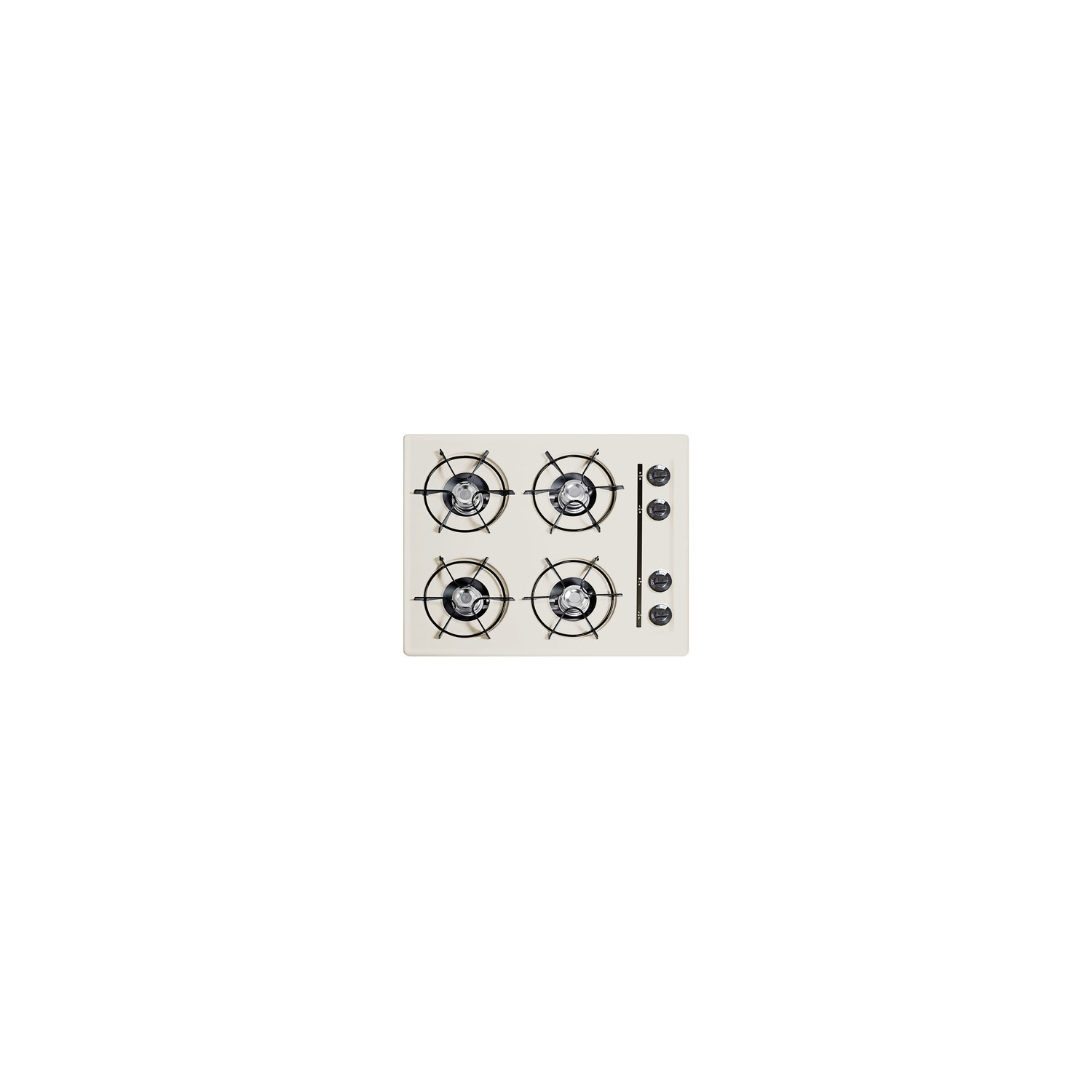

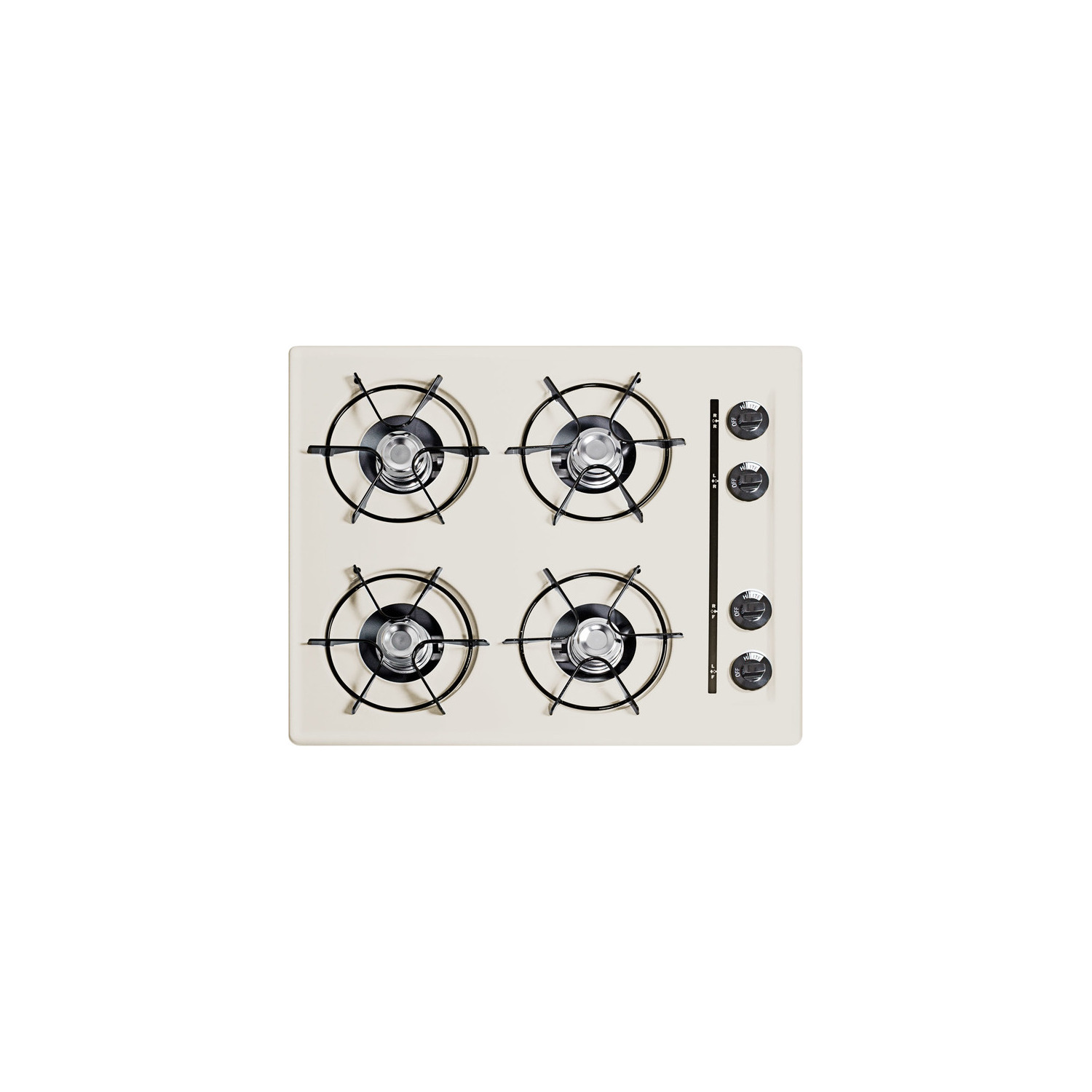

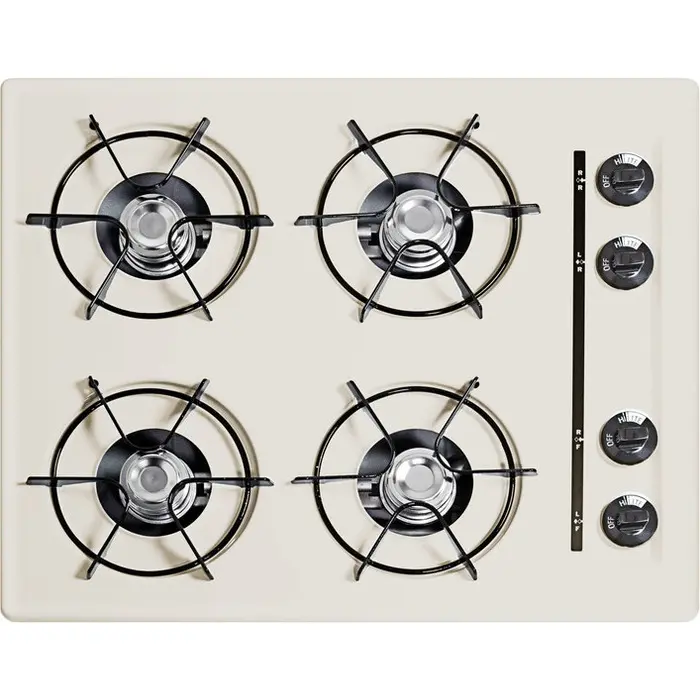

The SNL03P is a 24" wide gas cooktop designed to fit common 22 5/8" wide x 18 5/8" deep cutouts. It features a scratch-resistant porcelain surface in a retro bisque finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Four open 9000 BTU burners include built-in enamel grates. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes battery start ignition with a standard 9V battery (included) to allow the cooktop to function in homes not using electricity.

The SNL03P is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen space. Browse our website to explore our complete selection.

Nominal Height: 3.75
Height of Cabinet: 3.75
Height to Hinge Cap: 0
Nominal Width: 24
Width: 24
Width with Door Open: 0
Nominal Depth: 20
Depth: 20
Depth with Handle: 0
Depth with door at 90°: 0
Capacity: 0
Bottles: 0Defrost Type: N/ADoor: N/ACabinet: BisqueUS Electrical Safety: CSACanadian Electrical Safety: N/ASanitation: N/AVoltage/Frequency: N/AParts & Labor Warranty: 1 YearCompressor Warranty: N/A

SPECIFICATIONS

Overview

Nominal Height 3.75" (10 cm)

Height of Cabinet 3.75" (10 cm)

Nominal Width 24.0" (61 cm)

Width 24.0" (61 cm)

Nominal Depth 20.0" (51 cm)

Depth 20.0" (51 cm)

Cabinet Bisque

US Electrical Safety CSA

Weight 27.0 lbs. (12 kg)

Parts & Labor Warranty 1 Year

UPC 761101043937

Gas Cooktop

Ignition Battery Start

LP Convertible With Kit LP Accessory

Number of Burners 4

Controls Dial

Surface Painted

Cutout Width 22.63" (57 cm)

Cutout Depth 18.63" (47 cm)

Burner #1 BTU 9000.0

Burner #2 BTU 9000.0

Burner #3 BTU 9000.0

Burner #4 BTU 9000.0

Power Cord Included No

FEATURES

Made in the USA Designed and constructed domestically

Classic 24" size Fits common 22 5/8" W x 18 5/8" D counter cutouts

Four open burners 9000 BTU burners with built-in enamel grates to meet most cooking needs

Porcelain finish Scratch-resistant design for lasting durability

Bisque exterior Classic color suits almond and off-white kitchen design

Recessed top Curved design helps to contain spills on the surface

Battery start ignition Ideal alternative to pilot light sources when no power source is accessible

Designed for natural gas Set for use with natural gas connection. To convert for propane use, add Kit LP

Side controls Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs Knobs require a small amount of force to ensure burners are not accidentally turned on

DOWNLOADS

BROCHURE (SNL03P.pdf)

REVIT MODEL (QF_Summit_SNL03P_Cooktop.rfa)

USE & CARE (SNL03P-User-Manual.pdf)
