Summit Built-in microwave with complete trim kit for 27 inch wide openings, 7.61101e+011, SMBI27TK27
$769.80
Retail Price: $1,080.00
Free shipping
$ 769.80
Description
Summit's selection of built-in microwaves offers seamless solutions to complete any kitchen space.

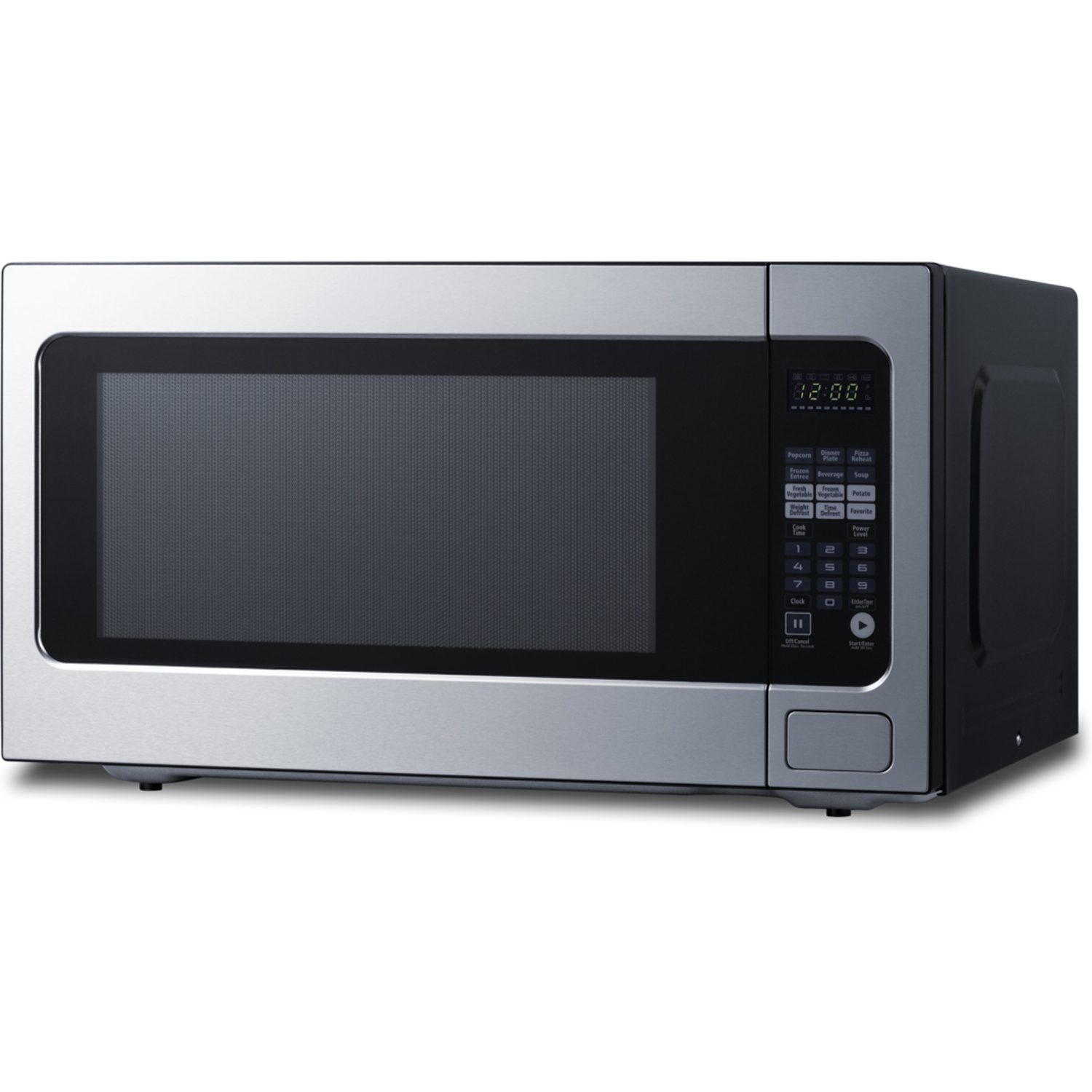

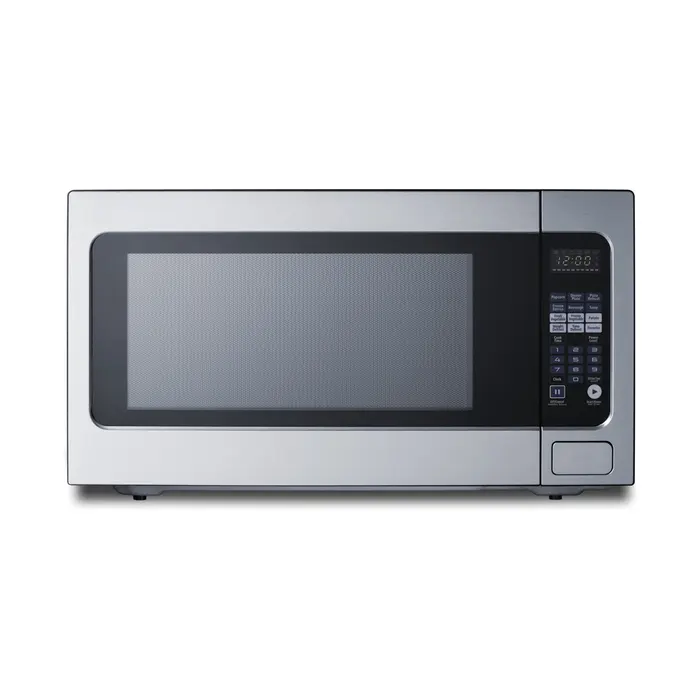

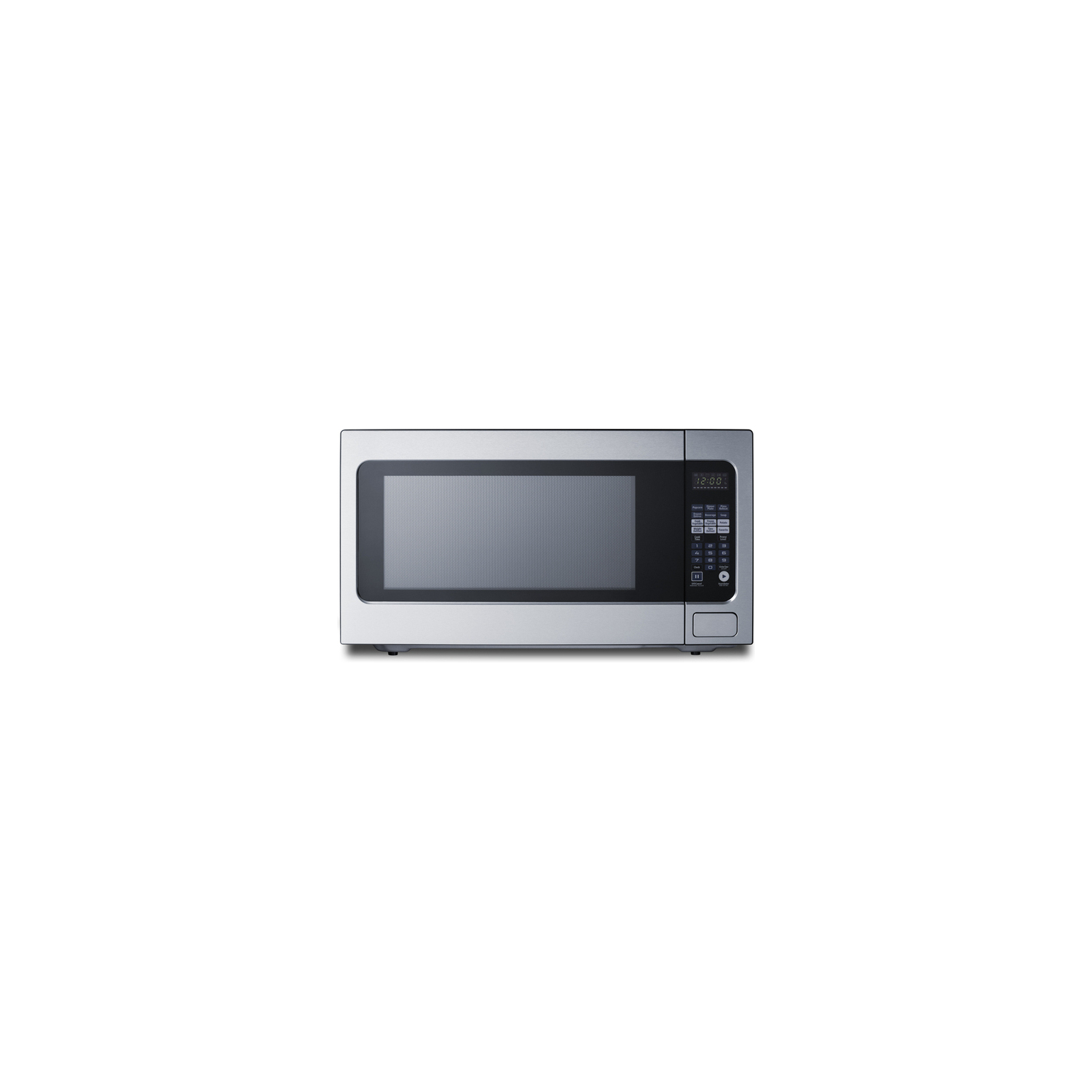

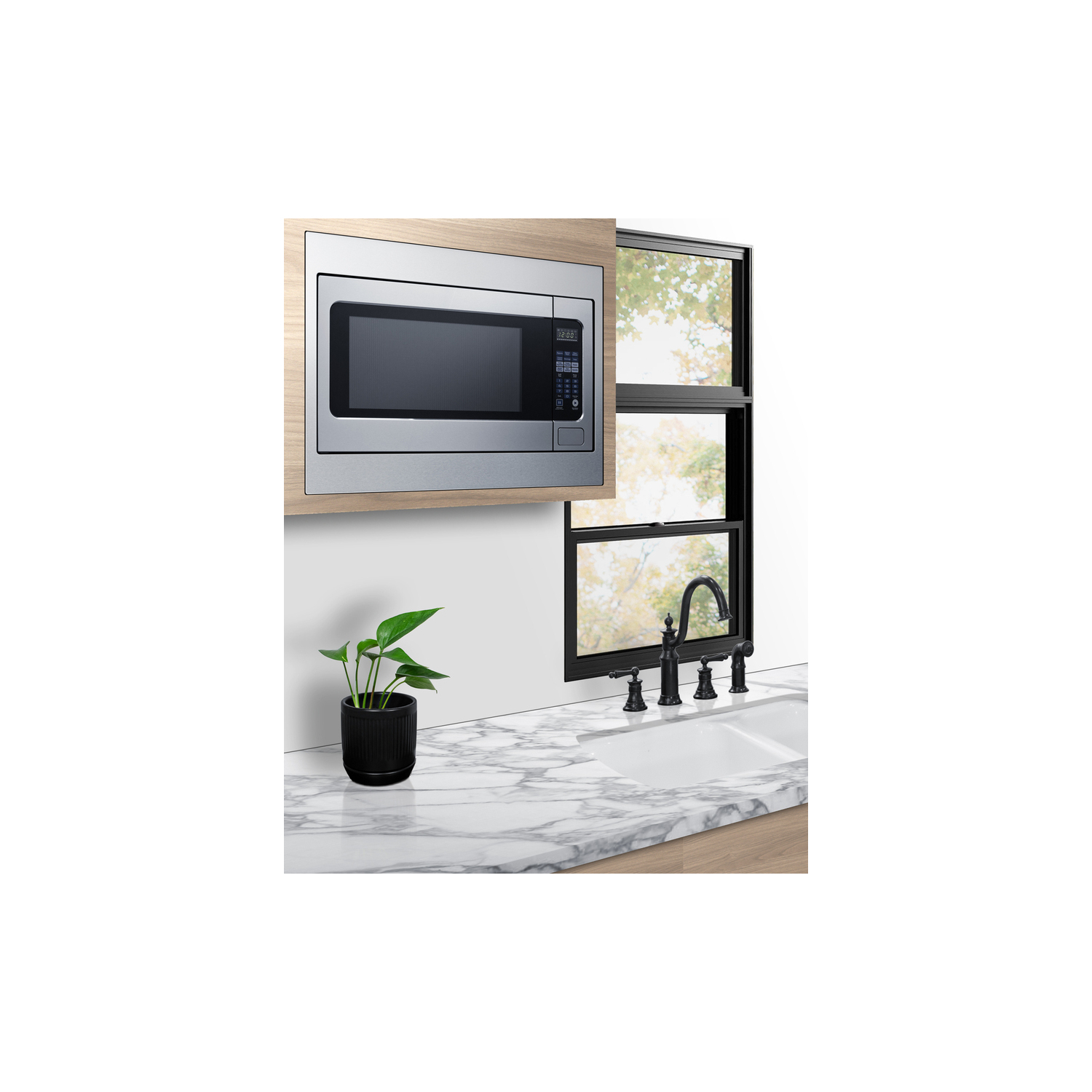

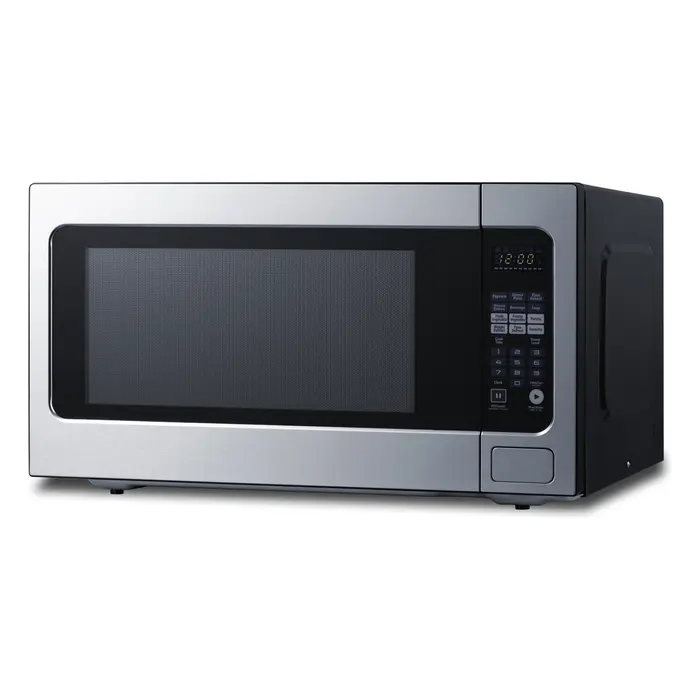

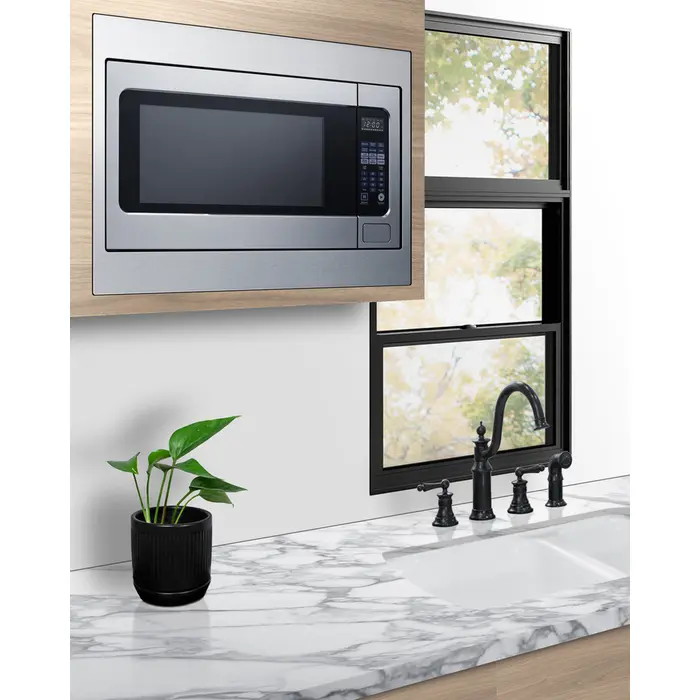

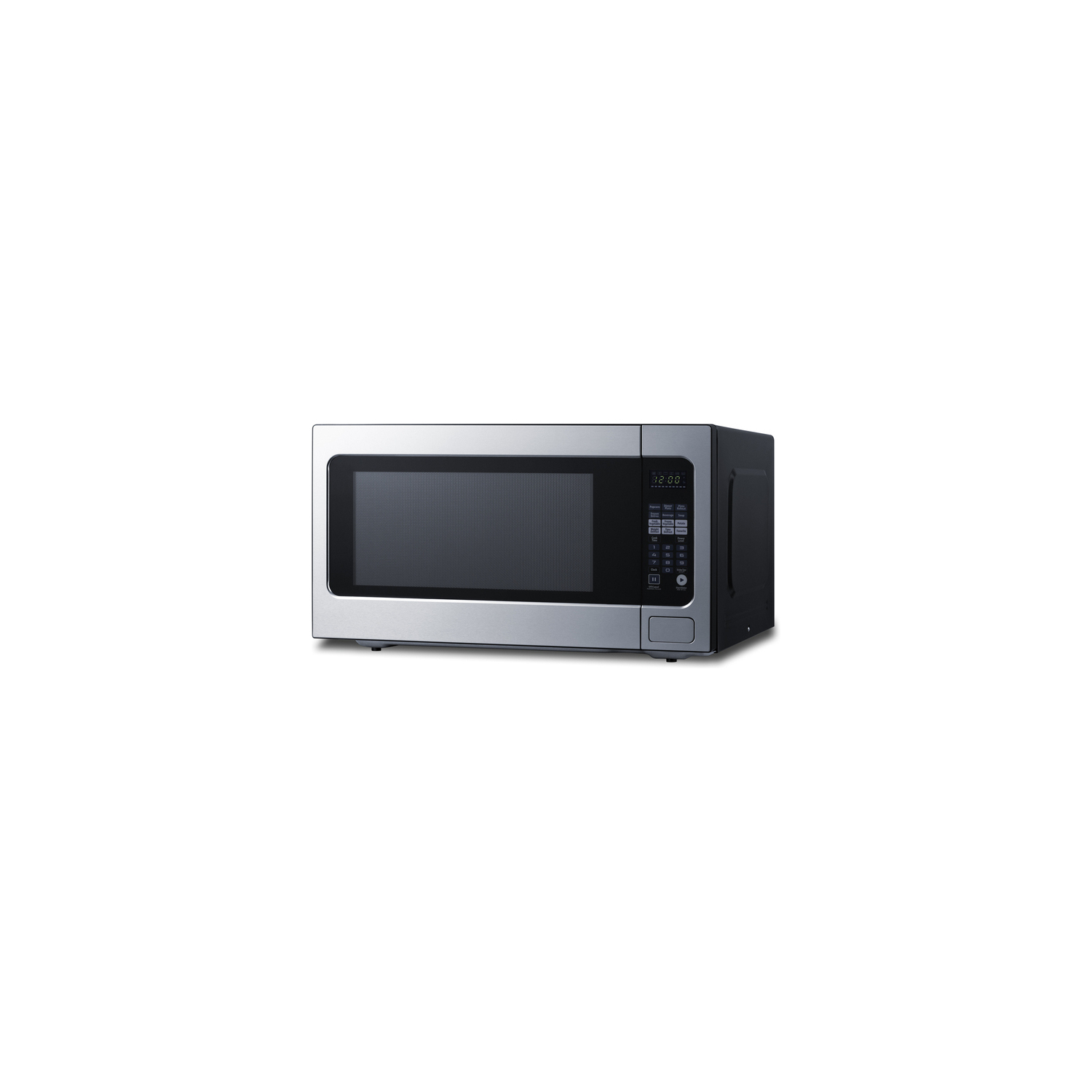

Model SMBI27TK27 is a 1200W microwave designed for built-in installation. It ships with a complete trim kit (accessory TKS27) that includes a 26 7/8" wide stainless steel frame, bottom duct, rails, and the screws needed for setup. It can be installed above or below the counter and over a wall oven for added kitchen convenience. The dimensions of the actual microwave are 13.5" H x 24.38" W x 19.63" D. The cutout dimensions of the cabinet should be 17 to 17.125" H x 25.5" W x 22.75" D. For more information, download the installation instructions below.
Inside, this microwave offers a full 2.2 cu.ft of cooking space in a clean white interior with a large glass turntable, which can be removed for easier cleanup. Our SMBI27TK27 features digital controls that offer a variety of cooking functions, including popcorn, reheating, defrosting, melting, and softening butter. Additional settings let you auto-defrost, cook by weight, or add 30 seconds for fast reheating. Multi-stage cooking enables you to combine different functions.
With an attractive, low profile design and complete cooking convenience, the SMBI27TK27 is the ideal built-in microwave oven for kitchens with large capacity needs. For this unit with a 30" trim kit, see model SMBI27TK30. Additional sizes, as well as drawer and over-the-range microwaves, are also available. Browse the Summit line to explore our complete collection.Nominal Height: 19
Height of Cabinet: 18.88
Height to Hinge Cap: 0
Nominal Width: 27
Width: 26.88
Width with Door Open: 0
Nominal Depth: 20
Depth: 19.63
Depth with Handle: 0
Depth with door at 90°: 39.88
Capacity: 2.2
Bottles: 0Defrost Type: N/ADoor: Stainless SteelCabinet: BlackUS Electrical Safety: ULCanadian Electrical Safety: ULCSanitation: N/AVoltage/Frequency: 115 V AC/60 HzParts & Labor Warranty: 1 YearCompressor Warranty: N/A
SPECIFICATIONS
Overview

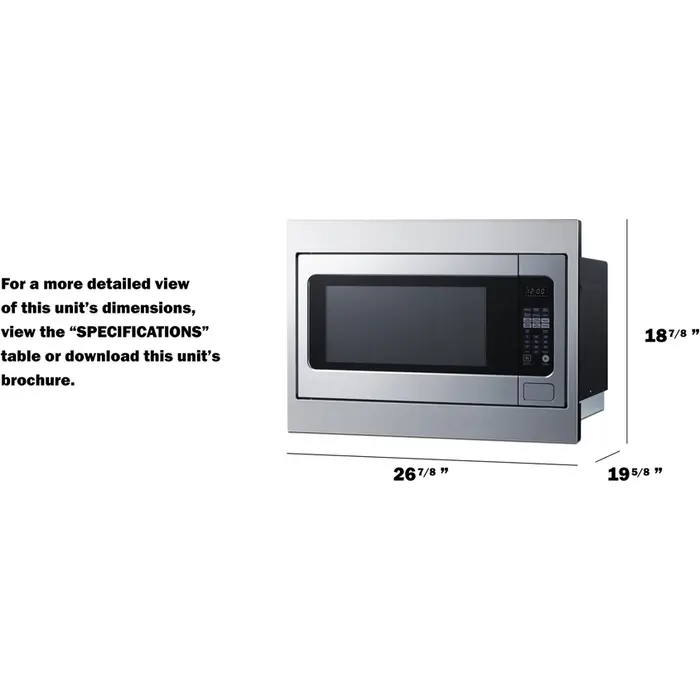

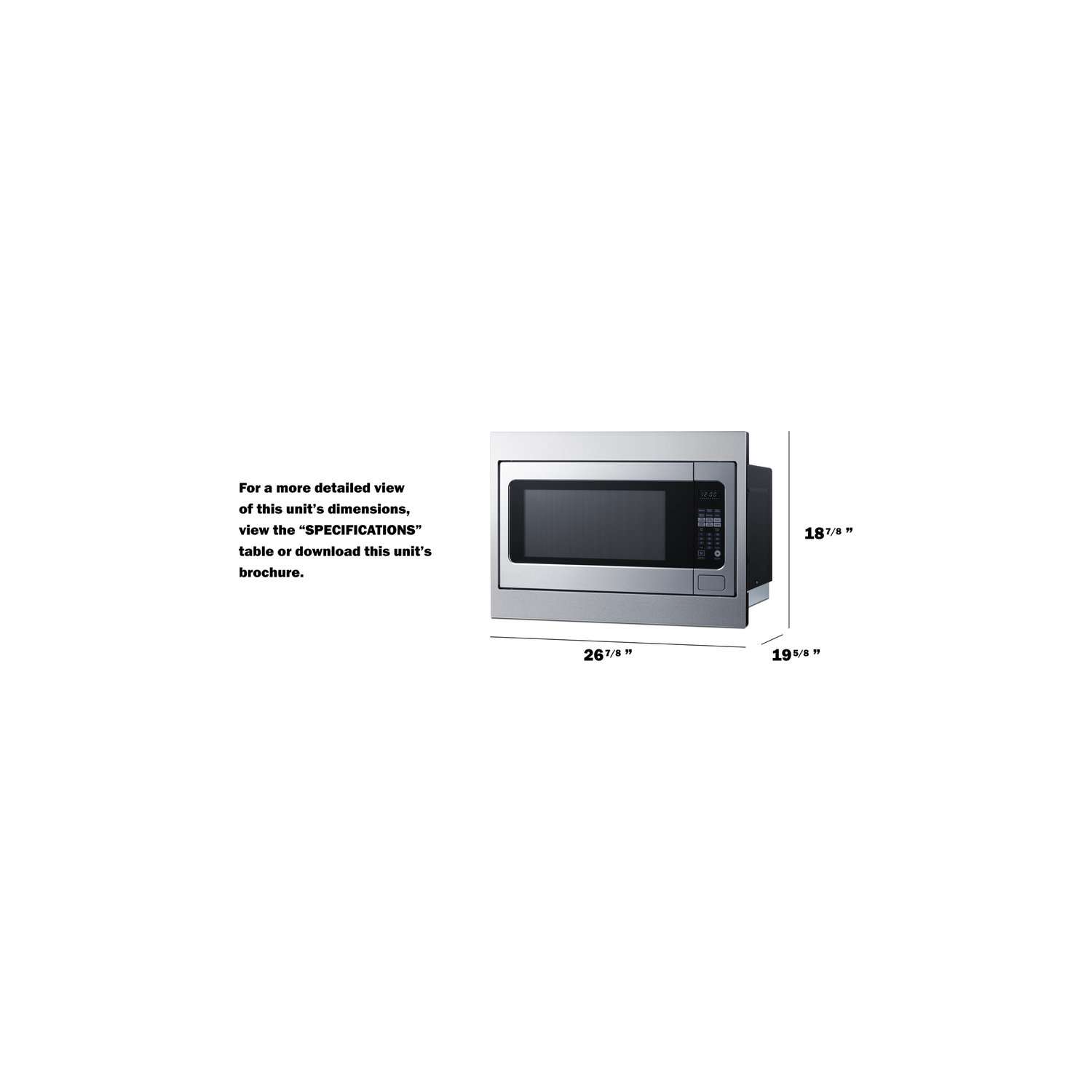

Nominal Height 19.0" (48 cm)
Height of Cabinet 18.88" (48 cm)
Nominal Width 27.0" (69 cm)
Width 26.88" (68 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.63" (50 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 2.2
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
UPC 761101146676
Microwave
Type Built-In
Wattage 1200.0
Controls Digital
Digital Display Yes
Turntable Yes
Turntable Diameter 16.5" (42 cm)
Specialized Cooking Buttons Yes
Cutout Height 17.13" (44 cm)
Cutout Width 25.5" (65 cm)
Cutout Depth 22.75" (58 cm)
Interior Height 10.0" (25 cm)
Interior Width 16.88" (43 cm)
Interior Depth 17.0" (43 cm)
FEATURES

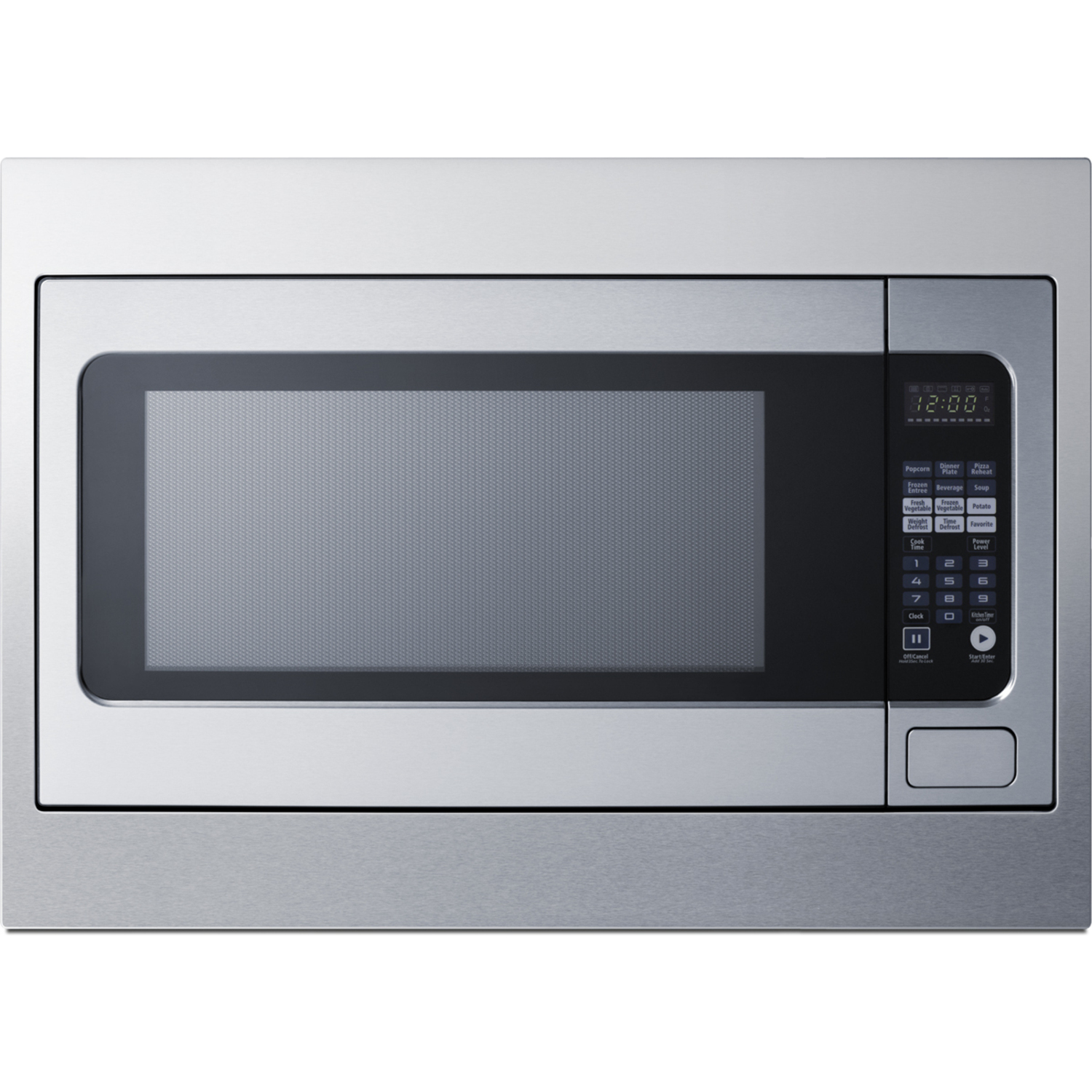

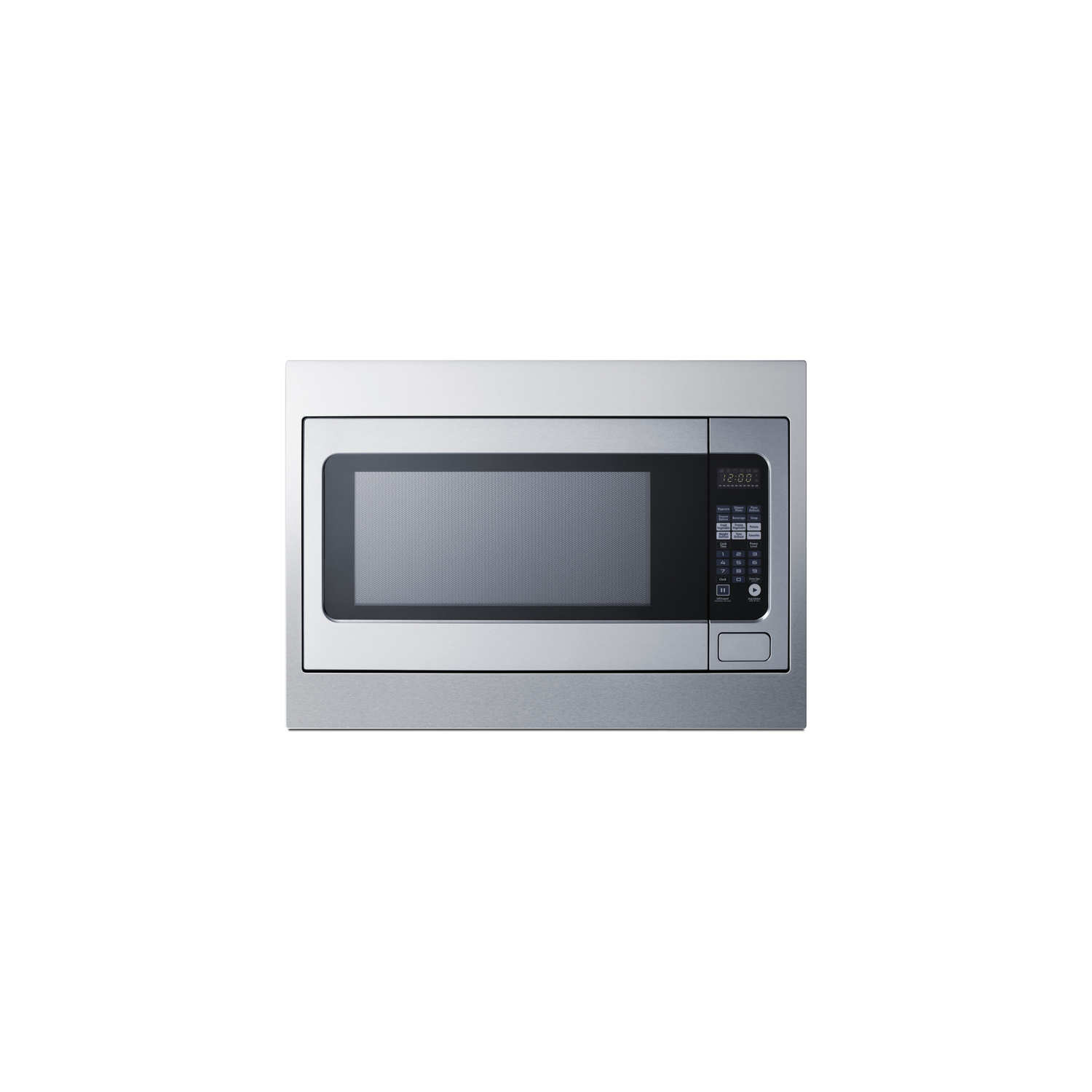

Built-In Microwave Oven Built-in microwave oven that ships with a trim kit designed to allow installation in 27" wide cabinet openings
Fits 27" wide spaces Designed for 17 1/8" H x 25 1/2" W x 22 3/4" D cutouts, with a trim kit that covers spaces up to 26 7/8" W; Note: actual microwave is sized at 13 1/2" H x 24 3/8" W x 19 5/8" D

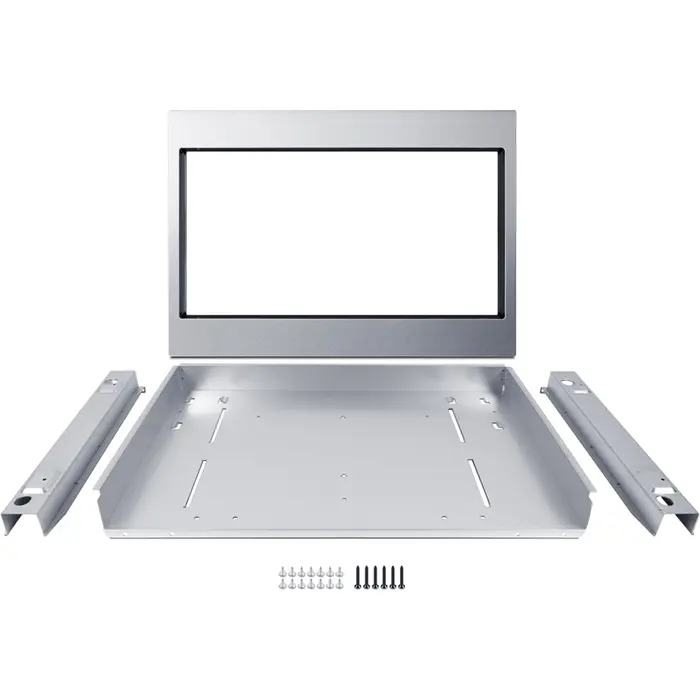

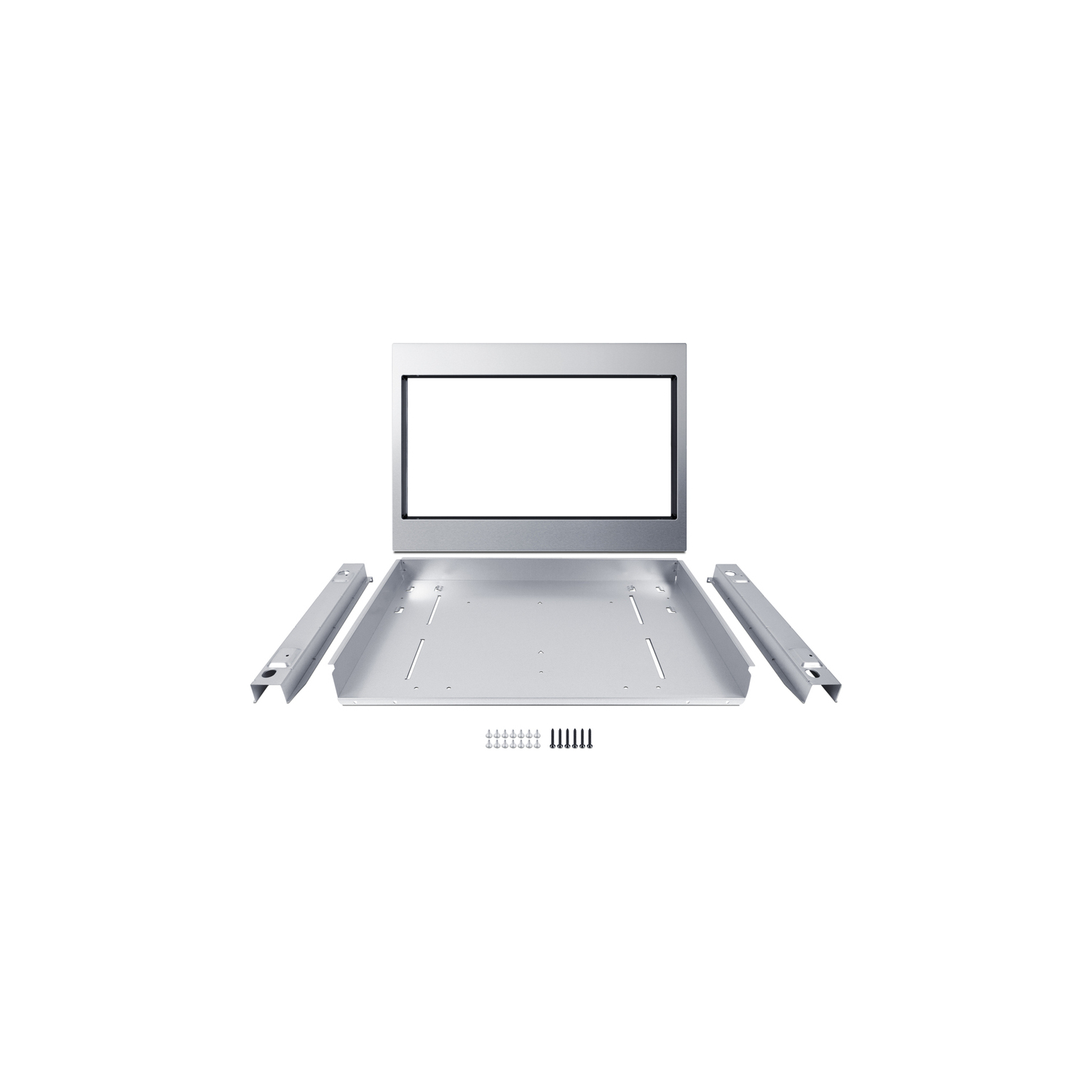

Built-in trim kit included Ships with our TKSM27 accessory, complete with bottom duct (microwave base), rails, trim kit frame, and all the necessary screws for installation
Large capacity Full 2.2 cu.ft of interior cooking space to fit large dishes
1200W operation Powerful performance ideal for larger meals
Stainless steel frame Included with the microwave to help fit the overall unit into standard 27" wide spaces, with a horizontal grain to match other fixtures
Stainless steel front Brushed stainless steel trim in a horizontal grain to match many existing designs
Door window Large window design makes it easy to view your cooking without opening the door
Large glass turntable Interior includes sizable glass disc that rotates to ensure even heating
Digital control panel Front located controls with easy-to-identify settings for a variety of cooking activities
Multistage Cooking Program up to 2 cooking sequences to achieve the proper heating results
Specialty 1-touch cooking options Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating
+30 Seconds Function One-touch setting lets you add 30 seconds of full power heating
Defrost funtions Defrost by weight or time for decreased cook time
Sensor cook function Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked
Memory function Microwave can conveniently save up to 3 cooking procedures
Child lock Activate this setting to disable the control panel
Timer Allows you to set a cooking timer as needed
Clock Unit conveniently displays time
End of cycle buzzer An audible signal lets you know when the time is up
FCC Approved This unit complies with part 18 of the FCC rules
DOWNLOADS
BROCHURE w/ DRAWINGS (SMBI27TK27.pdf)
TECHNICAL DRAWING (.dwg) (SMBI27TK27.dwg)
ASSEMBLY DRAWING (SMBI27TK27-Assembly.pdf)
