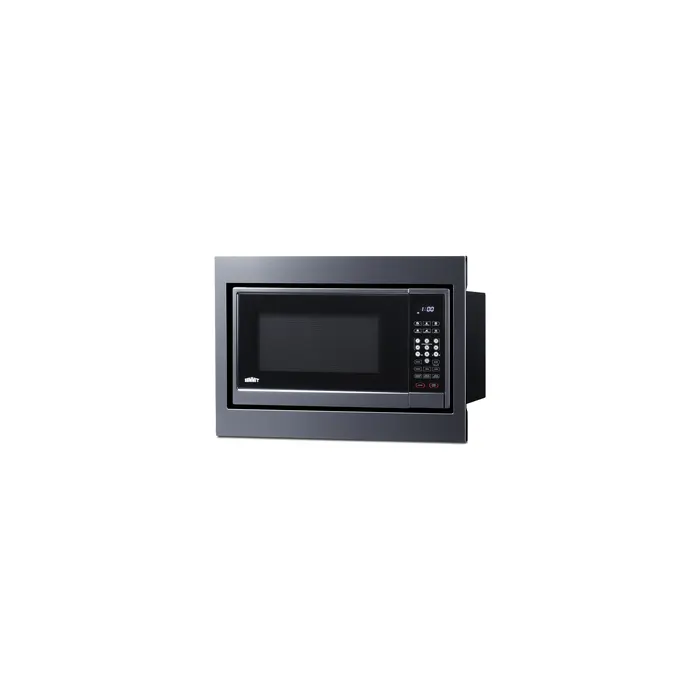

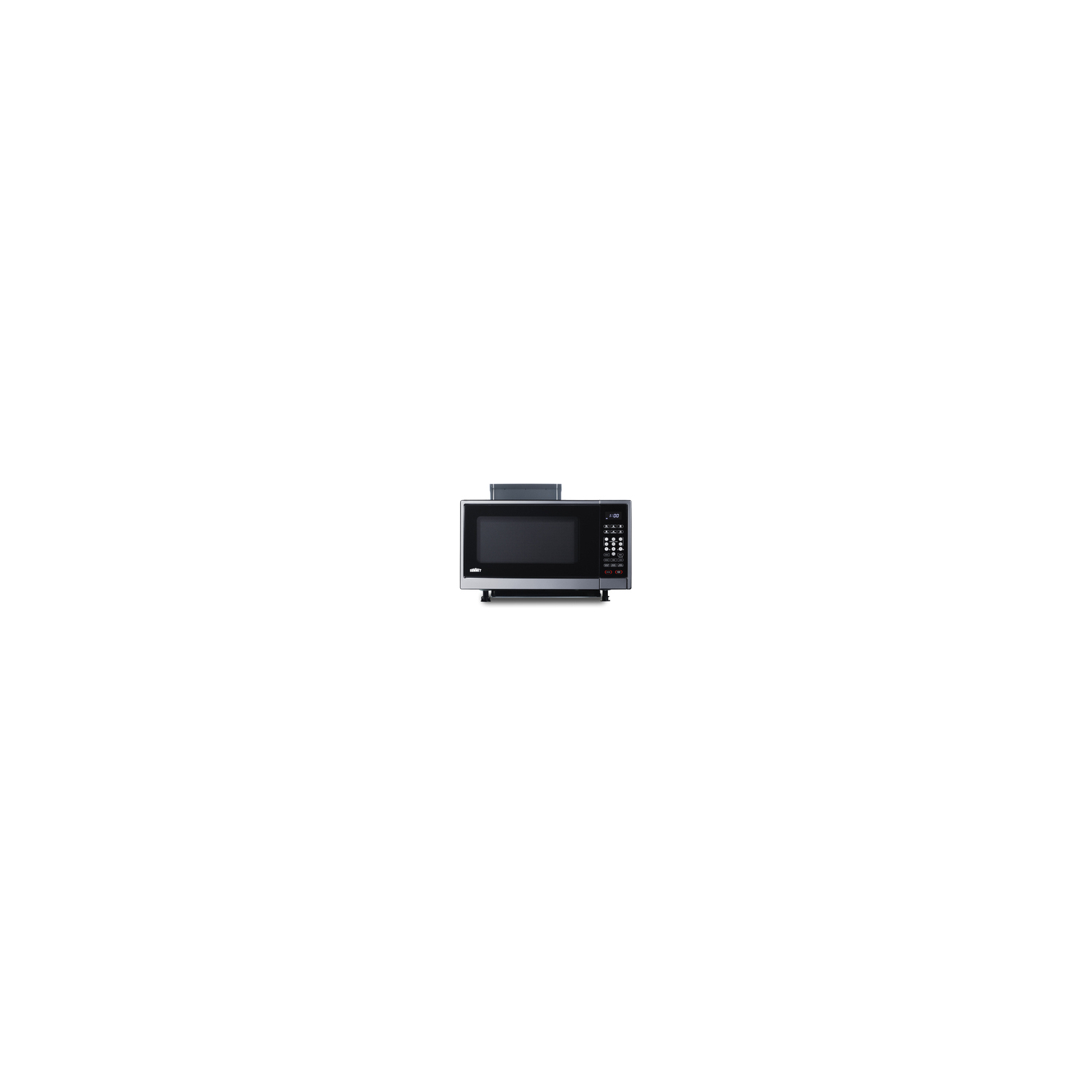

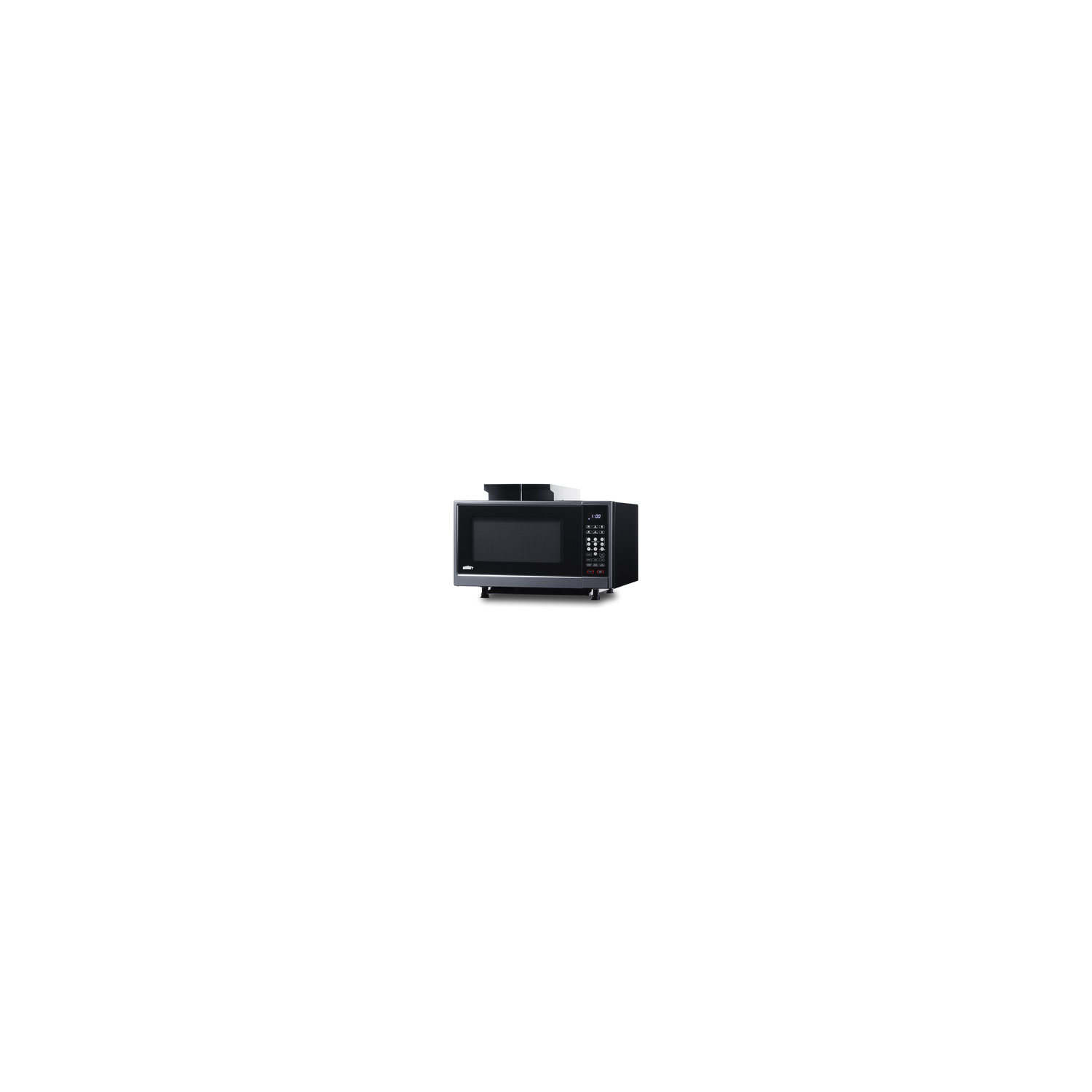

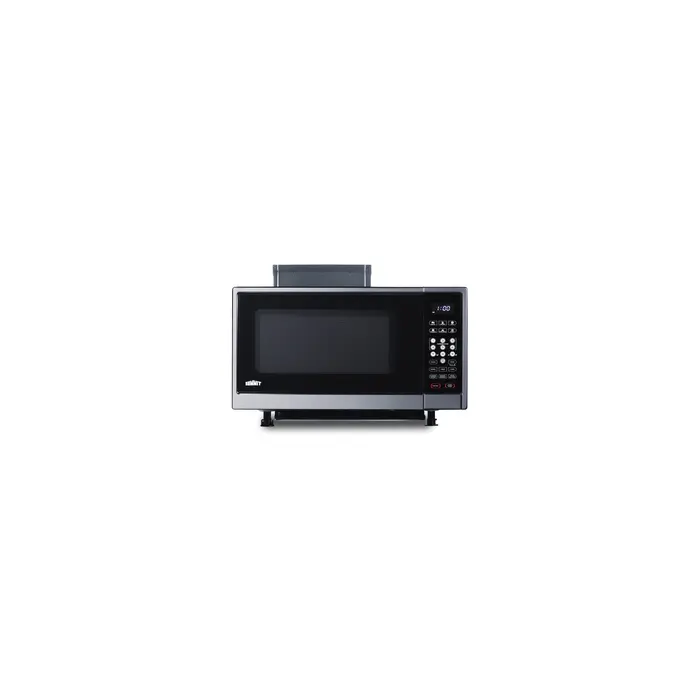

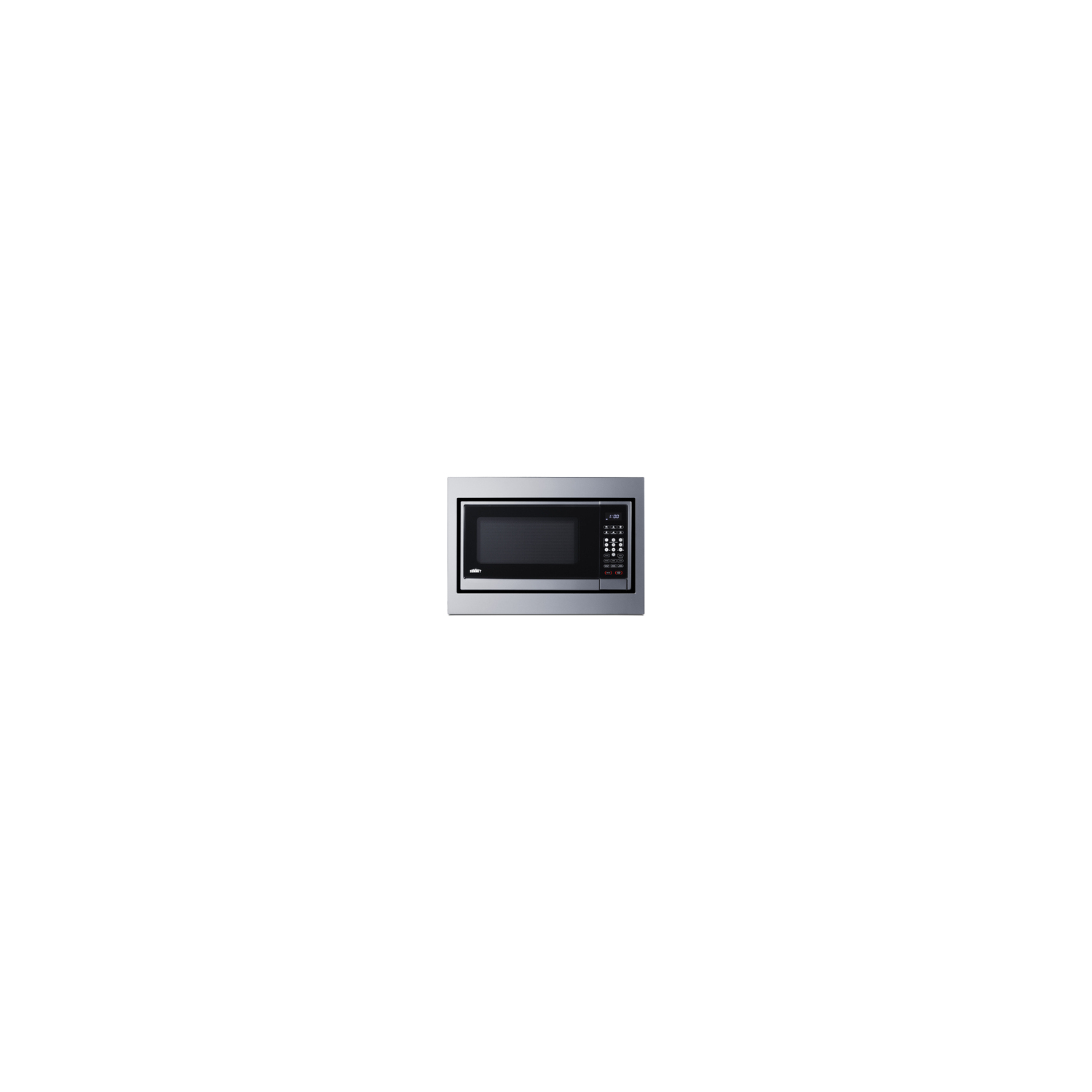

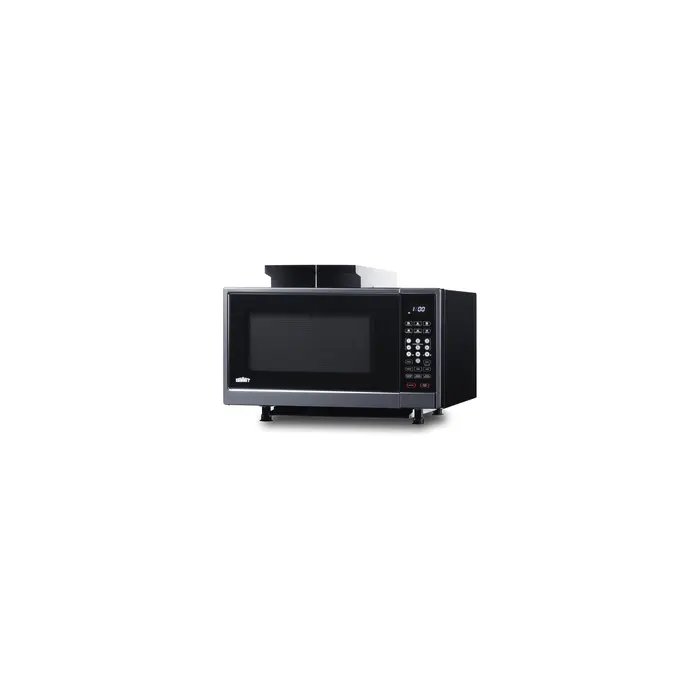

Summit Built-in microwave with complete trim kit for 24 inch wide openings, SMBI24
$426.40
Retail Price: $585.00
Free shipping
$ 426.40
UPC: 761101000000
MPN: SMBI24
Application: Residential
Description
Summit Built-in microwave with complete trim kit for 24" wide openings, 7.61101e+011, SMBI24
MPN:SMBI24
Category:
UPC:761101000000
Brand:Summit
Color/Finish:
SPECIFICATIONS
Overview

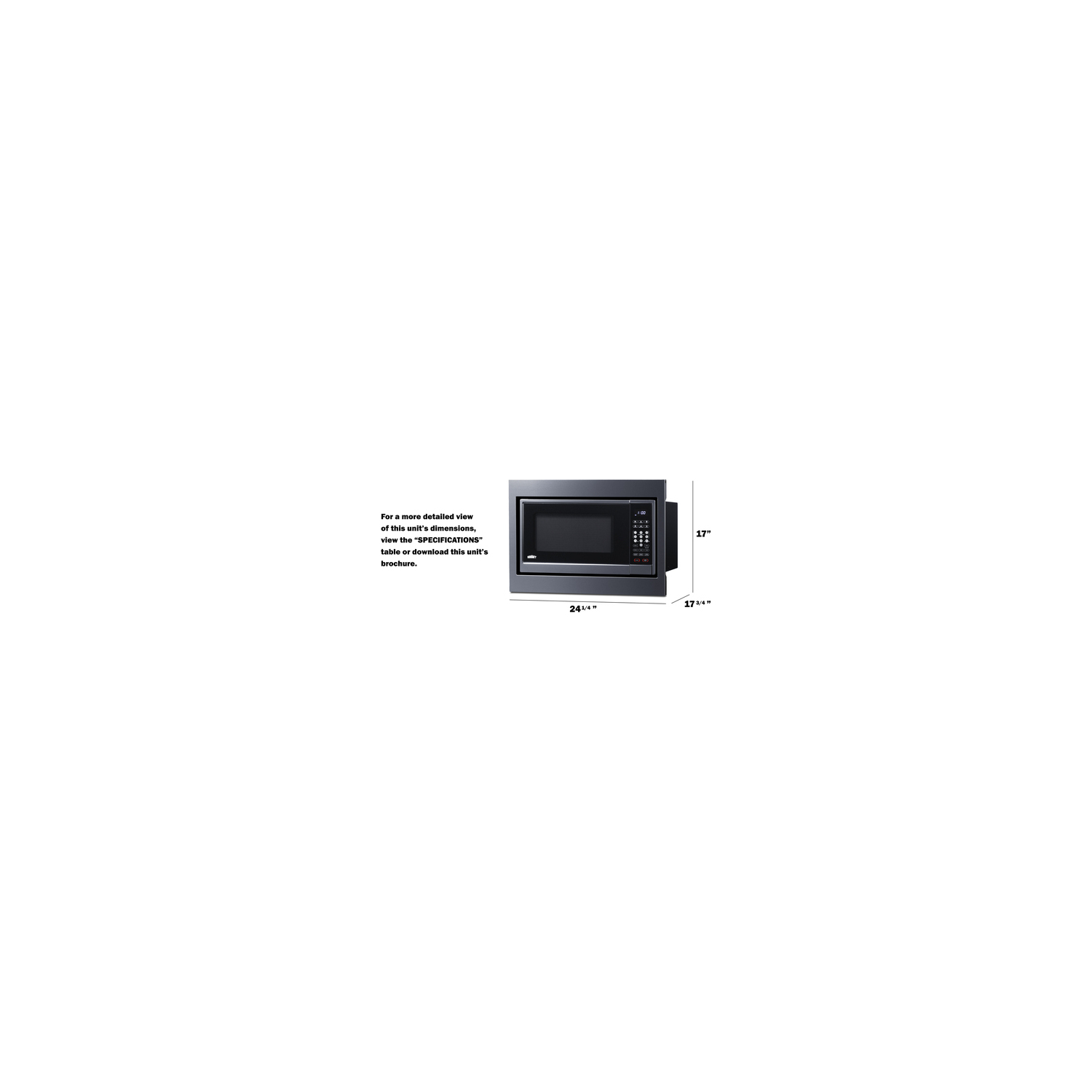

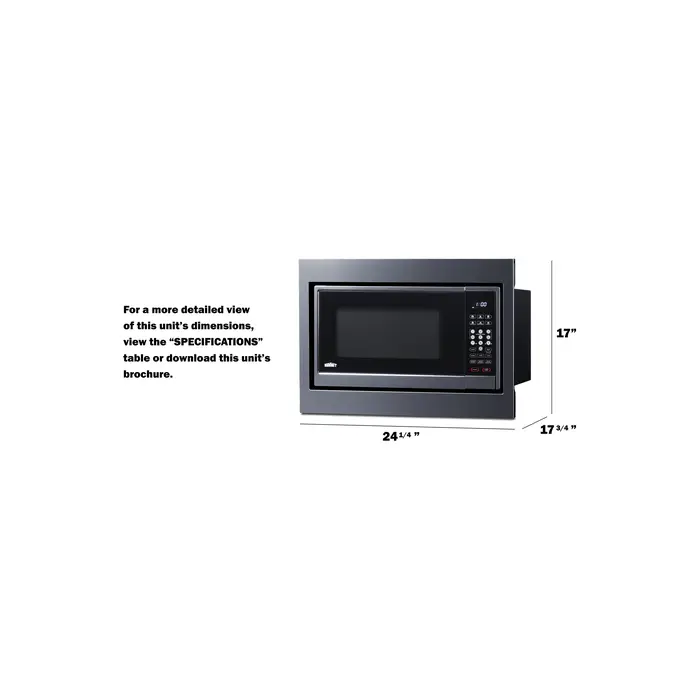

Height of Cabinet 17.0" (43 cm)
Width 24.25" (62 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 33.88" (86 cm)
Capacity 1.2
Door Black/SS
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Weight 75.0 lbs. (34 kg)
Parts & Labor Warranty 1 Year
UPC 761101154671
Microwave
Type Built-In
Wattage 1000.0
Controls Digital
Digital Display Yes
Turntable Yes
Turntable Diameter 12.75" (32 cm)
Specialized Cooking Buttons Yes
Cutout Height 15.75" (40 cm)
Cutout Width 22.5" (57 cm)
Cutout Depth 18.25" (46 cm)
Interior Height 8.38" (21 cm)
Interior Width 13.88" (35 cm)
Interior Depth 15.75" (40 cm)
FEATURES

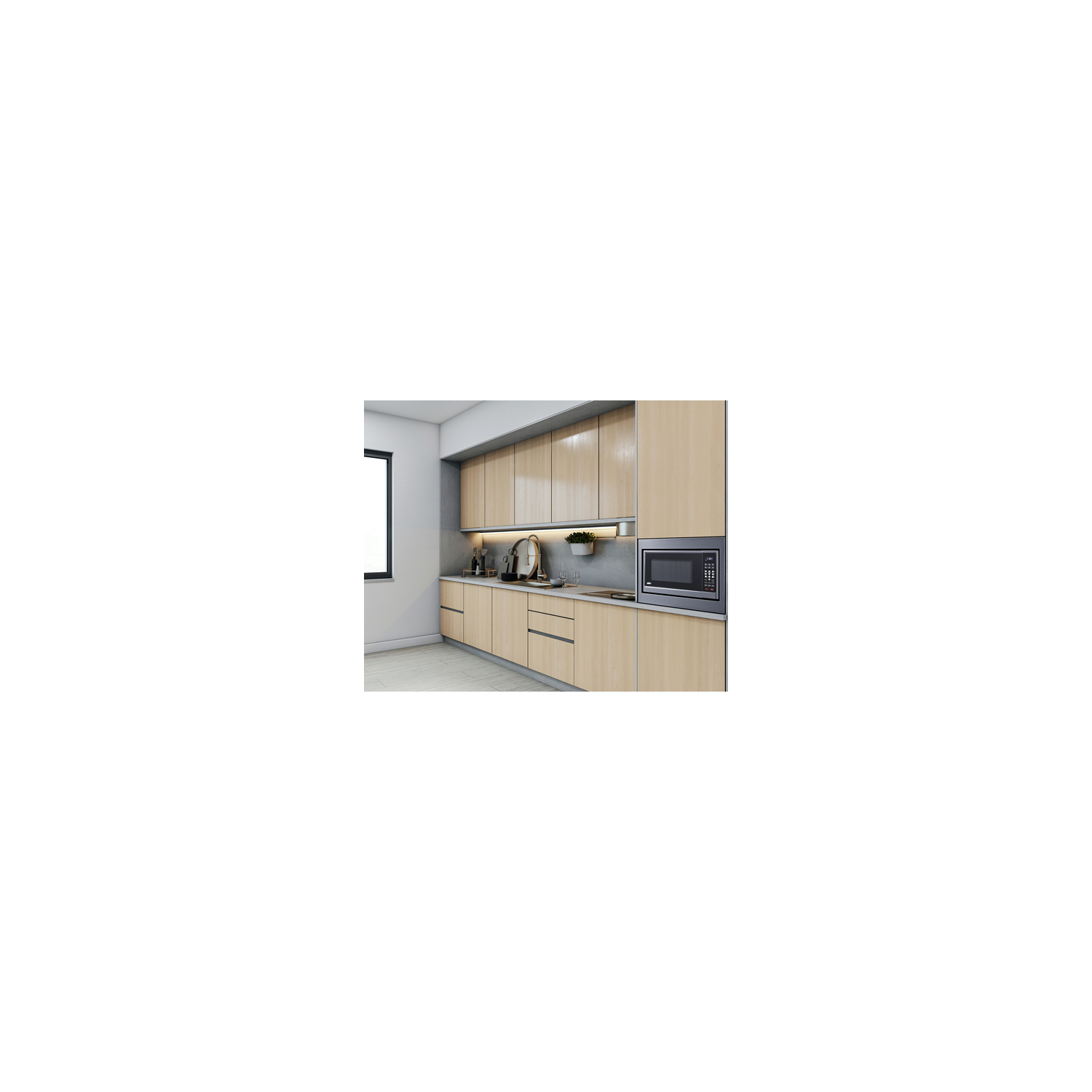

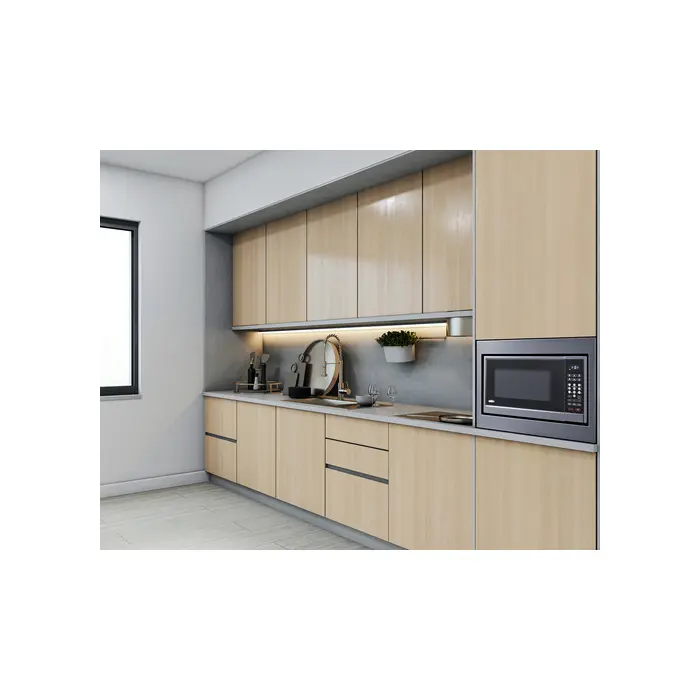

24" Wide Microwave Built-in microwave oven that ships with a trim kit designed to allow installation in 24" wide cabinet openings
Built-in installation Designed to fit 15 3/4" H x 22 1/2" W x 18 1/4" D cutouts

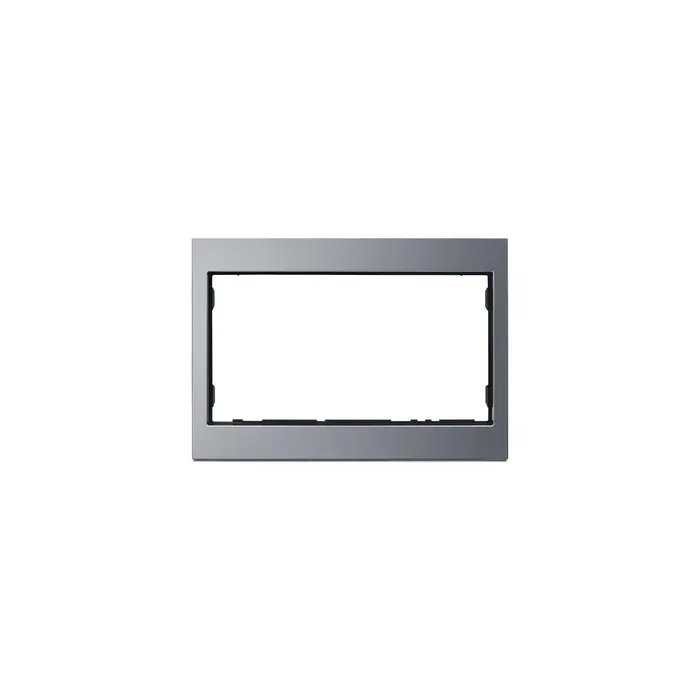

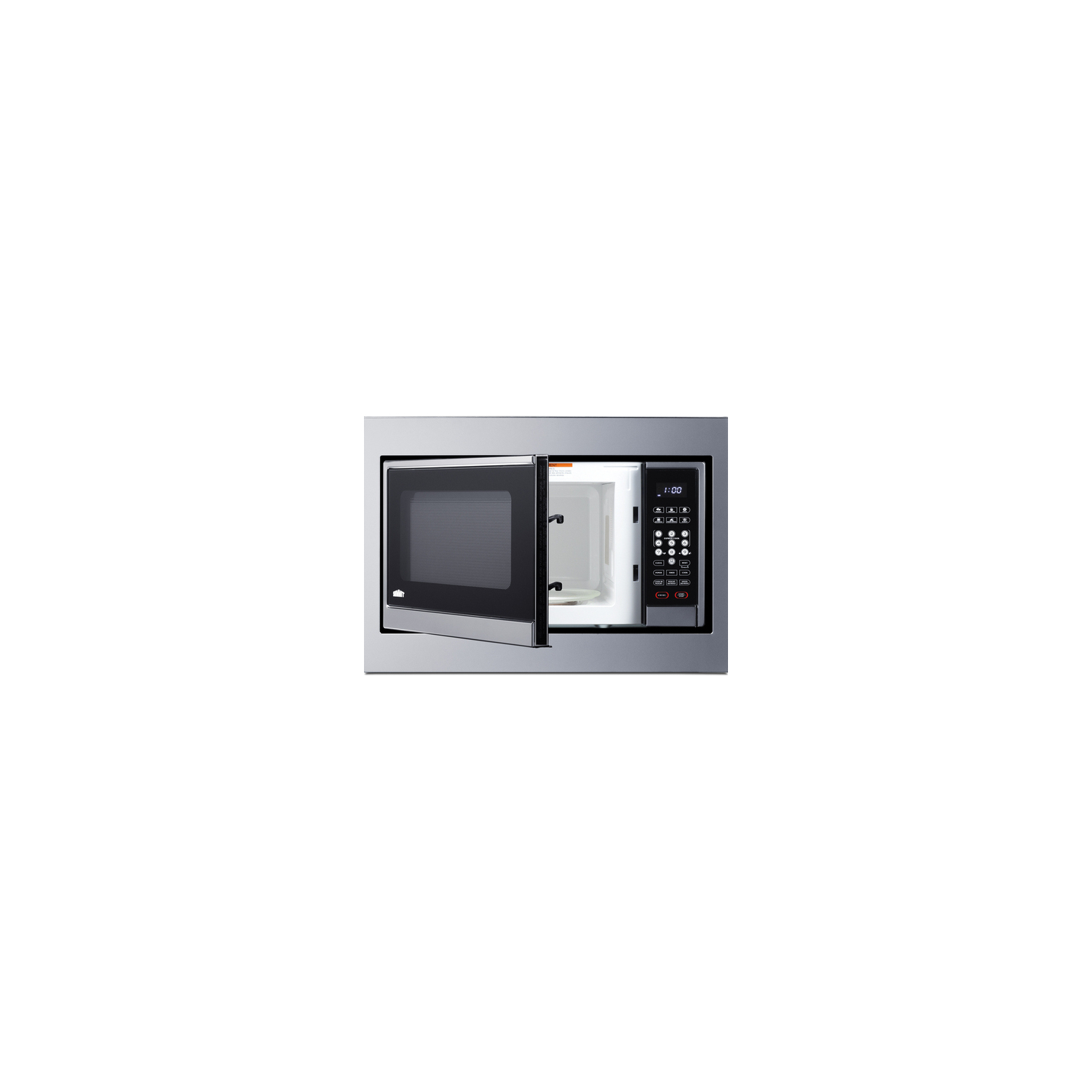

Trim kit included Ships with a trim kit, complete with the polished steel frame, spacers, and all the necessary screws for installation
1000W operation Powerful performance ideal for larger meals
Mirror finish polished steel trim Door and exterior trim come in a polished steel finish to add modern style to the kitchen

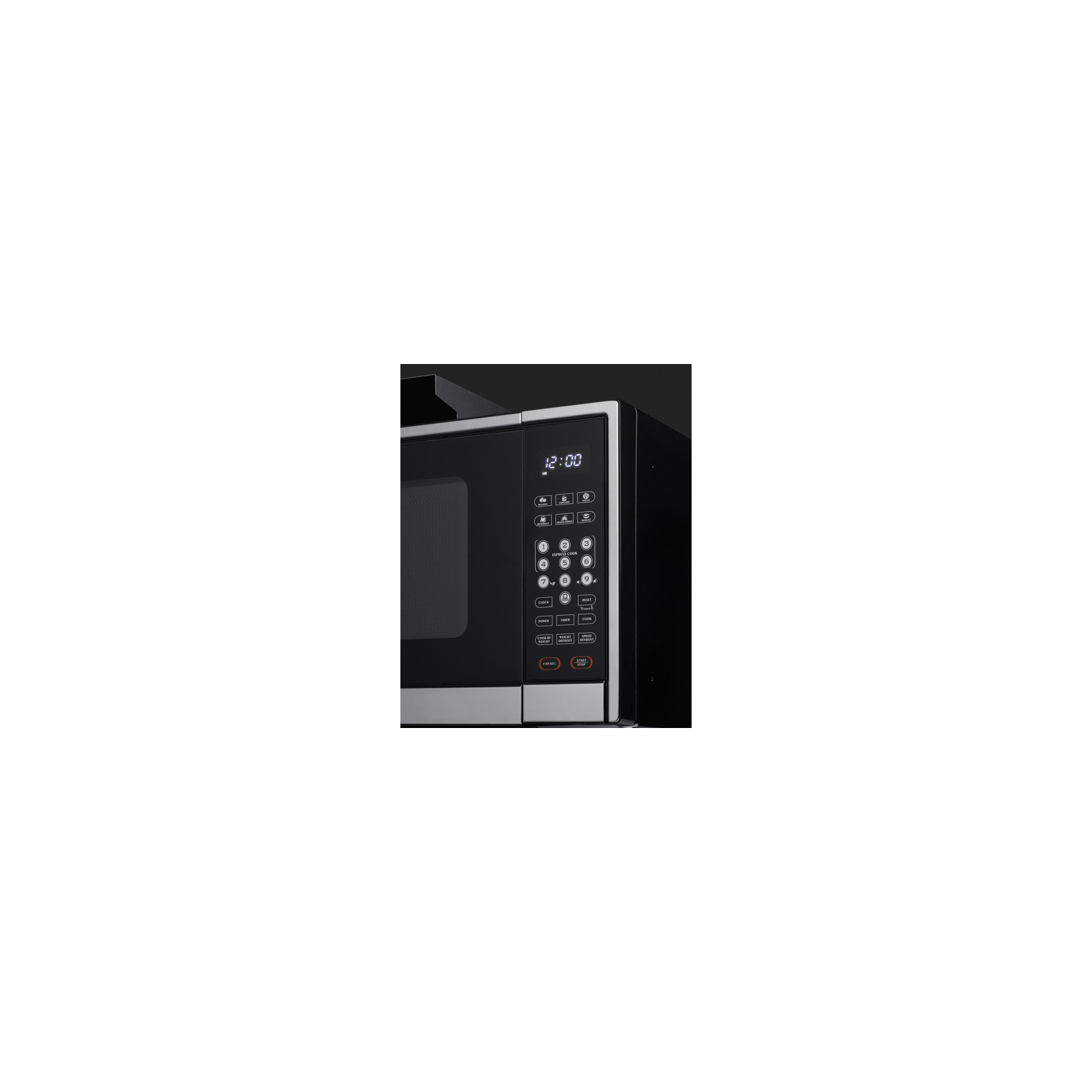

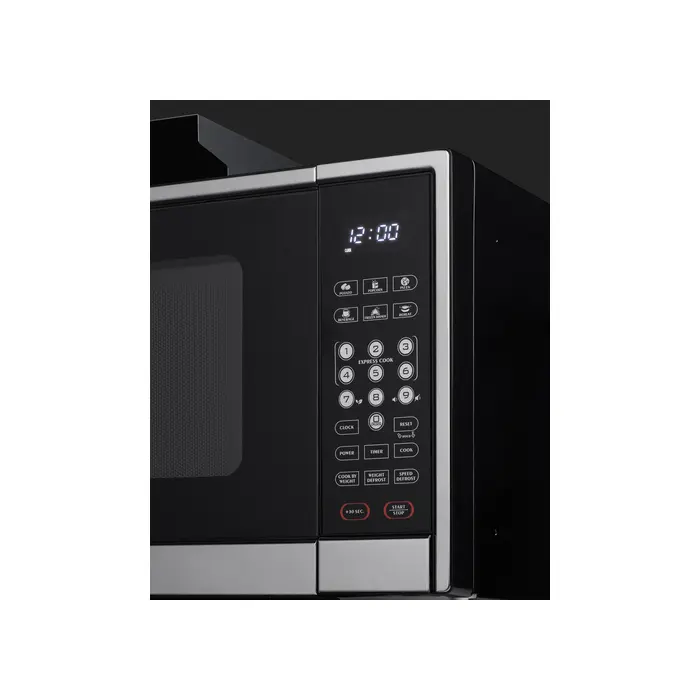

Digital controls Front located controls with easy-to-identify settings for a variety of cooking activities

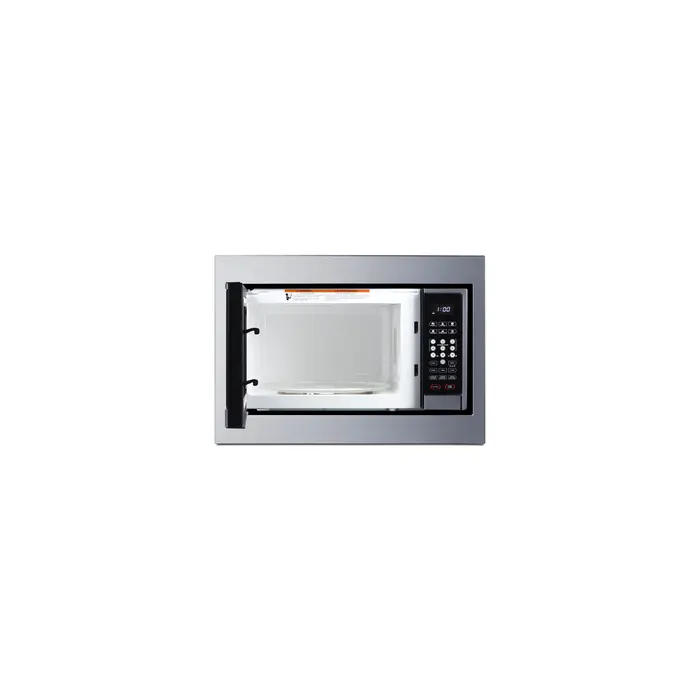

Glass turntable Interior includes sizable glass disc that rotates to ensure even heating, that can be removed for easier cleanability

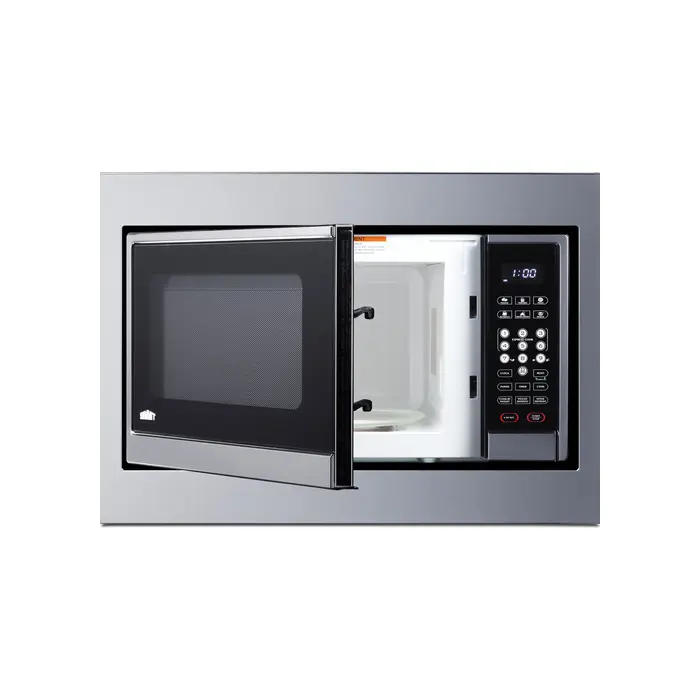

Door window Large window design makes it easy to view your cooking without opening the door
Specialty 1-touch cooking options Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating
+30 Seconds Function One-touch setting lets you add 30 seconds of full power heating
Multistage Cooking Program up to 3 cooking sequences to achieve the proper heating results
Defrost functions Defrost by weight or time for decreased cook time
End of cycle buzzer An audible signal lets you know when the time is up
Clock Unit conveniently displays time
Timer Allows you to set a cooking timer as needed
Child lock Activate this setting to disable the control panel
DOWNLOADS
TECHNICAL DRAWING (.dwg) (SMBI24.dwg)
ASSEMBLY DRAWING (SMBI24-Assembly.pdf)
