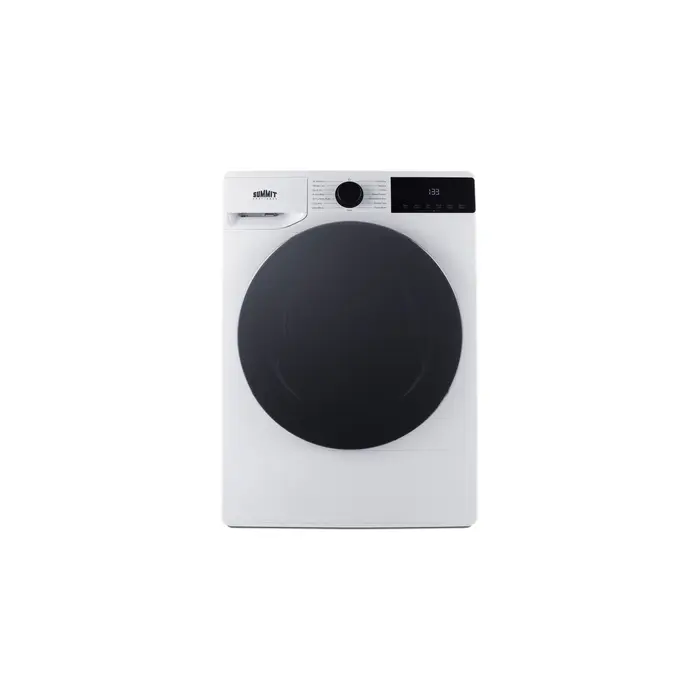

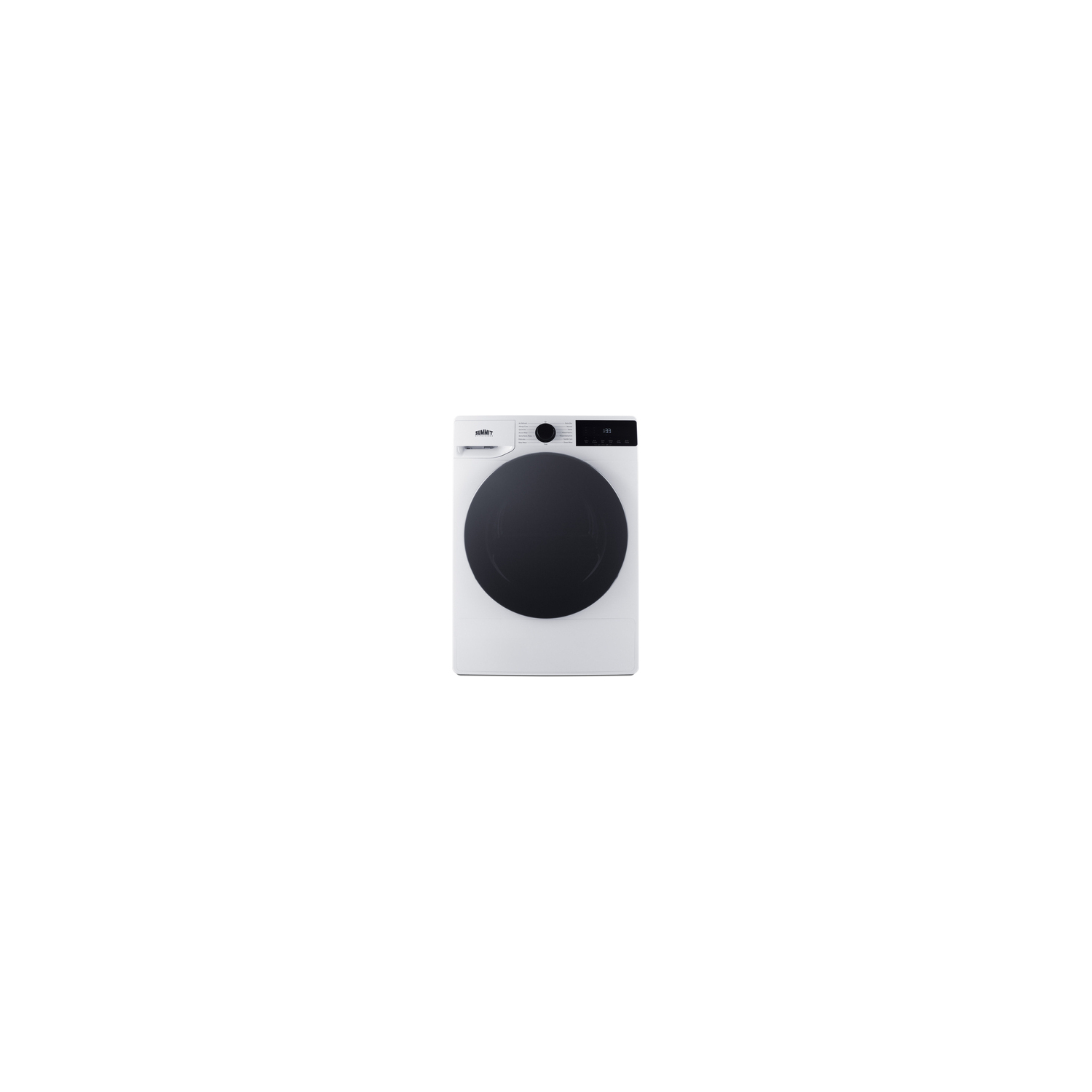

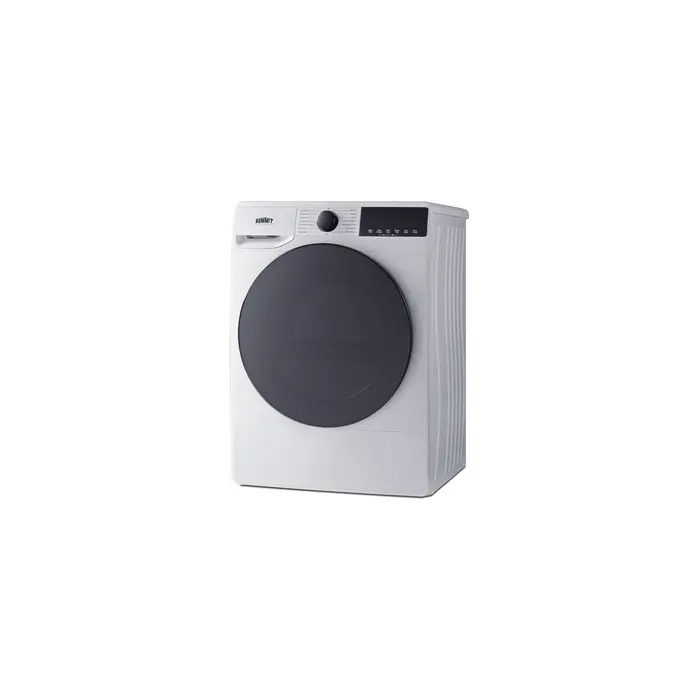

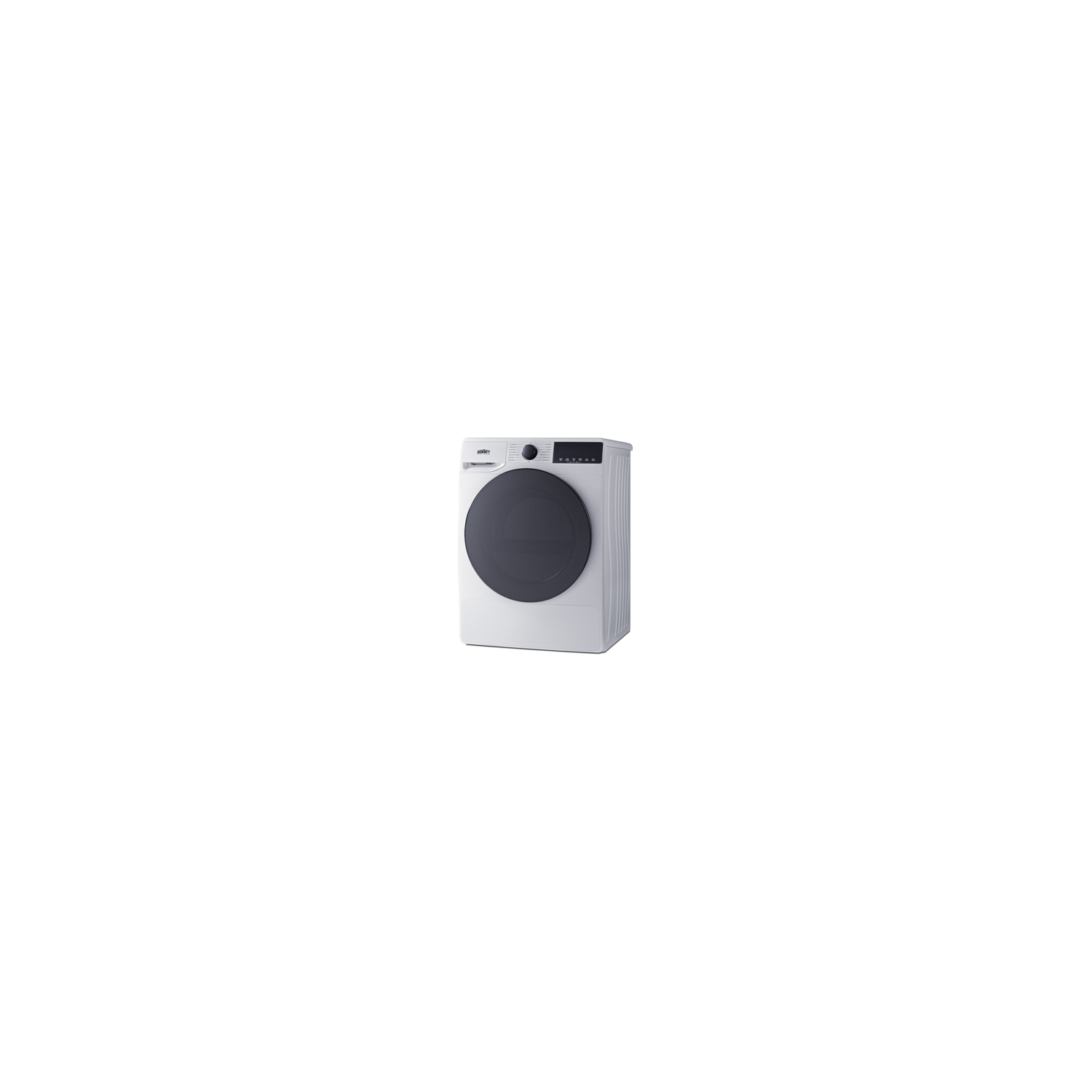

Summit 24 inch wide 208-240V European front-loading vented dryer, SLDV342

Summit 24" wide 208-240V European front-loading vented dryer, 7.61101e+011, SLDV342
MPN:SLDV342
Category:
UPC:761101000000
Brand:Summit
Color/Finish:

SPECIFICATIONS

Overview

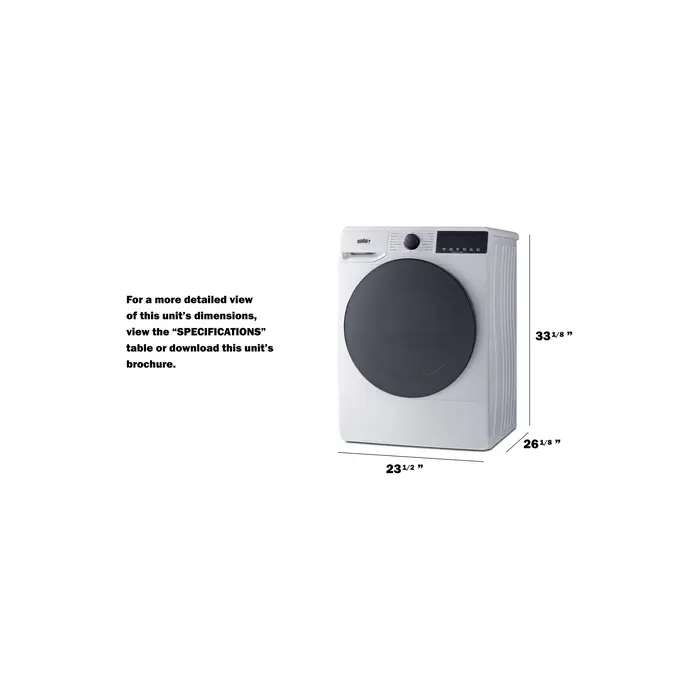

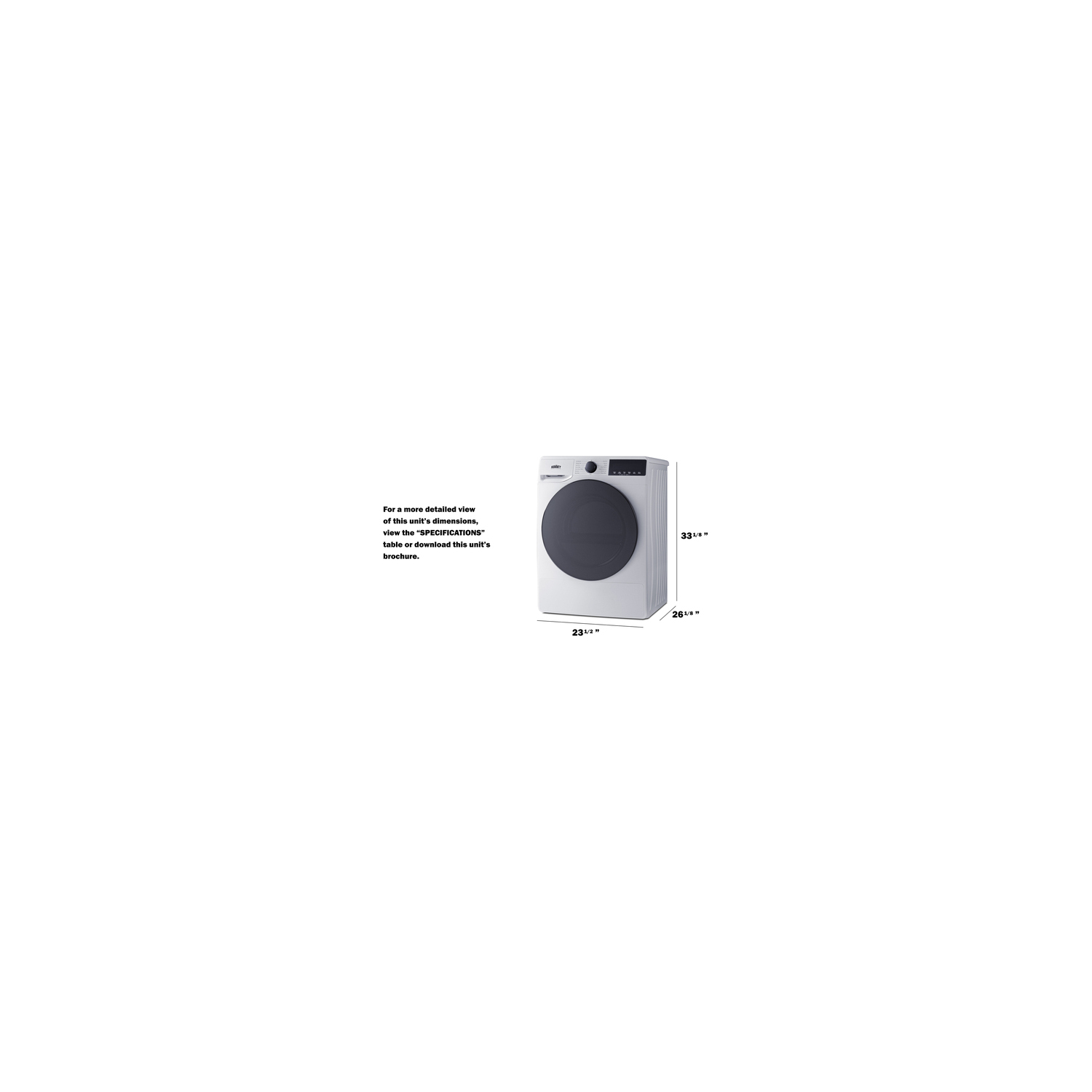

Height of Cabinet 33.13" (84 cm)

Width 23.5" (60 cm)

Depth 26.13" (66 cm)

Depth with door at 90° 46.5" (118 cm)

Capacity 4.1 cu.ft. (116 L)

Door White/Black

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 256.0kWh/year

Amps 30.0

Plug Type NEMA 14-30P

Voltage/Frequency 220 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

UPC 761101152110

Dryer

Vented Yes

Loading Style Front Loading

Door Window Yes

Maximum Dry Weight 15.4 lbs. (7 kg)

Lint Trap Yes

Control Type Digital & Dial

Dry Cycles 14

Delayed Start Yes

Level Legs 4

FEATURES

24" Wide 208-240V Vented Dryer European front-loading dryer with full capacity in a slim 24 inch fit

Made in Europe Fully featured with an advanced design for proper laundry care

208-240V Operation Designed for 30 amp circuits and includes a pre-installed cord with a 4-prong NEMA 14-30P plug

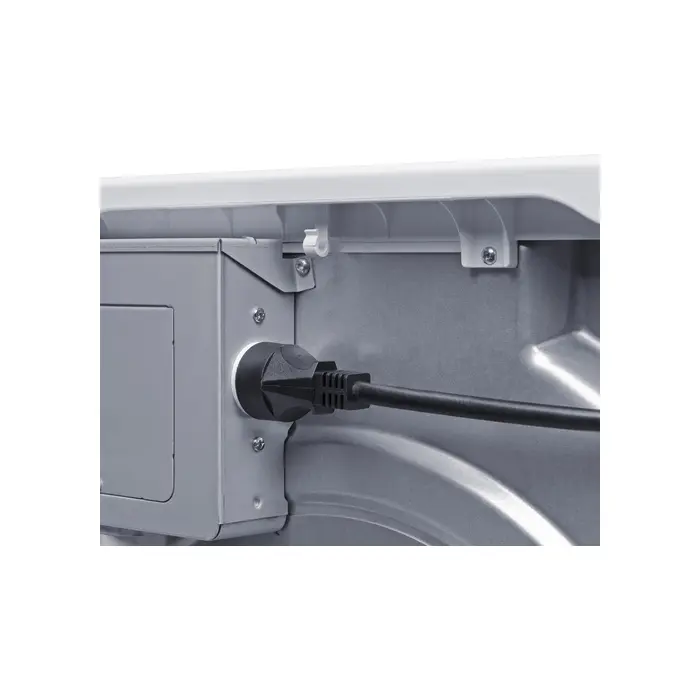

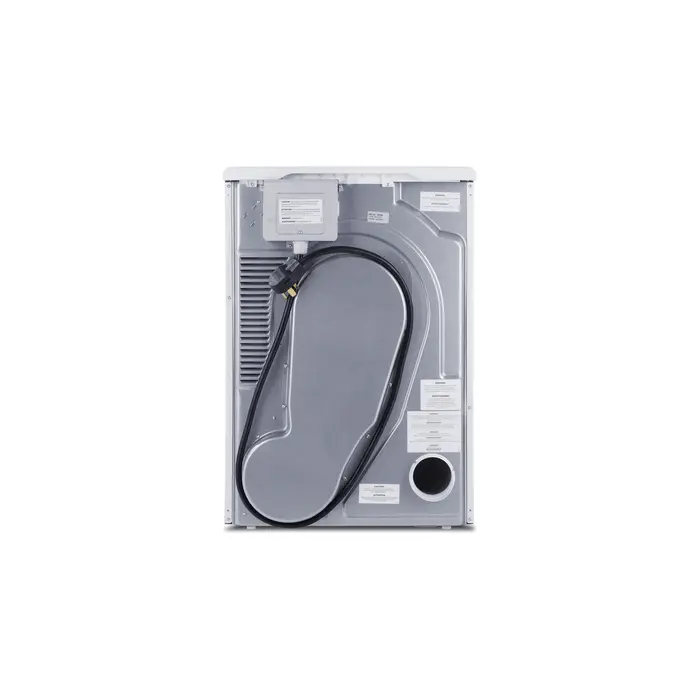

Washer receptacle included Rear of unit includes a receptacle to accept a NEMA 6-15P, allowing you to plug a compatible washer directly into the dryer

Slim profile Just under 24" wide for an easy fit

Front-loading design Easy to load and incredibly efficient

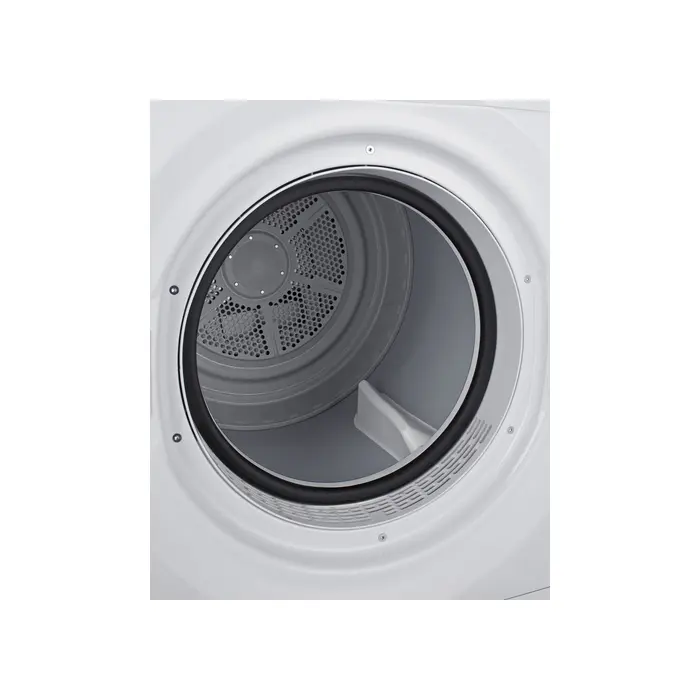

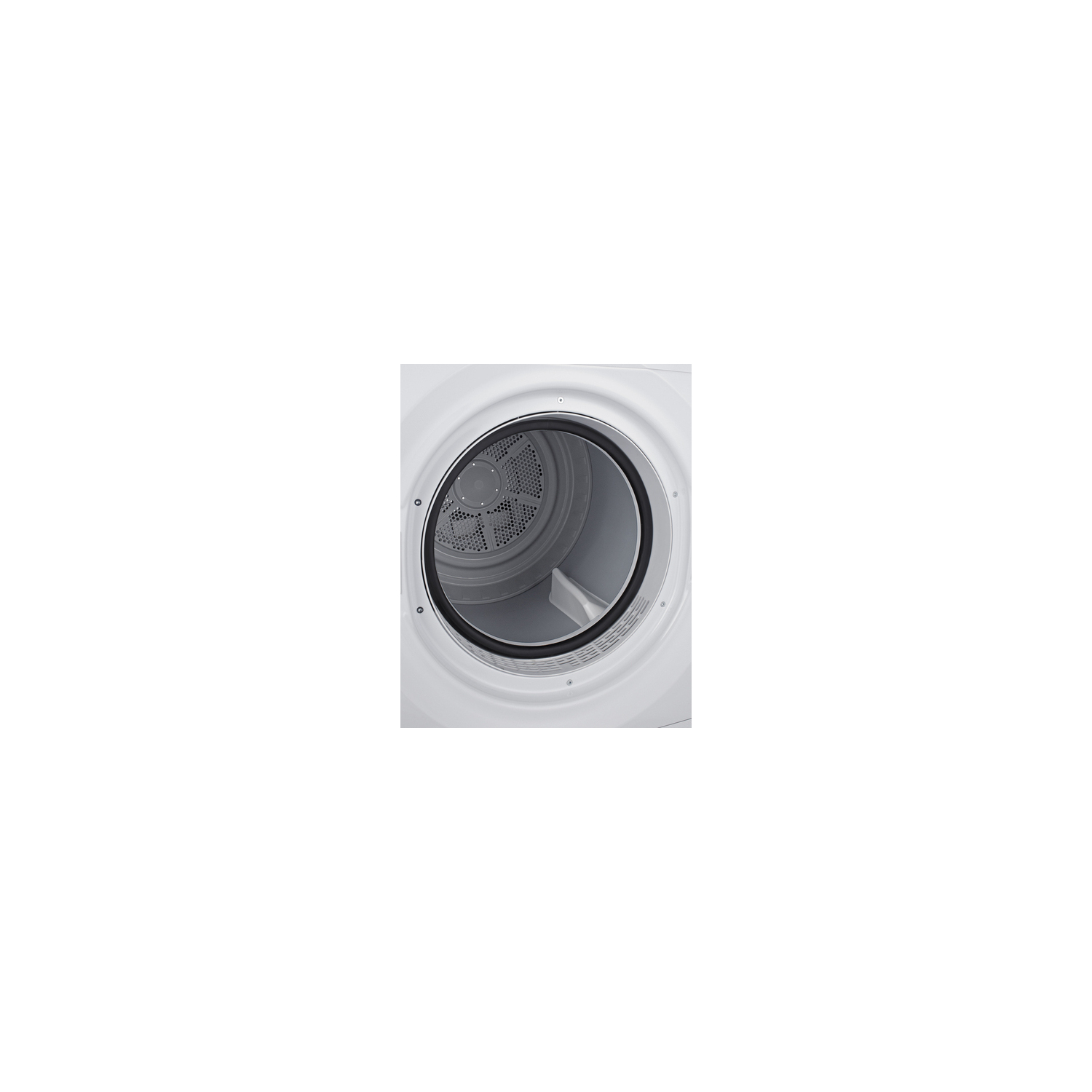

Large interior Spacious drum to dry over 15 lbs. of fabric

14 dry settings Multiple options to meet all of your fabric needs, including specialty settings for quick dry, wool, delicates, activewear, babywear, and more

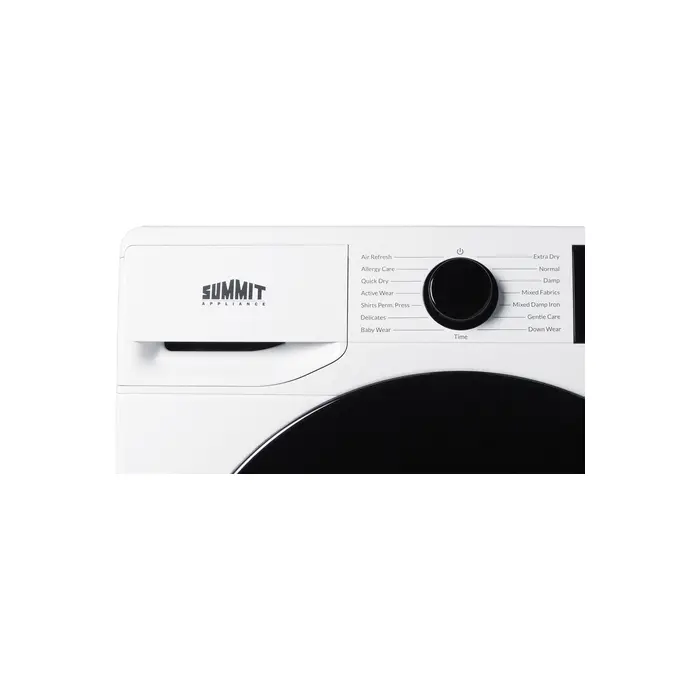

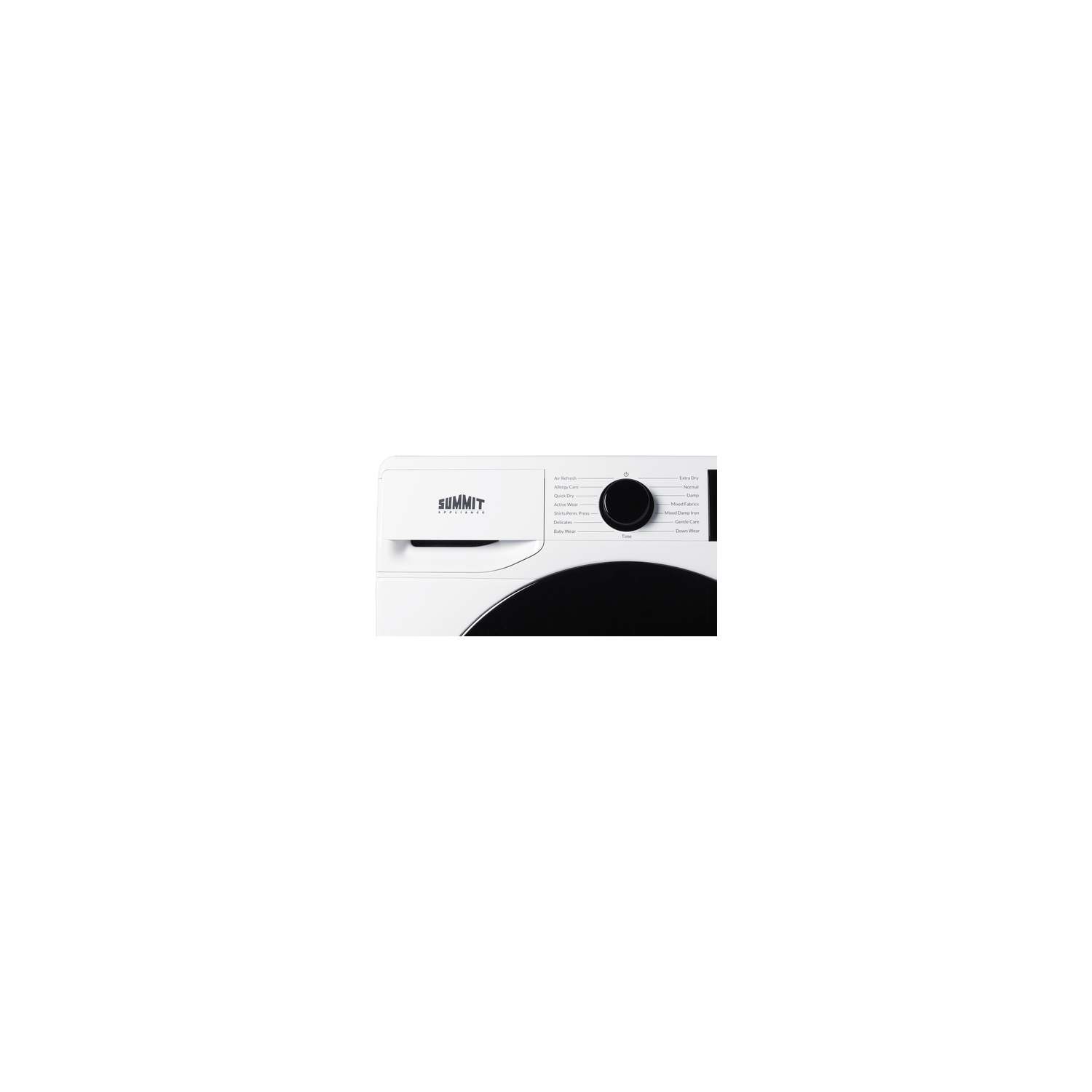

Dial-style cycle selector Attractive control knob allows for easy cycling between programs

Touchscreen display Digital touchscreen controls ensure easy operation of specialty programs

Permanent press Popular dry setting to help reduce wrinkles

Start/pause Lets you pause the dry cycle to add or remove fabric

Delay start Allows you to pre-set your laundry for the ideal finish time

AdaptTech When a program is used three times in a row, it will be stored as the default drying setting

Control lock Child lock allows you to disable the controls to prevent accidental use

Large lint filter Included inside the door to help catch clothing debris

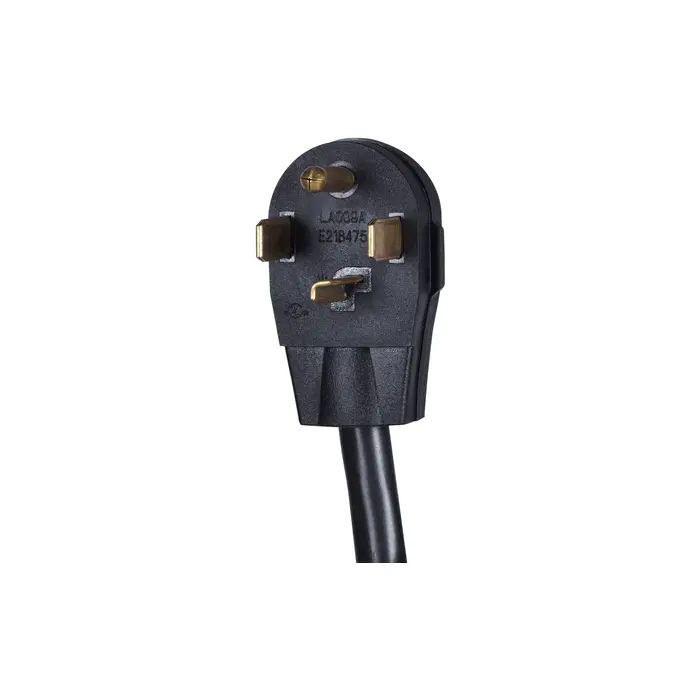

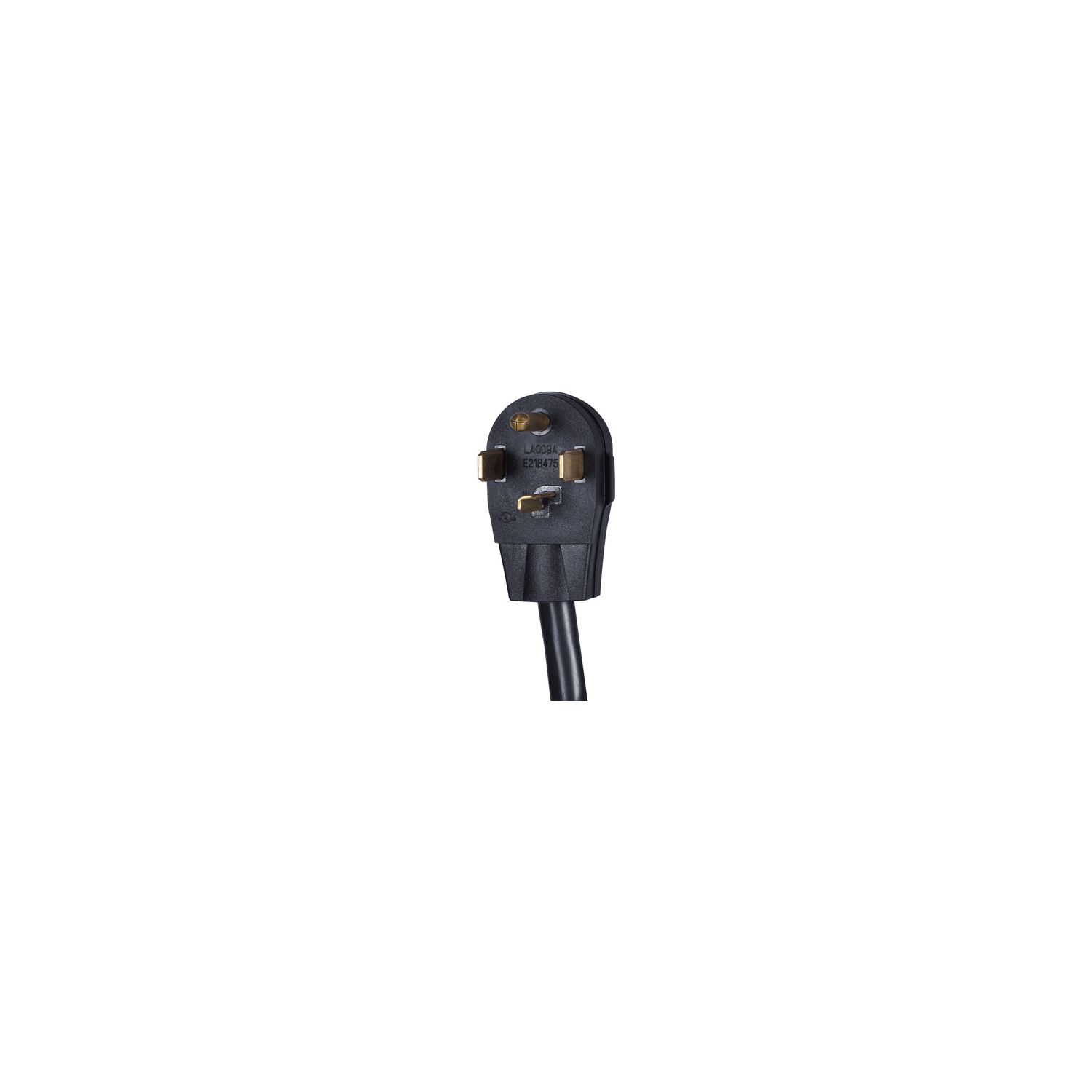

Cord and plug included Pre-installed cord with a NEMA 14-30P plug

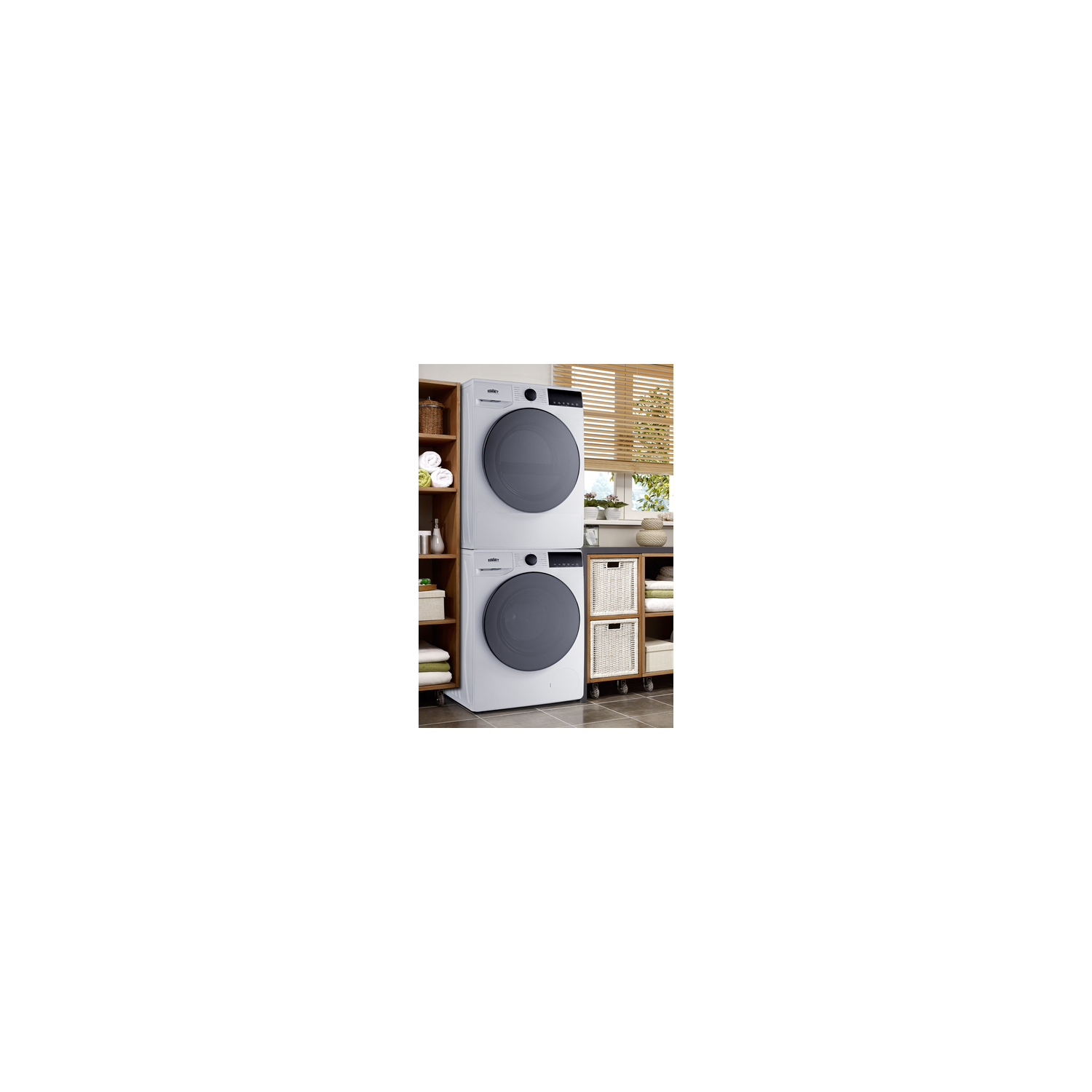

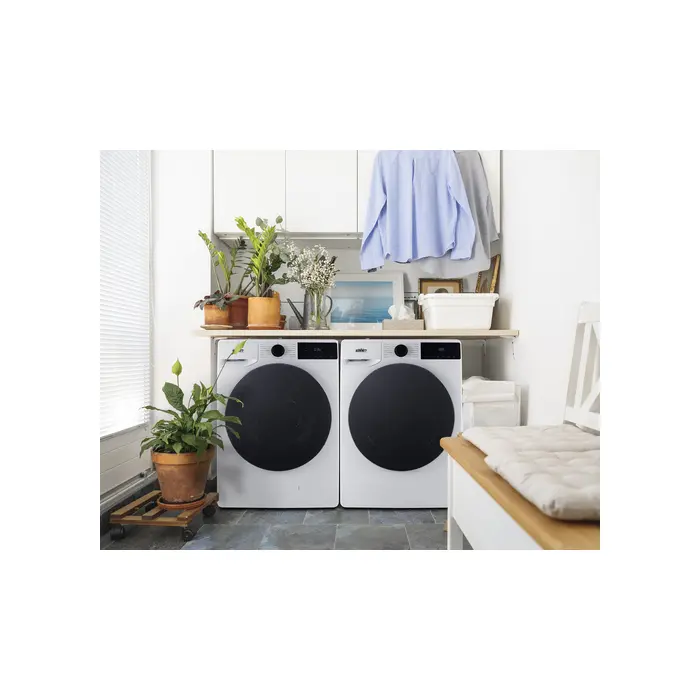

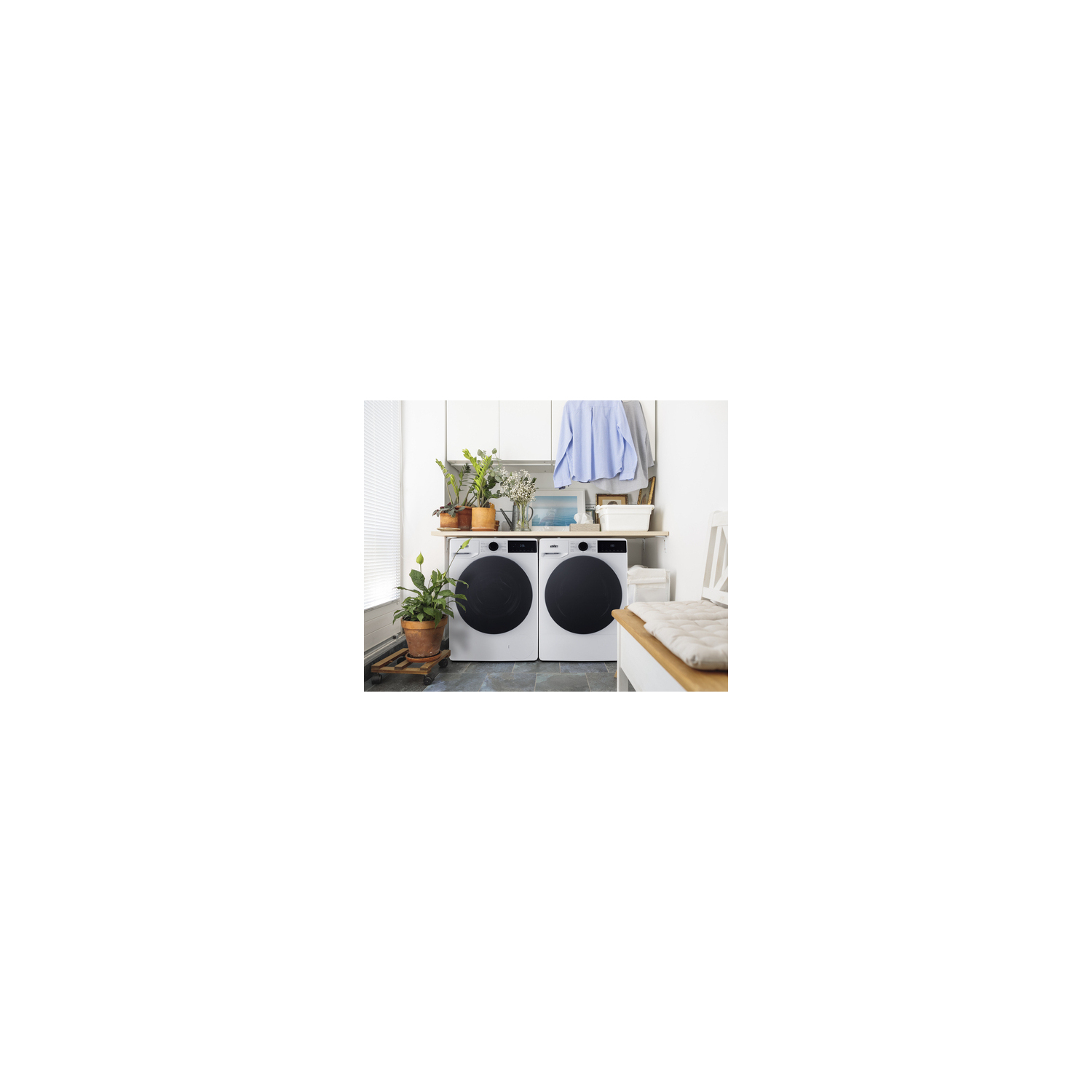

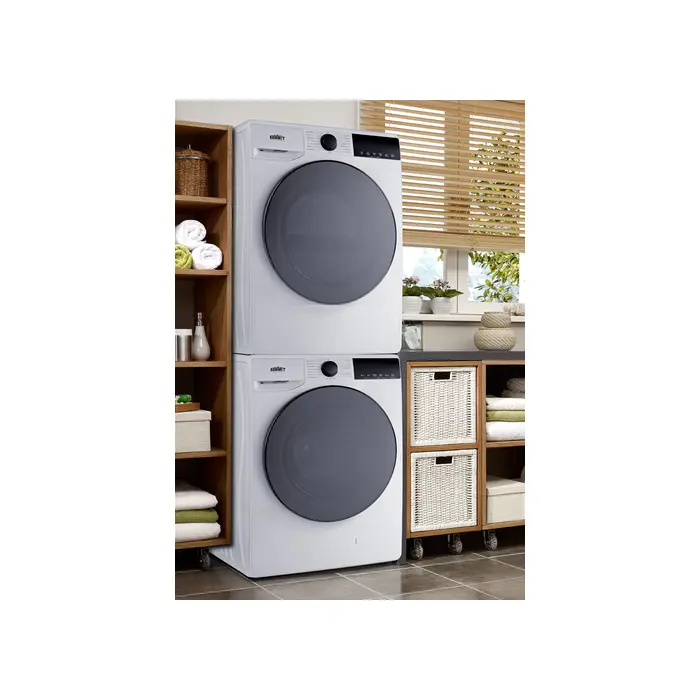

Matching set Can be paired with 220V washer (model SLW341) to create a complete laundry station

Approved for Canadian sales NRCAN registered for use in Canada

TAA compliant Ideal for GSA contracts and other applications requiring a unit to have been manufactured in a TAA designated country

DOWNLOADS

BROCHURE (SLDV342.pdf)

TECHNICAL DRAWING (.dwg) (SLDV342.dwg)

ASSEMBLY DRAWING (SLDV342-Assembly.pdf)

USE & CARE (SLDV342-User-Manual.pdf)
