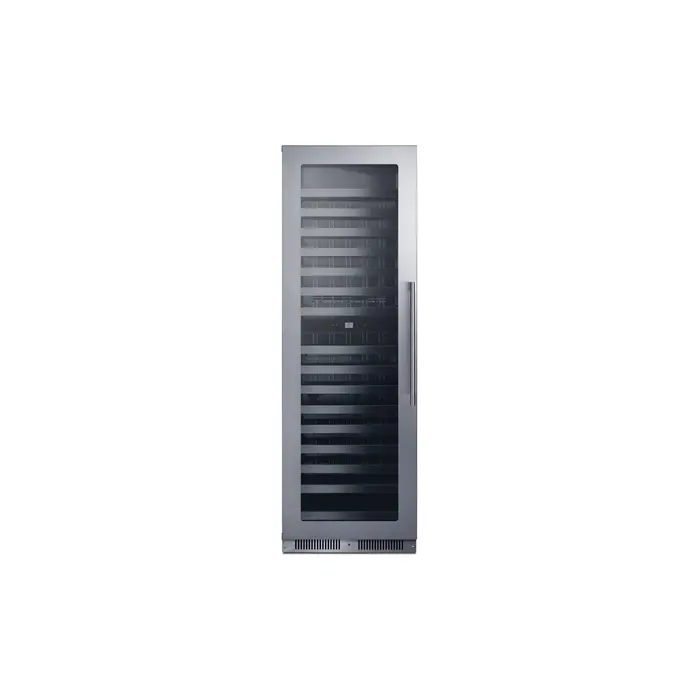

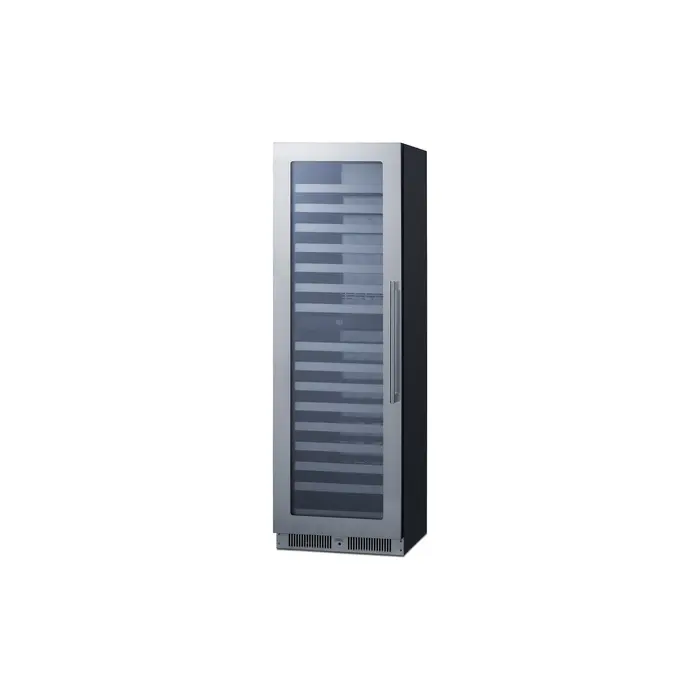

Summit Full-size built-in 24 inch wide 18 inch deep 98-bottle dual zone wine cellar, SDHWC98

Summit's collection of premium wine cellars brings full functionality, convenience, and elevated style to kitchens and home bars with unique space limitations.

The SDHWC98 is a 24" wide dual zone wine cellar that features a front-breathing design for built-in installation. Sized at just 18" deep, this wine cellar offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit. Seamless stainless steel trim blends smoothly into the reversible, gently tinted glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security.

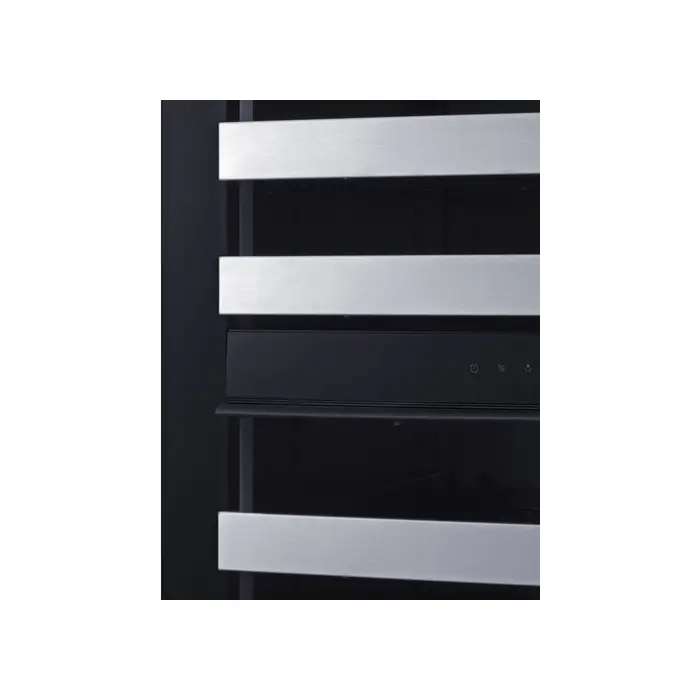

Inside, model SDHWC98 includes a stainless steel rear wall for improved durability and sanitation. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. The easy-to-use digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white or sparkling wine, while the lower zone is designed to store red wine between 50 and 64ºF. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit features commercial grade shelving in a black wire finish with stainless steel front trim. The shelves are full-extension and set on ball-bearing glides for smooth loading. Optimal storage capacity accommodates up to 98 standard 750ml Bordeaux or Burgundy style bottles (note: your capacity may vary depending on the bottle style).

Model SDHWC98 has two different running modes: Silent mode, which minimizes vibrations to lower noise emissions and creates a more stable storage environment, ideal for preserving your wine's quality. The second, DynaClima mode, optimizes both temperature and humidity distribution for long-term wine storage, mimicking the conditions of a traditional wine storage cabinet.

Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode, which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range.

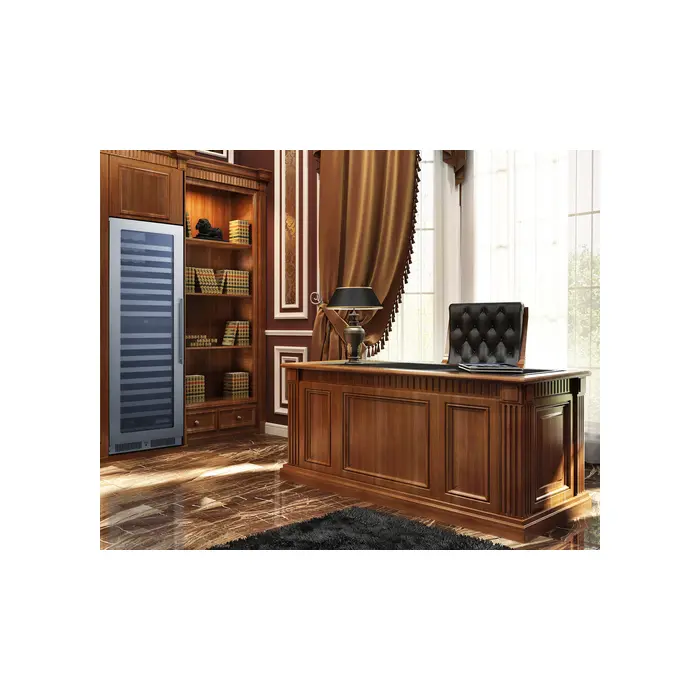

With its uniquely shallow depth, elegant design, and premium features, the SDHWC98 brings true luxury to any space. For this unit with a panel-ready door trim, see model SDHWC98PNR. Explore Summit's extensive catalog of wine cellars and beverage centers at summitappliance.com

NOTE: Due to its unique size, this unit should not be used freestanding. To prevent tipping, install the anti-tip bracket included in your packaging when setting up the product.

SPECIFICATIONS

Overview

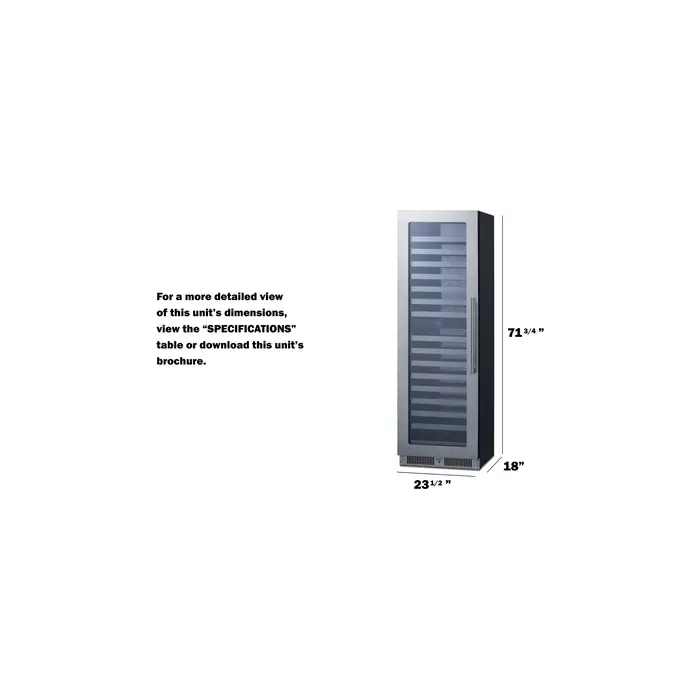

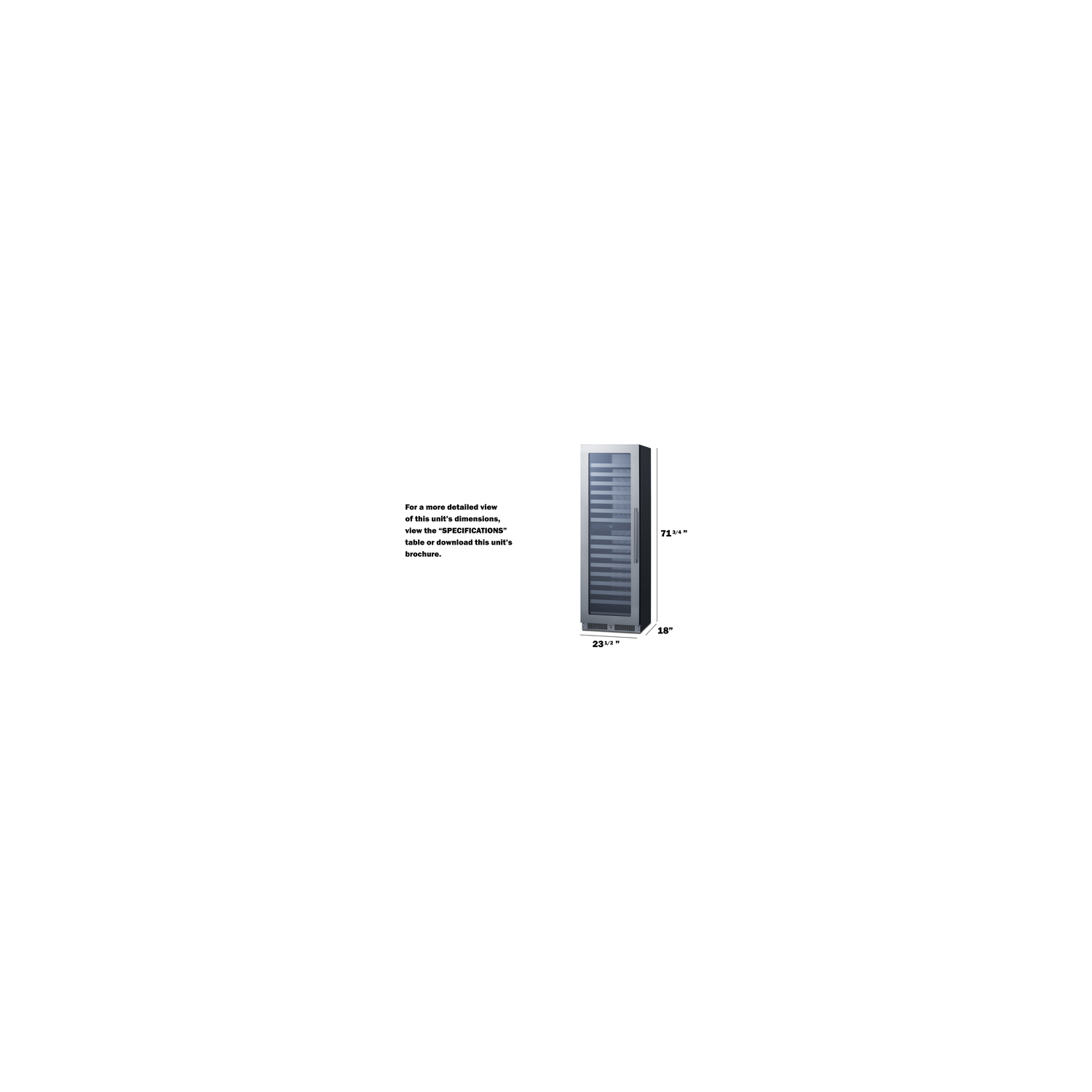

Height of Cabinet 71.75" (182 cm)

Width 23.5" (60 cm)

Depth 18.0" (46 cm)

Depth with Handle 19.75" (50 cm)

Depth with door at 90° 41.25" (105 cm)

Bottles 98 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 5.0

Voltage/Frequency 115 V AC/60 Hz

Weight 276.0 lbs. (125 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101150536

Wine Cellar

Number of Zones 2

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Wire

Shelf Qty 16

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.41 oz.

Interior Height 1 27.5" (70 cm)

Interior Width 1 19.5" (50 cm)

Interior Depth 1 12.25" (31 cm)

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 19.5" (50 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF

Interior Height 2 34.0" (86 cm)

Interior Width 2 19.5" (50 cm)

Interior Depth 2 12.25" (31 cm)

Sabbath Mode Yes

Sound Level 32.2 dB

FEATURES

24" Wide Premium Wine Cellar Built-in 98-bottle wine cooler for dual zone storage in shallow cutouts

Shallow depth 18" depth offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit

Built-in design Front-breathing cooling system to allow seamless integration inside cabinetry (recommended opening: 72" H x 24" W x 20" D)

Dual zone storage Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine

Unbranded exterior Allows for seamless integration with other appliances

Seamless 304 grade stainless steel door trim Single-piece stainless steel door trim offers a more deluxe look

Gently tinted glass door Attractive glass door provides a complete but protected display of stored contents

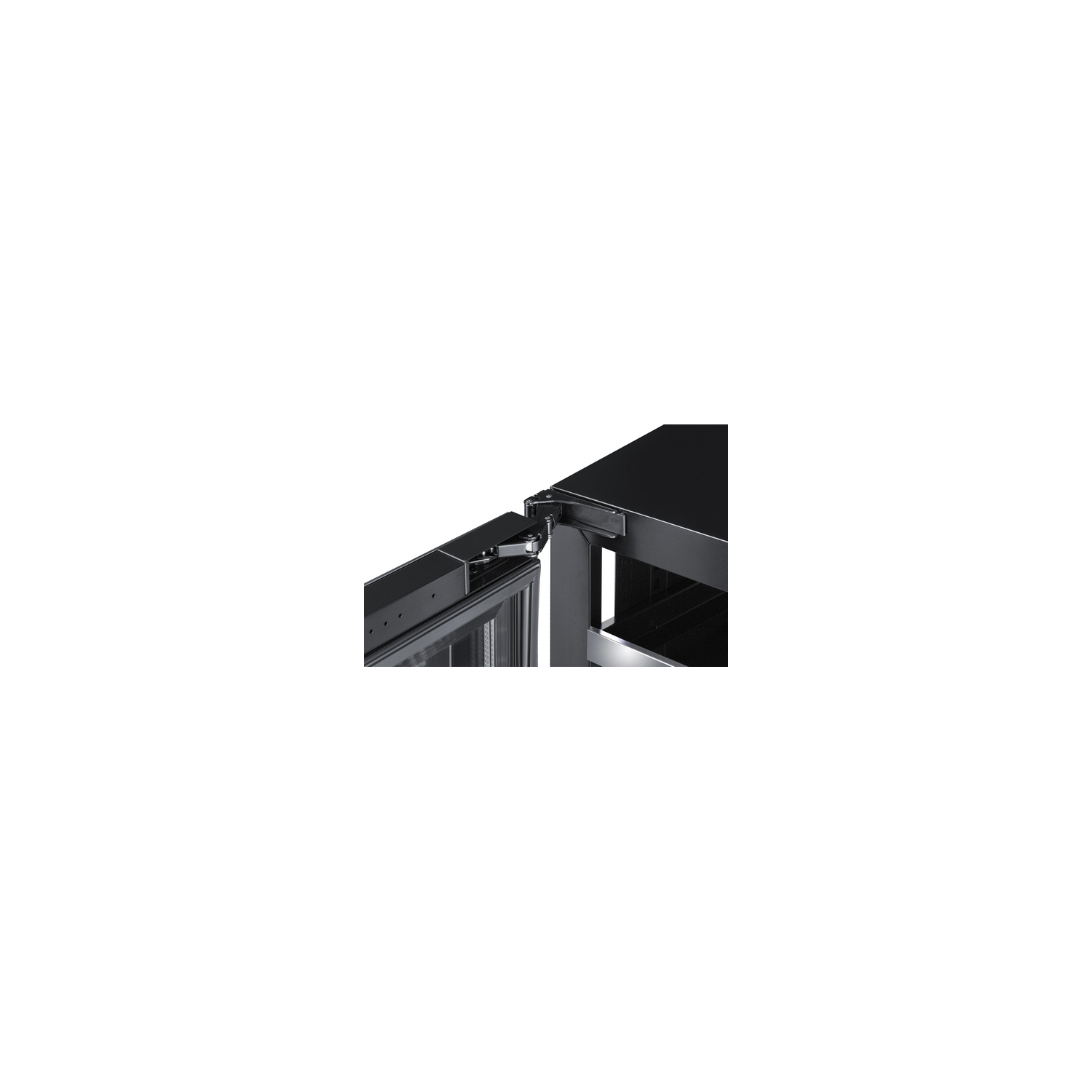

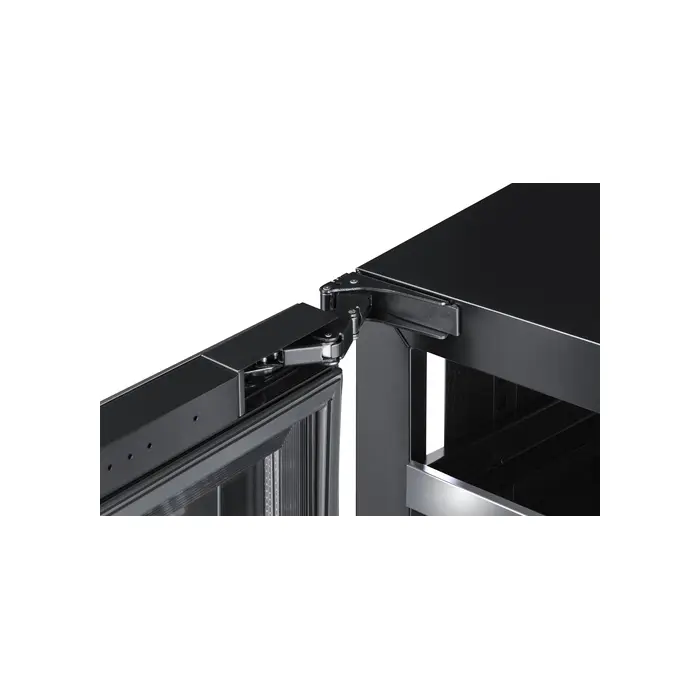

Fully articulating style hinge European style hinge design ensures a flush fit and allows for a smoother opening

Professional handle Stainless steel look for added elegance

Automatic defrost No-frost operation for minimum user maintenance

Deluxe wine shelving Removable wire shelving in black with stainless steel from trim for an elegant, modern look

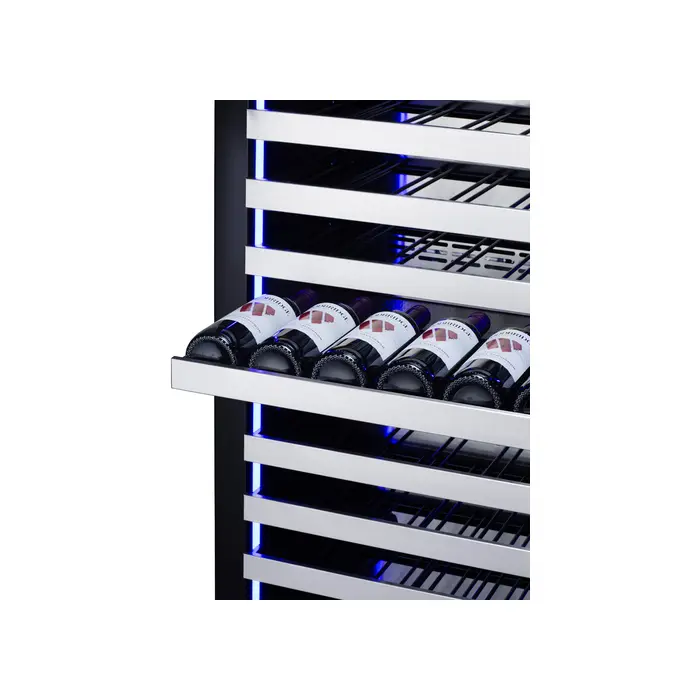

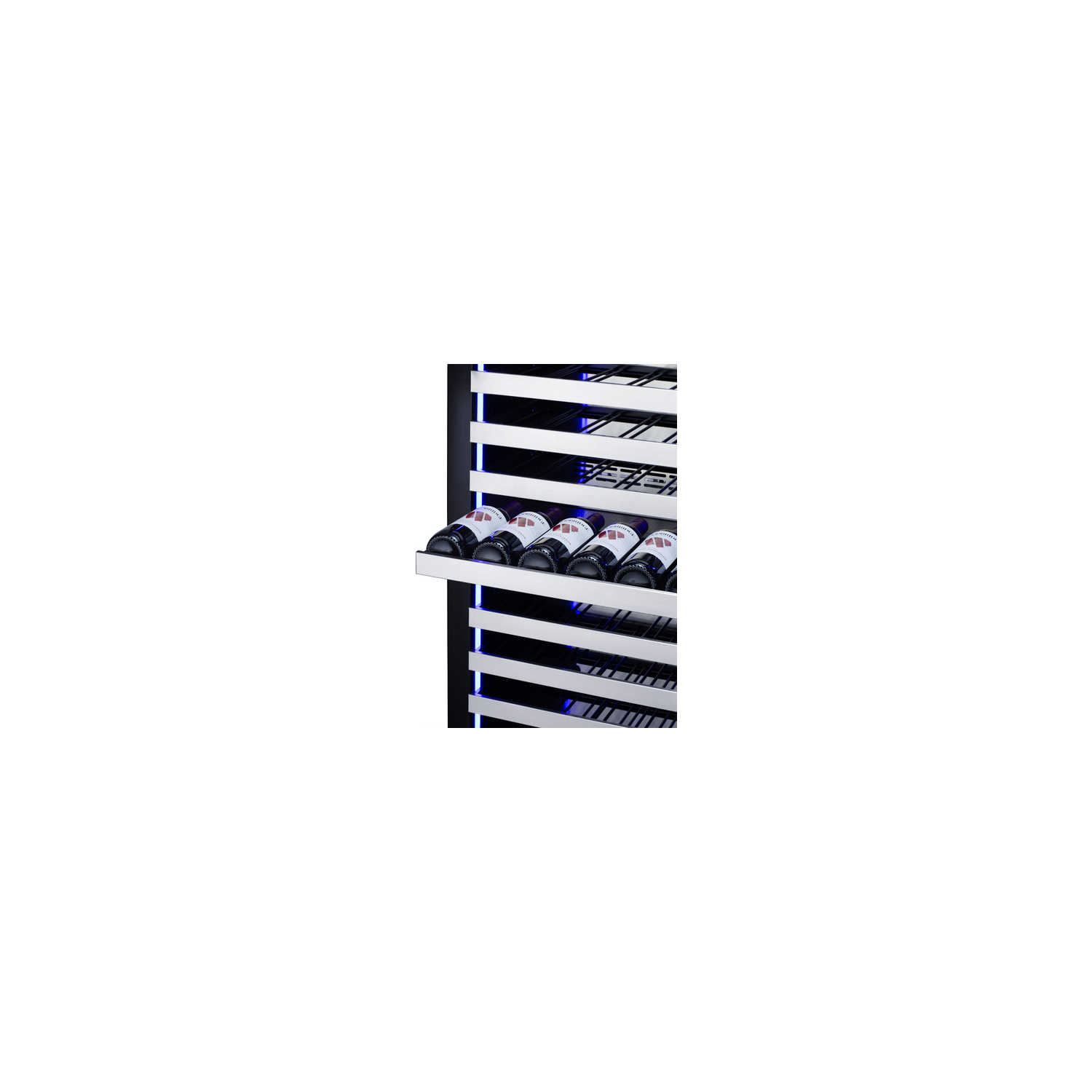

Full-extension shelving 16 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Vibration-free Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

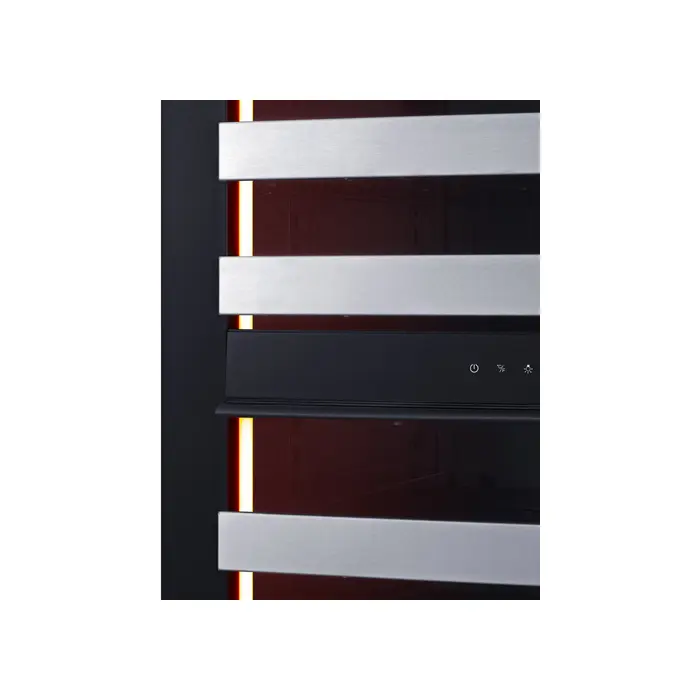

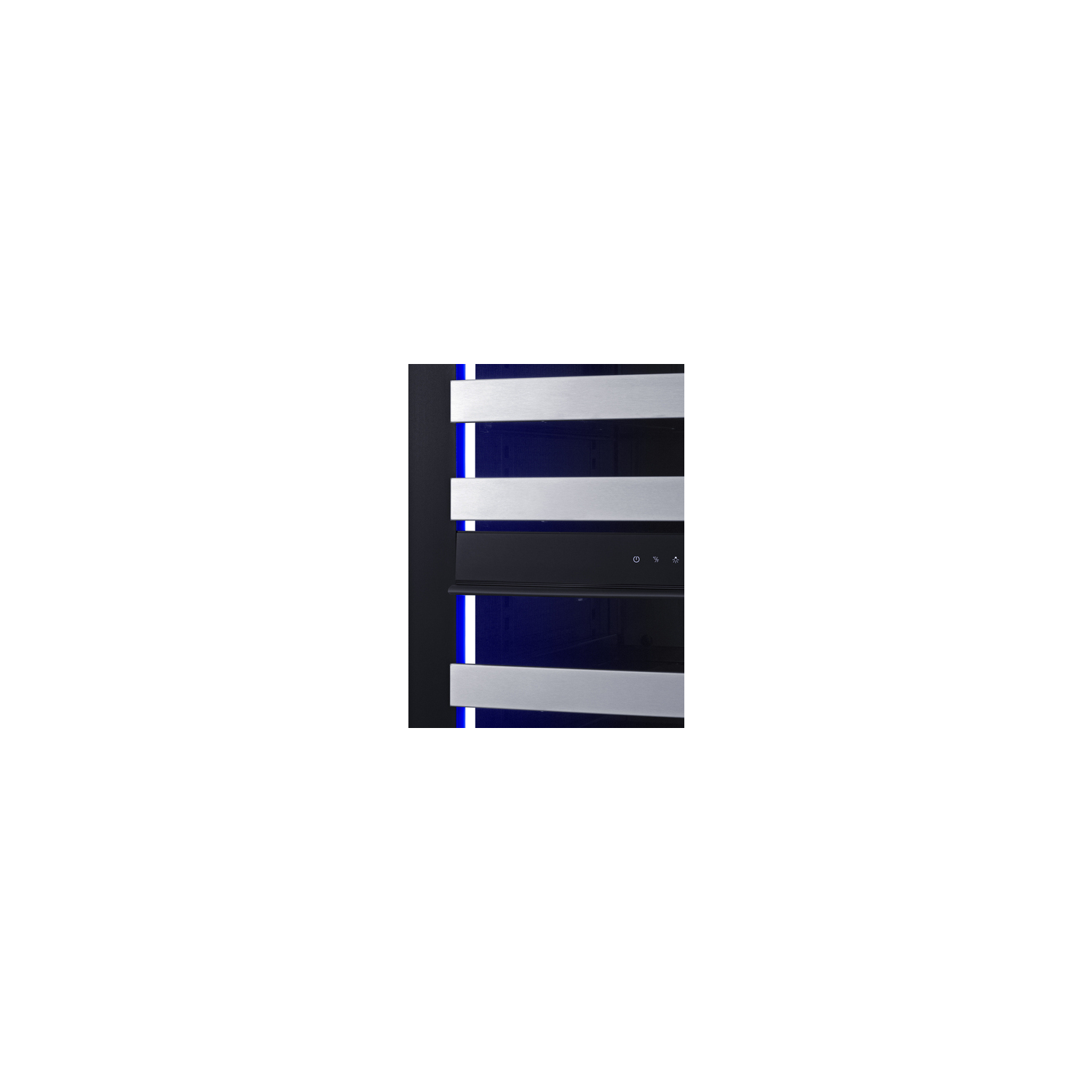

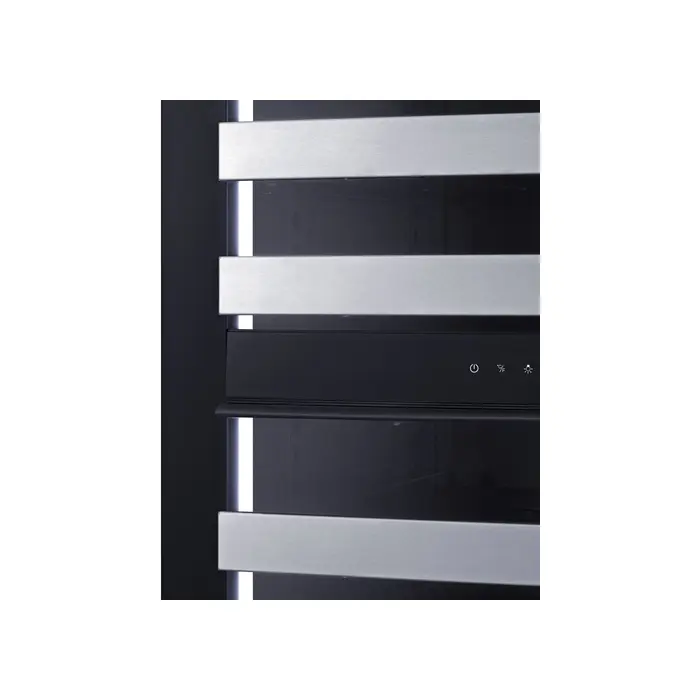

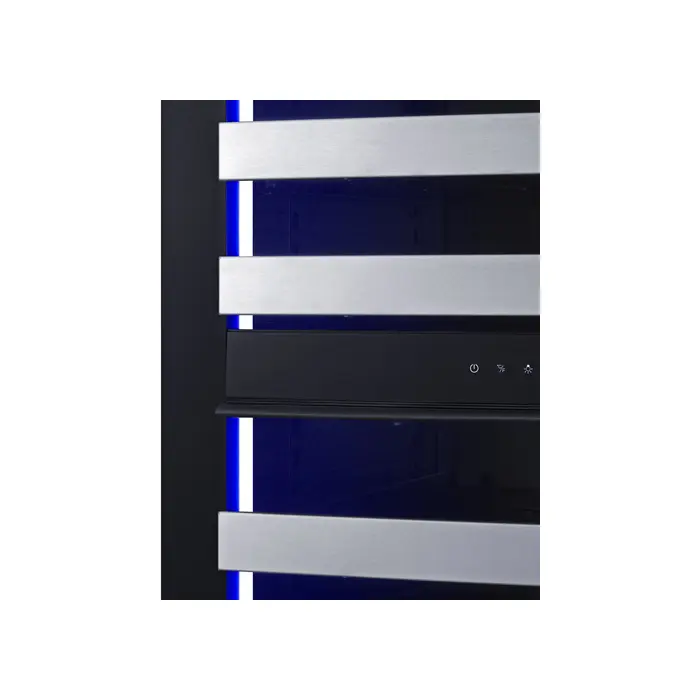

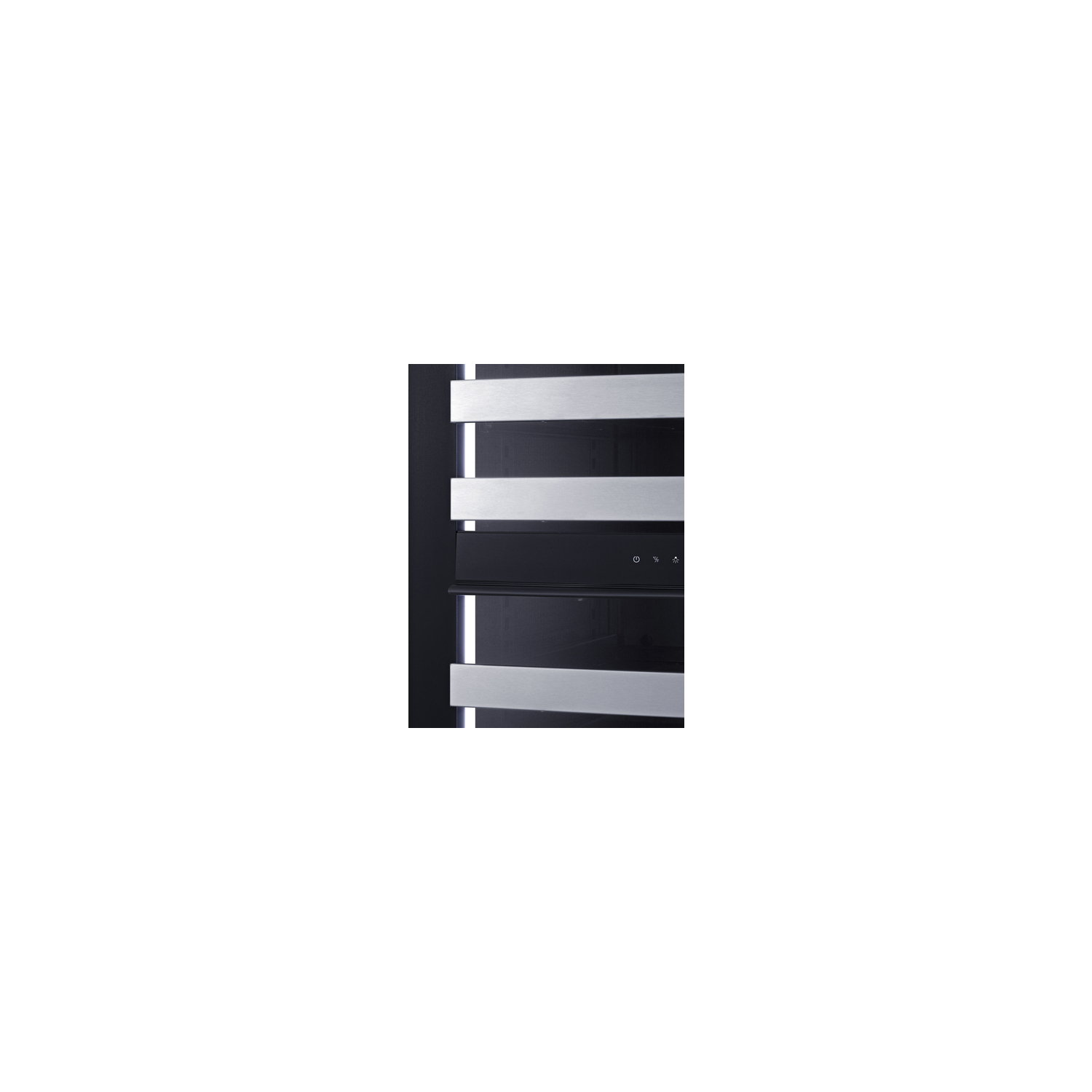

Tri-colored LED lighting Rotate your presentation style with a choice of blue, white, or amber LED lighting

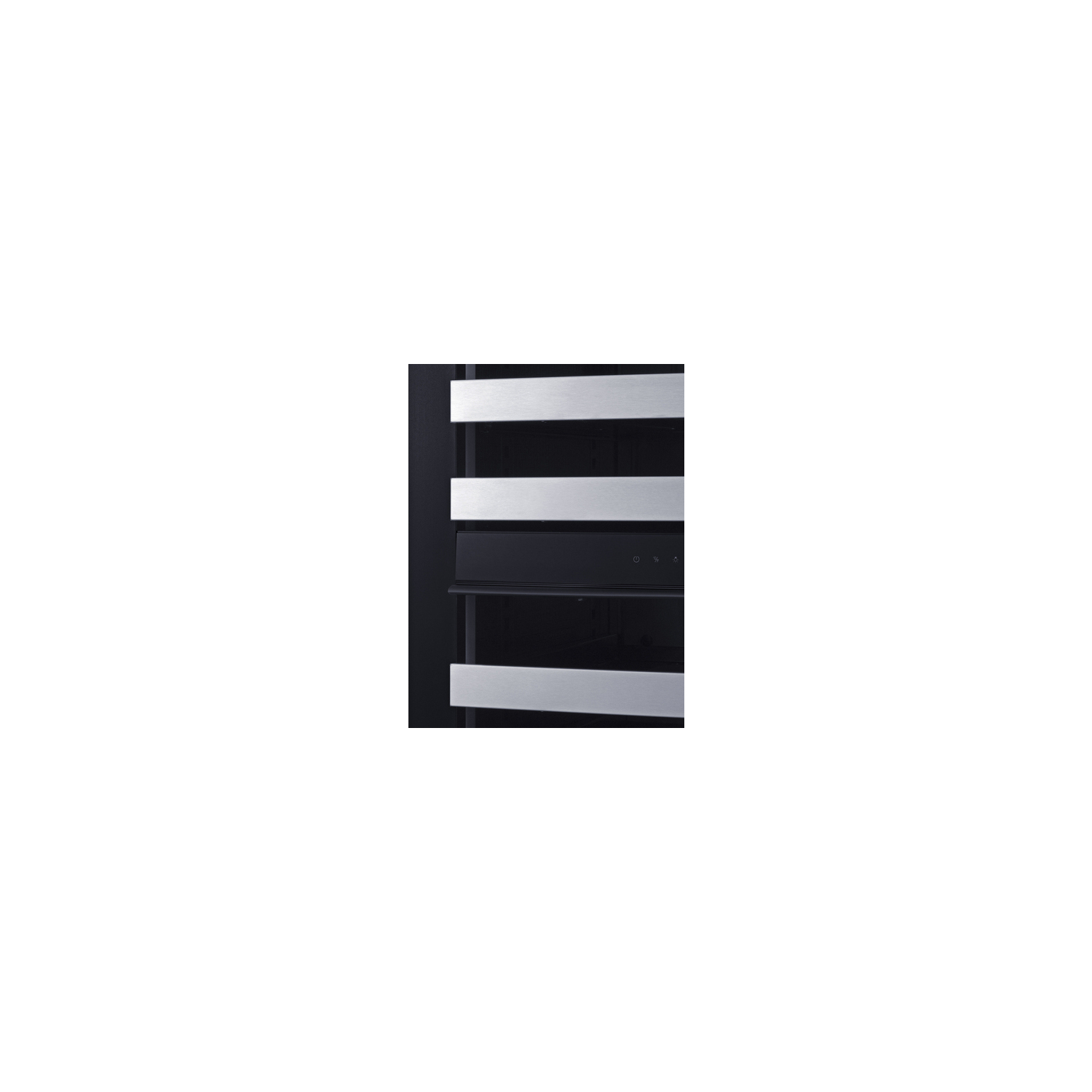

Digital thermostat Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Digital temperature display Temperature readout can be shown in Celsius or Fahrenheit

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 96 hours

Stainless steel interior rear wall Stainless steel rear wall protects the unit's integrity and is easier to clean

Factory-installed lock Keyed lock located in the kickplate for added security as needed

Sealed back Space-saving design with no exposed coils that offers easier cleanability

Stainless steel kickplate Complete luxury down to the toe kick

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Quiet operation Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.2 dB

Anti-tip bracket Bracket included and must be installed to prevent tipping

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (SDHWC98.pdf)

TECHNICAL DRAWING (.dwg) (SDHWC98.dwg)

ASSEMBLY DRAWING (SDHWC98-Assembly.pdf)

USE & CARE (SDHWC98-User-Manual.pdf)
