Summit Shallow 18 inch deep 24 inch wide undercounter refrigerator, 7.61101e+011, SDHR2444PNR

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

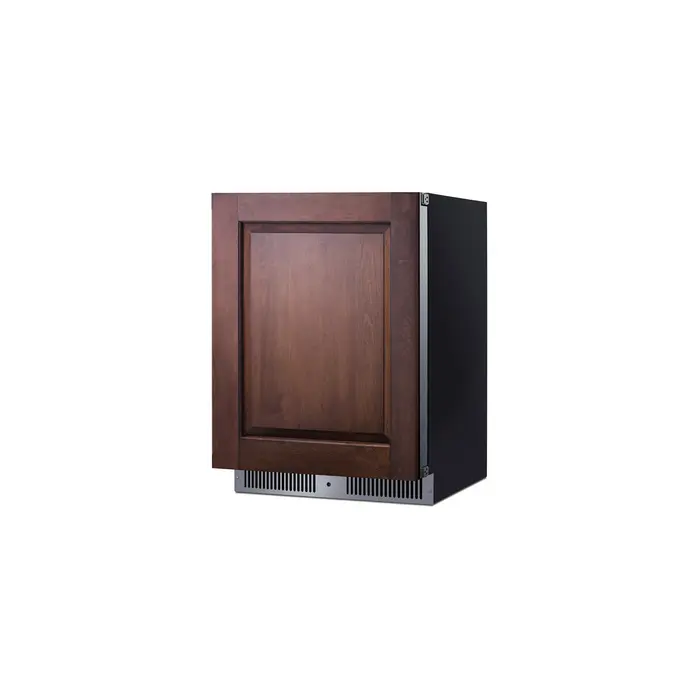

The SDHR2444PNR is a 24" wide all-refrigerator sized under 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The stainless steel wrapped door features our fully articulating European hinge. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design. The user-reversible door swing allows easy adjustment as needed.

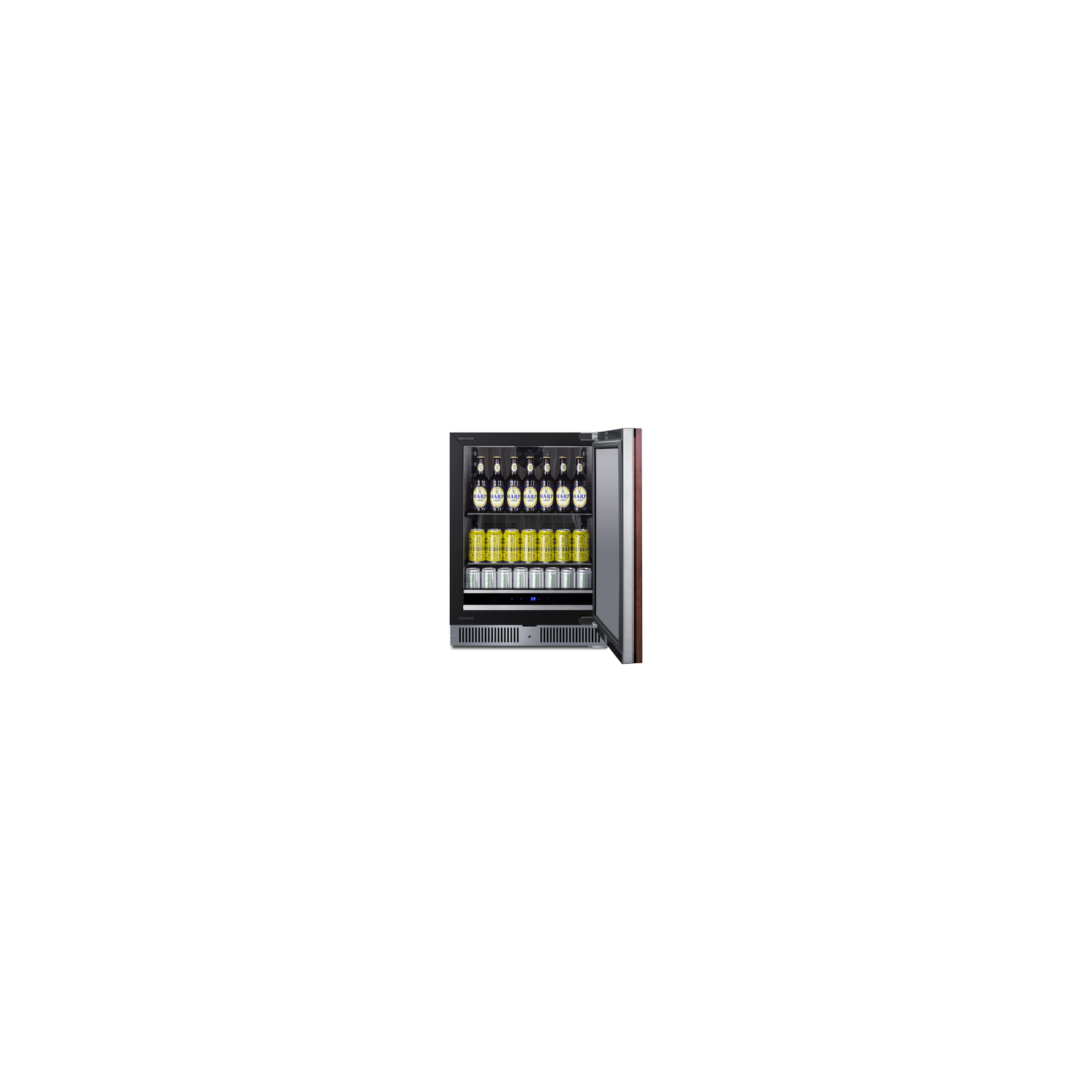

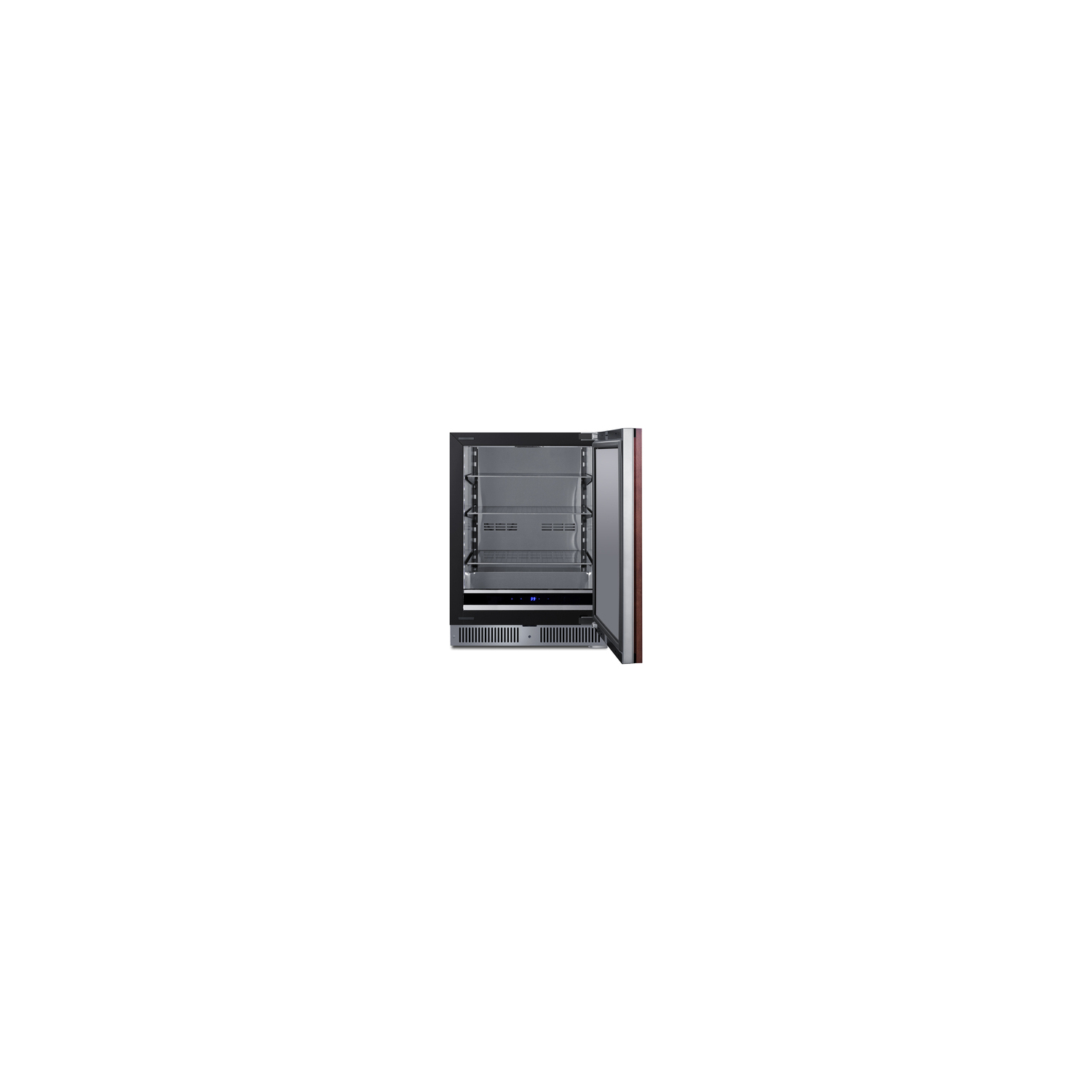

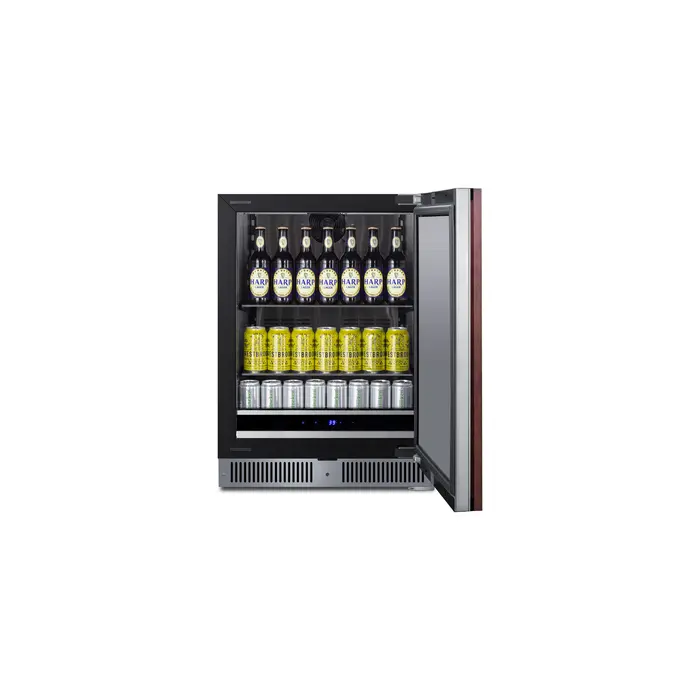

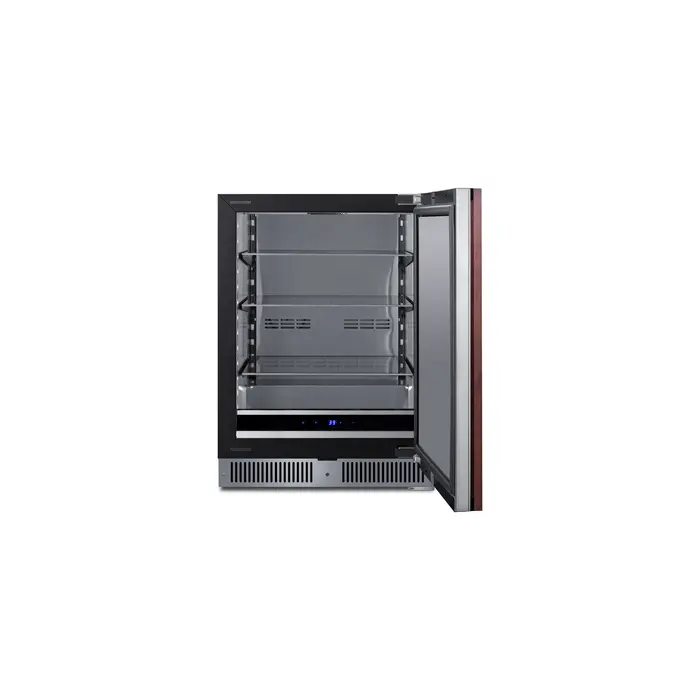

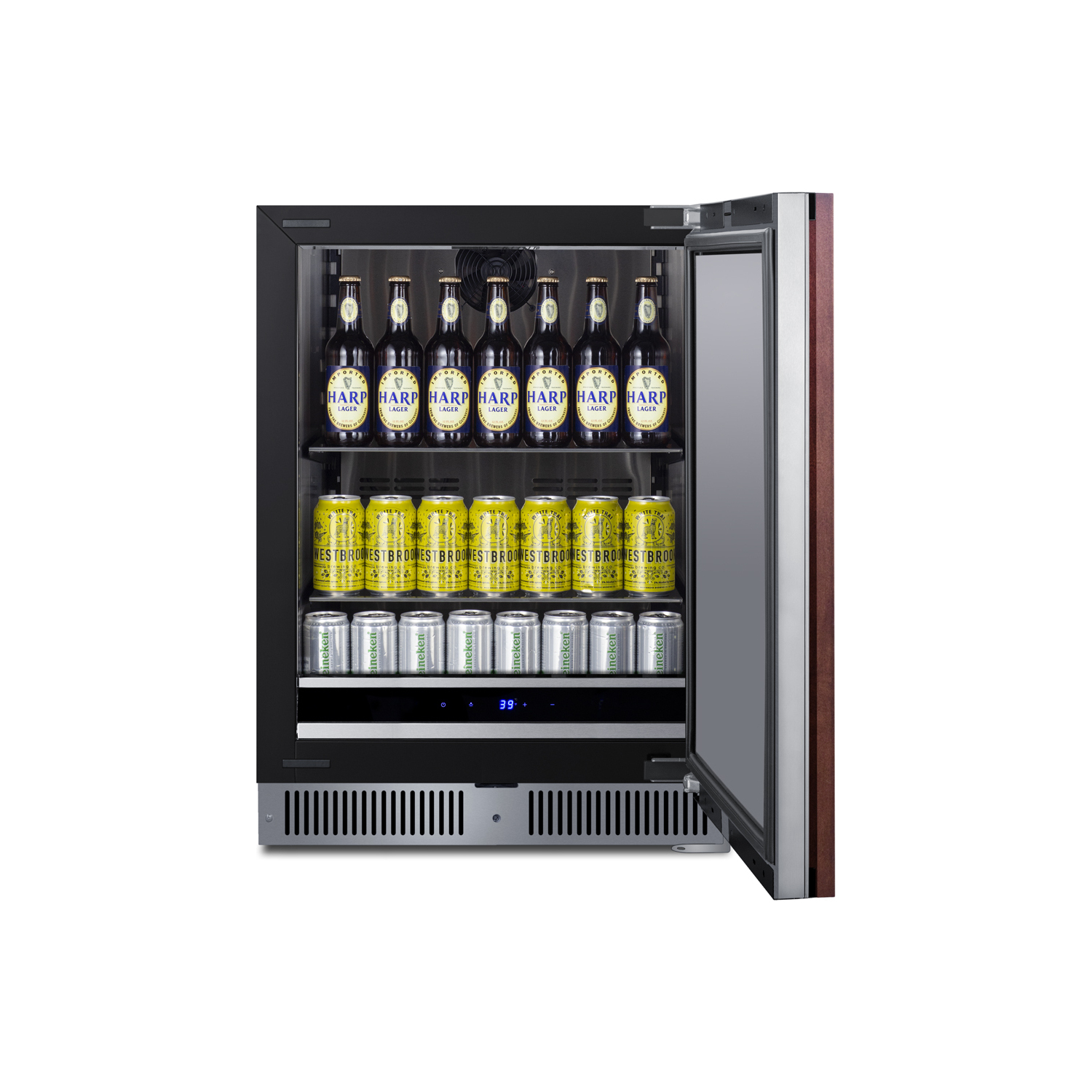

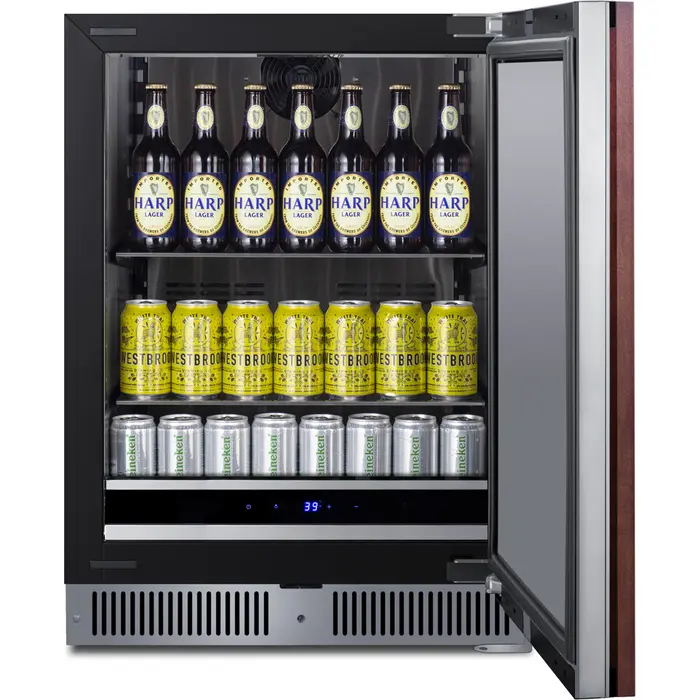

Inside, the unit features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes a cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high-temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during observance periods for up to 96 hours.

With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings.

Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

SPECIFICATIONS

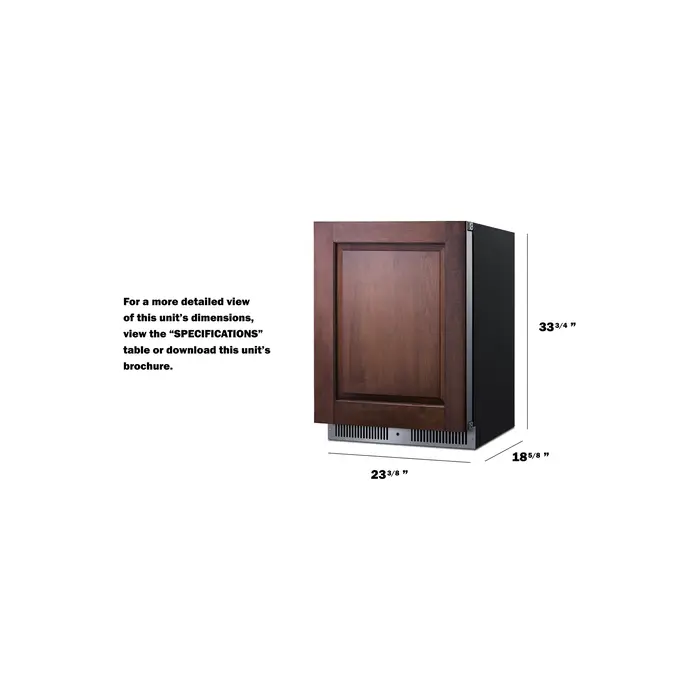

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.75" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Width with Door Open 24.13" (61 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.88" (45 cm)

Depth with door at 90° 43.0" (109 cm)

Capacity 3.1 cu.ft. (88 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 250.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 99.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101145709

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.38oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36°F to 43°F

Sound Level 33.3 dB

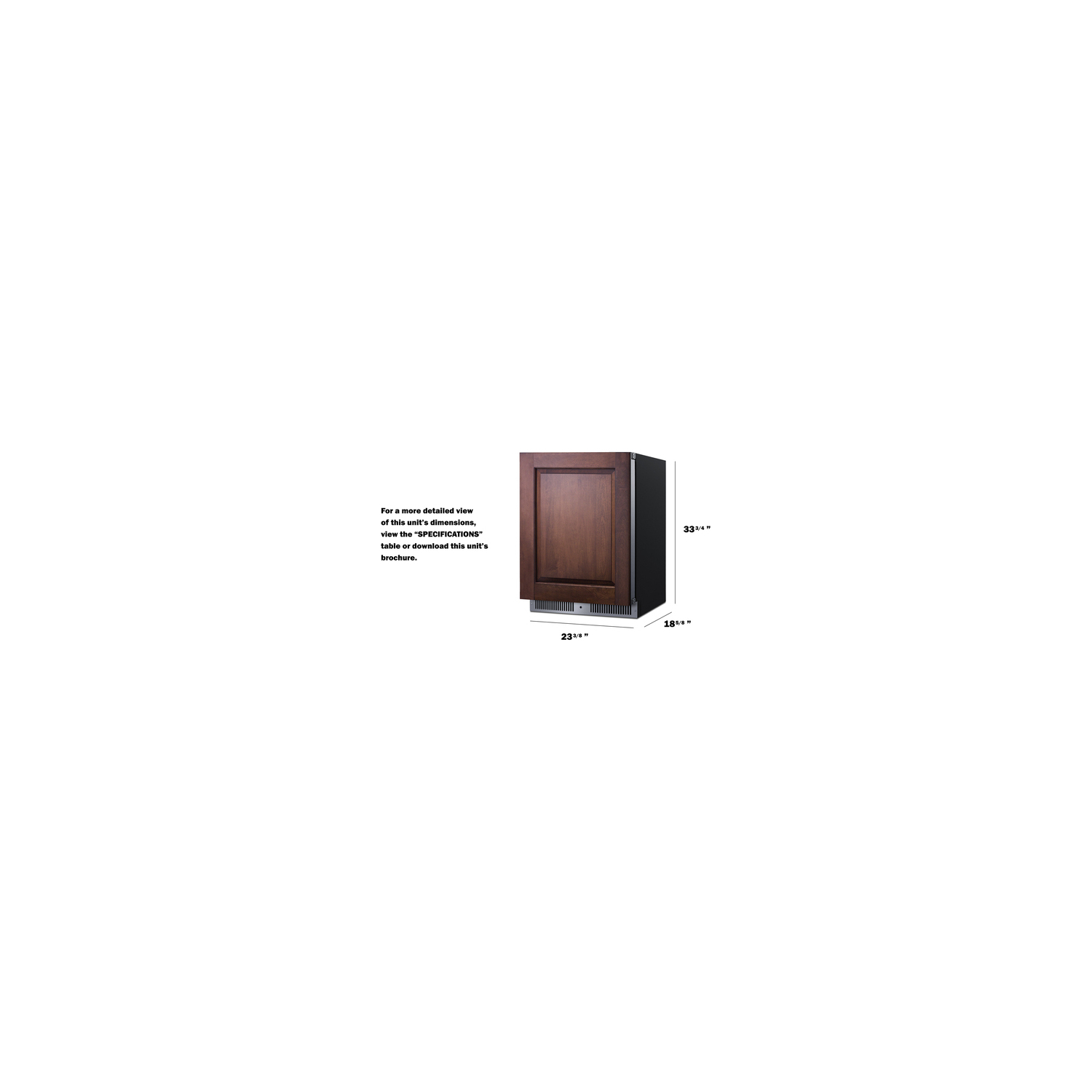

Dimensions

Interior Height 26.0" (66 cm)

Interior Width 19.25" (49 cm)

Interior Depth 12.25" (31 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 19.5" (50 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

24" Wide All-Refrigerator All-refrigerator for residential storage

Less then 18" deep Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Built-In capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Versatile design Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door

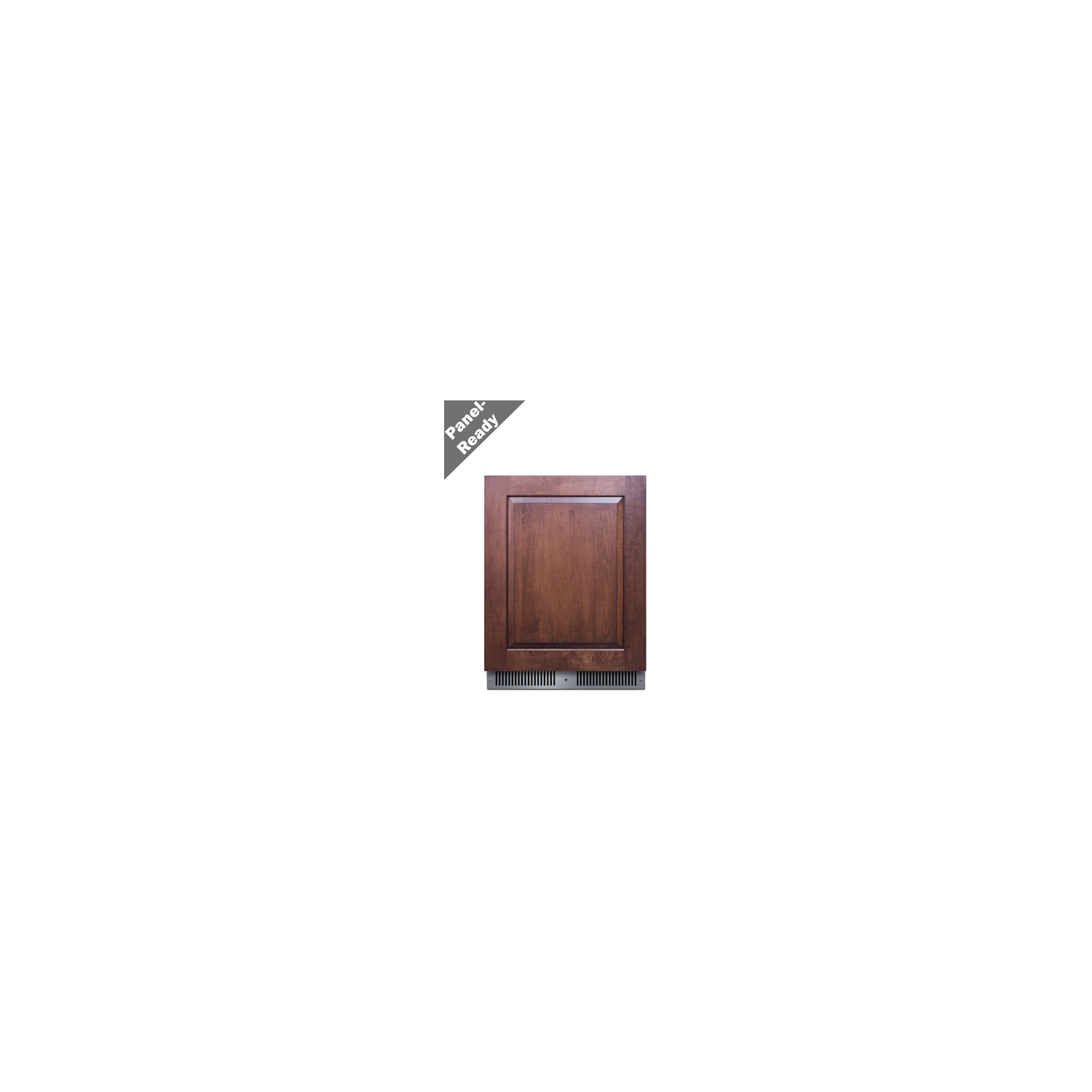

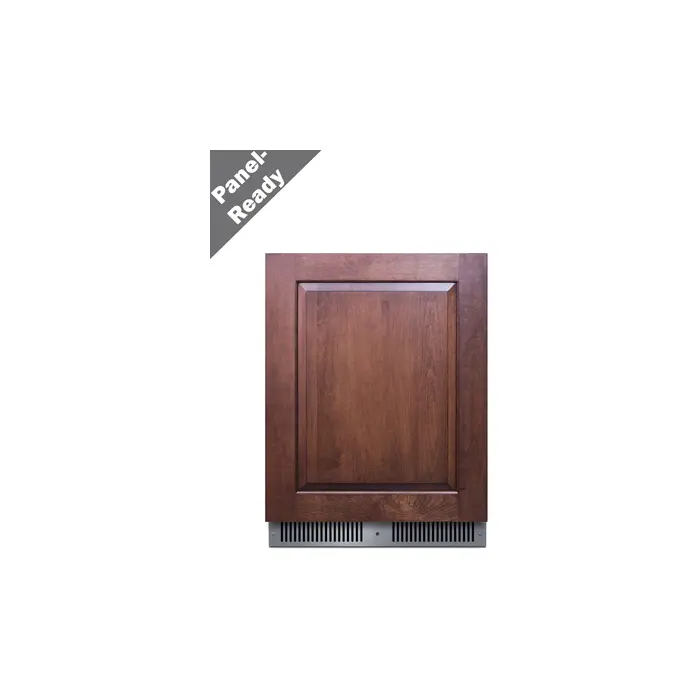

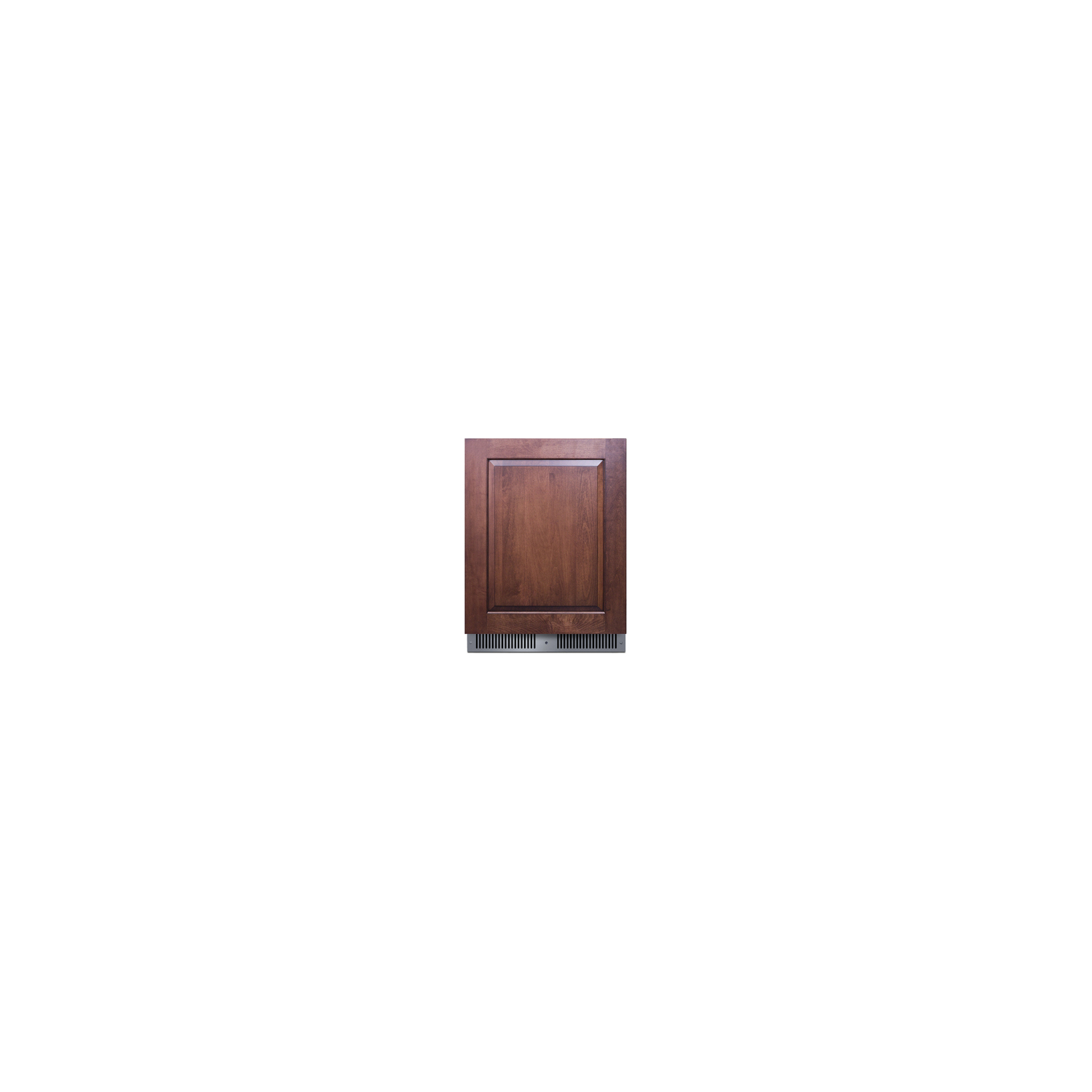

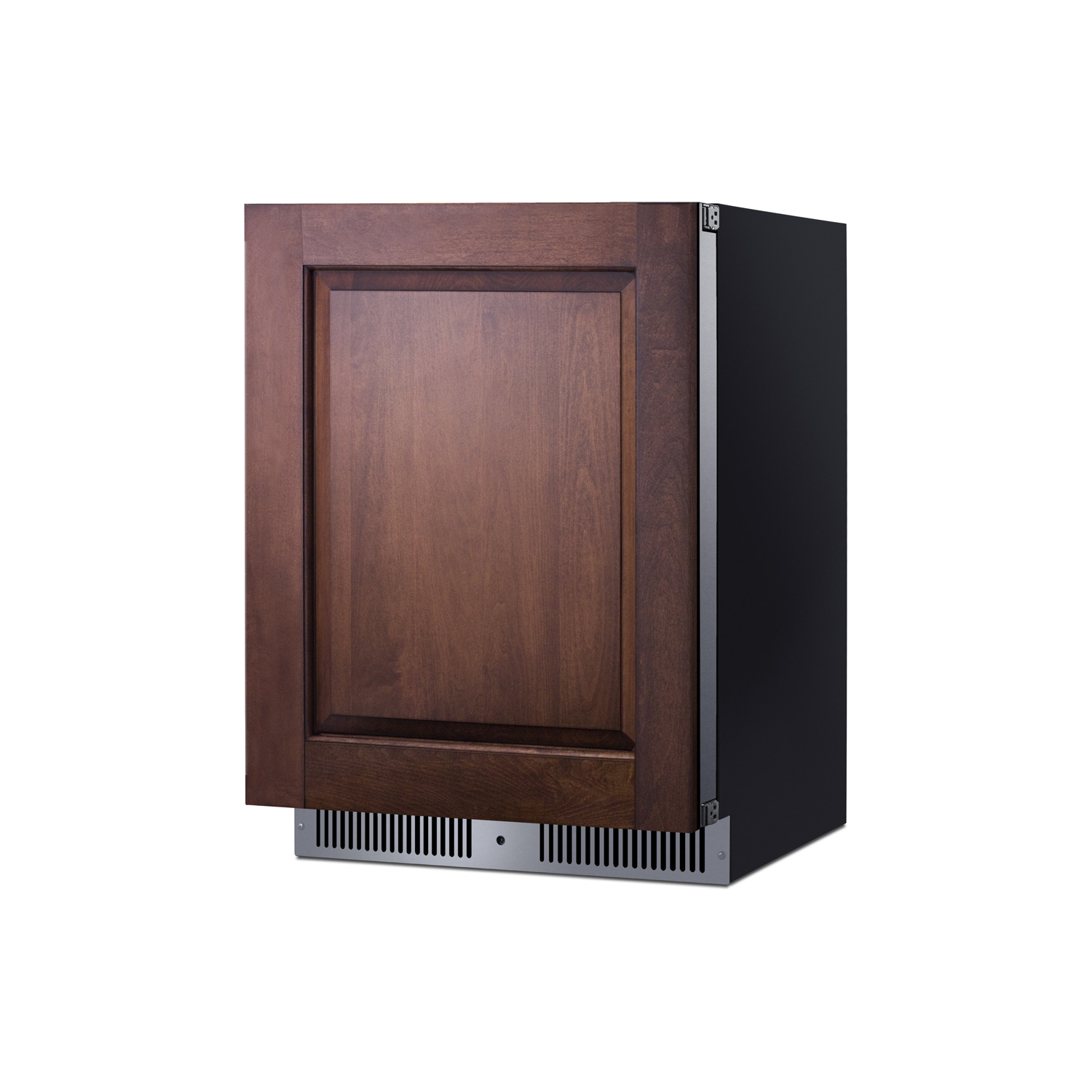

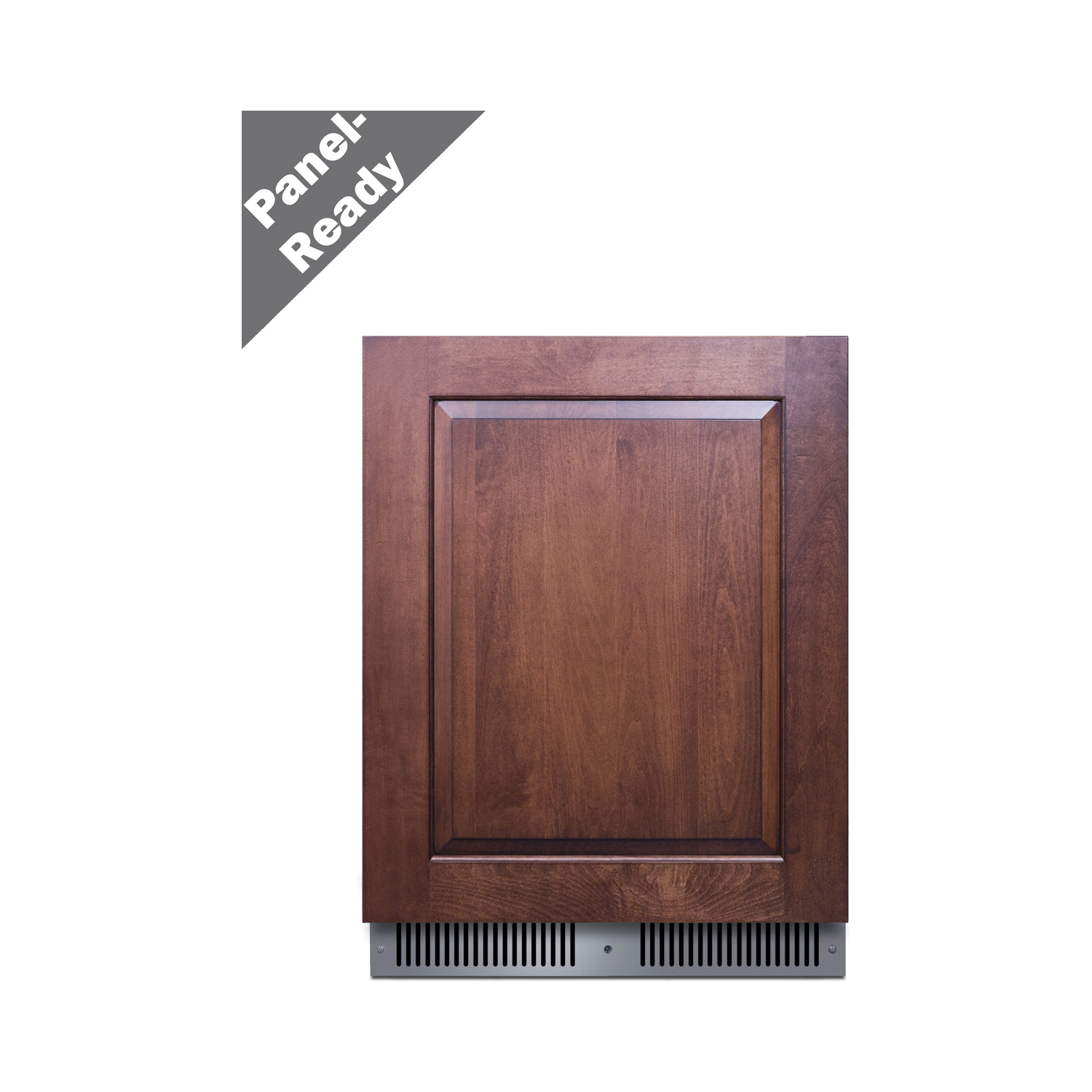

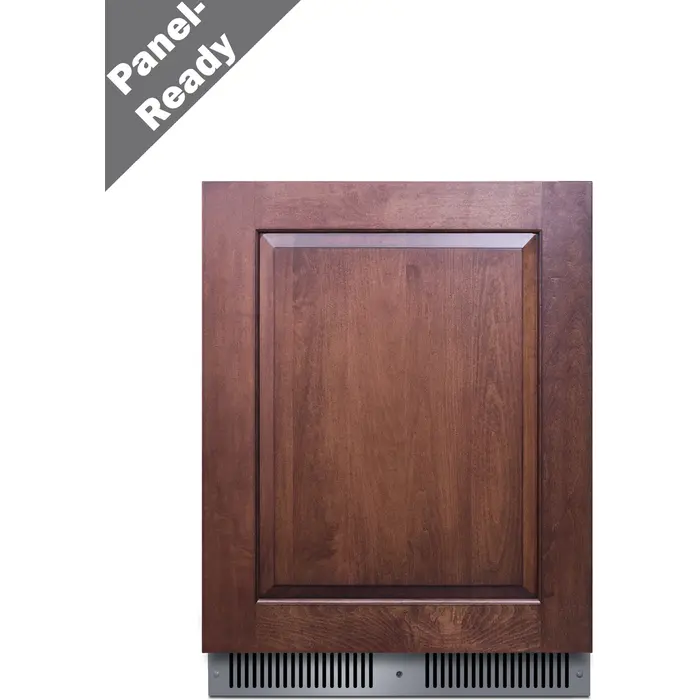

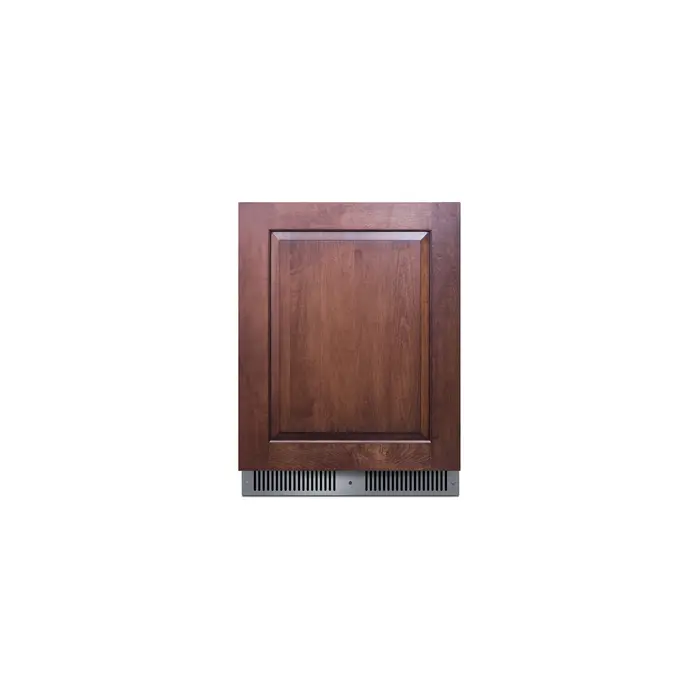

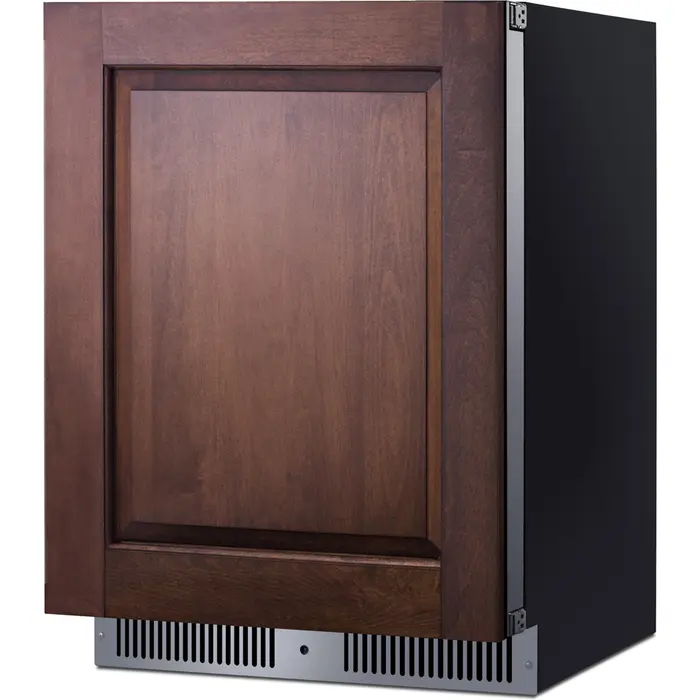

Panel-ready door European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 1/4" W

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Stainless steel interior Walls and floor are constructed from stainless steel for added strength and easy cleanup

Factory installed lock Keyed lock for a secure interior (2 keys included)

Digital thermostat Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED light Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

Frost-free operation No-frost operation for minimal user maintenance

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

High/low temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance

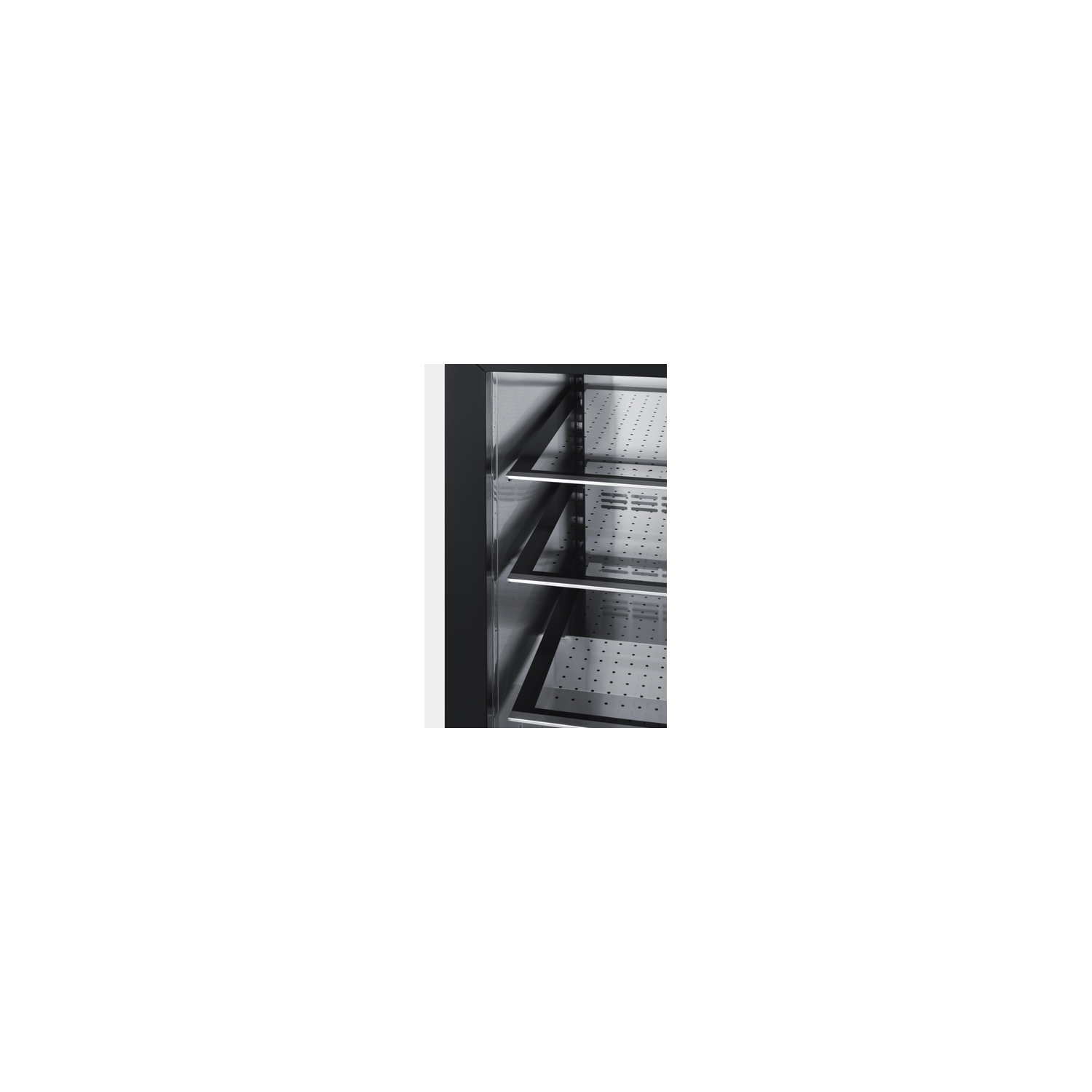

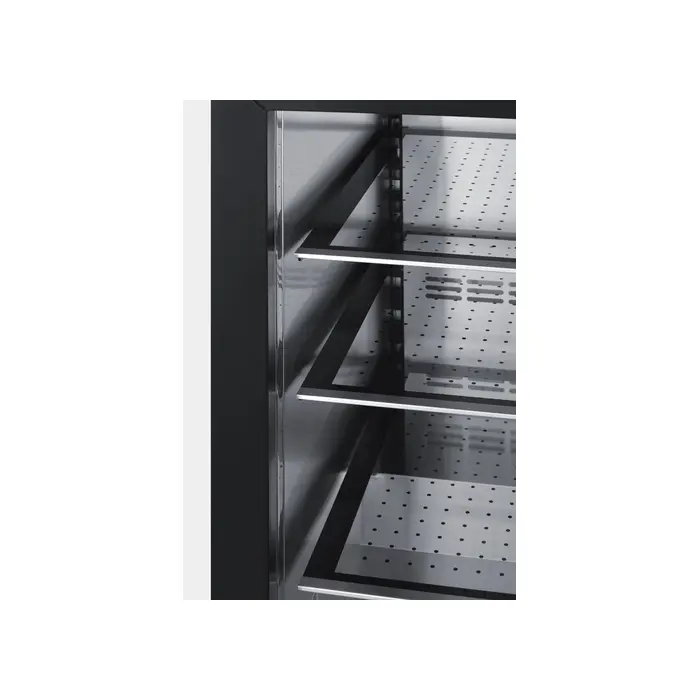

Adjustable glass shelves Spill-proof shelving for easy cleanup and flexible storage

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet Allows the unit to be used freestanding

Sealed back Space-saving design with no exposed coils that offers easier cleanability

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

Quiet operation Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SDHR2444PNR.pdf)

TECHNICAL DRAWING (.dwg) (SDHR2444PNR.dwg)

ASSEMBLY DRAWING (SDHR2444PNR-Assembly.pdf)

USE & CARE (SDHR2444PNR-User-Manual.pdf)

Energy Guide
