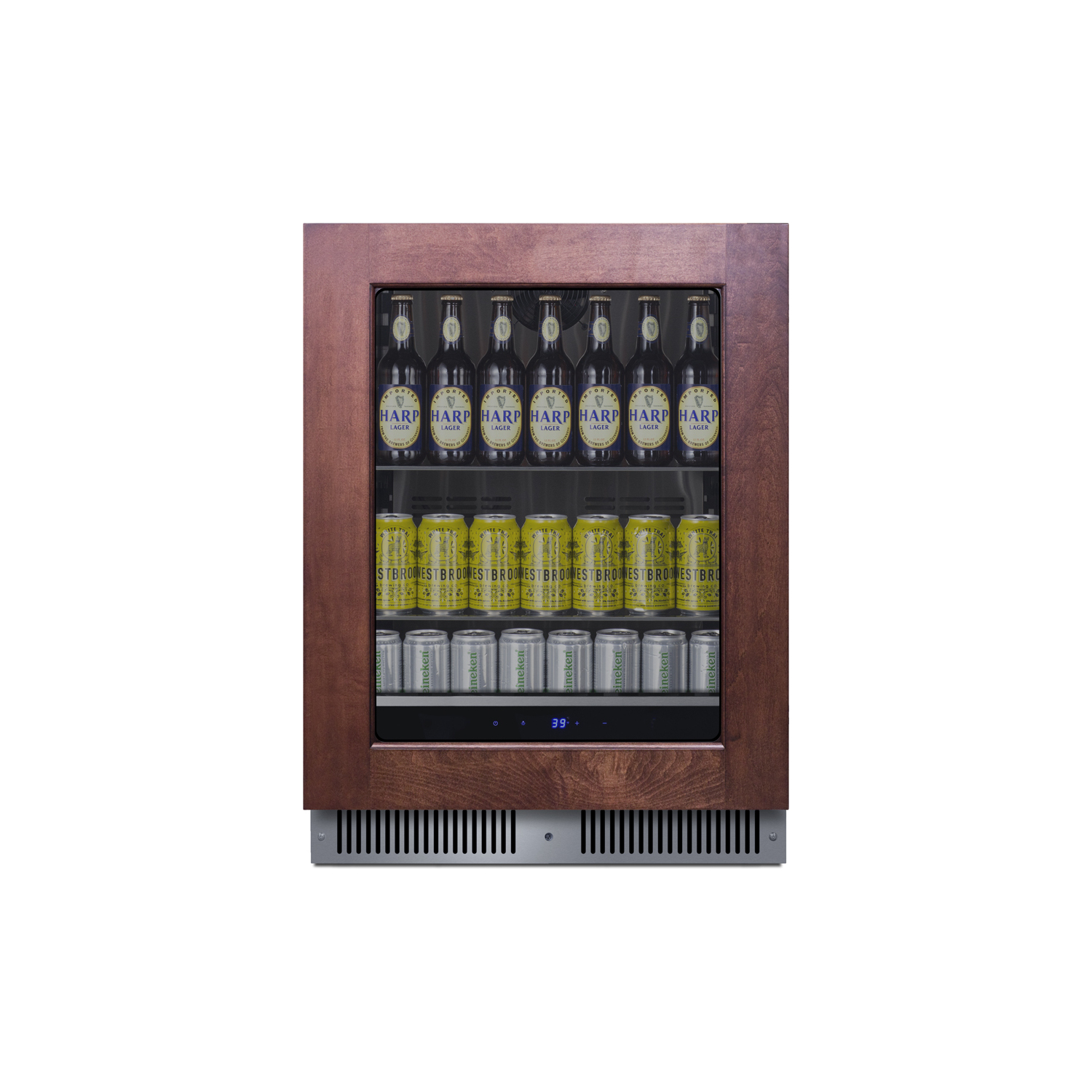

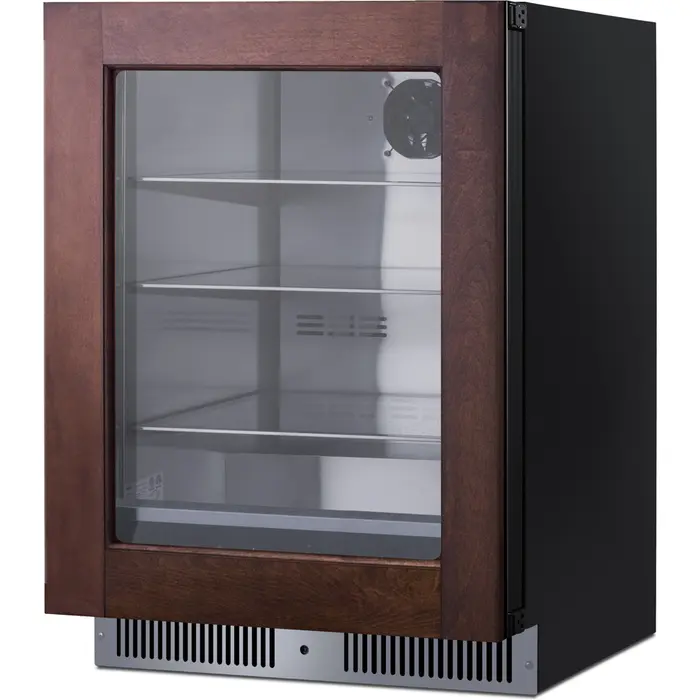

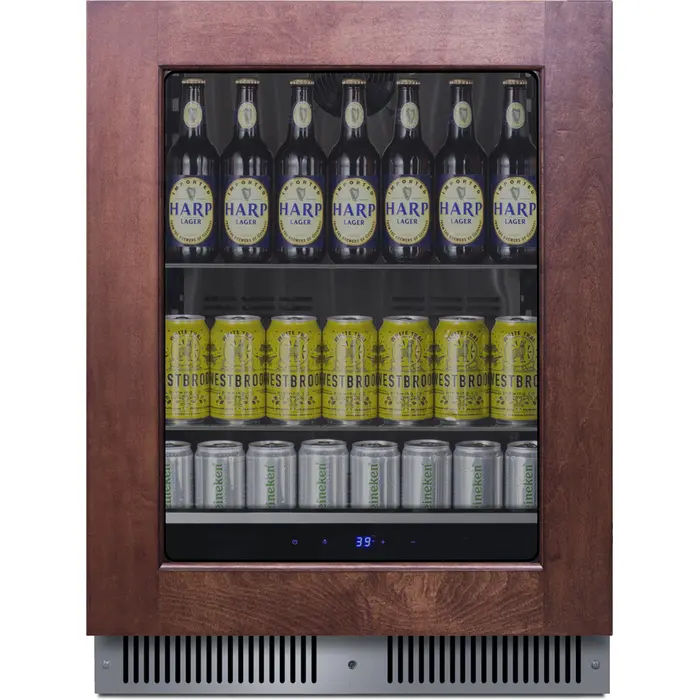

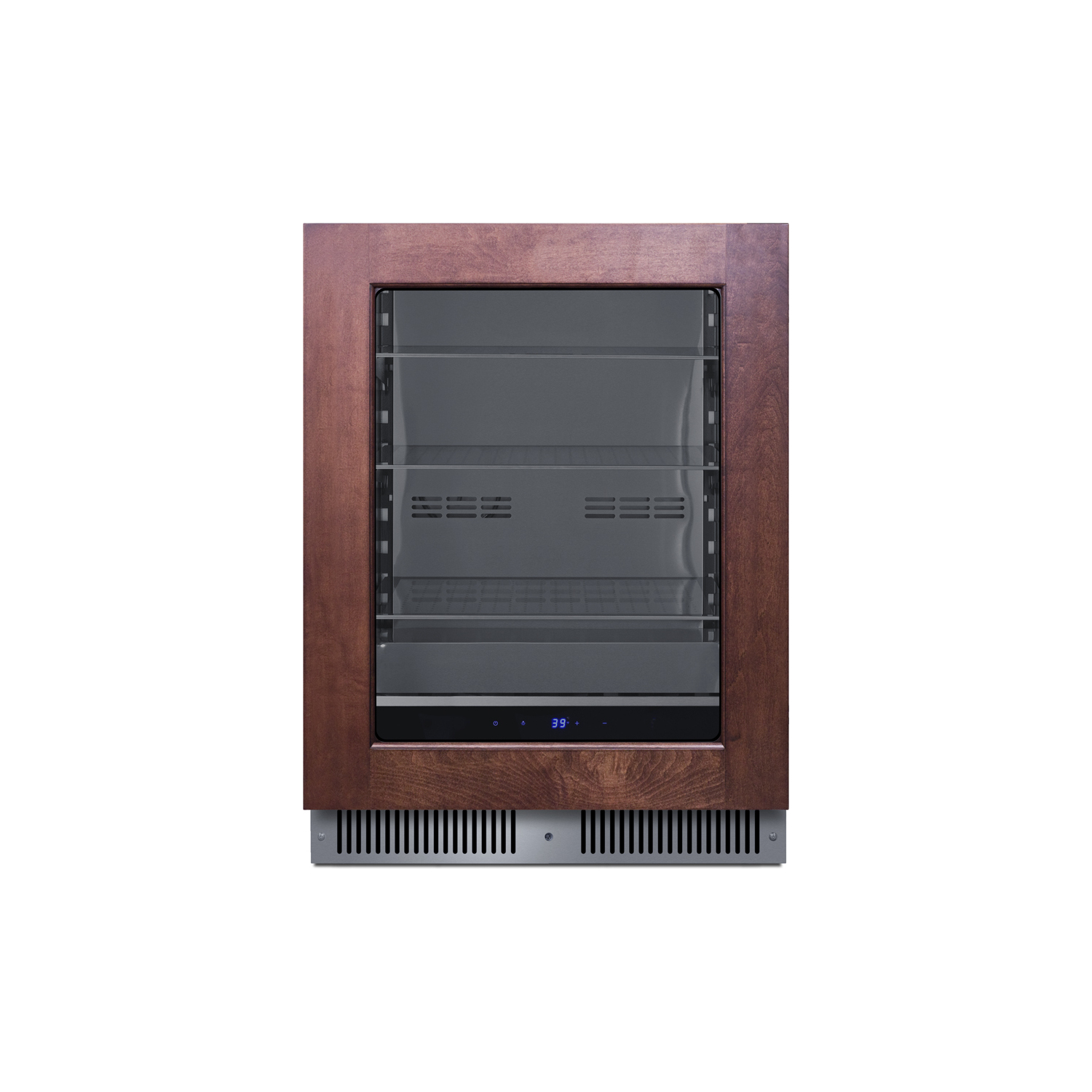

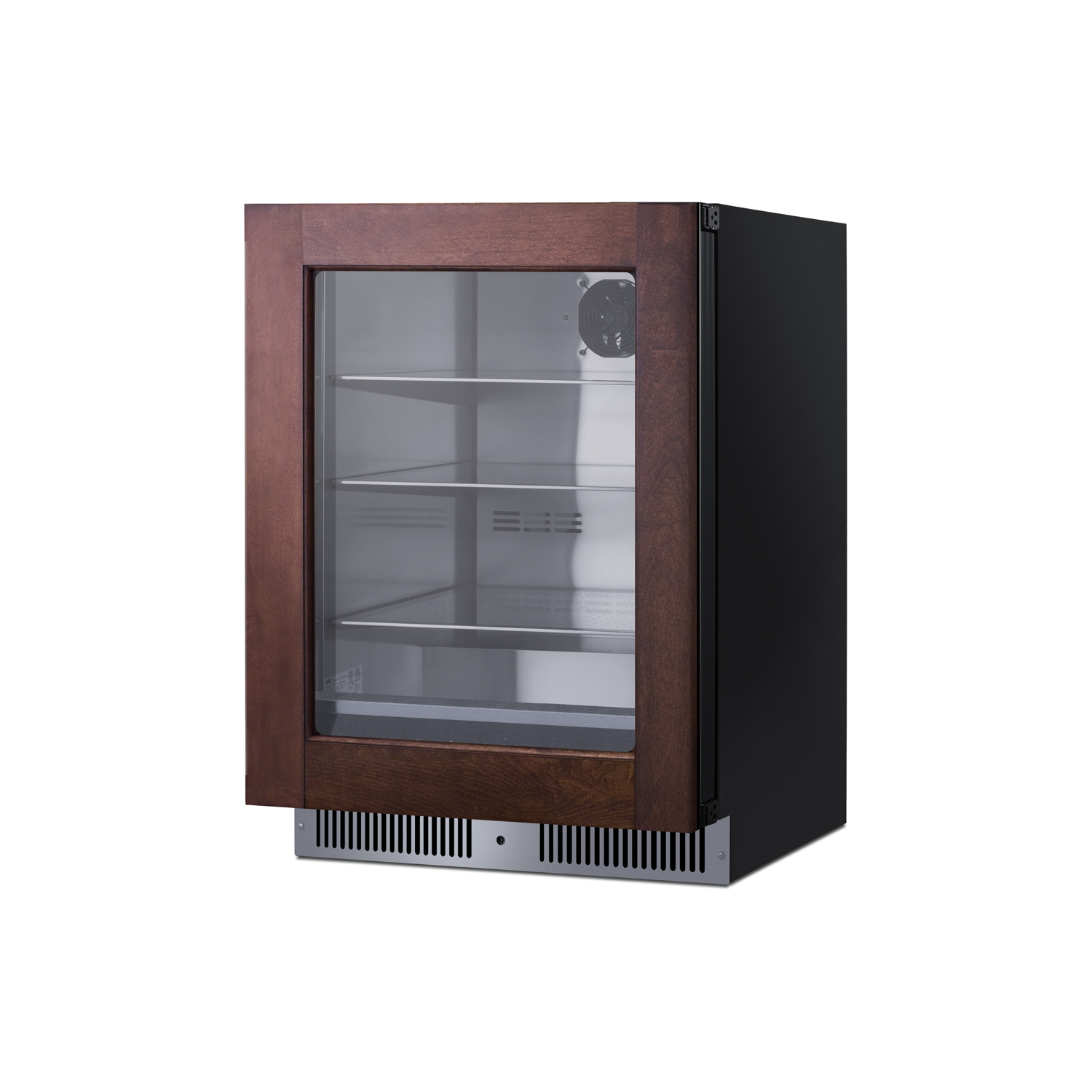

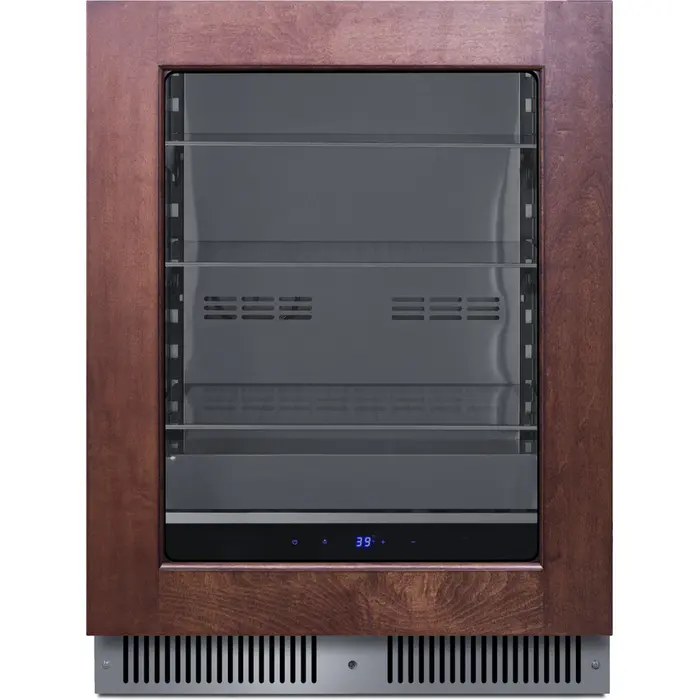

Summit Shallow 18 inch deep 24 inch wide undercounter beverage center, 7.61101e+011, SDHG2443PNRLHD
$1,829.00
Retail Price: $2,675.00
Free shipping
$ 1,829.00
Description
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
The SDHG2443PNRLHD is a 24" wide beverage refrigerator, sized at 18" deep. It comes in a 34" height to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHG2443PNRLHD features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG2443PNR.
The unit's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36° F and 43°F.
Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. Create a matching set by pairing this with our SDHW2442PNR wine cellar.
Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and ADA-compliant options. For a 15" wide unit, see model SDHG1533PNR.
SPECIFICATIONS
Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 18.0" (46 cm)
Depth 18.0" (46 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 290.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 116.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145730
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 33.5 dB
Dimensions
Interior Height 26.0" (66 cm)
Interior Width 19.25" (49 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.25" (49 cm)
Compressor Step Depth 5.0" (13 cm)
FEATURES
24" Wide Beverage Center Undercounter glass door beverage refrigerator for residential use
18" depth Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Built-In capable Front-breathing design lets you make the best use of space by installing your appliance under the counter
Versatile design Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim
Panel-ready door trim European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
Double pane tempered glass door Elegant design offers a clear but protected view of your interior
Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge
Factory installed lock Keyed lock for a secure interior (2 keys included)
Stainless steel interior Walls and floor are constructed from stainless steel for added strength and easy cleanup
Ideal temperature range The unit's temperature range of 36°F to 43°F is ideal for chilling beverages
High/low temperature alarm Audible alarm sounds if the interior temperature rises out of set range
Frost-free operation No-frost operation for minimum user maintenance
Digital controls Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Angled thermostat Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management
Temperature memory function Unit will retain its last settings when power is restored in the event of power loss
Internal fan Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Dimmable LED light Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Sabbath mode Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Open door alarm Alarm sounds if the door is left open for more than 60 seconds
Adjustable glass shelves Spill-proof shelving for easy cleanup and flexible storage
Left-hand door swing For this unit with a standard right-hand door swing, see model SDHG2443PNR
Fully finished black cabinet Allows the unit to be used freestanding
Sealed back Space-saving design with no exposed coils that offers easier cleanability
Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Quiet operation Runs under 34 dB for a quiet performance that won't interrupt your conversation
100% CFC free Environmentally friendly design with no ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
USE & CARE (SDHG2443PNRLHD-User-Manual.pdf)
Energy Guide
