Summit Shallow 18 inch deep 15 inch wide undercounter beverage center, 7.61101e+011, SDHG1533

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

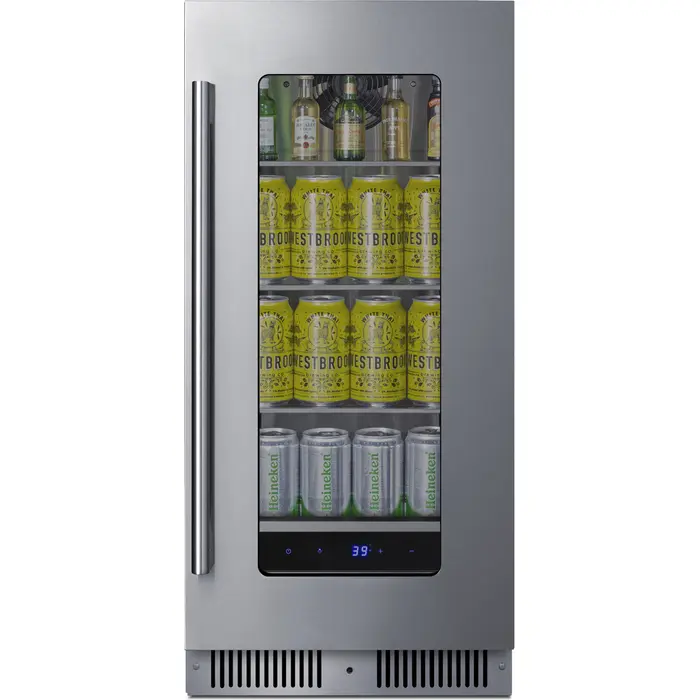

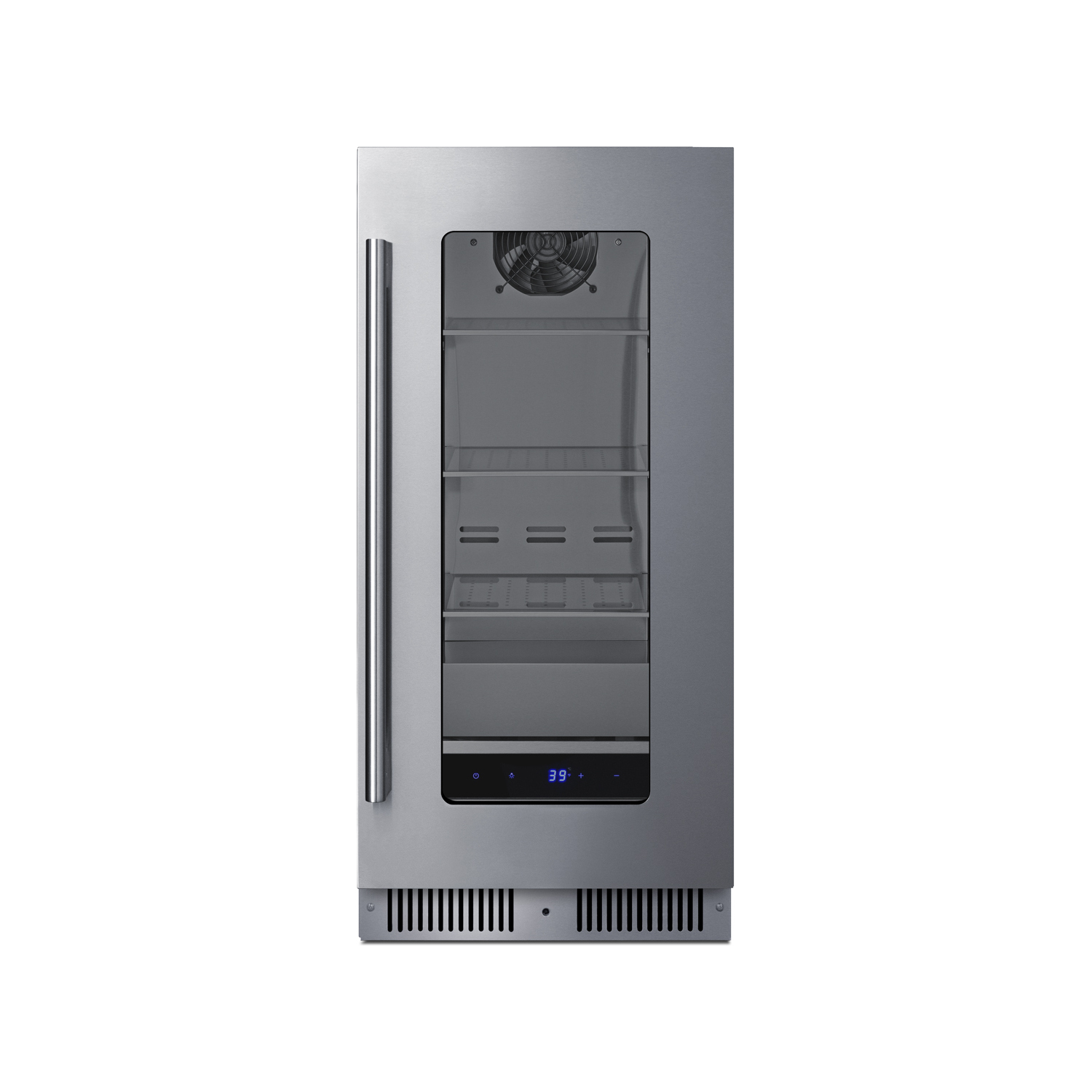

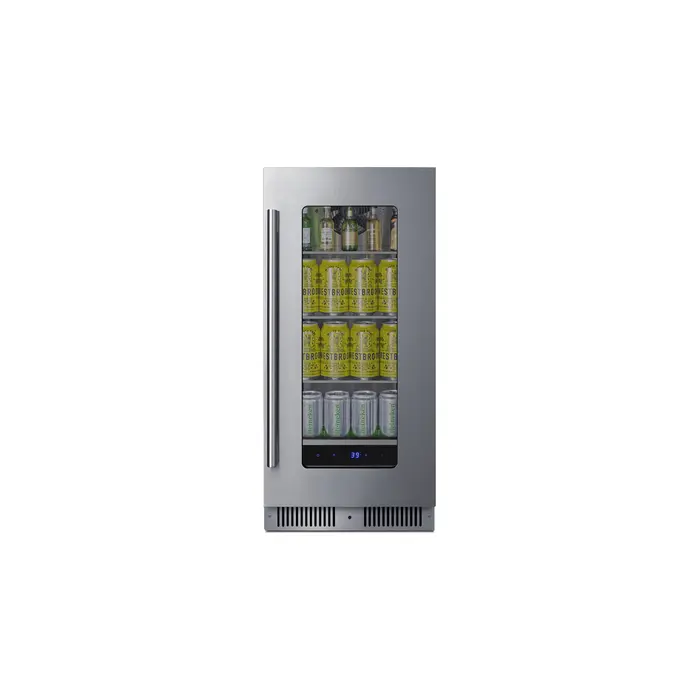

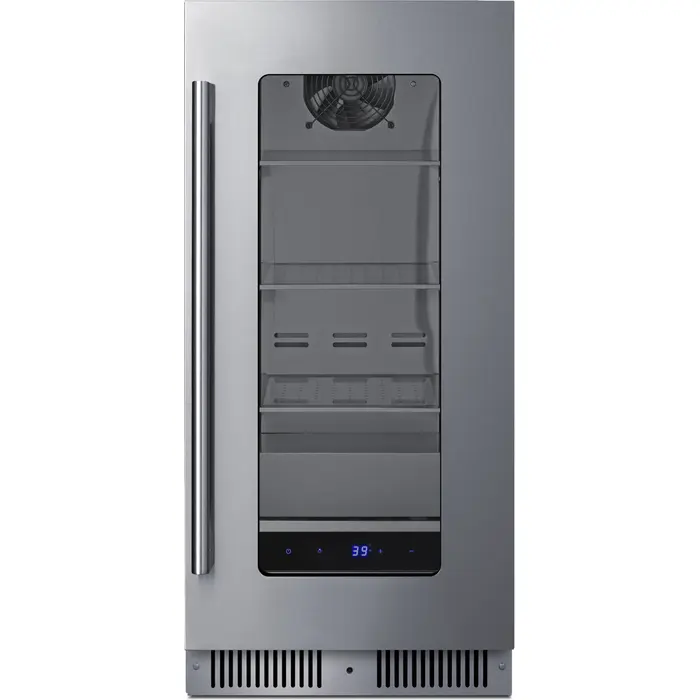

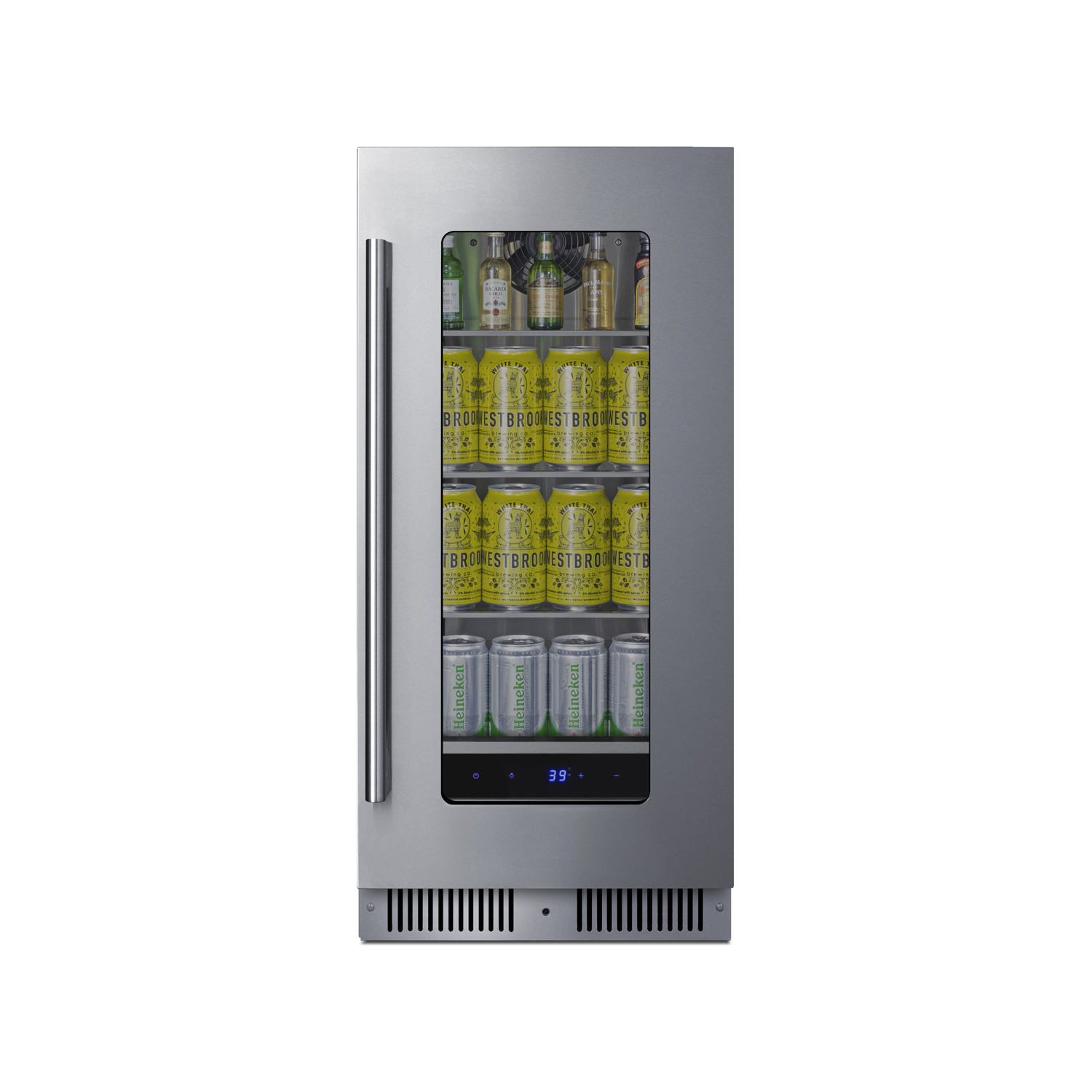

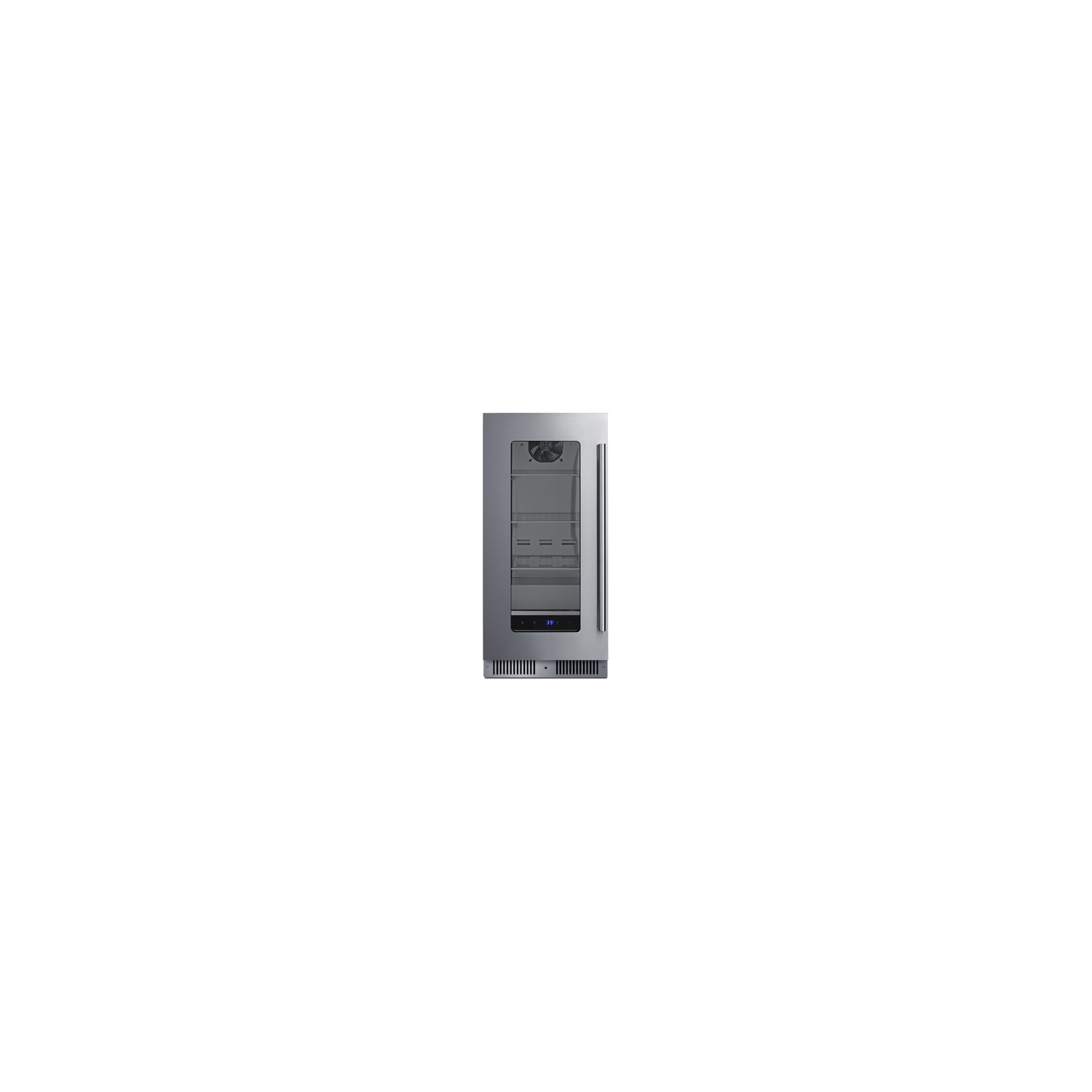

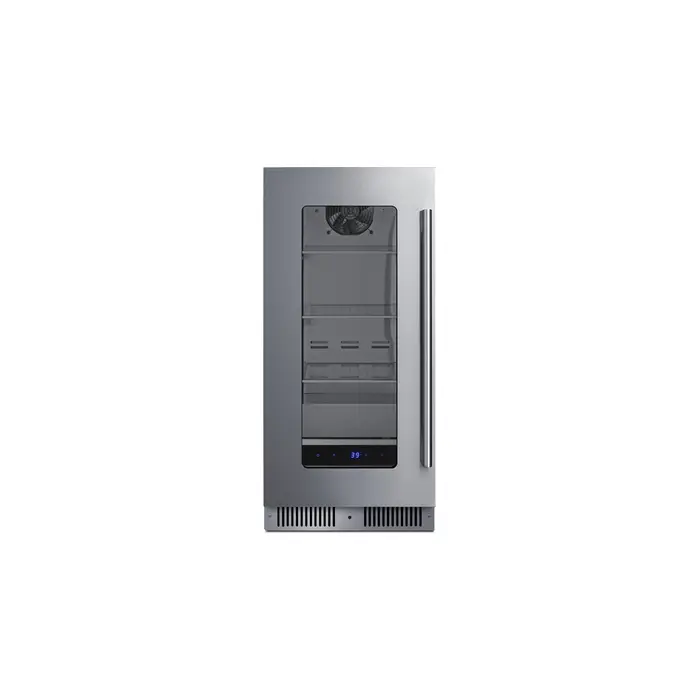

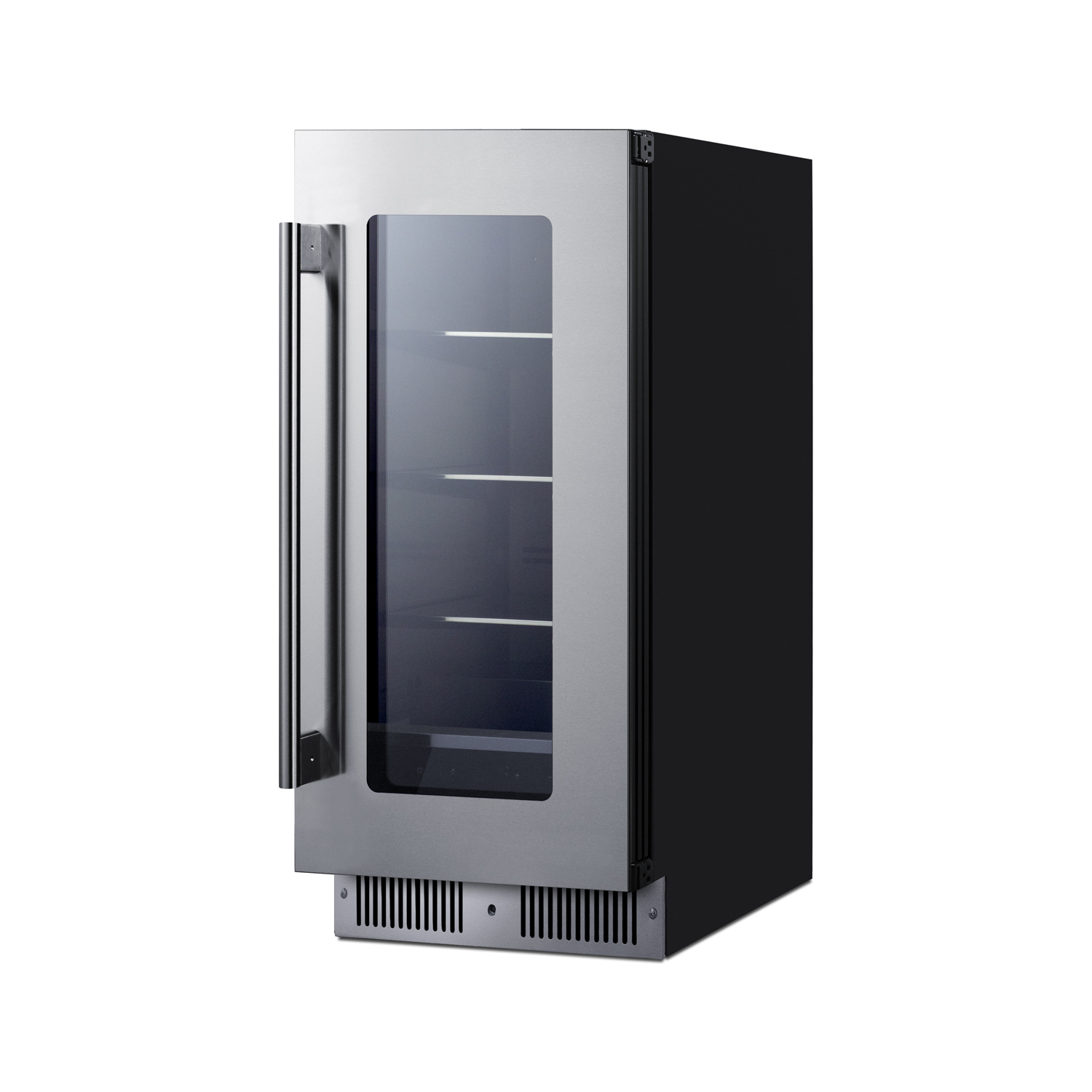

The SDHG1533 is a 15" wide beverage refrigerator, sized at just 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the reversible double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The fully articulating European hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security.

The unit's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36°F and 43°F.

Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. Create a matching set by pairing this with our SDHW1532 wine cellar.

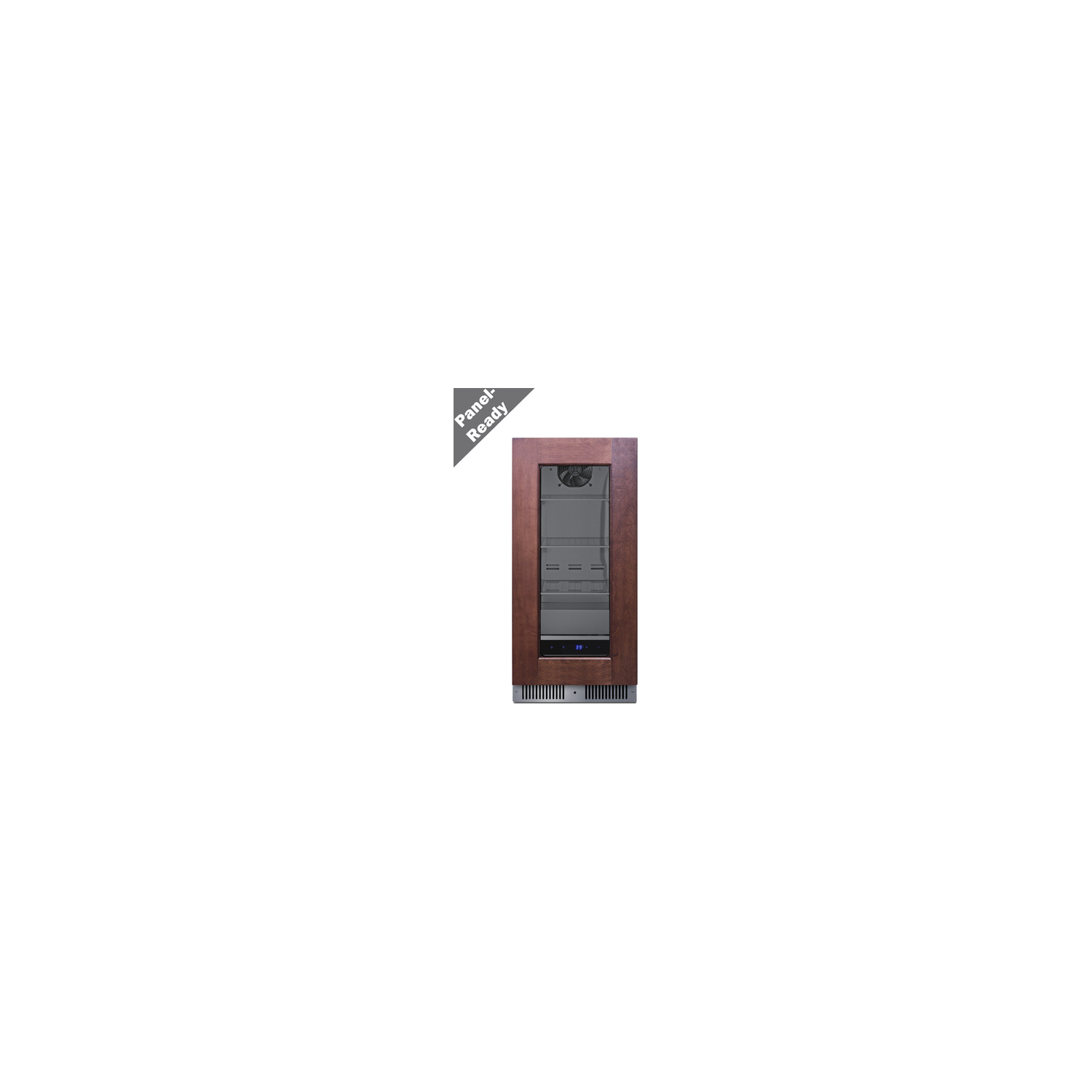

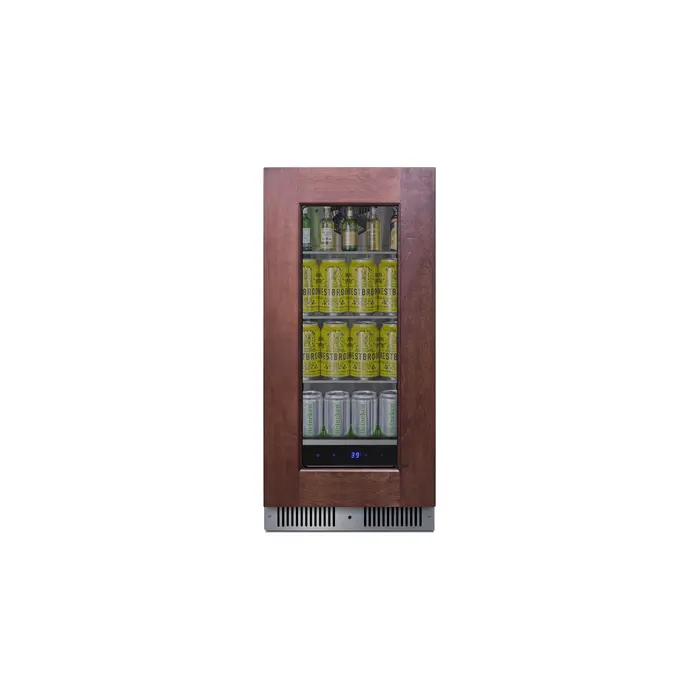

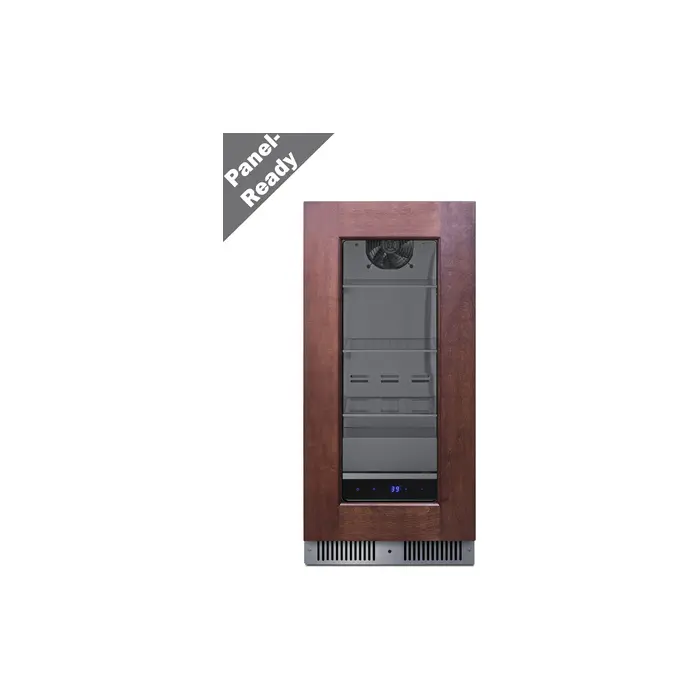

Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a panel-ready version, see model SDHG1533PNR.

SPECIFICATIONS

Overview

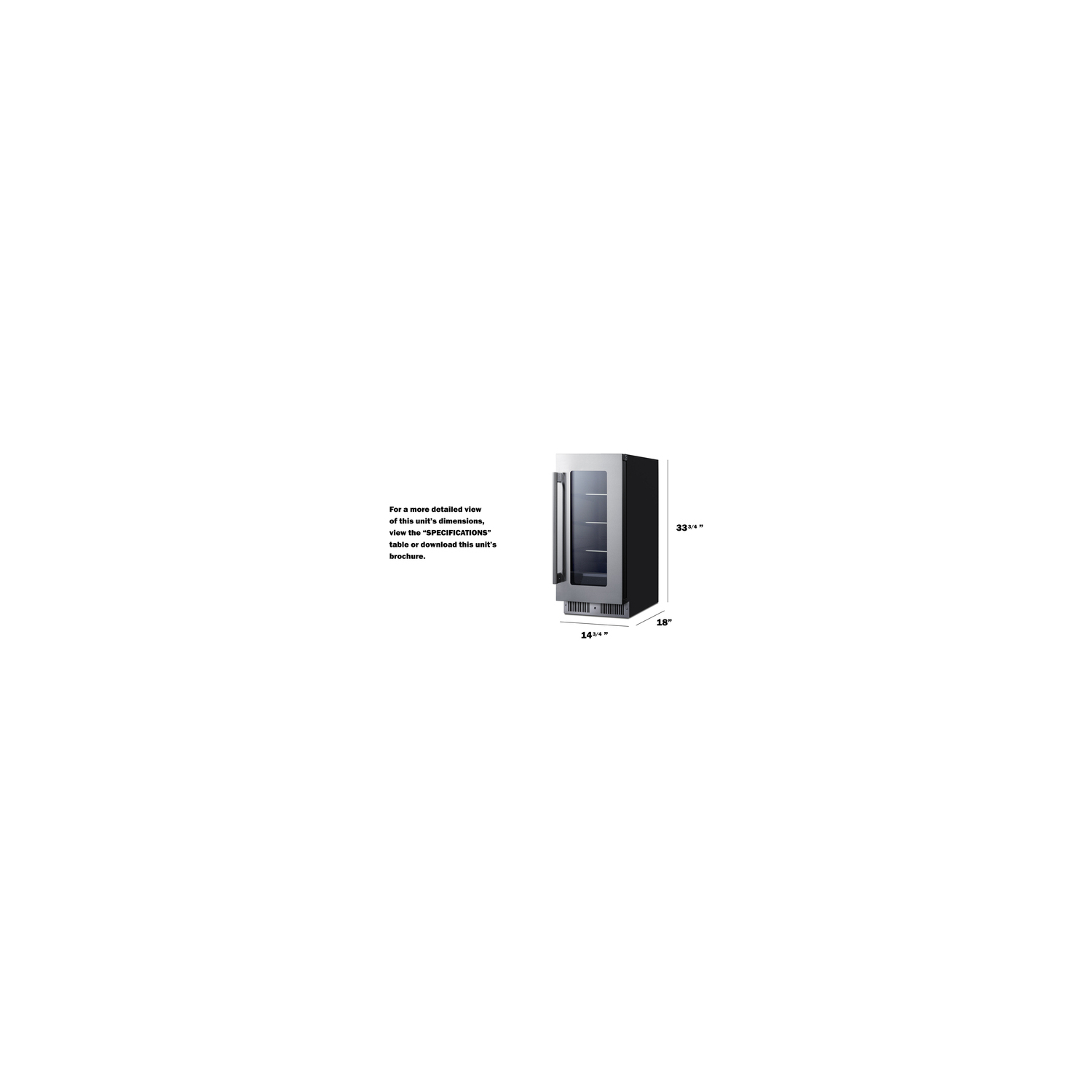

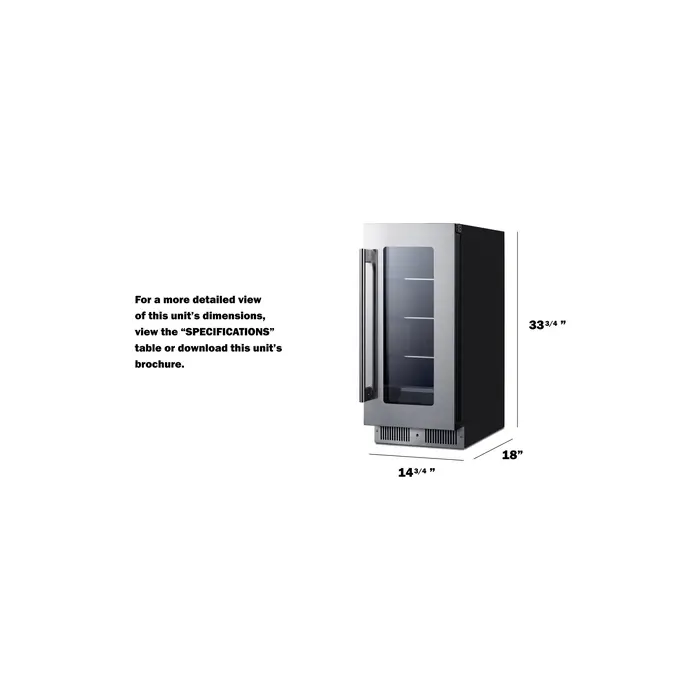

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.75" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 18.0" (46 cm)

Depth 18.0" (46 cm)

Depth with Handle 19.75" (50 cm)

Depth with door at 90° 32.63" (83 cm)

Capacity 1.9 cu.ft. (54 L)

Defrost Type Frost-Free

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 270.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 86.0 lbs. (39 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101106342

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.85oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36° F to 43°F

Sound Level 33.5 dB

Dimensions

Interior Height 26.0" (66 cm)

Interior Width 10.63" (27 cm)

Interior Depth 12.25" (31 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 10.63" (27 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

15" Wide Beverage Center Undercounter glass door beverage refrigerator for residential use

18" depth Unique 18" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Built-In capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Double pane tempered glass door Elegant design offers a clear but protected view of your interior

Stainless steel interior Walls and floor are constructed from stainless steel for added strength and easy cleanup

Seamless stainless steel door trim Glass is framed by with a flush one-piece stainless steel trim for an elevated look

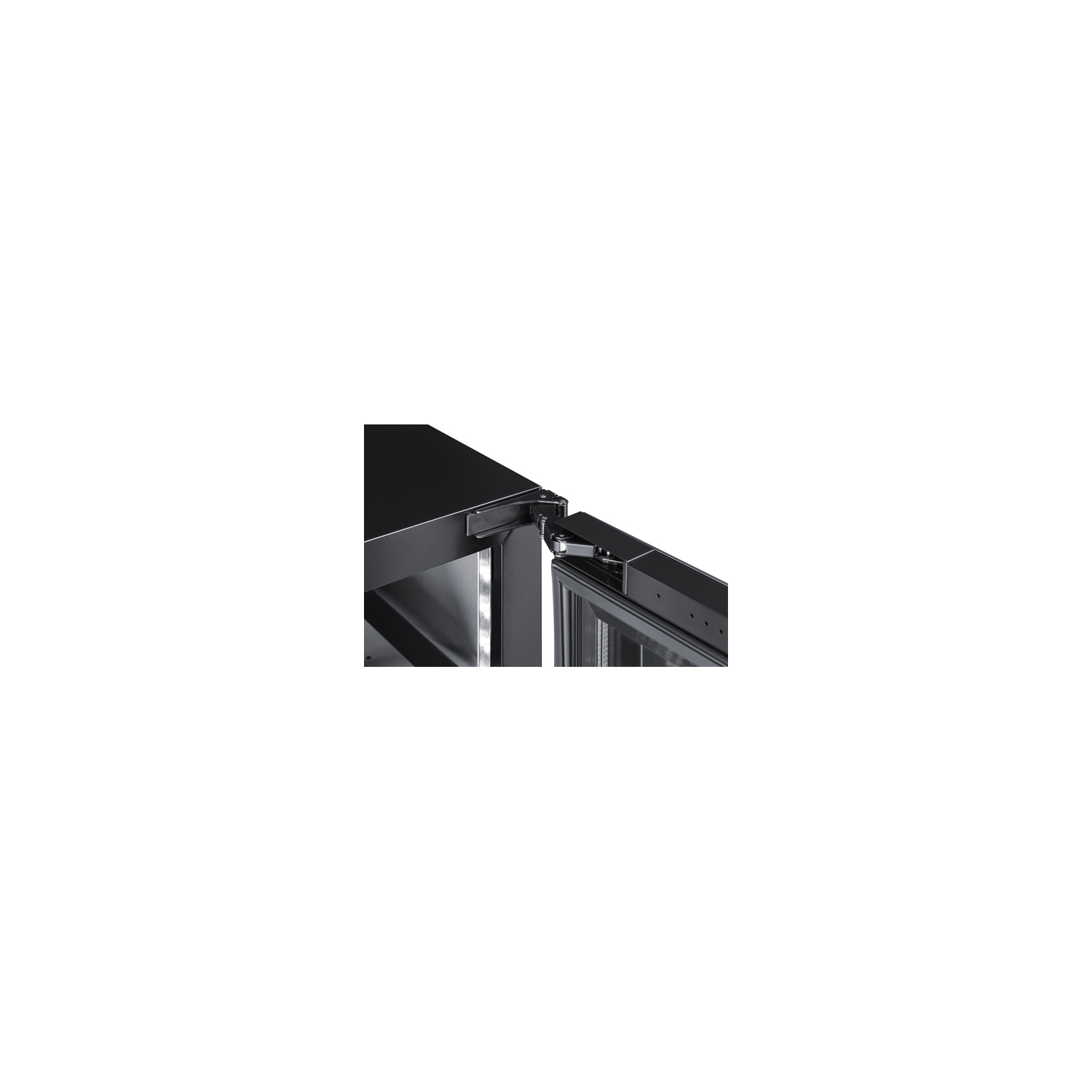

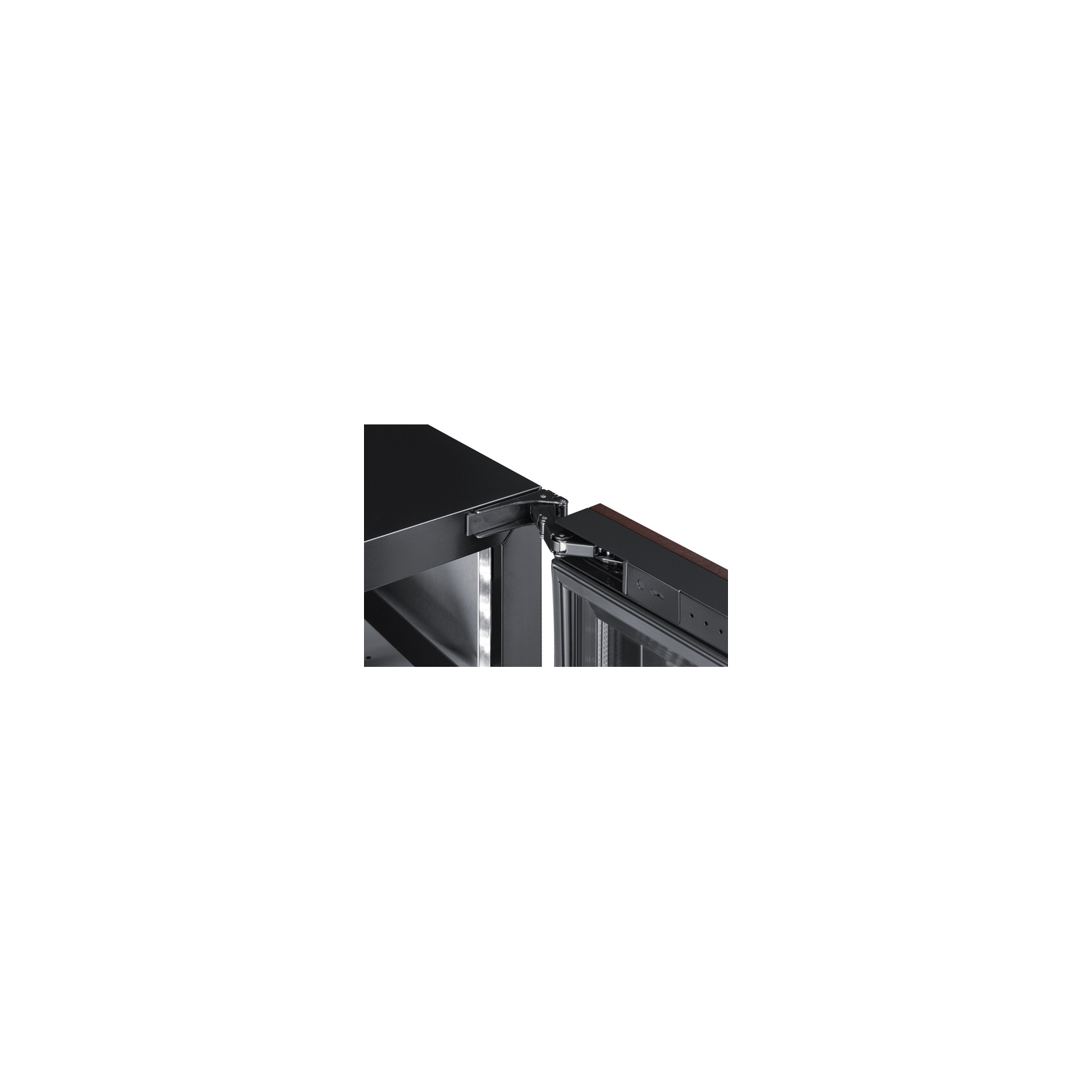

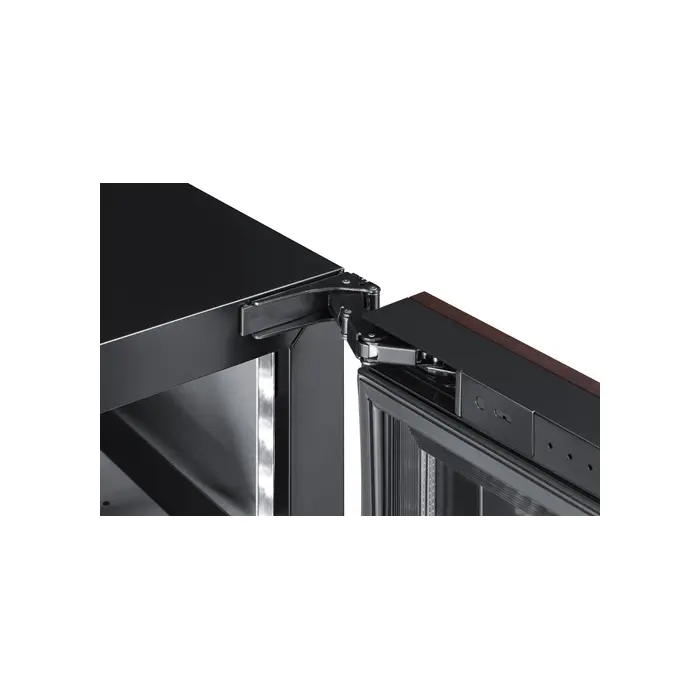

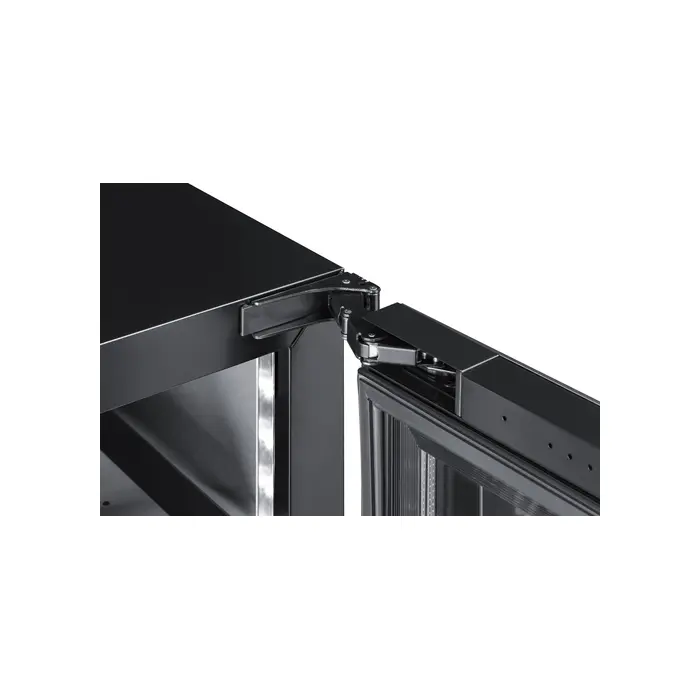

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Professional handle Stainless steel handle completes the look

Factory installed lock Keyed lock for a secure interior (2 keys included)

Frost-free operation No-frost operation for minimum user maintenance

Digital controls Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Ideal temperature range The unit's temperature range of 36°F to 43°F is ideal for chilling beverages

Angled thermostat Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management

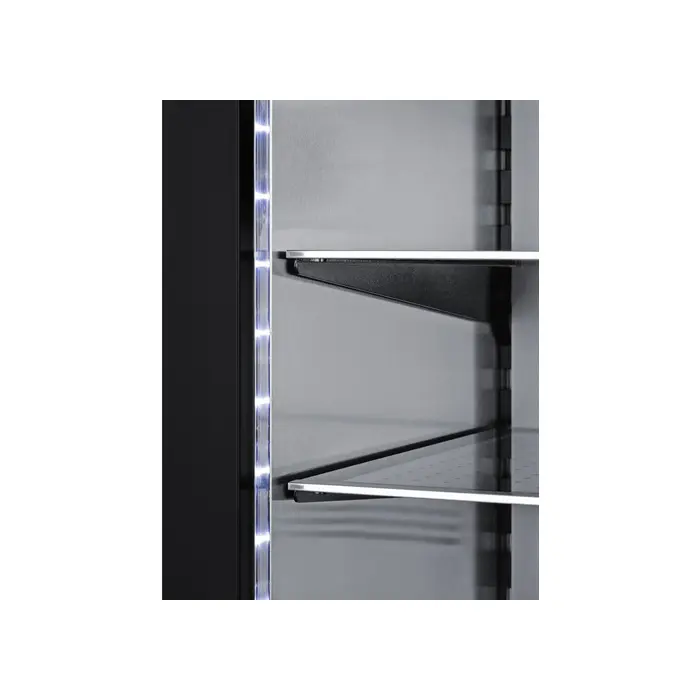

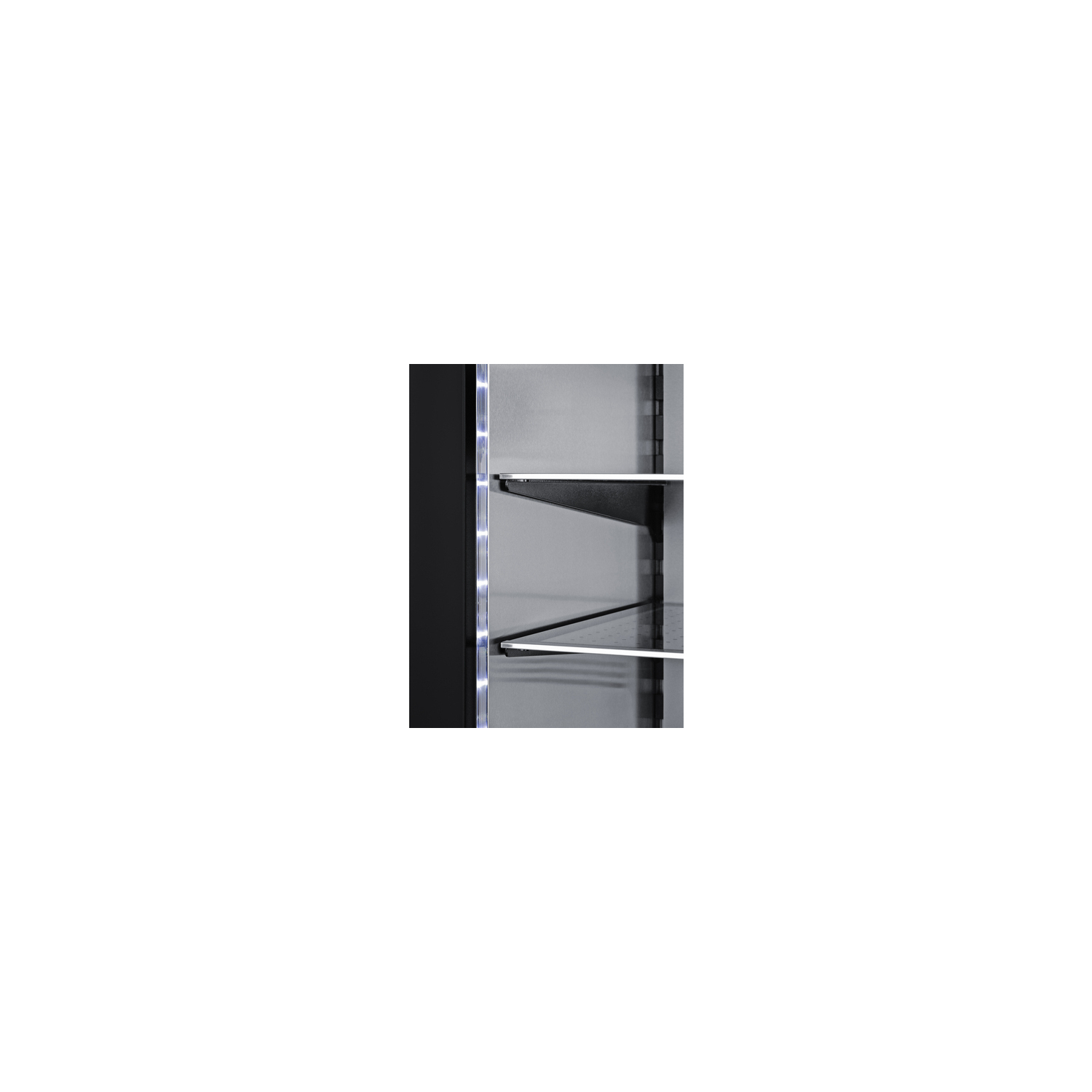

Dimmable LED light Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

High/low temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Internal fan Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance

Temperature memory function Unit will retain its last settings when power is restored in the event of power loss

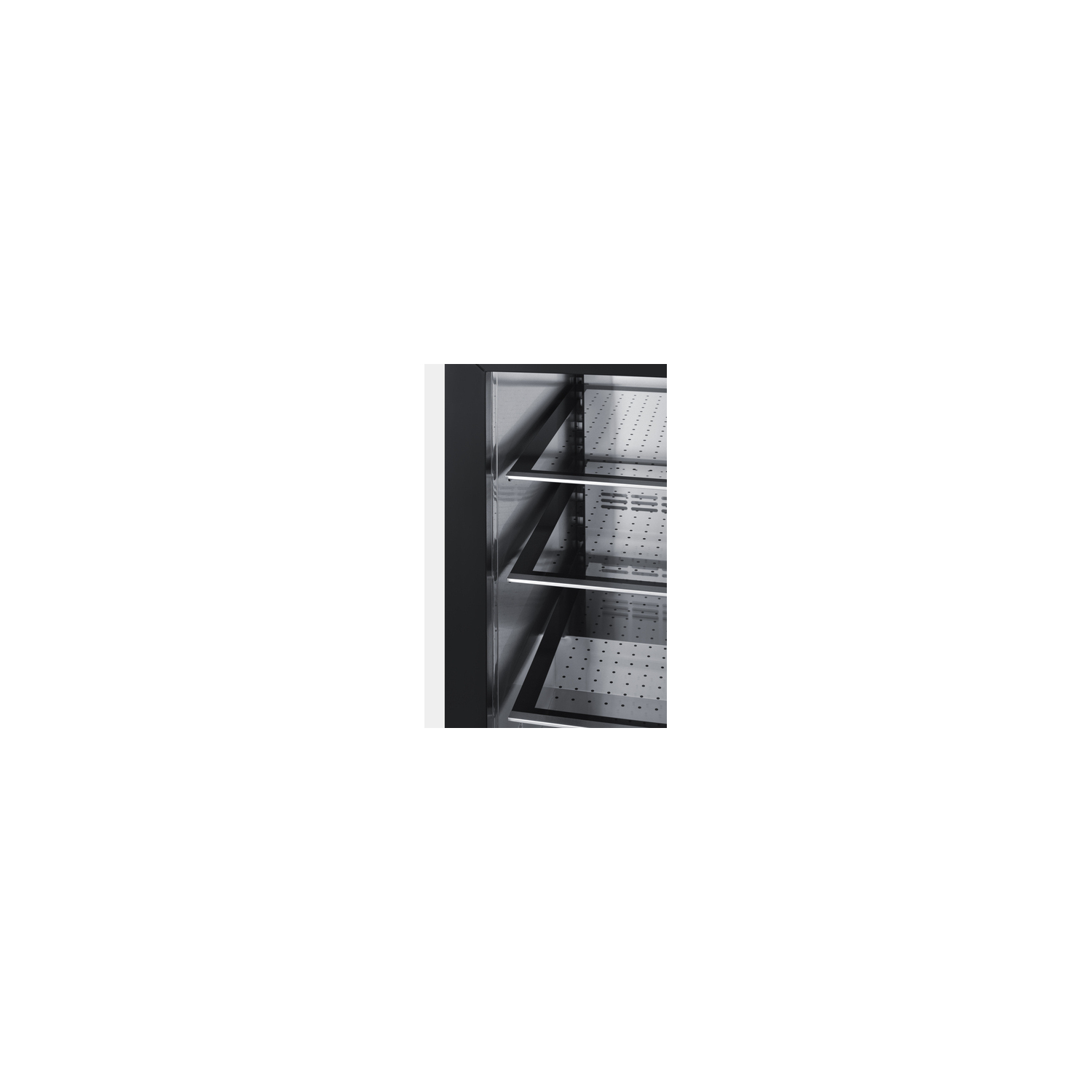

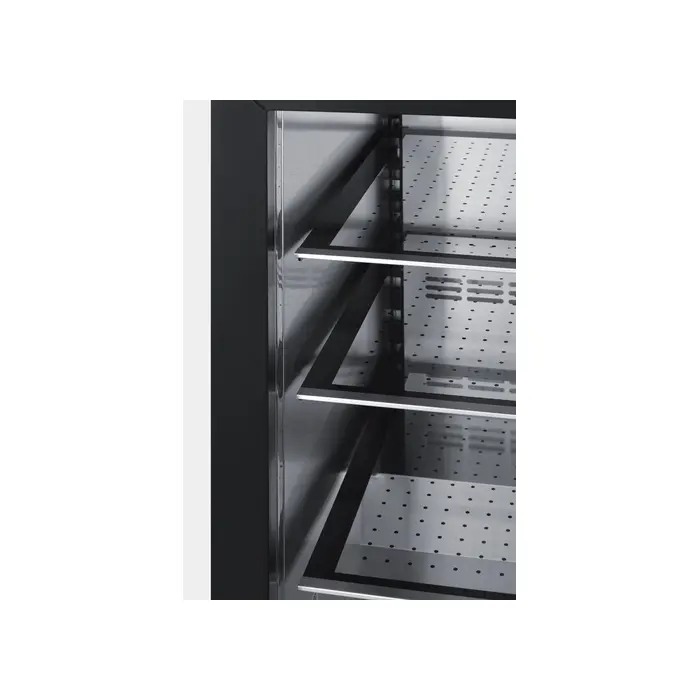

Adjustable glass shelves Spill-proof shelving for easy cleanup and flexible storage

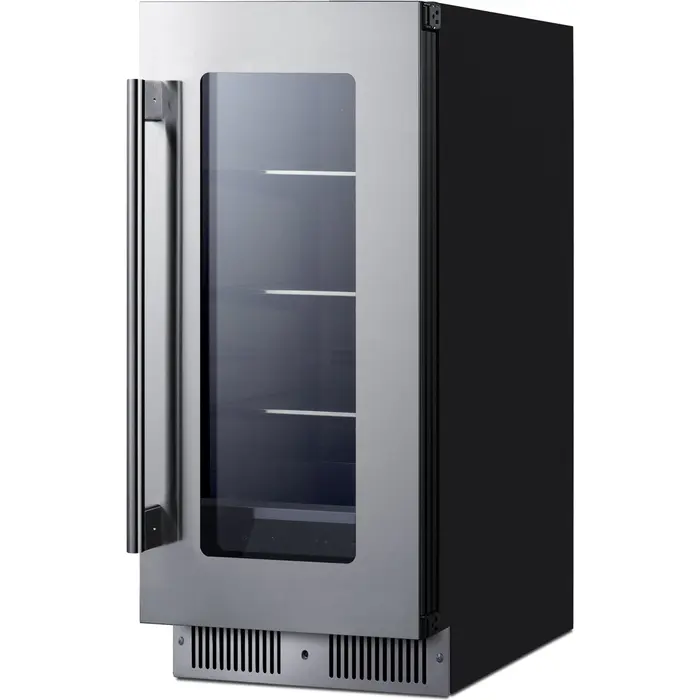

Fully finished black cabinet Allows the unit to be used freestanding

Sealed back Space-saving design with no exposed coils that offers easier cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

Quiet operation Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SDHG1533.pdf)

TECHNICAL DRAWING (.dwg) (SDHG1533.dwg)

ASSEMBLY DRAWING (SDHG1533-Assembly.pdf)

USE & CARE (SDHG1533-User-Manual.pdf)

Energy Guide
