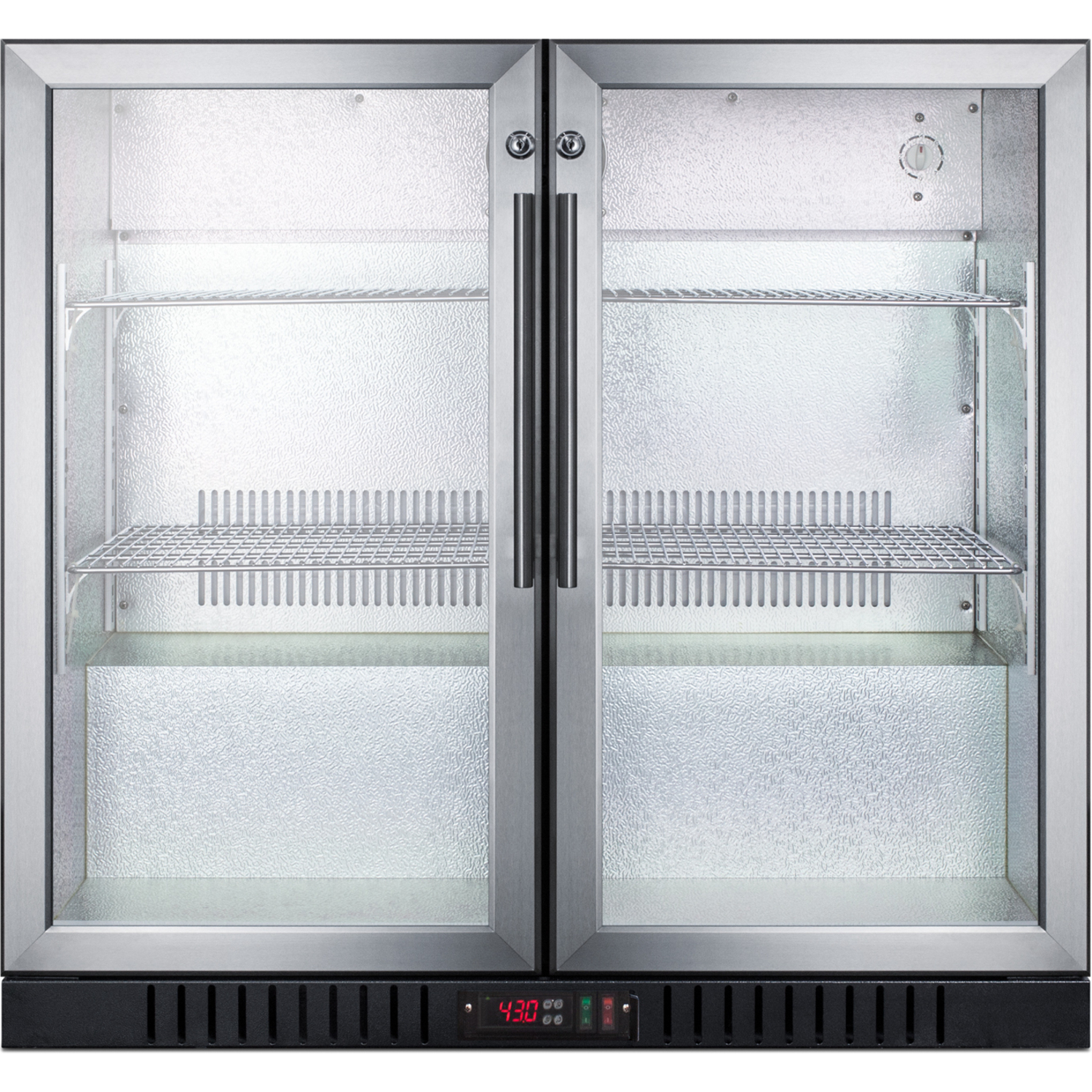

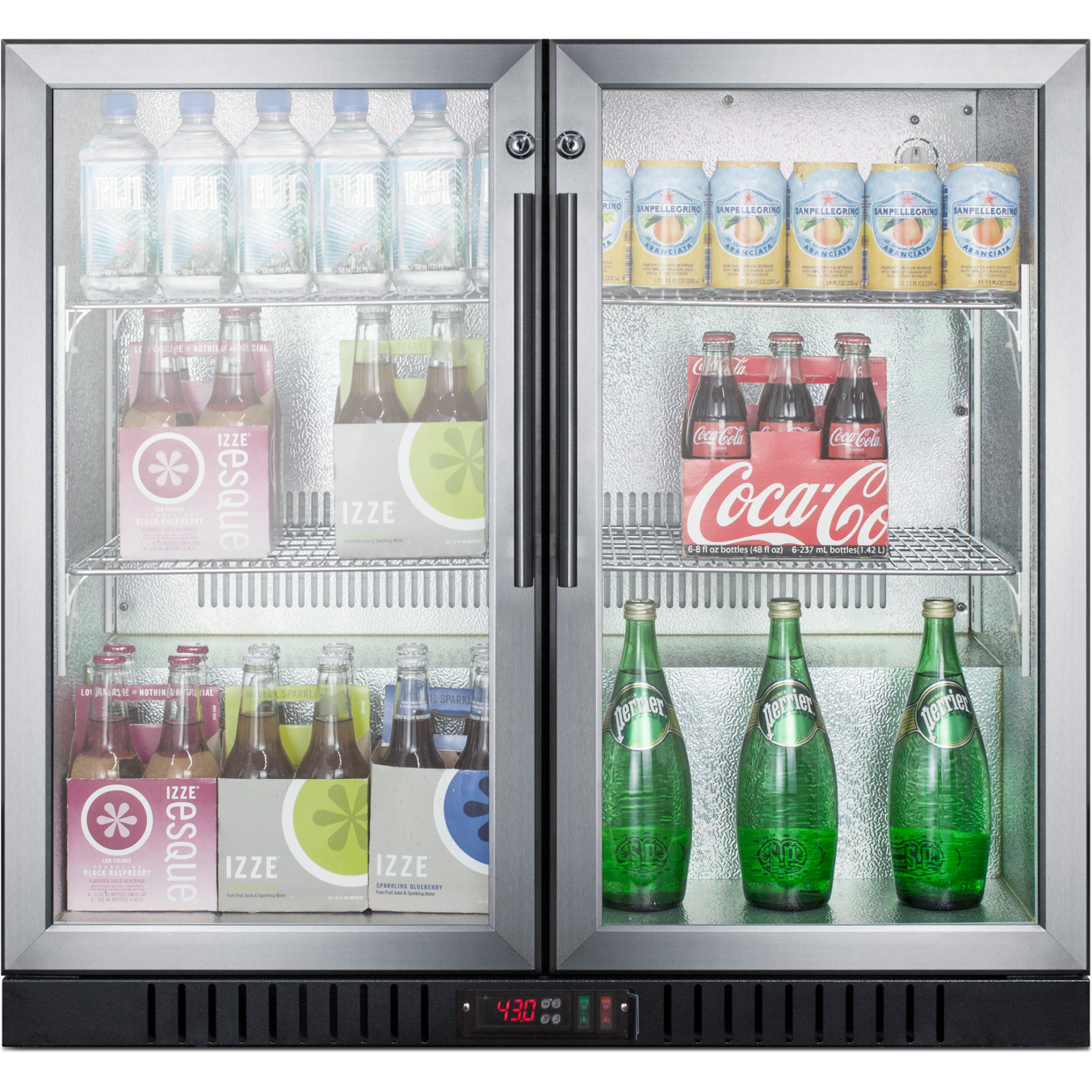

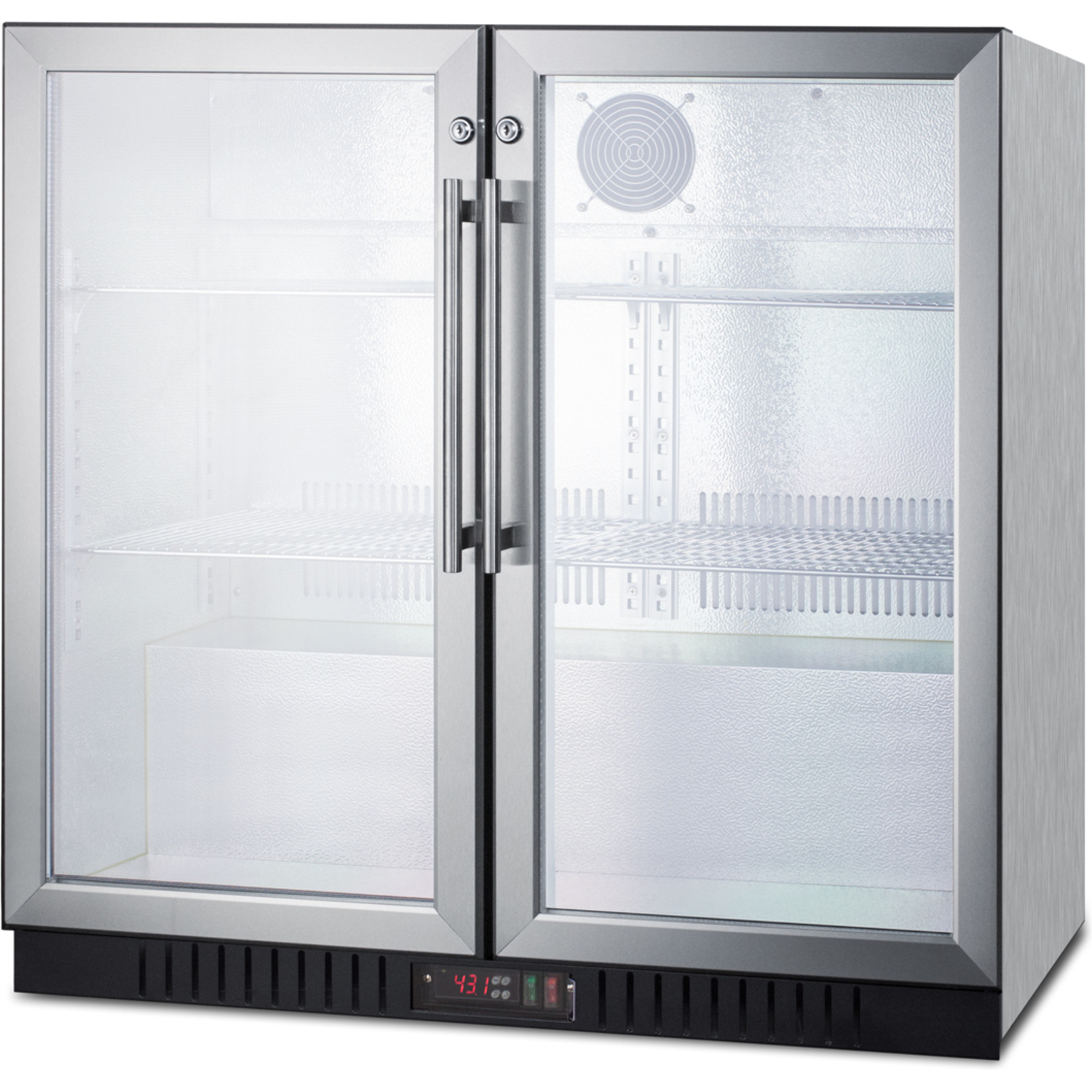

Summit Commercial back bar beverage center for freestanding use, with self-closing French doors and stainless steel wrapped cabinet, 7.61101e+011, SCR7012DBCSS

SUMMIT's SCR7012DBCSS is a commercial beverage merchandiser designed to maximize impulse sales.

This commercially approved all-refrigerator utilizes automatic defrost for low maintenance, with a digital thermostat for easy temperature control. Adjustable chrome shelves on a cantilevered system let you customize the hammered aluminum interior to accommodate different sized items. Full interior lighting ensures an attractive product display.

Two solid glass doors are trimmed with stainless steel and equipped with front-mounted locks for added security. Both are self-closing to help ensure stored items aren't accidentally left exposed to room temperature. Stainless steel handles complete the professional look. This unit comes in a stainless steel wrapped exterior cabinet.

This model is ETL-S listed to NSF-7 commercial standards. Set this unit above or below the counter (with proper ventilation) as a self-service refrigerator for impulse buys.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.13" (87 cm)

Nominal Width 36.0" (91 cm)

Width 35.5" (90 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.63" (50 cm)

Depth with Handle 21.13" (54 cm)

Depth with door at 90° 36.0" (91 cm)

Capacity 7.4 cu.ft. (210 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 138.0 lbs. (63 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101057057

Refrigerator Features

Door Swing French

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.92oz.

High Side PSI 215.0

Low Side PSI 60.0

Interior Light Yes

Temperature Range 36 to 43ºF

Dimensions

Interior Height 28.25" (72 cm)

Interior Width 32.5" (83 cm)

Interior Depth 15.0" (38 cm)

Compressor Step Height 7.5" (19 cm)

Compressor Step Width 32.5" (83 cm)

Compressor Step Depth 7.25" (18 cm)

FEATURES

Automatic defrost Reduced maintenance with auto defrost system

Commercially approved ETL-S Approved to ANSI-NSF Standard 7 for use in commercial establishments

Two glass doors Solid glass doors provide a clear view of interior contents

Two factory installed locks Keyed locks located towards the top of the doors offer convenient security

Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Digital thermostat Electronic controls located in the front kickplate for easy temperature management

Interior light Illuminates the interior for a an attractive view of stored contents

Stainless steel trim on doors Added touch of elegance with a stainless steel door trim

Stainless steel wrapped cabinet Exterior features attractive and durable stainless steel finish for long-lasting professional luxury

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR7012DBCSS.pdf)

TECHNICAL DRAWING (.dwg) (SCR7012DBEVERAGECENTERA-C2000_2.dwg)

USE & CARE (SCR7012DBCSS-User-Manual.pdf)

TROUBLESHOOTING (632.bin)
