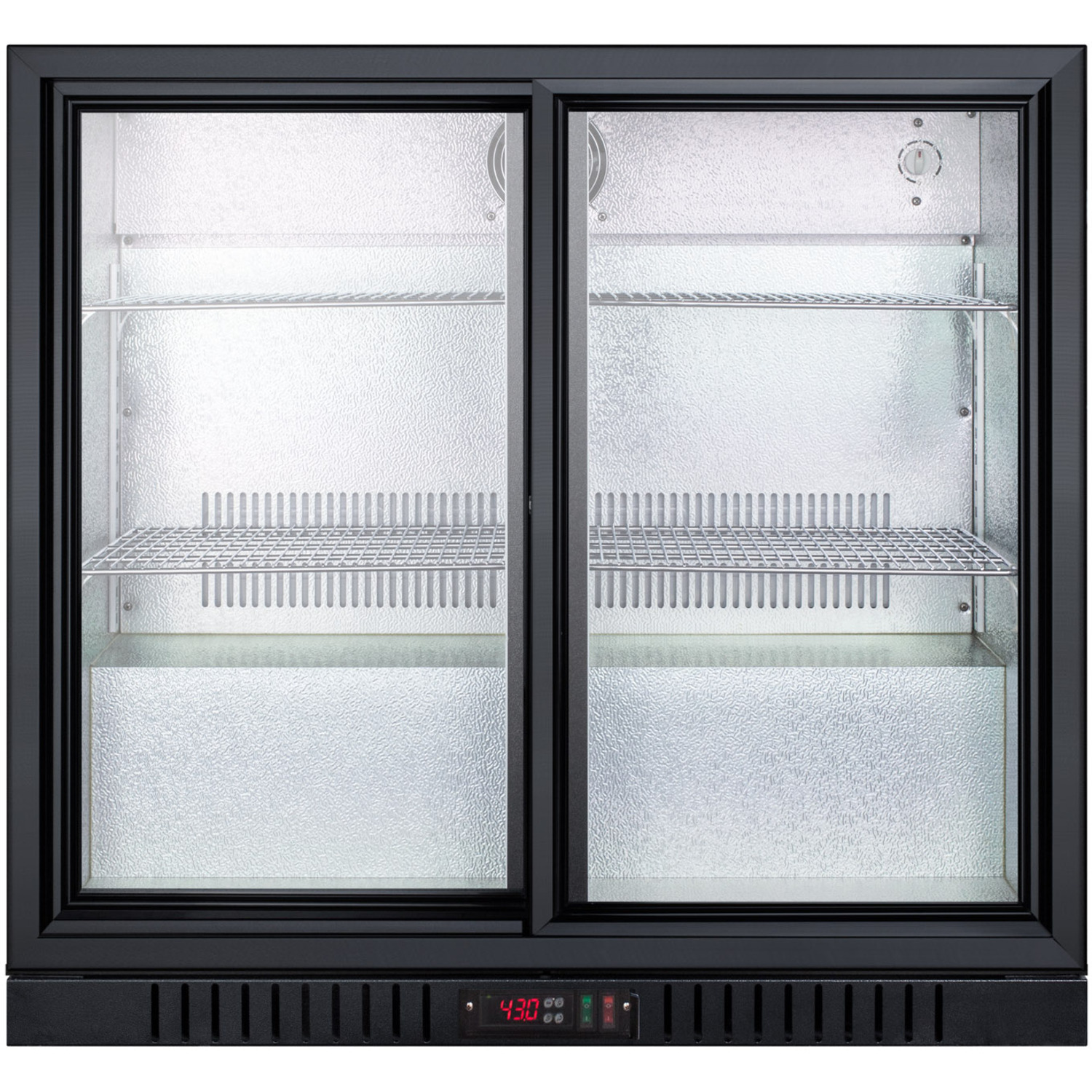

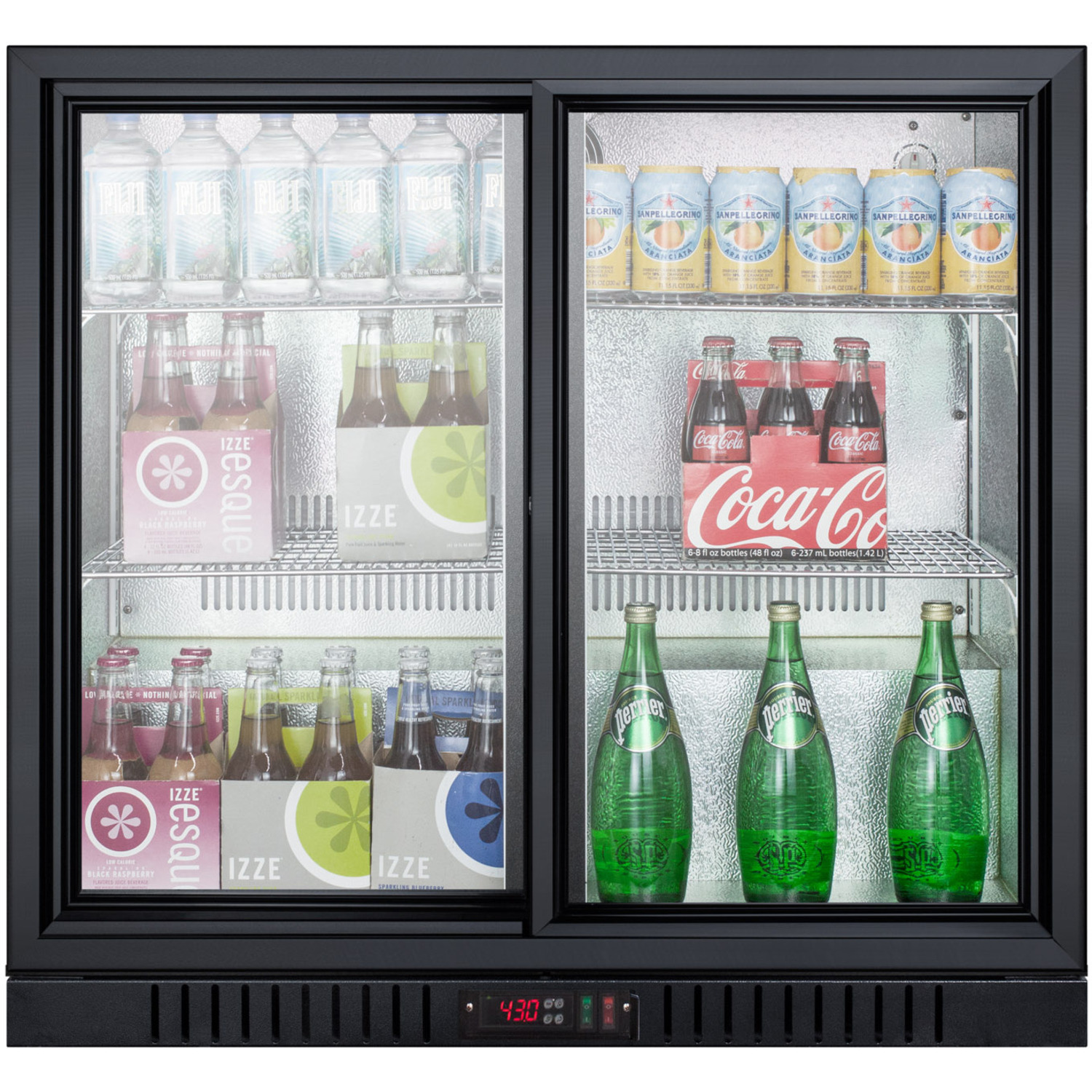

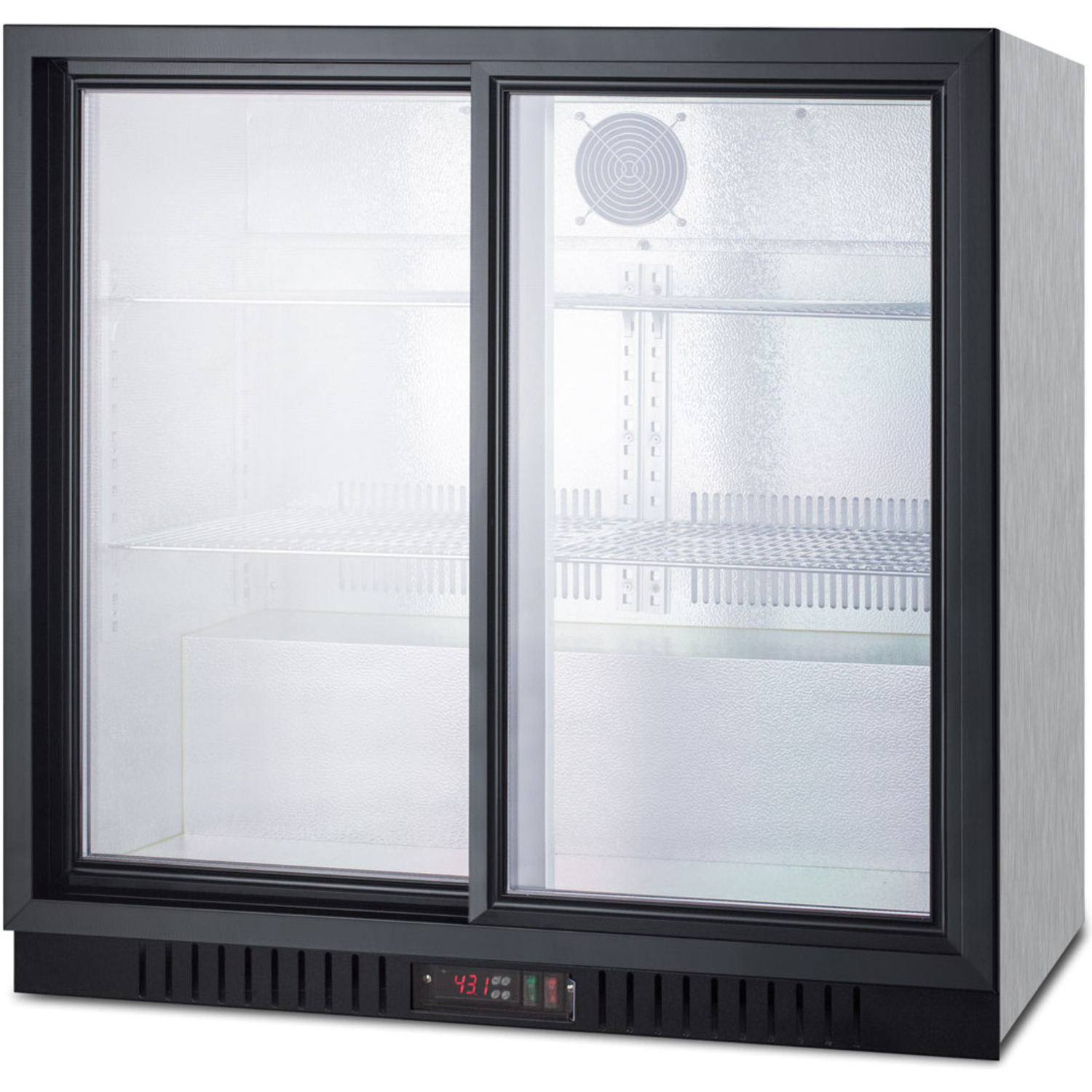

Summit Commercial back bar beverage center for freestanding use, with sliding glass doors and stainless steel wrapped cabinet, 7.61101e+011, SCR700BCSS

SUMMIT's SCR700BCSS is a versatile beverage merchandiser designed to maximize impulse sales.

This commercially approved refrigerator utilizes automatic defrost for low maintenance use. Two sliding glass doors offer a full view inside the 7.4 cu.ft. hammered aluminum interior, with interior lighting for added product visibility and fan-forced cooling to help improve temperature distribution. Adjustable chrome shelves allow you to rearrange storage to accommodate a variety of sizes. This unit includes a factory installed lock for added security and a digital thermostat for easy temperature management.

The SCR700BCSS comes with a stainless steel wrapped cabinet for improved durability and a professional look. This model is ETL-S listed to NSF-7 commercial standards. Set this unit above or below the counter (with proper ventilation) as a self-service refrigerator for impulse buys.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.13" (87 cm)

Nominal Width 36.0" (91 cm)

Width 35.5" (90 cm)

Nominal Depth 21.0" (53 cm)

Depth 20.25" (51 cm)

Capacity 7.4 cu.ft. (210 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 135.0 lbs. (61 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101057040

Refrigerator Features

Door Swing Sliding

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.92oz.

High Side PSI 215.0

Low Side PSI 60.0

Interior Light Yes

Dimensions

Interior Height 28.25" (72 cm)

Interior Width 32.25" (82 cm)

Interior Depth 15.0" (38 cm)

Compressor Step Height 7.25" (18 cm)

Compressor Step Width 32.25" (82 cm)

Compressor Step Depth 7.25" (18 cm)

FEATURES

Back bar design Sized at just 20" deep for an easy fit behind the bar

Commercially approved ETL-S Approved to ANSI-NSF Standard 7 for use in commercial establishments

Automatic defrost Reduced maintenance with auto defrost system

Two sliding glass doors Solid glass doors glide open easily while providing a clear view of stored items

Stainless steel wrapped cabinet Durable construction with a professional look

Digital thermostat Electronic controls located in the front kickplate for easy temperature management

Factory installed lock Single keyed lock for sliding doors, with two keys included

Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior light Illuminates the interior for a an attractive view of stored contents

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR700BCSS.pdf)

TECHNICAL DRAWING (.dwg) (SCR700BEVERAGECENTERA-C2000_2.dwg)

USE & CARE (SCR700BCSS-User-Manual.pdf)

TROUBLESHOOTING (632.bin)
