Summit Outdoor built-in undercounter commercial glass door beverage center with stainless steel interior and exterior cabinet, 7.61101e+011, SCR611GLOS

Summit Commercial's line of outdoor appliances includes built-in undercounter display refrigerators designed for optimum storage and product presentation.

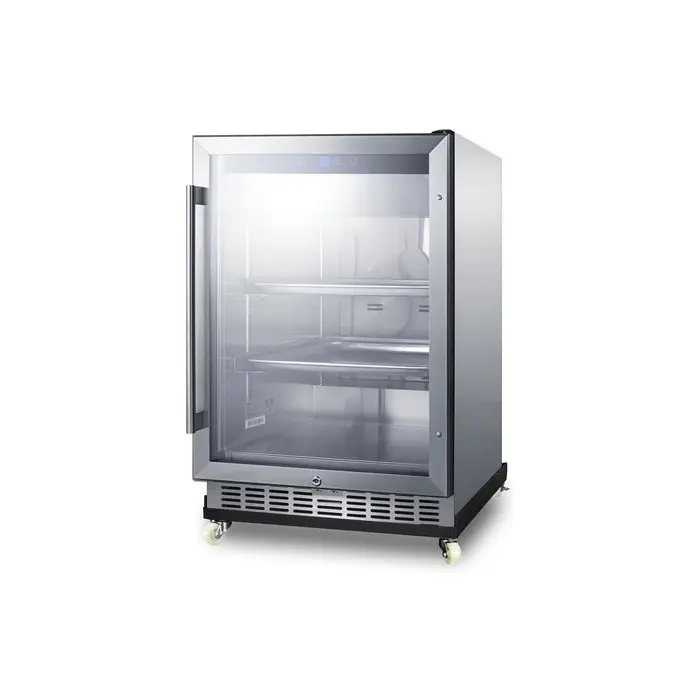

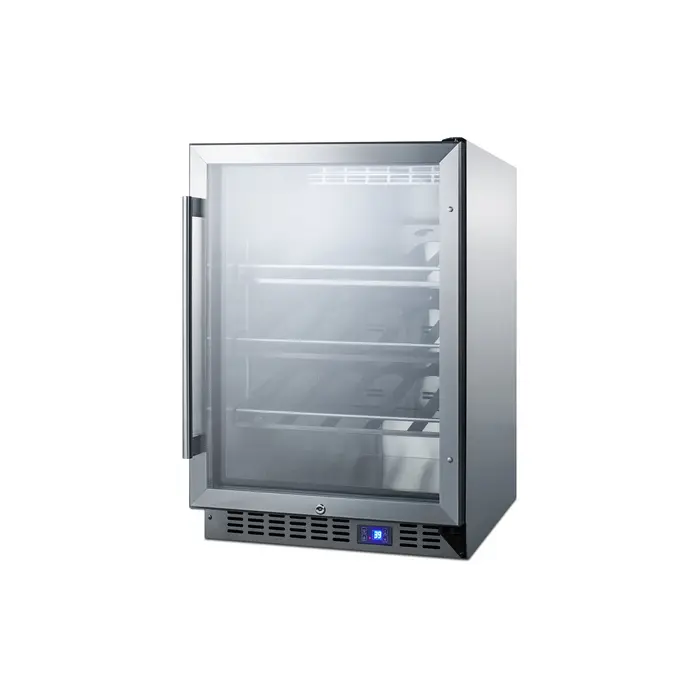

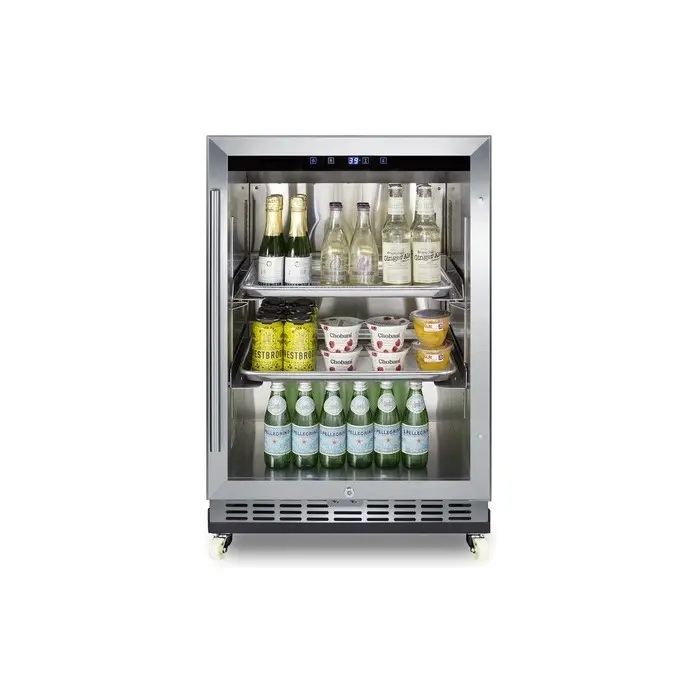

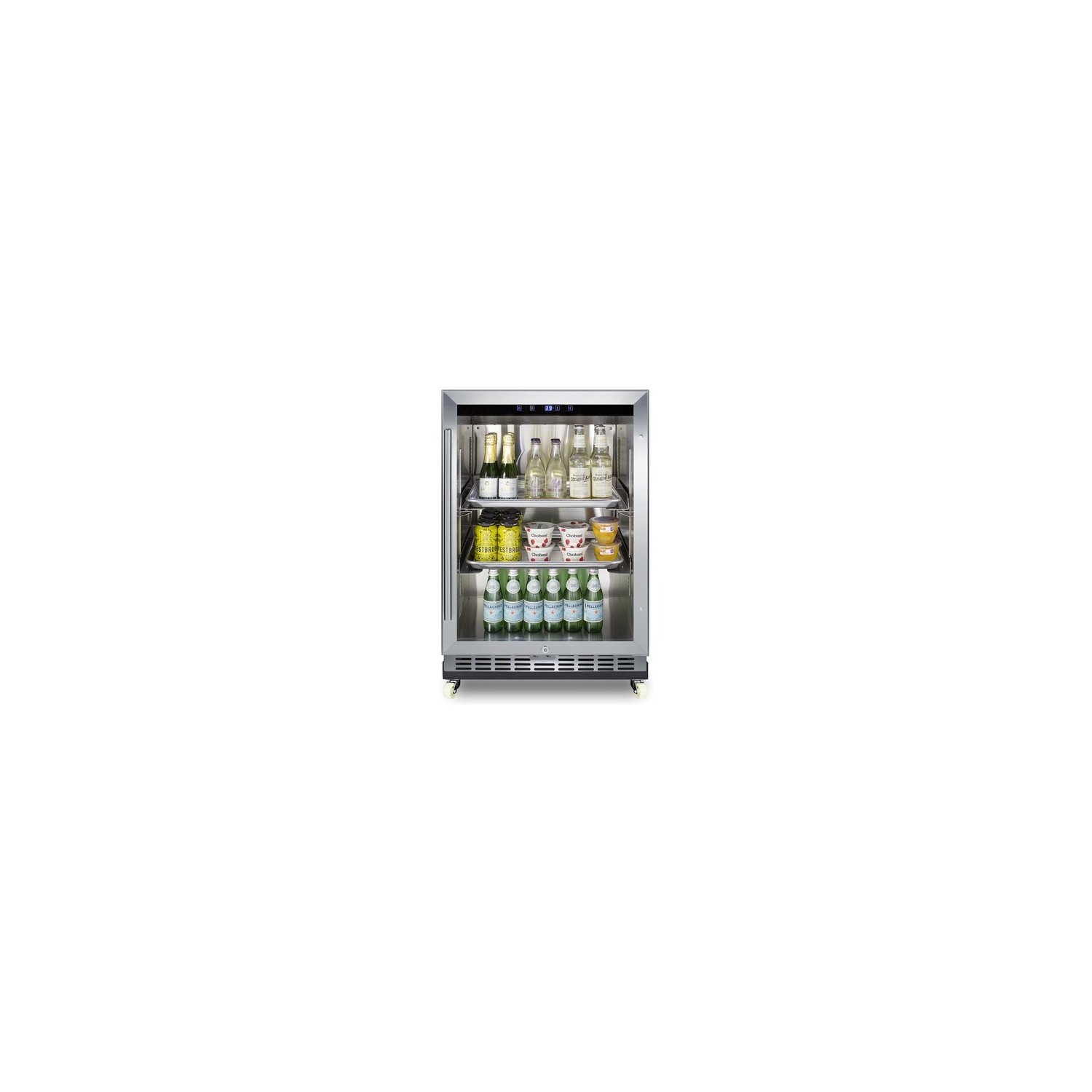

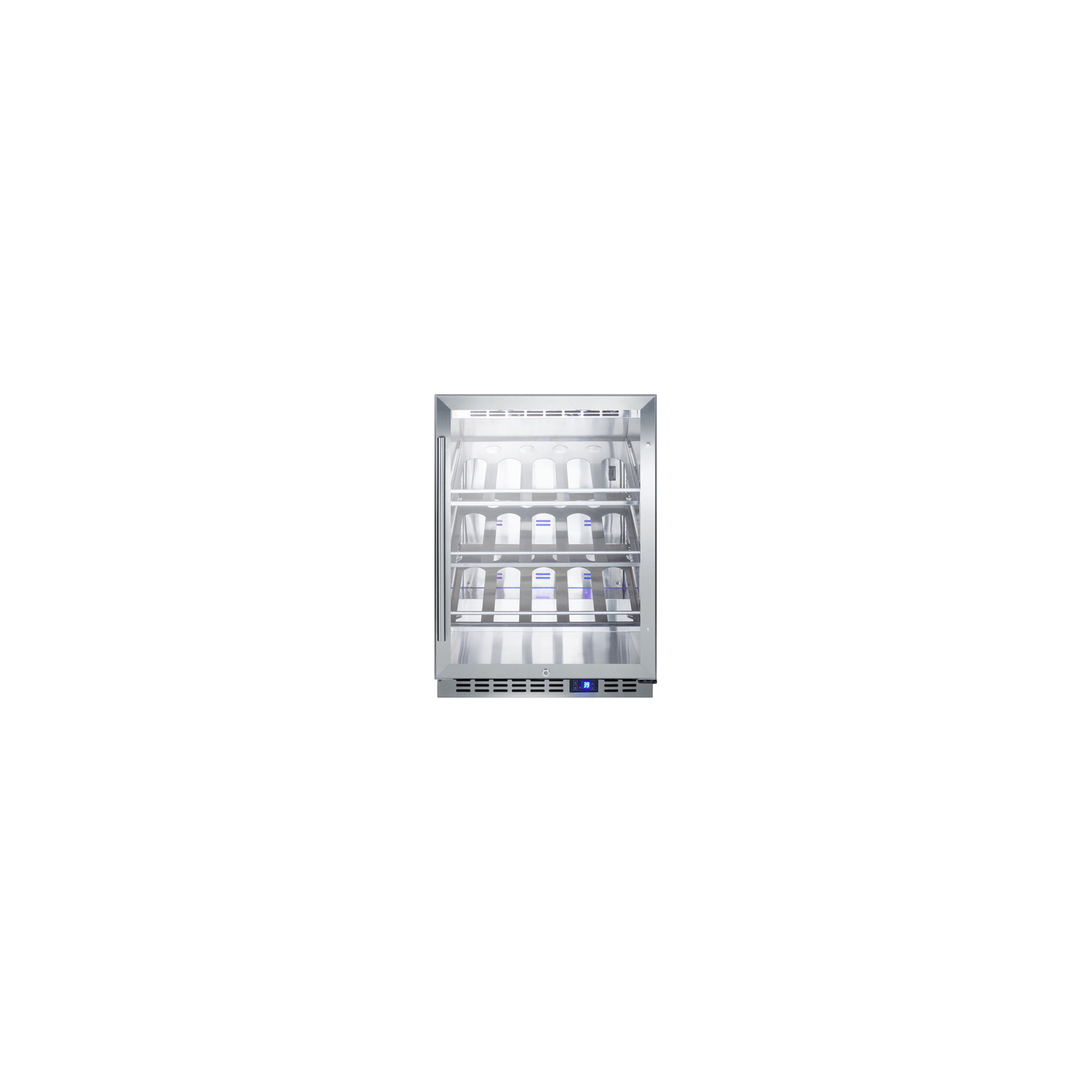

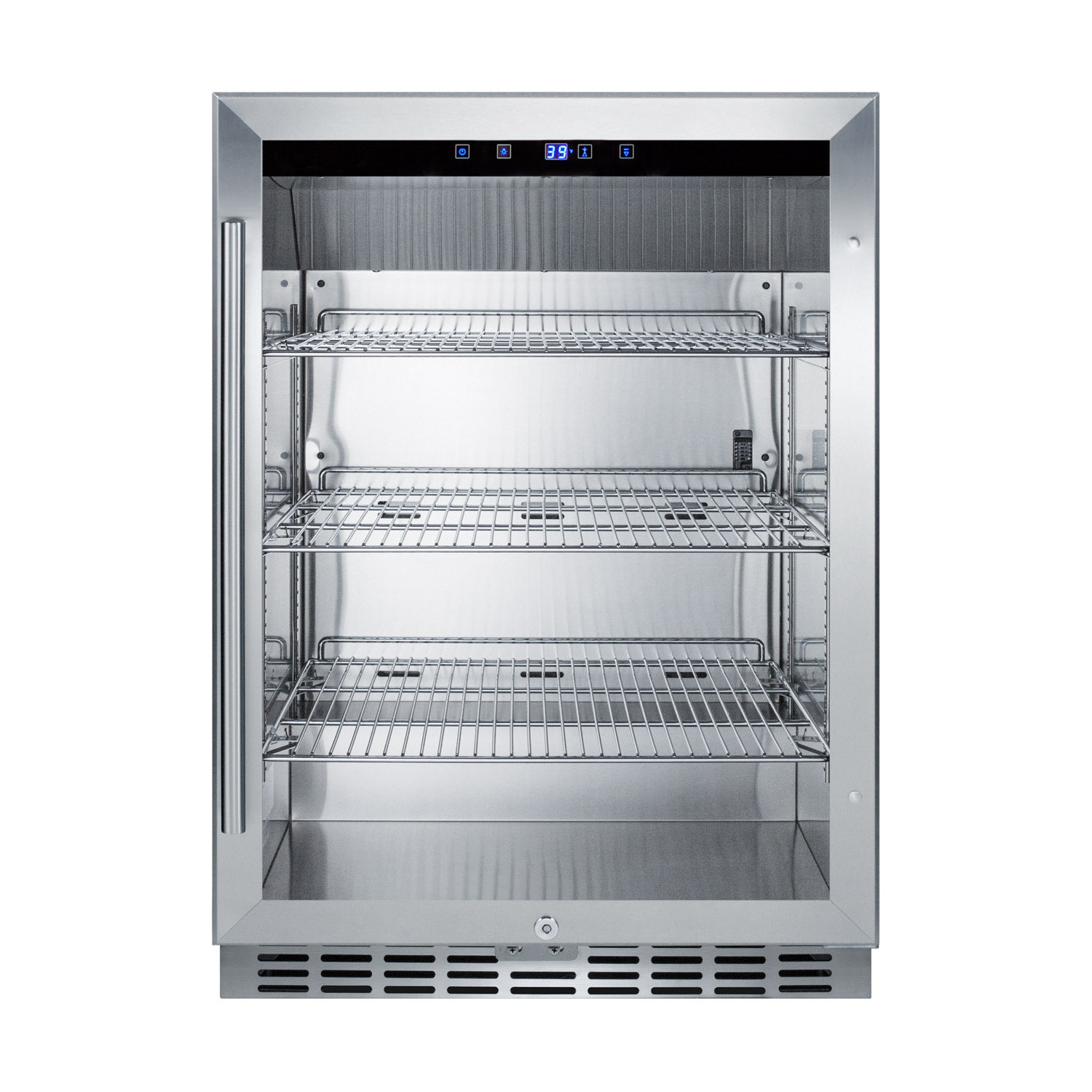

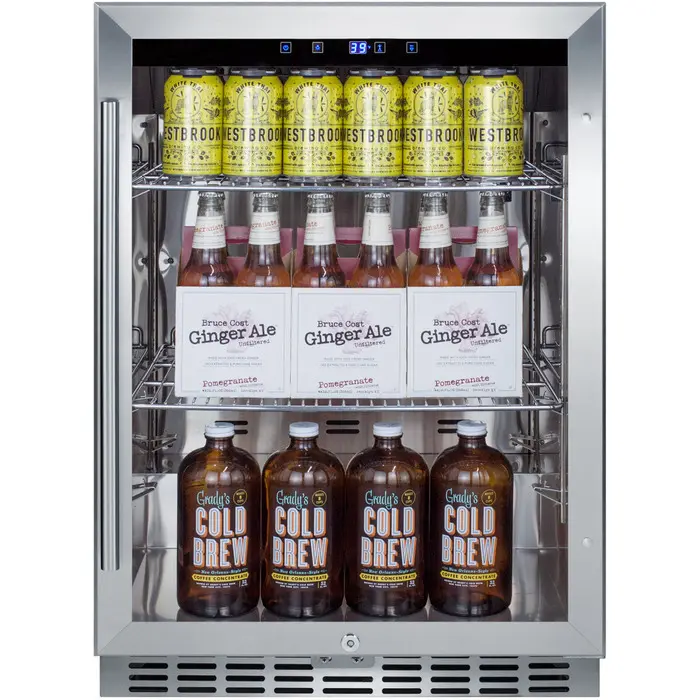

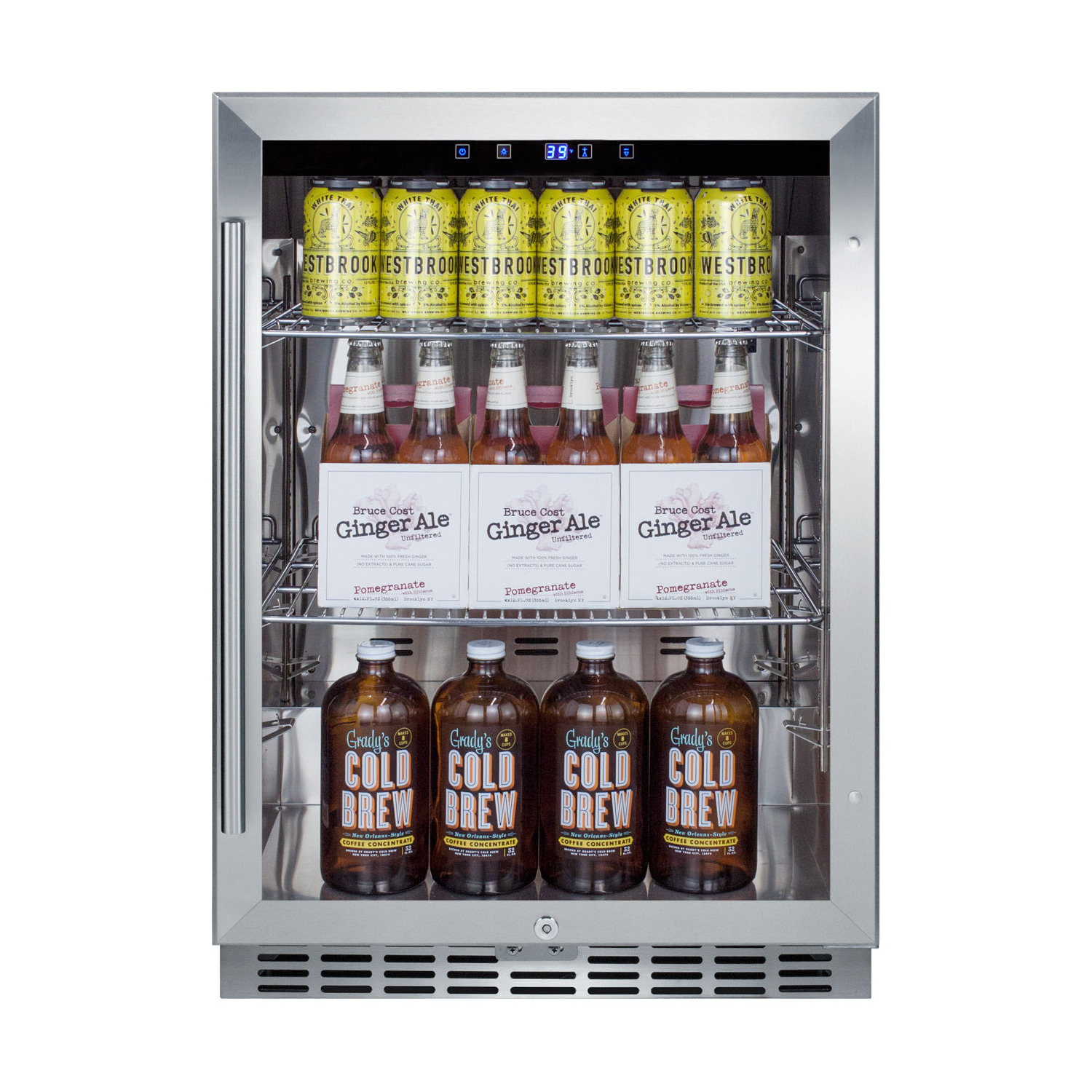

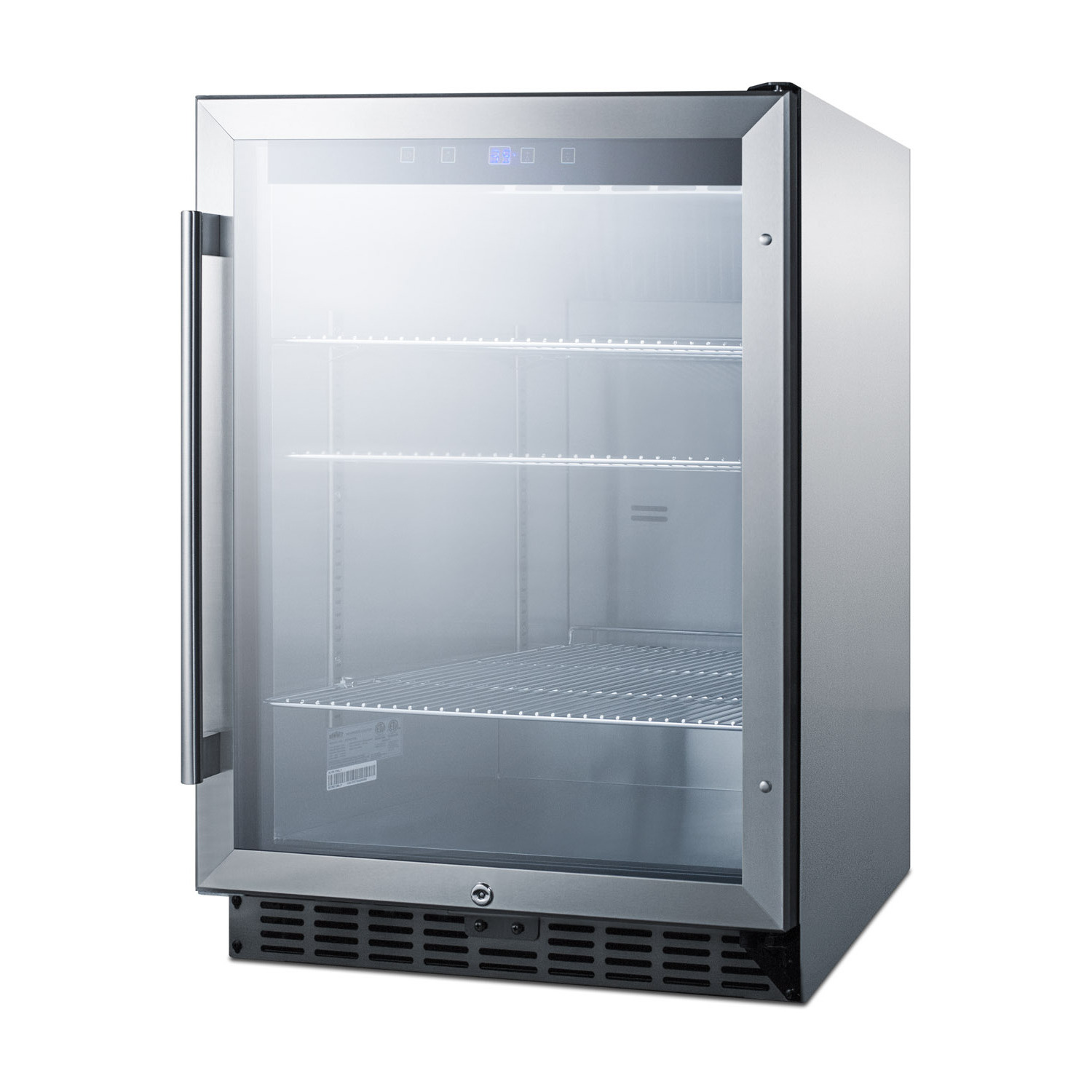

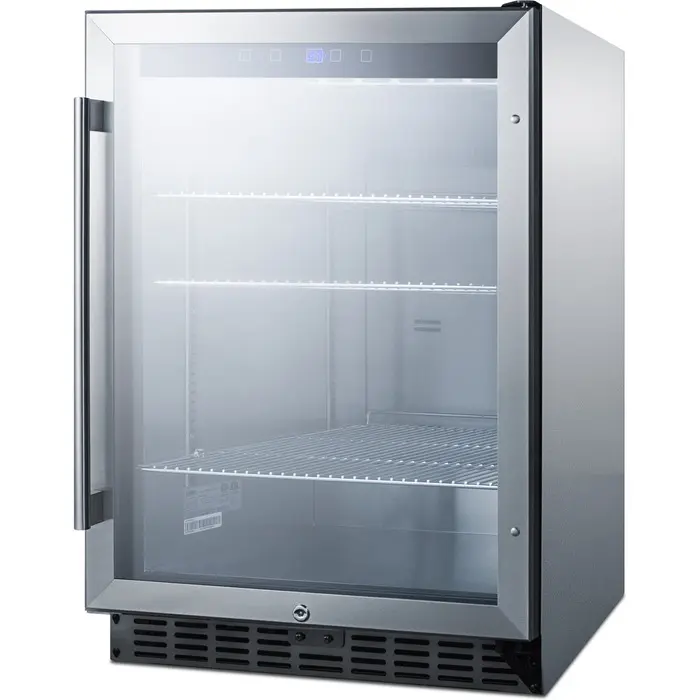

The SCR611GLOS is a commercial outdoor beverage center that is ETL-S listed to NSF-7 standards. The weatherproof design features a 304 grade stainless steel wrapped cabinet and sealed back to help keep the unit safe from the elements, with an integrated ground fault circuit interrupter for added protection. The stainless steel trimmed door features double pane tempered glass and a pro style handle. The door is user-reversible for added flexibility and includes a factory-installed lock. The front-breathing design allows it to be built-in under counters, while the fully finished cabinet is also capable of freestanding use.

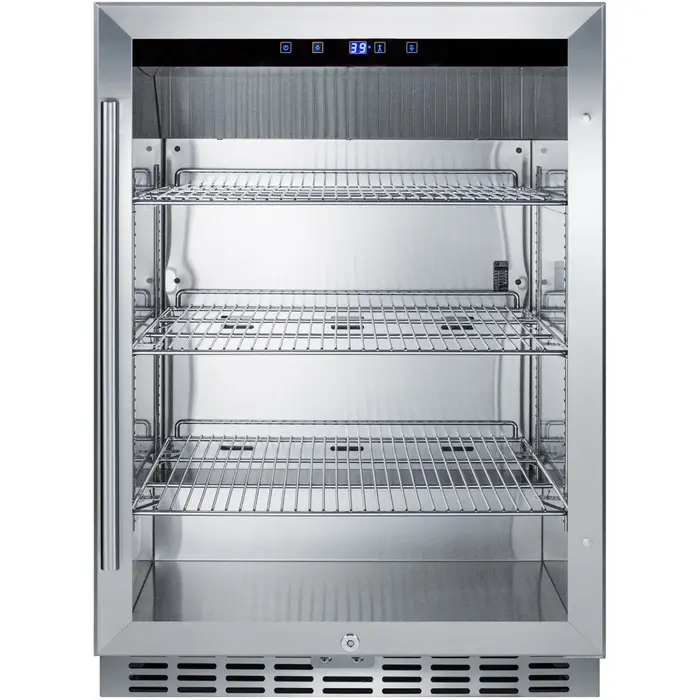

Inside, the SCR611GLOS features stainless steel construction for lasting durability and easier cleanup. Cantilevered shelving lets you adjust your storage to virtually any position, with three chrome shelves included. Recessed LED lighting provides an attractive and energy efficient display of the interior. The digital control panel makes it easy to manage the temperature and includes a readout viewable in Celsius or Fahrenheit. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

Sized with a convenient 24 inch footprint, the SCR611GLOS is a great choice for bringing flexible and convenient beverage storage to outdoor commercial settings.

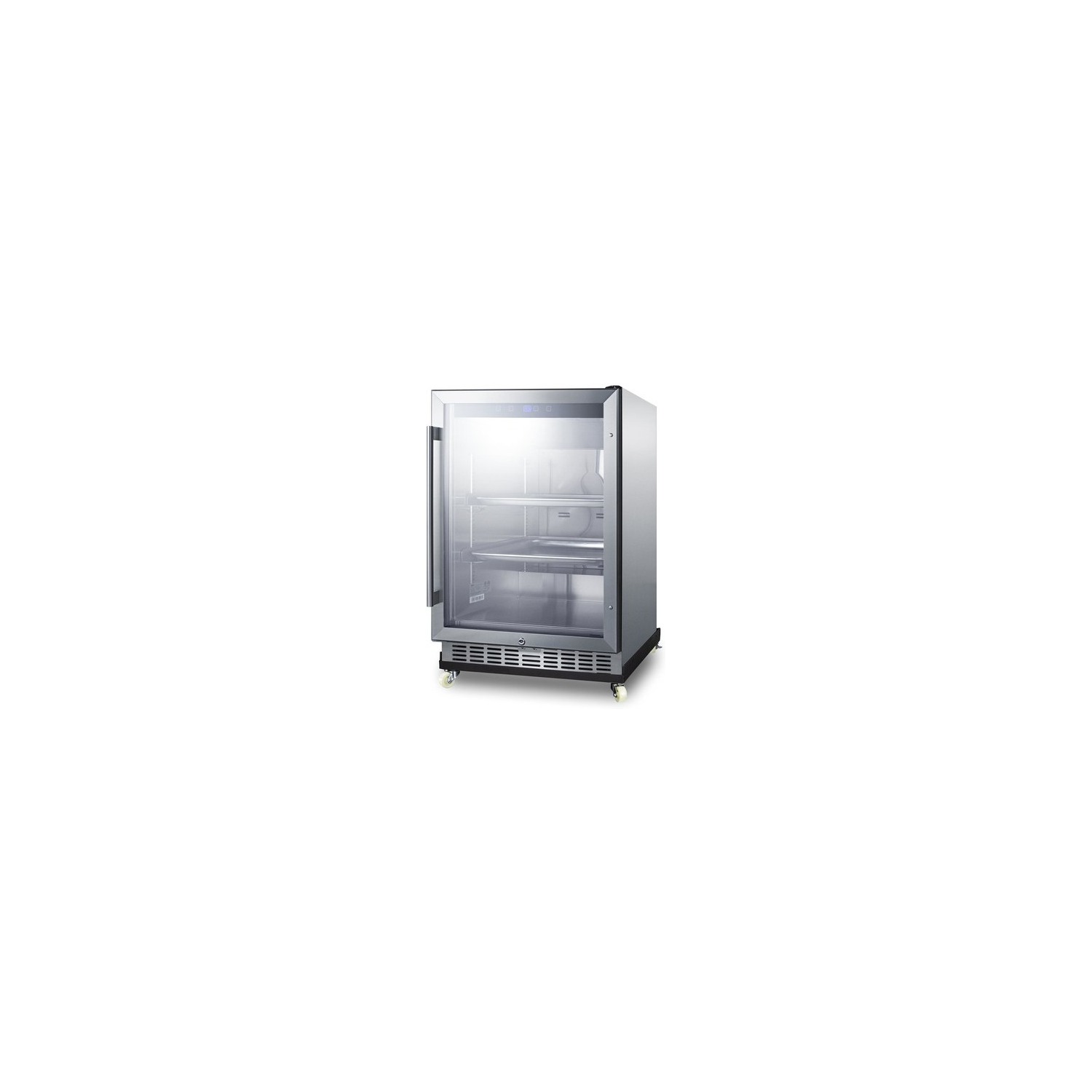

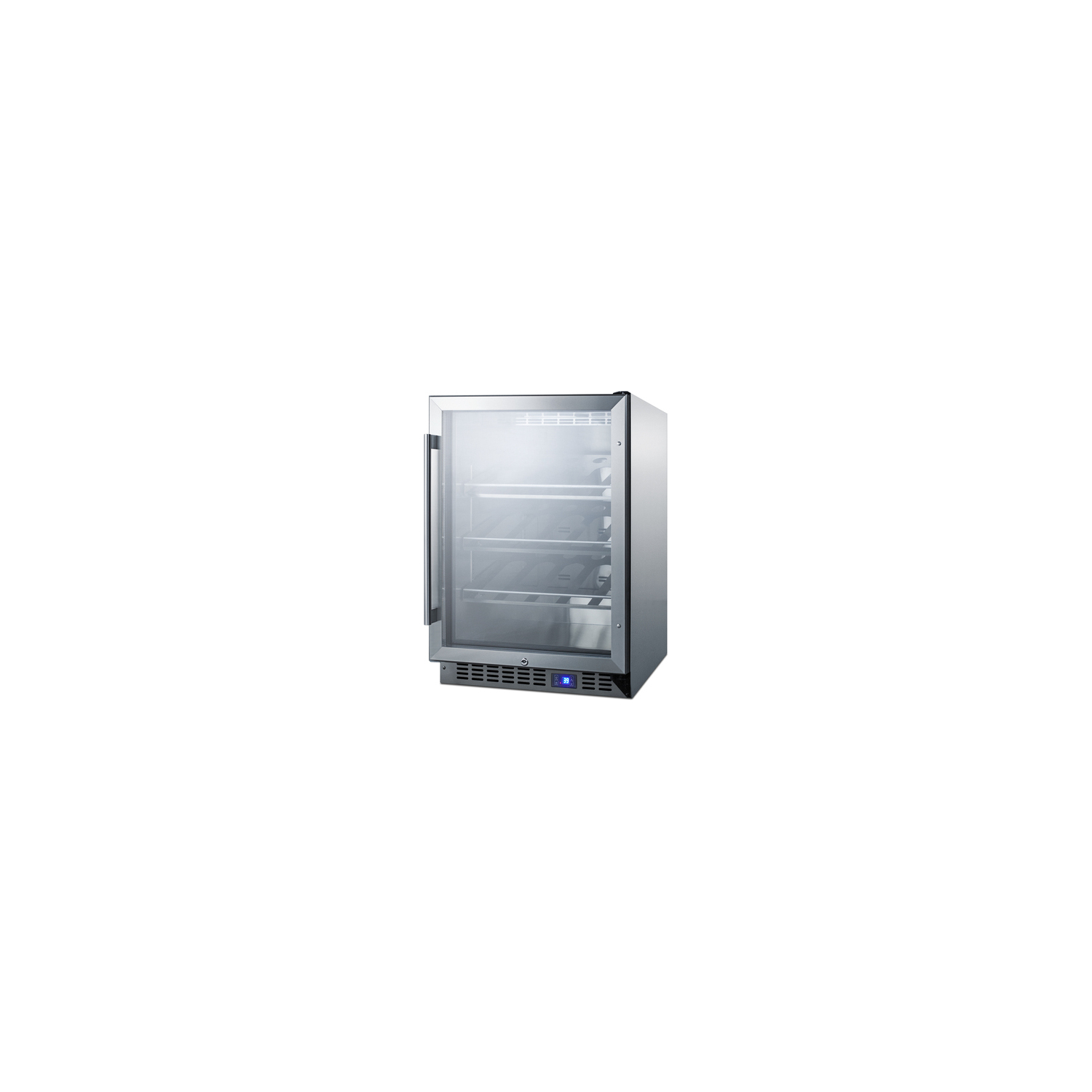

NOTE: Product details may vary from pictured unit

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.75" (116 cm)

Capacity 5.0 cu.ft. (142 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101058610

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.38oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43°F

Sound Level 33.2 dB

Dimensions

Interior Height 24.88" (63 cm)

Interior Width 19.38" (49 cm)

Interior Depth 17.38" (44 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 19.38" (49 cm)

Compressor Step Depth 4.63" (12 cm)

FEATURES

Weatherproof construction Complete stainless steel exterior ensures the unit will hold up to the elements

Commercially approved ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial establishments

Built-in capable Make the best use of space by installing this unit under the counter and flush with other cabinetry

Stainless steel wrapped cabinet 304 grade stainless steel wrapped exterior offers lasting durability with a modern look

Double pane tempered glass door Stainless steel trimmed glass door provides a full heat-safe display of stored items

Stainless steel interior Walls are constructed from stainless steel for added strength and easy cleanup

Factory installed lock Keyed lock for a secure interior, with two keys included

Digital thermostat Intuitive digital controls ensure easy temperature management, with the temperature readout viewable in Celsius or Fahrenheit

Reversible door User-reversible door swing lets you adjust the door as needed

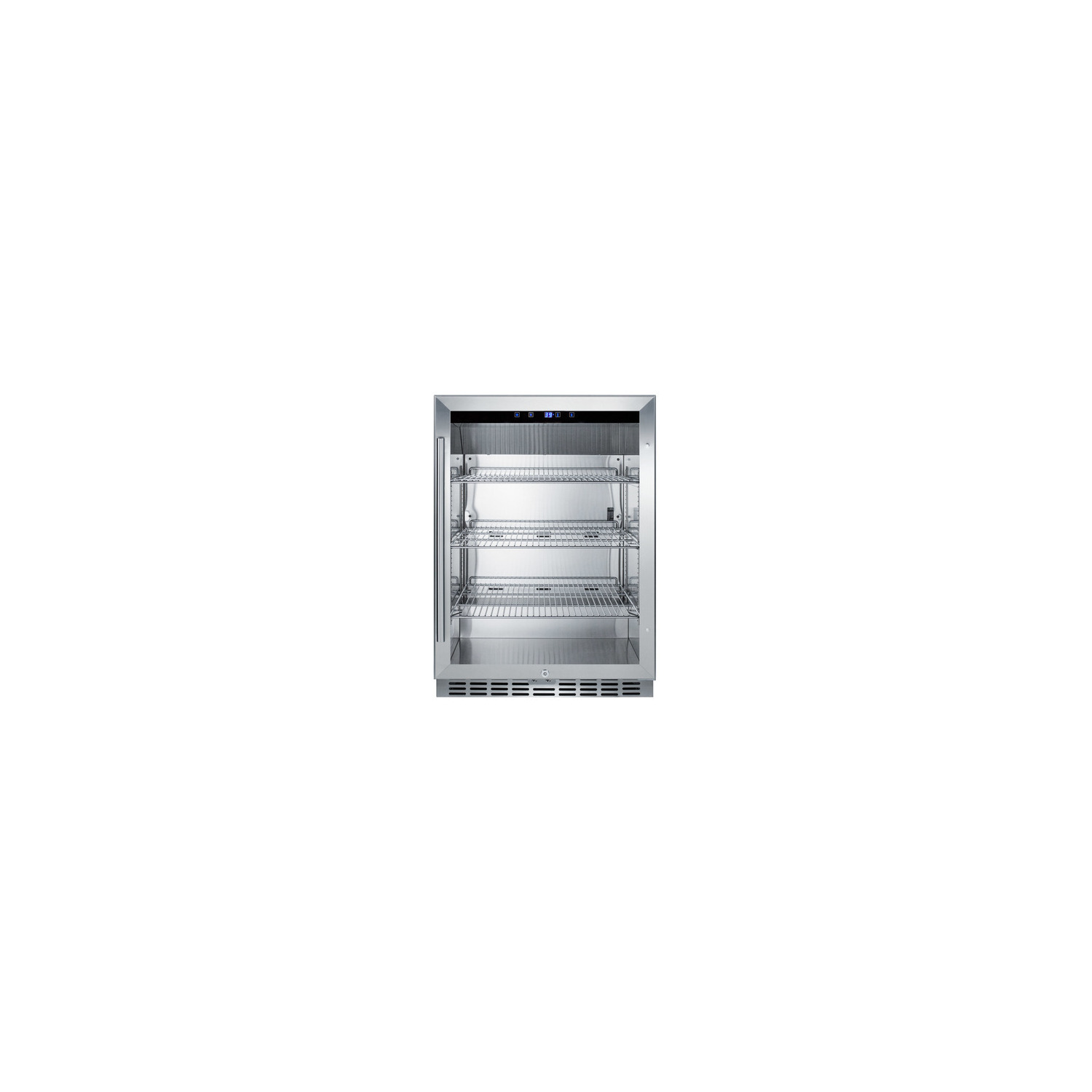

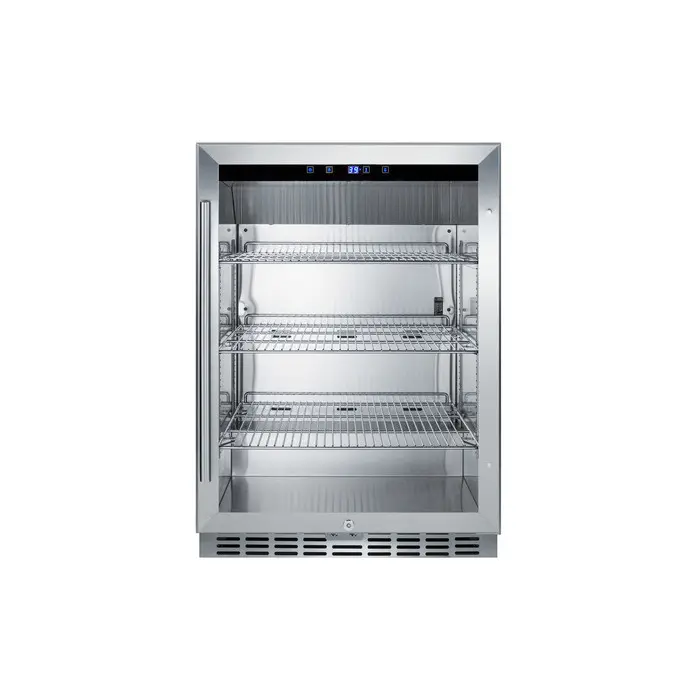

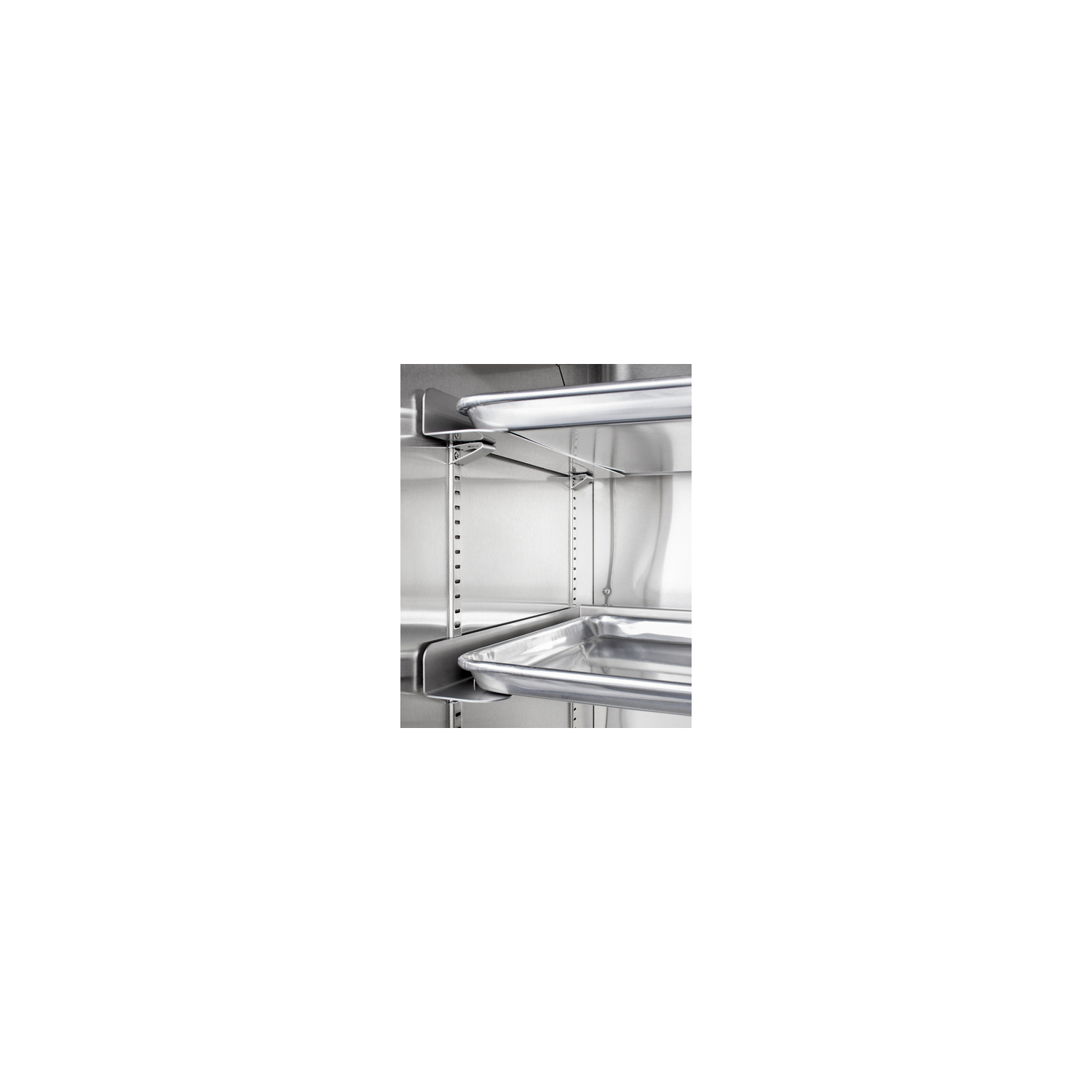

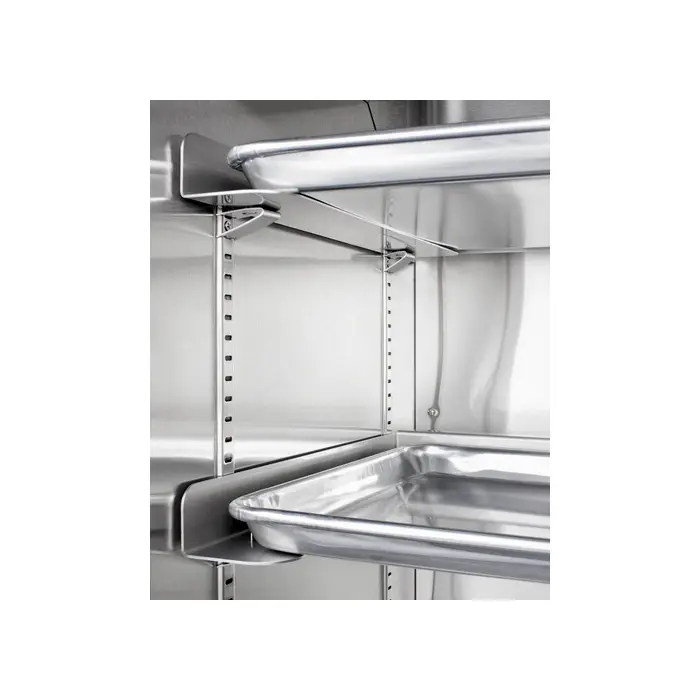

Adjustable cantilevered shelves Includes three chrome shelves with cantilevered clips that allow you to adjust to accommodate virtually any size

Professional handle Front-mounted handle in brushed stainless steel completes the look

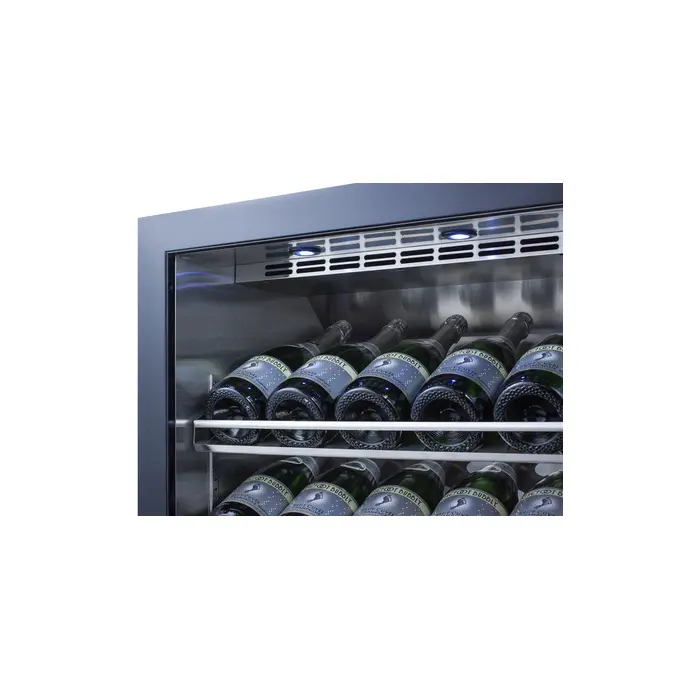

Recessed LED lighting Efficient and attractive lighting illuminates stored items for a full display

Automatic defrost Reduced user maintenance with automatic defrost

Open door alarm Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Integrated stainless steel hinge Door hinge adds no additional height, making it easier to install under a counter

Ground Fault Circuit Interrupter Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

Sealed back Space saving design with easier cleanability and added protection from the elements

Quiet operation Runs at at just 33.2 dB for a quiet performance in any setting

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
