Summit Commercially approved ADA compliant undercounter all-refrigerator with white cabinet and stainless steel door, 7.61101e+011, SCR504SSTBADA

Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.

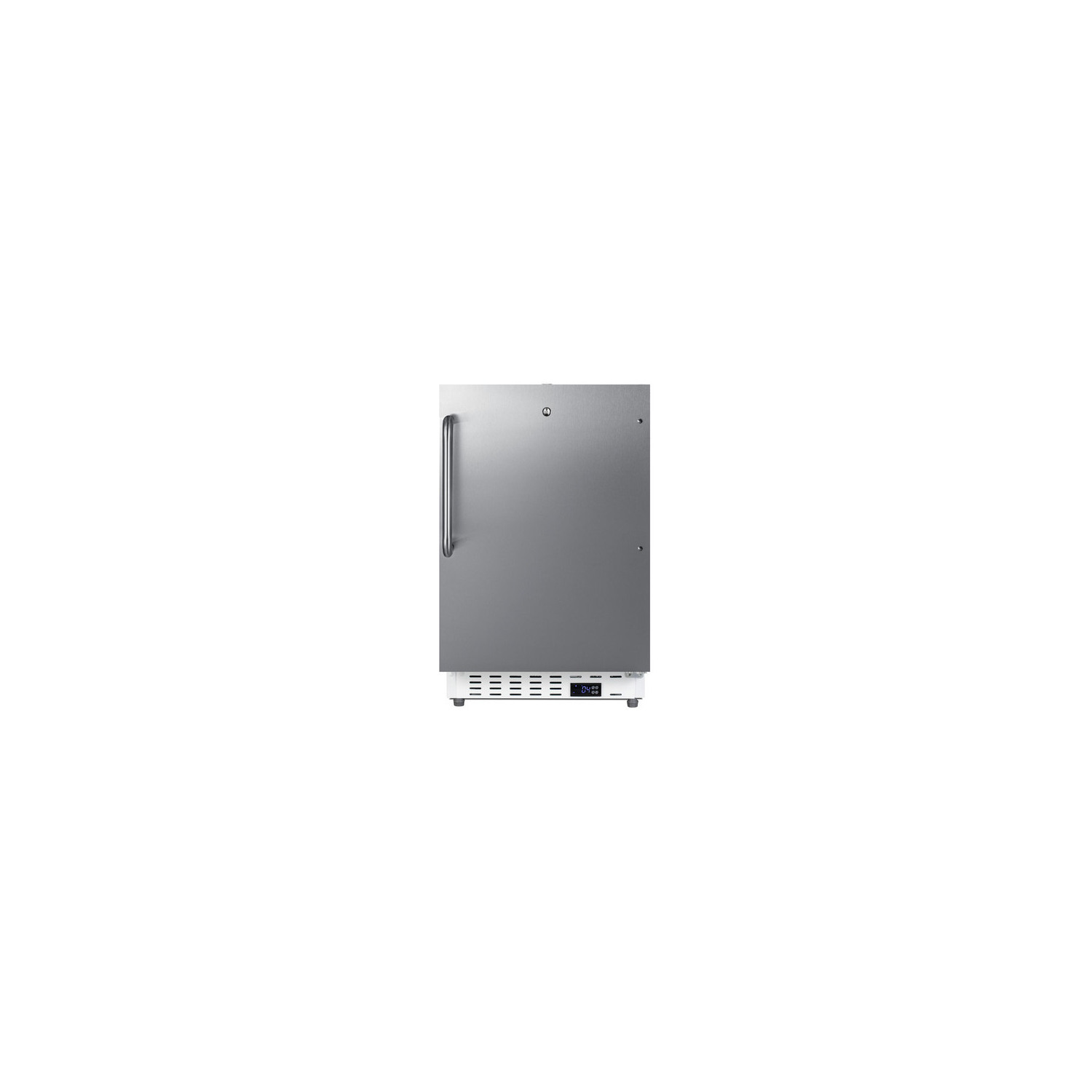

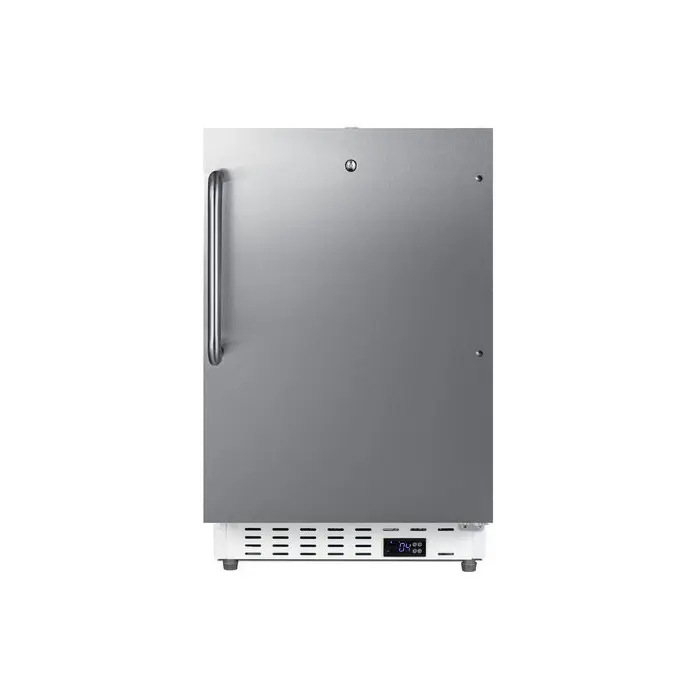

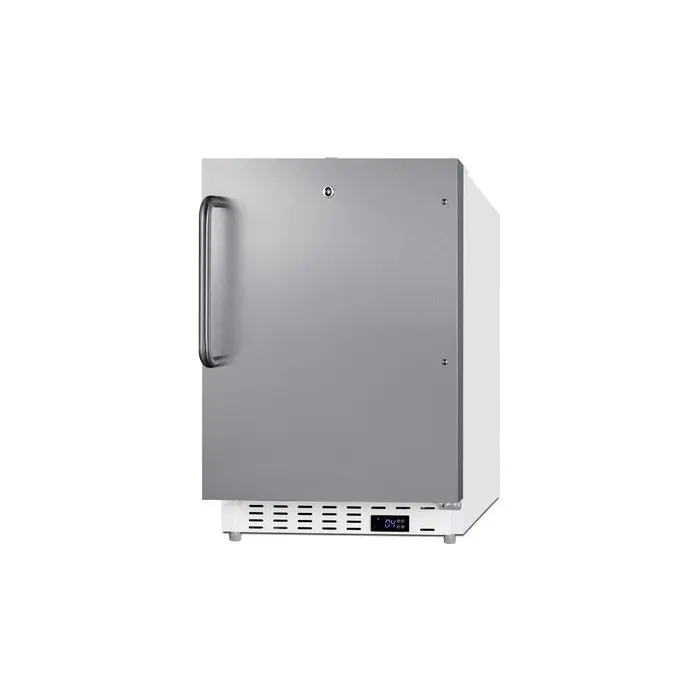

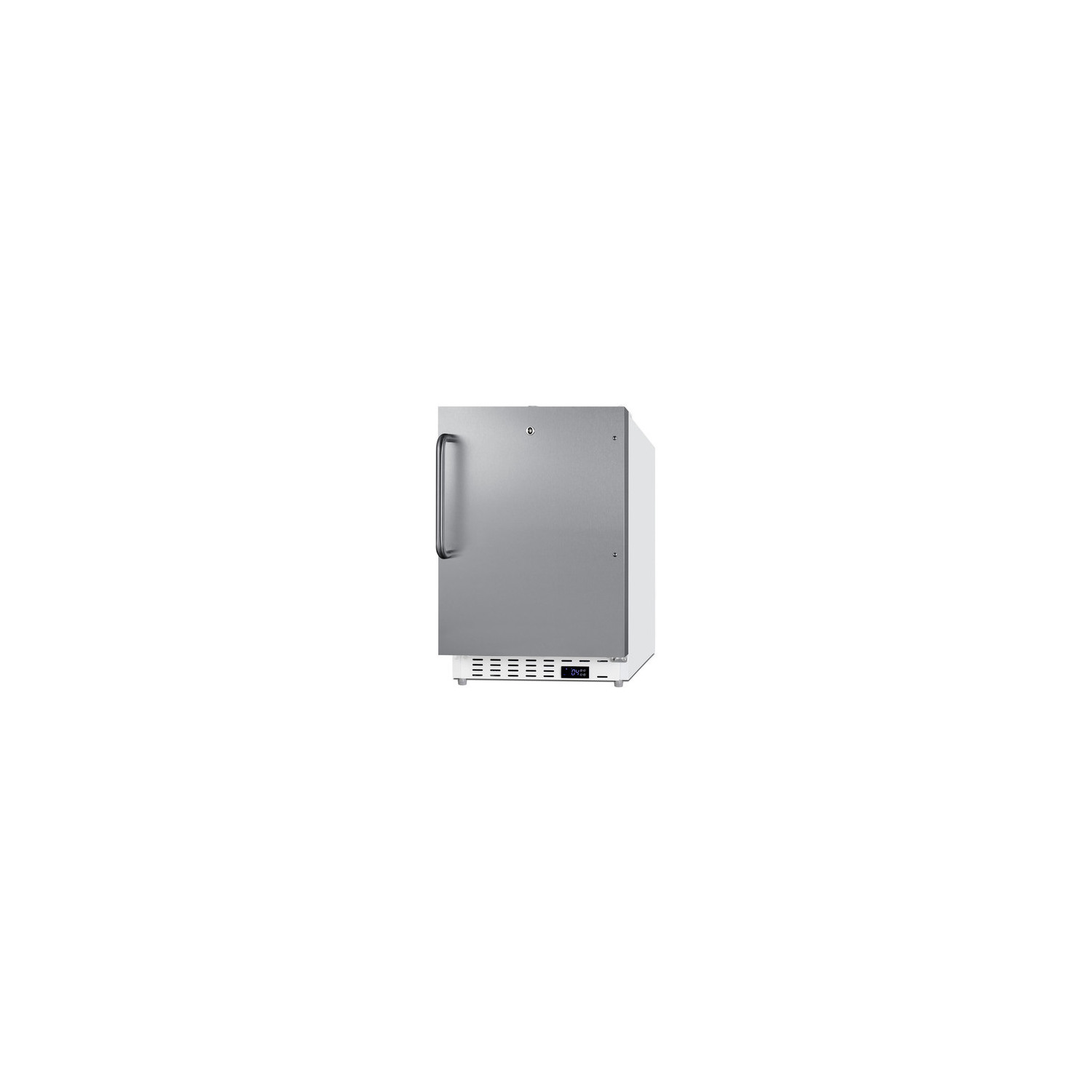

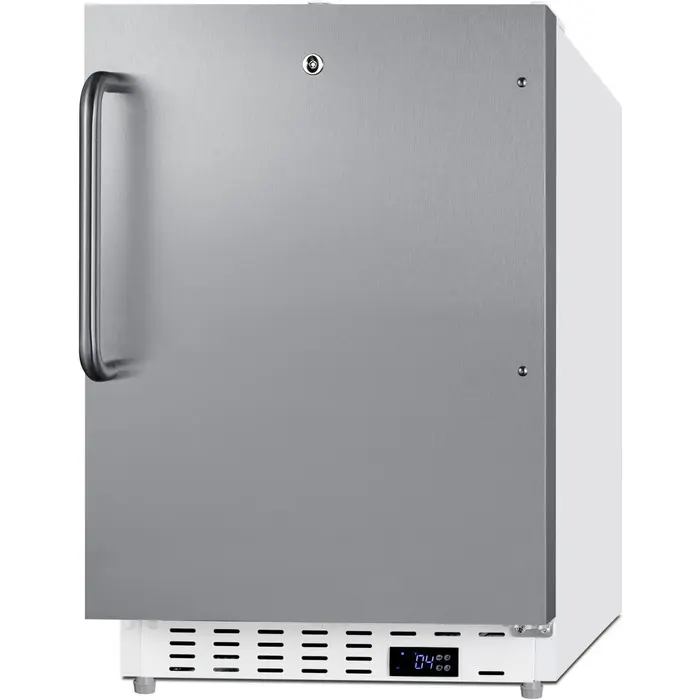

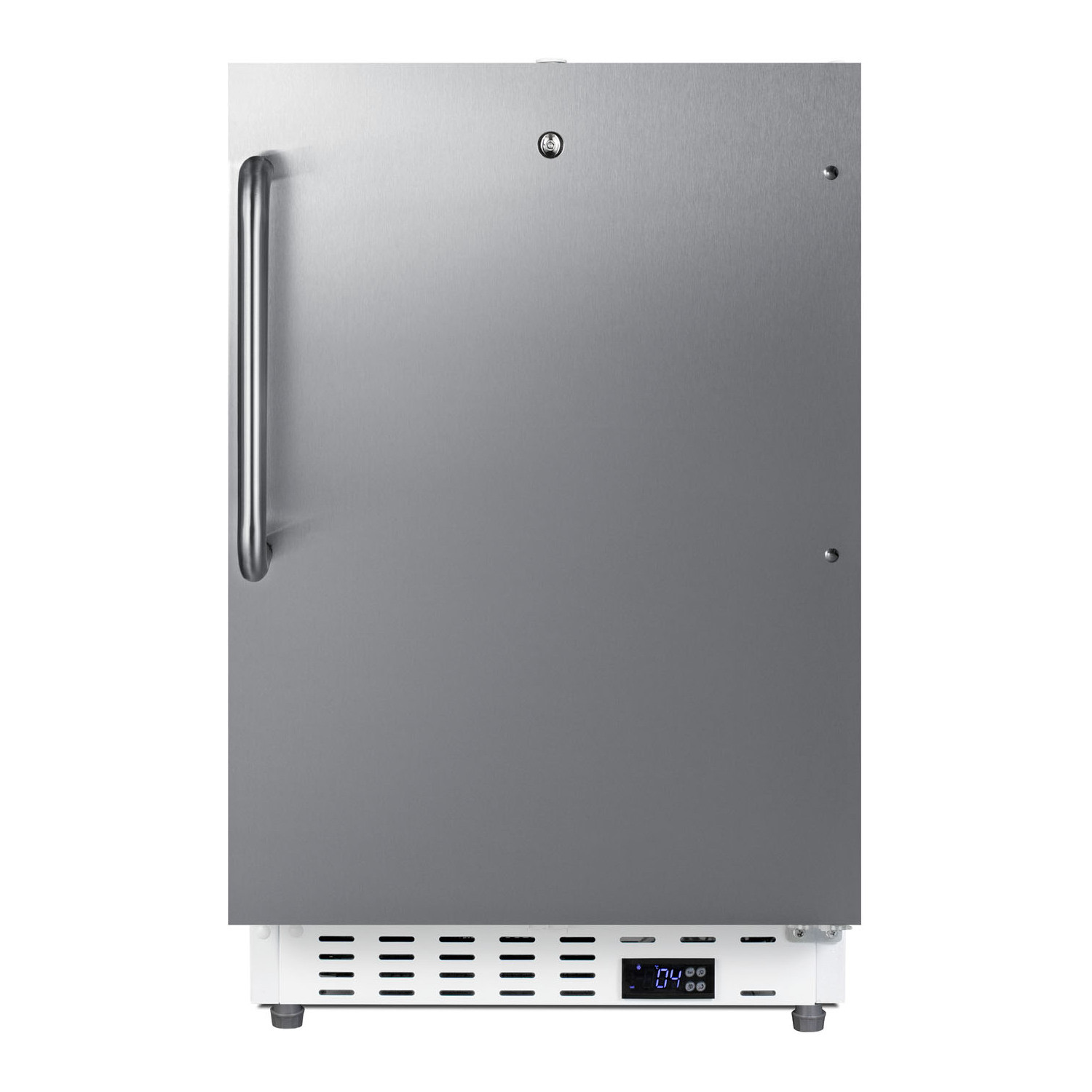

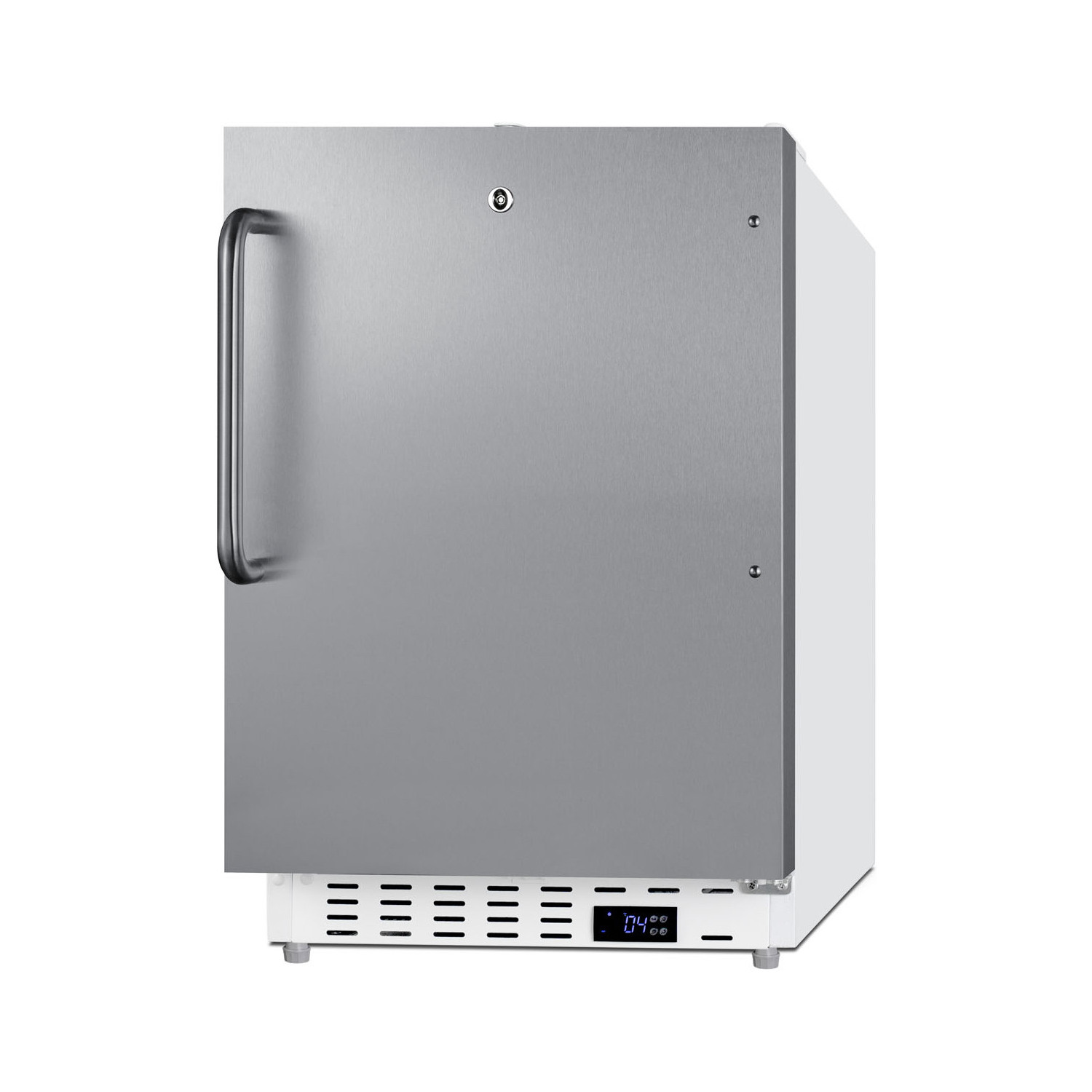

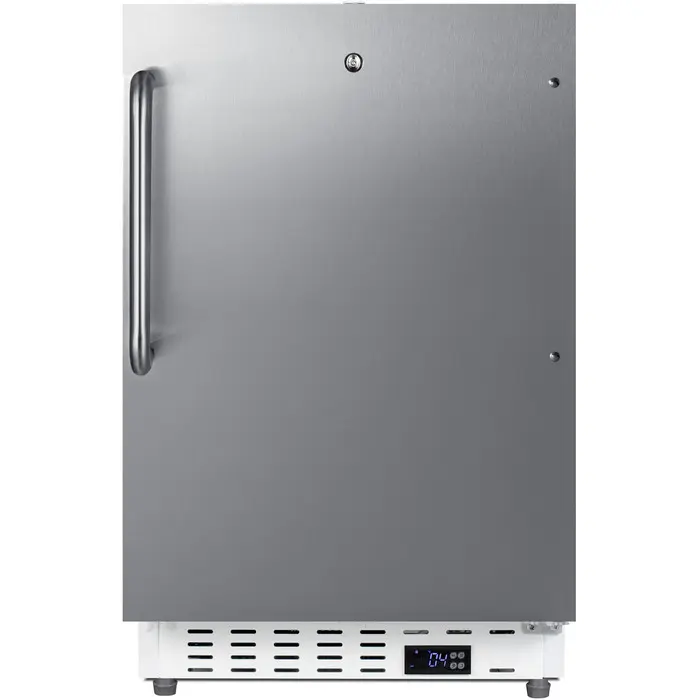

Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

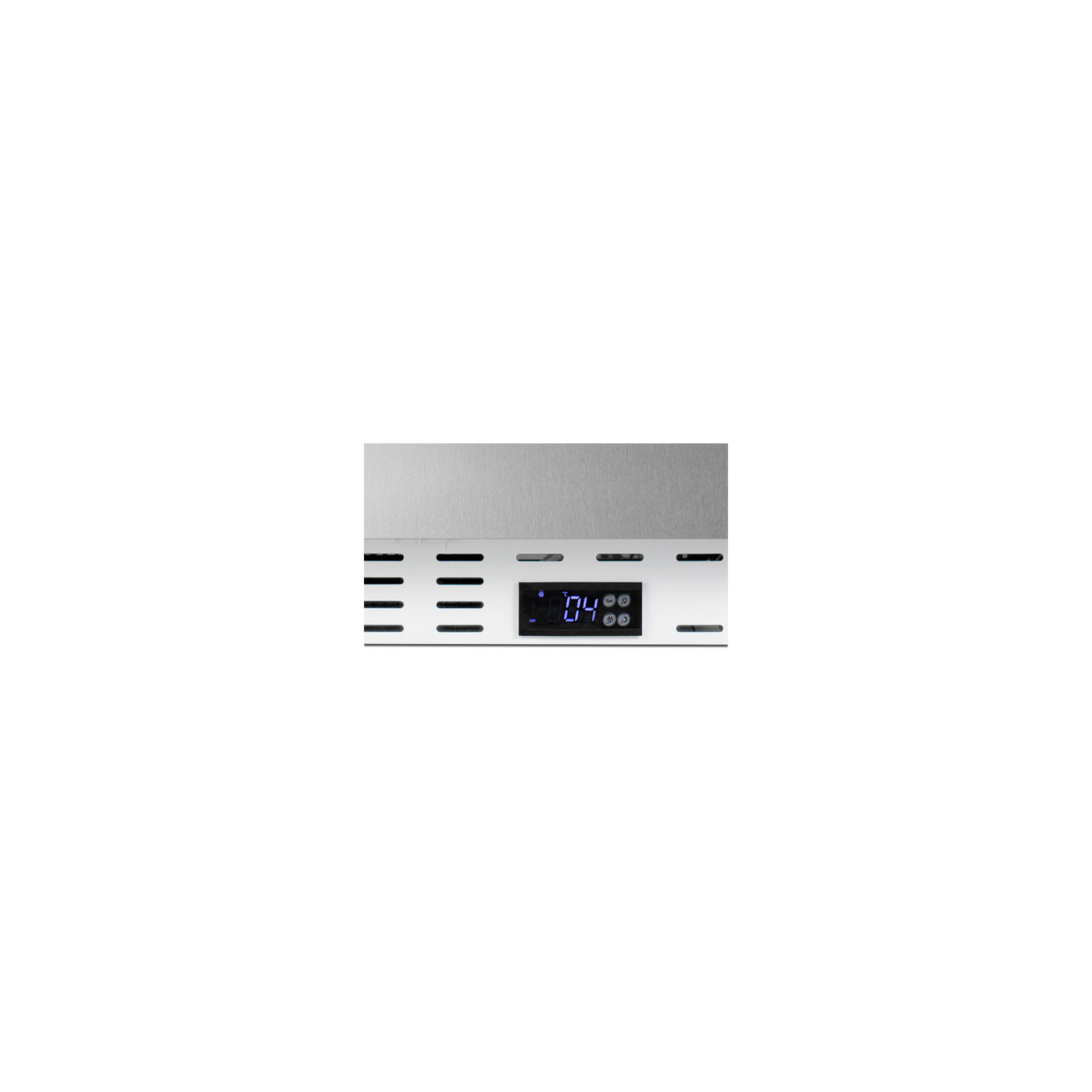

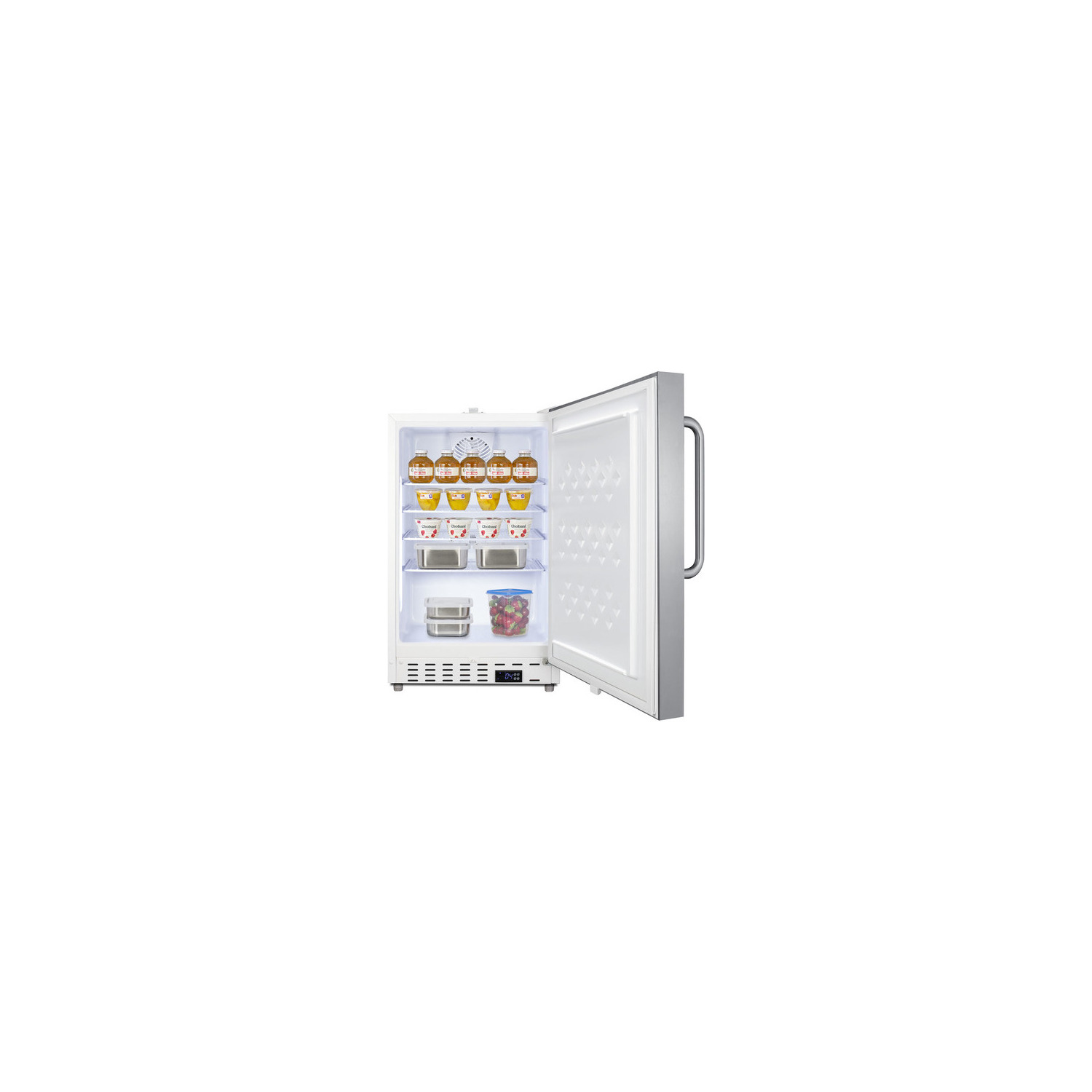

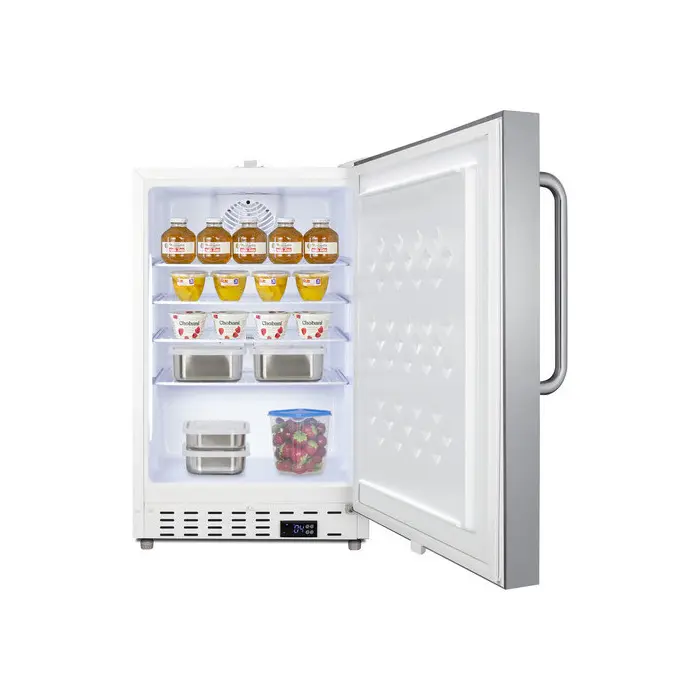

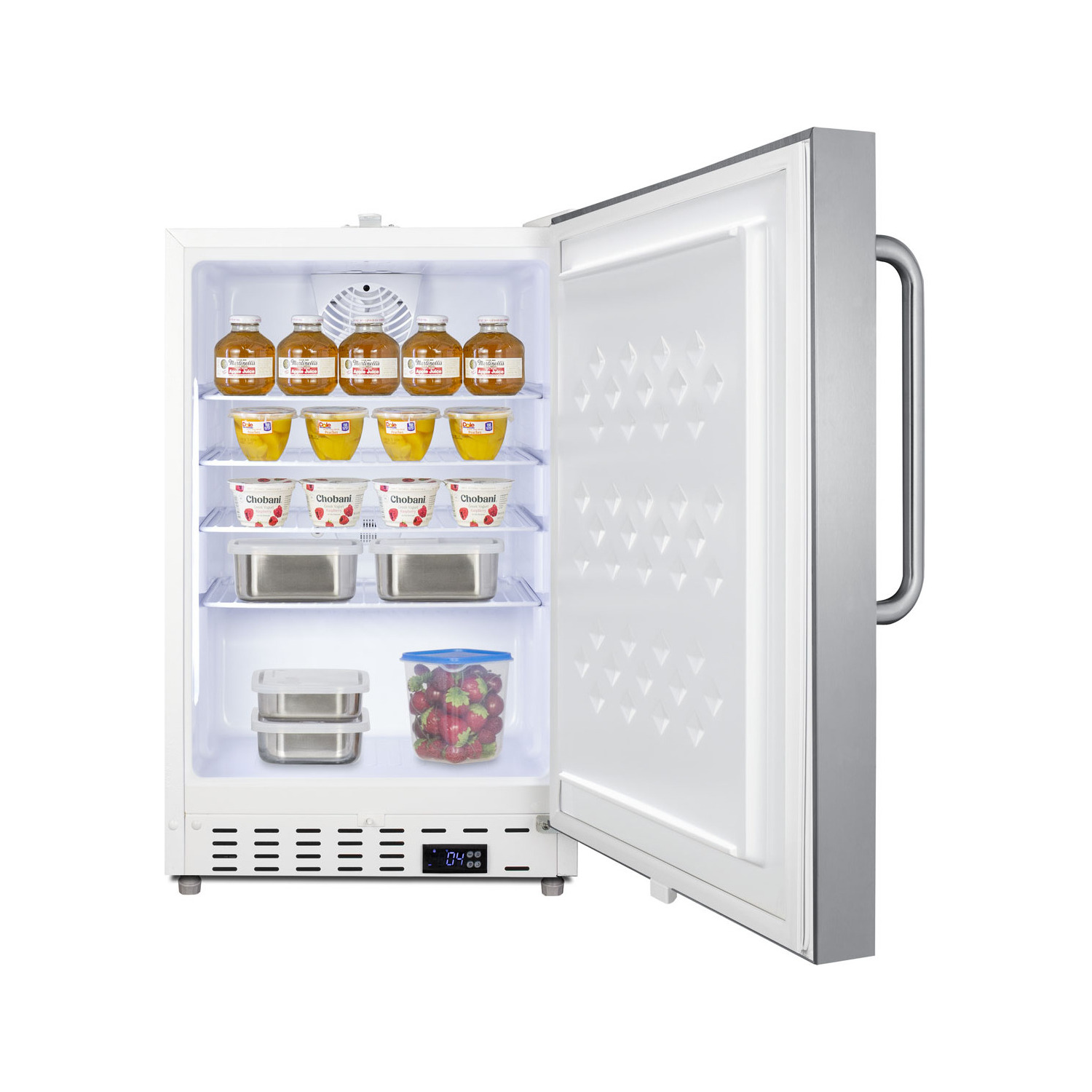

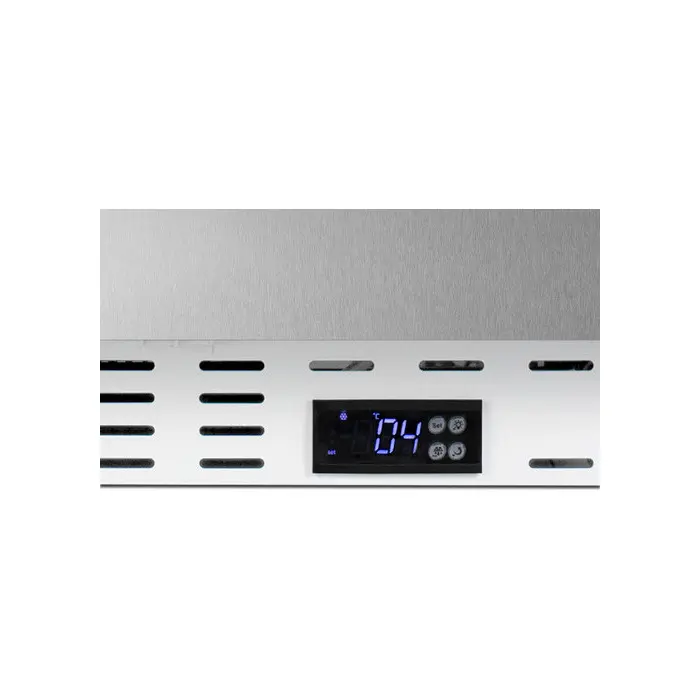

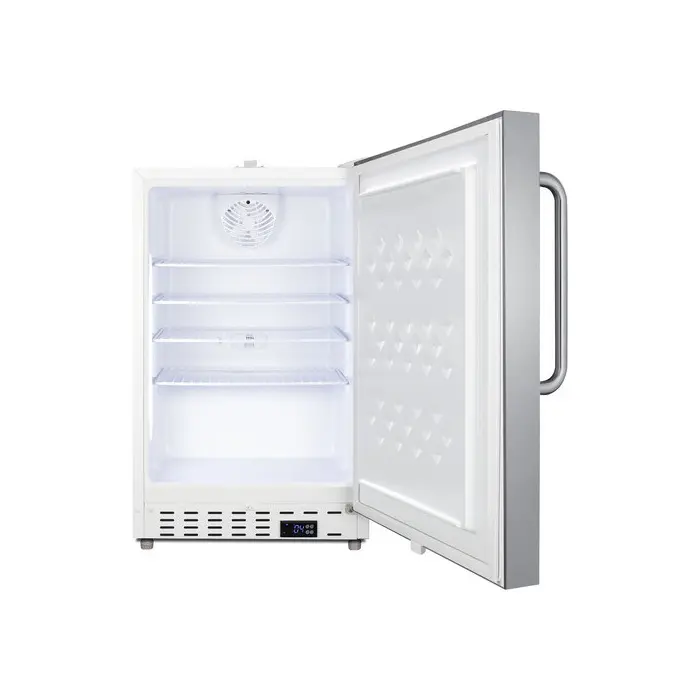

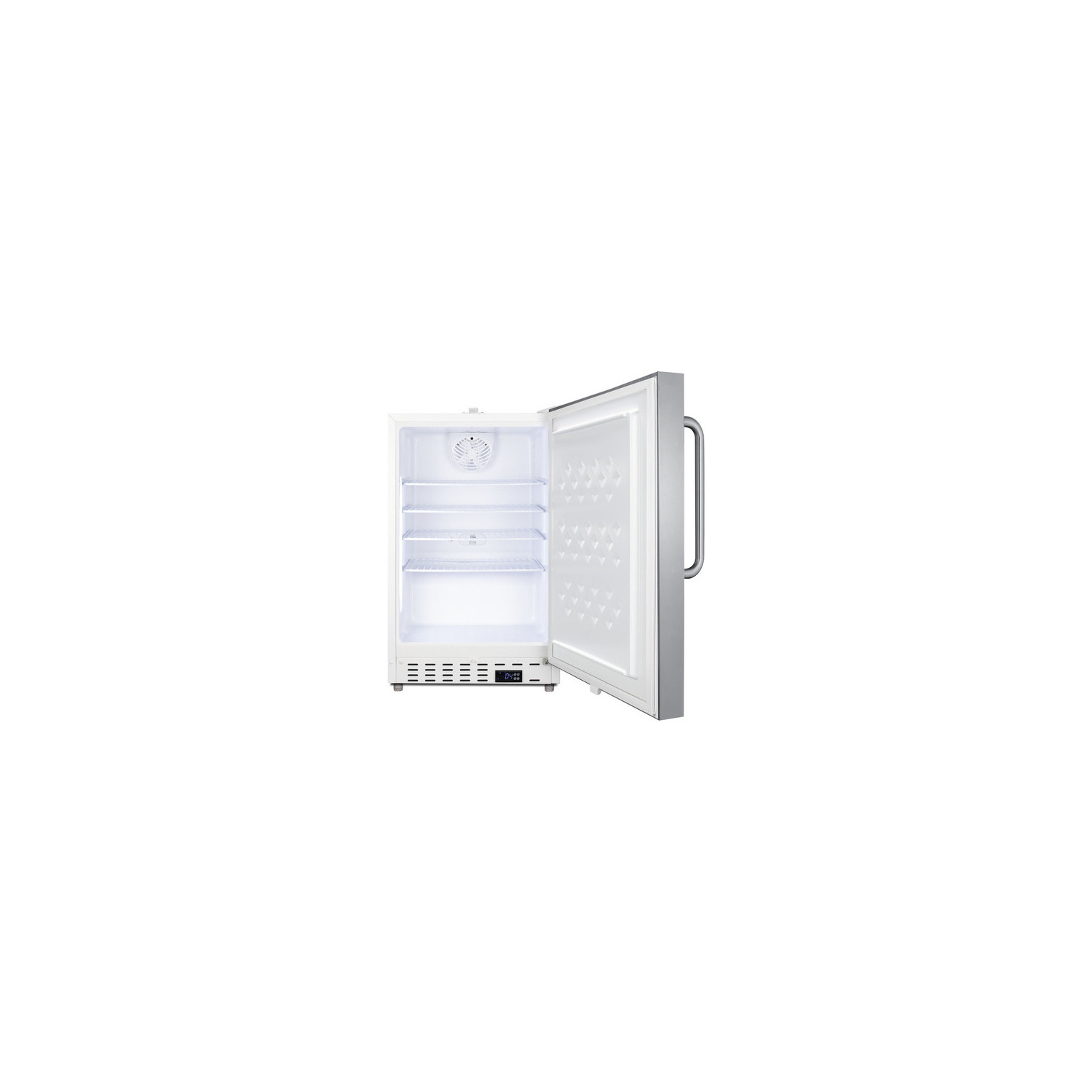

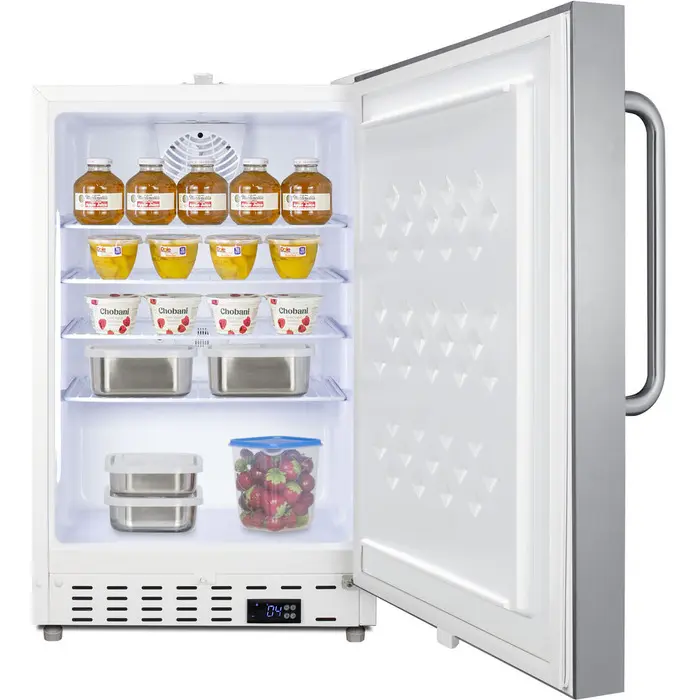

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.

The SCR504SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCF505SSTBADA all-freezer. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, icemakers, reach-in refrigeration, and much more.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.75" (81 cm)

Height to Hinge Cap 32.0" (81 cm)

Nominal Width 21.0" (53 cm)

Width 20.25" (51 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 40.25" (102 cm)

Capacity 3.32 cu.ft. (94 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 69.0 lbs. (31 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101086132

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 4

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.99oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 2 to 8°C

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 16.25" (41 cm)

Interior Depth 17.0" (43 cm)

Compressor Step Height 6.25" (16 cm)

Compressor Step Width 16.25" (41 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Commercially listed ETL-S listed to ANSI-NSF Standard 7 for commercial use

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Professional towel bar handle Curved handle in brushed stainless steel offer an easier grip and attractive style

Factory-installed lock Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

Adjustable digital thermostat Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

Adjustable wire shelves Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior

3" thick door Improved insulation for an efficient performance

Temperature alarms User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

Hospital grade cord with 'green dot' plug Secure three-pronged cord offers a tighter fit in wall sockets

Automatic defrost Reduced user maintenance with an auto defrost system

Flat door liner Allows for the interior to accept deeper trays

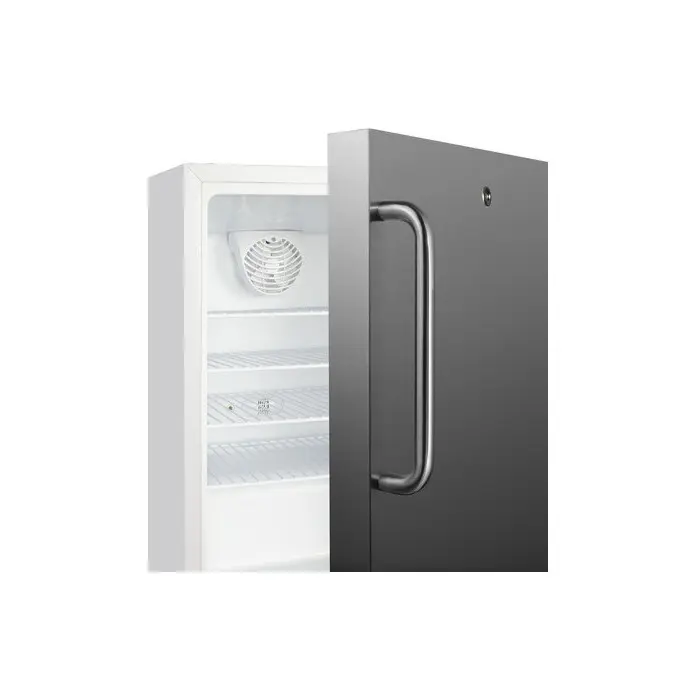

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible stainless steel door User-reversible stainless steel door for added flexibility to best accommodate your setting

Sealed back Space-saving design that offers easier cleanability

Interior light Front-located LED light ensures entire interior is lit when door opens

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching all-freezer This unit can be paired with the SCF505SSTBADA all-freezer for a complete set

Fully finished white cabinet Allows the unit to be freestanding

Access port Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
