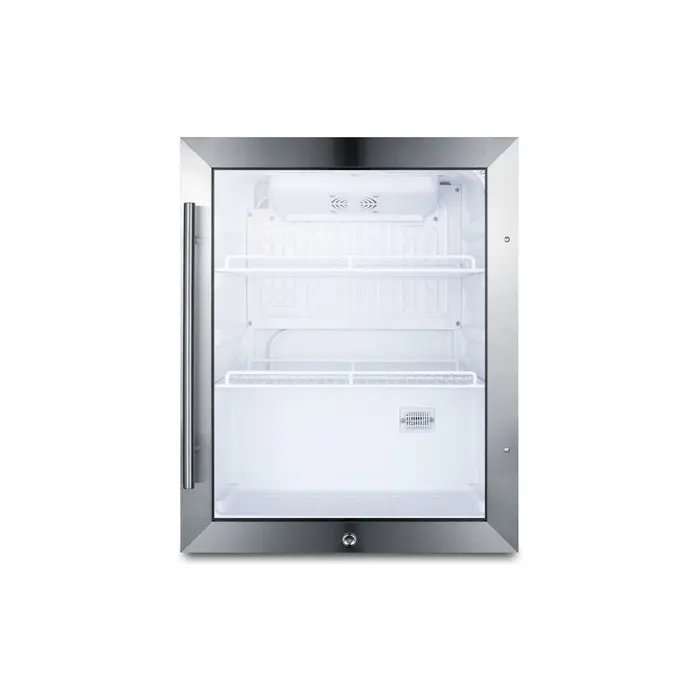

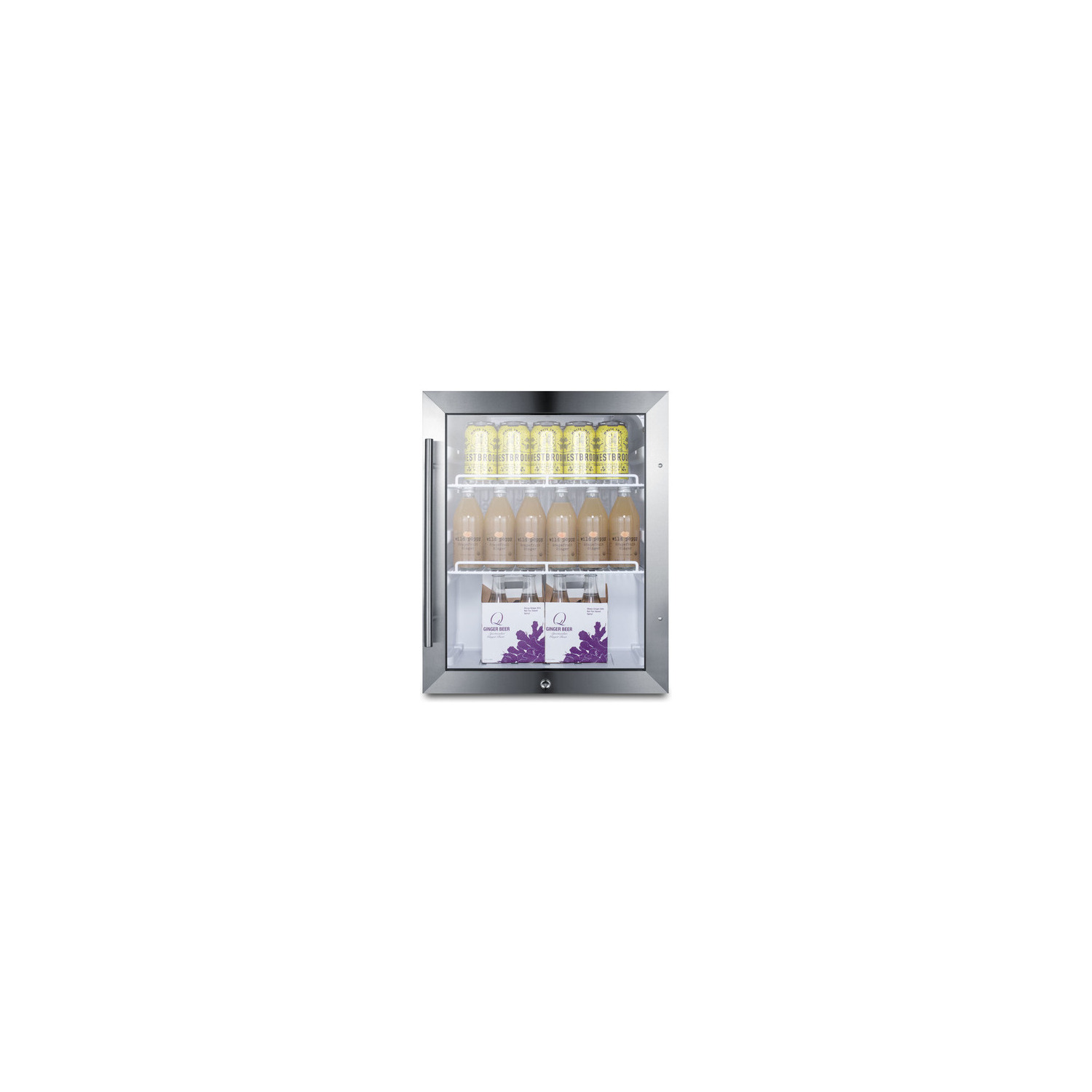

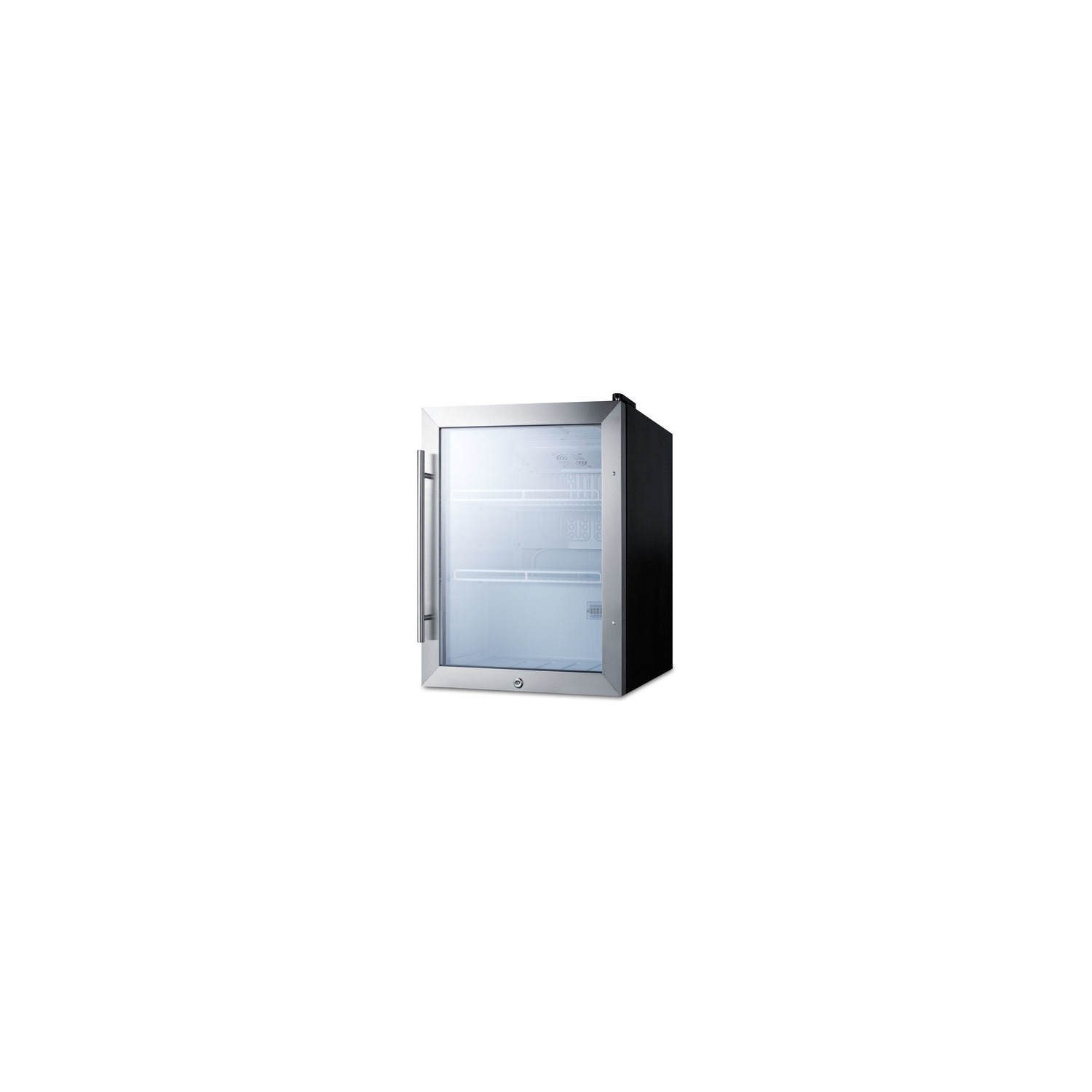

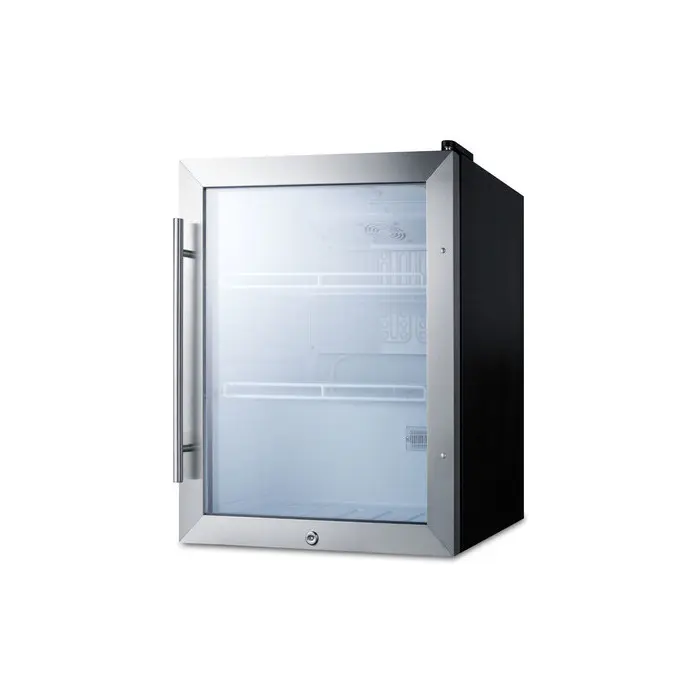

Summit Commercially approved countertop beverage cooler with reversible glass door, black cabinet, and front lock, 7.61101e+011, SCR314L

SUMMIT COMMERCIAL offers a quality selection of beverage centers perfectly designed to maximize impulse sales.

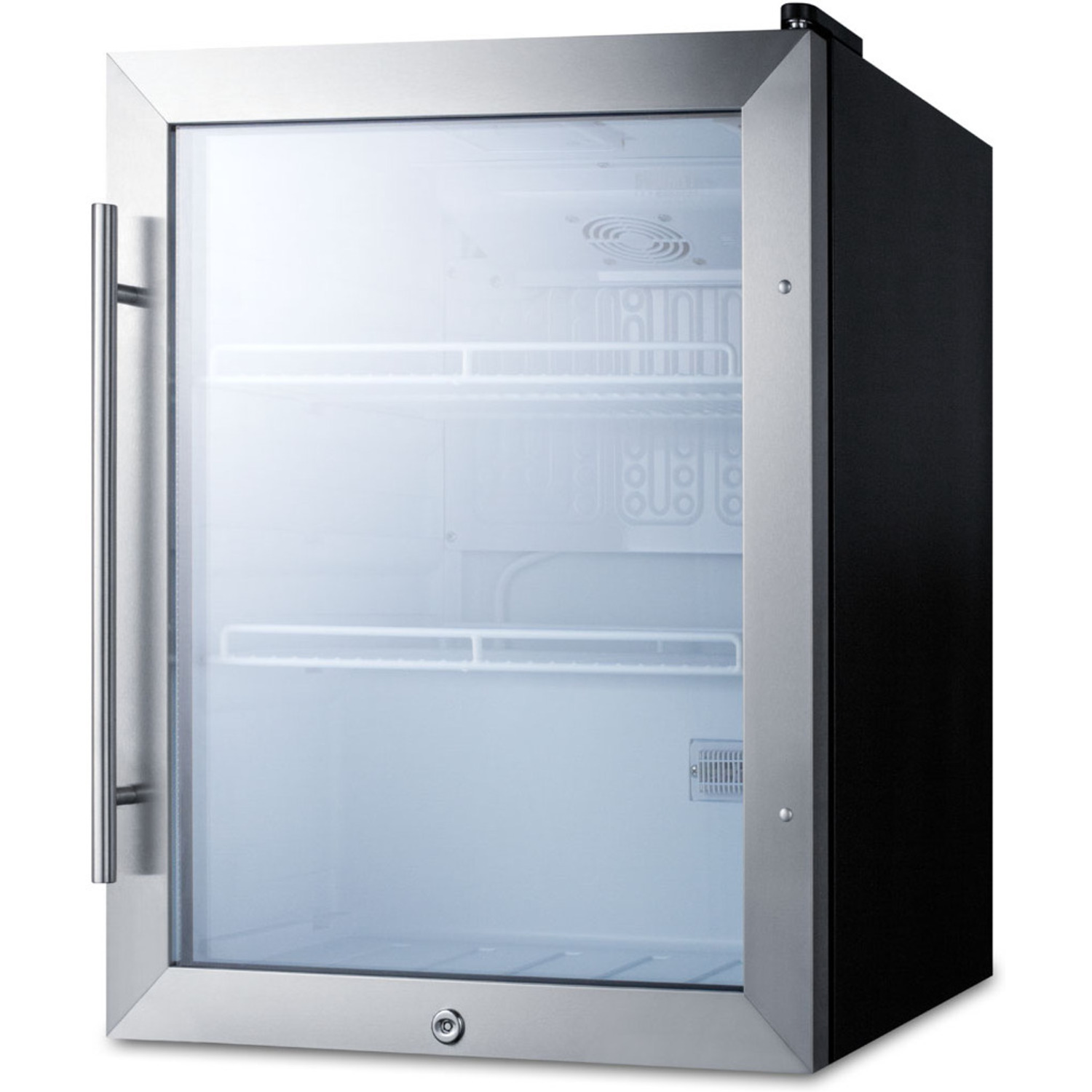

The SCR314L is a compact beverage merchandiser sized for use on top of counters. It is ETL-S listed to NSF-7 standards for commercial applications and meets UL-471. The stainless steel trimmed glass door includes a pro style handle and front lock for added security, while the jet black cabinet suits any setting. The door is user-reversible to accommodate any setup.

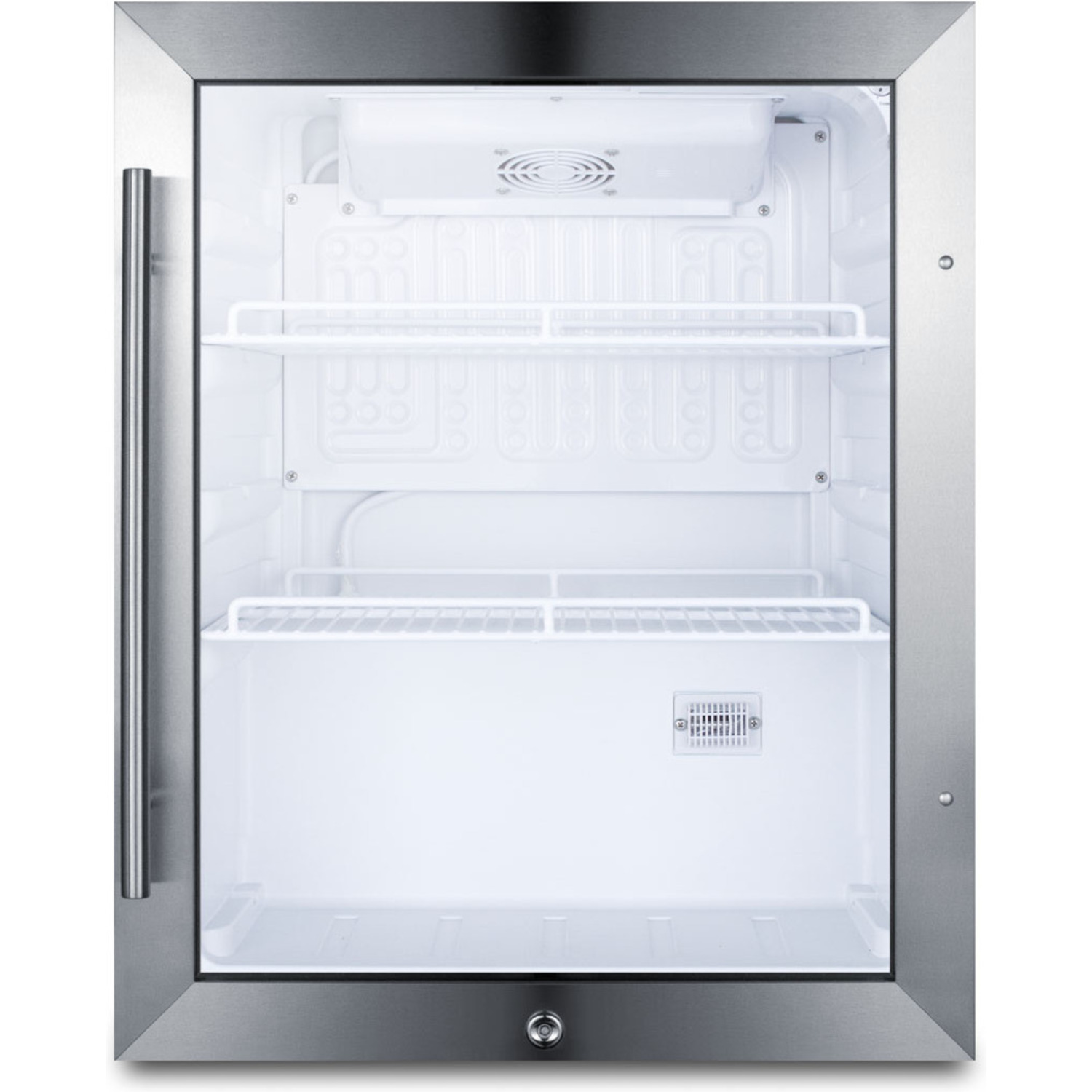

Inside, the SCR314L features LED lighting to provide an attractive display when the door is opened. Two adjustable wire shelves offer plenty of storage options, and the white interior finish helps to provide better visibility for stored products. This unit utilizes automatic defrost to reduce user maintenance. The sealed back offers added space savings and easier cleanup.

Perfectly sized and competitively priced, the SCR314L is a great choice for any commercial application in need of a quality beverage center.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.25" (62 cm)

Height to Hinge Cap 24.75" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.88" (48 cm)

Nominal Depth 17.0" (43 cm)

Depth 17.0" (43 cm)

Depth with Handle 18.38" (47 cm)

Depth with door at 90° 35.0" (89 cm)

Capacity 2.1 cu.ft. (59 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 53.0 lbs. (24 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101056647

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.71oz.

High Side PSI 320.0

Low Side PSI 120.0

Interior Light Yes

Temperature Range 34°F to 46°F/1 to 8ºC

Sound Level 33.5 dB

Dimensions

Interior Height 20.75" (53 cm)

Interior Width 15.75" (40 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 15.75" (40 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471

Double pane tempered glass door Heat-safe view for full visibility, with stainless steel trim for an attractive look

User-reversible door swing Door can be reversed to accommodate any setup

Professional handle Brushed stainless steel finish suits any setting

Factory installed lock Keyed lock offers added security (2 keys included)

Automatic defrost No-frost convenience for reduced user maintenance

Interior LED light Automatically illuminates when the door is open to provide an attractive and efficient view of stored contents

Adjustable shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Adjustable thermostat Dial thermostat located inside for easy use

Sealed back Closed rear offers easier cleanup

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR314L.pdf)

TECHNICAL DRAWING (.dwg) (SCR314L_BEVERAGE_CENTER__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_SCR314L_Compact_Beverage_Center.rfa)

USE & CARE (SCR314L-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)
