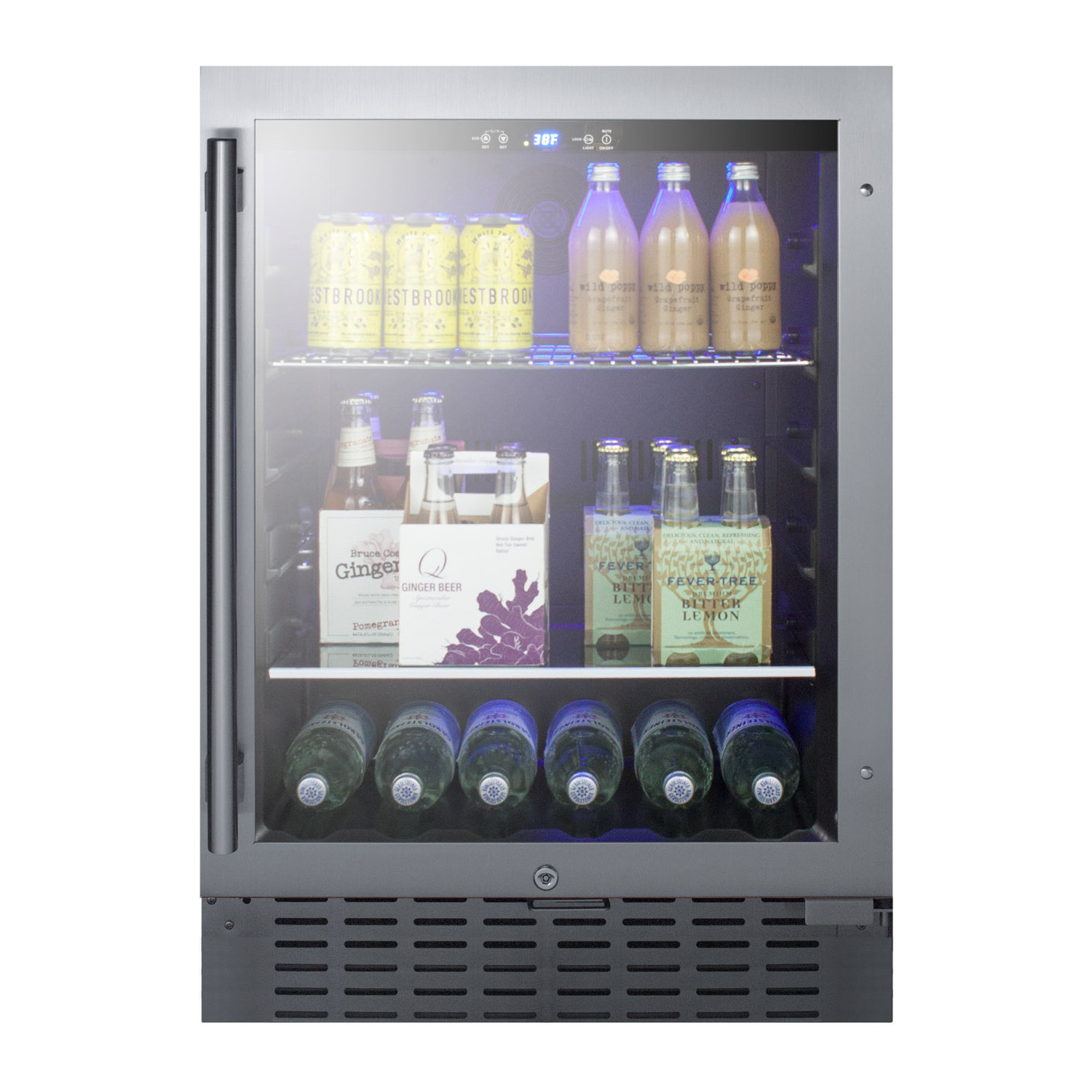

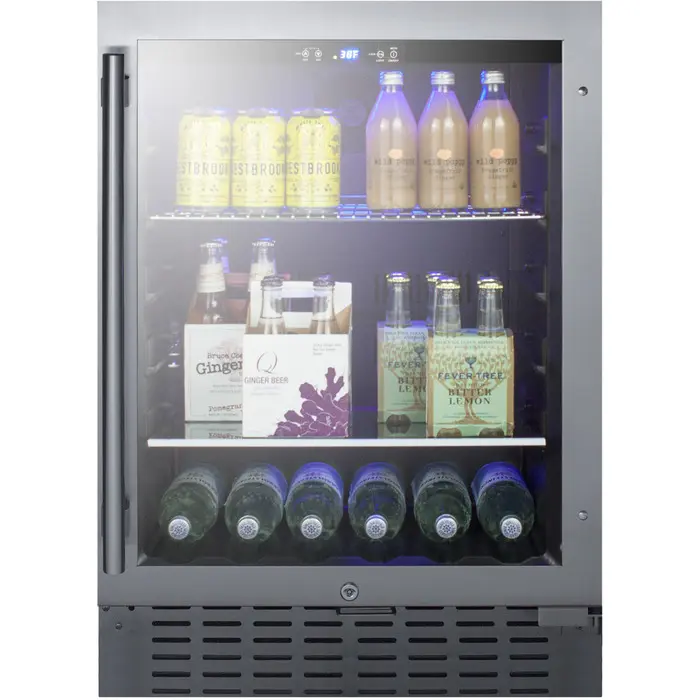

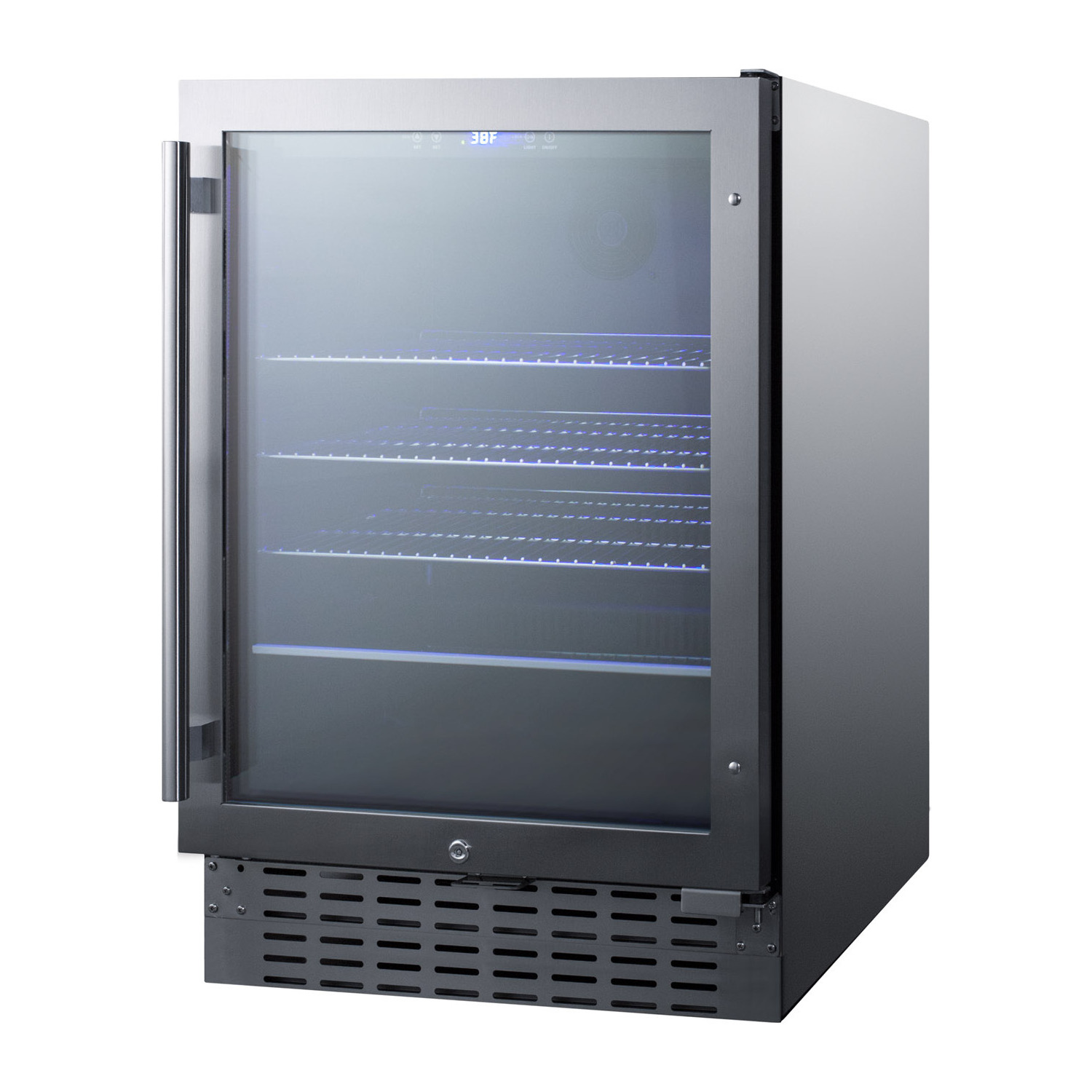

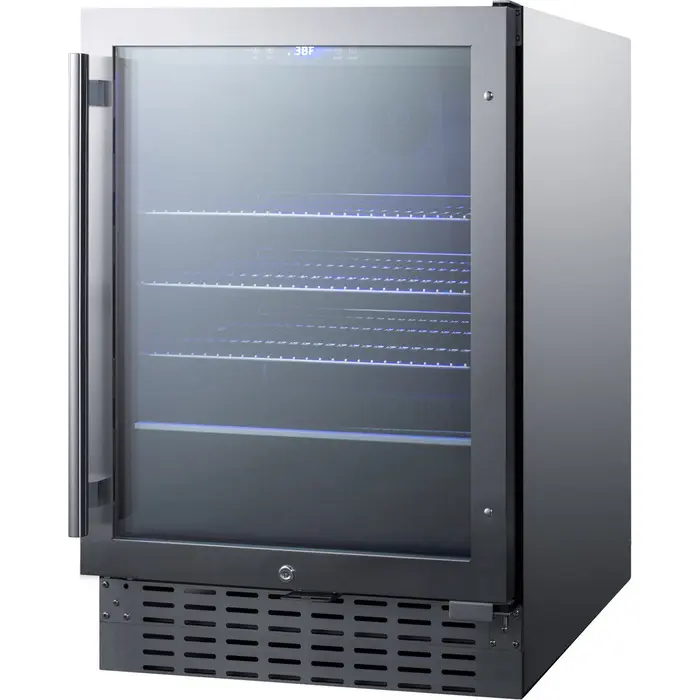

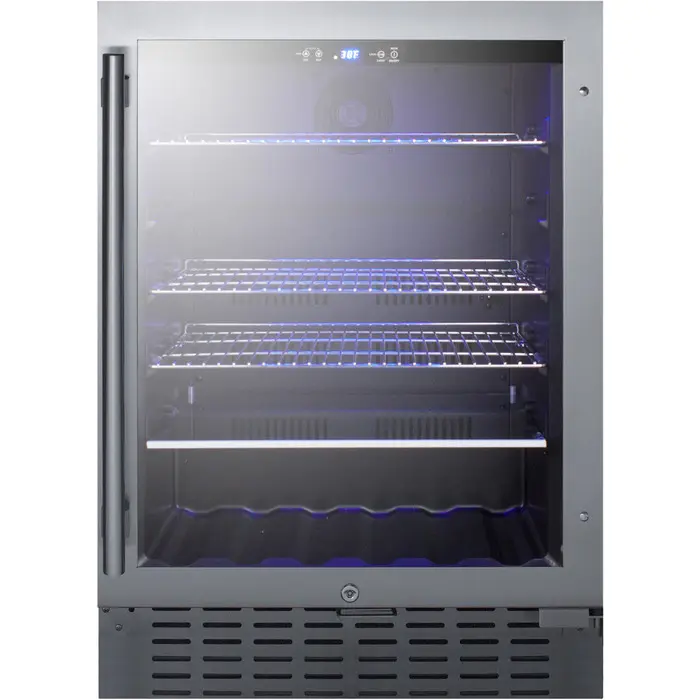

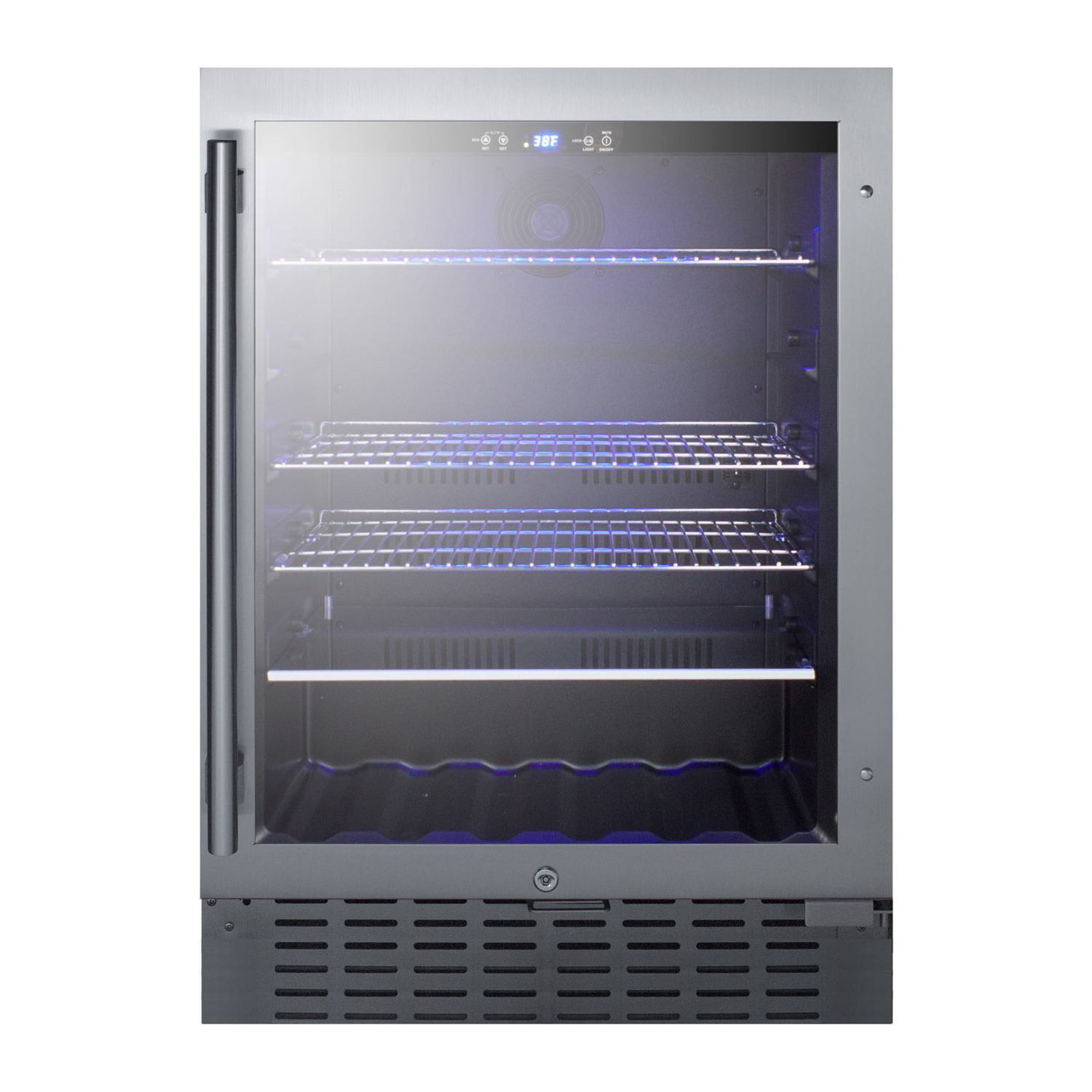

Summit Built-in undercounter beverage refrigerator with seamless trimmed glass door, digital controls, lock, and stainless steel cabinet, 7.61101e+011, SCR2466BCSS

With a dual-purpose design, the SCR2466BCSS can serve as a beverage cooler or refrigerator offering unmatched versatility for residential or commercial use.

The SCR2466BCSS is ETL-S listed to NSF-7 commercial standards and also meets residential standards. The front-breathing design allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel, while a stainless steel kickplate completes the look. A temperature alarm provides added security should the temperature go beyond the setpoint. The optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance.

Inside, the SCR2466BCSS has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 34 and 65ºF allows for a variety of beverage storage options. Three pull-out chrome shelves provide maximum storage capacity, while the fourth glass shelf allows for contents to be stood upright for added storage flexibility. The shelving brake system keeps the unit contents safe during loading and unloading, and the slotted floor ensures easy and safe storage of wine bottles. The soft LED lighting in a gentle blue hue offers an attractive and efficient presentation.

With its advanced user features and versatile design, the SCR2466BCSS is an excellent addition to any setting looking for a beverage cooler with a modern, elegant look. This unit can be paired with the SWC532BLBISTCSS wine cellar for a matching set.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.38" (59 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.75" (116 cm)

Capacity 4.2 cu.ft. (119 L)

Bottles 6 bottles

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 295.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 112.0 lbs. (51 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101067018

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass and Chrome

Shelf Qty 4

Adjustable Shelves Yes

Wine Bottle Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.23oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34 to 65ºF

Sound Level 34.4 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.0" (43 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 19.0" (48 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

Temperature alarm Alarm sounds if temperature goes out of recommended range after 2 hours

Fully finished stainless steel cabinet Allows unit to be used freestanding

Matching wine cellar available Pairs perfectly with the SWC532BLBISTCSS

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door User-reversible door swing makes it easy to best accommodate your setting

Commercially approved ETL-S listed to NSF-7 commercial standards

Built-in capable Front-breathing design allows the unit to be built-in under counters

Digital control panel Makes for easy temperature reading/management with electronic controls inside

Seamless door frame Single-piece door trim provides an elegant look

Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection

Factory installed lock Keyed lock for secure interior, with two keys included

Adjustable shelving Four shelves (3 wire, 1 glass) provide space and flexibility when organizing the interior’s contents

Brake system shelving Provides added safety when loading and unloading the unit's 4 shelves

Slotted floor Allows for easy storage of wine bottles

Dual-purpose functionality Versatile design allows unit to serve as a cooler or refrigerator

Automatic defrost Reduced maintenance with auto defrost system

Interior lighting Soft LED lighting allows for easy viewing of interior contents while maintaining an elegant feel

Professional handle Stainless steel handle adds style to any setting

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR2466BCSS.pdf)

TECHNICAL DRAWING (.dwg) (SCR2466B_BEVERAGE_CENTER__A-C_2018__2.dwg)

USE & CARE (SCR2466BCSS-User-Manual.pdf)

Energy Guide
