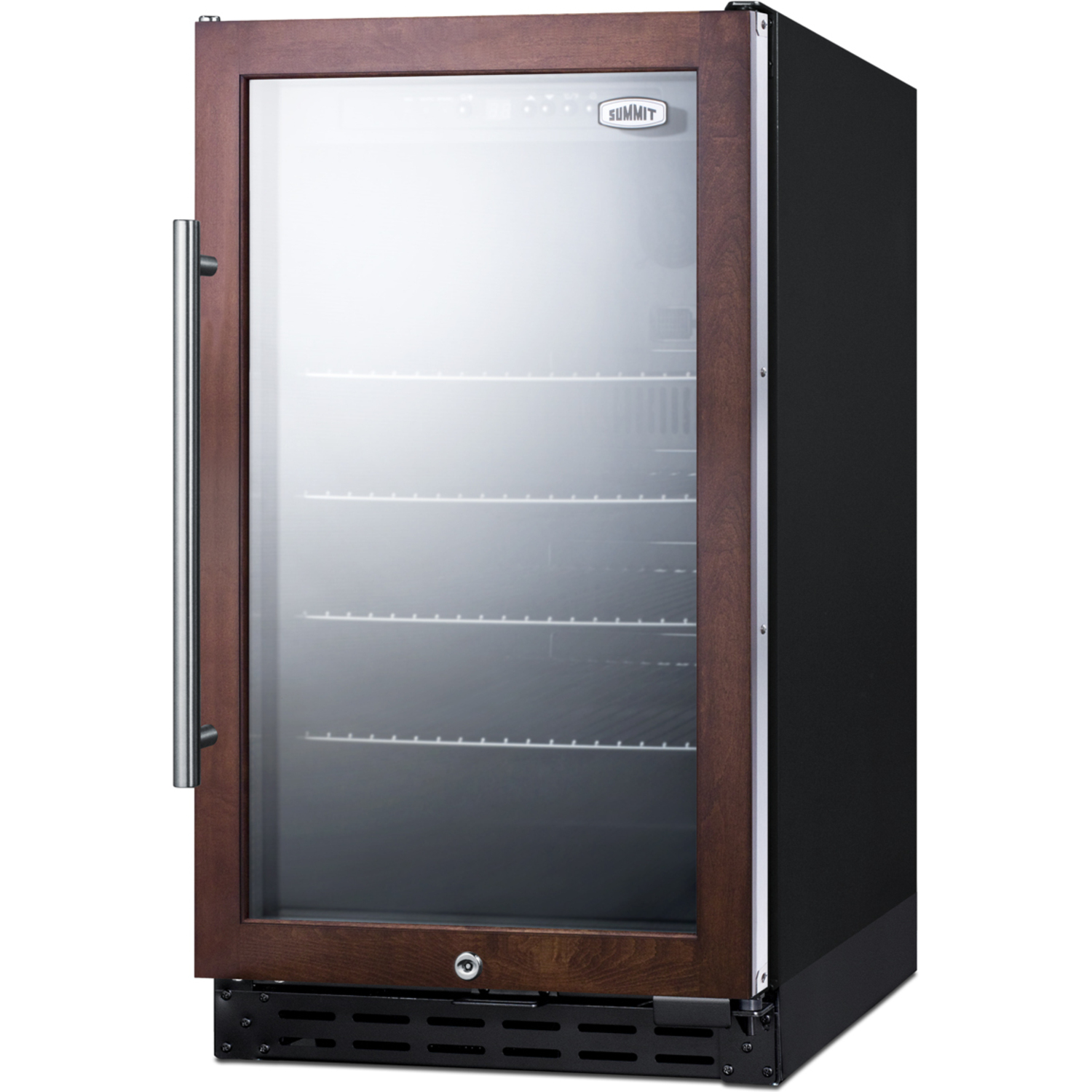

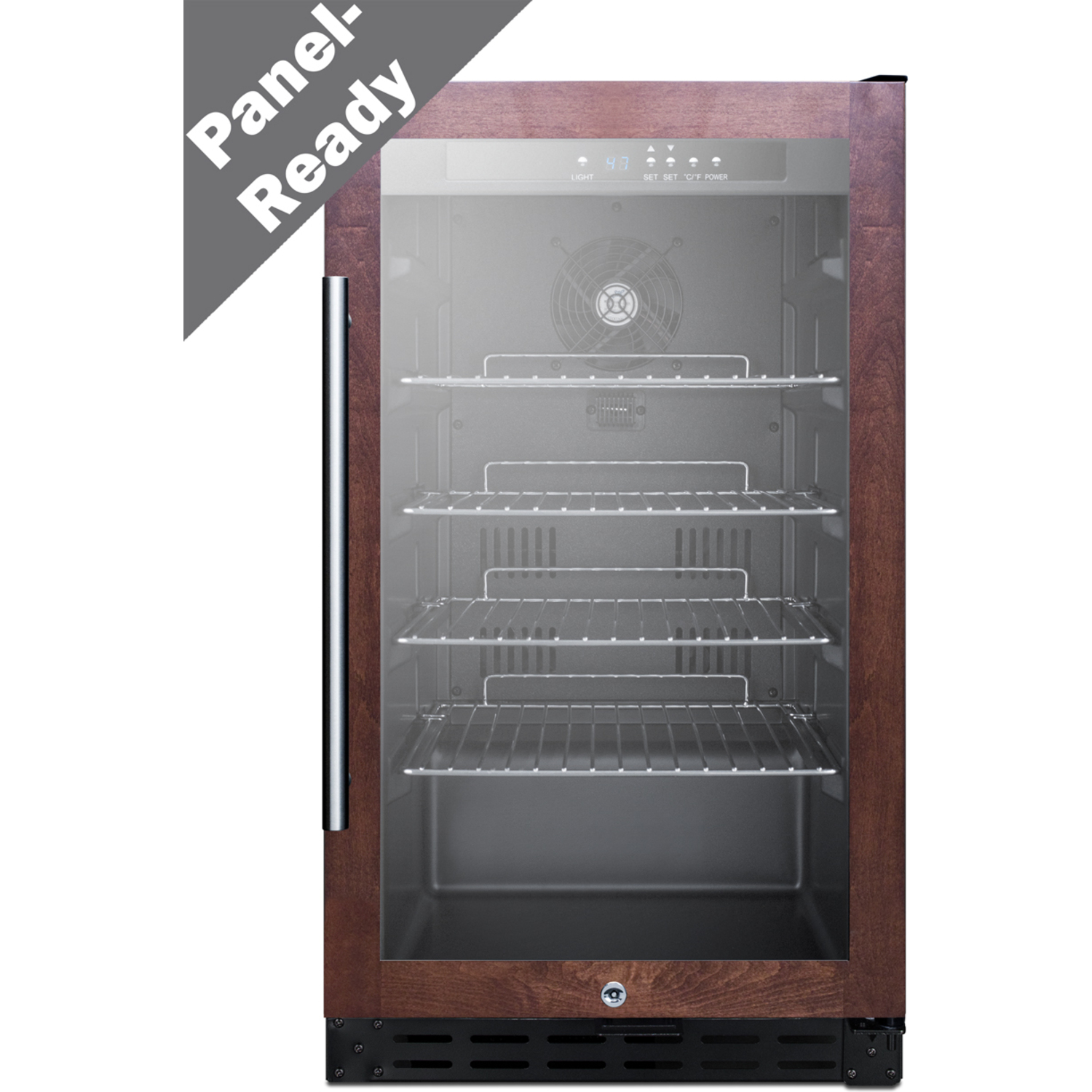

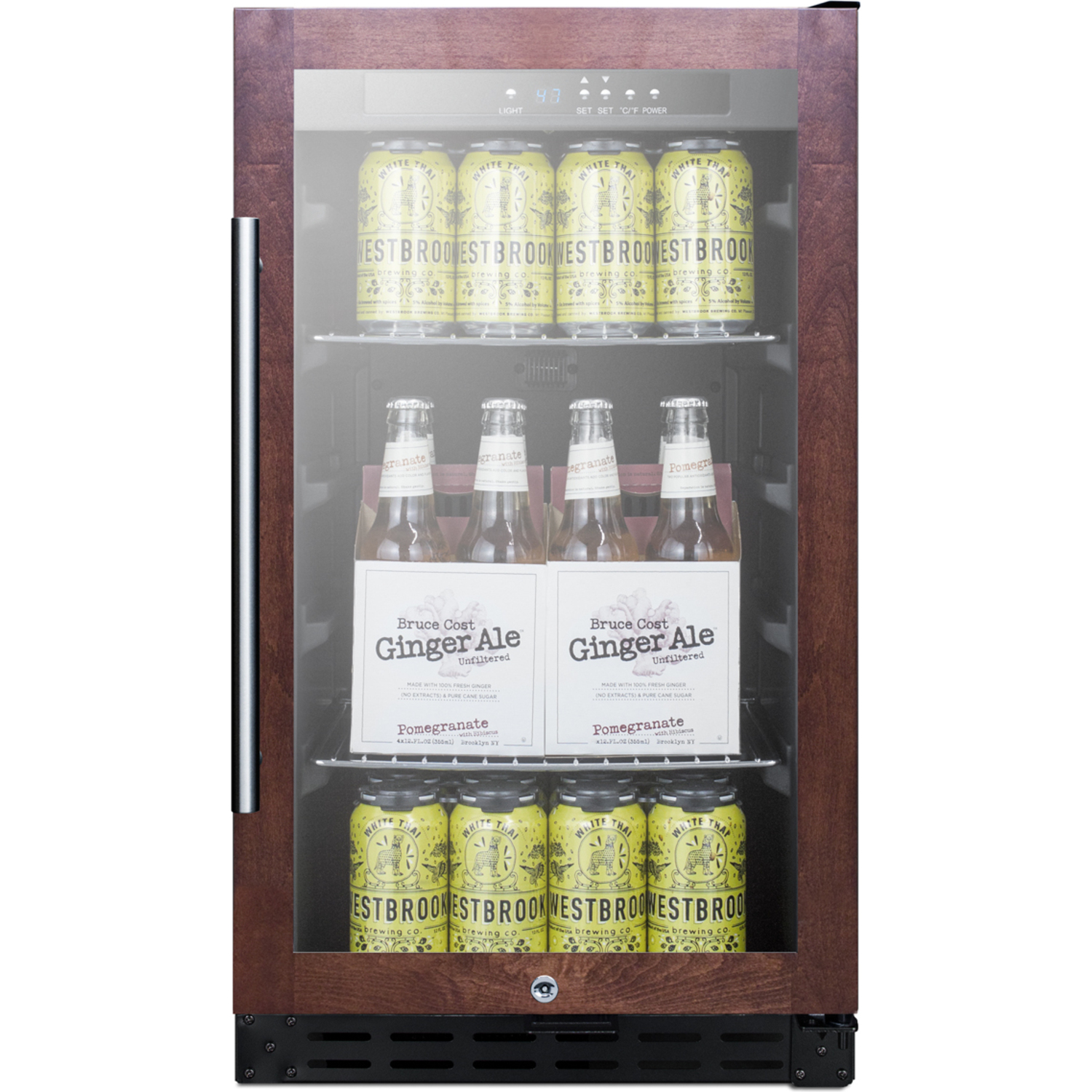

Summit 18 inch wide built-in undercounter ADA compliant panel-ready all-refrigerator, 7.61101e+011, SCR1841BPNRADA
$1,480.46
Retail Price: $2,175.00
Shipping: $151.65
$ 1,480.46
Description
SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.
The SCR1841BPNRADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD. Users provide their own handle.
Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BPNRADA can be paired with our matching wine cellar, see the SWC1840BPNRADA. For this unit in a counter height, see the SCR1841BPNR.
Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.75" (81 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 284.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073668
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Sound Level 34.2 dB
Dimensions
Interior Height 21.5" (55 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.75" (12 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
FEATURES
ADA compliant 32" height is designed to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Panel-ready door trim Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
Glass door Double pane tempered glass to provide an elegant display with added protection
Factory installed lock Keyed security on the door
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
LED lighting Gentle illumination with an on/off switch
Automatic defrost Reduced maintenance with the convenience of auto defrost
Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back Space saving design
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
USE & CARE (SCR1841BPNRADA-User-Manual.pdf)
MSDS INFORMATION (R600a_K.pdf)
Energy Guide
