Summit 18 inch wide built-in undercounter glass door all-refrigerator with a stainless steel wrapped cabinet and lock, 7.61101e+011, SCR1841BCSS

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

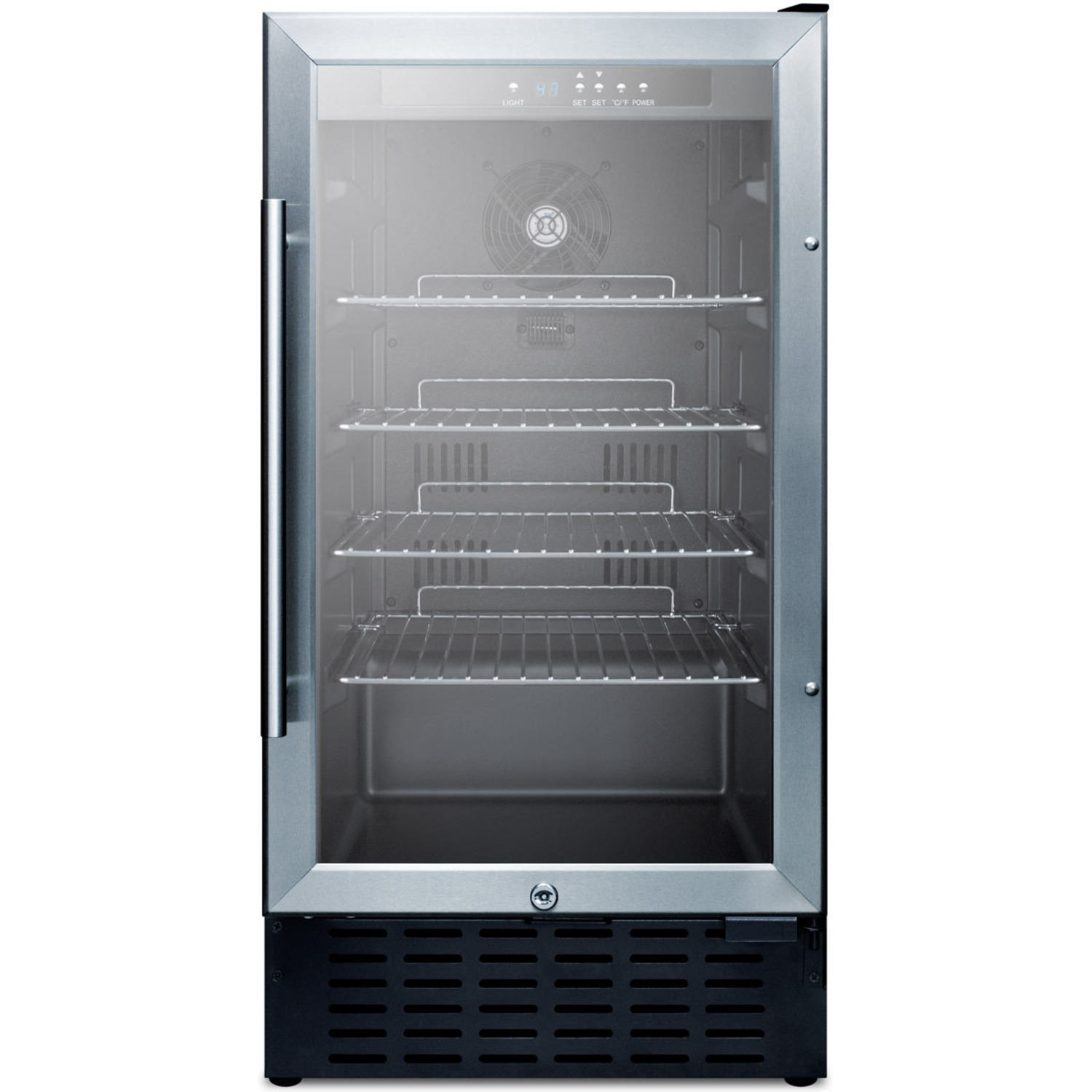

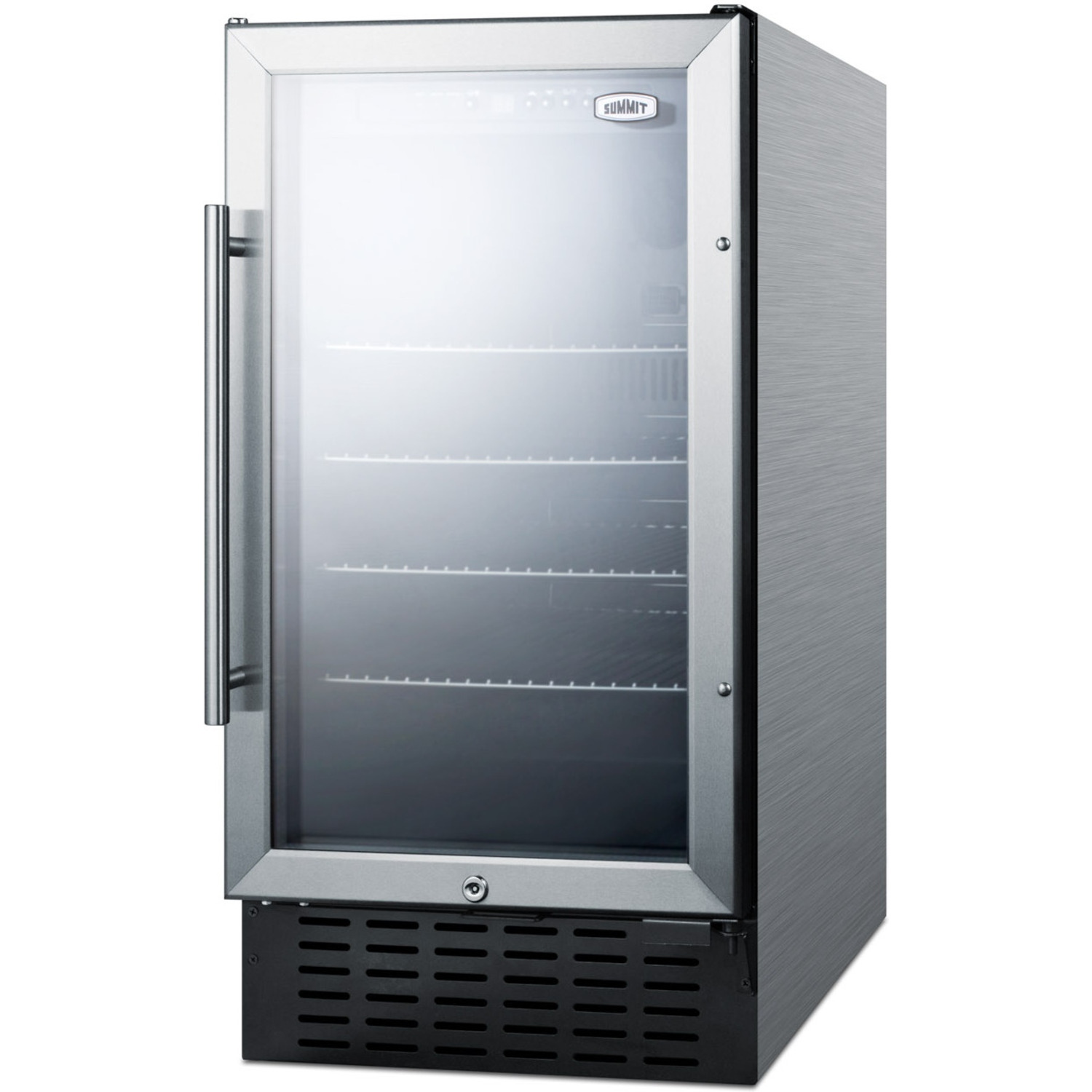

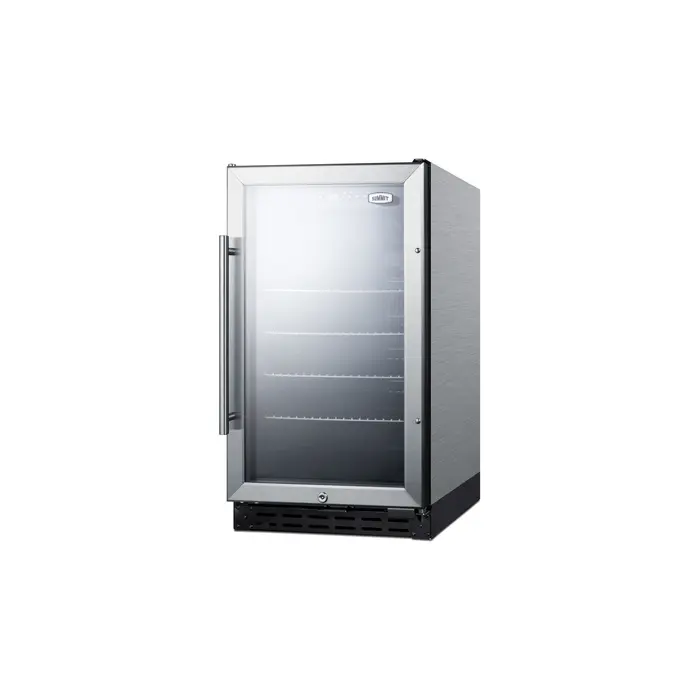

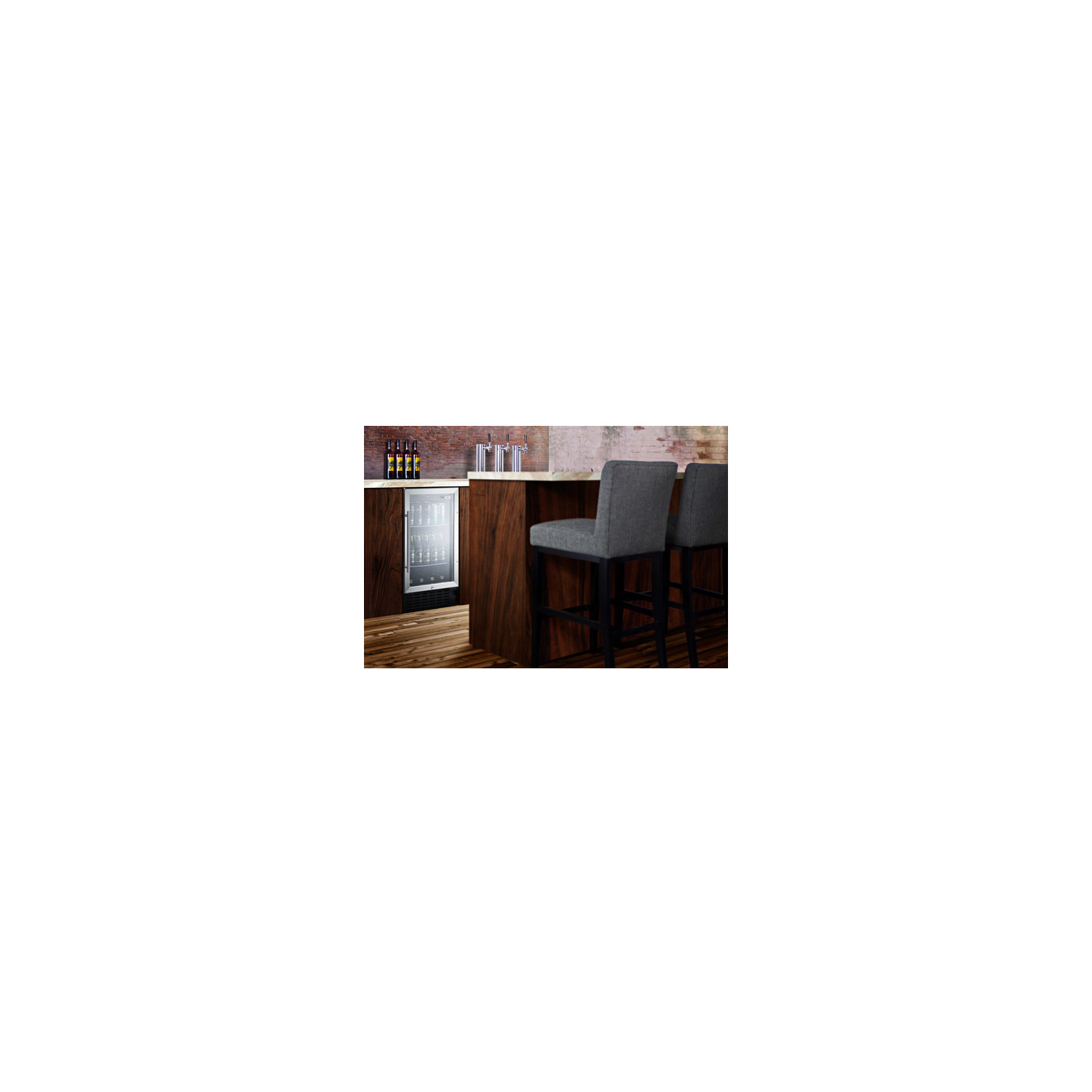

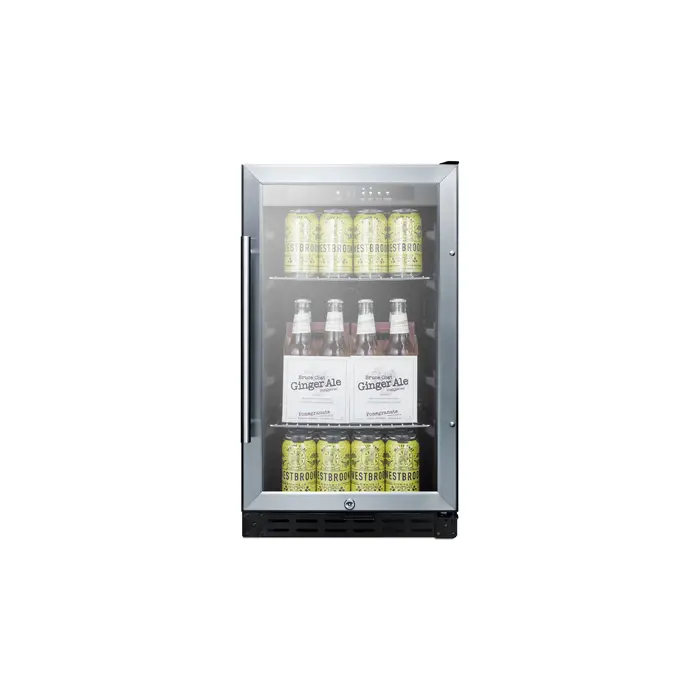

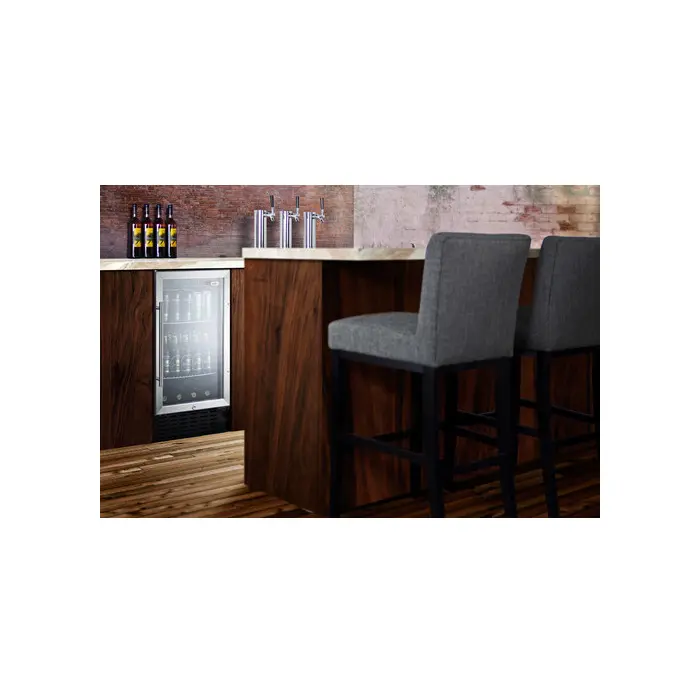

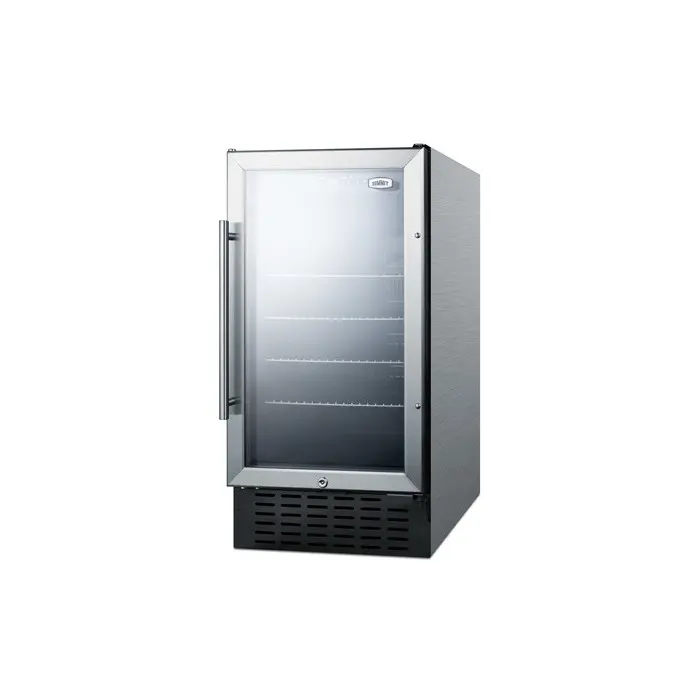

The SCR1841BCSS is an 18" wide all-refrigerator designed for use in residential settings. The front-breathing system allows built-in installation under counters, while the fully finished cabinet also allows freestanding use. The reversible stainless steel trimmed door includes a factory installed lock and a professional style handle. This unit comes with a wrapped stainless steel cabinet and triple pane tempered glass door for heat-safe storage.

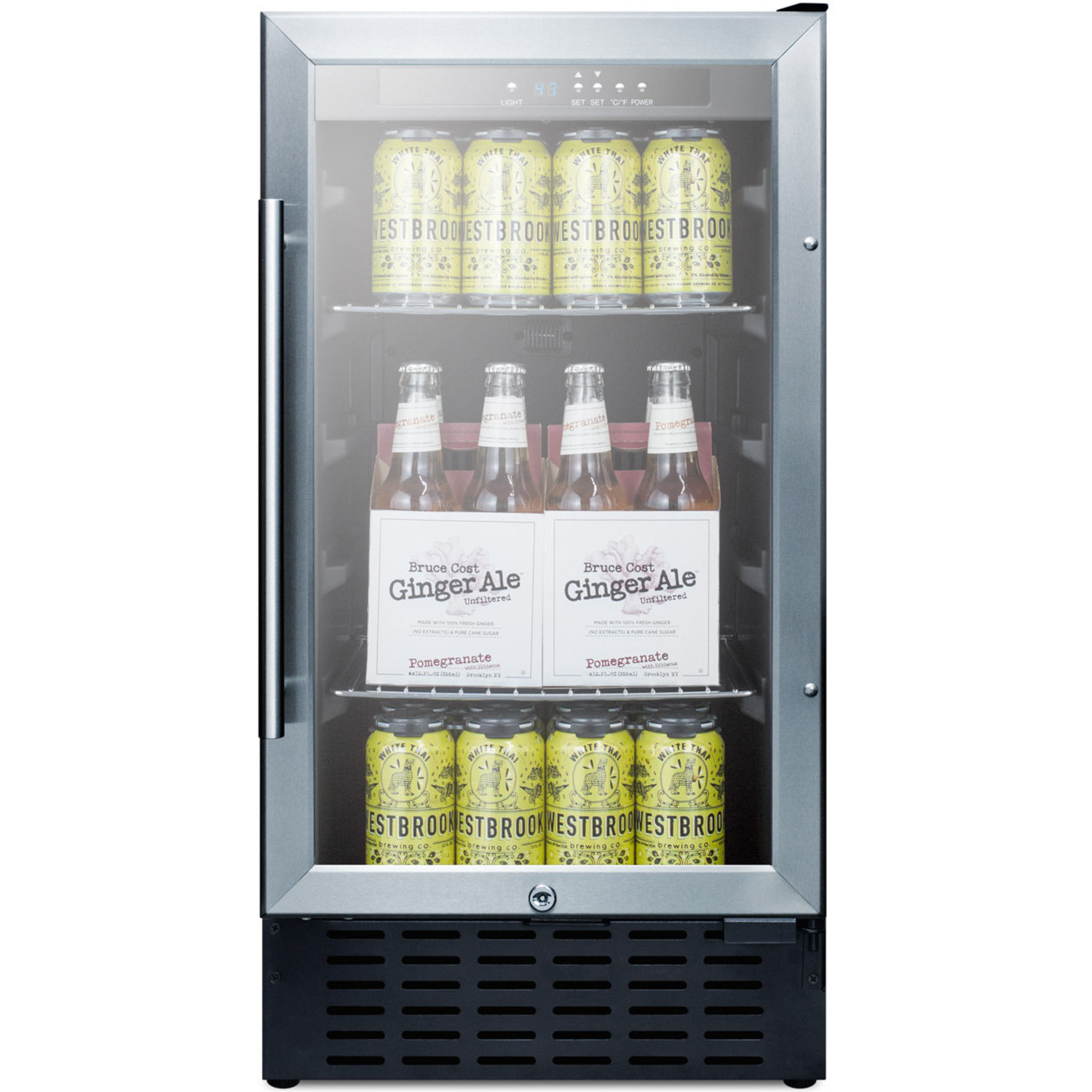

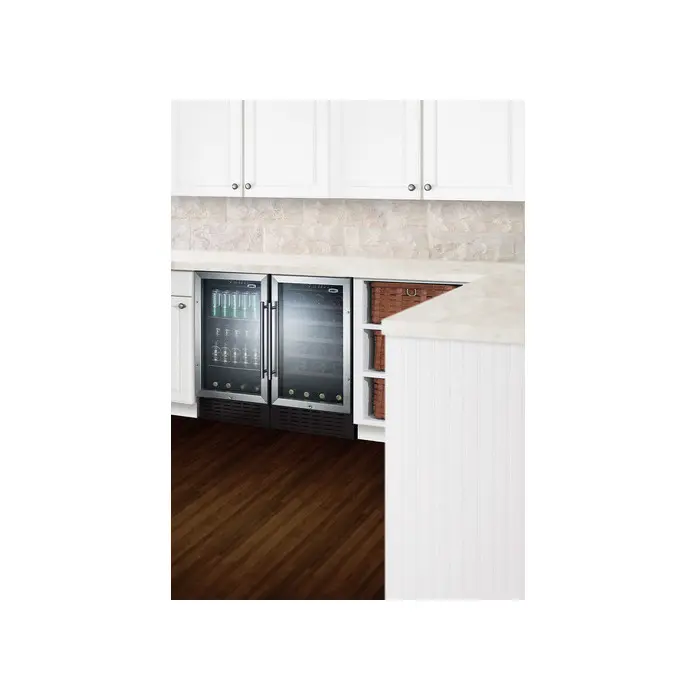

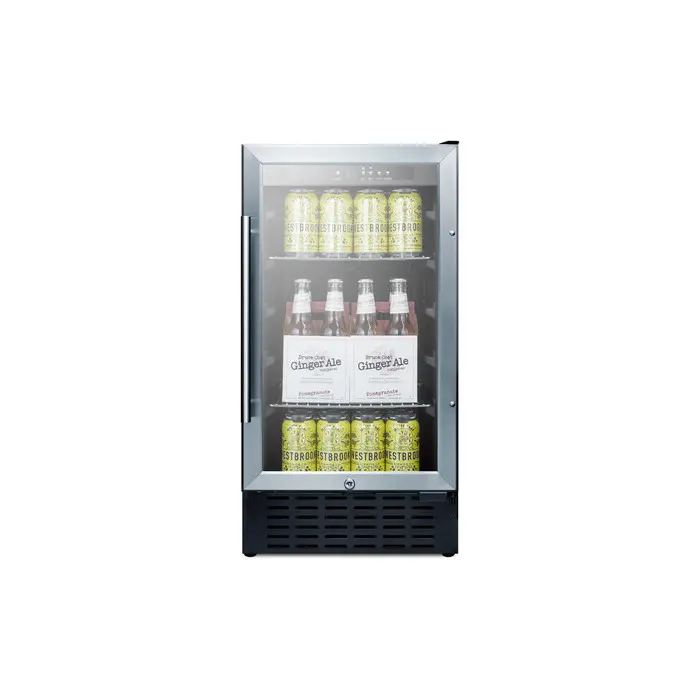

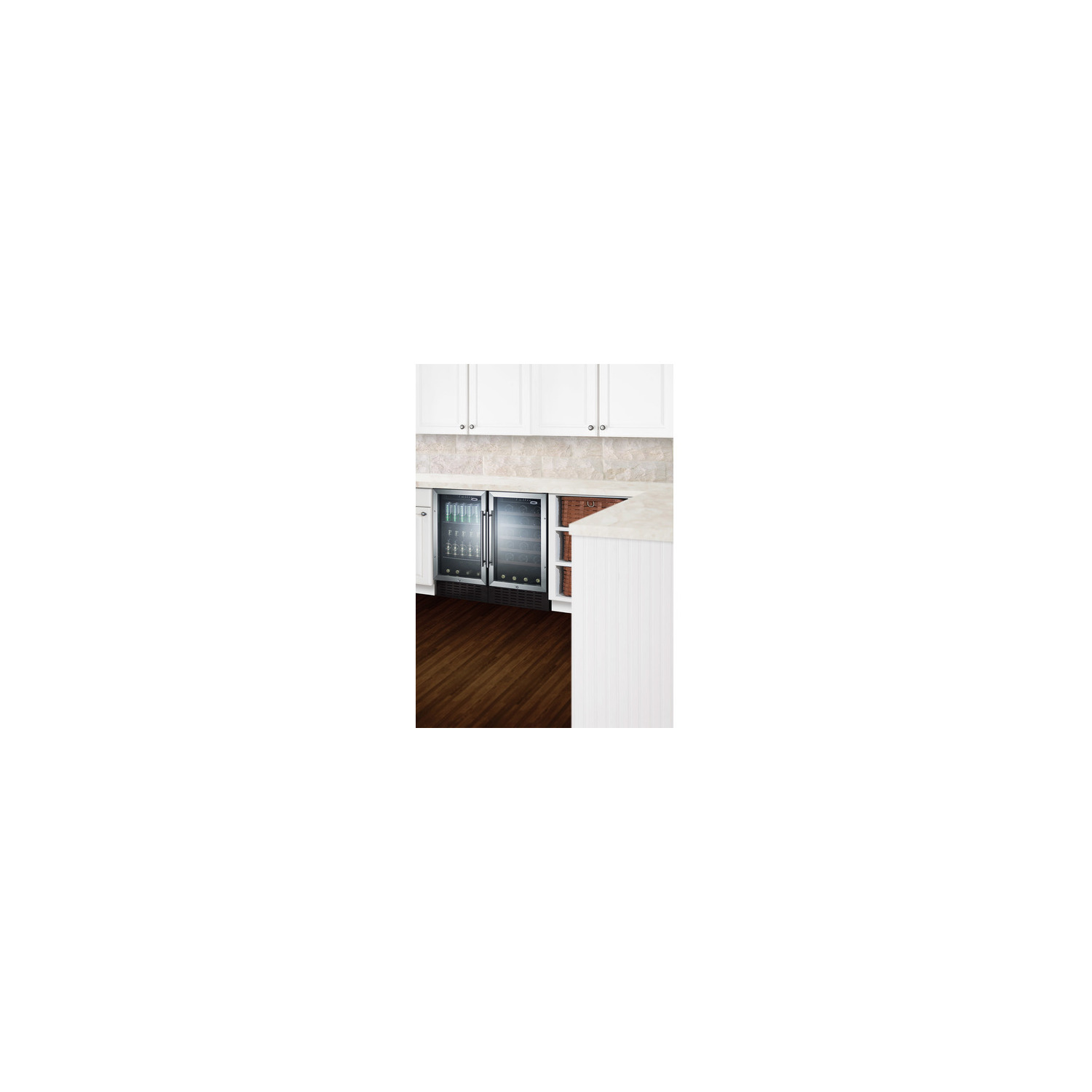

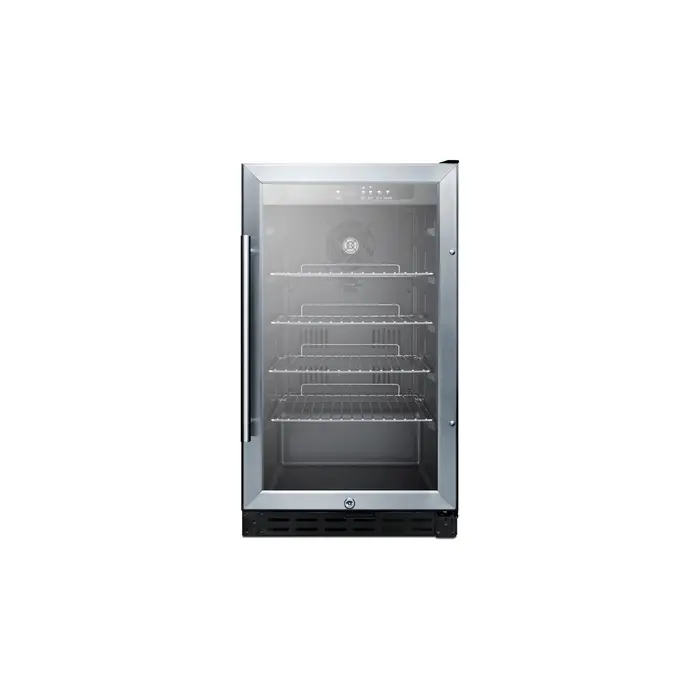

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BCSS is also available in a 32" height for use in ADA compliant settings (see the SCR1841BCSSADA) and can be paired with our matching wine cellar, model SWC1840BCSS.

In addition to this unit, Summit offers a full collection of 18" wide undercounter choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 18.0" (46 cm)

Width 17.94" (46 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 284.0kWh/year

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 103.0 lbs. (47 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101050805

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34º to 64ºF

Sound Level 34.2 dB

Dimensions

Interior Height 21.0" (53 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 4.75" (12 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Built-in capable Make the best use of space by installing your appliance under the counter

Stainless steel wrapped cabinet Fully wrapped stainless steel exterior cabinet for lasting durability

Stainless steel trimmed triple pane tempered glass door Full display with a heat-safe glass door that keeps all stored items in view

Factory installed lock Keyed lock for a secure interior

Automatic defrost Reduced maintenance with auto defrost system

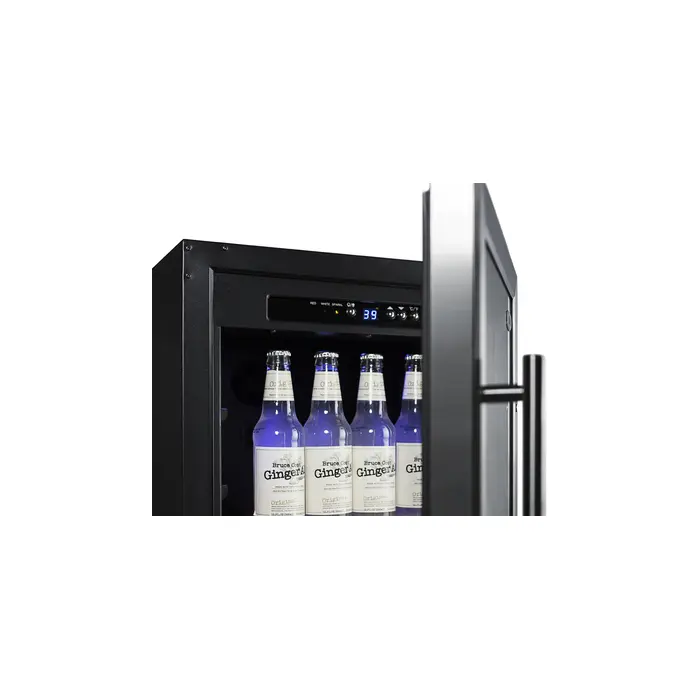

Digital thermostat Electronic controls for precise temperature management.

LED lighting Gentle illumination with an on/off switch

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back Space saving design

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1841BCSS.pdf)

TECHNICAL DRAWING (.dwg) (SCR1841B_BEVE._CENTER__A-C_2000__2.dwg)

USE & CARE (SCR1841BCSS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
