Summit 18 inch wide ADA compliant glass door refrigerator for built-in or freestanding use, with digital controls, lock, and LED light, 7.61101e+011, SCR1841BADA

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

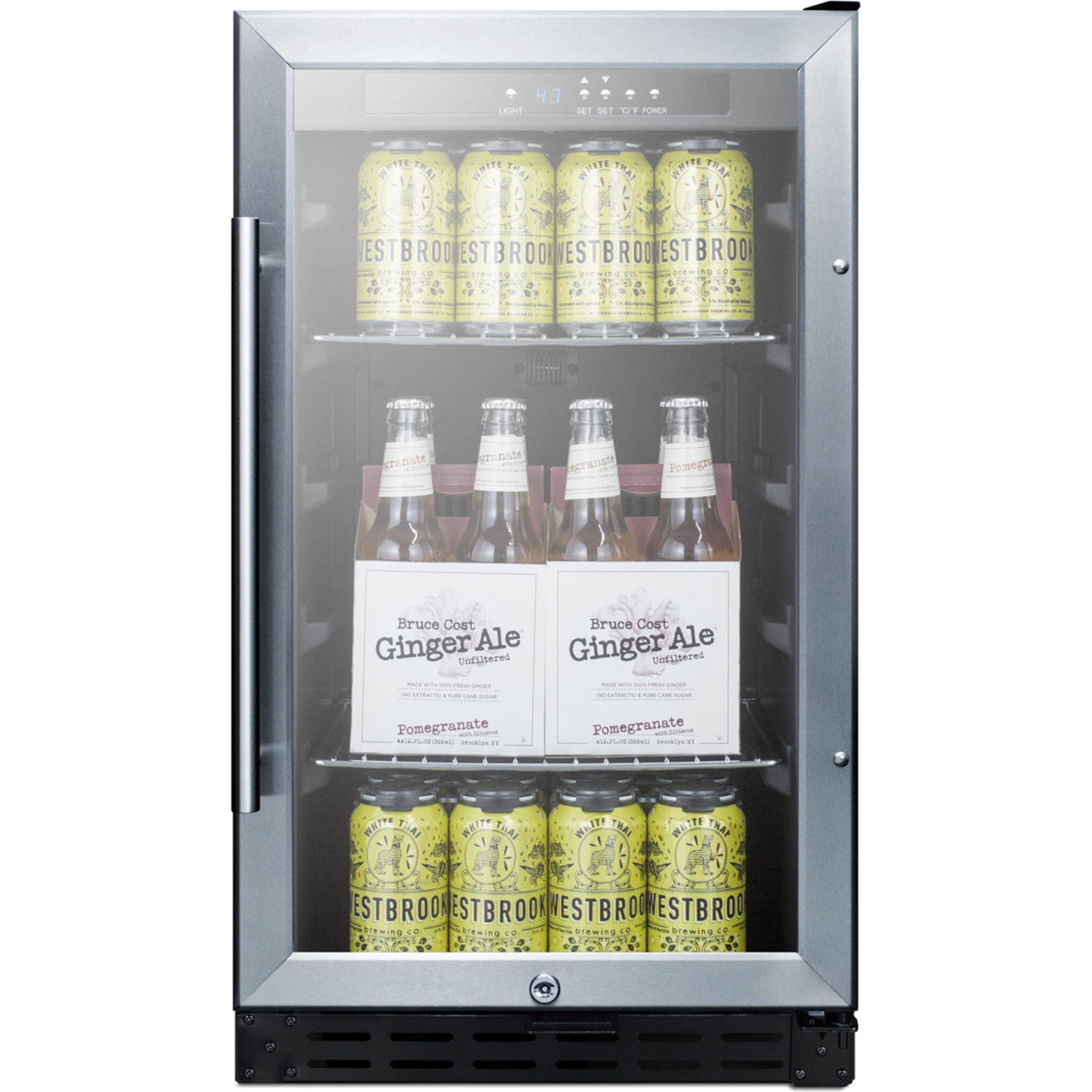

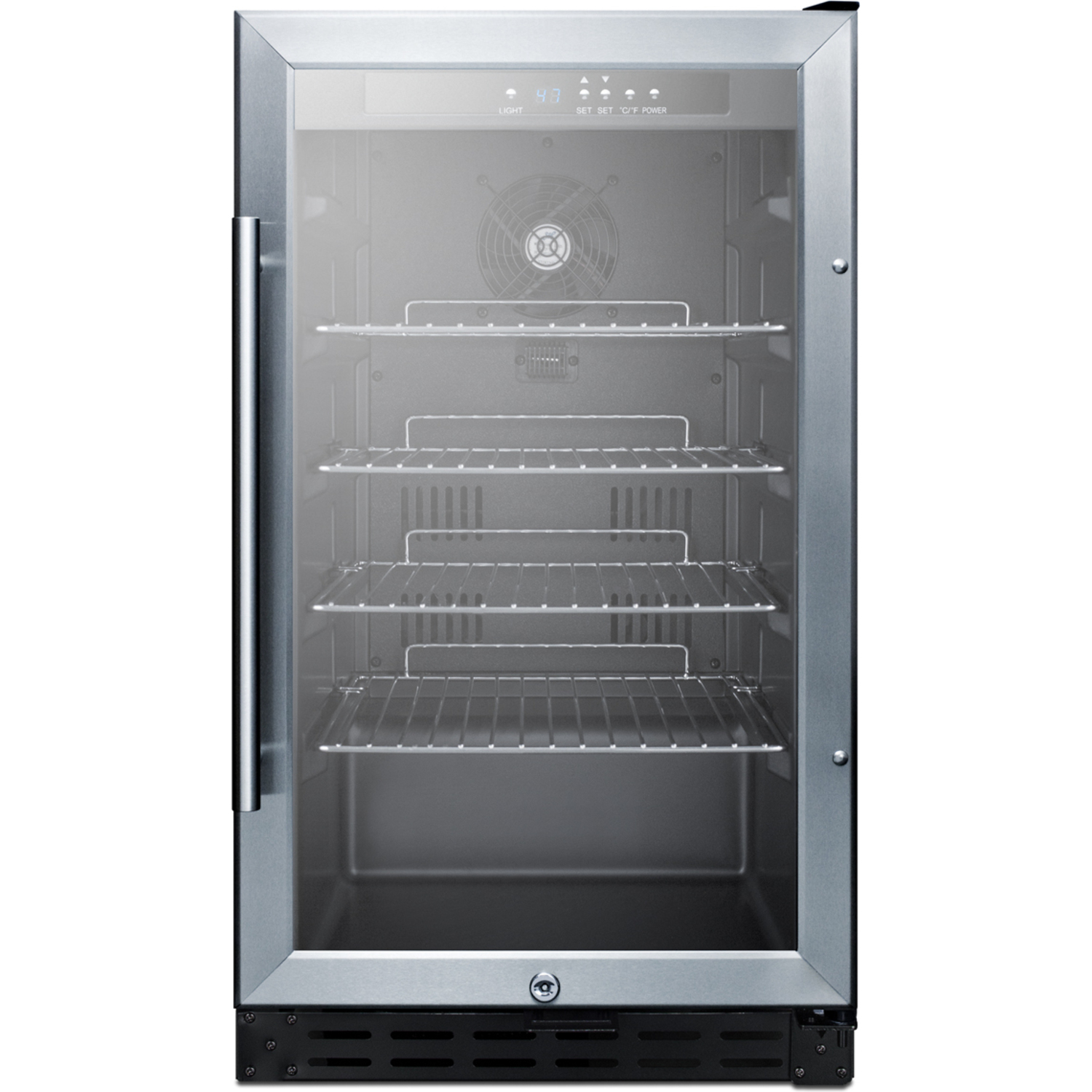

The SCR1841BADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a user-reversible stainless steel trimmed triple pane tempered glass door for safe storage. A professional handle and factory-installed lock are included.

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management.

In addition to this unit, Summit offers a full collection of 18" wide ADA compliant choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.75" (81 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.25" (64 cm)

Depth with door at 90° 39.75" (101 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 284.0kWh/year

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 85.0 lbs. (39 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101050799

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34º to 64ºF

Sound Level 34.2 dB

Dimensions

Interior Height 21.5" (55 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 4.75" (12 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

ADA compliant 32" height is designed to fit under lower ADA compliant counters

Built-in capable Make the best use of space by installing your appliance under the counter

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Stainless steel trimmed triple pane tempered glass door Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock Keyed security on the door

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Automatic defrost Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Reversible door User-reversible door swing for added flexibility

Professional handle Stainless steel look for added elegance

Flush back Space saving design

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1841BADA.pdf)

TECHNICAL DRAWING (.dwg) (SCR1841BADA_BEVE._CENTER__A-C_2000_.dwg)

REVIT MODEL (QF_Summit_SCR1841BADA_Glass_Door_Refrigerator.rfa)

USE & CARE (SCR1841BADA-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
